  1. FM CONVERTER

  2. Team Members Dan Harkins Team Leader George Henry Dr. Georgios Lazarou Advisor Beau Blackwell Shawn Welch

  3. Team Responsibilities

  4. Project Significance • Car radios do not have audio inputs • Many cars only have a CD or cassette player • FM converter can be used with FM radio • Keeps the owner from having to buy and install entire audio system

  5. Current Technology Options • Cassette adapters are the most widely used means to play one audio device through another • Cassette Player Adapters • Existing tape player needed • Excess wiring can get in the way • Limited signal quality

  6. Design Diagram Signal from Audio Device Process Signal (Convert to FM Signal) Transmit Converted FM signal to FM receiver

  7. Implementation

  8. Design Specifications • 1. Operating Frequency:Operate throughout on the standard FM radio range (87.9-107.9 MHz) 2. Weight:Target weight is eight ounces • 3. FCC Requirements: Must be compliant with Part 15 of FCC regulations • 4. Signal Clarity:The unit will be able to broadcast a stereo • signal through the air 5. Packaging: Final product will be approximately 5” x 3” x 3” • 6. User Interface: The unit will feature: • push-button style tuner • LCD to display the operating frequency • Input signal LED

  9. Design Specifications • 7. Durability: Must be resilient to the bumps • and bruises that can occur to a portable device. • 8. Power Requirements: Will operate off: • Four AA batteries • AC converter • 12V DC Adapter • 9. Cost: • Prototype Components: $80 – 90 • Mass production costs approximately • 10- 20% of our prototype cost • 10. Audio Input: The converter will use RCA audio inputs.

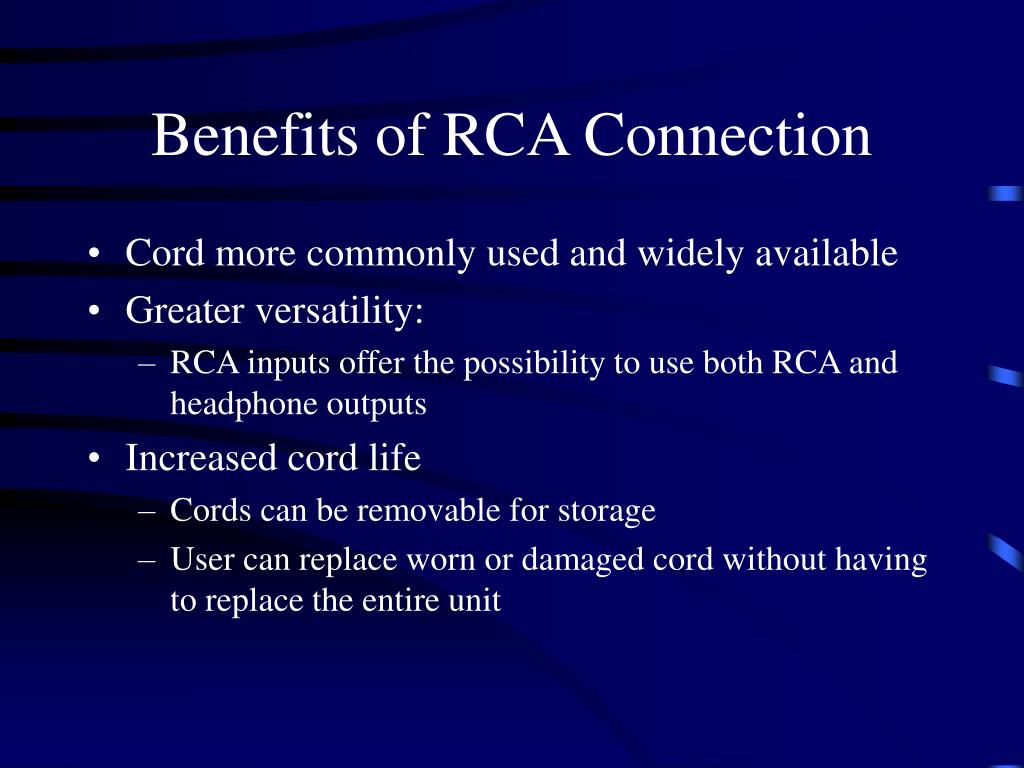

  10. Benefits of RCA Connection • Cord more commonly used and widely available • Greater versatility: • RCA inputs offer the possibility to use both RCA and headphone outputs • Increased cord life • Cords can be removable for storage • User can replace worn or damaged cord without having to replace the entire unit

  11. Benefits Over Tape Adapters • Portability • No wires to connect to FM receiver • Light-weight • Can be used with any FM receiver • Signal Clarity • No tape “hiss” • Low interference • Automotive design minimizes interference

  12. Benefits of FM vs. AM • More widely used than AM radio • Consumers more familiar with FM dial • Better signal to noise ratio • Less interference than AM radio • Nearby electronic devices can cause “noise” • Even weather can cause static on AM radio

  13. Typical Decibel S/N Ratios

  14. Test Specifications

  15. Simulation

  16. Research Prototype Simulation Performance Testing Debugging Final Documentation

  17. FM CONVERTER
