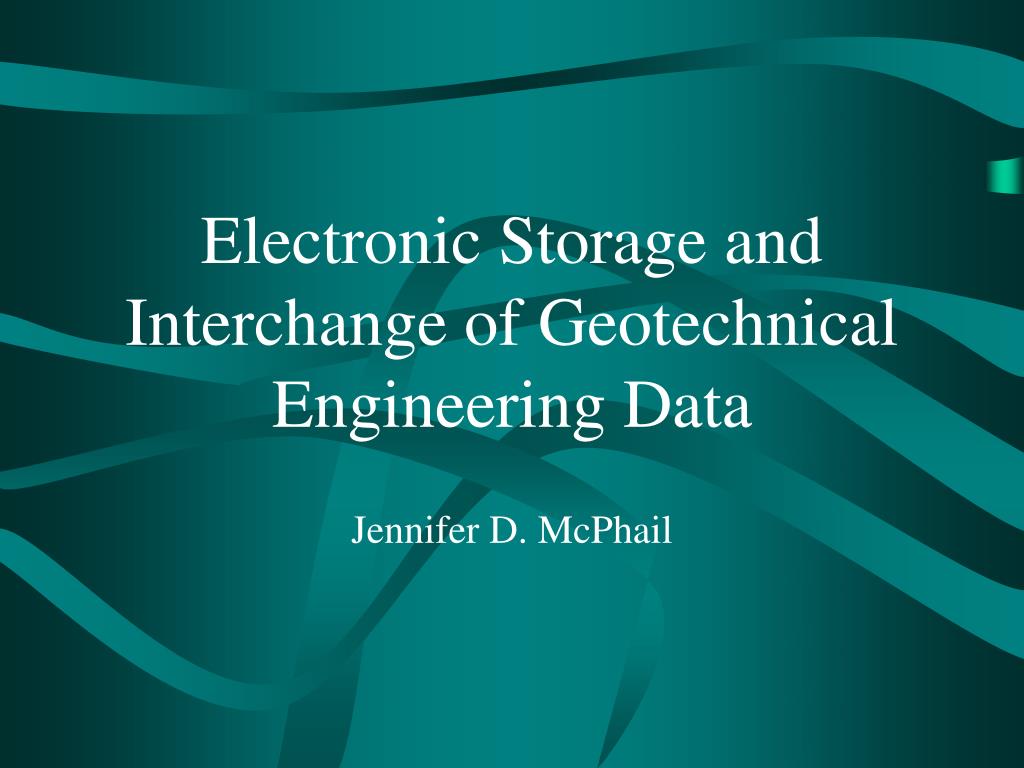

  1. Electronic Storage and Interchange of Geotechnical Engineering Data Jennifer D. McPhail

  2. Geotech XML (GML) Project • What the GML Project is. • Why the GML Project is so important. • The capabilities of the GML Project. • Fruition of the GML Project.

  3. Contributions to the Project • Provided a global review of the current state of affairs concerning geotechnical data processing. • Established a need for a standard concerning the storage and transfer of geotechnical engineering data. • Identified geotechnical data sources and the geotechnical data interchange process. • Established design goals. • Proposed a standard. • Identified the logical structure of geotechnical data. • Identified core tags of the GML language. • Recognized privacy and authenticity issues concerning geotechnical data. • Proposed the method to continue the GML language by adding “fourth level tags”.

  4. XML

  5. Geotechnical Data Sources • Office • Field • Laboratory

  6. Office • Bid proposals • Project planning and scheduling • Work delegation • Project design • Decision-making • Computations performed

  7. Field • Plans implemented • Progress takes place • Site characterization • Investigations performed • In-situ soil tests performed • Samples obtained • Tests conducted

  8. Laboratory • Data generated • Data analyzed • Data produced

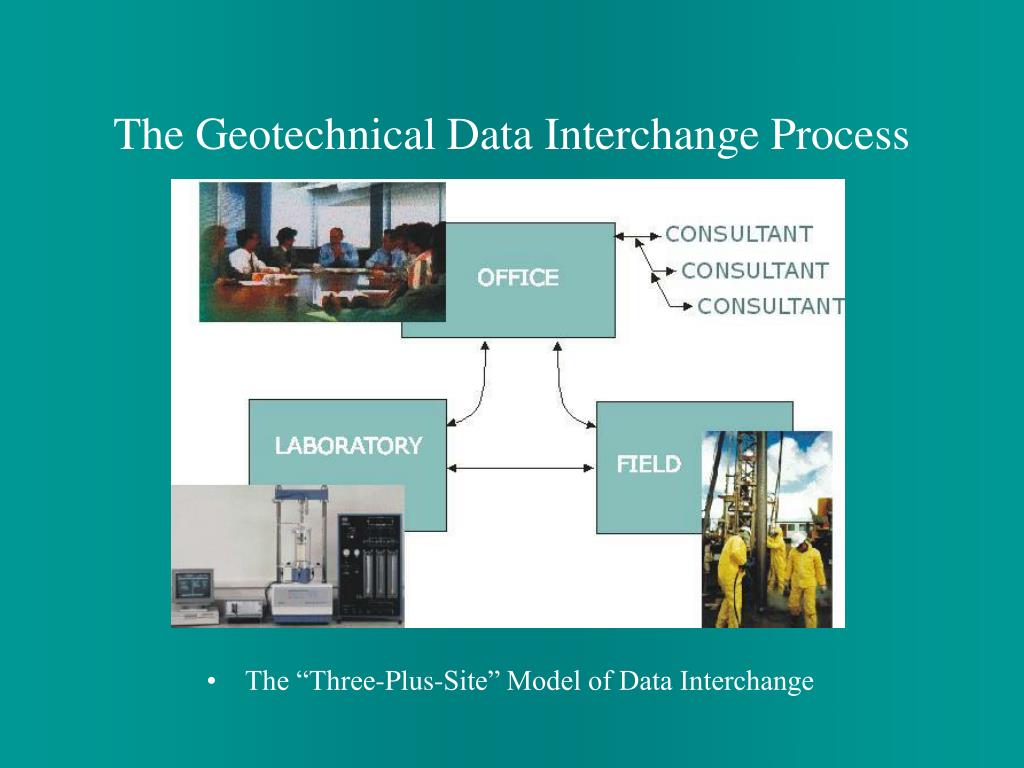

  9. The Geotechnical Data Interchange Process • The “Three-Plus-Site” Model of Data Interchange

  10. Future Scenario Better Judgements for the Continuation of the Project Data Made Publicly Available Data Captured for Research

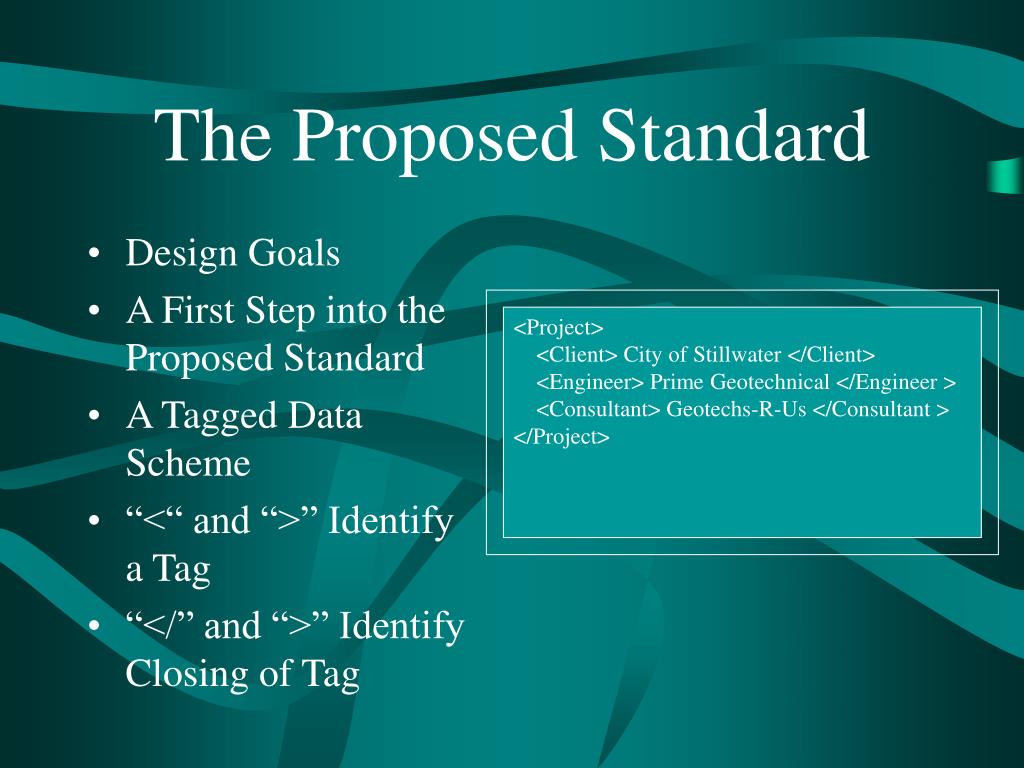

  11. Design Goals A First Step into the Proposed Standard A Tagged Data Scheme “<“ and “>” Identify a Tag “</” and “>” Identify Closing of Tag <Project> <Client> City of Stillwater </Client> <Engineer> Prime Geotechnical </Engineer > <Consultant> Geotechs-R-Us </Consultant > </Project> The Proposed Standard

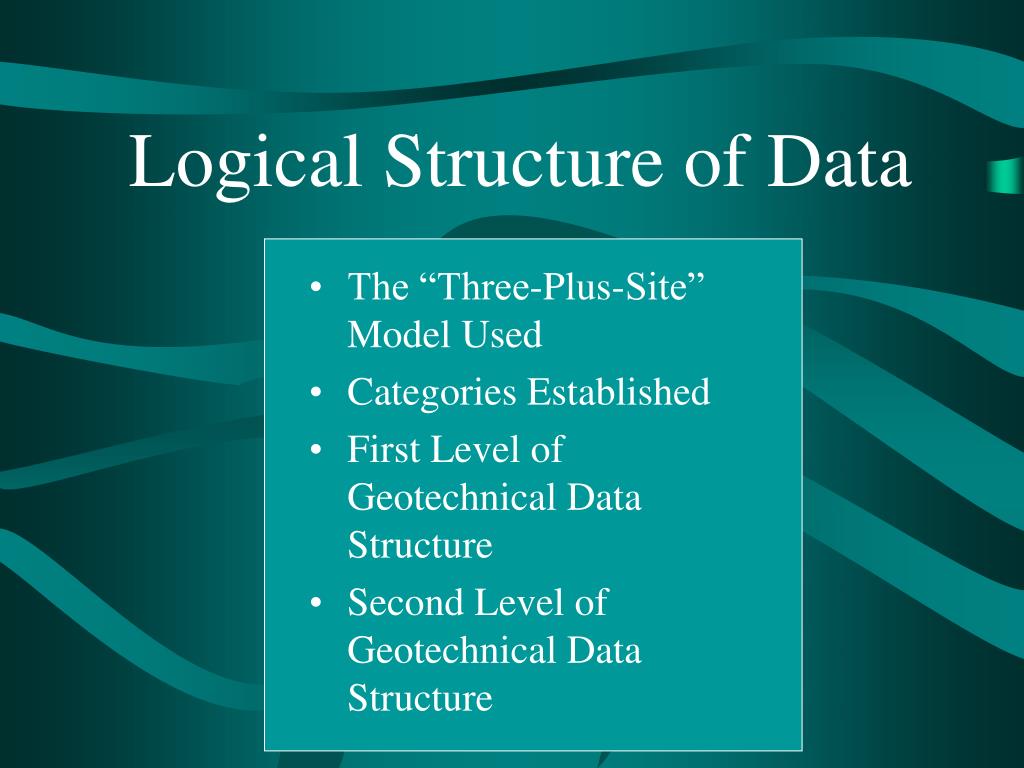

  12. The “Three-Plus-Site” Model Used Categories Established First Level of Geotechnical Data Structure Second Level of Geotechnical Data Structure Logical Structure of Data

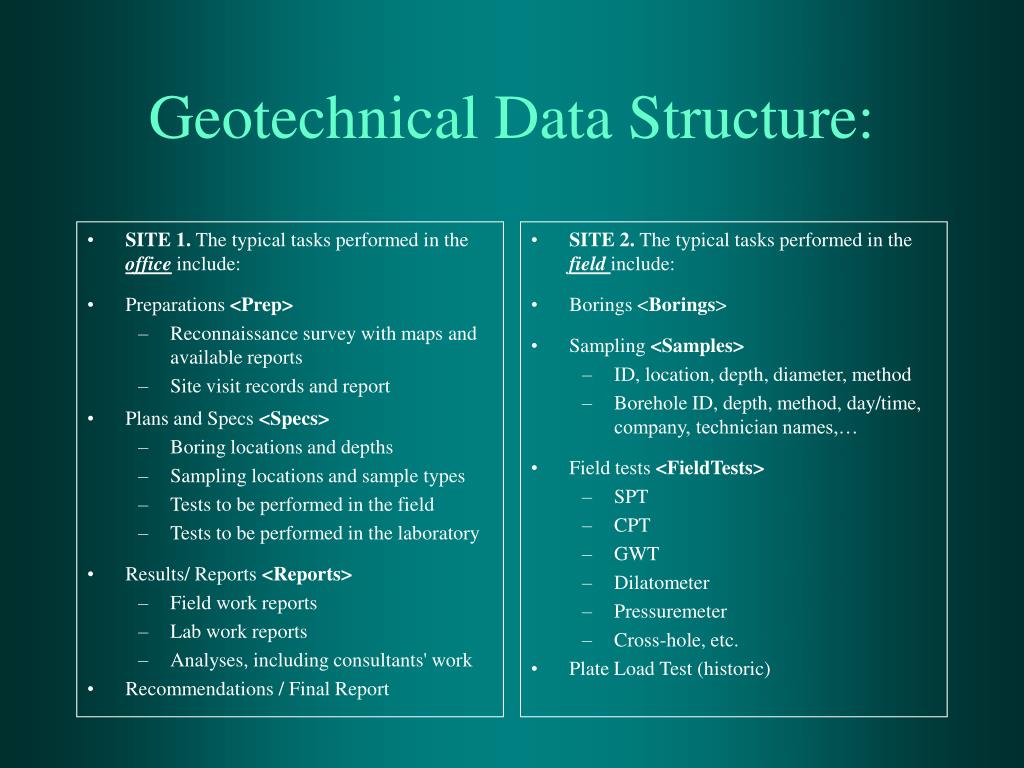

  13. Geotechnical Data Structure: • SITE 1. The typical tasks performed in the office include: • Preparations <Prep> • Reconnaissance survey with maps and available reports • Site visit records and report • Plans and Specs <Specs> • Boring locations and depths • Sampling locations and sample types • Tests to be performed in the field • Tests to be performed in the laboratory • Results/ Reports <Reports> • Field work reports • Lab work reports • Analyses, including consultants' work • Recommendations / Final Report • SITE 2. The typical tasks performed in the field include: • Borings <Borings> • Sampling <Samples> • ID, location, depth, diameter, method • Borehole ID, depth, method, day/time, company, technician names,… • Field tests <FieldTests> • SPT • CPT • GWT • Dilatometer • Pressuremeter • Cross-hole, etc. • Plate Load Test (historic)

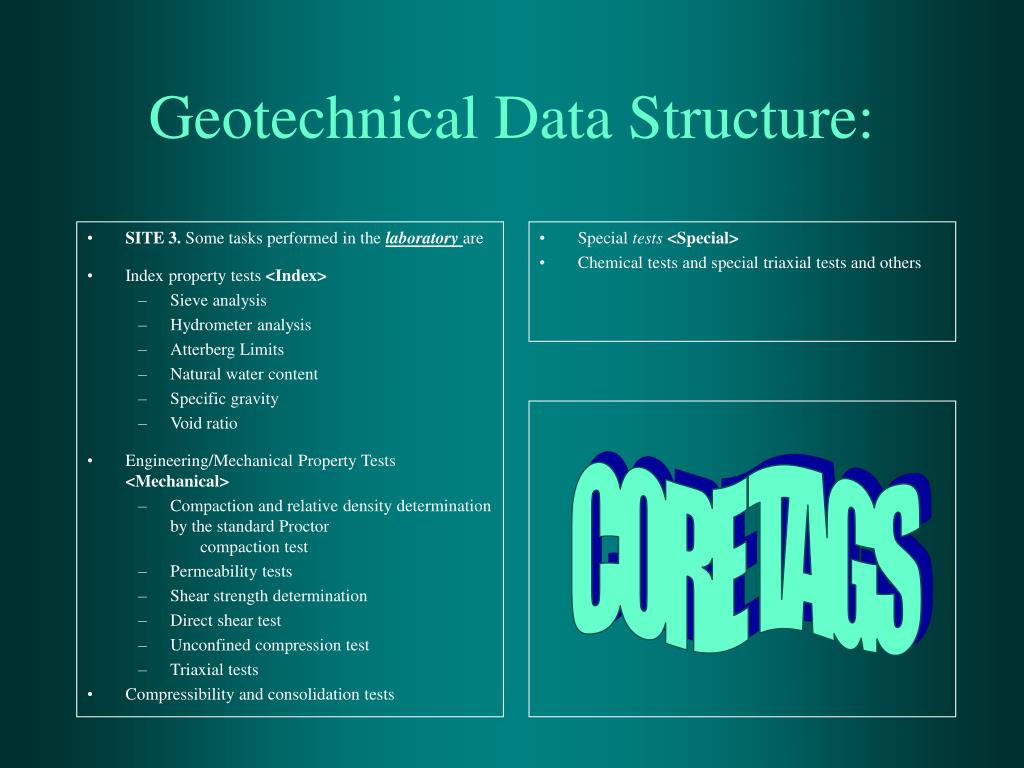

  14. Geotechnical Data Structure: • SITE 3. Some tasks performed in the laboratory are • Index property tests <Index> • Sieve analysis • Hydrometer analysis • Atterberg Limits • Natural water content • Specific gravity • Void ratio • Engineering/Mechanical Property Tests <Mechanical> • Compaction and relative density determination by the standard Proctor compaction test • Permeability tests • Shear strength determination • Direct shear test • Unconfined compression test • Triaxial tests • Compressibility and consolidation tests Special tests<Special> Chemical tests and special triaxial tests and others CORE TAGS

  15. <GML> <Prolog> <Project> <Name> </Name> <Date> <SecurityLevel> <Status> </Project> <Authorization> <AuthorizationCode code/> <AuthorizedBy> </AuthorizedBy> <Security> </Security> </Authorization> </Prolog> <Office> <Prep> </Prep> <Specs> </Specs> <Reports> </Reports> </Office> <Field> <Borings> <boring> (ID, depth, method, day/time, company, responsible technician name) </boring> </Borings> <Samples> <sample> (HoleID, depth, type, method) </sample> </Samples> <FieldTests> (SPT, CPT, GWT, etc.) </FieldTests> </Field> <Laboratory> <Index> (LL, PL, SL, PI, w, etc.) </Index> <Mechanical> (Triaxial, direct shear, consolidation, permeability, etc.) </Mechanical> <Special> (Chemical tests, etc.) </Special> </Laboratory> </GML>

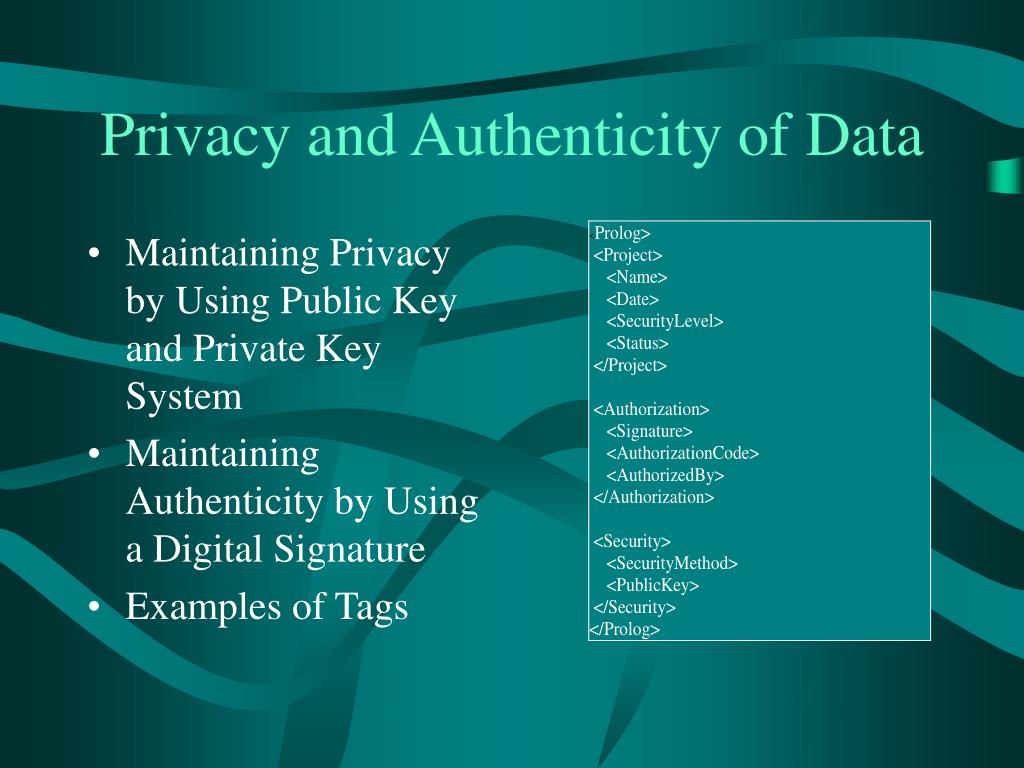

  16. Privacy and Authenticity of Data • Maintaining Privacy by Using Public Key and Private Key System • Maintaining Authenticity by Using a Digital Signature • Examples of Tags

  17. The Future Possibilities • How Fourth Level GML Tags Can Be Selected • Definition Process of New Tags • Dr. Toll’s Work at Durham College

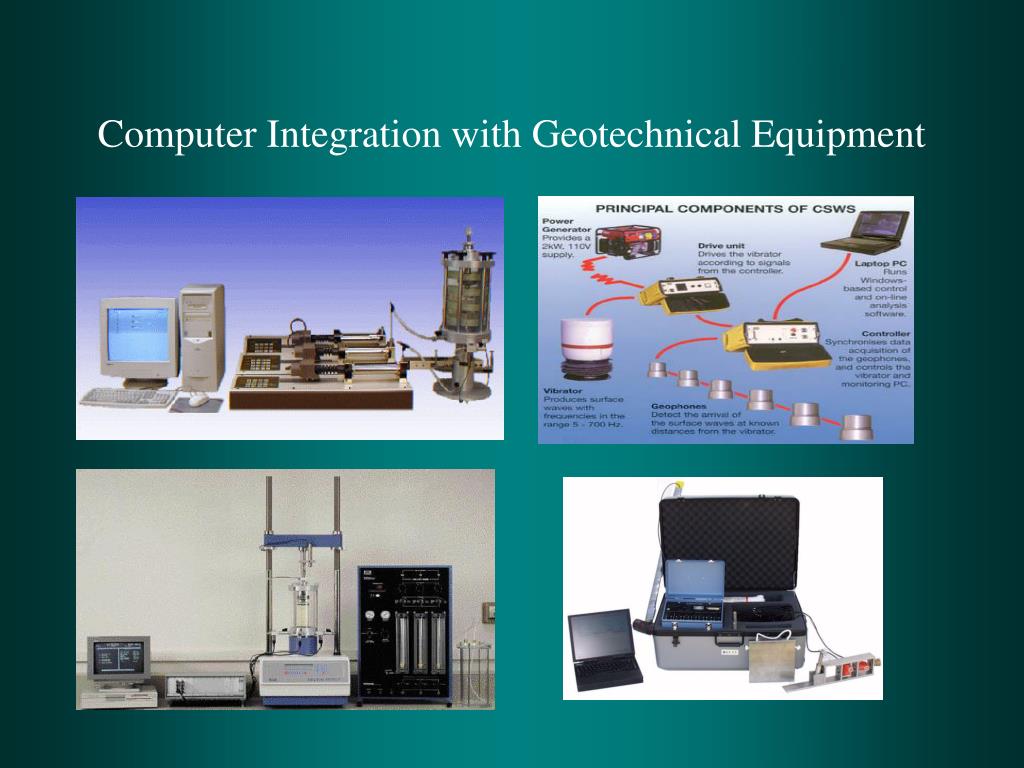

  18. Computer Integration with Geotechnical Equipment
