Compact and Efficient Logic Boiler for Optimal Heating Solutions

The Logic Combi boiler series offers a compact design, making it ideal for cupboard fit installation. With a competitive efficiency of 91% and exceptional domestic hot water (DHW) performance, these boilers deliver high flow rates and increased modulation (5:1 turndown). Emission levels are low, with NOx below 40mg/kWh, making it environmentally friendly. Installer-friendly features ensure fast installation and easy access to components, while users benefit from elegant design and advanced controls, including weather compensation. Available in three models with varying outputs (24, 30, 35kW).

angelo
Télécharger la présentation

Compact and Efficient Logic Boiler for Optimal Heating Solutions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Logic Combi

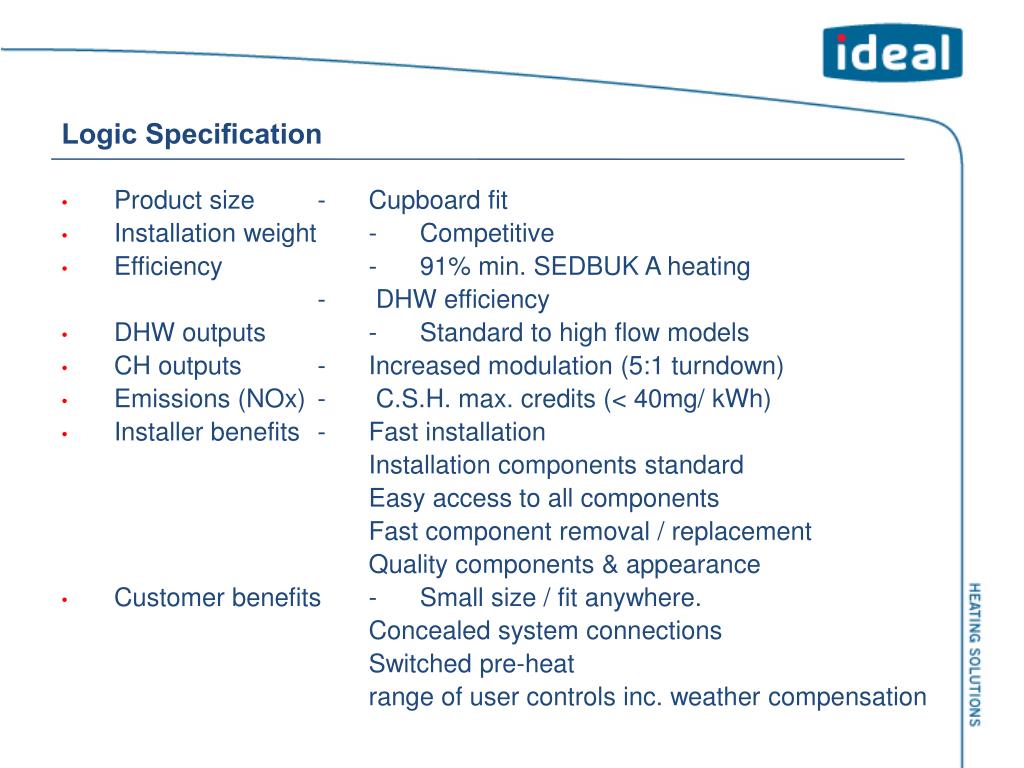

  2. Logic Specification Product size - Cupboard fit Installation weight - Competitive Efficiency - 91% min. SEDBUK A heating - DHW efficiency DHW outputs - Standard to high flow models CH outputs - Increased modulation (5:1 turndown) Emissions (NOx) - C.S.H. max. credits (< 40mg/ kWh) Installer benefits - Fast installation Installation components standard Easy access to all components Fast component removal / replacement Quality components & appearance Customer benefits - Small size / fit anywhere. Concealed system connections Switched pre-heat range of user controls inc. weather compensation

  3. Logic ‘Nice Touches’ Normal Ideal expectations: Central flue position Reduced flue terminal clearances Added features: Pre wired mains cable Filling loop Push and clip flue turret fixing Translucent condensate syphon Casing painted internally with clean point drain Universal condensate pipe connection Economy heating position Plain diagnosis text in electronic timer

  4. Product Range Summary Logic & Logic + 3 models in each range 24, 30 & 35 Higher DHW flow rates Lower minimum CH outputs

  5. Dimensions Compact & cupboard fit

  6. Components Internal Components 1 - Gas Valve: Honeywell 2 - Fan: EBM 3 - Pump: Grundfos 4 - Diverter Valve: Elbi 5 - Spark generator: Beru
