  1. Simply Connecting the World Corecess NMS Solution ViewlinX ViewlinX PowerPack Corecess NBI

  2. Corecess Strategy Total Solution Corecess network elements (NE) FCAPS and other network elements (ViewlinX, EMS/NMS) Unified repository DBMS (MySQL, ORACLE) Element /Network Management Solution Service Management (PowerPack) Business decision making

  3. Corecess Solution Target

  4. Fiber Line Copper Line NMS SNMP Lib MIB Browser Topology Alarm Account DB Interface Security Element Management DX6512 Home DSL Modem Core Network Backbone Switch HFC Network Workgroup Switch Edge Switch Access Switch Enterprise Network Apartment Backbone Switch Public Network Workgroup Switch DSLAM Private Network DSL Router Small and Medium Office Cable Modem CMTS FX5408 Home Cable Modem Overview Service Provider OSS Internet Service ViewlinX Network admin

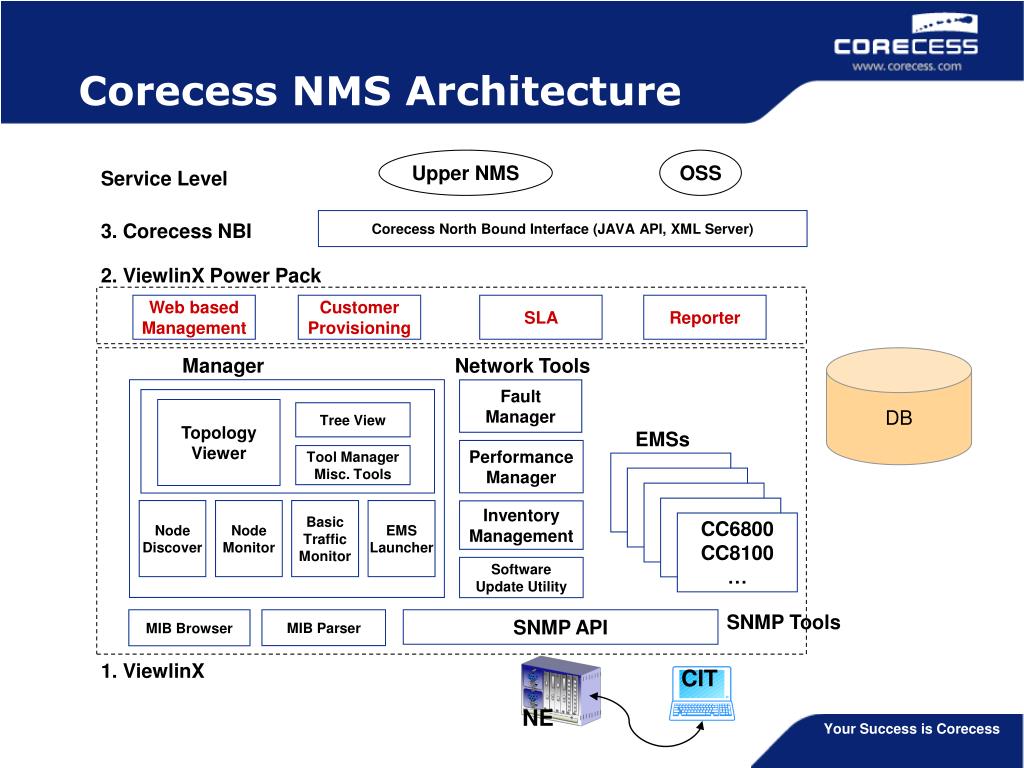

  5. NE Corecess NMS Architecture Upper NMS OSS Service Level Corecess North Bound Interface (JAVA API, XML Server) 3. Corecess NBI 2. ViewlinX Power Pack Web based Management Customer Provisioning SLA Reporter DB Manager Network Tools Fault Manager Topology Viewer Tree View EMSs Performance Manager Tool Manager Misc. Tools FX5400 Series FX5400 Series FX5400 Series FX5400 Series Node Discover Node Monitor Basic Traffic Monitor EMS Launcher Inventory Management CC6800 CC8100 … Software Update Utility MIB Browser MIB Parser SNMP API SNMP Tools 1. ViewlinX CIT

  6. ViewlinX Power Pack • 2004 Q1 First Release • Beta version is available now • Web based management tool • Reporter • For fault, performance, inventory, user, and so on. • User provisioning • SLA

  7. ViewlinX Power Pack

  8. Corecess NBI • 2003 Q4 • XML Server NBI 1.0 • Using telnet session • XML request and response • 20 transaction per minute • JAVA API 2.0 • XML Server is implemented using JAVA API • Add complex API for XML server • NBI Document • cupid FTP server • Korean, English version

  9. Remote Site Local Site Calling Proc Called Proc in args Operation() Object Implementation Client out args + return values Middleware Client IDL Skeleton DSI IDL STUBS ORB Interface Object Adapter DII Network Element Request & Reply Network Client ORB CORE GIOP/IIOP Network Element Client XML Server Client Network Element Application Client Stub Client Stub Call API’s Method Network Library Network Library Library SNMP’s MIB Get Network Element Corecess NBI

  10. Simply Connecting the World ViewlinX Platform Client/Server Architecture Look and Feel Components Node Manager Fault Manager Performance Manager Corecess EMS

  11. Platform independent Manager Manager ViewlinX – PM, MIB Browser, SNMP API, …… Manager Manager EMS JAVA Virtual Machine

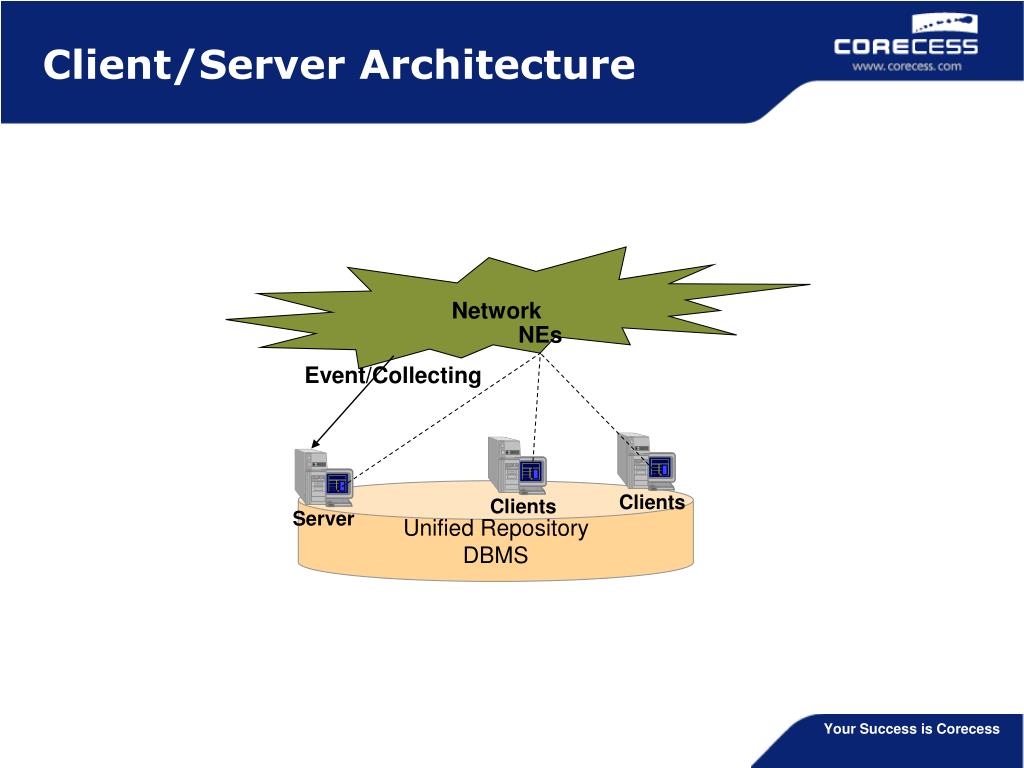

  12. Clients Clients Server Client/Server Architecture Network NEs Event/Collecting Unified Repository DBMS

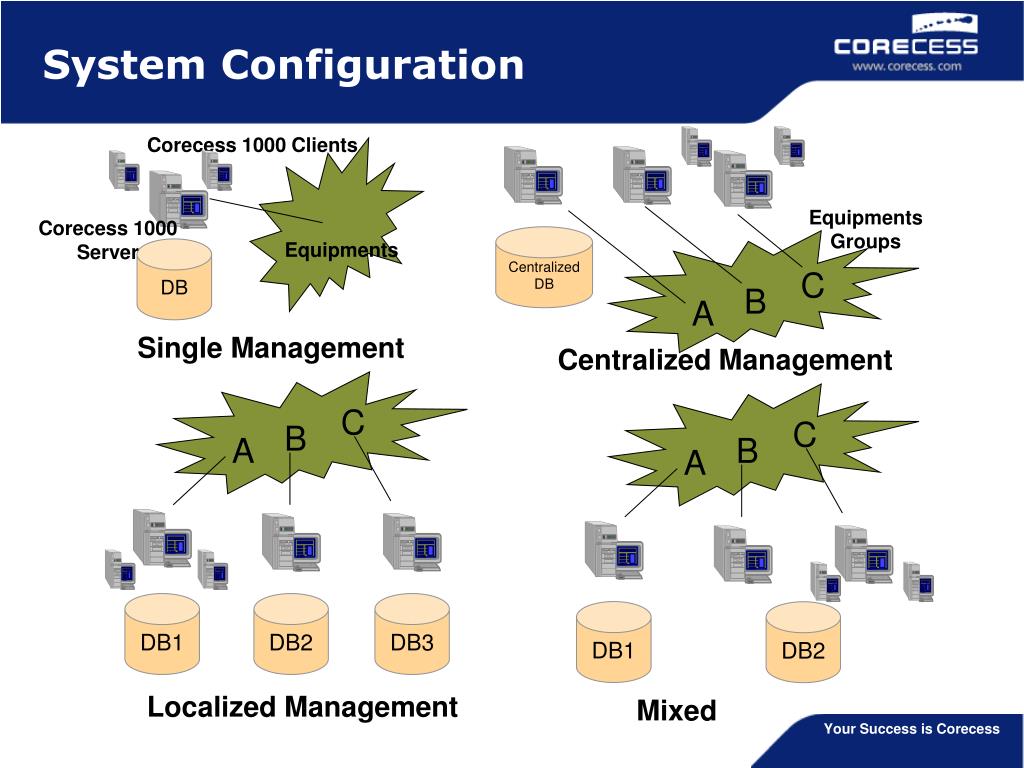

  13. System Configuration Corecess 1000 Clients Equipments Groups Corecess 1000 Server Centralized DB Equipments DB C B A Single Management Centralized Management C C B A B A DB1 DB2 DB3 DB1 DB2 Localized Management Mixed

  14. ViewlinX Look and Feel Secure Management Real-Time Traffic Monitoring Area, Type, Classify Tree All EMS for Corecess products No limitation of manageable nodes Fault Management

  15. ViewlinX Components • Network Node Manager • Security Manager • Fault Manager • Performance statistics manager • S/W Upgrade Utility • Simplified s/w upgrade of multiple devices • EMS for all Corecess products • SNMP API, MIB Browser • Inventory Management • Basic analysis of equipment components • CC6800 series is available now

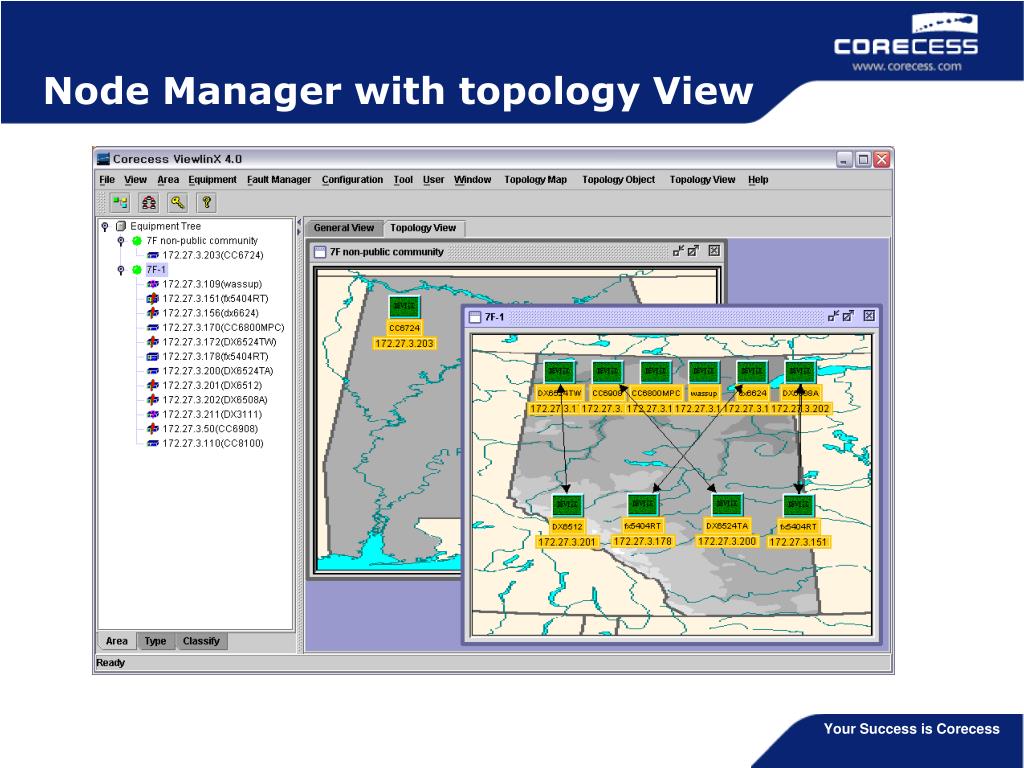

  16. Node Manager with topology View

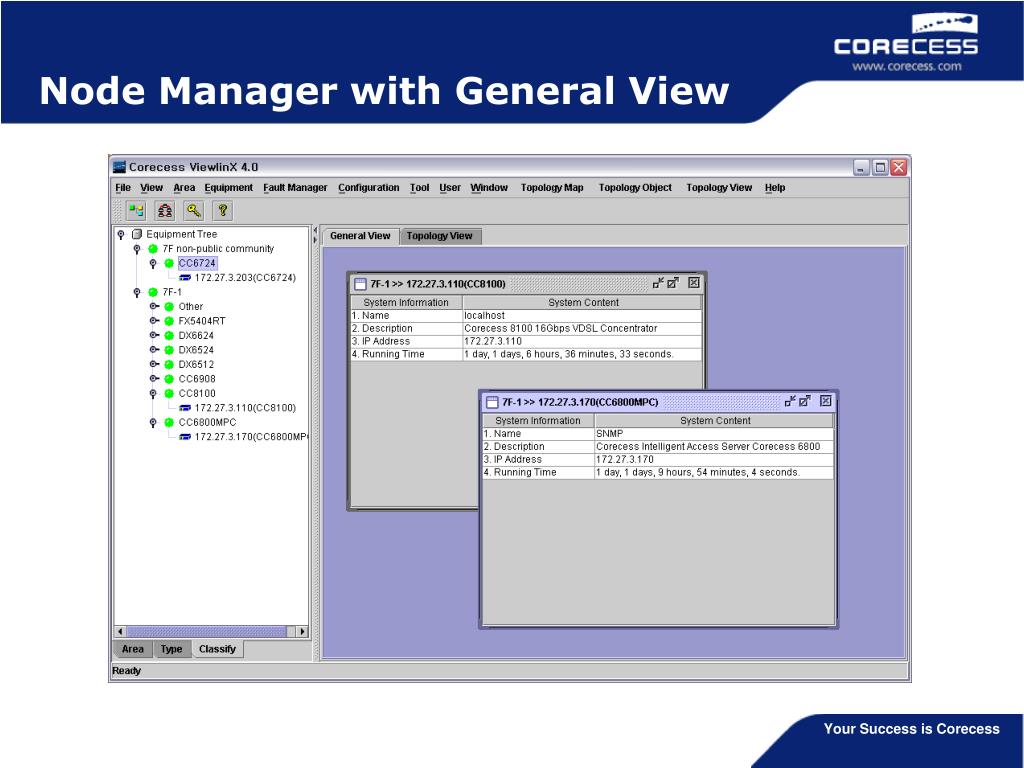

  17. Node Manager with General View

  18. Fault Management

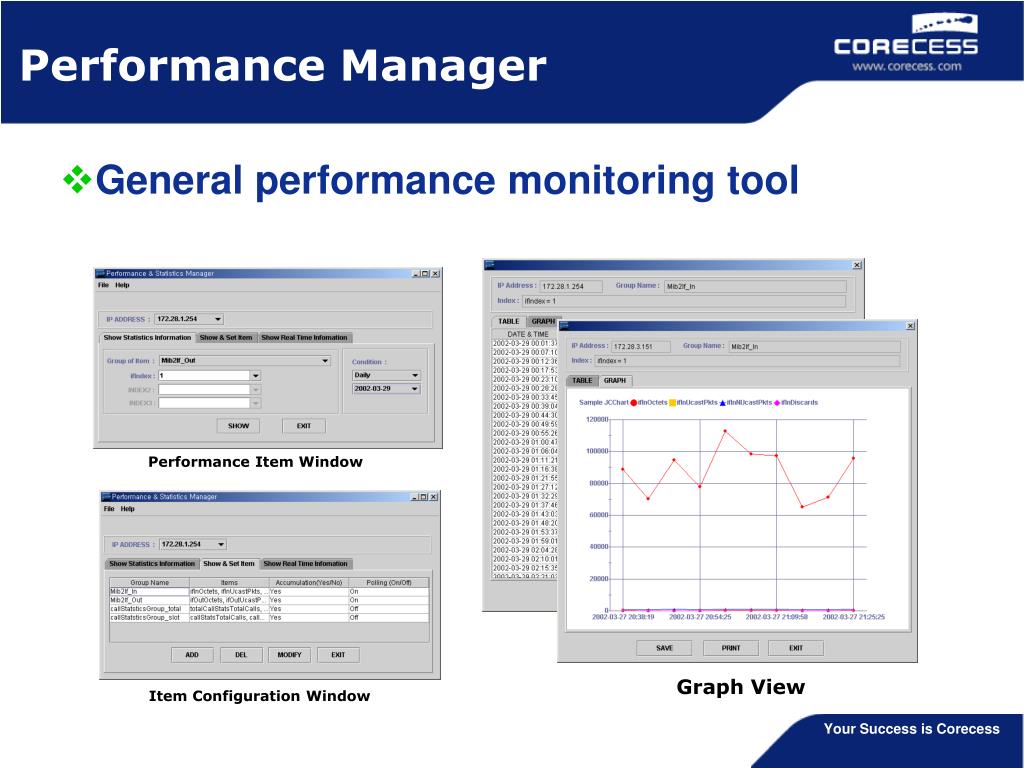

  19. Performance Item Window Table View Graph View Item Configuration Window Performance Manager • General performance monitoring tool

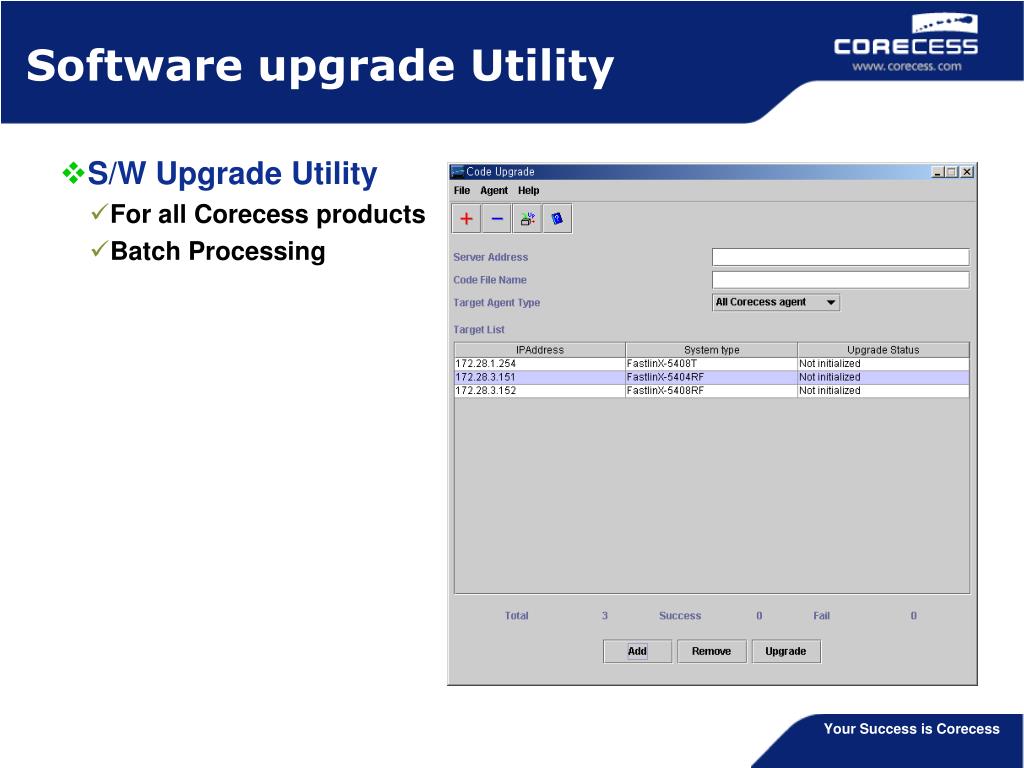

  20. Software upgrade Utility • S/W Upgrade Utility • For all Corecess products • Batch Processing

  21. MIB Browser • MIB Browser • Basic tool for testing and managing NE • SNMP API:compile, analysis and parsing MIB

  22. Corecess EMS Slot View Chassis View
