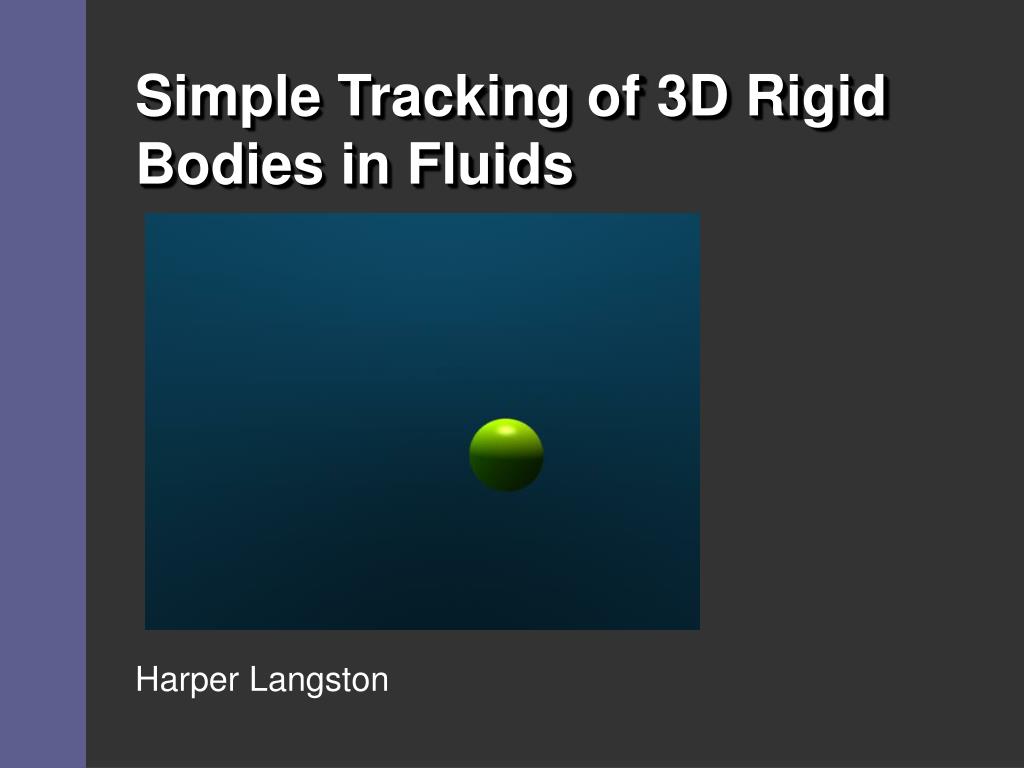

  1. Simple Tracking of 3D RigidBodies in Fluids Harper Langston

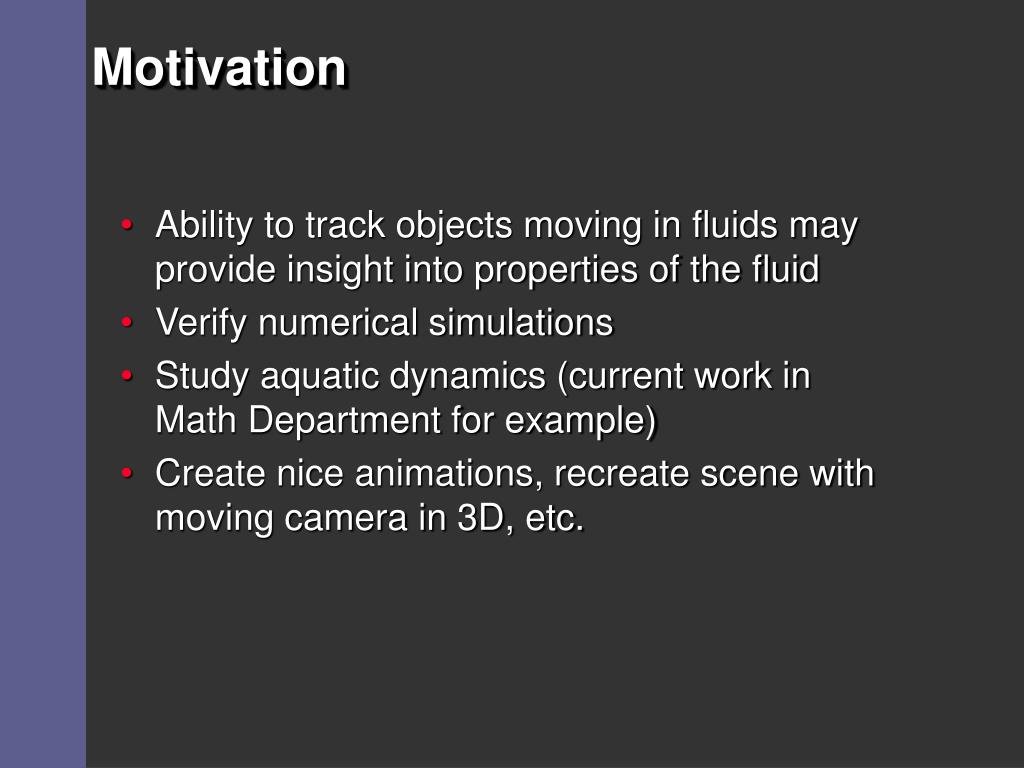

  2. Motivation • Ability to track objects moving in fluids may provide insight into properties of the fluid • Verify numerical simulations • Study aquatic dynamics (current work in Math Department for example) • Create nice animations, recreate scene with moving camera in 3D, etc.

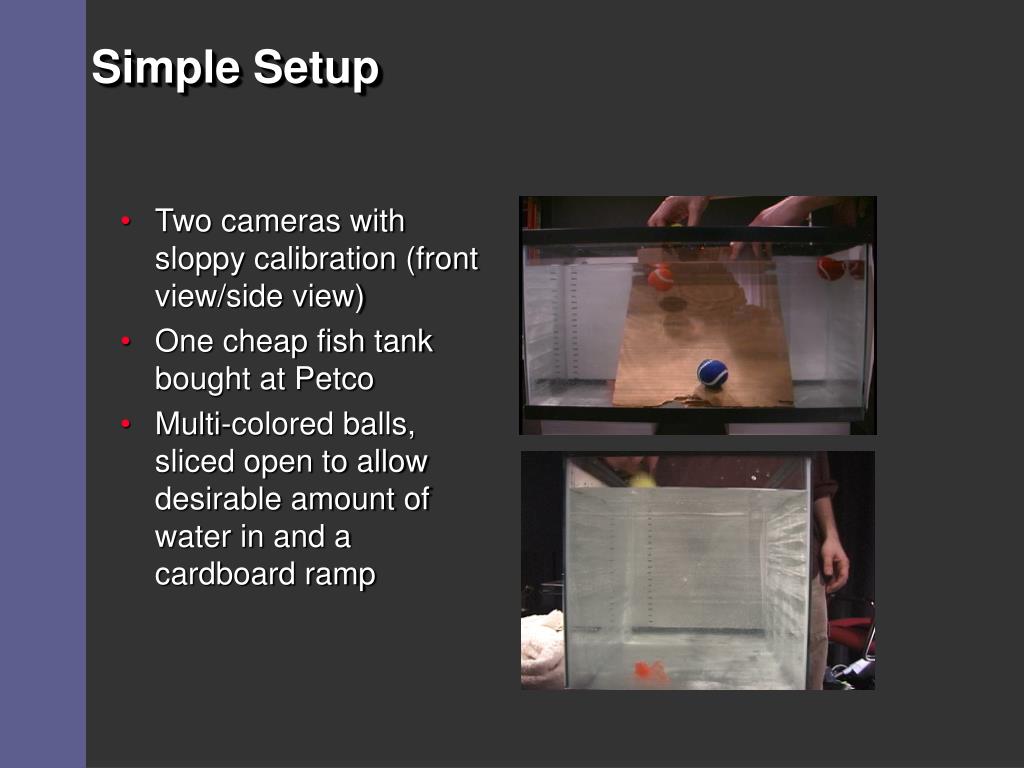

  3. Simple Setup • Two cameras with sloppy calibration (front view/side view) • One cheap fish tank bought at Petco • Multi-colored balls, sliced open to allow desirable amount of water in and a cardboard ramp

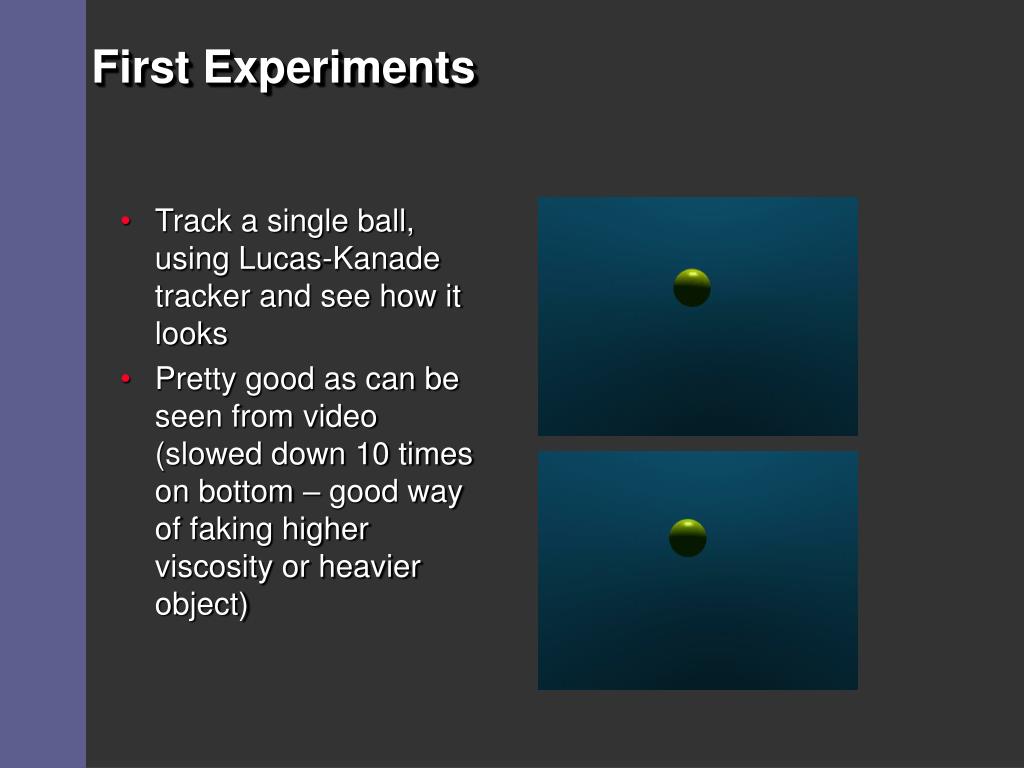

  4. First Experiments • Track a single ball, using Lucas-Kanade tracker and see how it looks • Pretty good as can be seen from video (slowed down 10 times on bottom – good way of faking higher viscosity or heavier object)

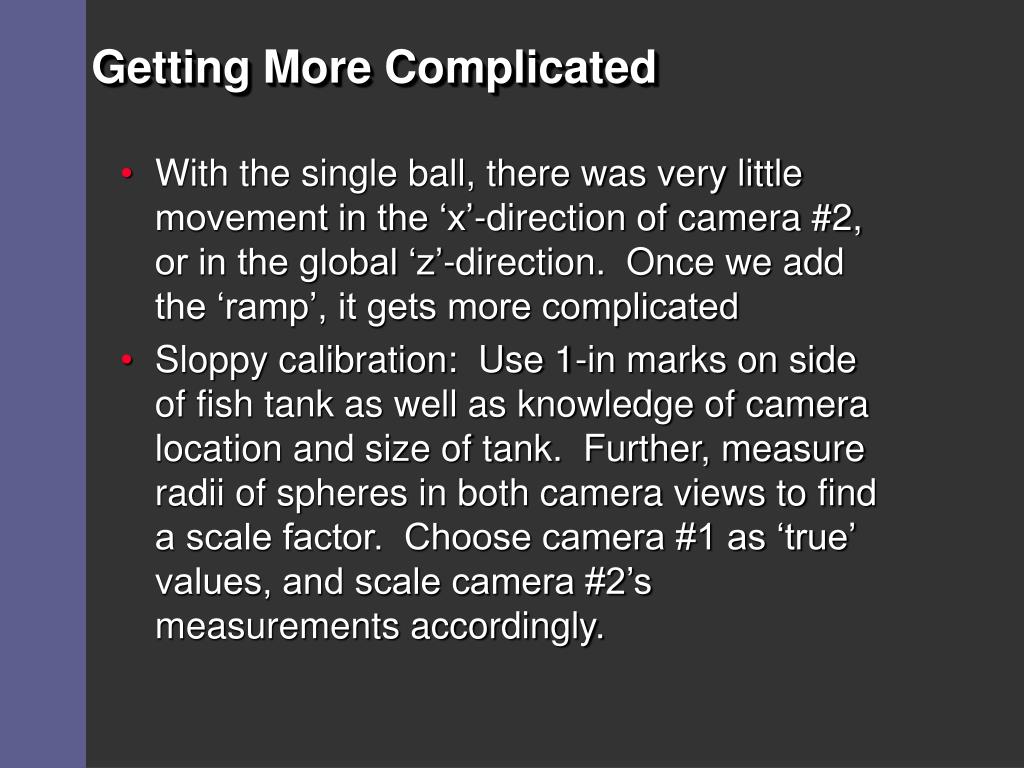

  5. Getting More Complicated • With the single ball, there was very little movement in the ‘x’-direction of camera #2, or in the global ‘z’-direction. Once we add the ‘ramp’, it gets more complicated • Sloppy calibration: Use 1-in marks on side of fish tank as well as knowledge of camera location and size of tank. Further, measure radii of spheres in both camera views to find a scale factor. Choose camera #1 as ‘true’ values, and scale camera #2’s measurements accordingly.

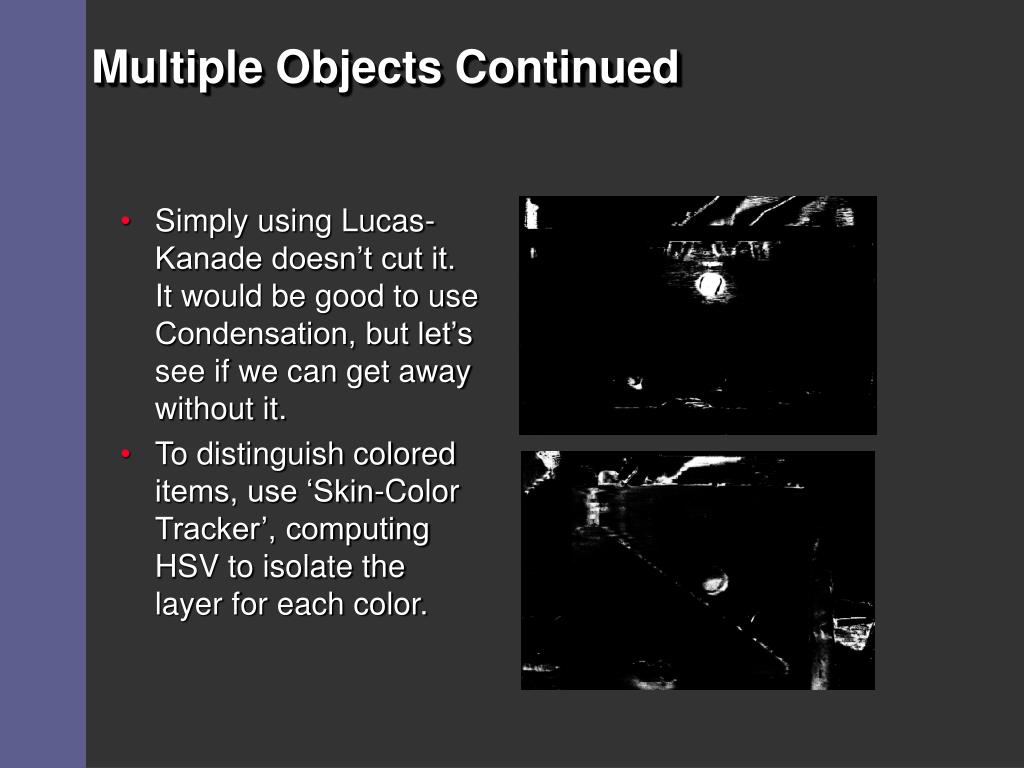

  6. Multiple Objects Continued • Simply using Lucas-Kanade doesn’t cut it. It would be good to use Condensation, but let’s see if we can get away without it. • To distinguish colored items, use ‘Skin-Color Tracker’, computing HSV to isolate the layer for each color.

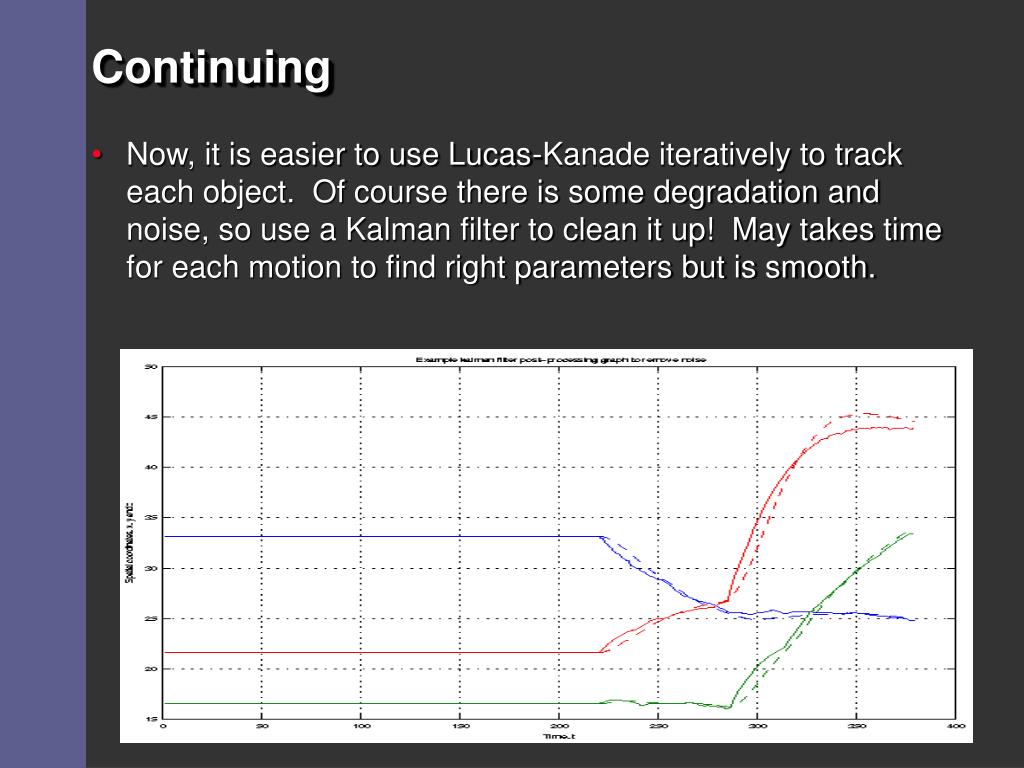

  7. Continuing • Now, it is easier to use Lucas-Kanade iteratively to track each object. Of course there is some degradation and noise, so use a Kalman filter to clean it up! May takes time for each motion to find right parameters but is smooth.

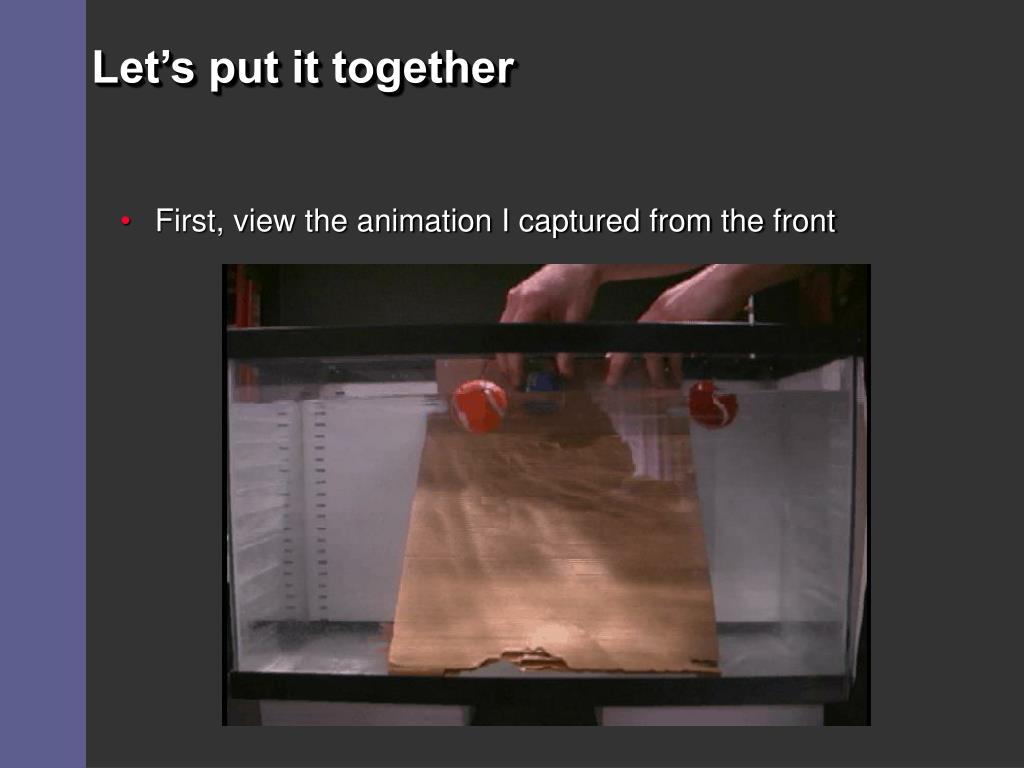

  8. Let’s put it together • First, view the animation I captured from the front

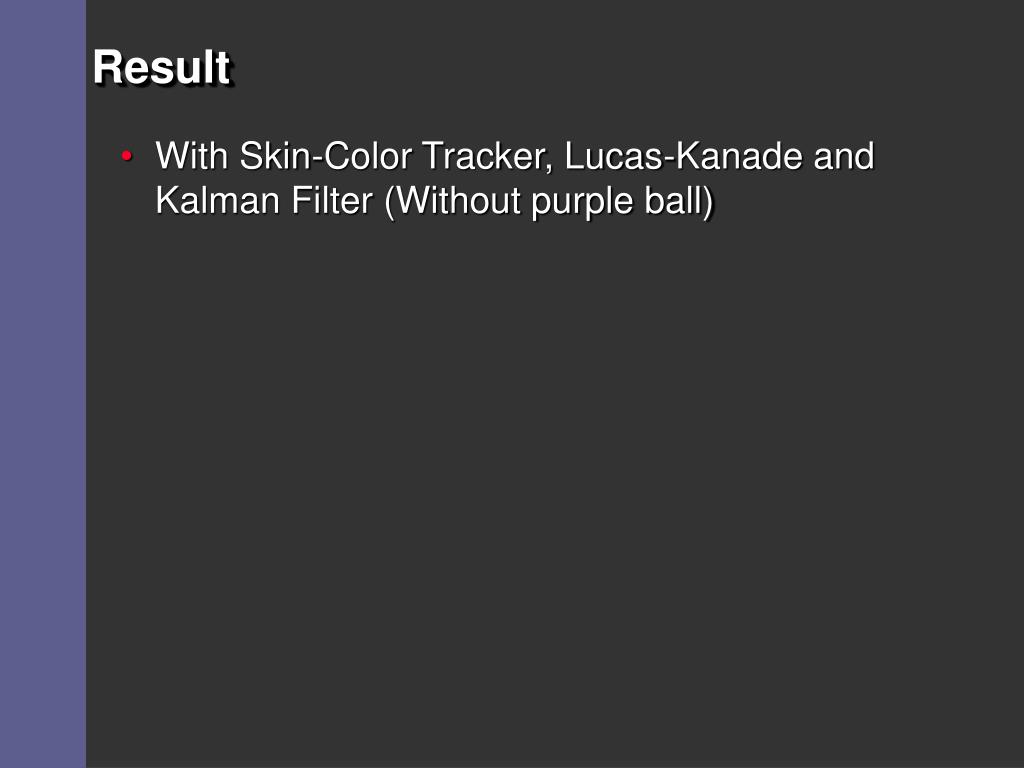

  9. Result • With Skin-Color Tracker, Lucas-Kanade and Kalman Filter (Without purple ball)

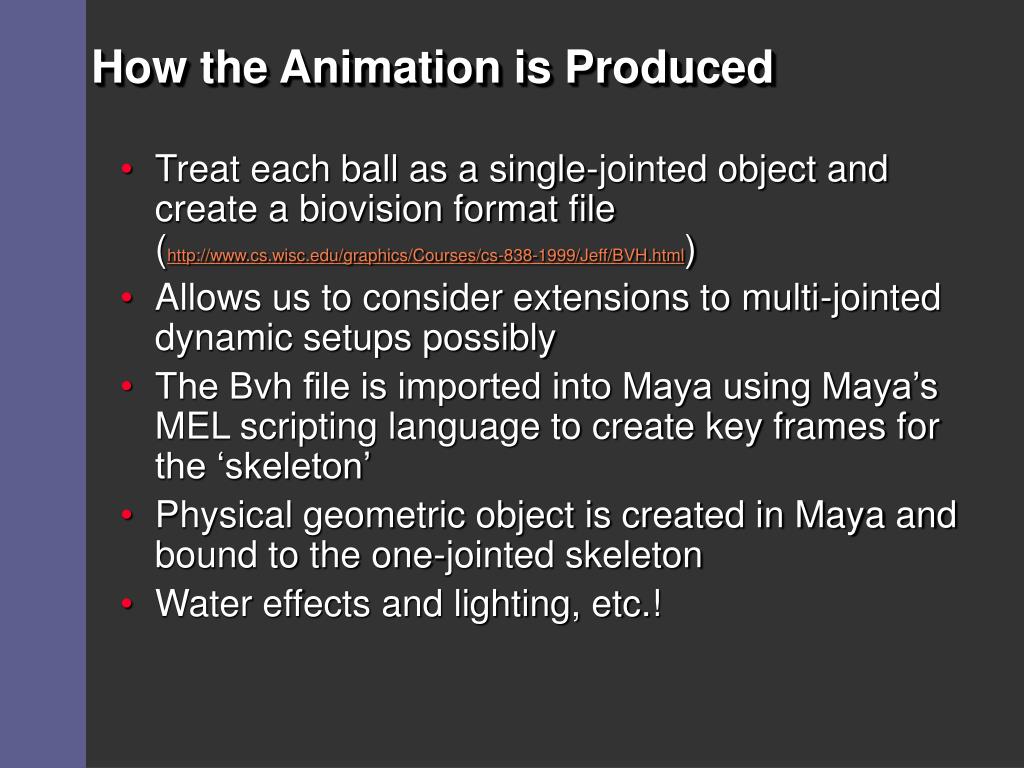

  10. How the Animation is Produced • Treat each ball as a single-jointed object and create a biovision format file (http://www.cs.wisc.edu/graphics/Courses/cs-838-1999/Jeff/BVH.html) • Allows us to consider extensions to multi-jointed dynamic setups possibly • The Bvh file is imported into Maya using Maya’s MEL scripting language to create key frames for the ‘skeleton’ • Physical geometric object is created in Maya and bound to the one-jointed skeleton • Water effects and lighting, etc.!

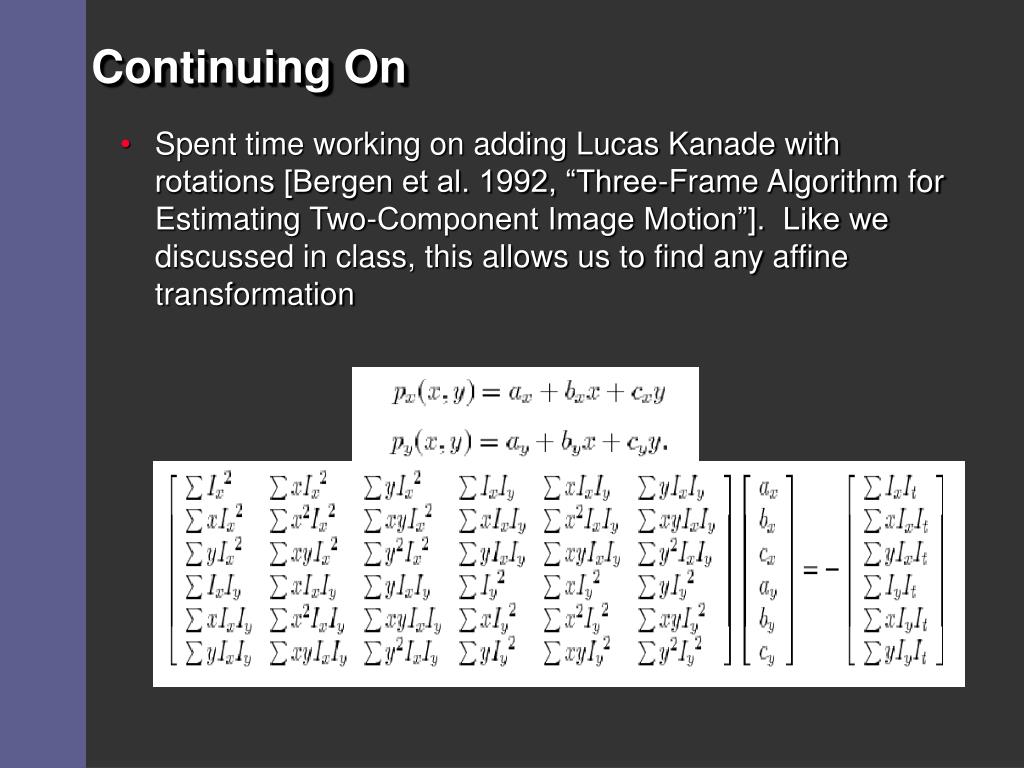

  11. Continuing On • Spent time working on adding Lucas Kanade with rotations [Bergen et al. 1992, “Three-Frame Algorithm for Estimating Two-Component Image Motion”]. Like we discussed in class, this allows us to find any affine transformation

  12. Is Lucas-Kanade with Rotations, Scaling and Shearing Worth It • Clearly, the last animation had many obstructions. Putting aside the clear need for a less crude setup, the Condensation algorithm would be a better choice for scenes cluttered with potentially many ‘particles’ • Extension could also include [Koller-Meier, Ade, ‘Tracking Multiple Objects Using the Condensation Algorithm”]
