CSE 30331 Lecture 2 – Design & Some Examples

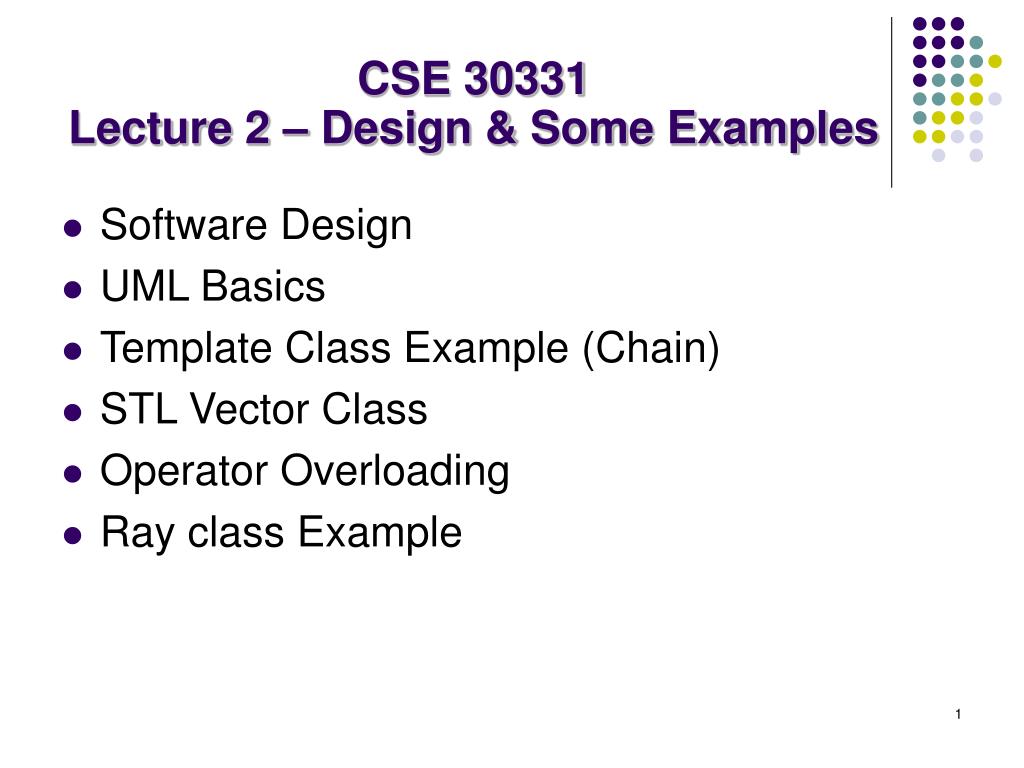

CSE 30331Lecture 2 – Design & Some Examples • Software Design • UML Basics • Template Class Example (Chain) • STL Vector Class • Operator Overloading • Ray class Example

Software Design Overview • State the problem to be solved. • Analyze the problem to extract requirements. • Proceed through a series of stages to produce a product that is reliable and easy to maintain.

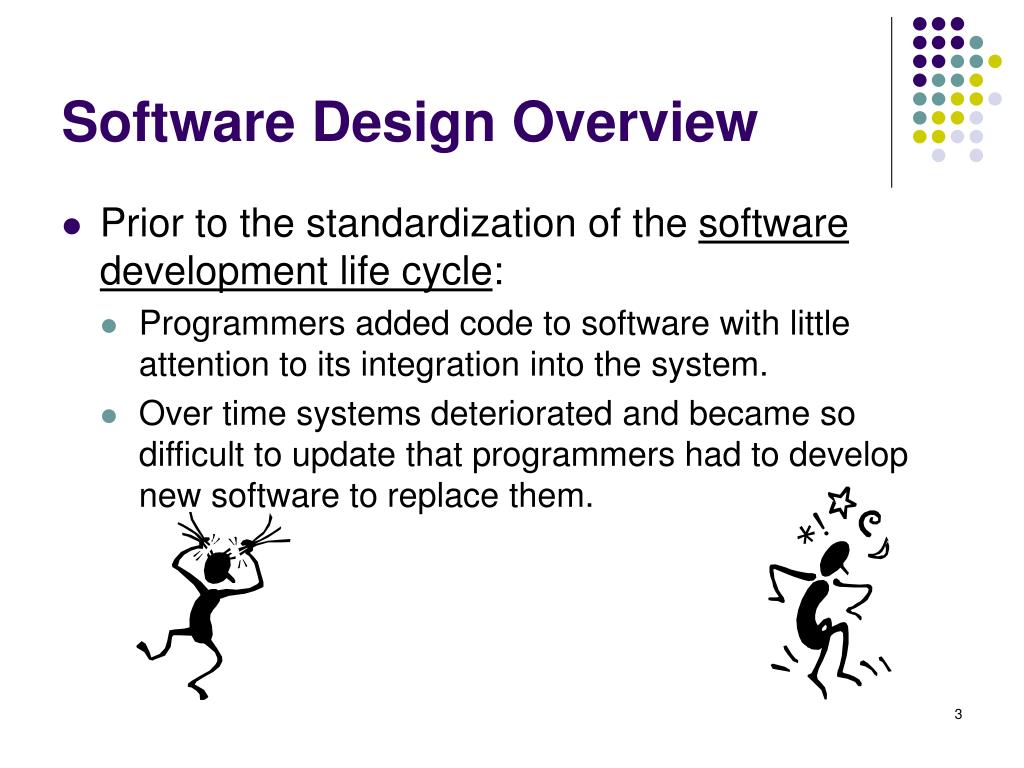

Software Design Overview • Prior to the standardization of the software development life cycle: • Programmers added code to software with little attention to its integration into the system. • Over time systems deteriorated and became so difficult to update that programmers had to develop new software to replace them.

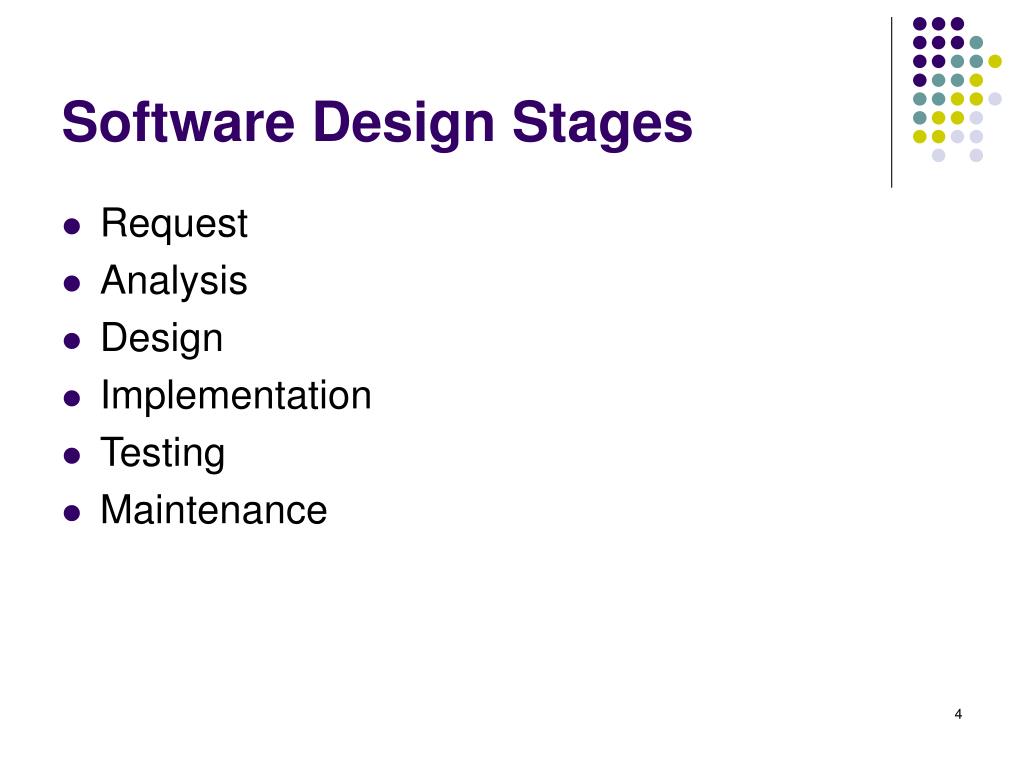

Software Design Stages • Request • Analysis • Design • Implementation • Testing • Maintenance

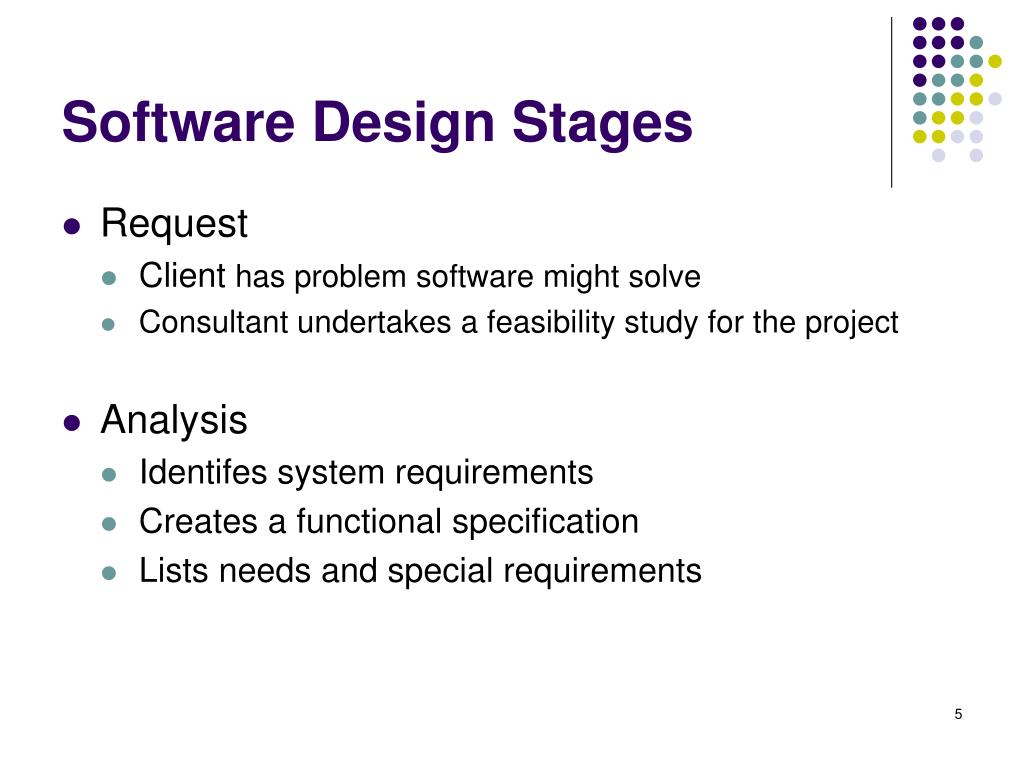

Software Design Stages • Request • Client has problem software might solve • Consultant undertakes a feasibility study for the project • Analysis • Identifes system requirements • Creates a functional specification • Lists needs and special requirements

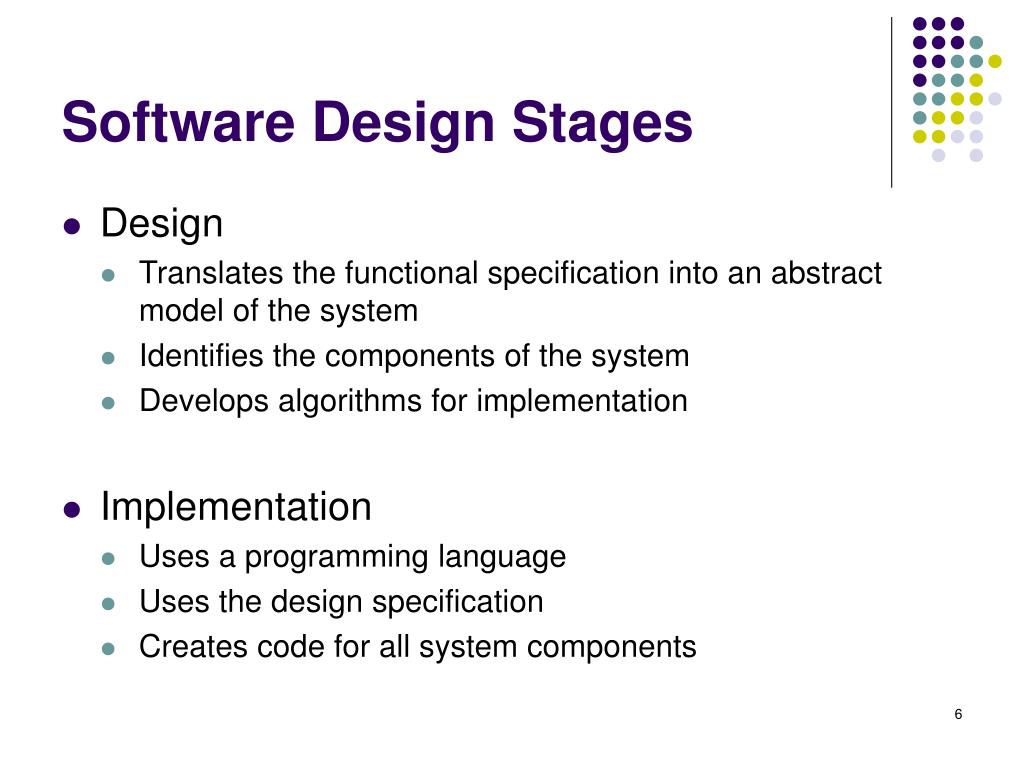

Software Design Stages • Design • Translates the functional specification into an abstract model of the system • Identifies the components of the system • Develops algorithms for implementation • Implementation • Uses a programming language • Uses the design specification • Creates code for all system components

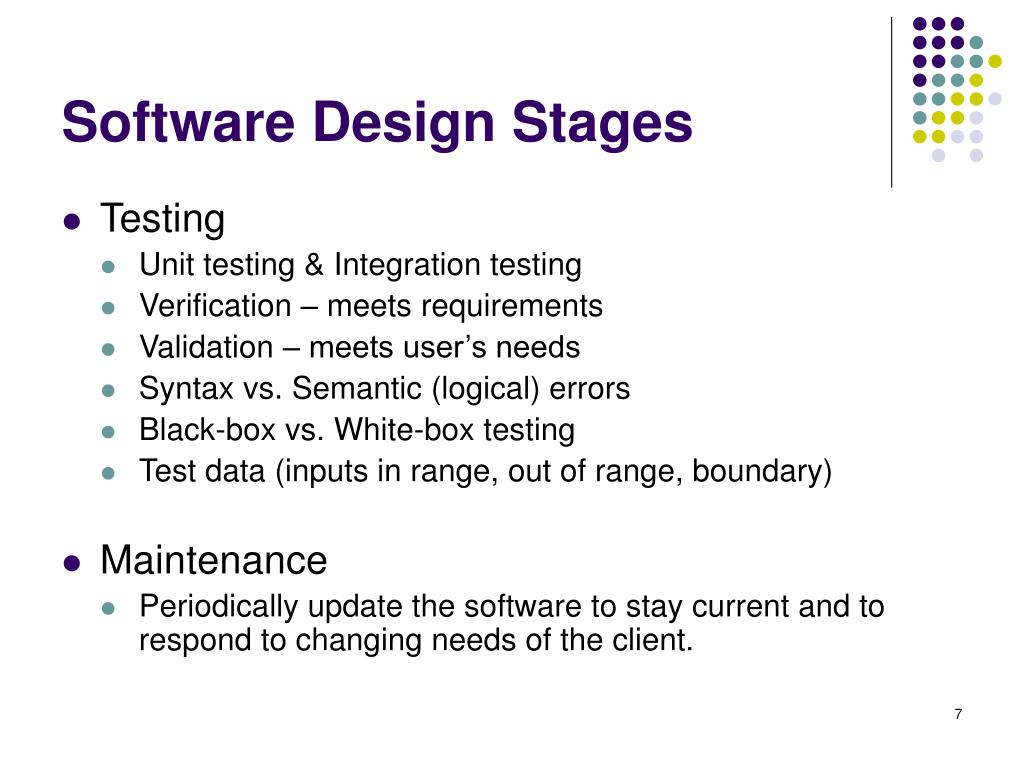

Software Design Stages • Testing • Unit testing & Integration testing • Verification – meets requirements • Validation – meets user’s needs • Syntax vs. Semantic (logical) errors • Black-box vs. White-box testing • Test data (inputs in range, out of range, boundary) • Maintenance • Periodically update the software to stay current and to respond to changing needs of the client.

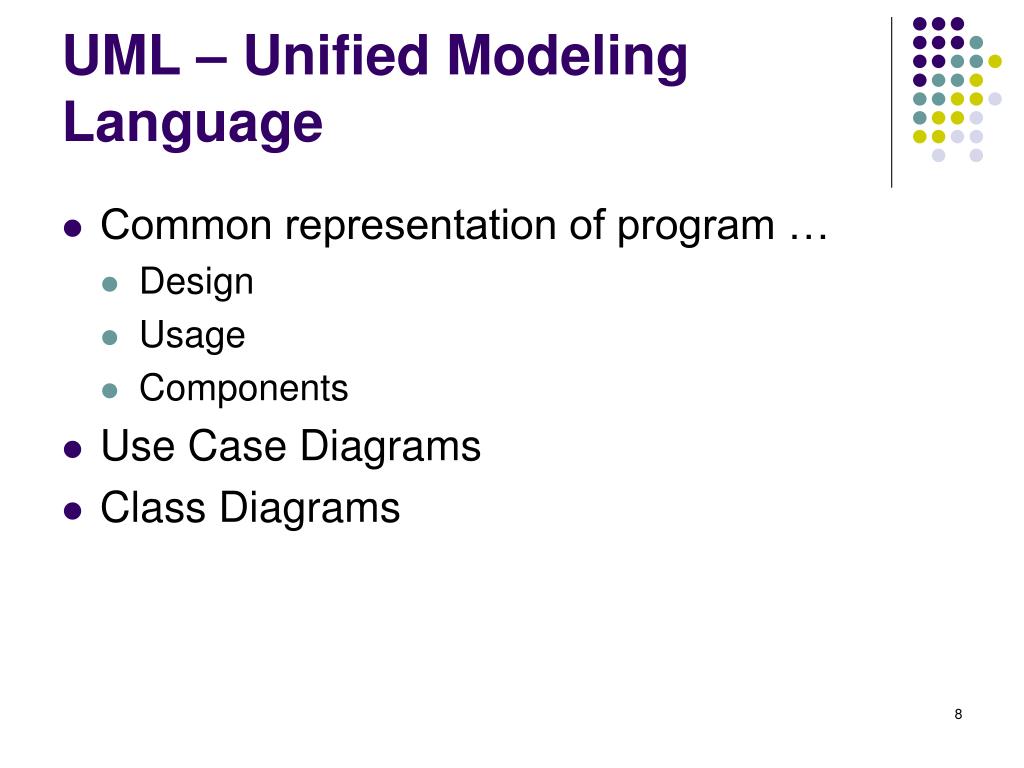

UML – Unified Modeling Language • Common representation of program … • Design • Usage • Components • Use Case Diagrams • Class Diagrams

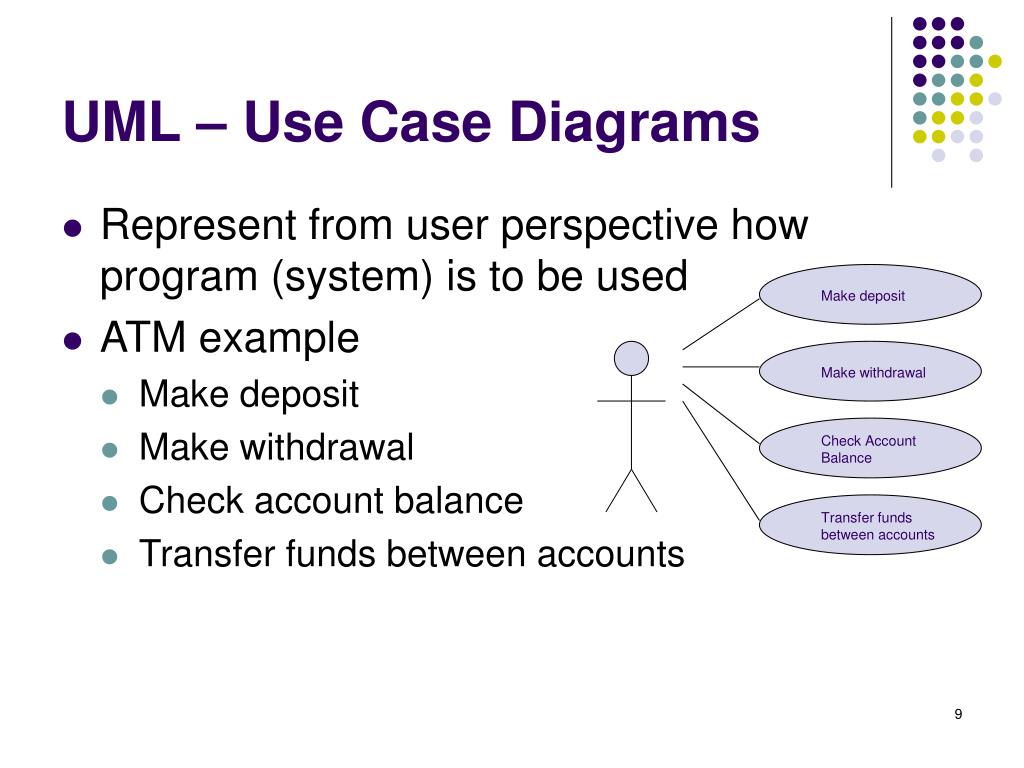

Make deposit Make withdrawal Check Account Balance Transfer funds between accounts UML – Use Case Diagrams • Represent from user perspective how program (system) is to be used • ATM example • Make deposit • Make withdrawal • Check account balance • Transfer funds between accounts

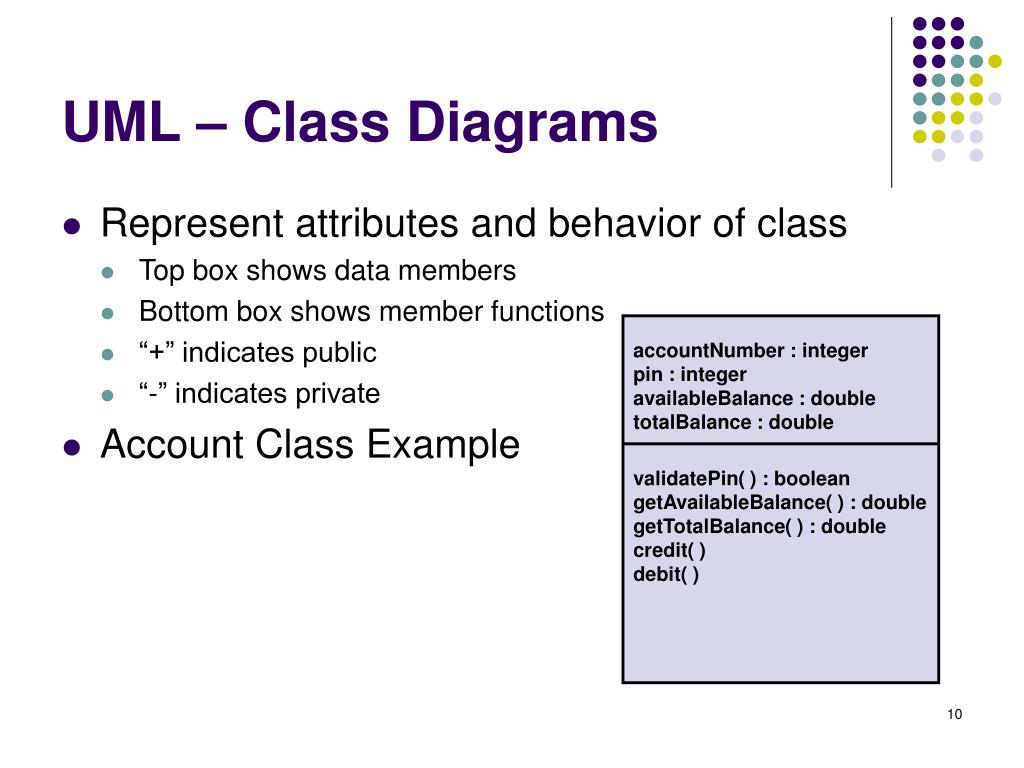

UML – Class Diagrams • Represent attributes and behavior of class • Top box shows data members • Bottom box shows member functions • “+” indicates public • “-” indicates private • Account Class Example accountNumber : integer pin : integer availableBalance : double totalBalance : double validatePin( ) : boolean getAvailableBalance( ) : double getTotalBalance( ) : double credit( ) debit( )

Screen 1 1 1 1 1 1 DepositSlot ATM CashDispenser 1 1 Keypad UML – Class Relationships • Diamond indicates composition relationship • ATM has-a Screen • ATM has-a Keypad • ATM has-a CashDispenser • ATM has-a DepositSlot

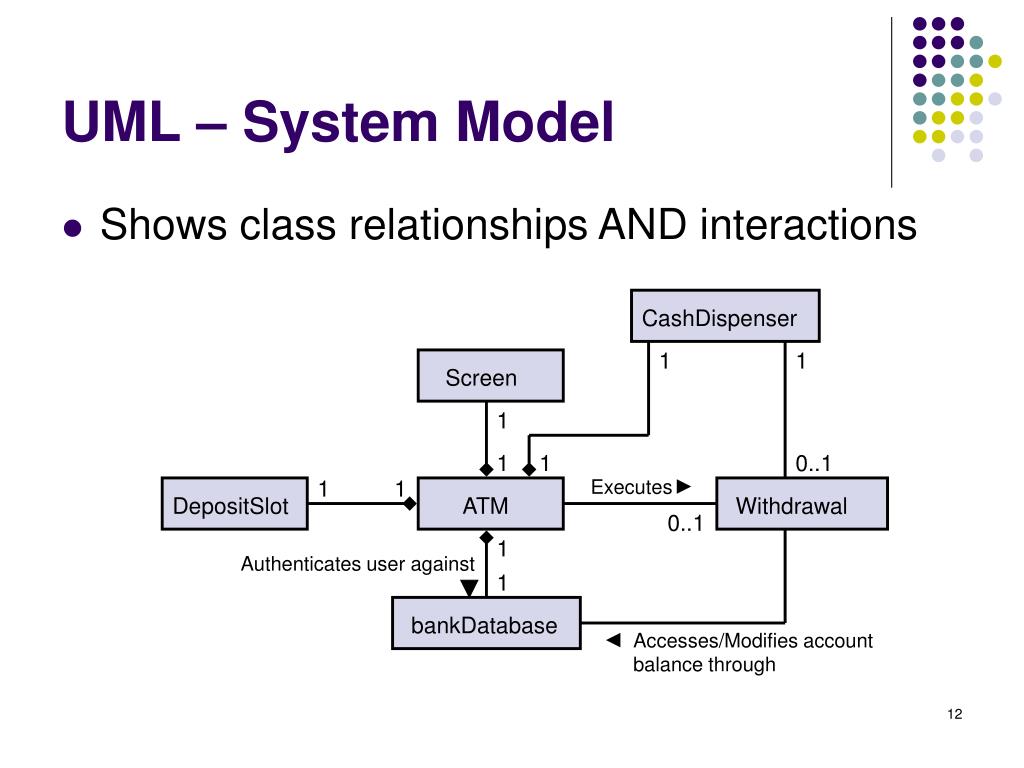

UML – System Model • Shows class relationships AND interactions CashDispenser 1 1 Screen 1 1 1 0..1 1 1 Executes DepositSlot ATM Withdrawal 0..1 1 Authenticates user against 1 bankDatabase Accesses/Modifies account balance through

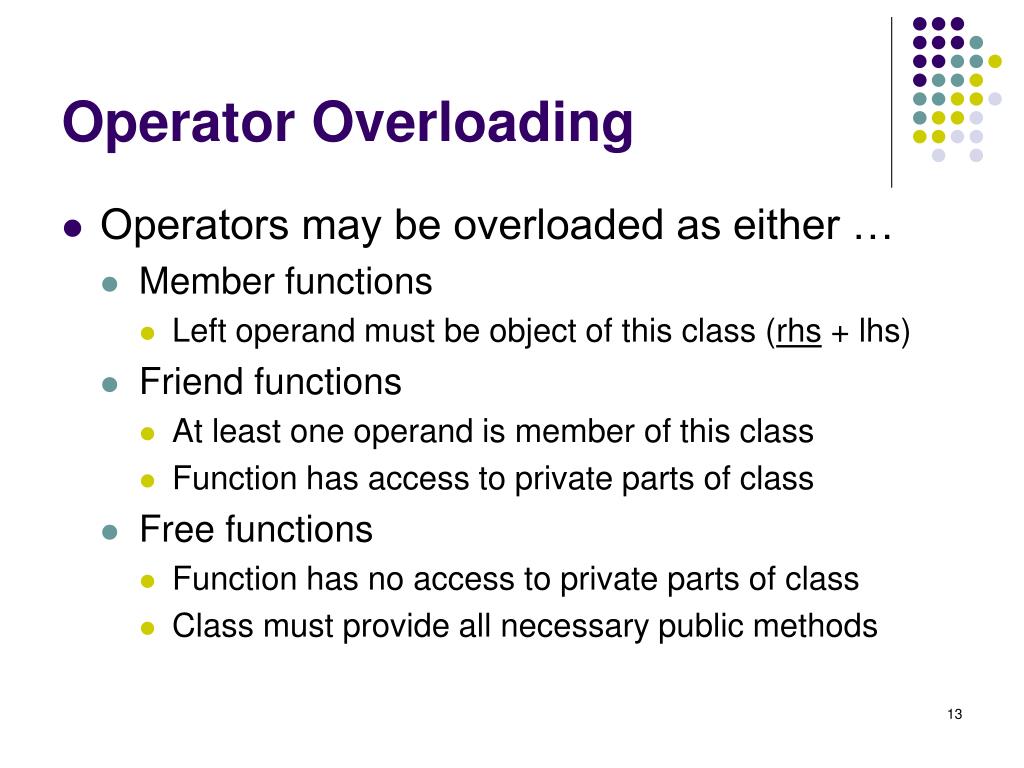

Operator Overloading • Operators may be overloaded as either … • Member functions • Left operand must be object of this class (rhs + lhs) • Friend functions • At least one operand is member of this class • Function has access to private parts of class • Free functions • Function has no access to private parts of class • Class must provide all necessary public methods

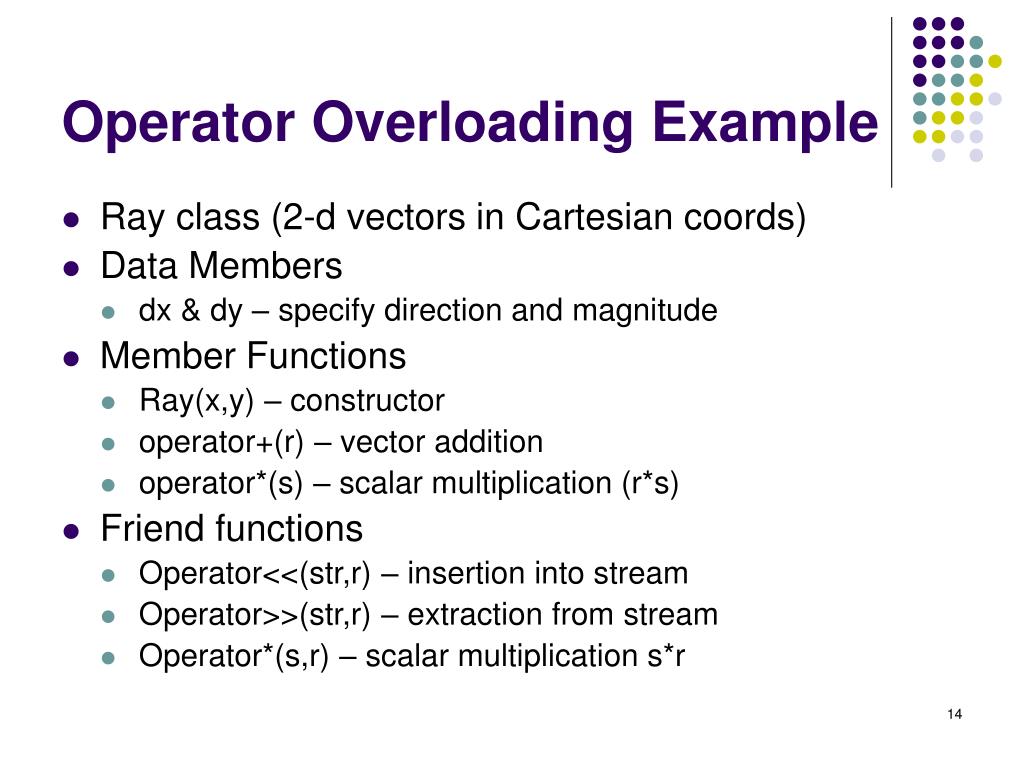

Operator Overloading Example • Ray class (2-d vectors in Cartesian coords) • Data Members • dx & dy – specify direction and magnitude • Member Functions • Ray(x,y) – constructor • operator+(r) – vector addition • operator*(s) – scalar multiplication (r*s) • Friend functions • Operator<<(str,r) – insertion into stream • Operator>>(str,r) – extraction from stream • Operator*(s,r) – scalar multiplication s*r

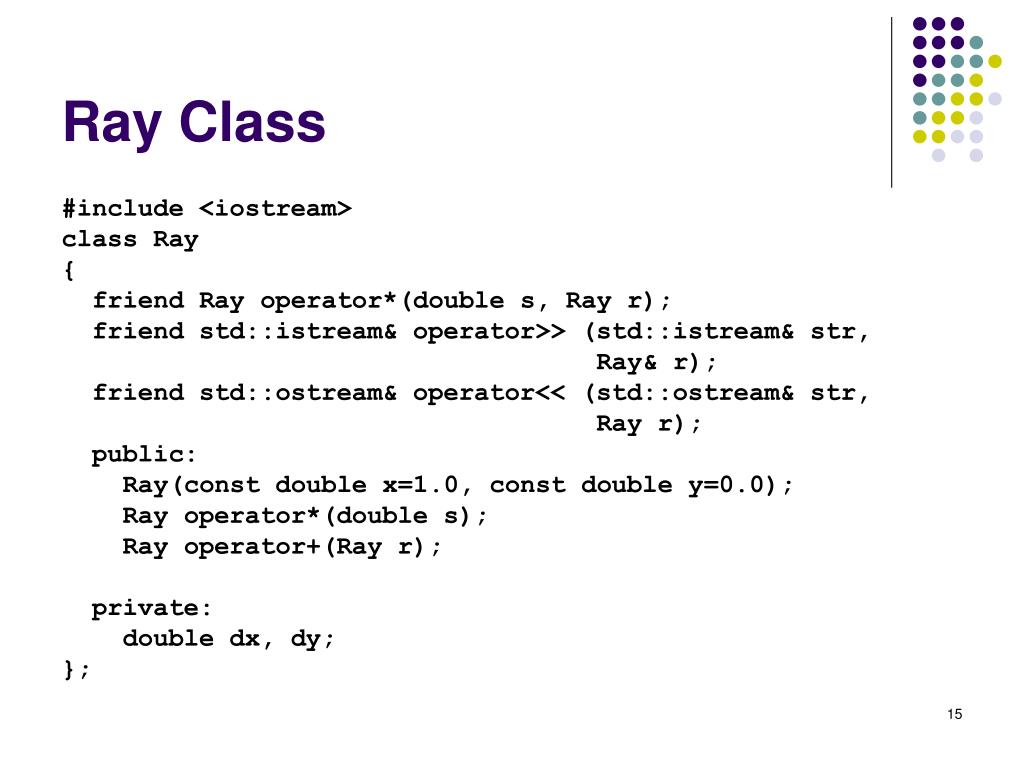

Ray Class #include <iostream> class Ray { friend Ray operator*(double s, Ray r); friend std::istream& operator>> (std::istream& str, Ray& r); friend std::ostream& operator<< (std::ostream& str, Ray r); public: Ray(const double x=1.0, const double y=0.0); Ray operator*(double s); Ray operator+(Ray r); private: double dx, dy; };

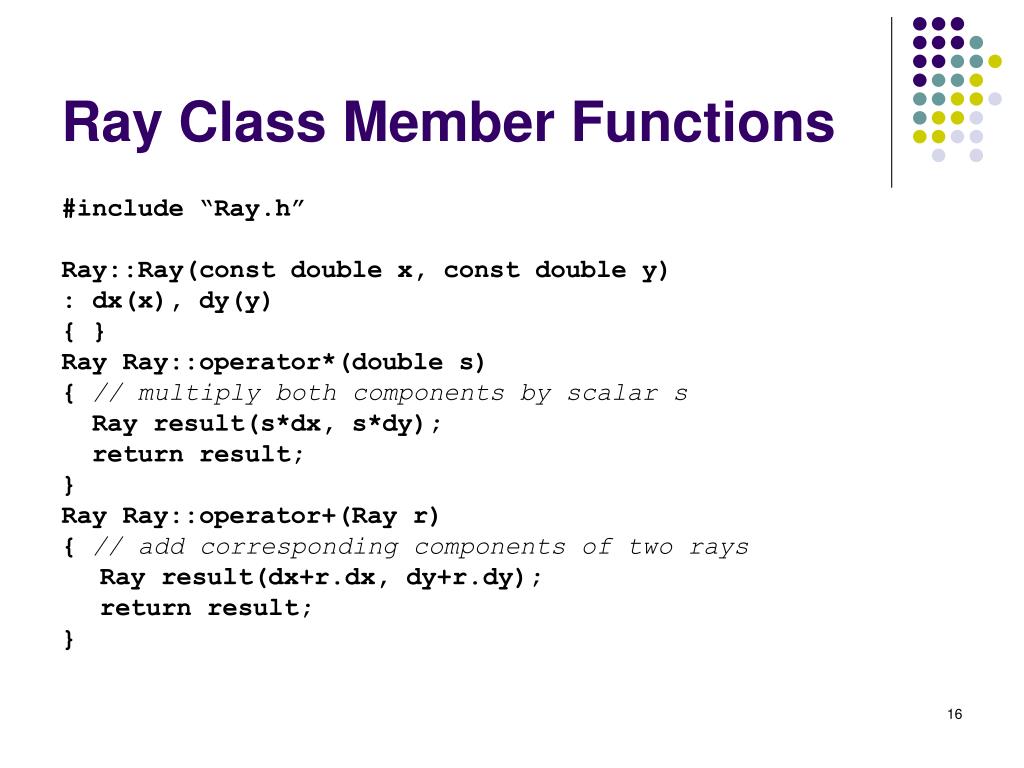

Ray Class Member Functions #include “Ray.h” Ray::Ray(const double x, const double y) : dx(x), dy(y) { } Ray Ray::operator*(double s) { // multiply both components by scalar s Ray result(s*dx, s*dy); return result; } Ray Ray::operator+(Ray r) { // add corresponding components of two rays Ray result(dx+r.dx, dy+r.dy); return result; }

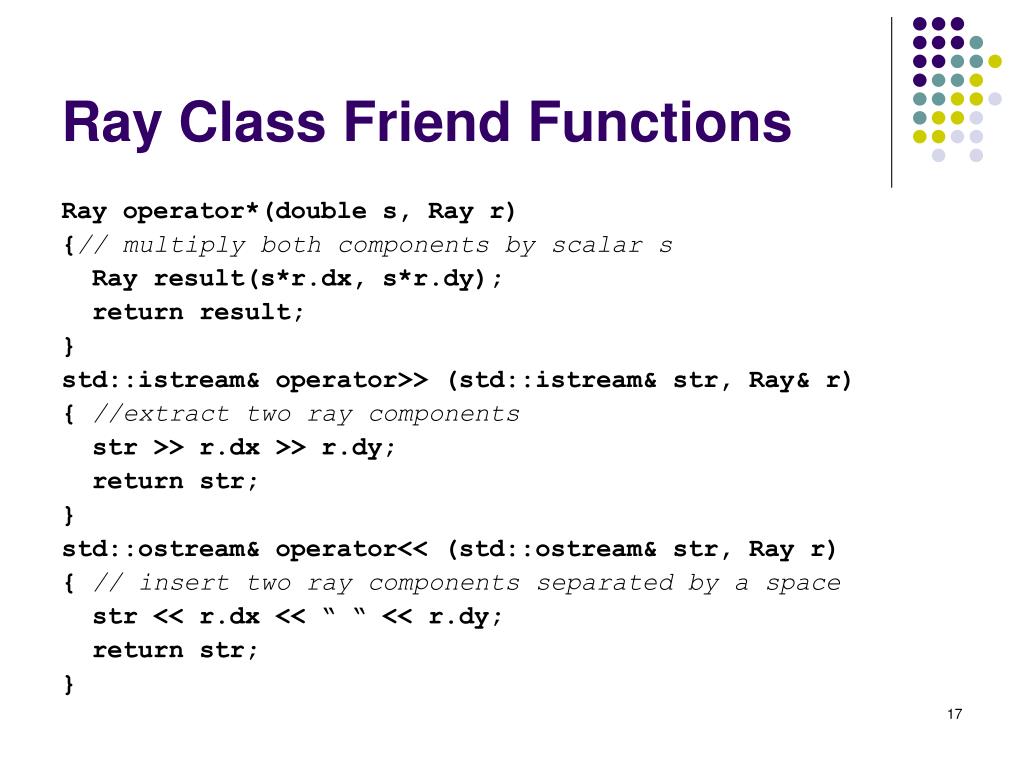

Ray Class Friend Functions Ray operator*(double s, Ray r) {// multiply both components by scalar s Ray result(s*r.dx, s*r.dy); return result; } std::istream& operator>> (std::istream& str, Ray& r) { //extract two ray components str >> r.dx >> r.dy; return str; } std::ostream& operator<< (std::ostream& str, Ray r) { // insert two ray components separated by a space str << r.dx << “ “ << r.dy; return str; }

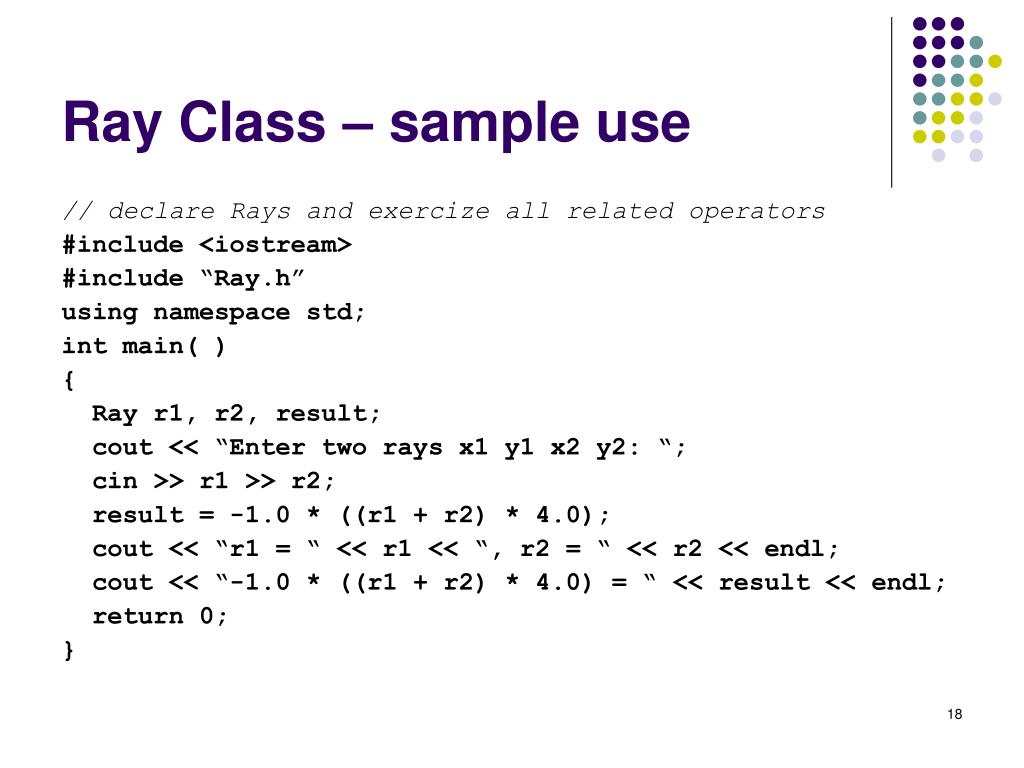

Ray Class – sample use // declare Rays and exercize all related operators #include <iostream> #include “Ray.h” using namespace std; int main( ) { Ray r1, r2, result; cout << “Enter two rays x1 y1 x2 y2: “; cin >> r1 >> r2; result = -1.0 * ((r1 + r2) * 4.0); cout << “r1 = “ << r1 << “, r2 = “ << r2 << endl; cout << “-1.0 * ((r1 + r2) * 4.0) = “ << result << endl; return 0; }

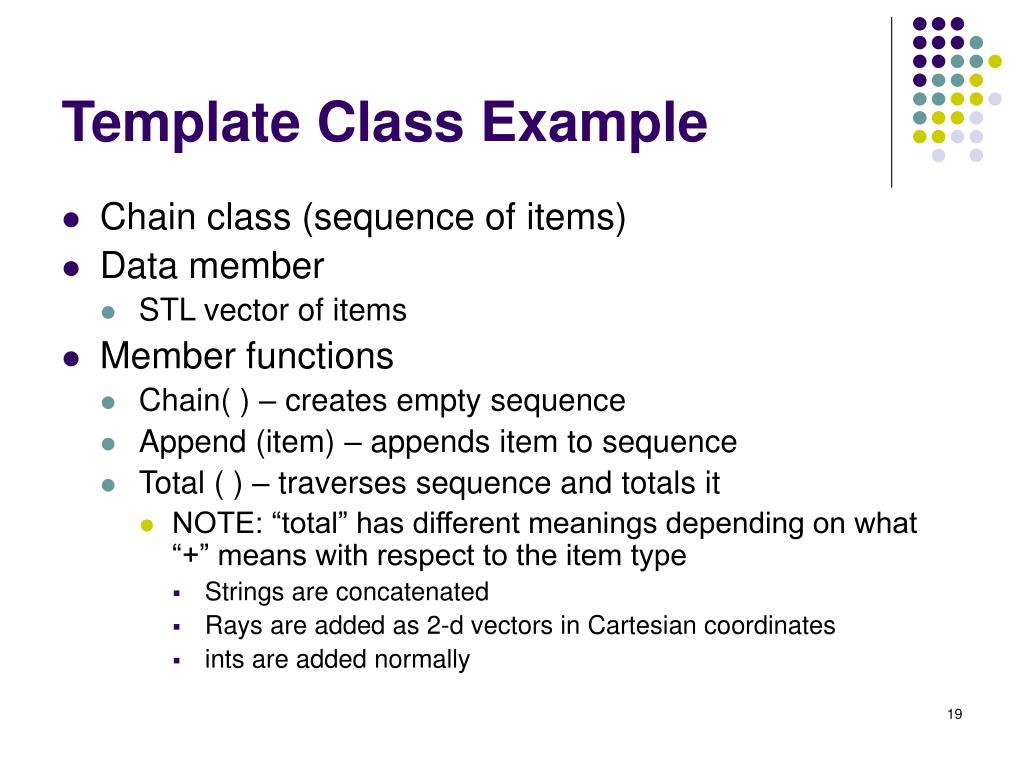

Template Class Example • Chain class (sequence of items) • Data member • STL vector of items • Member functions • Chain( ) – creates empty sequence • Append (item) – appends item to sequence • Total ( ) – traverses sequence and totals it • NOTE: “total” has different meanings depending on what “+” means with respect to the item type • Strings are concatenated • Rays are added as 2-d vectors in Cartesian coordinates • ints are added normally

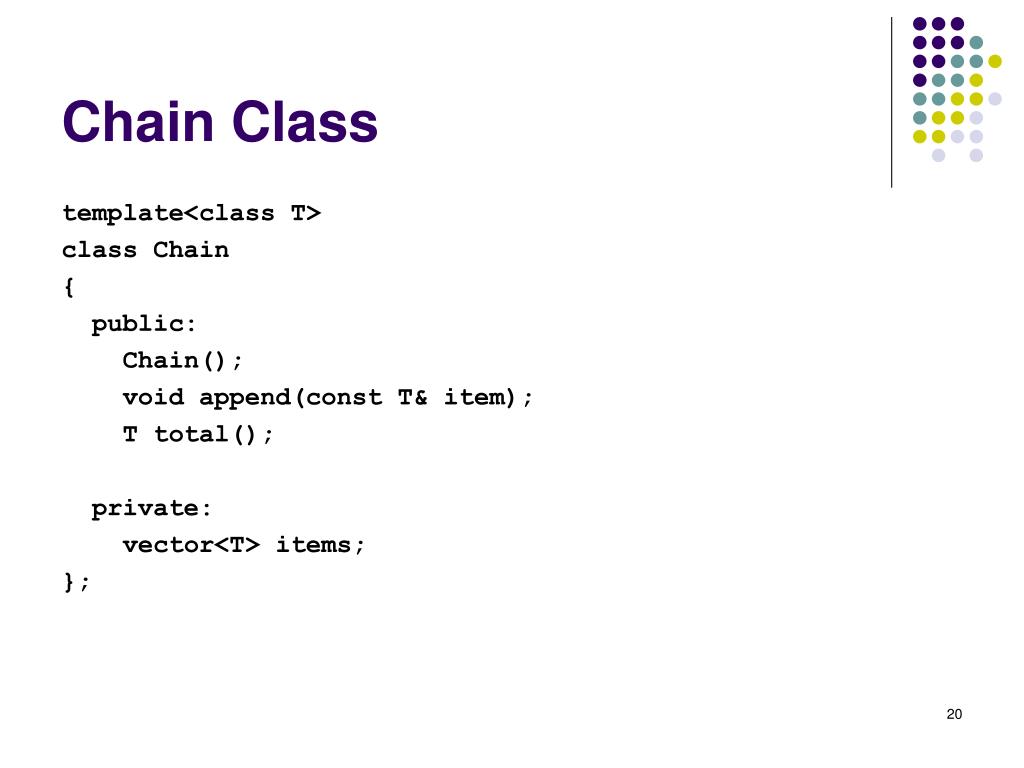

Chain Class template<class T> class Chain { public: Chain(); void append(const T& item); T total(); private: vector<T> items; };

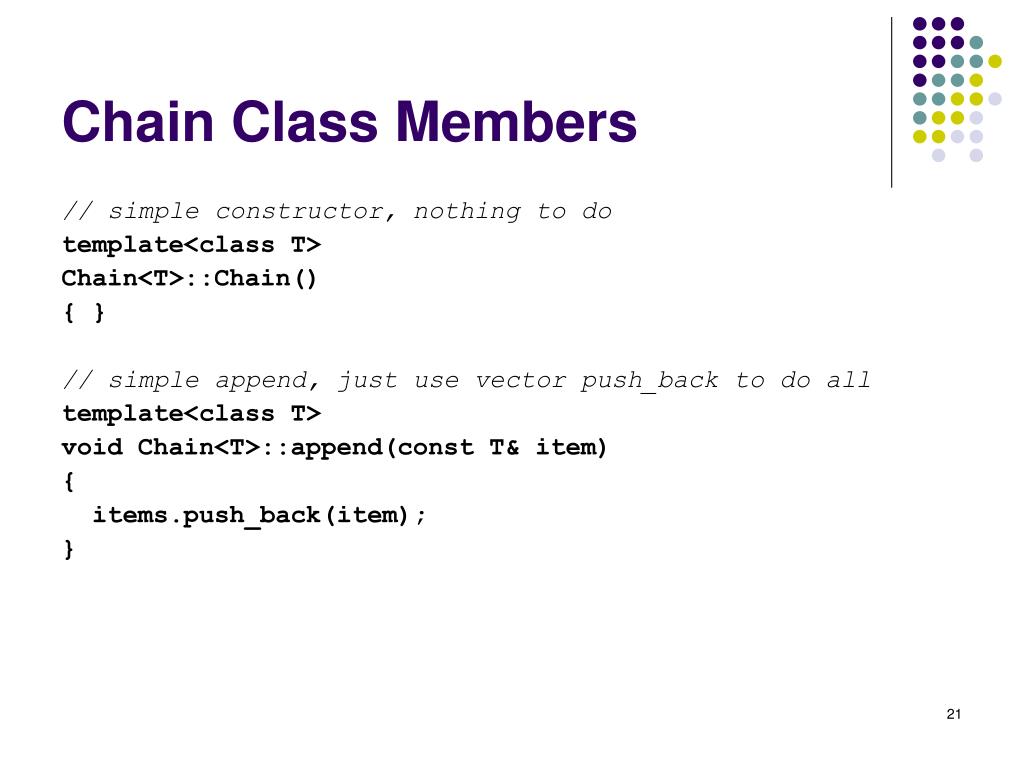

Chain Class Members // simple constructor, nothing to do template<class T> Chain<T>::Chain() { } // simple append, just use vector push_back to do all template<class T> void Chain<T>::append(const T& item) { items.push_back(item); }

Chain Class Members // pretty simple total procedure: handle empty Chain // in some way, then sum, concatenate, or whatever // is appropriate for “+” with respect to items of // type T template<class T> T Chain<T>::total() { if (0 == items.size()) return T(); // or throw an emptyChain error T result(items[0]); // start with value of first item for (int i=1; i<items.size(); i++) result = result + items[i]; // “sum” each other item return result; }

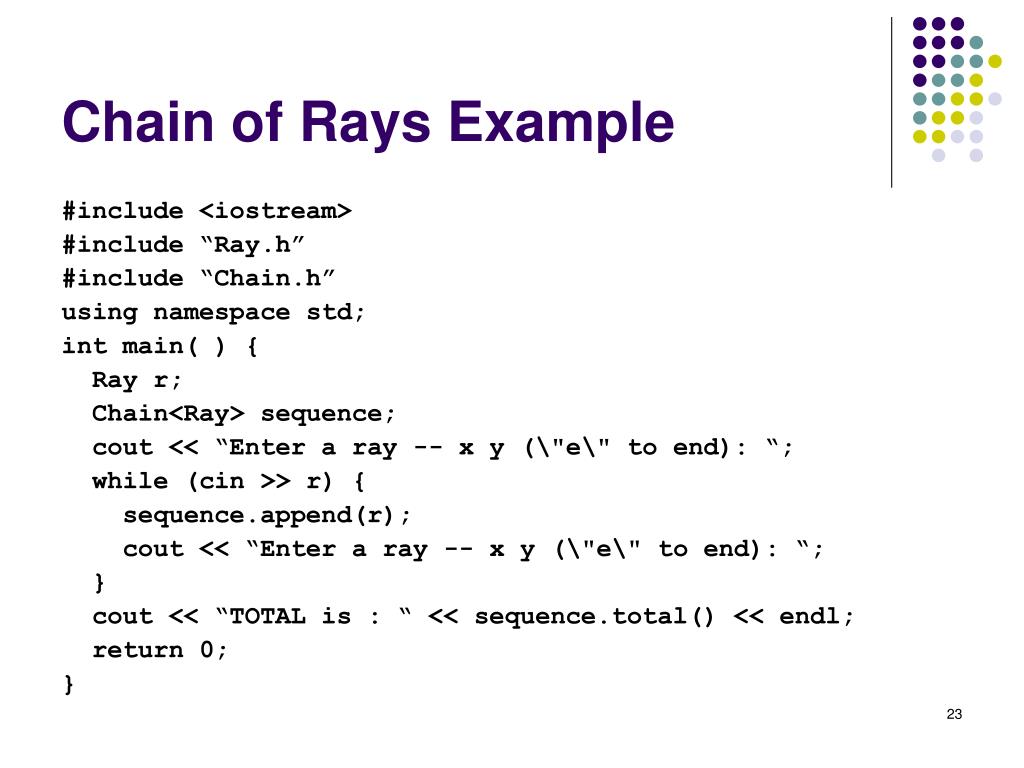

Chain of Rays Example #include <iostream> #include “Ray.h” #include “Chain.h” using namespace std; int main( ) { Ray r; Chain<Ray> sequence; cout << “Enter a ray -- x y (\"e\" to end): “; while (cin >> r) { sequence.append(r); cout << “Enter a ray -- x y (\"e\" to end): “; } cout << “TOTAL is : “ << sequence.total() << endl; return 0; }

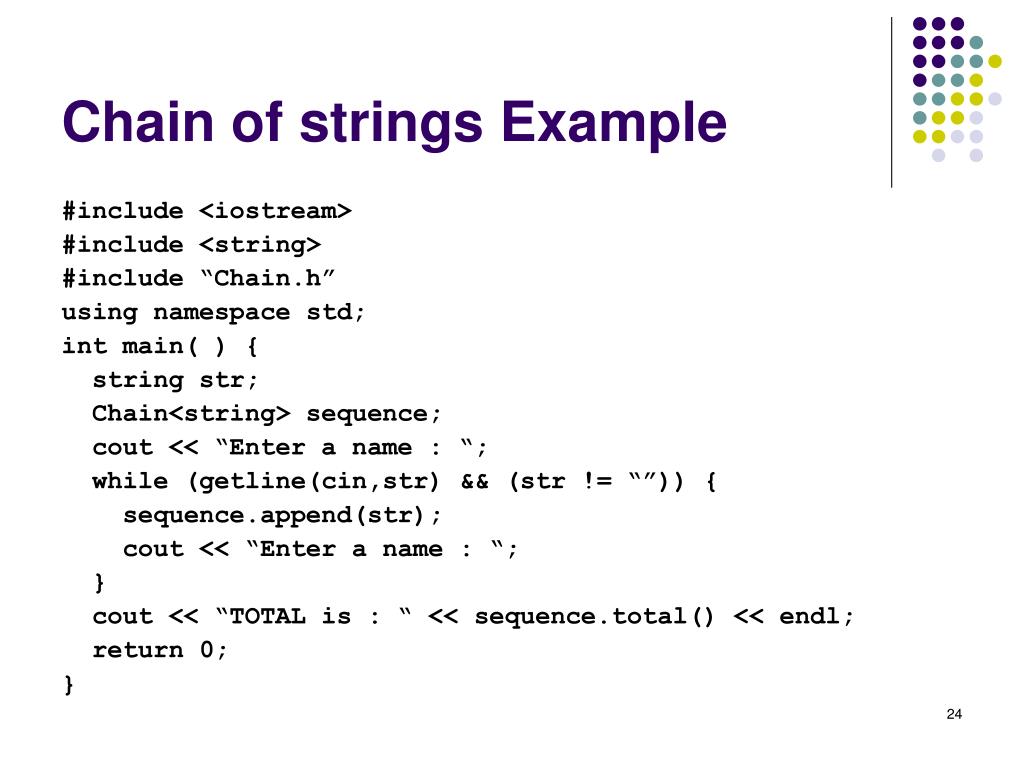

Chain of strings Example #include <iostream> #include <string> #include “Chain.h” using namespace std; int main( ) { string str; Chain<string> sequence; cout << “Enter a name : “; while (getline(cin,str) && (str != “”)) { sequence.append(str); cout << “Enter a name : “; } cout << “TOTAL is : “ << sequence.total() << endl; return 0; }

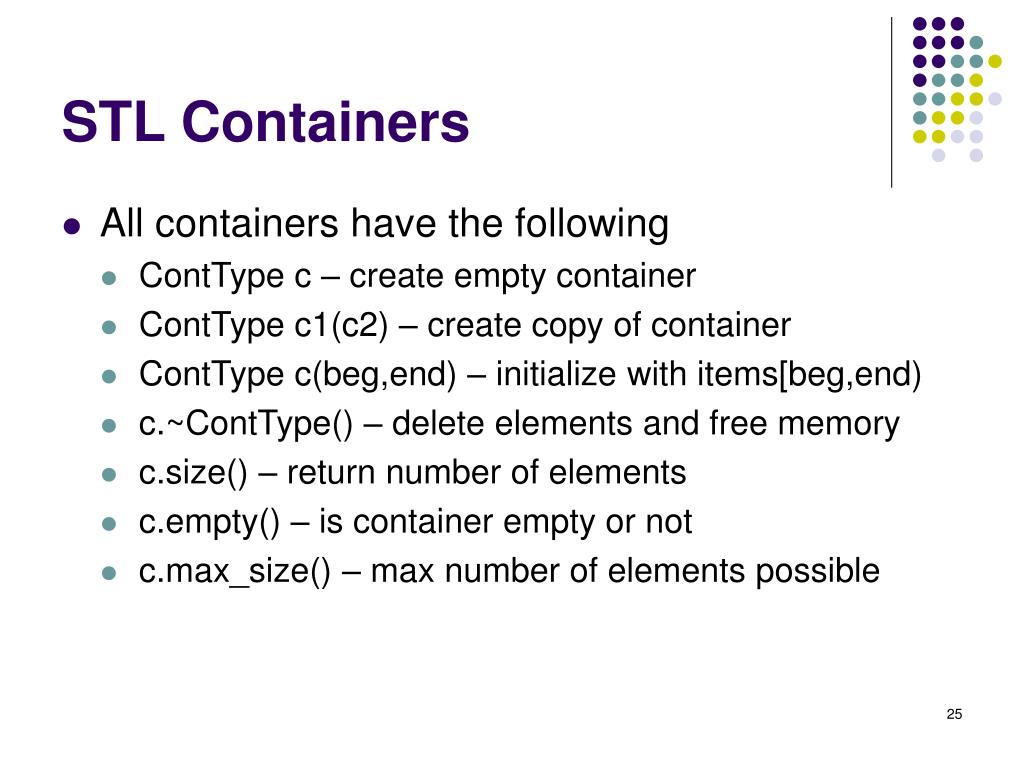

STL Containers • All containers have the following • ContType c – create empty container • ContType c1(c2) – create copy of container • ContType c(beg,end) – initialize with items[beg,end) • c.~ContType() – delete elements and free memory • c.size() – return number of elements • c.empty() – is container empty or not • c.max_size() – max number of elements possible

STL Containers • All containers have the following • c1 == c2 – are containers equal? • c1 != c2 – are they not equal • c1 < c2 – less than based on lexicographical ordering • c1 > c2 – greater than • c1 <= c2 – less than or equal • c1 >= c2 – greater than or equal • c1 = c2 – assigns elements of c2 to c1 • c1.swap(c2) – swaps elements of two containers • swap(c1,c2) – same as above

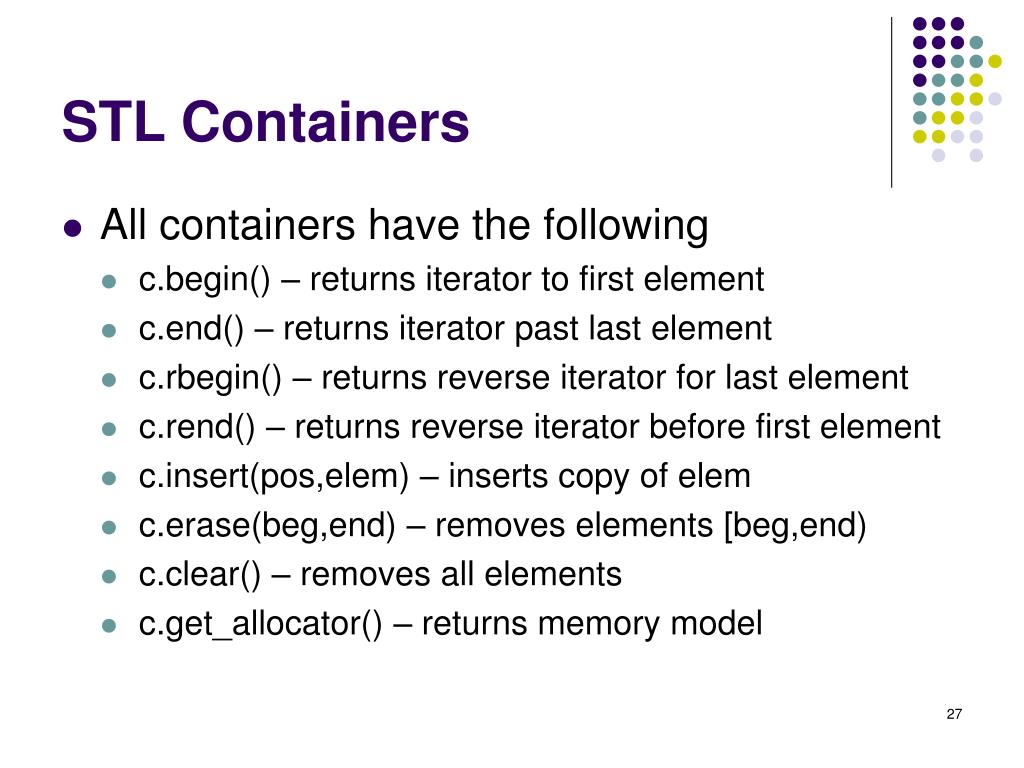

STL Containers • All containers have the following • c.begin() – returns iterator to first element • c.end() – returns iterator past last element • c.rbegin() – returns reverse iterator for last element • c.rend() – returns reverse iterator before first element • c.insert(pos,elem) – inserts copy of elem • c.erase(beg,end) – removes elements [beg,end) • c.clear() – removes all elements • c.get_allocator() – returns memory model

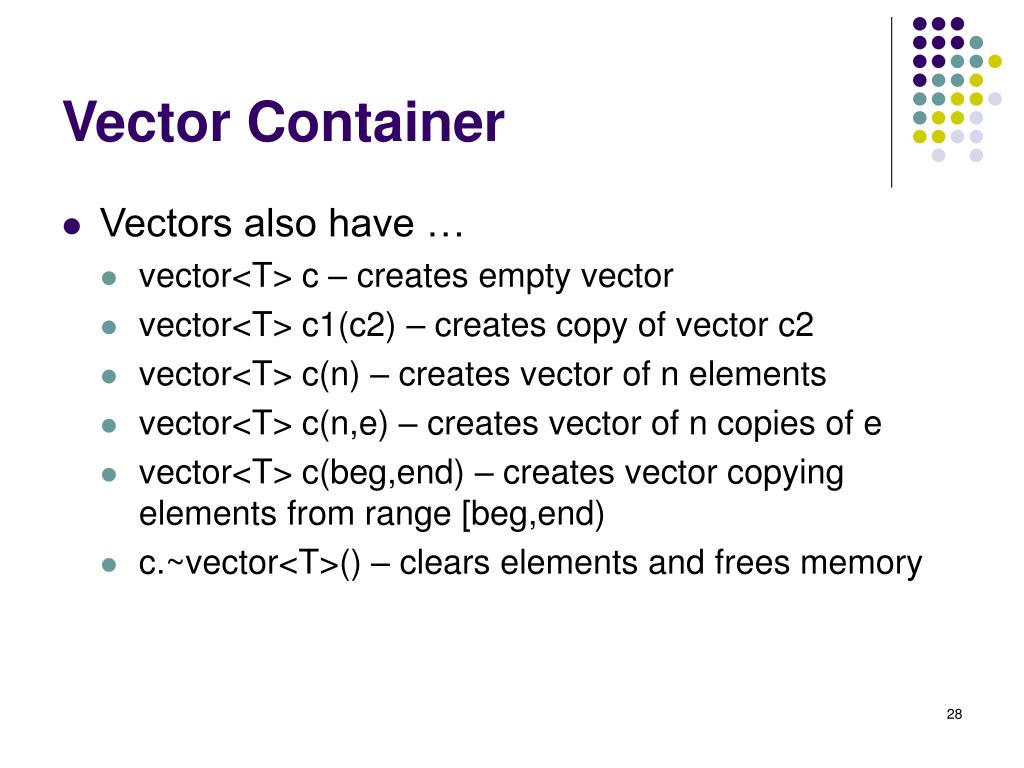

Vector Container • Vectors also have … • vector<T> c – creates empty vector • vector<T> c1(c2) – creates copy of vector c2 • vector<T> c(n) – creates vector of n elements • vector<T> c(n,e) – creates vector of n copies of e • vector<T> c(beg,end) – creates vector copying elements from range [beg,end) • c.~vector<T>() – clears elements and frees memory

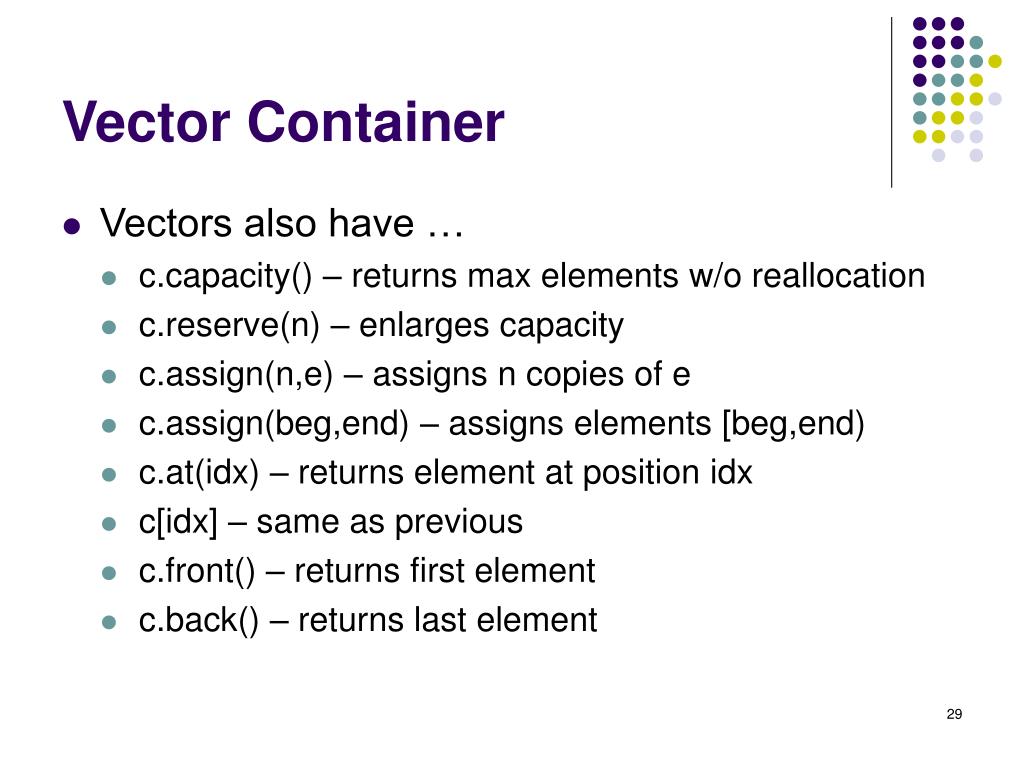

Vector Container • Vectors also have … • c.capacity() – returns max elements w/o reallocation • c.reserve(n) – enlarges capacity • c.assign(n,e) – assigns n copies of e • c.assign(beg,end) – assigns elements [beg,end) • c.at(idx) – returns element at position idx • c[idx] – same as previous • c.front() – returns first element • c.back() – returns last element

Vector Container • Vectors also have … • c.insert(pos,n,e) – inserts n copies of e at iterator pos • c.insert(pos,beg,end) – inserts at iterator pos the elements in range [beg,end) • c.push_back(e) – appends e to vector • c.pop_back() – removes last element from vector • c.erase(pos) – removes element at iterator pos • c.resize(num) – changes number of elements and fills with value of default element constructor • c.resize(num,e) – changes size and fills with e
