  1. More on Views (3.6—3.7) Author: Dr. Adam Anthony For text: Database Management Systems (Ramakrishnan and Gherke)

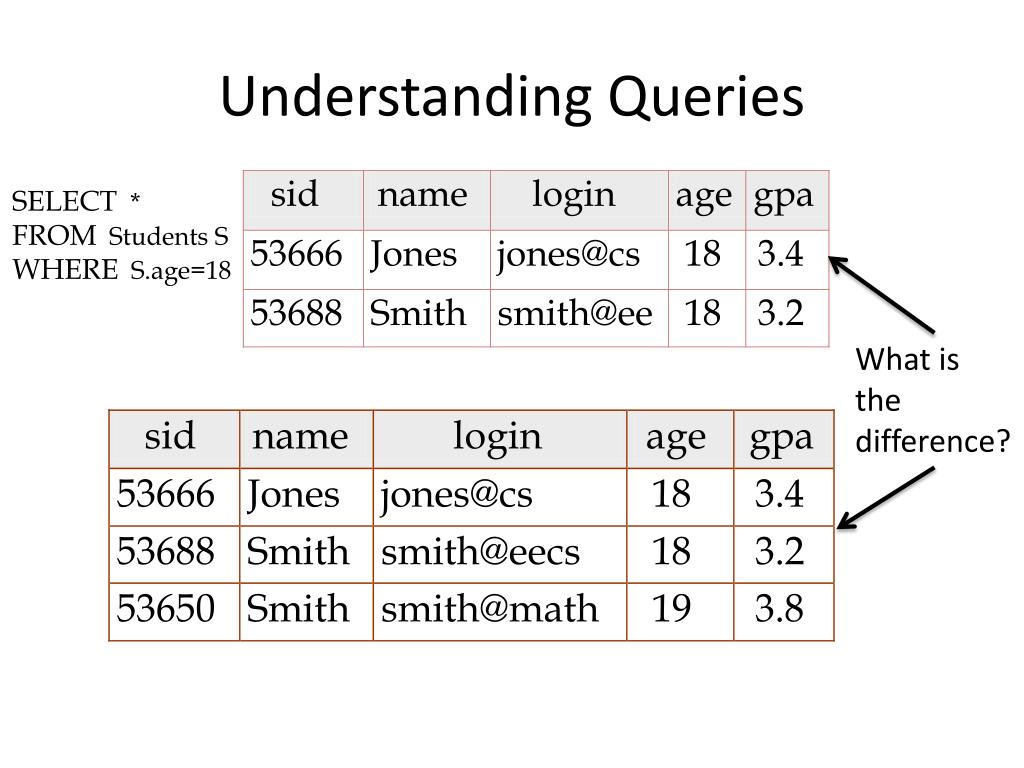

  2. Understanding Queries SELECT * FROM Students S WHERES.age=18 What is the difference?

  3. View Basics • Views, once defined, may be treated just like a table • No explicit values • Data comes from other tables • Defined by queries • Indirect consequence: Changing the queried table(s) changes the view! CREATE VIEW YoungActiveStudents (name, grade) AS SELECT S.name, E.grade FROM Students S, Enrolled E WHERE S.sid = E.sid and S.age<21

  4. Why Views? • Hiding Complexity • Simplifying the programming interface • Security • (Possibly) Convenient updates, insertions, deletions • Domain-restricted insertions

  5. Hiding Complexity CREATE VIEW red_green_sailors (sailor_id) AS SELECTS.sid FROM Sailors S, Boats B, Reserves R WHERE S.sid=R.sid AND R.bid=B.bid ANDB.color=‘red’ AND S.sid IN (SELECT S2.sid FROM Sailors S2, Boats B2, Reserves R2 WHERE S2.sid=R2.sid AND R2.bid=B2.bid AND B2.color=‘green’) SELECT * FROM red_green_sailors • When is this useful? • Frequently used queries • Simplifying even BIGGER queries • Secret Queries

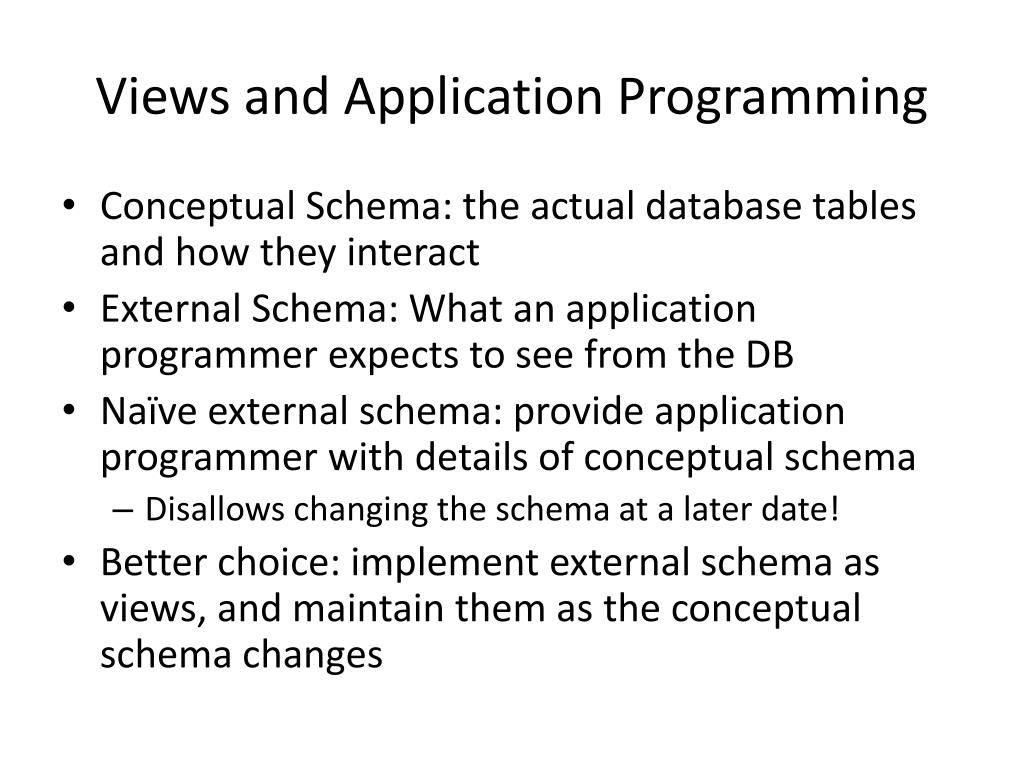

  6. Views and Application Programming • Conceptual Schema: the actual database tables and how they interact • External Schema: What an application programmer expects to see from the DB • Naïve external schema: provide application programmer with details of conceptual schema • Disallows changing the schema at a later date! • Better choice: implement external schema as views, and maintain them as the conceptual schema changes

  7. Views and Security • Most DBMS’s provide some means of access control • Given a username, privileges to data can be restricted • General approach: restrict tables, allow views Student_Accounts: For helpdesk employees Student table—only available to administrators

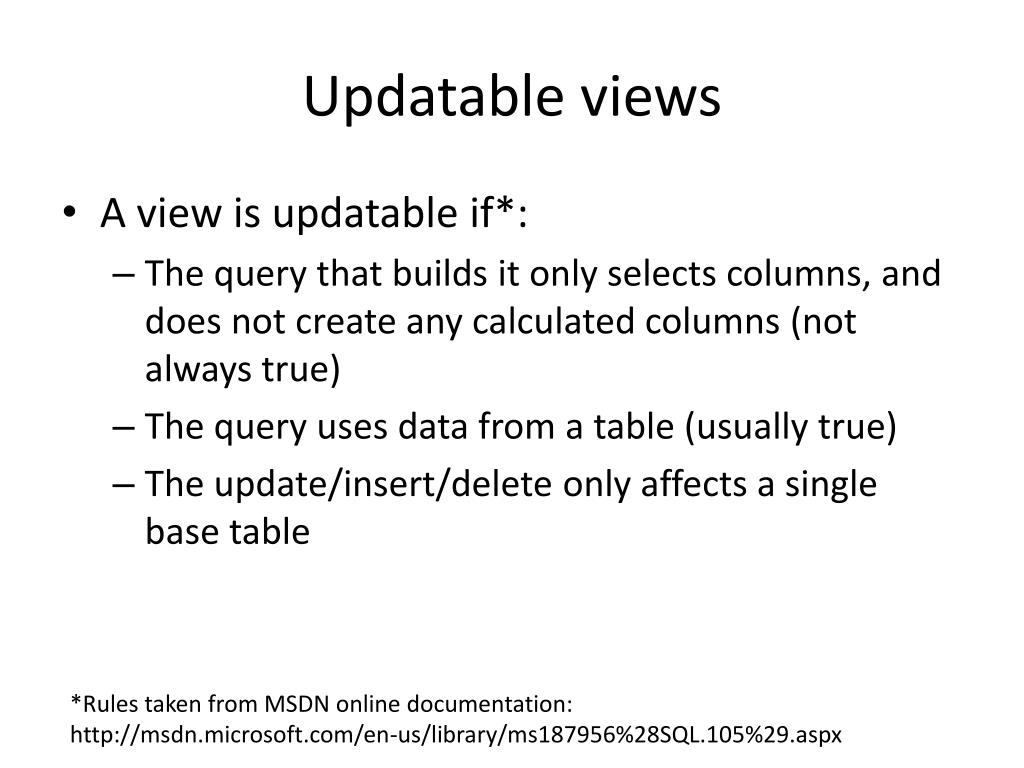

  8. Updatable views • A view is updatable if*: • The query that builds it only selects columns, and does not create any calculated columns (not always true) • The query uses data from a table (usually true) • The update/insert/delete only affects a single base table *Rules taken from MSDN online documentation: http://msdn.microsoft.com/en-us/library/ms187956%28SQL.105%29.aspx

  9. Updating View Rows • View is created, and shown below • View uses two base tables • The update must only SET fields from a single base table • The WHERE portion of the update may condition on other fields CREATE VIEW StudentGrades(name, cid,grade) AS SELECT S.name, E.cid, E.grade FROM Students S, Enrolled E WHERE S.sid = E.sid UPDATEStudentGrades • SET grade = “I” • WHERE SG.name = “Jones”

  10. Inserting and Deleting View Rows • Deleting: view may only be defined over one table • Insertion: Will work, sort of: • Still may only affect one of the base tables • Insertion will result in null for view fields from other tables • Any base table fields not in view will be set to NULL • If primary key of base not in view, this will fail!

  11. Restricting Domains With Views • Views depend on underlying data, but are loaded dynamically • When inserting: • If inserted values don’t match query, they won’t be visible in the view! • WITH CHECK OPTION: • Reject any insertions that won’t be visible in the view • Can be used for limited domain restriction on fields CREATE VIEW ProbationaryStudents (name, grade) AS SELECT S.name, E.grade FROM Students S, Enrolled E WHERE S.sid = E.sid and E.grade<2.0 WITH CHECK OPTION

  12. Other Odds and Ends

  13. More on Defaults • With foreign keys, we have the SET DEFAULT option: FOREIGN KEY sid REFERENCES students ON DELETE SET DEFAULT • What is the default value? • We set it on table creation: CREATE TABLE students( sid INTEGER DEFAULT 111223333, …

  14. Employees name Translating Aggregates ssn lot create table projects(…) create table departments (…) create table employees (… ) CREATE TABLE SPONSORS( since : datetime, pid : char(10), did: char(10), primary key (pid,did) foreign key pid references projects foreign key did references departments ); CREATE TABLE MONITORS( until : datetime, pid: char(10), did: char(10), ssn: chare(11), primary key (pid,did,ssn), foreign key (pid,did) references sponsors foreigh key ssn references employee); Monitors until since started_on dname pid pbudget did budget Sponsors Departments Projects
