  1. Secure SIP Phone Using JCE by George Fu, UCCS CS 591 Semester Project Fall 2005

  2. Two Parts of the Project • Understand VOIP Security Issues • Implement Secured RTP

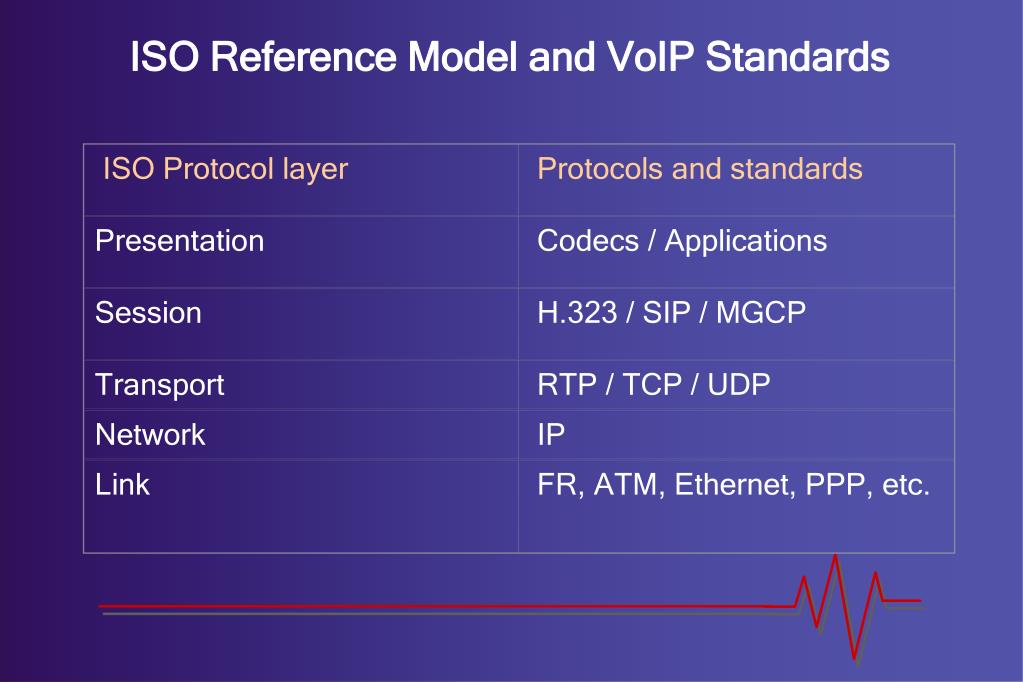

  3. ISO Protocol layer Protocols and standards Presentation Codecs / Applications Session H.323 / SIP / MGCP Transport RTP / TCP / UDP Network IP Link FR, ATM, Ethernet, PPP, etc. ISO Reference Model and VoIP Standards

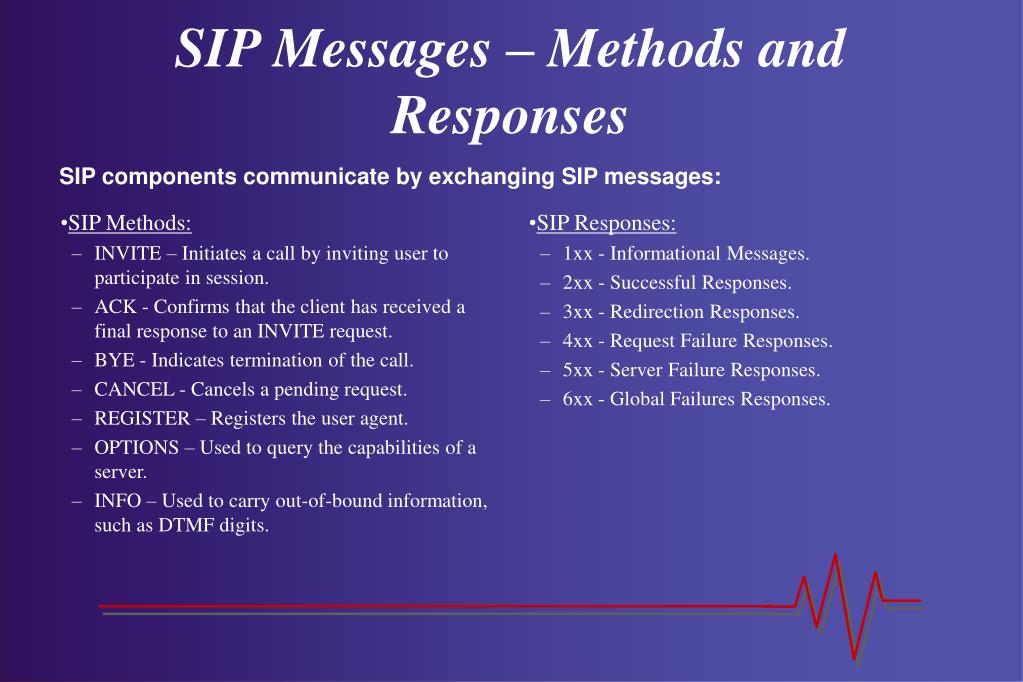

  4. SIP Methods: INVITE – Initiates a call by inviting user to participate in session. ACK - Confirms that the client has received a final response to an INVITE request. BYE - Indicates termination of the call. CANCEL - Cancels a pending request. REGISTER – Registers the user agent. OPTIONS – Used to query the capabilities of a server. INFO – Used to carry out-of-bound information, such as DTMF digits. SIP Responses: 1xx - Informational Messages. 2xx - Successful Responses. 3xx - Redirection Responses. 4xx - Request Failure Responses. 5xx - Server Failure Responses. 6xx - Global Failures Responses. SIP Messages – Methods and Responses SIP components communicate by exchanging SIP messages:

  5. Example of SIP message INVITE sip:bob@domain.com SIP/2.0 Via: SIP/2.0/UDP 166.34.27.44 From: sip:alice@mci.com To: sip:bob@domain.com Call-ID: a2e3a@mci.com Content-Type: application/sdp Content-Length: 885 c=IN IP4 166.34.27.44 m=audio 38060 RTP/AVP 0 • HTTP message syntax • sdp = session description protocol • Call-ID is unique for every call.

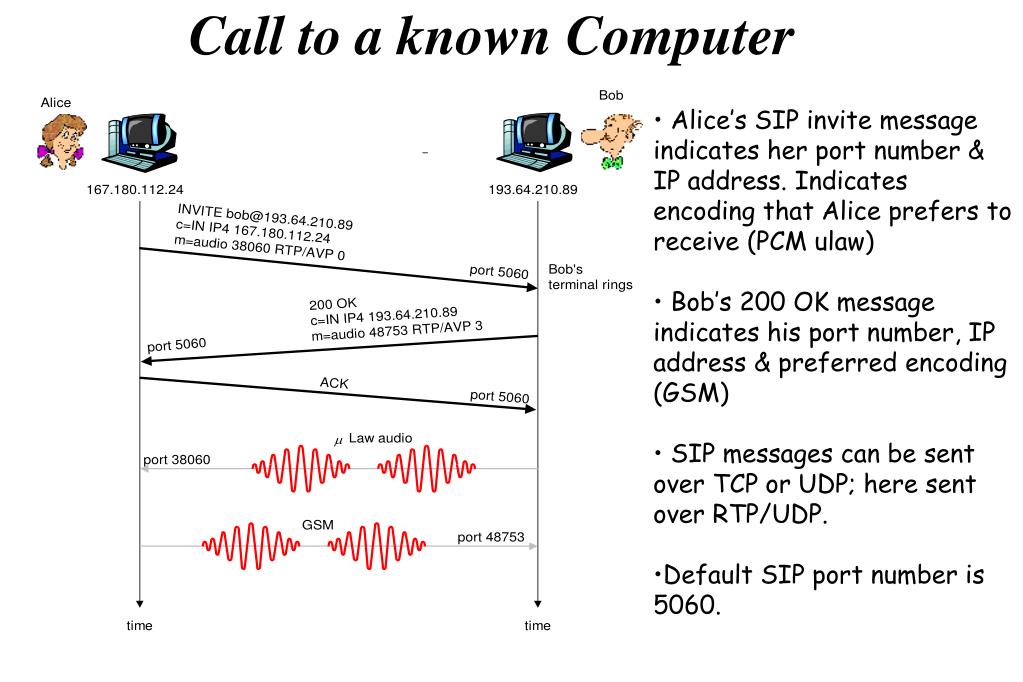

  6. Call to a known Computer • Alice’s SIP invite message indicates her port number & IP address. Indicates encoding that Alice prefers to receive (PCM ulaw) • Bob’s 200 OK message indicates his port number, IP address & preferred encoding (GSM) • SIP messages can be sent over TCP or UDP; here sent over RTP/UDP. • Default SIP port number is 5060.

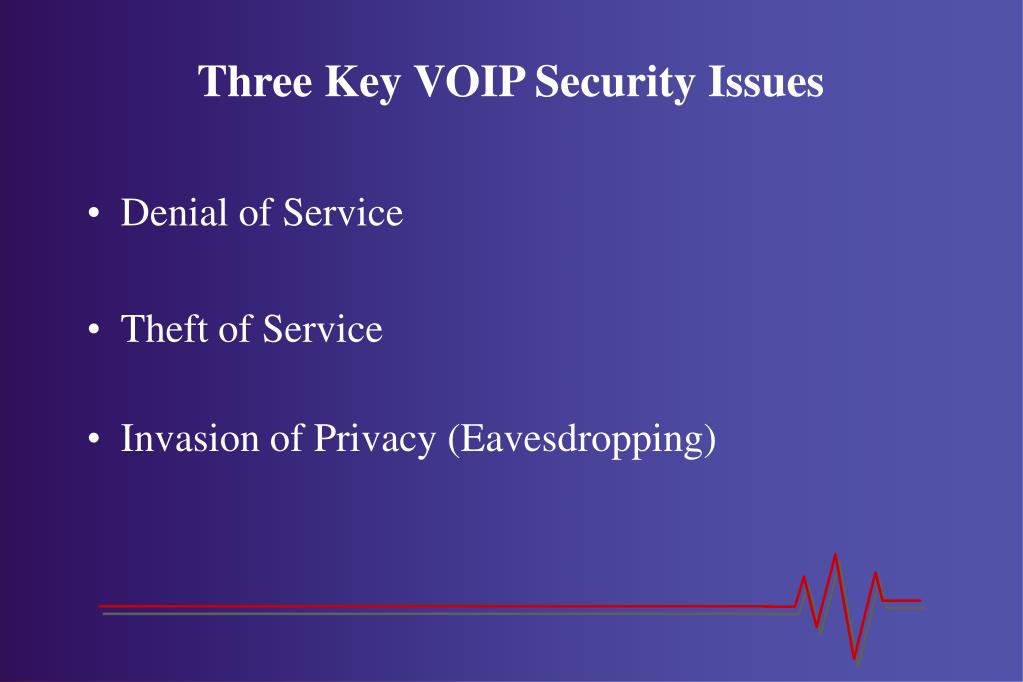

  7. Three Key VOIP Security Issues • Denial of Service • Theft of Service • Invasion of Privacy (Eavesdropping)

  8. Media Security • Calling party produce self-signed certificate • The certificate is piggybacked in the INVITE signaling message • Called party piggybacks the signed shared key back to the calling party in the 200 OK signaling message • The media packets are encrypted with AES using the dynamically-exchanged shared key.

  9. Encryption Key Size • 56 bit, can be broken in three hours • 192 bit, consume too much computation power • 128 bit, desirable size (AES)

  10. INVITE sip:gfu@XS117V6226117 SIP/2.0 • Via: SIP/2.0/UDP XS117V6226117.mcilink.com:5060 • From: gfu <sip:gfu@XS117V6226117.mcilink.com> • To: gfu <sip:gfu@redcloud> • call-id: 1543736581@XS117V6226117.mcilink.com • Cseq: 1 INVITE • Content-Type: application/sdp • Content-Length: 746 • v= 0 • c= IN IP4 XS117V6226117.mcilink.com • m= audio 5004 RTP/AVP 0 • a= rtpmap:5 VOICE/8000 • k=-----BEGIN CERTIFICATE----- • MIIBuDCCAWICAQEwDQYJKoZIhvcNAQEFBQAwZzELMAkGA1UEBhMCREUxCzAJBgNV • BAcTAkhIMQ4wDAYDVQQKEwVUVS1ISDEMMAoGA1UECxMDU1ZBMS0wKwYDVQQDEyRE • NjI4QzMxRS00QUYxLUE1REMtNDJFMC1DOEI5RDBDODdERUYwHhcNMDUxMjAzMDc0 • MTQ4WhcNMDYwNjAzMDY0MTQ4WjBnMQswCQYDVQQGEwJERTELMAkGA1UEBxMCSEgx • DjAMBgNVBAoTBVRVLUhIMQwwCgYDVQQLEwNTVkExLTArBgNVBAMTJEQ2MjhDMzFF • LTRBRjEtQTVEQy00MkUwLUM4QjlEMEM4N0RFRjBcMA0GCSqGSIb3DQEBAQUAA0sA • MEgCQQCge8AM4T4YQARKNI3ETvcStZOcY1iHVFWQlbFuKSZPjapJLp8FBFZbV+UE • O9HZm/smyq08sN7a5UoJUm6QScC9AgMBAAEwDQYJKoZIhvcNAQEFBQADQQAOf6bZ • 5zLp+rhSKNpULasAchtgS1fGQ0peDg4mjDXv+8KbkoHzRuvIaXjIqcF+tvNHuJCO • SPxAYAAHUdZfK7Mp • -----END CERTIFICATE-----

  11. Future Work

  12. References • [1] Black, U., 2002, “Voice over IP”, 2nd ed., Prentice Hall • [2] J. Davidson and J. Peters, 2000, “Voice over IP Fundamentals”, Cisco Press • [3] H. Liu and P. Mouchtaris, 2000, “Voice over IP Signaling: H.323 and Beyond,” IEEE Comm. Mag., October , pp.142-148 • [4] J. Arkko, V. Torvinen, G. Camarillo, Ericsson, A. Niemi, T. Haukka, Nokia. Security Mechanism Agreement for the Session Initiation Protocol, IETF RFC 3329, Jan. 2003. • [5] Baugher, M. et.al. The Secure Real-Time Transport Protocol(SRTP), IETF Request ForComments RFC 3711, Mar. 2004. http://www.ietf.org/rfc/rfc3711.txt • [6] http://download.java.net/jdk6/docs/guide/security/jce/JCERefGuide.html
