  1. Chapter 2 How Hardware and Software Work Together

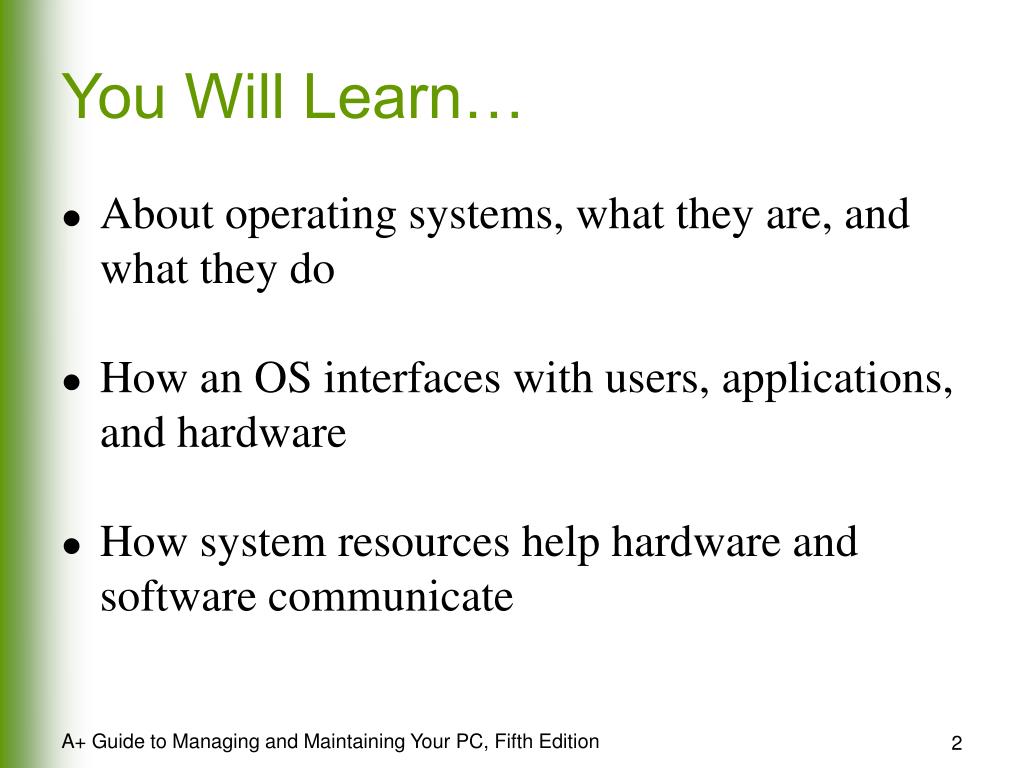

  2. You Will Learn… • About operating systems, what they are, and what they do • How an OS interfaces with users, applications, and hardware • How system resources help hardware and software communicate A+ Guide to Managing and Maintaining Your PC, Fifth Edition

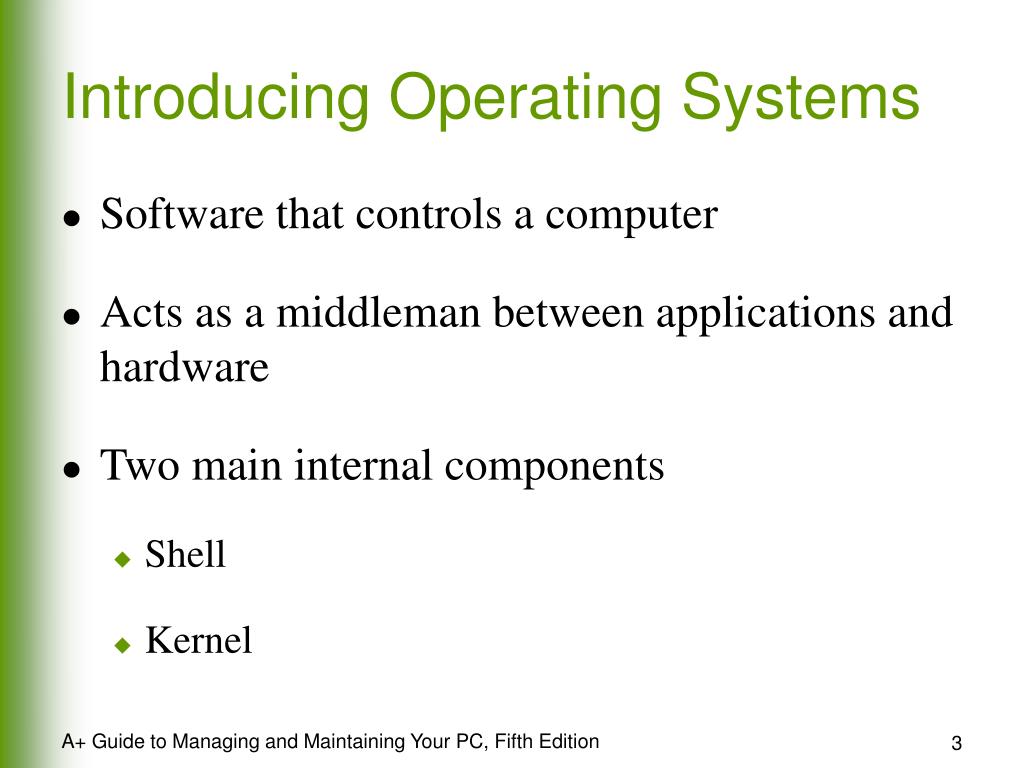

  3. Introducing Operating Systems • Software that controls a computer • Acts as a middleman between applications and hardware • Two main internal components • Shell • Kernel A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  4. OS as a Middleman A+ Guide to Managing and Maintaining Your PC, Fifth Edition

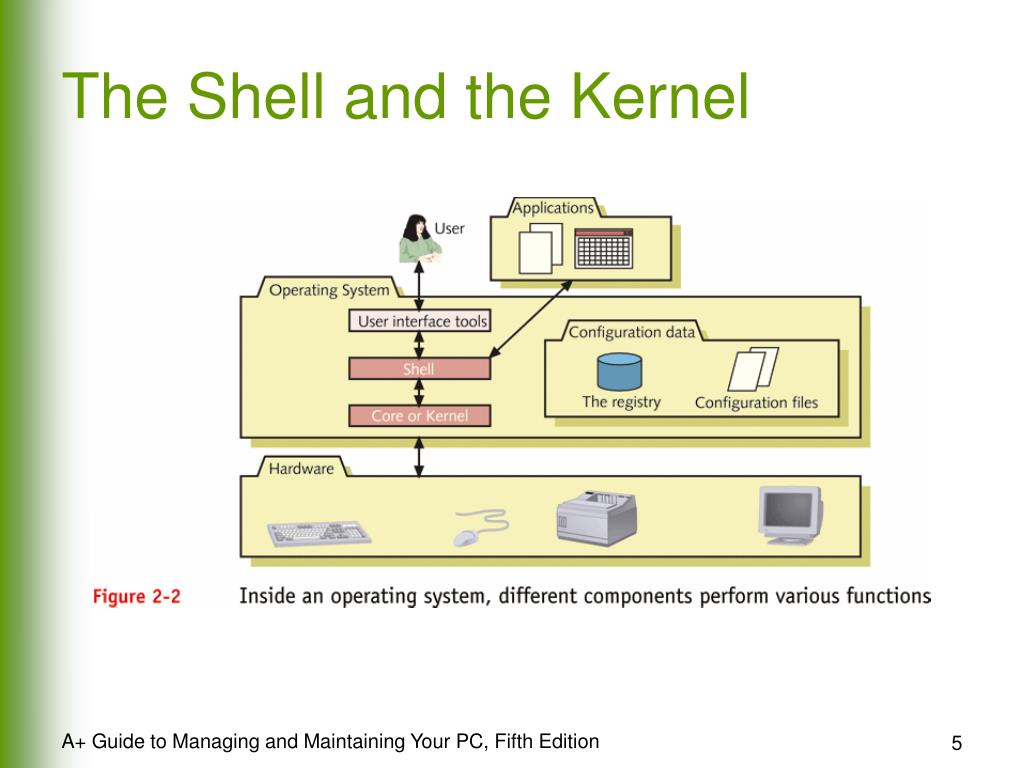

  5. The Shell and the Kernel A+ Guide to Managing and Maintaining Your PC, Fifth Edition

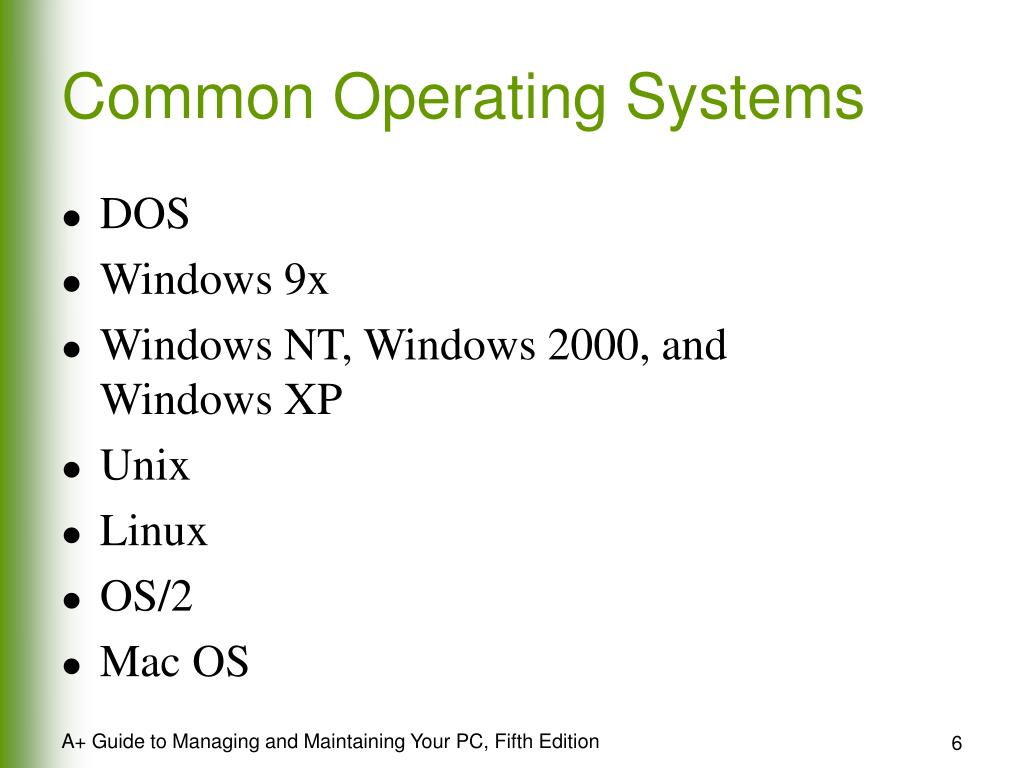

  6. Common Operating Systems • DOS • Windows 9x • Windows NT, Windows 2000, andWindows XP • Unix • Linux • OS/2 • Mac OS A+ Guide to Managing and Maintaining Your PC, Fifth Edition

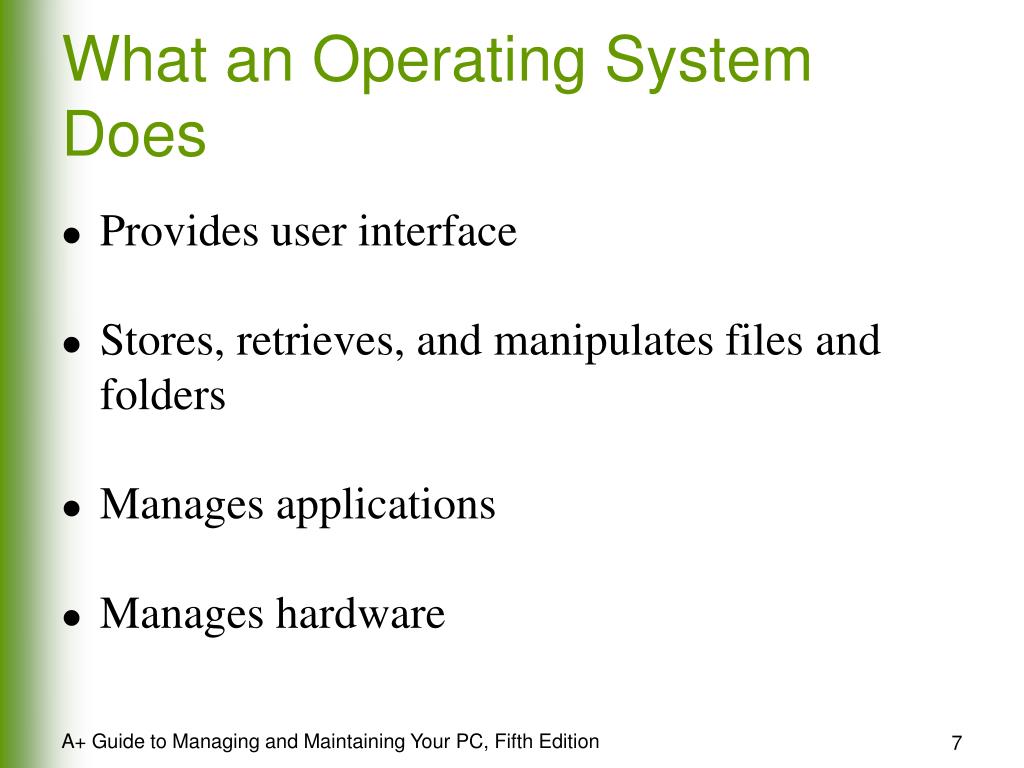

  7. What an Operating System Does • Provides user interface • Stores, retrieves, and manipulates files and folders • Manages applications • Manages hardware A+ Guide to Managing and Maintaining Your PC, Fifth Edition

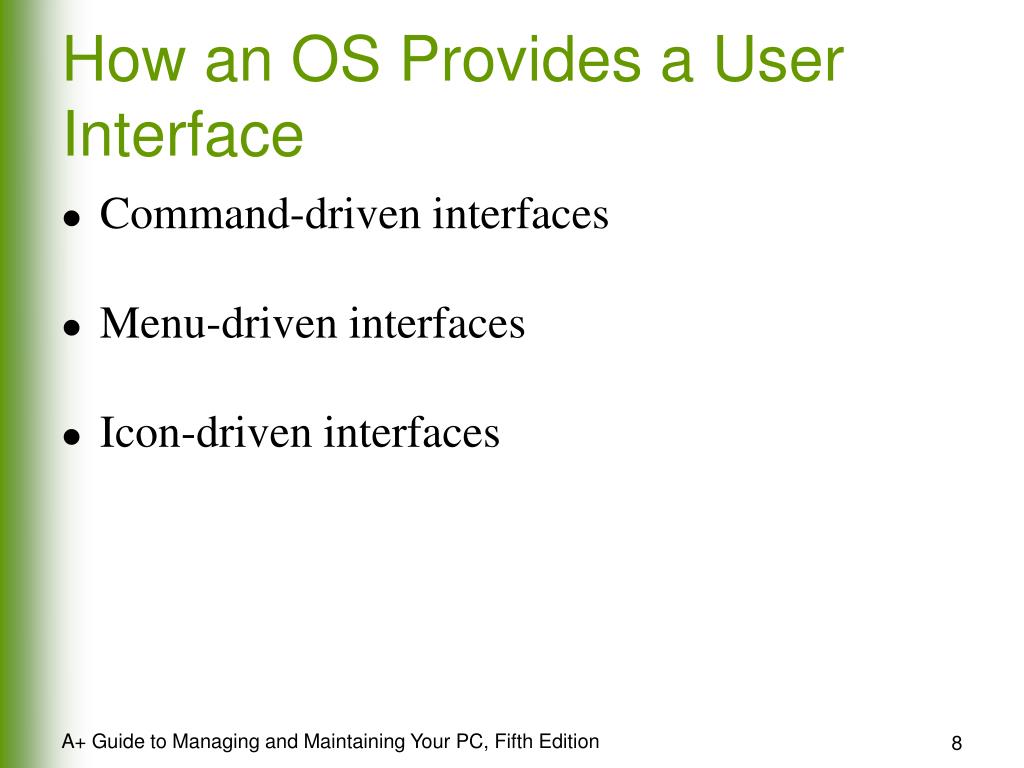

  8. How an OS Provides a User Interface • Command-driven interfaces • Menu-driven interfaces • Icon-driven interfaces A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  9. A Menu-Driven Interface A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  10. How an OS Manages Files and Folders • Uses file system (FAT or NTFS) to track how clusters are used for each stored file • Uses directories, subdirectories, and files • Uses partitions and logical drives on hard drive A+ Guide to Managing and Maintaining Your PC, Fifth Edition

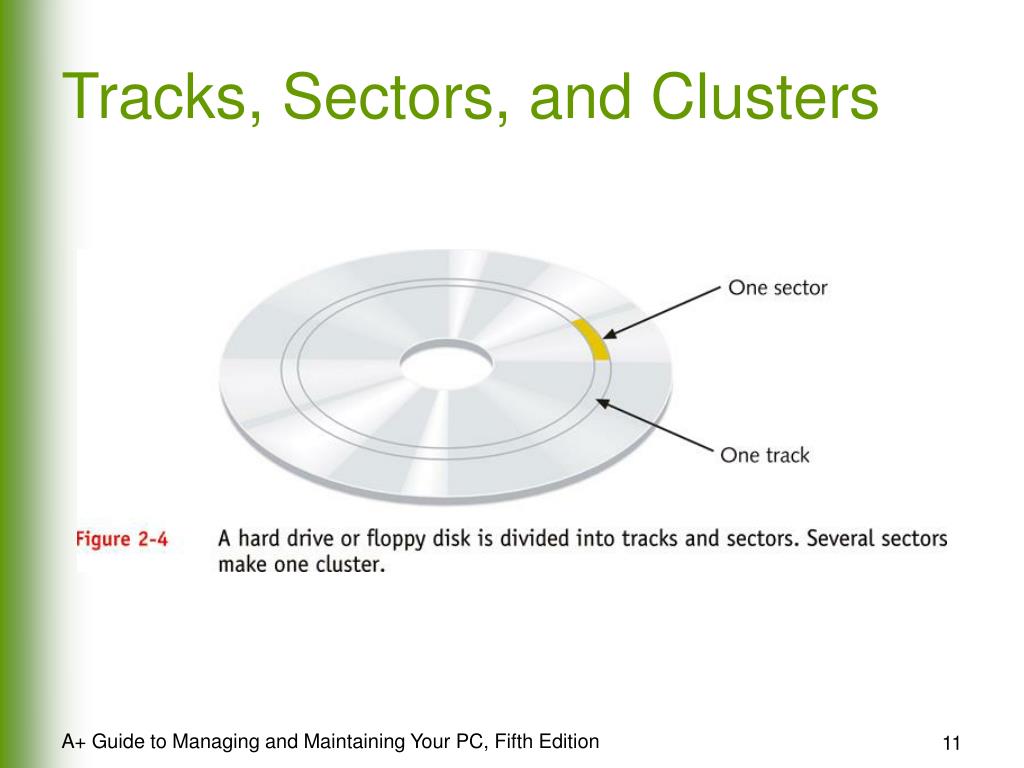

  11. Tracks, Sectors, and Clusters A+ Guide to Managing and Maintaining Your PC, Fifth Edition

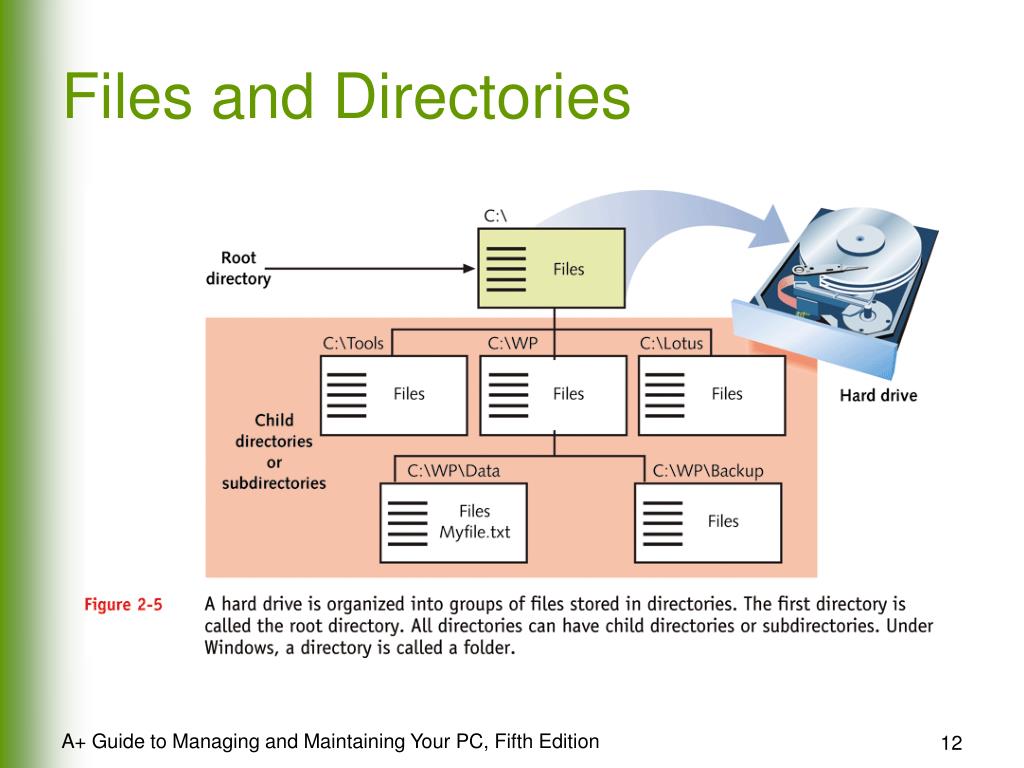

  12. Files and Directories A+ Guide to Managing and Maintaining Your PC, Fifth Edition

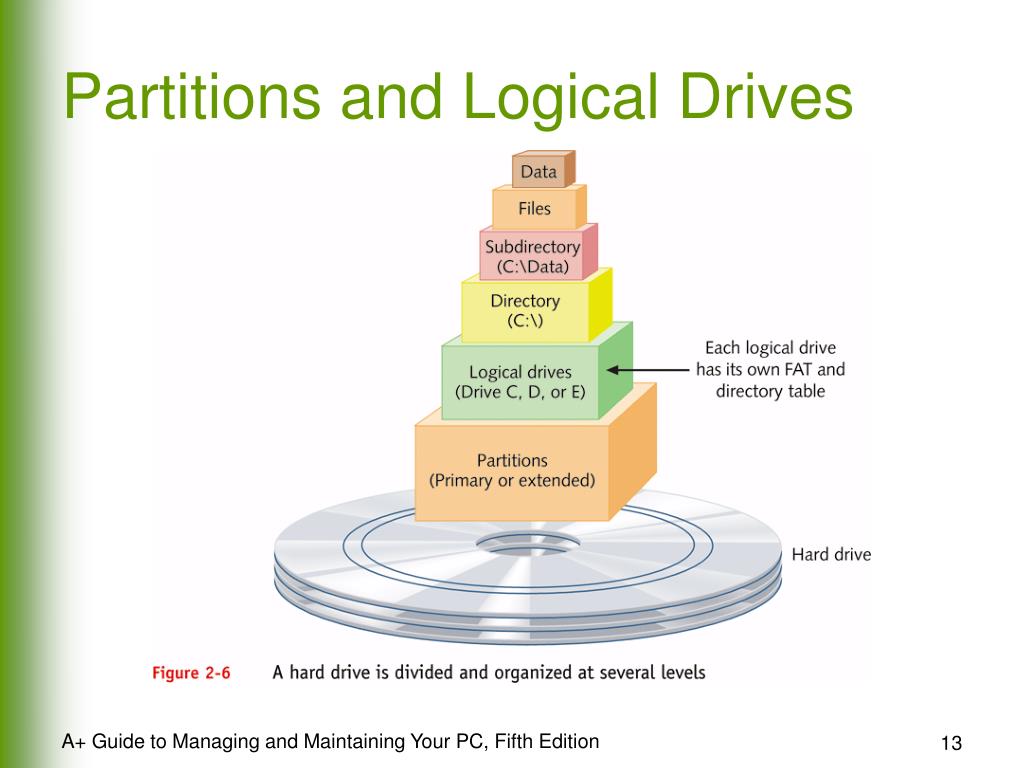

  13. Partitions and Logical Drives A+ Guide to Managing and Maintaining Your PC, Fifth Edition

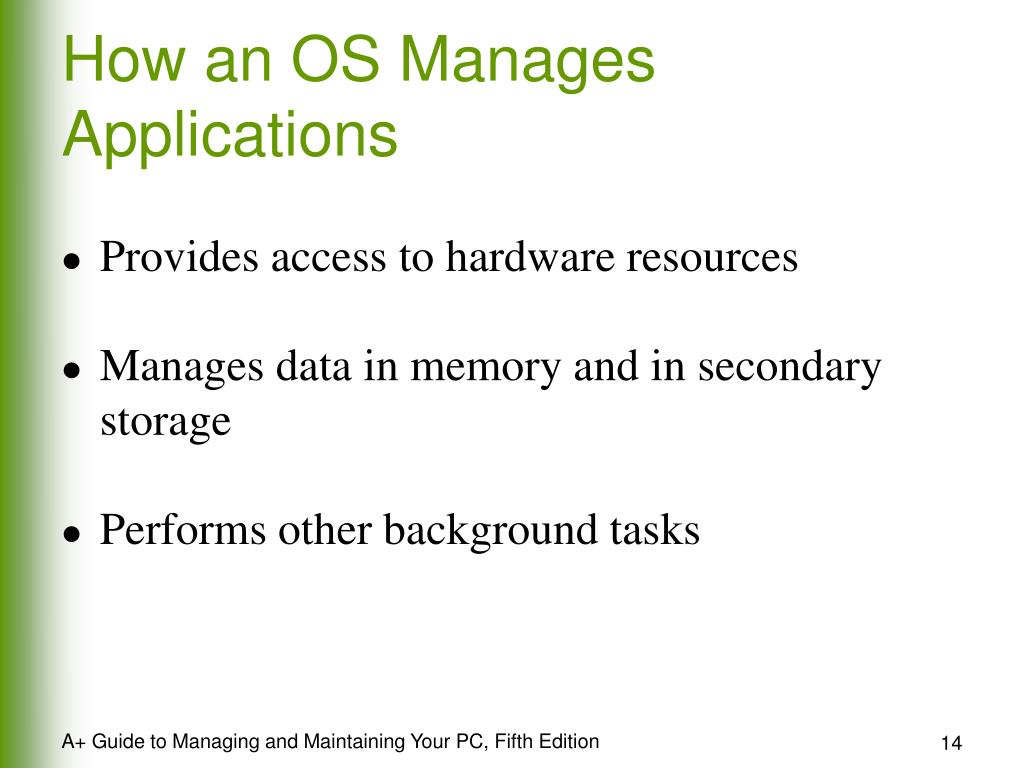

  14. How an OS Manages Applications • Provides access to hardware resources • Manages data in memory and in secondary storage • Performs other background tasks A+ Guide to Managing and Maintaining Your PC, Fifth Edition

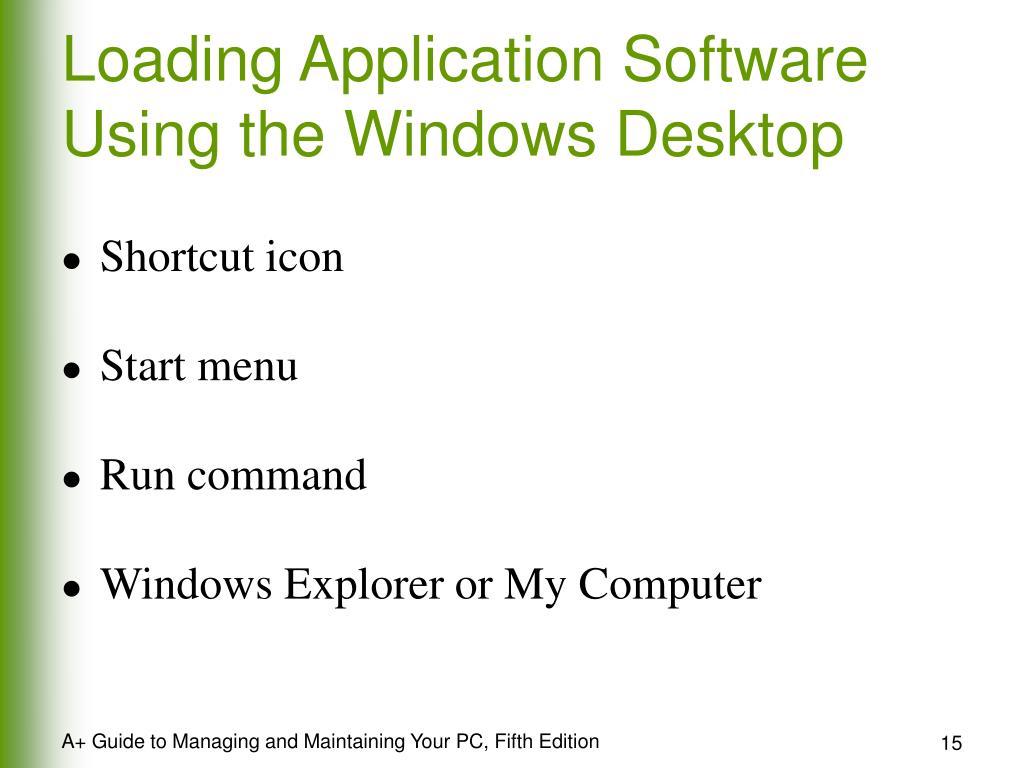

  15. Loading Application Software Using the Windows Desktop • Shortcut icon • Start menu • Run command • Windows Explorer or My Computer A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  16. Using a Shortcut Icon to Load Software A+ Guide to Managing and Maintaining Your PC, Fifth Edition

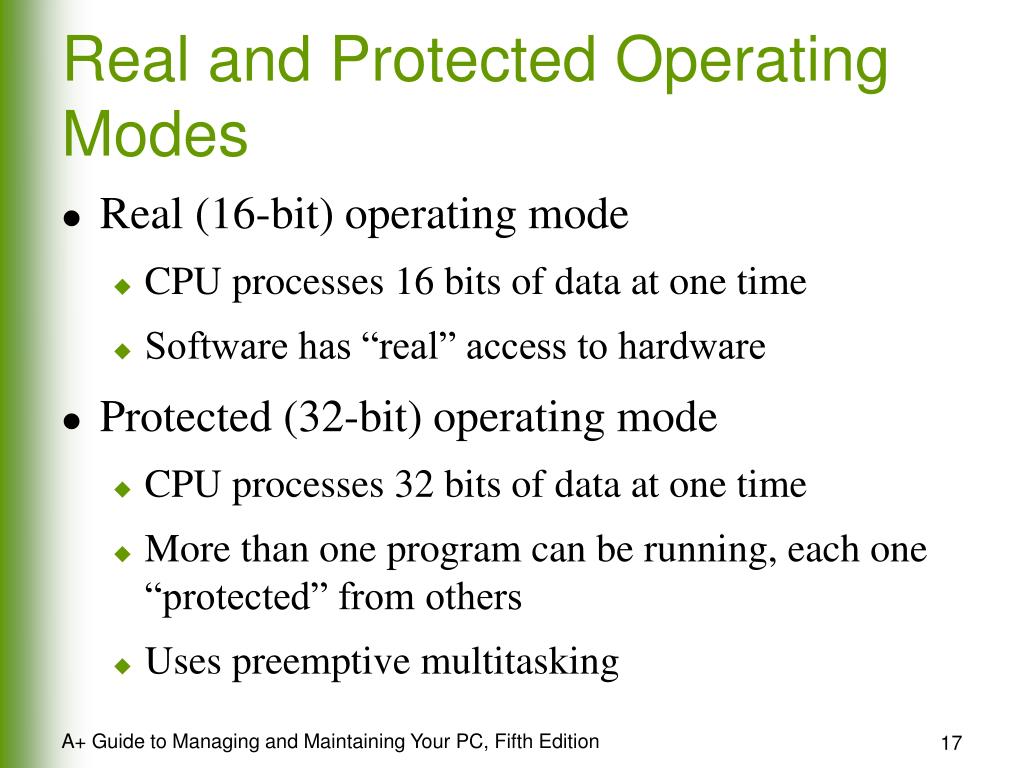

  17. Real and Protected Operating Modes • Real (16-bit) operating mode • CPU processes 16 bits of data at one time • Software has “real” access to hardware • Protected (32-bit) operating mode • CPU processes 32 bits of data at one time • More than one program can be running, each one “protected” from others • Uses preemptive multitasking A+ Guide to Managing and Maintaining Your PC, Fifth Edition

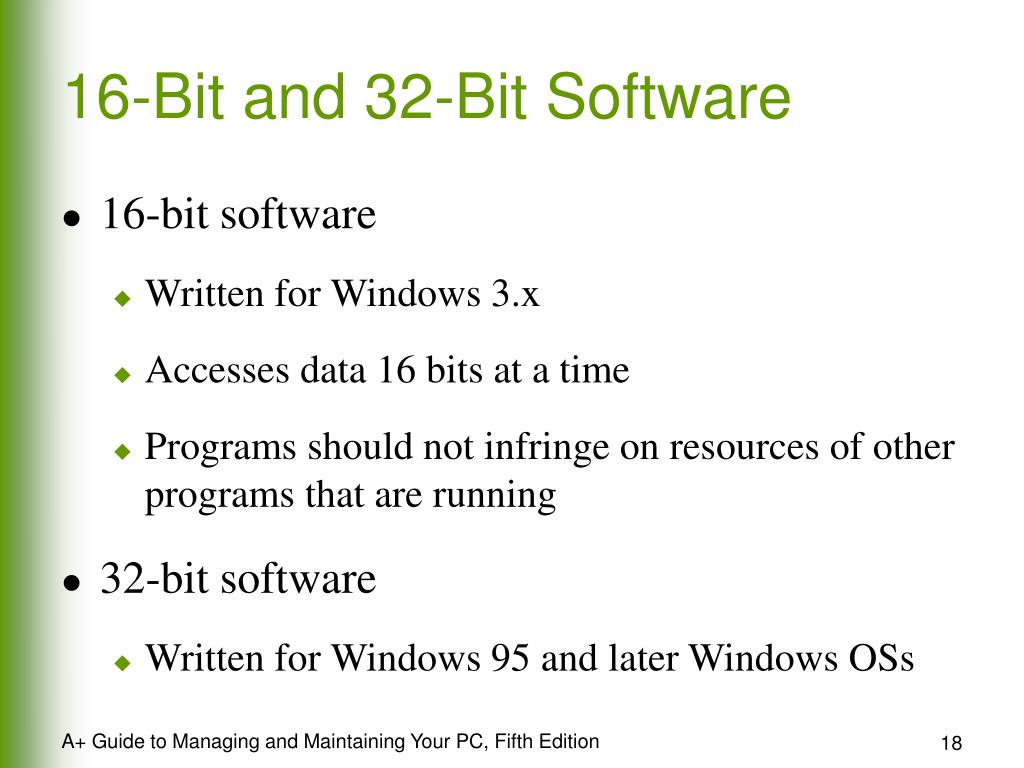

  18. 16-Bit and 32-Bit Software • 16-bit software • Written for Windows 3.x • Accesses data 16 bits at a time • Programs should not infringe on resources of other programs that are running • 32-bit software • Written for Windows 95 and later Windows OSs A+ Guide to Managing and Maintaining Your PC, Fifth Edition

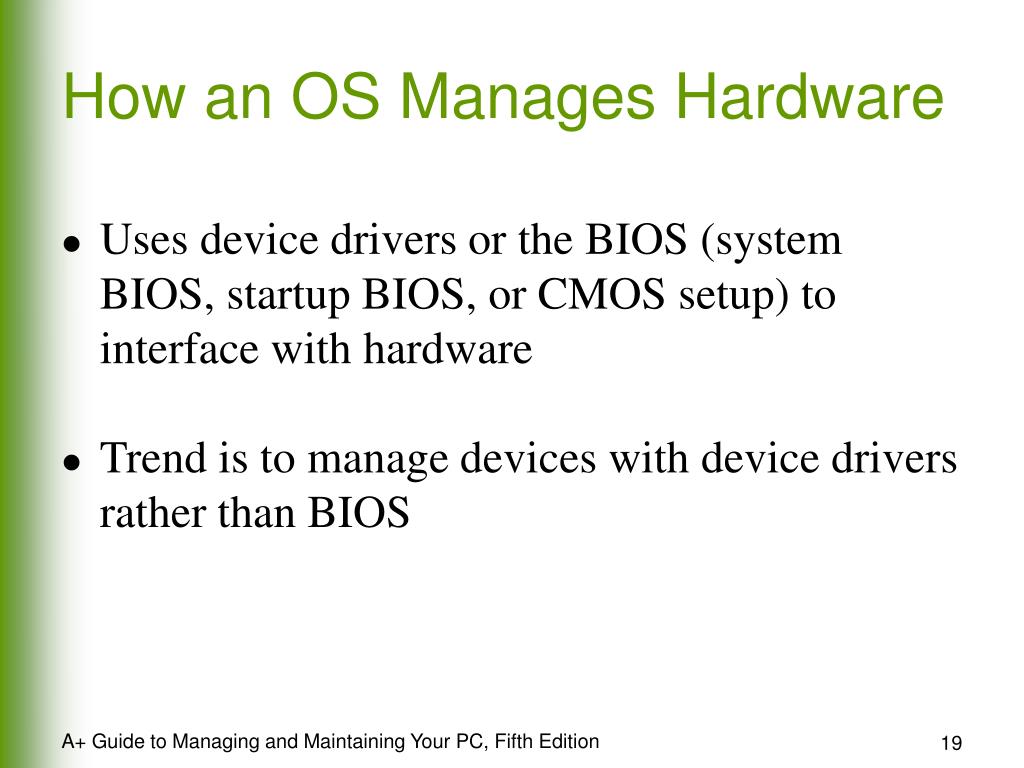

  19. How an OS Manages Hardware • Uses device drivers or the BIOS (system BIOS, startup BIOS, or CMOS setup) to interface with hardware • Trend is to manage devices with device drivers rather than BIOS A+ Guide to Managing and Maintaining Your PC, Fifth Edition

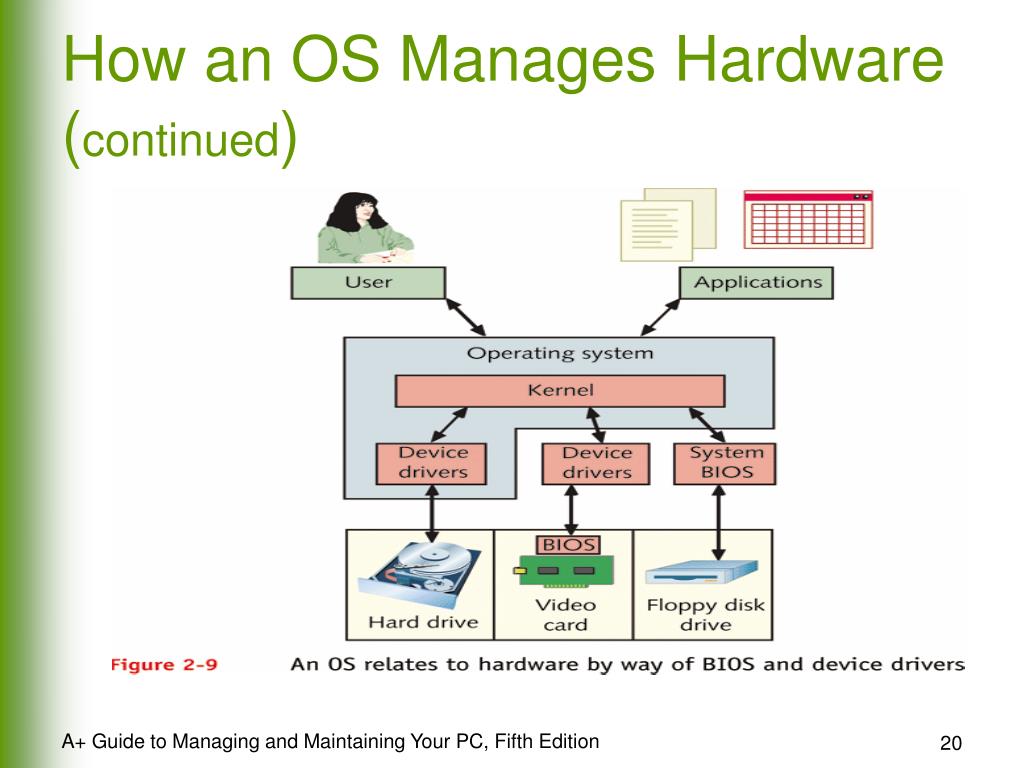

  20. How an OS Manages Hardware (continued) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  21. How an OS Uses Device Drivers to Manage Hardware • Device drivers provide OS with software necessary to control devices • 16-bit read-mode drivers • Supported by Windows 95/98 • 32-bit protected-mode drivers • Supported by Windows 95/98, Windows Me, and Windows NT/2000/XP A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  22. How an OS Uses System BIOS to Manage Devices • To communicate with simple devices (eg, floppy drives or keyboards) • To access the hard drive A+ Guide to Managing and Maintaining Your PC, Fifth Edition

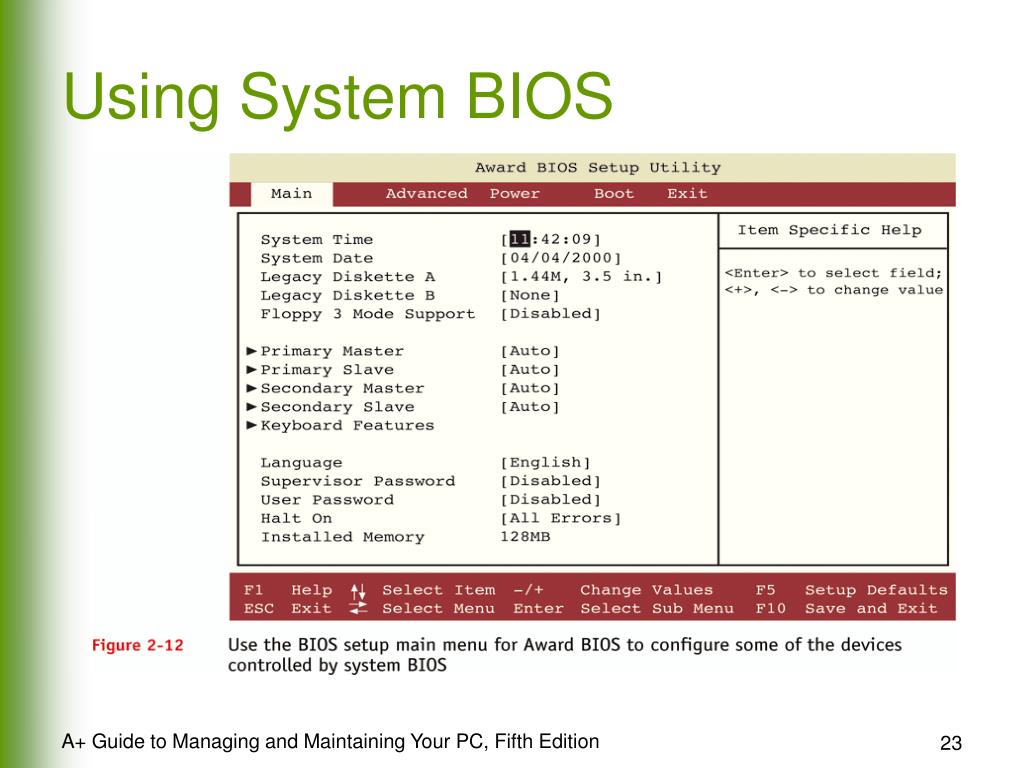

  23. Using System BIOS A+ Guide to Managing and Maintaining Your PC, Fifth Edition

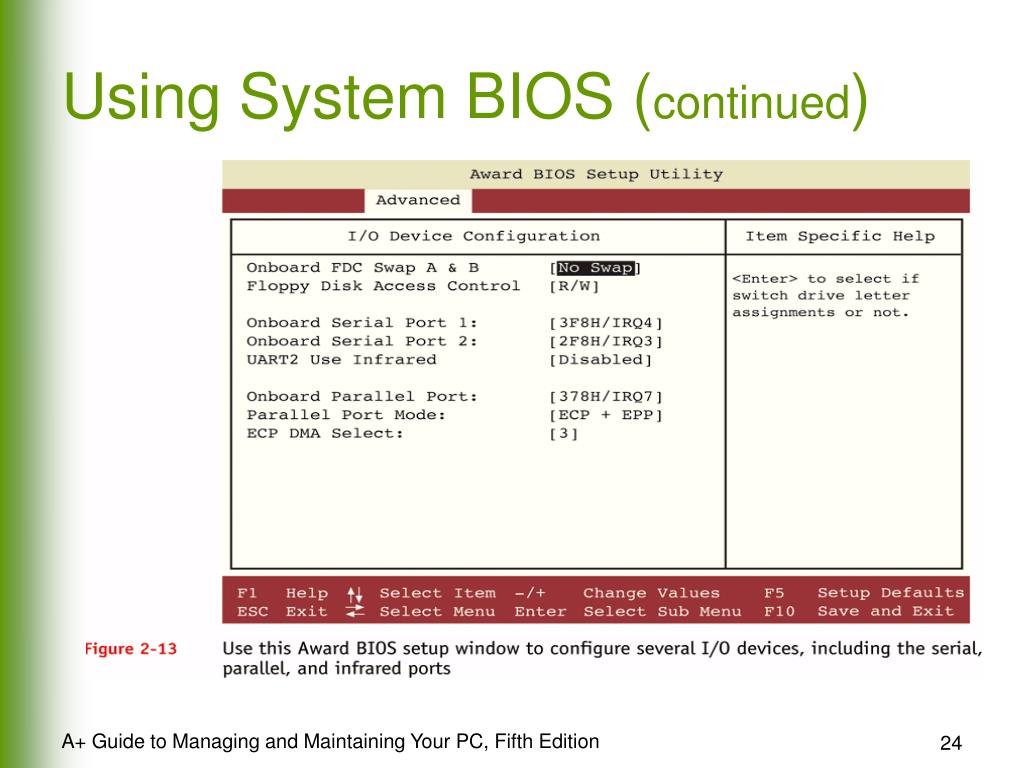

  24. Using System BIOS (continued) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  25. System Resources A+ Guide to Managing and Maintaining Your PC, Fifth Edition

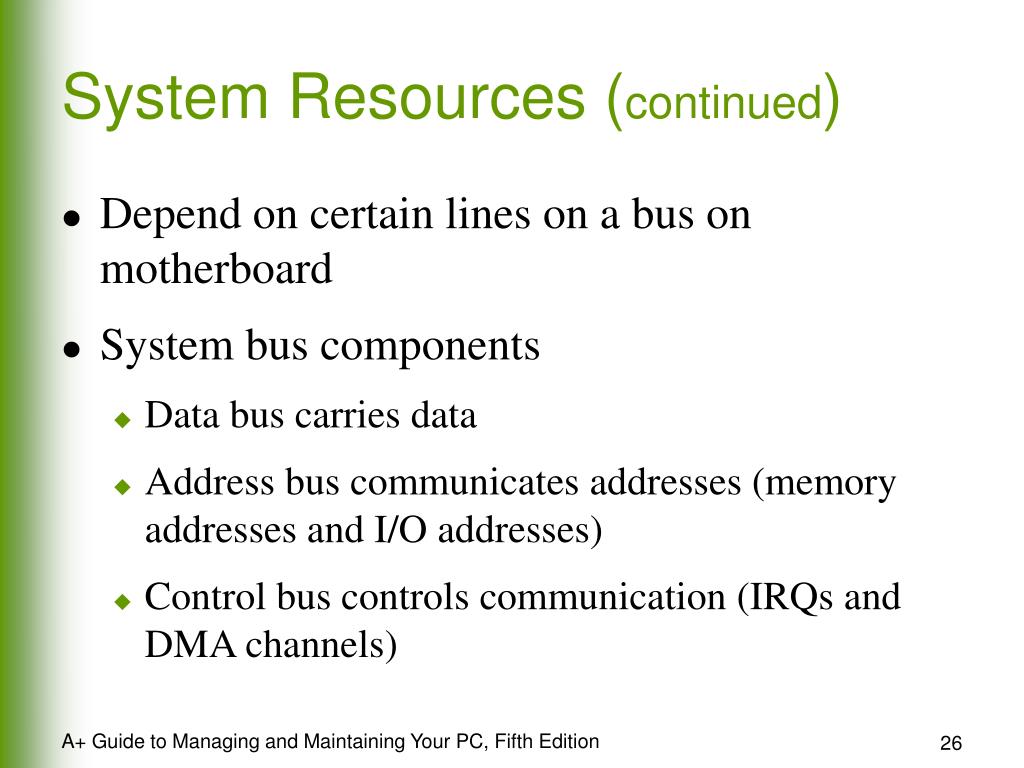

  26. System Resources (continued) • Depend on certain lines on a bus on motherboard • System bus components • Data bus carries data • Address bus communicates addresses (memory addresses and I/O addresses) • Control bus controls communication (IRQs and DMA channels) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  27. System Bus Components A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  28. Interrupt Request Number (IRQ) • Line on a bus that device needing service uses to alert the CPU • Managed by interrupt controller on motherboard • Early motherboards: eight IRQs • Second group of IRQs and second interrupt controller have been added to accommodate need for more devices A+ Guide to Managing and Maintaining Your PC, Fifth Edition

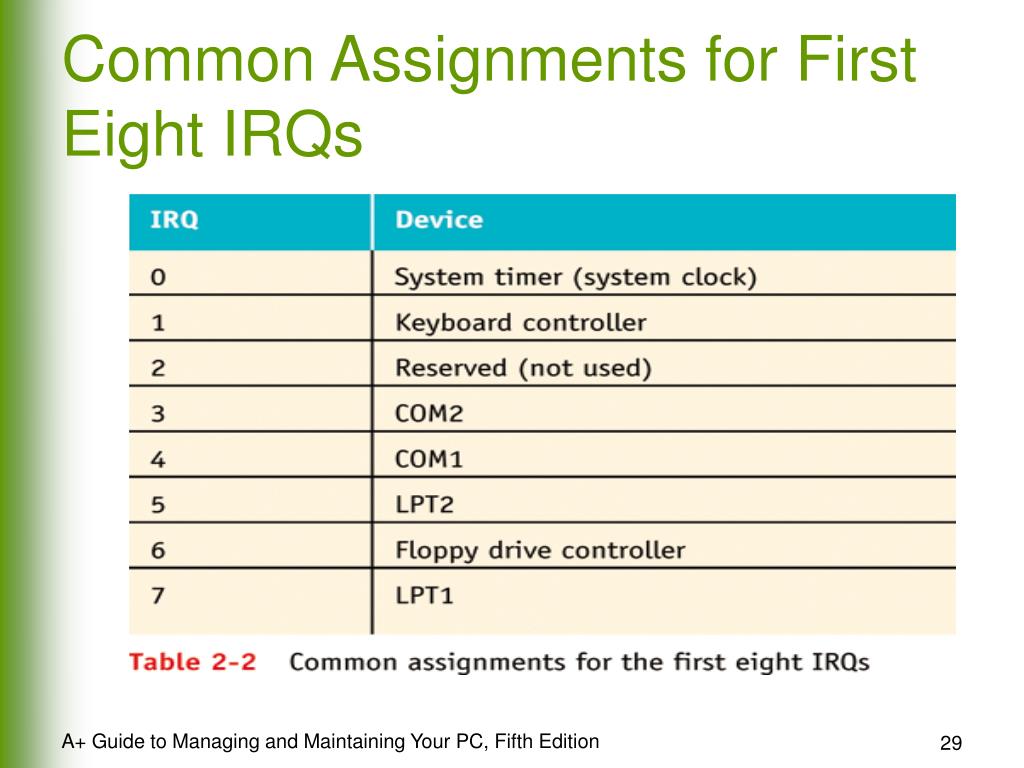

  29. Common Assignments for First Eight IRQs A+ Guide to Managing and Maintaining Your PC, Fifth Edition

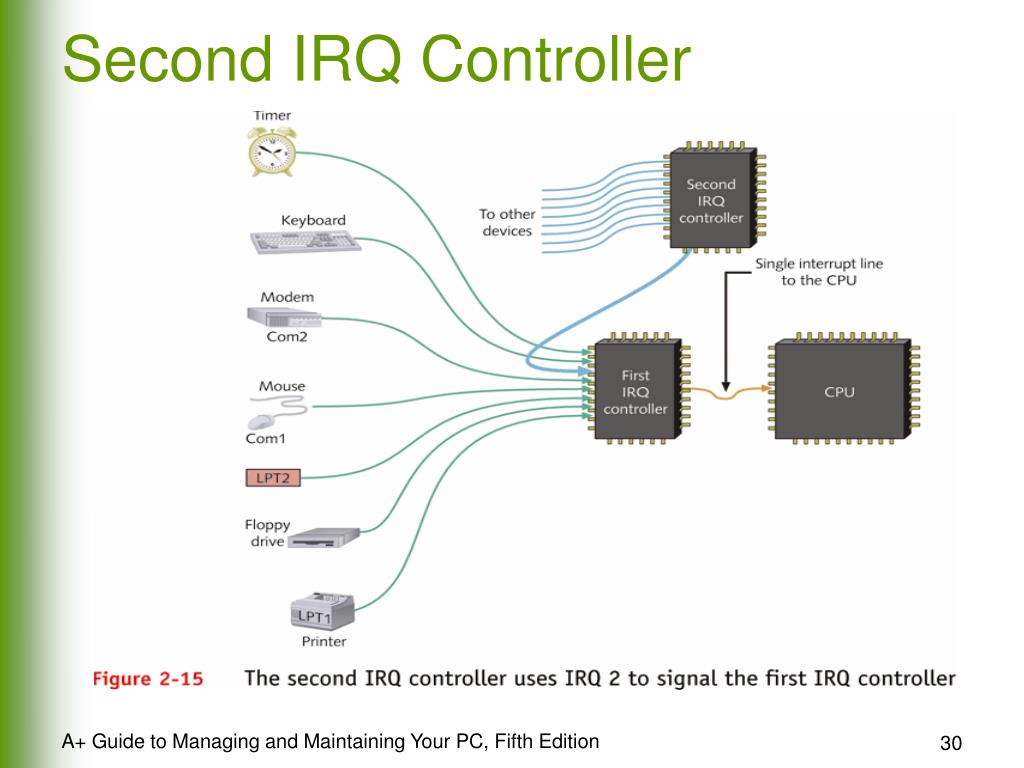

  30. Second IRQ Controller A+ Guide to Managing and Maintaining Your PC, Fifth Edition

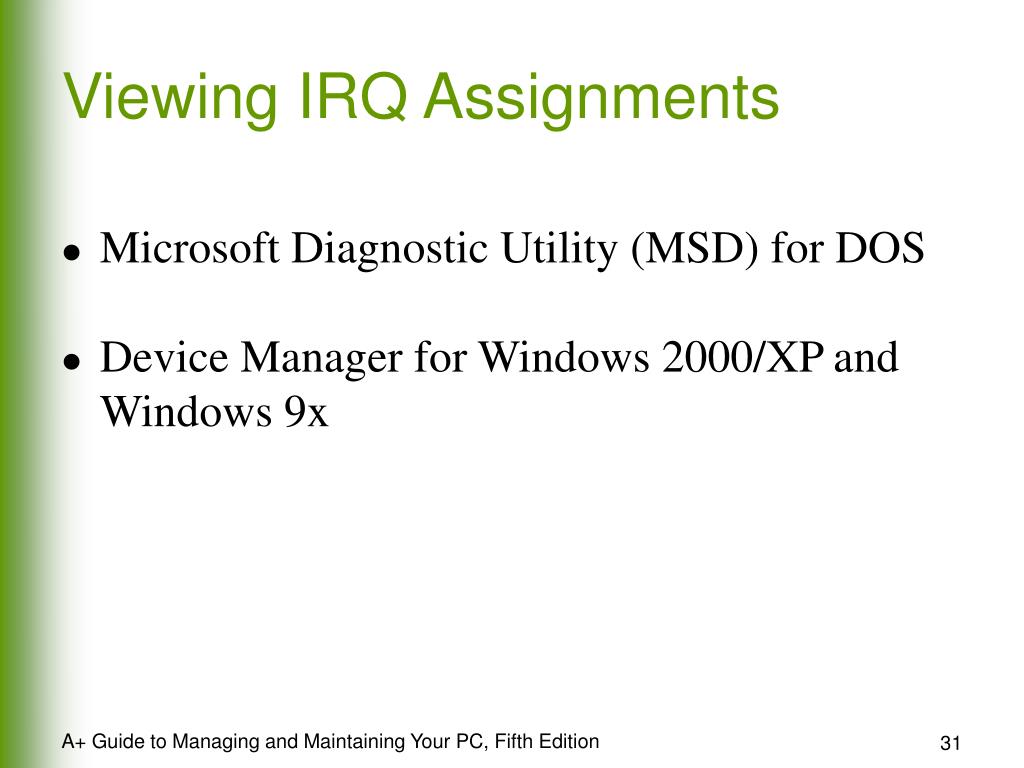

  31. Viewing IRQ Assignments • Microsoft Diagnostic Utility (MSD) for DOS • Device Manager for Windows 2000/XP and Windows 9x A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  32. Viewing IRQ Assignments (continued) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

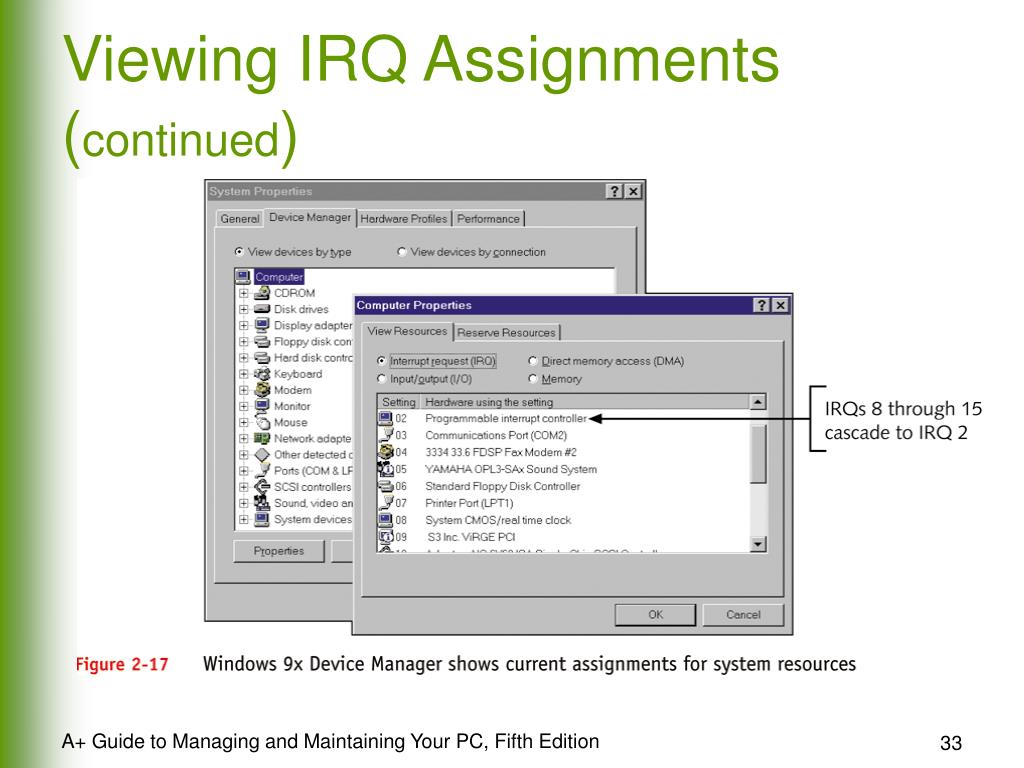

  33. Viewing IRQ Assignments (continued) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

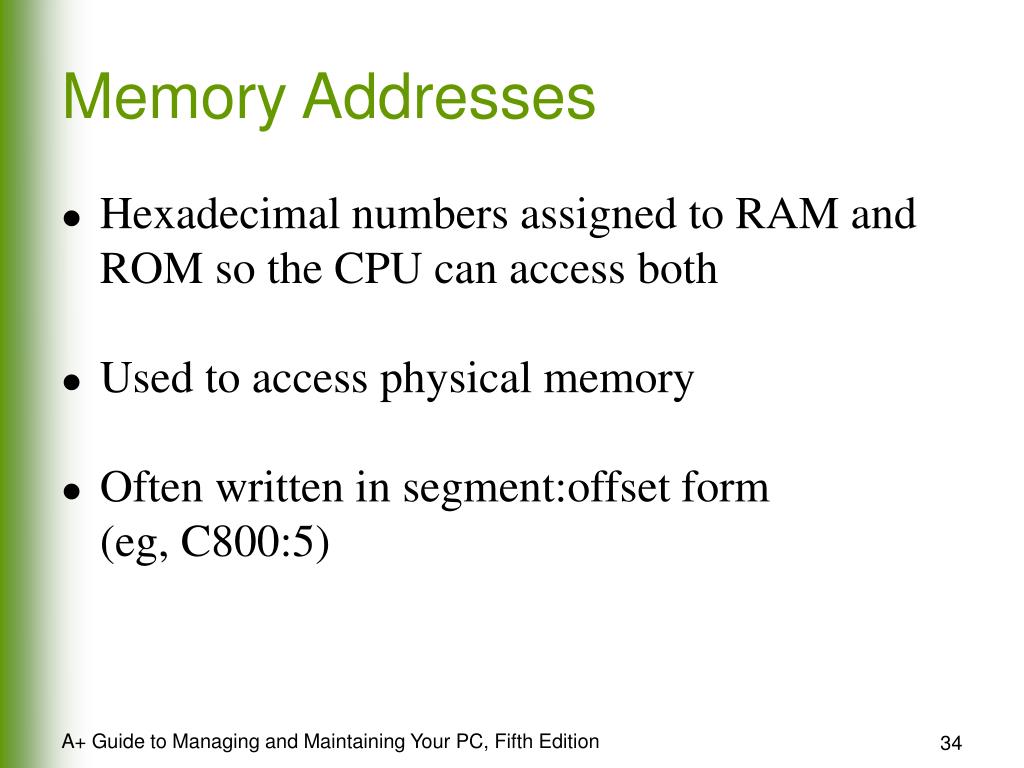

  34. Memory Addresses • Hexadecimal numbers assigned to RAM and ROM so the CPU can access both • Used to access physical memory • Often written in segment:offset form(eg, C800:5) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

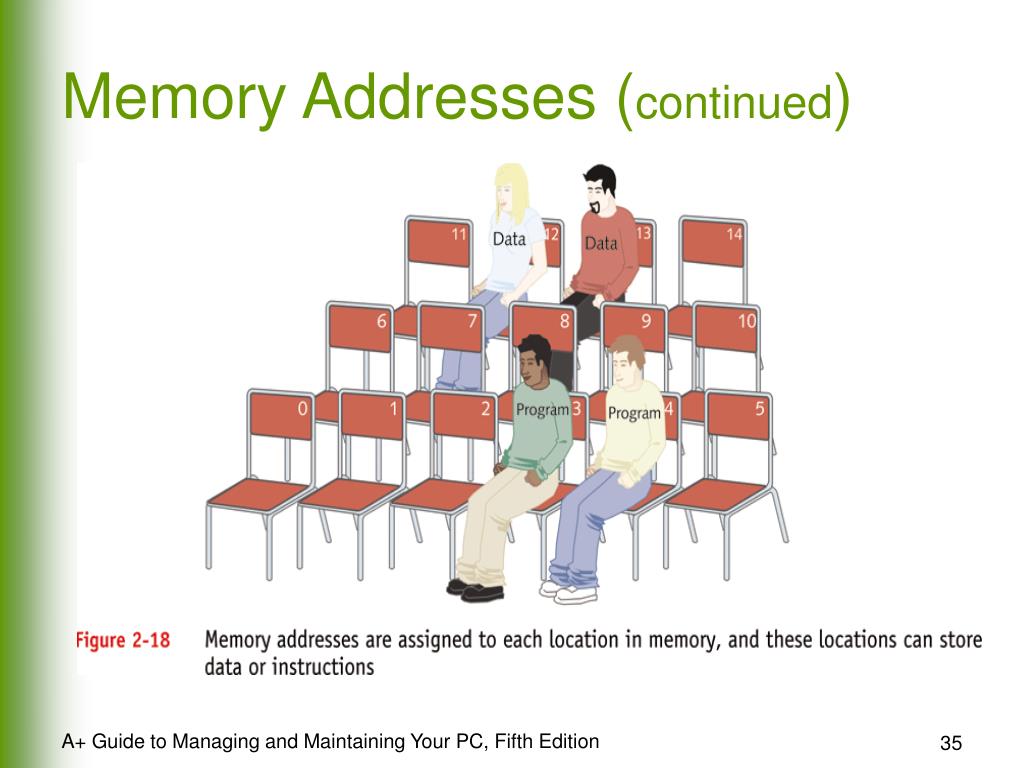

  35. Memory Addresses (continued) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  36. I/O Addresses • Numbers CPU can use to access hardware devices A+ Guide to Managing and Maintaining Your PC, Fifth Edition

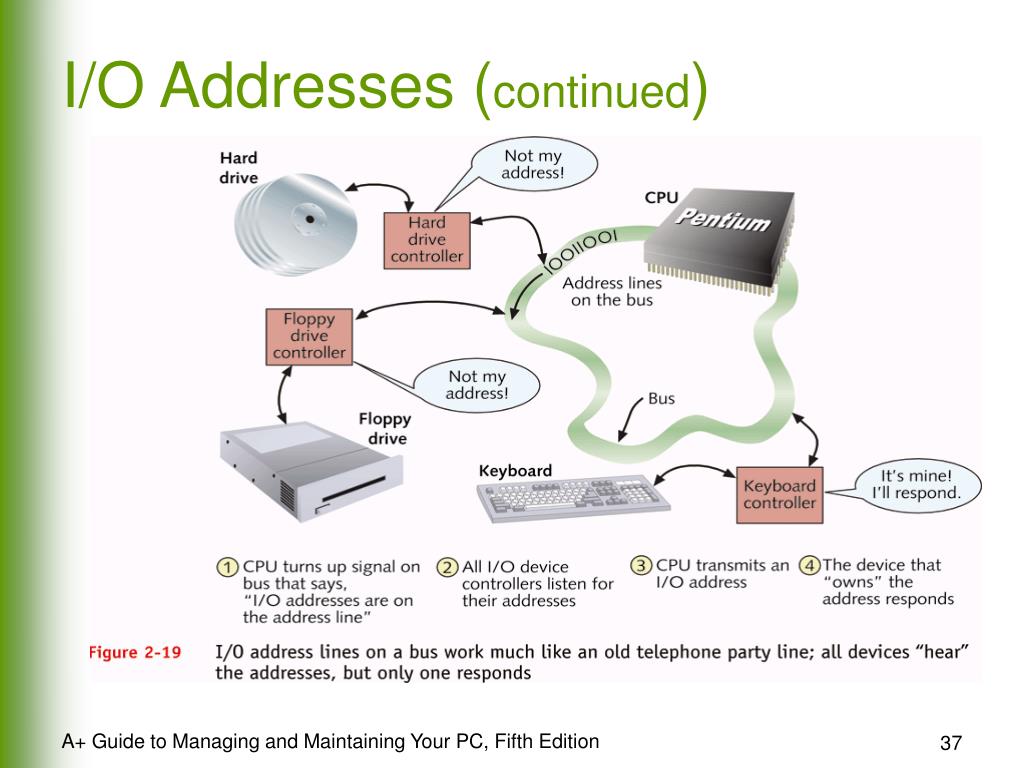

  37. I/O Addresses (continued) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

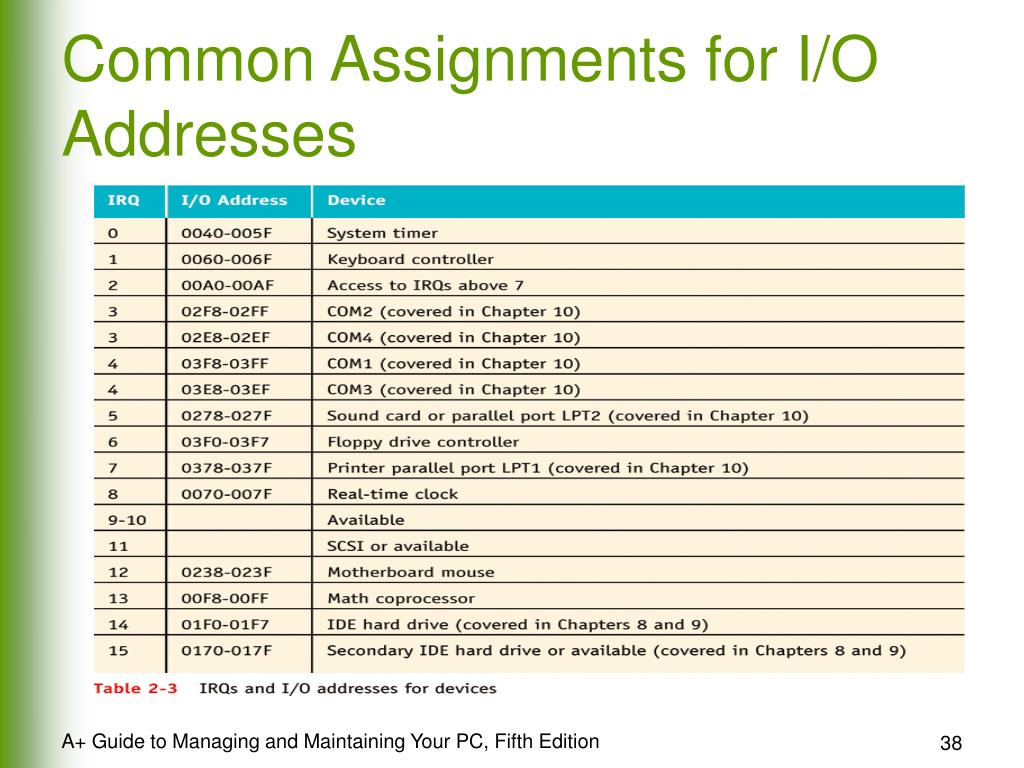

  38. Common Assignments for I/O Addresses A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  39. Direct Memory Access (DMA) Channels • Shortcut method that lets an I/O device send data directly to memory, bypassing the CPU A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  40. DMA Channels A+ Guide to Managing and Maintaining Your PC, Fifth Edition

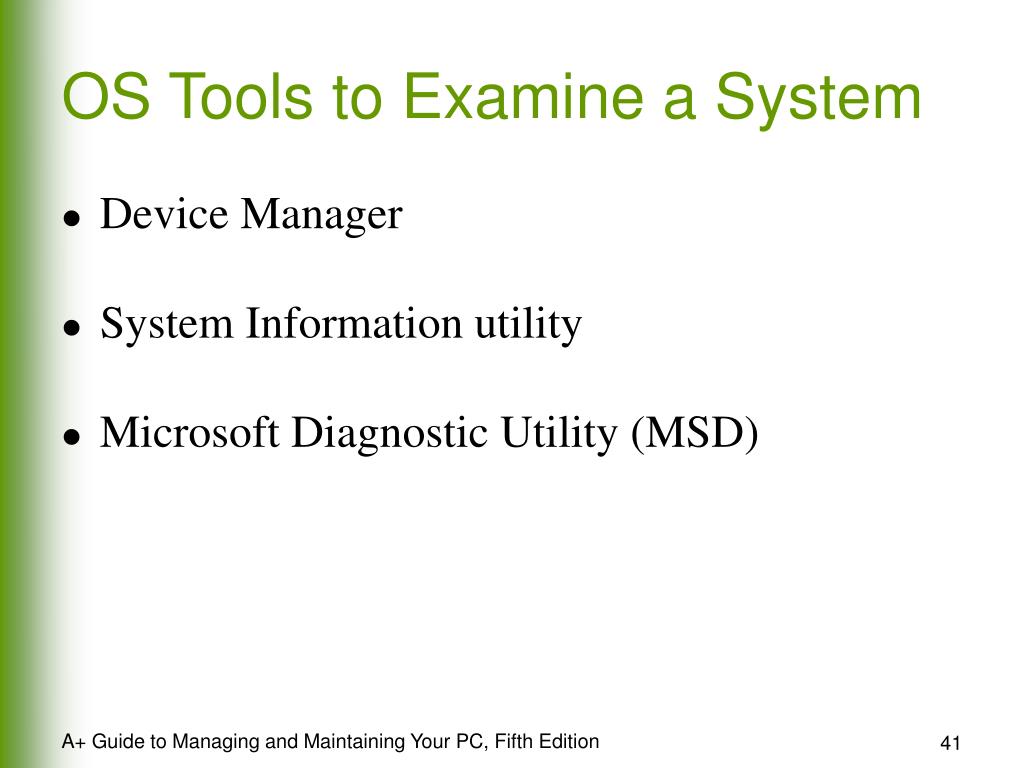

  41. OS Tools to Examine a System • Device Manager • System Information utility • Microsoft Diagnostic Utility (MSD) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

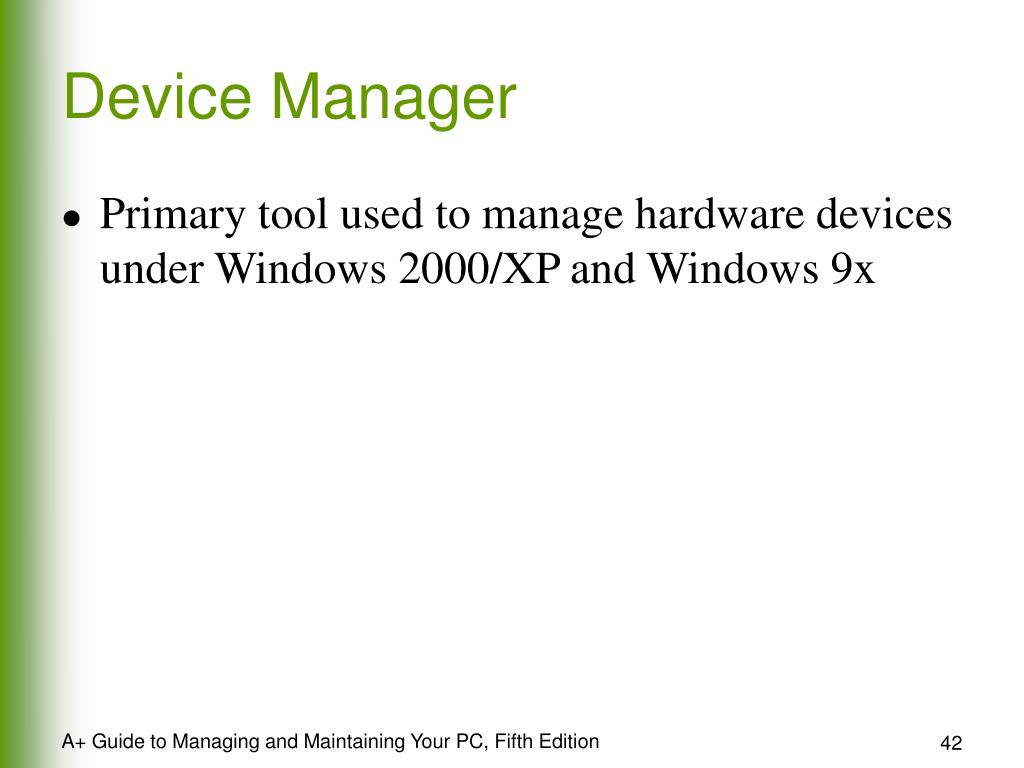

  42. Device Manager • Primary tool used to manage hardware devices under Windows 2000/XP and Windows 9x A+ Guide to Managing and Maintaining Your PC, Fifth Edition

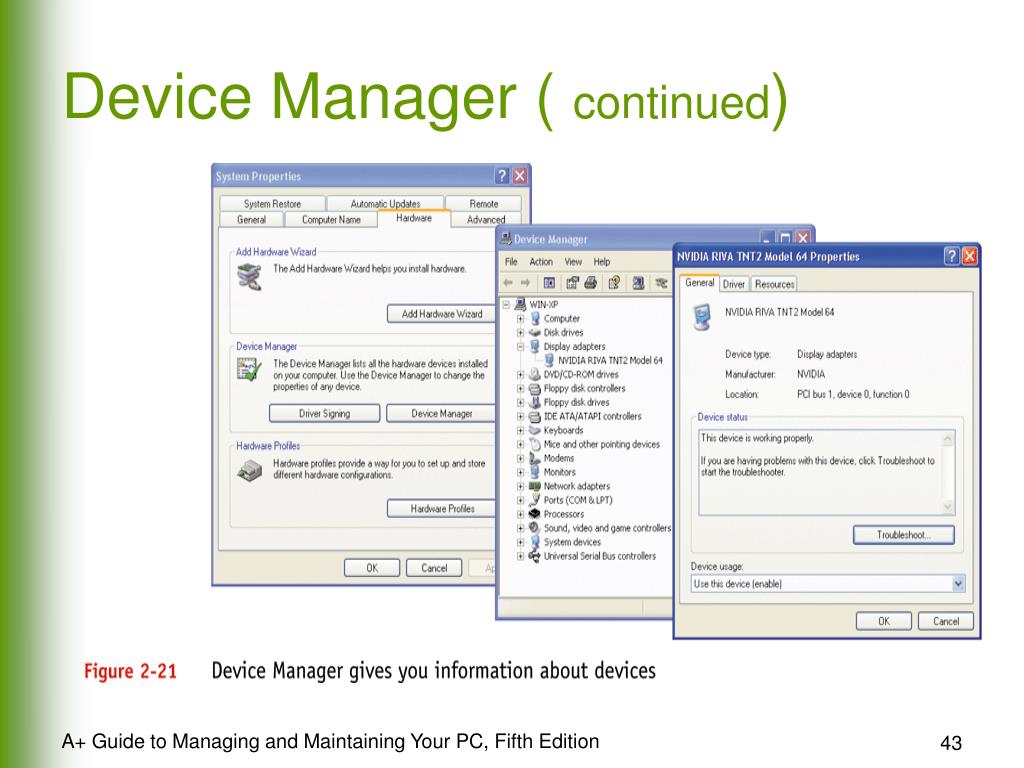

  43. Device Manager ( continued) A+ Guide to Managing and Maintaining Your PC, Fifth Edition

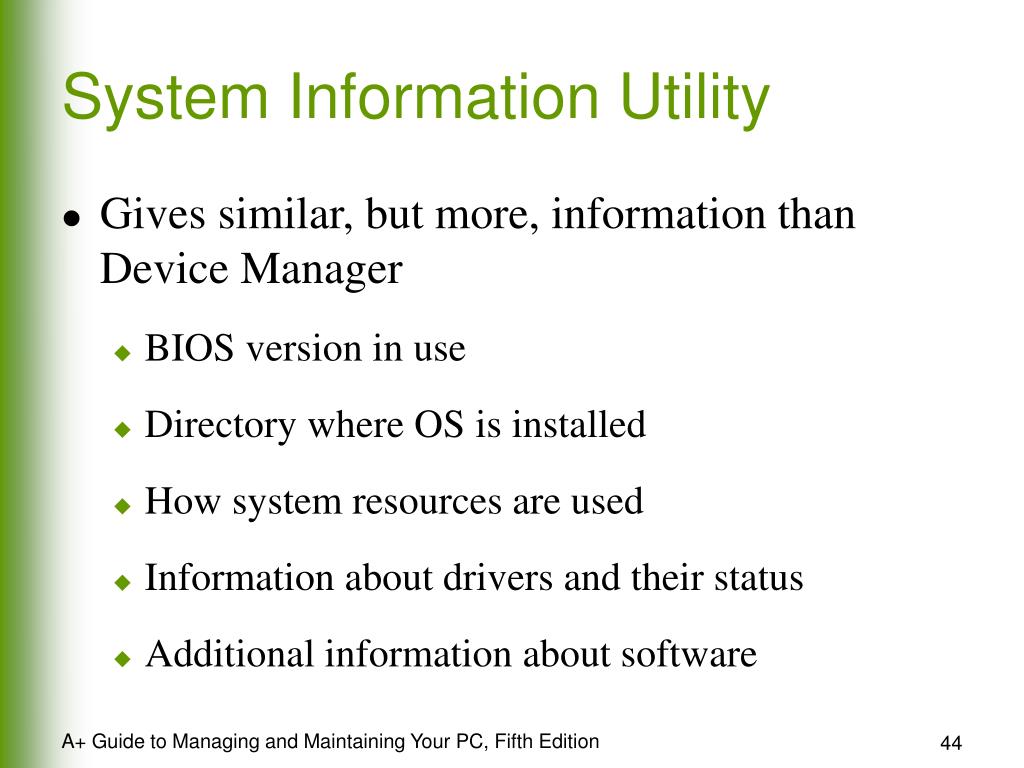

  44. System Information Utility • Gives similar, but more, information than Device Manager • BIOS version in use • Directory where OS is installed • How system resources are used • Information about drivers and their status • Additional information about software A+ Guide to Managing and Maintaining Your PC, Fifth Edition

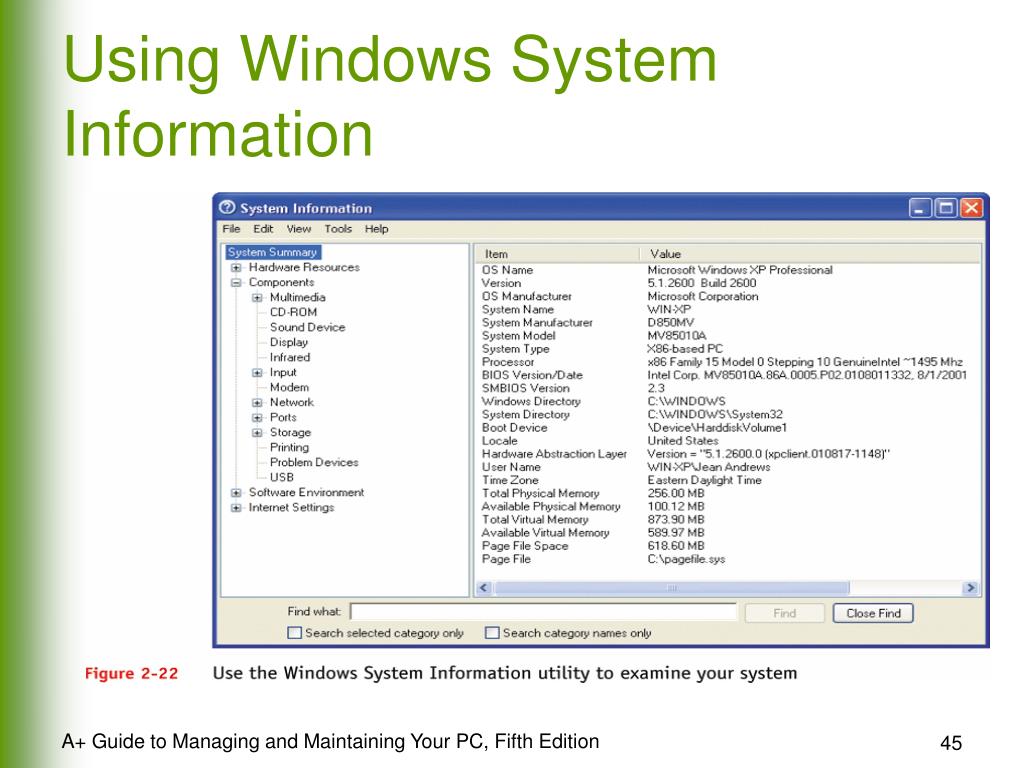

  45. Using Windows System Information A+ Guide to Managing and Maintaining Your PC, Fifth Edition

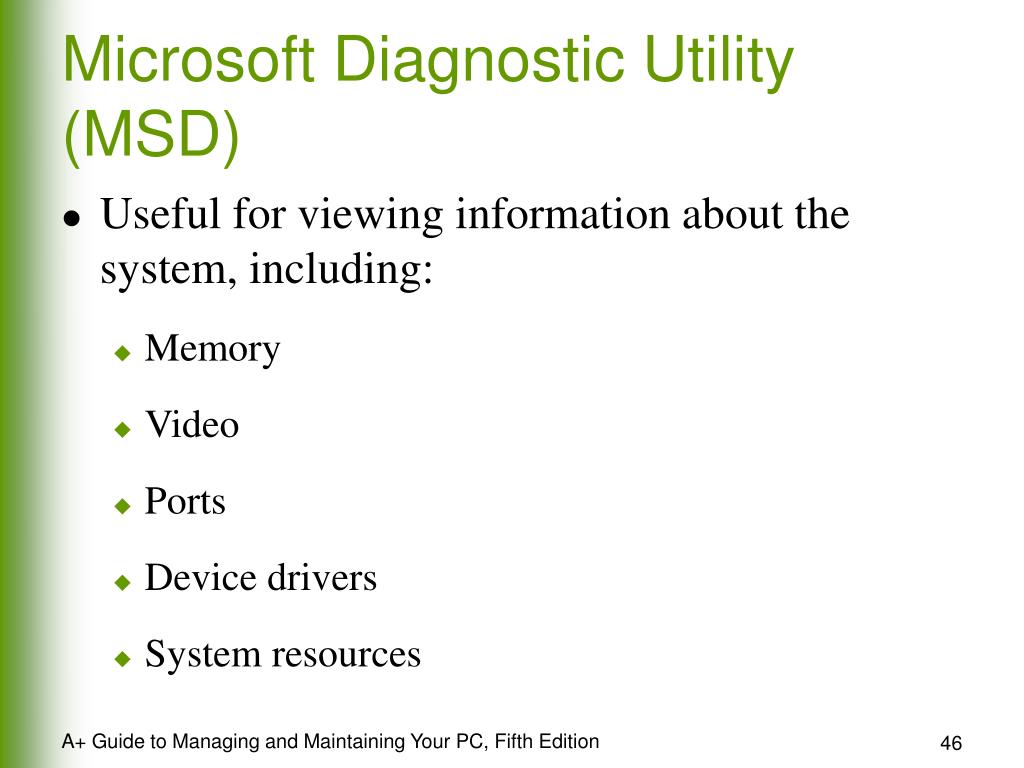

  46. Microsoft Diagnostic Utility (MSD) • Useful for viewing information about the system, including: • Memory • Video • Ports • Device drivers • System resources A+ Guide to Managing and Maintaining Your PC, Fifth Edition

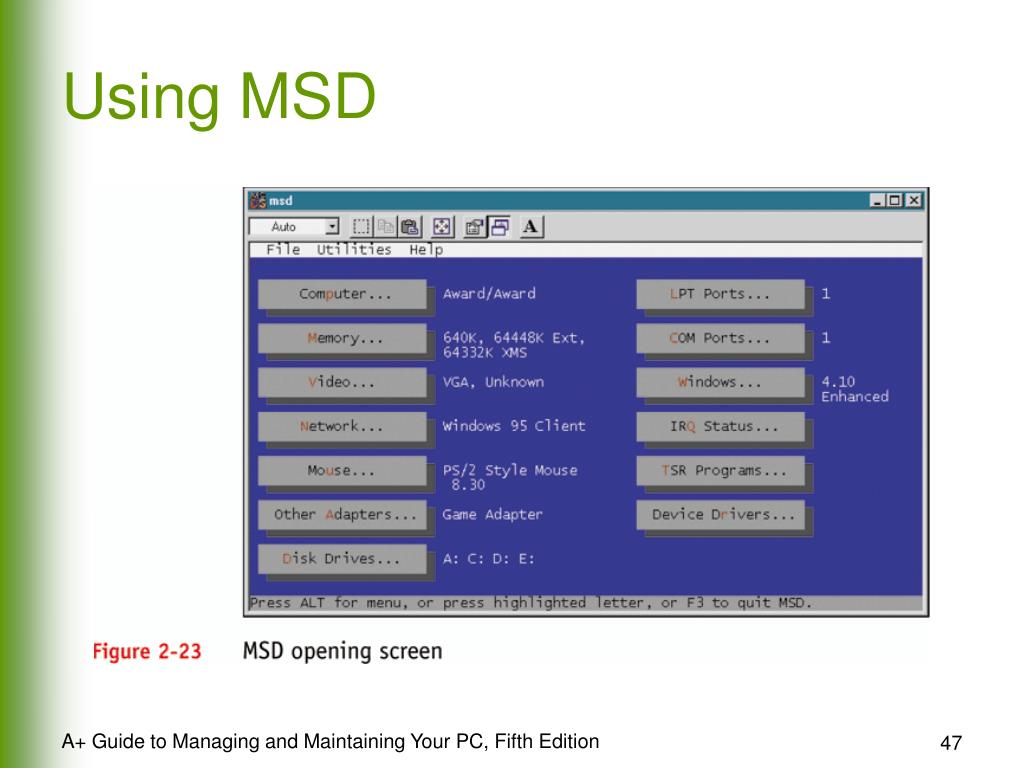

  47. Using MSD A+ Guide to Managing and Maintaining Your PC, Fifth Edition

  48. Summary • How hardware and software work together • Different operating systems • What they do • How they work to control hardware devices • How an OS provides the interface that users and applications need to command and use hardware devices A+ Guide to Managing and Maintaining Your PC, Fifth Edition
