  1. Energy Efficiency Base Operations Command and Control Centers Gary Morrissett MCAGCC Utilities and Energy Management Supervisor August 7, 2012

  2. MCAGCC Long Range Plan Energy Efficiency • Required 30% • Base line 171 MBTU/sqft • Currently 34% savings Energy Security • Reliable power • Renewable energy (DOE goal met 9%, 4.5% generation) Growth potential • Analyze current system with all growth • Anticipate utility loads and system requirements • Central Plant Strategy Communications and controls • Type of system • Flexibility Microgrid and overall controls strategy EMCS (Energy Managmeent Controls Systems – Direct Digital Controls)

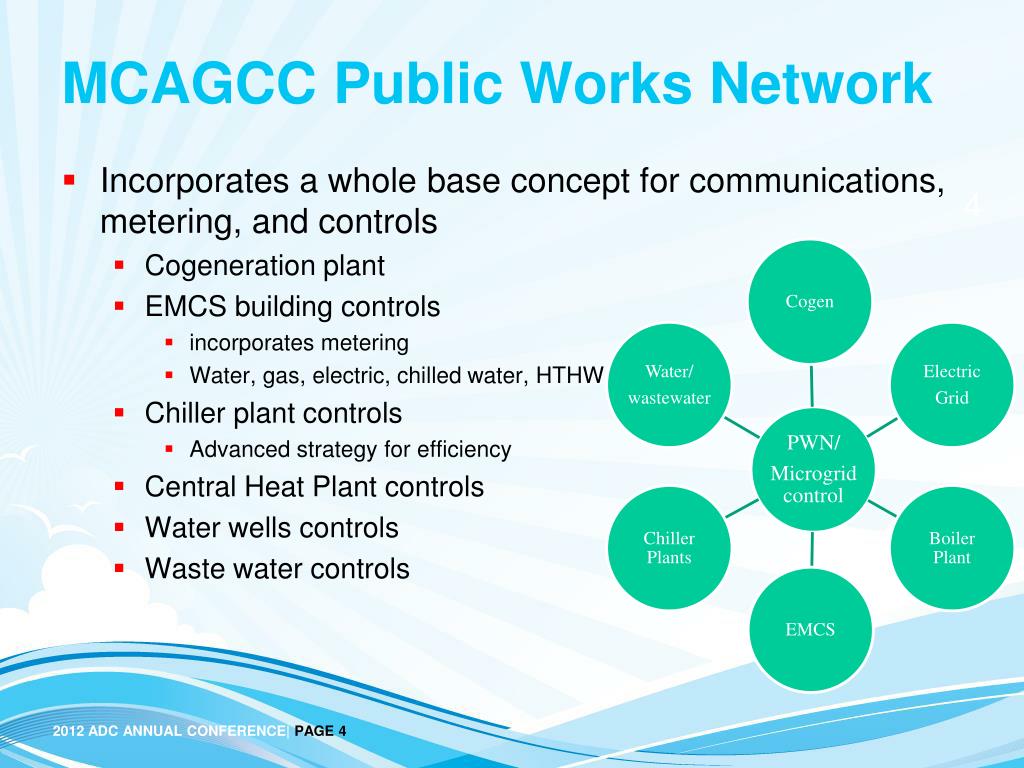

  3. MCAGCC Public Works Network Incorporates a whole base concept for communications, metering, and controls • Cogeneration plant • EMCS building controls • incorporates metering • Water, gas, electric, chilled water, HTHW • Chiller plant controls • Advanced strategy for efficiency • Central Heat Plant controls • Water wells controls • Waste water controls

  4. Command and Control Allows base Facilities to view at specific locations • Limits control functions to specific groups requiring access • Provides major controls functions and indicators of issues at building level • Temperature monitoring and controls • Load shedding capability • Metering • Future building cutoff • Future DDC Generator controls • Electrical grid substation and switching metering and control • Power indication and trouble alerts • Emergency Operations Center (EOC) view and access for response to issues • Command can take action based on operational views

  5. Major systems setups • Two Cogen plants 16.4 MW – must be tied for controls functions • 60 switches – fiber controls with loads and voltages • 9 substations – fiber controls main breaker and circuit loads • 30+ Solar PV systems 4.7 MW – Required metering to utility and control functions due to islanding capabilities and grid operations • Additional 3 MW under construction • EMCS (DDC) • Temperature and on off Control and monitoring • “AMI” Metering through EMCS for dumb collection of data • Data collection and management – requires servers, switches, and programming • Communications network- Fiber/RF • Security – limiting access to maintenance crews to save energy • DIACAP certifications – Complex process!!!

  6. Energy Efficiency 3 ESPC projects Johnson Controls Inc $60M Construction $7.2/year Savings Project 1 Replace 5 chillers with High efficiency Savings $400K/year Project 2 Cogeneration plant Generates 55,000 MWH electricity 35MBTU/hr waste heat Payback 3.5yrs Savings $5.2M/year guarantee Project 3 Mod to #2 1.2 MW PV array Daylighting 12 buildings 3 chiller plants 6250 tons 40 EMCS controls with fiber Savings $2M/year

  7. Energy Efficiency Lighting – Replaced savings $600K/year • Internal T8 25W w sensors • External Induction and CFL w sensors • Induction lights ½ wattage of HPS Controls – savings $600K/year • 240+ building controls installations Chilled water conversions • Retrofit A/C to chilled water off main plants and controls installations - • Savings $650K/year Solar PV systems • Savings $400K/year

  8. MCAGCC Loads and Power Current High MW low MW limit Summer 27-28 12-13 24 Winter 17-18 8-9 No projects 32-33 17-18 Generation Current MW Future total MW Cogen 7.2 16.4 +9.2 dual turbine PV 4.5 7.5 +3.2 Total 11.7 23.9 Power strategy- Develop enough generation and energy efficient projects quickly to enable the base to last until the utility power upgrade is installed. Provide reliable power, islanding capability, and controls functions for automated functions due to low O&M manpower.

  9. O&M Lessons Controls are the future of energy savings • The best building with bad controls = waste Qualified people are hard to find • Advanced training requirements in hardware and software Advanced controls have special requirements • Programming and integration challenges Operations staffing is lacking training • Training budgets cut and # of personnel cut Too many different controls don’t work! • Some bases have 12-15 different platforms • Loss of functionality with each integration Data management is part of controls NOW • Required servers, routers, and programming and security!!
