Dynamic Resource Management with FutureGrid Move and Teefaa Toolkit

DESCRIPTION

FutureGrid Move is an innovative testbed that facilitates dynamic resource allocation across various infrastructures, including HPC, OpenStack, Eucalyptus, and Nimbus, to meet user demands efficiently. It provides a command-line interface for easy access and ensures exclusive service access to avoid conflicts. The built-in scheduler dynamically reallocates resources, supported by status tracking to make accurate future predictions. Additionally, Teefaa simplifies machine cloning across cloud and bare-metal environments, enabling features such as VM cloning, creating cloud images, and optimizing server usage based on user demands.

1 / 12

Télécharger la présentation

Dynamic Resource Management with FutureGrid Move and Teefaa Toolkit

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

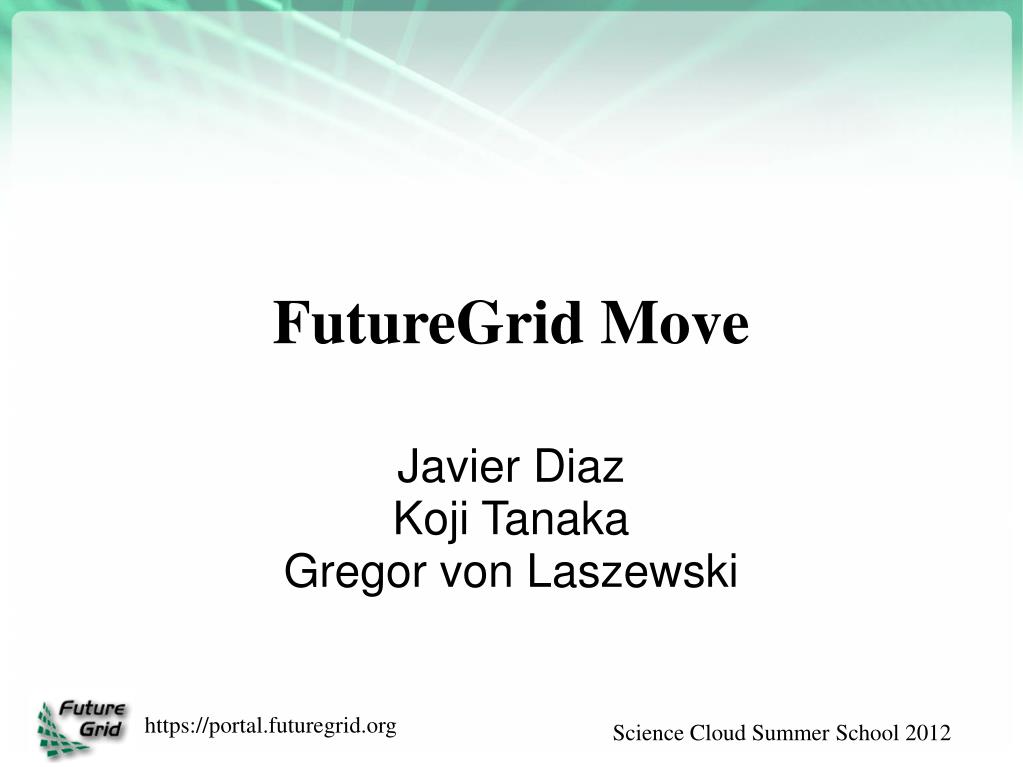

  1. FutureGrid Move Javier Diaz Koji Tanaka Gregor von Laszewski

  2. Introduction • FutureGrid is a testbed that support different infrastructures (HPC, OpenStack, Eucalyptus, Nimbus) • Limited number of resources that should be assigned according to user demands • We need a service to dynamically move resources from one infrastructure to another to satisfy users’ requirements

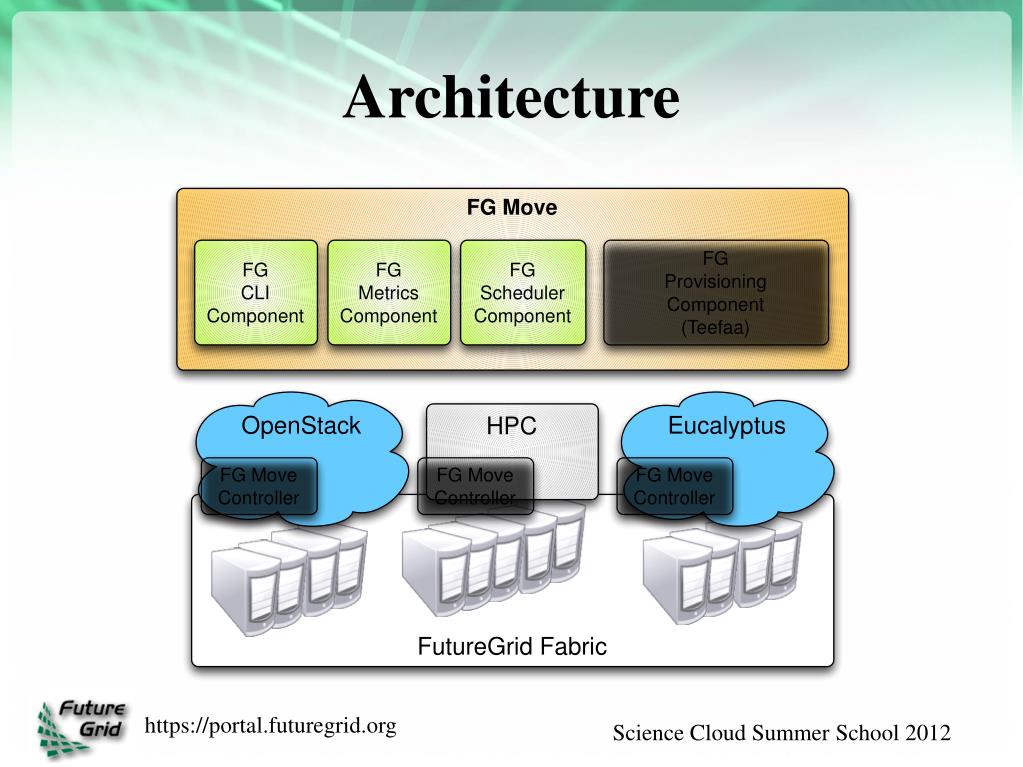

  3. Architecture

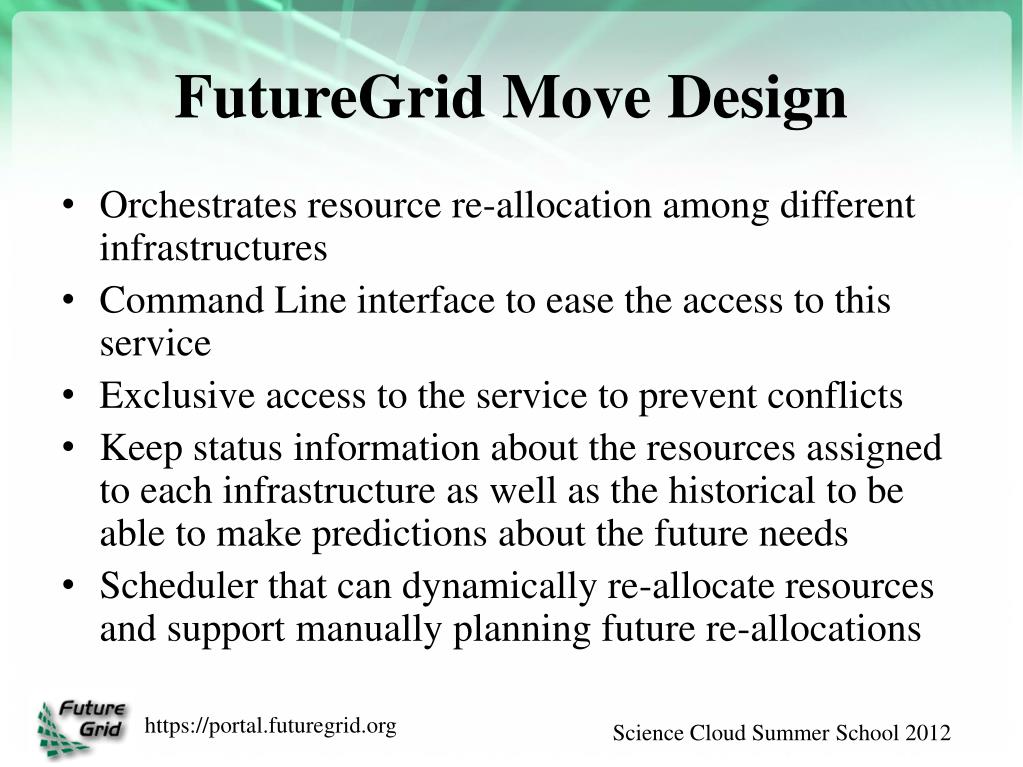

  4. FutureGrid Move Design • Orchestrates resource re-allocation among different infrastructures • Command Line interface to ease the access to this service • Exclusive access to the service to prevent conflicts • Keep status information about the resources assigned to each infrastructure as well as the historical to be able to make predictions about the future needs • Scheduler that can dynamically re-allocate resources and support manually planning future re-allocations

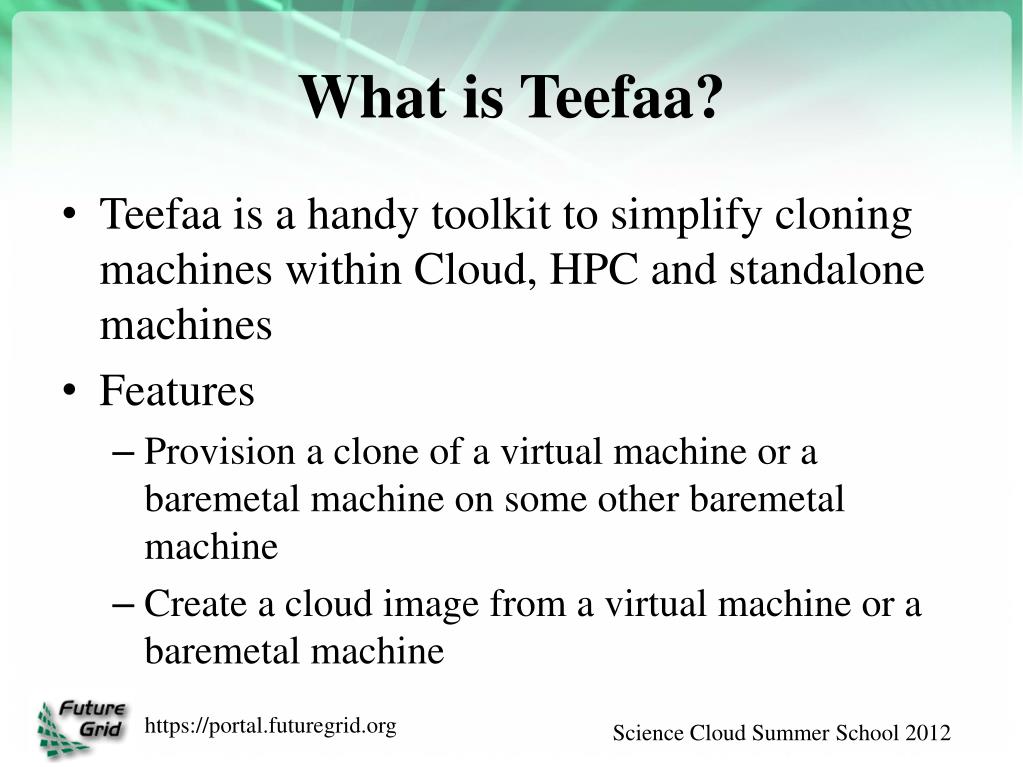

  5. What is Teefaa? • Teefaa is a handy toolkit to simplify cloning machines within Cloud, HPC and standalone machines • Features • Provision a clone of a virtual machine or a baremetal machine on some other baremetalmachine • Create a cloud image from a virtual machine or a baremetalmachine

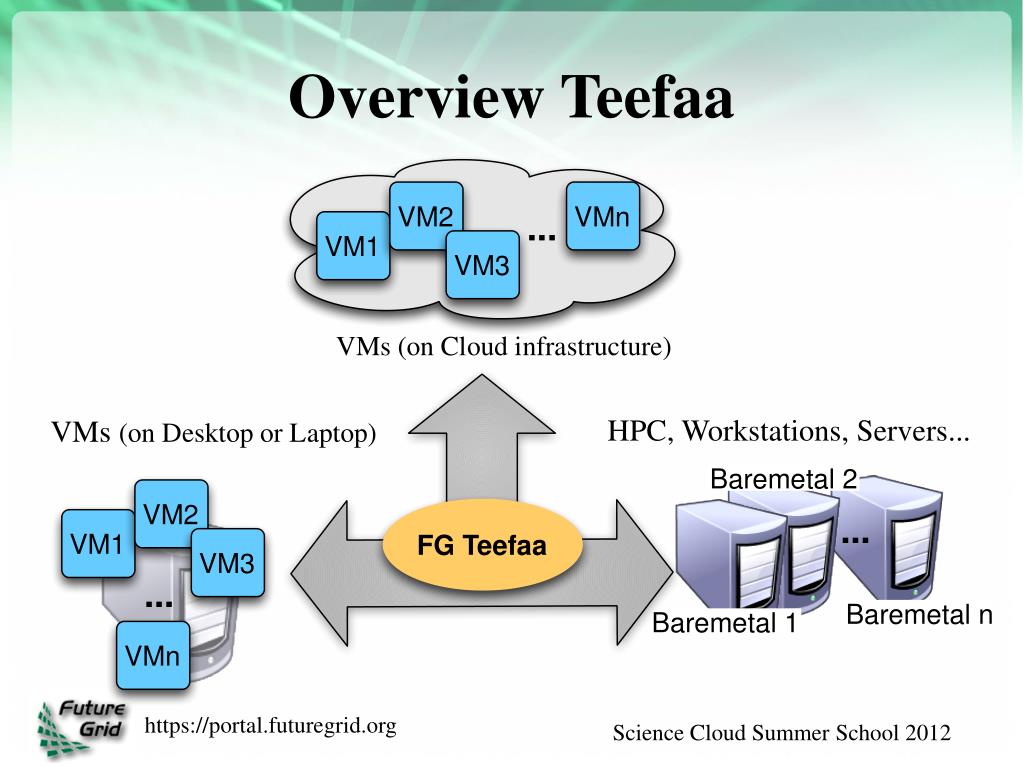

  6. Overview Teefaa

  7. FG Move Usecases • Reassign servers based on user demand • Reservation • Prediction • Conduct tests on the same servers with different frameworks • IaaS, PaaS, bare-metal • Reuse Images created for experiments • Currently in use on FG india by system admins

  8. Process:Moving a server 2 1

  9. Process:Dynamic provisioning 3

  10. Process:Register into the Infrastructure 4

  11. Process:Move completed

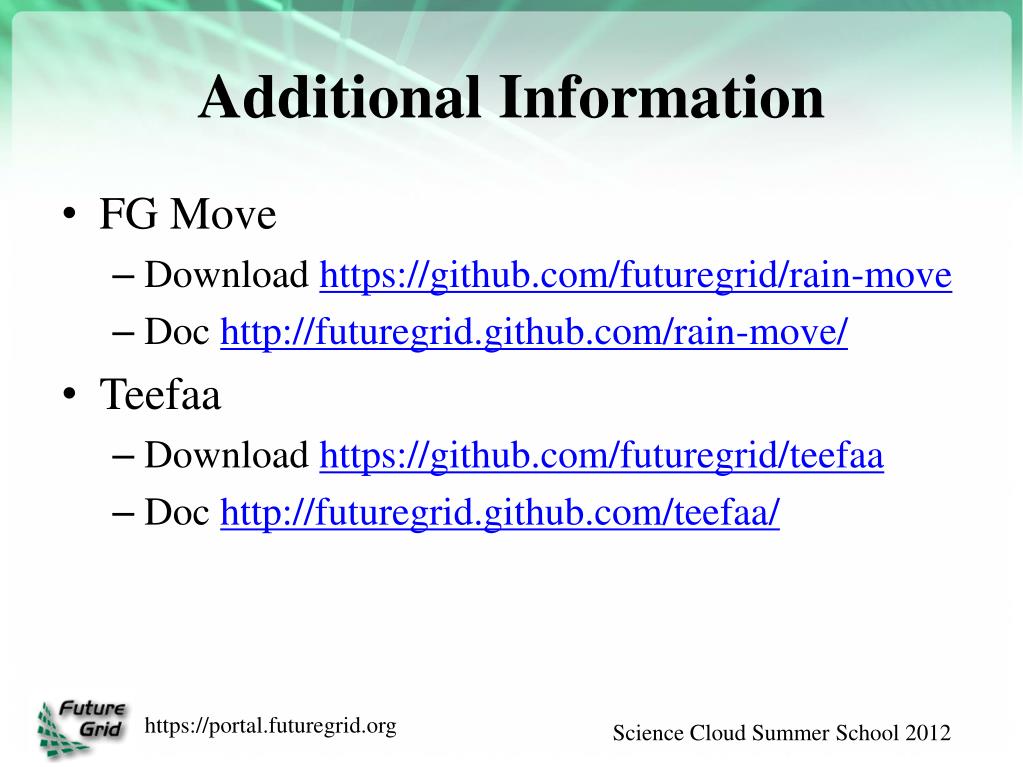

  12. Additional Information • FG Move • Download https://github.com/futuregrid/rain-move • Doc http://futuregrid.github.com/rain-move/ • Teefaa • Download https://github.com/futuregrid/teefaa • Doc http://futuregrid.github.com/teefaa/
