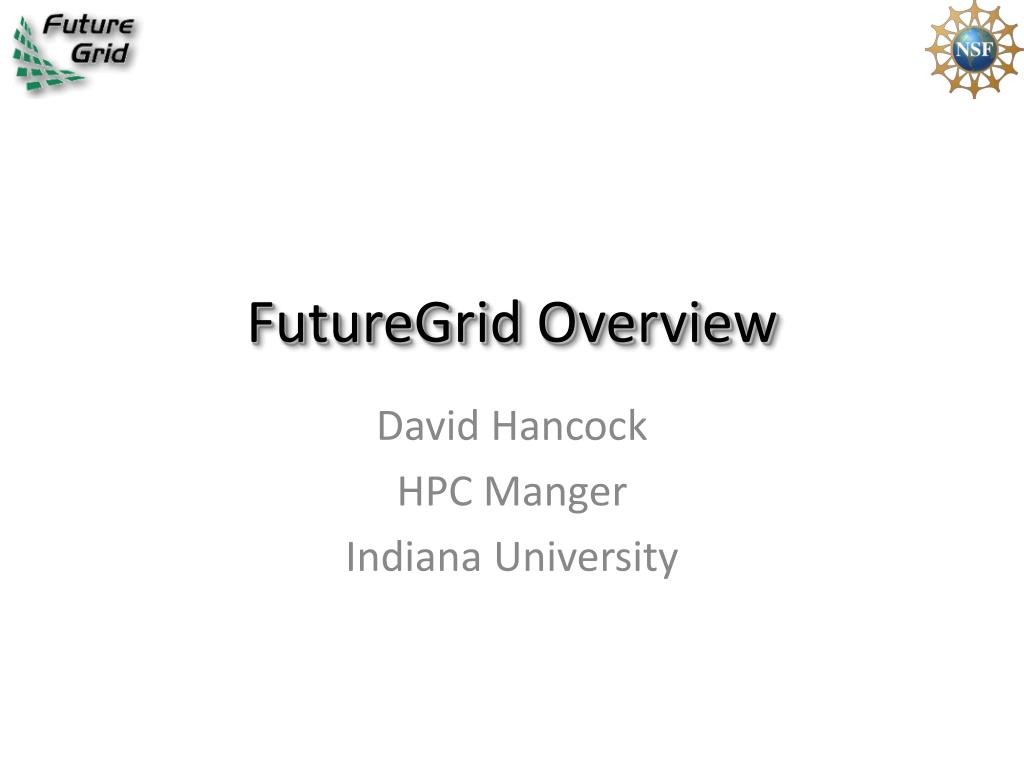

  1. FutureGrid Overview David Hancock HPC Manger Indiana University

  2. NSF Track Overview • Track 1 – NCSA Blue Waters • Track 2a – TACC Ranger • Track2b – NICS Kraken • Track2c – PSC ? • Track 2d • Data Intensive High Performance System (SDSC) • Experimental High Performance System (GaTech) • Experimental High Performance Test-Bed (IU) • Loosely coupled Grid Computing Systems (?)

  3. FutureGrid • The goal of FutureGrid is to support the research on the future of distributed, grid, and cloud computing. • FutureGrid will build a robustly managed simulation environment and test-bed to support the development and early use in science of new technologies at all levels of the software stack: from networking to middleware to scientific applications. • The environment will mimic TeraGrid and/or general parallel and distributed systems – FutureGrid is part of TeraGrid and one of two experimental TeraGrid systems (other is GPU) • This test-bed will succeed if it enables major advances in science and engineering through collaborative development of science applications and related software. • FutureGrid is a (small 5400 core) Science/Computer Science Cloud but it is more accurately a virtual machine based simulation environment

  4. FutureGrid Partners • Indiana University (Architecture, core software, Support) • Purdue University (HTC Hardware) • San Diego Supercomputer Center at University of California San Diego (INCA, Performance Monitoring) • University of Chicago/Argonne National Labs (Nimbus) • University of Florida (ViNe, Education and Outreach) • University of Southern California Information Sciences Institute (Pegasus to manage experiments) • University of Tennessee Knoxville (Benchmarking) • University of Texas at Austin/Texas Advanced Computing Center (Portal) • University of Virginia (OGF, User Advisory Board) • Center for Information Services and GWT-TUD from Technische Universtität Dresden. (VAMPIR) • Blue institutions host FutureGrid hardware

  5. Other Important Collaborators • NSF • Early users from an application and computer science perspective and from both research and education • Grid5000/Aladin and D-Grid in Europe • Commercial partners such as • Eucalyptus …. • Microsoft (Dryad + Azure) – Note current Azure external to FutureGrid as are GPU systems • Application partners • TeraGrid • Open Grid Forum • Possibly Open Nebula, Open Cirrus Testbed, Open Cloud Consortium, Cloud Computing Interoperability Forum. IBM-Google-NSF Cloud, and other DoE/NSF/… clouds

  6. FutureGrid Timeline • October 2009 – Project Starts • November 2009 – SC09 Demo • January 2010 – Significant Hardware installed • March 2010 – FutureGrid network complete • March 2010 – FutureGrid Annual Meeting • September 2010 – All hardware, except shared memory system, available • October 2011 – FutureGrid allocatable via TeraGrid process – first two years by user/science board led by Andrew Grimshaw

  7. FutureGrid Usage Scenarios • Developers of end-user applications who want to create new applications in cloud or grid environments, including analogs of commercial cloud environments such as Amazon or Google. • Is a Science Cloud for me? Is my application secure? • Developers of end-user applications who want to experiment with multiple hardware environments. • Grid/Cloud middleware developers who want to evaluate new versions of middleware or new systems. • Networking researchers who want to test and compare different networking solutions in support of grid and cloud applications and middleware. • Education as well as research • Interest in performance testing requires that bare metal images areimportant

  8. FutureGrid Hardware

  9. Compute Hardware

  10. Storage Hardware • FutureGrid has a dedicated network (except to TACC) and a network fault and delay generator • Experiments can be isolated by request • Additional partner machines may run FutureGrid software and be supported (but allocated in specialized ways)

  11. System Milestones • New IBM Systems • Delivery: January 2010 • Acceptance: March 2010 • Available for Use: April 2010 • Dell System • Delivery: January 2010 • Acceptance: March 2010 • Available for Use: April 2010 • Existing IU iDataPlex • Move to SDSC: January 2010 • Available for Use: March 2010 • Storage Systems (Sun & DDN) • Delivery: December 2009 • Acceptance: January 2010

  12. Logical Diagram - Simple

  13. Logical Diagram – NOT simple Impairments Device UC Lambda TACC Connectivity via Teragrid Lambda to IU/PU NLR Lambda to LA NLR VLAN to Florida Peering to Internet2 for External Access

  14. Network Impairments Device • Spirent XGEM Network Impairments Simulator for jitter, errors, delay, etc • Full Bidirectional 10G w/64 byte packets • up to 15 seconds introduced delay (in 16ns increments) • 0-100% introduced packet loss in .0001% increments • Packet manipulation in first 2000 bytes • up to 16k frame size • TCL for scripting, HTML for manual configuration

  15. Network Milestones • December 2009 • Setup and configuration of core equipment at IU • Juniper EX 8208 • Spirent XGEM • January 2010 • Core equipment relocated to Chicago • IP addressing & AS # • February 2010 • Coordination with local networks • NLR Circuits Active • March 2010 • Peering with TeraGrid & Internet2

  16. Global NOC Background • ~65 total staff • Service Desk: proactive & reactive monitoring 24x7x365, coordination of support • Engineering: All operational troubleshooting • Planning/Senior Engineering: Senior Network engineers dedicated to single projects • Tool Developers: Developers of GlobalNOC tool suite

  17. Supported Projects REN-ISAC OmniPoP

  18. FutureGrid Architecture • Open Architecture allows to configure resources based on images • Managed images allows to create similar experiment environments • Experiment management allows reproducible activities • Through our modular design we allow different clouds and images to be “rained” upon hardware. • Will support deployment of preconfigured middleware including TeraGrid stack, Condor, BOINC, gLite, Unicore, Genesis II

  19. Software Goals • Open-source, integrated suite of software to • instantiate and execute grid and cloud experiments. • perform an experiment • collect the results • tools for instantiating a test environment, • TORQUE, Moab, xCAT, bcfg, and Pegasus, Inca, ViNE, a number of other tools from our partners and the open source community • Portal to interact • Benchmarking http://futuregrid.org

  20. Draft GUI for FutureGrid Dynamic Provisioning

  21. Command line • fg-deploy-image • host name • image name • start time • end time • label name • fg-add • label name • framework hadoop • version 1.0 • Deploys an image on a host • Adds a feature to a deployed image http://futuregrid.org

  22. FG Stratosphere • Objective • Higher than a particular cloud • Provides all mechanisms to provision a cloud on a given FG hardware • Allows the management of reproducible experiments • Allows monitoring of the environment and the results • Risks • Lots of software • Possible multiple path to do the same thing • Good news • We worked in a team, know about different solutions and have identified a very good plan • We can componentize Stratosphere http://futuregrid.org

  23. Dynamic Provisioning • Change underlying system to support current user demands • Linux, Windows,Xen, Nimbus, Eucalyptus • Stateless images • Shorter boot times • Easier to maintain • Stateful installs • Windows • Use Moab to trigger changes and xCAT to manage installs http://futuregrid.org

  24. xCAT and Moab • xCAT • uses installation infrastructure to perform installs • creates stateless Linux images • changes the boot configuration of the nodes • remote power control and console • Moab • meta-schedules over resource managers • TORQUE and Windows HPC • control nodes through xCAT • changing the OS http://futuregrid.org

  25. Experiment Manager • Objective • Manage the provisioning for reproducible experiments • Coordinate workflow of experiments • Share workflow and experiment images • Minimize space through reuse • Risk • Images are large • Users have different requirements and need different images http://futuregrid.org

  26. Acknowledgements • NSF Award OCI-0910812 • NSF Solicitation 08-573 • http://www.nsf.gov/pubs/2008/nsf08573/nsf08573.htm • ViNe - http://vine.acis.ufl.edu/ • Nimbus - http://www.nimbusproject.org/ • Eucalyptus - http://www.eucalyptus.com/ • VAMPIR - http://www.vampir.eu/ • Pegasus - http://pegasus.isi.edu/ • FutureGrid - http://www.futuregrid.org/
