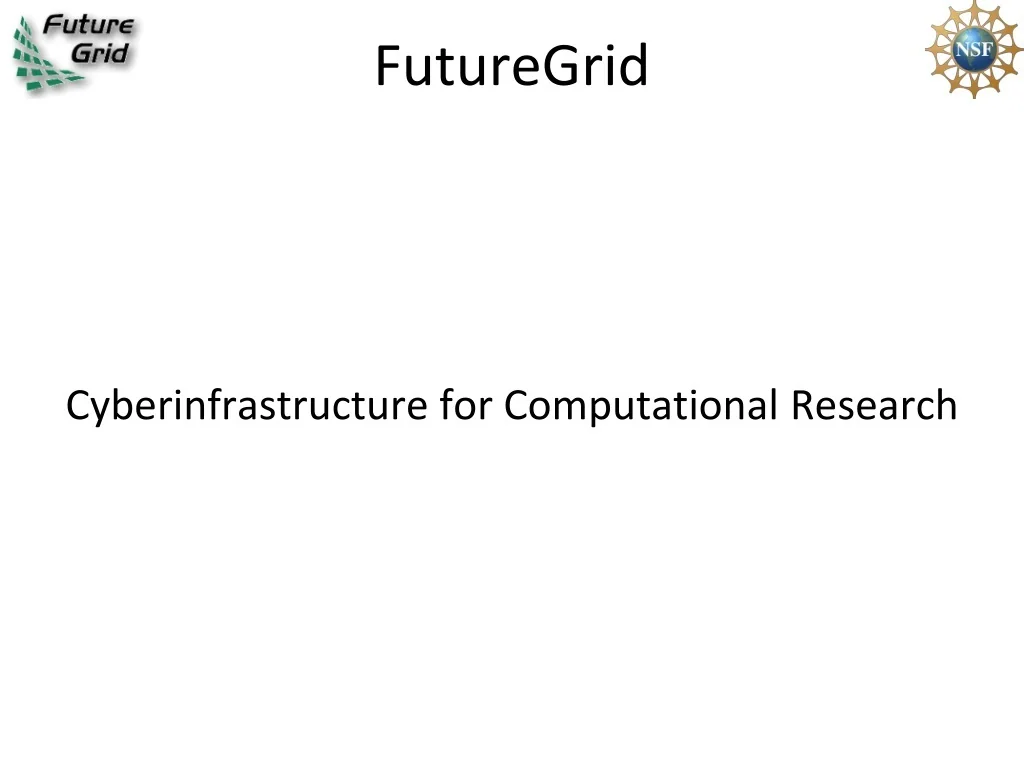

1. FutureGrid Cyberinfrastructure for Computational Research

2. FutureGrid Goals An environment that can be used for middleware developers to develop and test middleware An environment that can instantiate a wide variety of computing environments (ranging from current TeraGrid software, VMs, cloud, grid systems other than TG) for development and testing of applications on experimental basis in a test bed, in replicable ways Education related to all of the above US Industry research related to the above

3. FutureGrid Components Compute – flexible deployment of images, VM's, clouds Storage – local storage sufficient to facilitate projects, Lustre for larger projects Network – Dedicated networks between FutureGrid sites, Impairment Device

4. Compute Hardware

5. Storage Hardware • FutureGrid has a dedicated network (except to TACC) and a network fault and delay generator • Experiments can be isolated by request • Additional partner machines may run FutureGrid software and be supported (but allocated in specialized ways)

6. Logical Network Diagram

7. Network Impairments Device • Spirent XGEM Network Impairments Simulator for jitter, errors, delay, etc • Full Bidirectional 10G w/64 byte packets • up to 15 seconds introduced delay (in 16ns increments) • 0-100% introduced packet loss in .0001% increments • Packet manipulation in first 2000 bytes • up to 16k frame size • TCL for scripting, HTML for manual configuration

8. http://futuregrid.org

9. FutureGrid Architecture • Open Architecture allows to configure resources based on images • Managed images allows to create similar experiment environments • Experiment management allows reproducible activities • Through our modular design we allow different clouds and images to be “rained” upon hardware. • Will support deployment of preconfigured middleware including TeraGrid stack, Condor, BOINC, gLite, Unicore, Genesis II

10. Software Goals • Open-source, integrated suite of software to • instantiate and execute grid and cloud experiments. • perform an experiment • collect the results • tools for instantiating a test environment • TORQUE, Moab, xCAT, bcfg, and Pegasus, Inca, ViNE, a number of other tools from our partners and the open source community • Portal for interacting with tools • Benchmarking 08/25/10 http://futuregrid.org 10

11. Draft GUI for FutureGrid Dynamic Provisioning

12. Command line • fg-deploy-image • host name • image name • start time • end time • label name • fg-add • label name • framework hadoop • version 1.0 • Deploys an image on a host • Adds a feature to a deployed image 08/25/10 http://futuregrid.org 12

13. FG Stratosphere • Objective • Higher than a particular cloud • Provides all mechanisms to provision a cloud on a given FG hardware • Allows the management of reproducible experiments • Allows monitoring of the environment and the results • Risks • Lots of software • Possible multiple path to do the same thing • Good news • We worked in a team, know about different solutions and have identified a very good plan • We can componentize Stratosphere 08/25/10 http://futuregrid.org 13

14. Dynamic Provisioning • Change underlying system to support current user demands • Linux, Windows, Xen/KVM, Nimbus, Eucalyptus • Stateless images • Shorter boot times • Easier to maintain • Stateful installs • Windows • Use Moab to trigger changes and xCAT to manage installs 08/25/10 http://futuregrid.org 14

15. Experiment Manager • Objective • Manage the provisioning for reproducible experiments • Coordinate workflow of experiments • Share workflow and experiment images • Minimize space through reuse 08/25/10 http://futuregrid.org 15

16. Getting started with FutureGrid www.futuregrid.org Account/Project request Nimbus/Eucalyptus account for those systems, if needed Getting started information at www.futuregrid.org/tutorials Mail help@futuregrid.org for any issues

17. Acknowledgements • FutureGrid - http://www.futuregrid.org/ • NSF Award OCI-0910812 • NSF Solicitation 08-573 • http://www.nsf.gov/pubs/2008/nsf08573/nsf08573.htm • ViNe - http://vine.acis.ufl.edu/ • Nimbus - http://www.nimbusproject.org/ • Eucalyptus - http://www.eucalyptus.com/ • VAMPIR - http://www.vampir.eu/ • Pegasus - http://pegasus.isi.edu/
