SG-Systems Boot Camp Use Case Process with TOGAF AMI-ENT Example

Explore the best practices for requirements development using SG Systems methodology mapped to NIST Roadmap and TOGAF. Learn how to implement Open Automated Data Exchange and demand response systems effectively.

annona
Télécharger la présentation

SG-Systems Boot Camp Use Case Process with TOGAF AMI-ENT Example

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

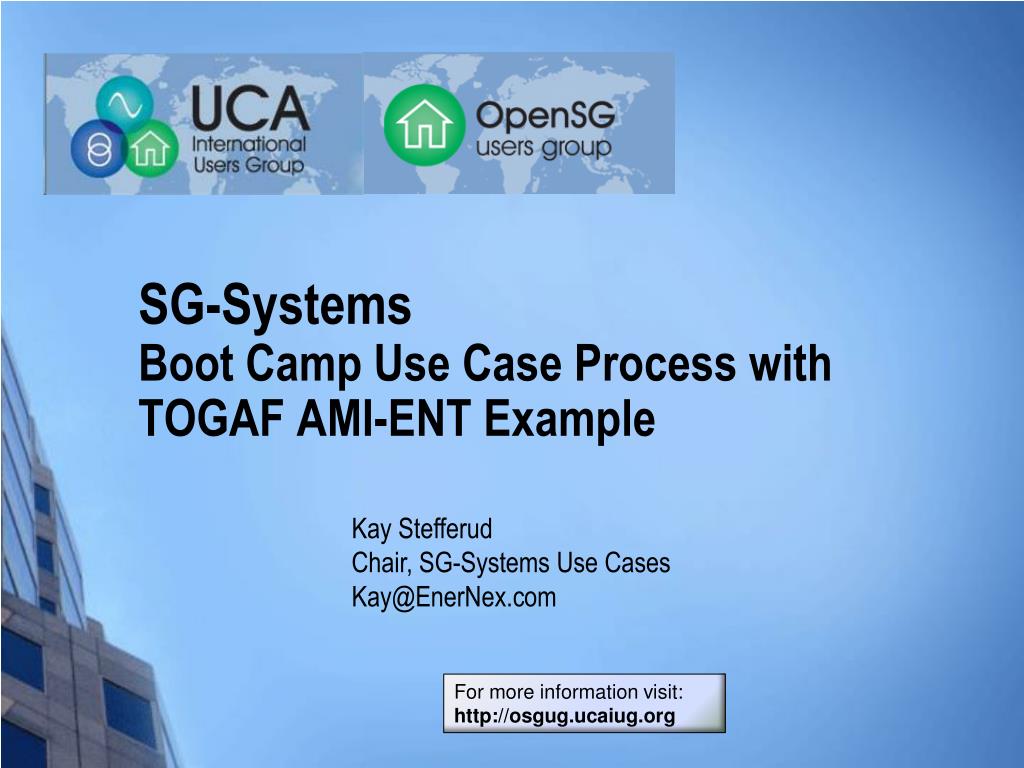

  1. SG-SystemsBoot Camp Use Case Process with TOGAF AMI-ENT Example Kay Stefferud Chair, SG-Systems Use Cases Kay@EnerNex.com For more information visit: http://osgug.ucaiug.org

  2. OpenSG Mapped to NIST Priority Action Plans (PAPs) SGIP - SGAC PAP 3 Price Model PAP 4 Common Scheduling PAP 9 Demand Response/DER PAP 10 Energy Usage Info NIST Phase 3 SGIP SGTCC Edge Conf Task Force Enterrpise Conf Task Force ASAP-SG SGIP - CSWG Security Conf Task Force PAP 1 Internet Role PAP 2 WirelessPAP 5 Power Line/ Appliances Diagram courtesy of Wayne Longcore

  3. SG Systems Use Case Methodology Use Cases: Best Practice for Requirements Development

  4. SG Systems Mapped to NIST Roadmap Open Automated Data Exchange OpenADE Open Automated Demand Response OpenADR Advanced Metering Infrastructure Enterprise AMI ENT Open Home Area Network OpenHAN [Source: NIST Interim Roadmap]

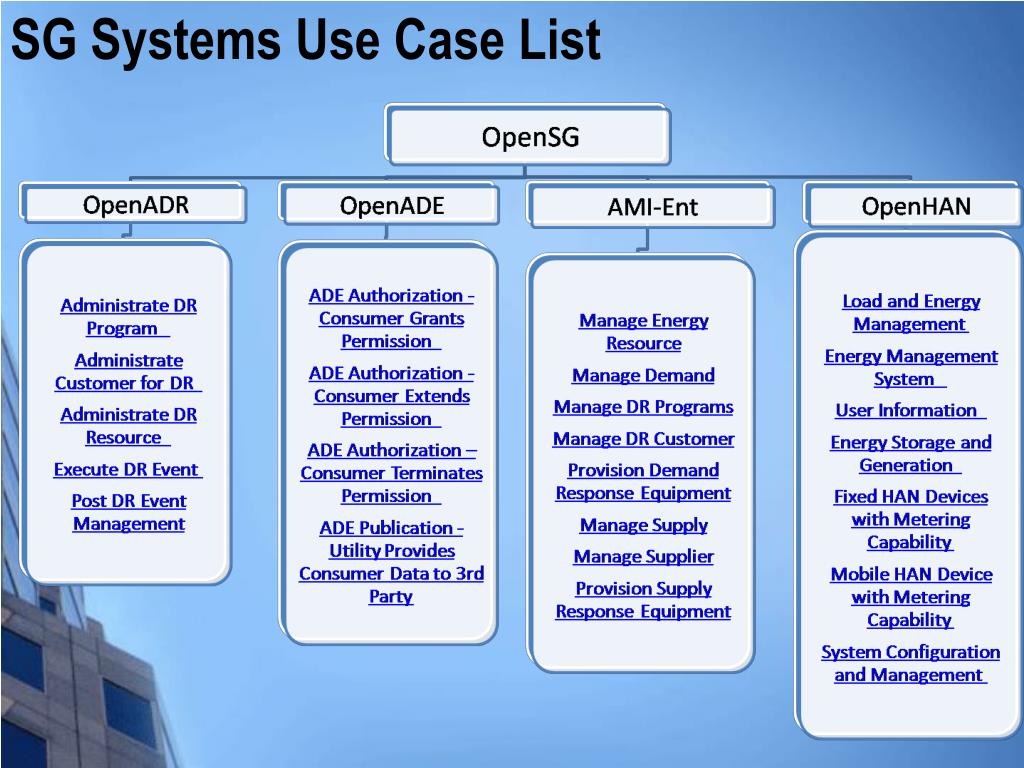

  5. SG Systems Use Case List

  6. The Open Group Architectural Framework (TOGAF) “The How” Architectural Development Method (ADM) “The Crop Circle” ADM Defines Phases of Architecture Development Cycle

  7. OpenSG Process Mapped to TOGAF Use Cases System Requirements Specification (SRS) Reference Implementation

  8. TOGAF’s 4 Architectural Domains “The What”

  9. Use Case Enterprise Architect (EA) Example

  10. Open SG Actors

  11. Business Process Model – DR example

  12. BPM – OpenADE Requirements Example

  13. Data – Common Information Model (CIM)

  14. Data – HAN EA example

  15. Technical – OpenADR EA Example

  16. Technical -- OpenADE example

  17. Questions Use Cases are Best Practice for Requirements Development
