  1. BDL-UDL Load Balancinga.k.a Policy Routing husni tokyo, 2003/06/20

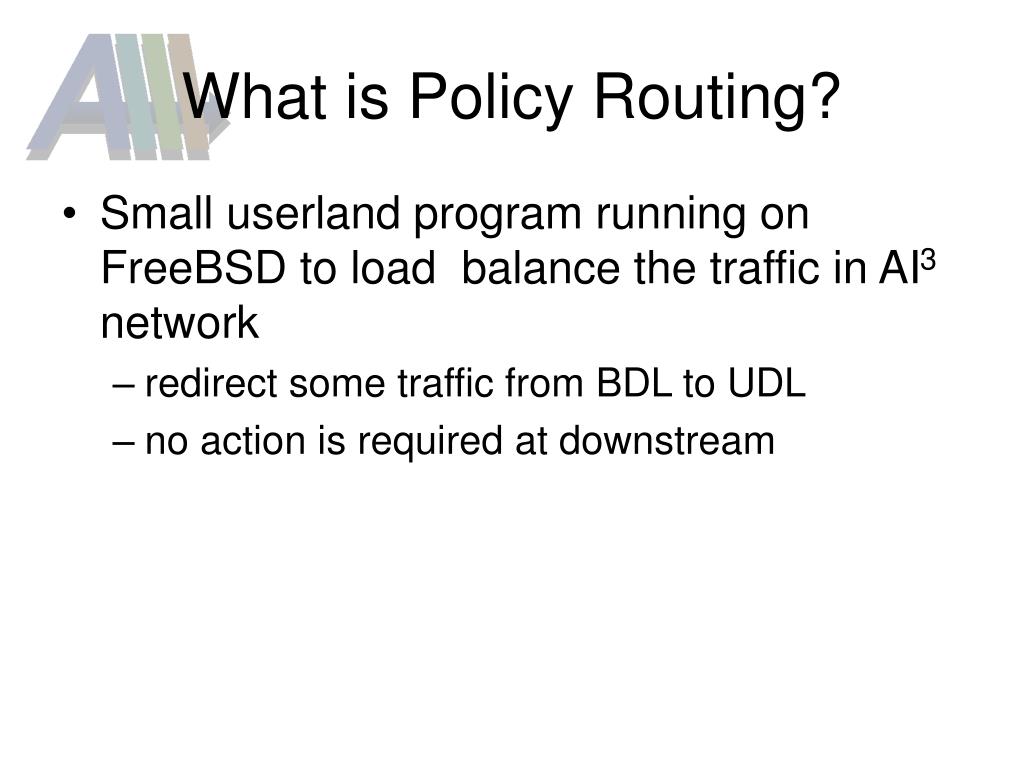

  2. What is Policy Routing? • Small userland program running on FreeBSD to load balance the traffic in AI3 network • redirect some traffic from BDL to UDL • no action is required at downstream

  3. What Does It Do?

  4. Prefix advertisement flow

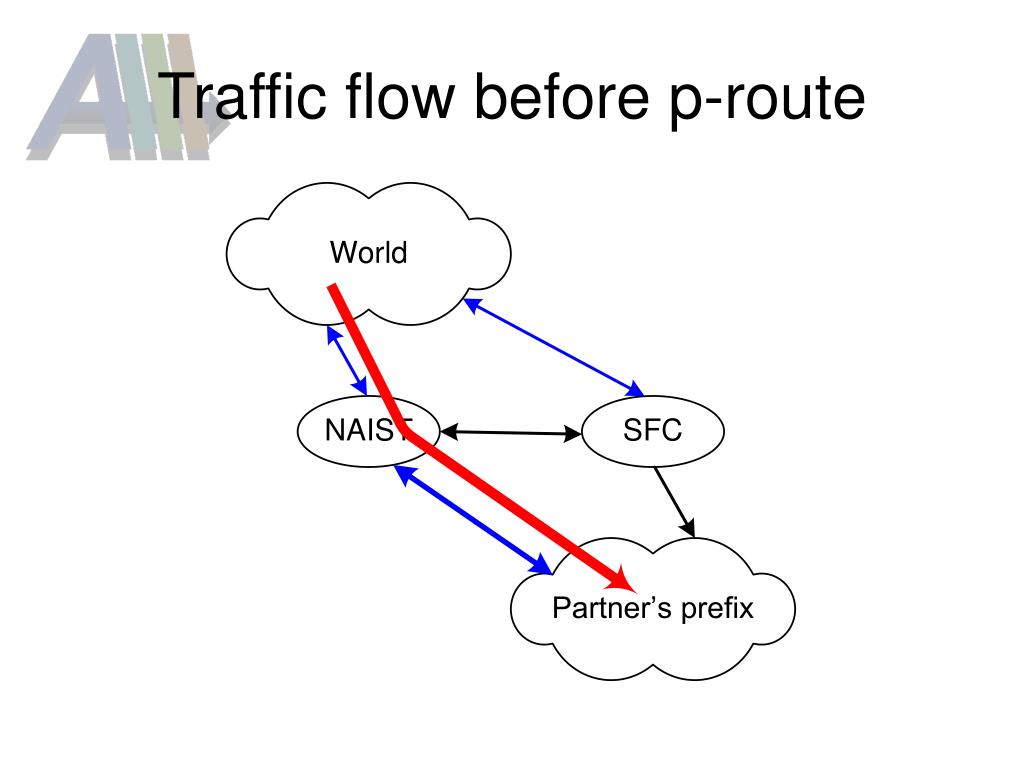

  5. Traffic flow before p-route

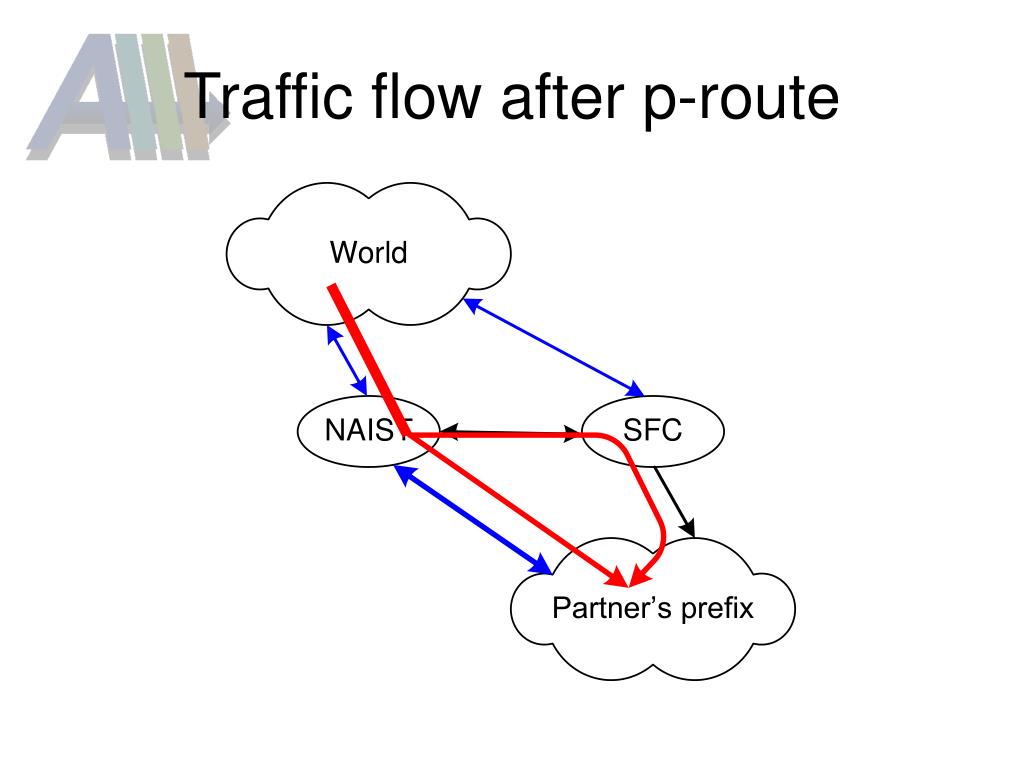

  6. Traffic flow after p-route

  7. O/S Requirements • FreeBSD 4.5-RELEASE ~ • Kernel options • IPFIREWALL • IPDIVERT • IPFIREWALL_FORWARD • IPFIREWALL_DEFAULT_TO_ACCEPT • Tunnel interface • gif0

  8. P-route System

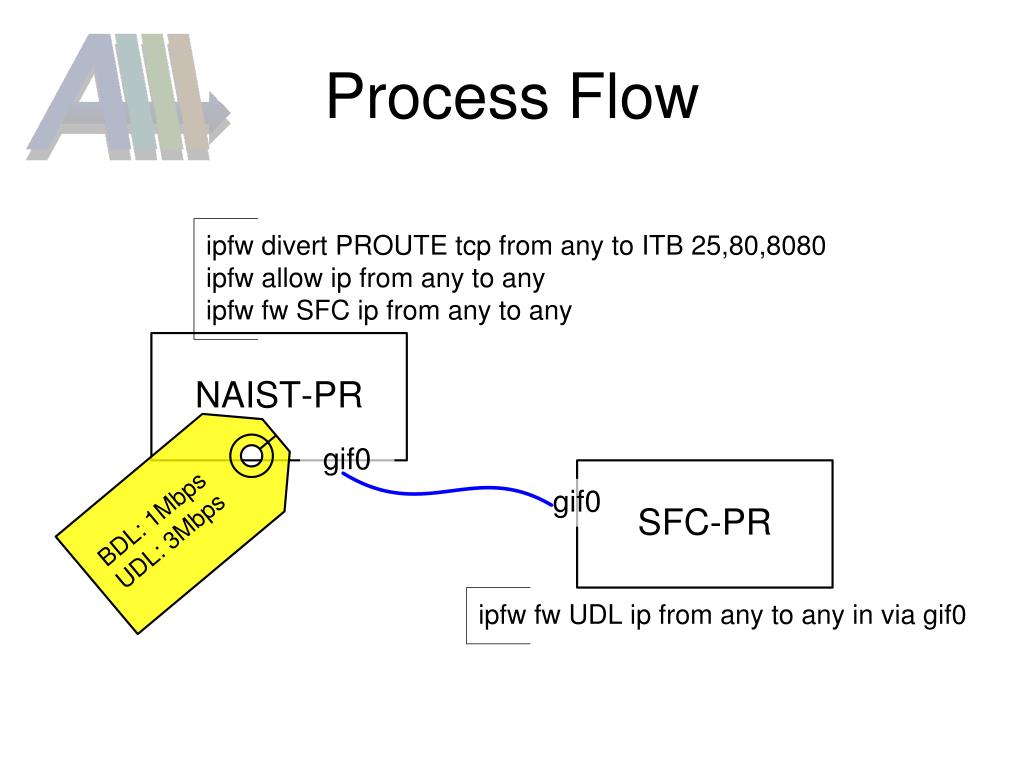

  9. Process Flow

  10. Policy Manager • Current: static • Next: adaptive • traffic pattern • UDL usage policy (multicast is preferred)

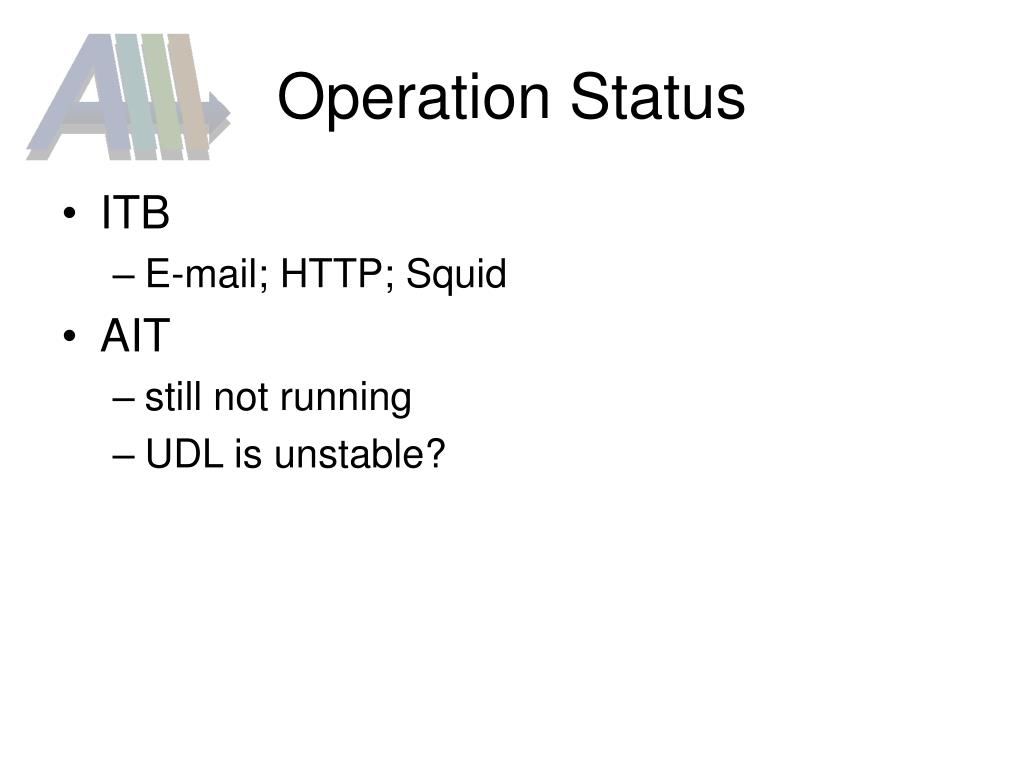

  11. Operation Status • ITB • E-mail; HTTP; Squid • AIT • still not running • UDL is unstable?

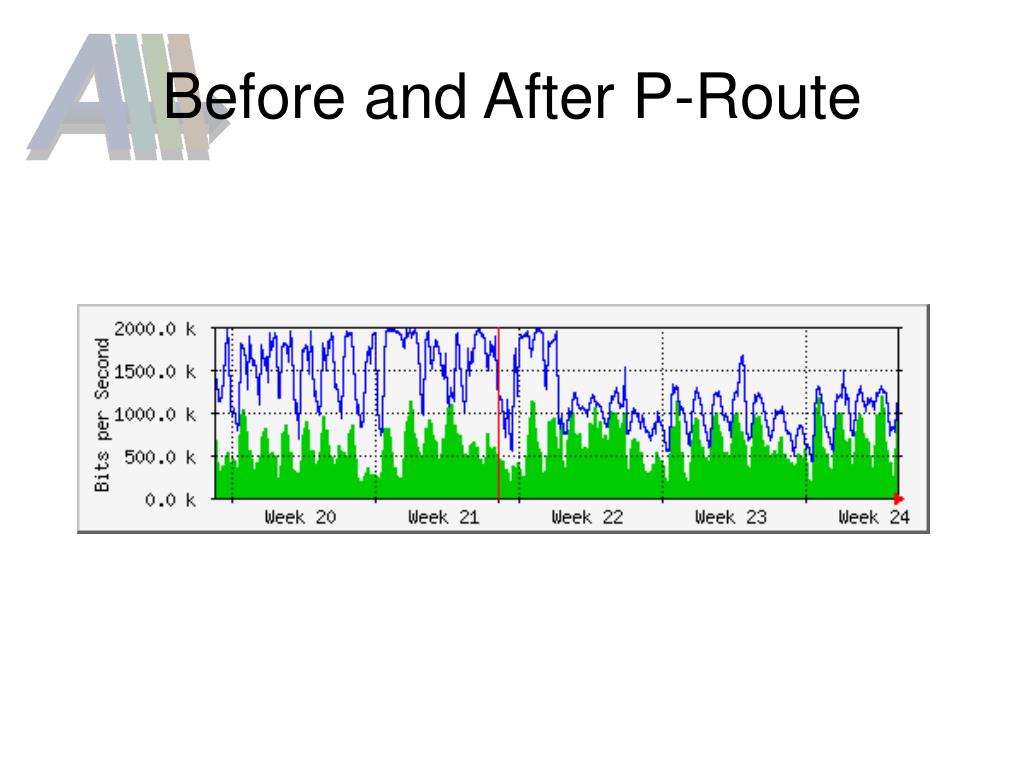

  12. Before and After P-Route

  13. Today’s Traffic
