  1. Filtration Filtration methods for binary images Filtration methods for color images

  2. Binary image filtration • Morphological filters • Statistical filters

  3. Color image filtration • Statistical • Color distance based

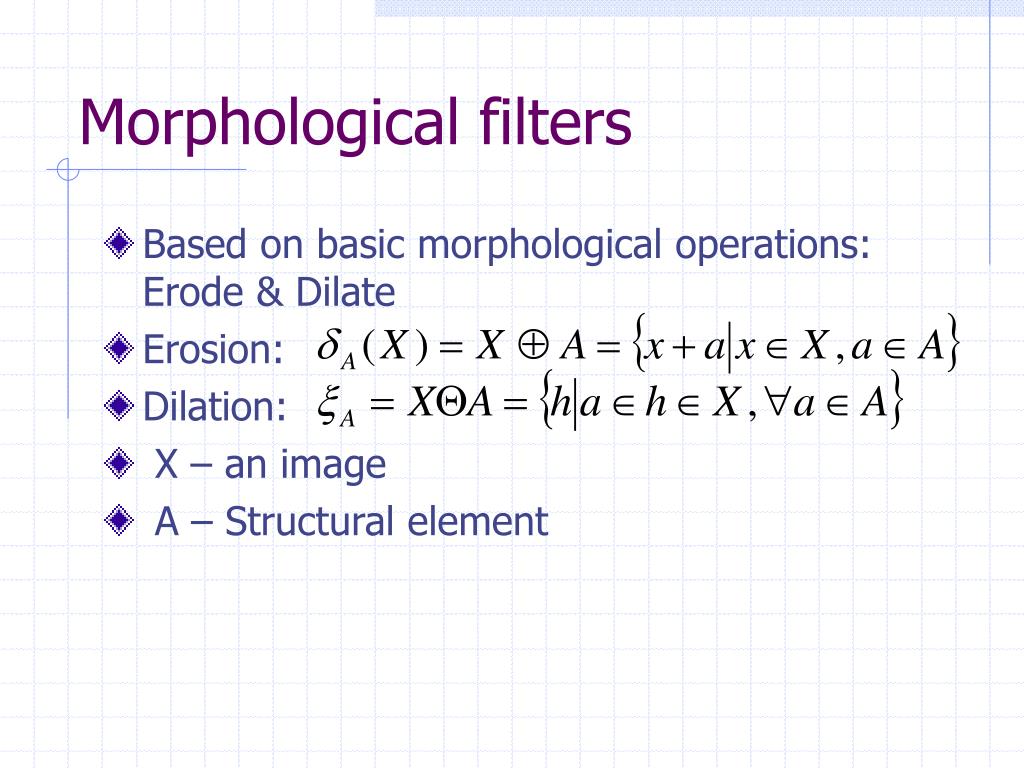

  4. Morphological filters • Based on basic morphological operations: Erode & Dilate • Erosion: • Dilation: • X – an image • A – Structural element

  5. Structural element • Usual SE’s are: • cross • block • Also could be any form

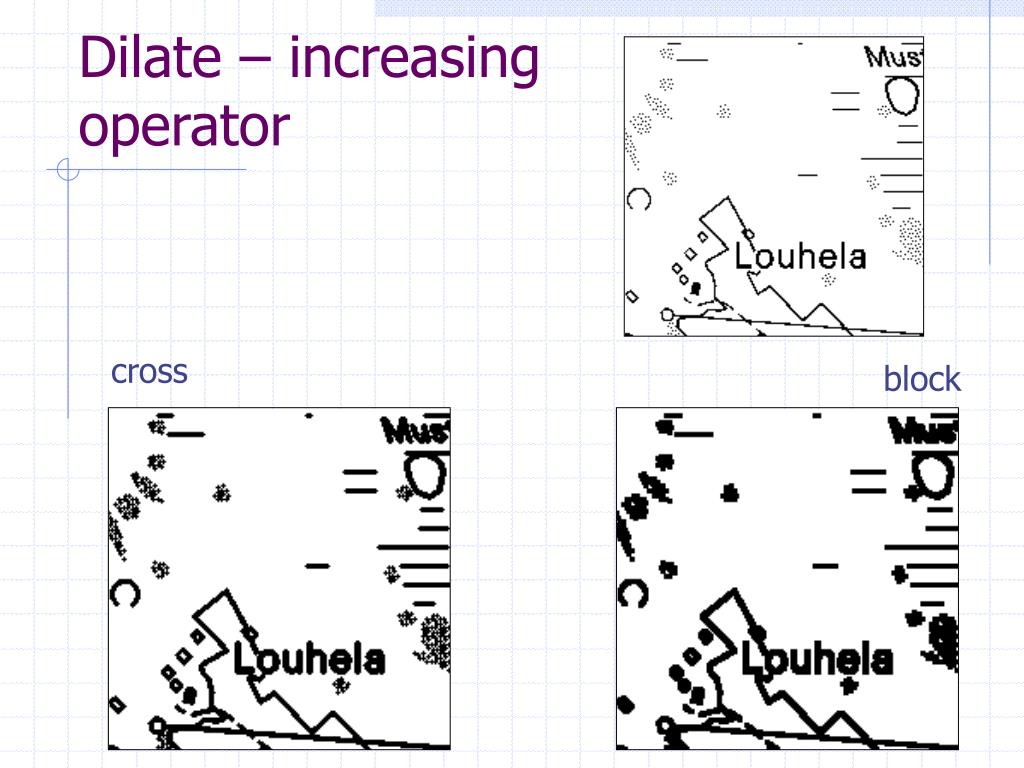

  6. Dilate – increasingoperator cross block

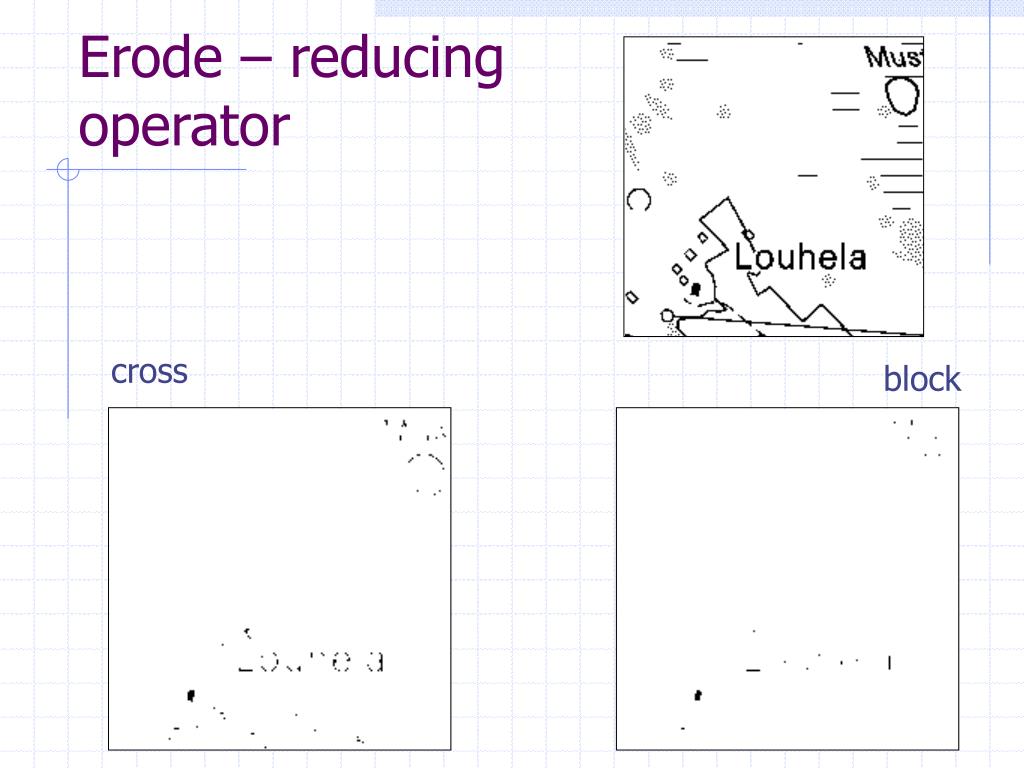

  7. Erode – reducingoperator cross block

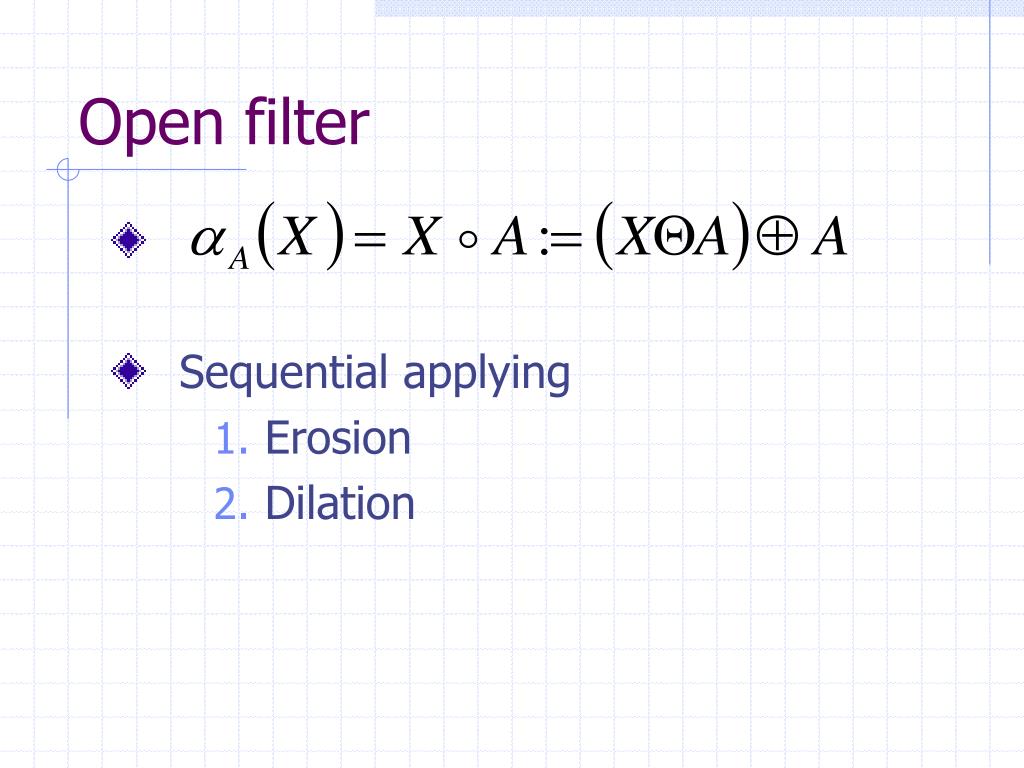

  8. Open filter • Sequential applying • Erosion • Dilation

  9. Open example: cross block

  10. Close filter • Sequential applying • Dilation • Erosion

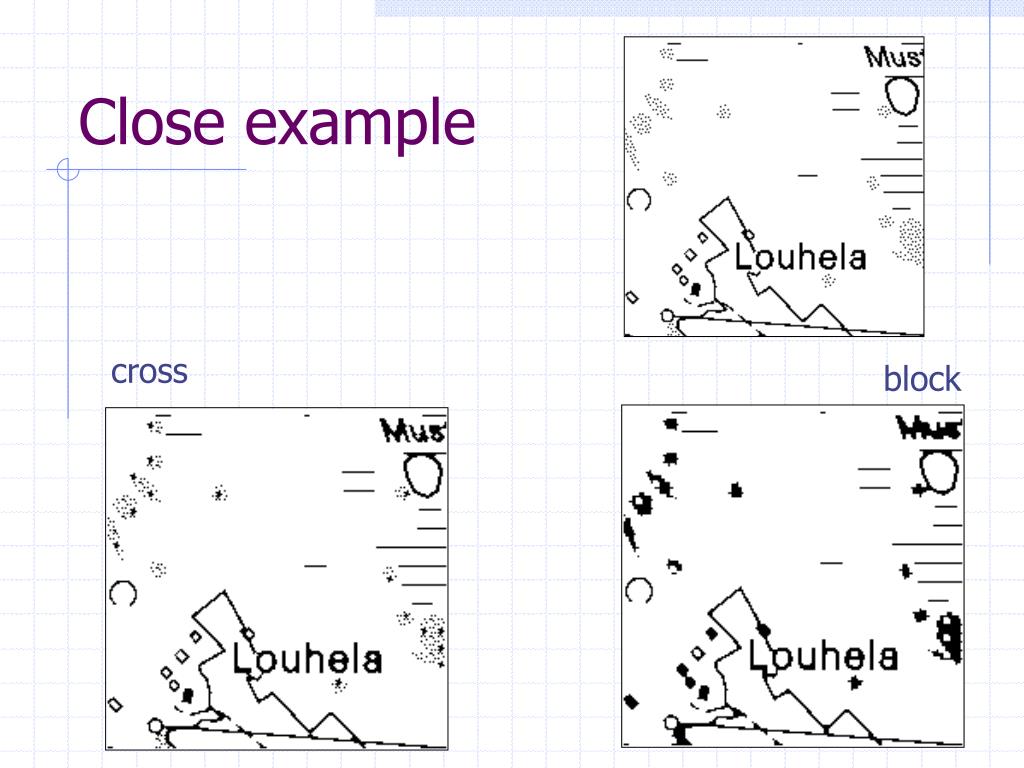

  11. Close example cross block

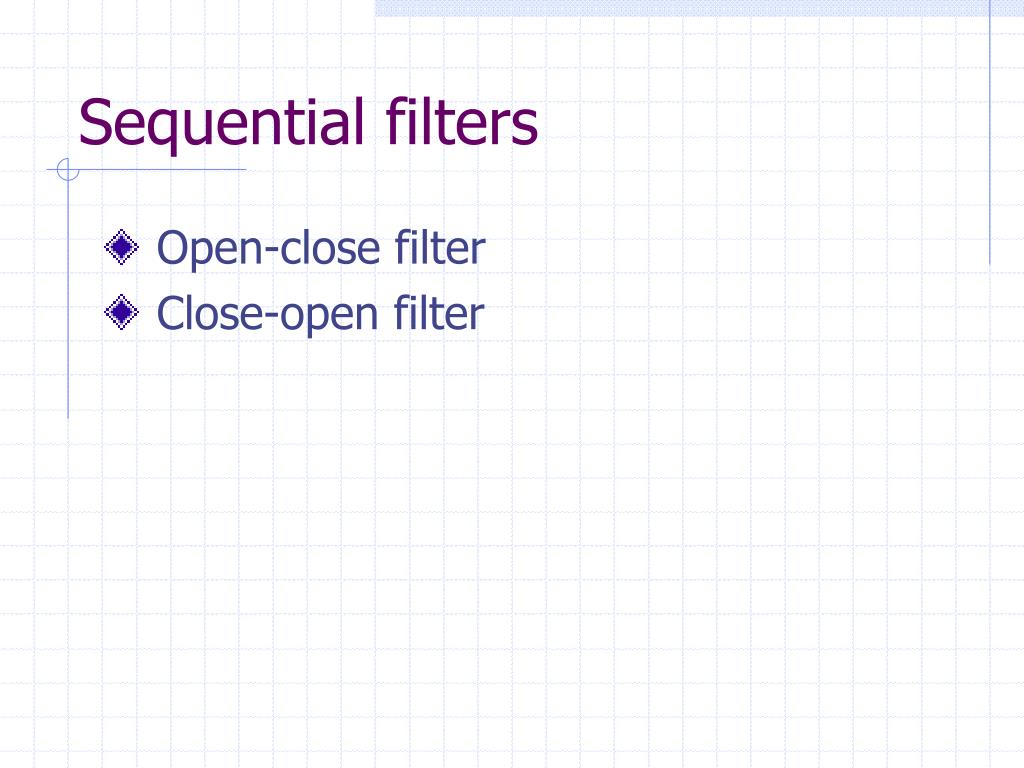

  12. Sequential filters • Open-close filter • Close-open filter

  13. Rank operator • A – structural element of n cells • boolean function of n variables • where binary image

  14. Rank operator • , where boolean function of n variables • Which have value of 1 if at least k variables equals to 1, and 0 otherwise • where is a complimentary part of A

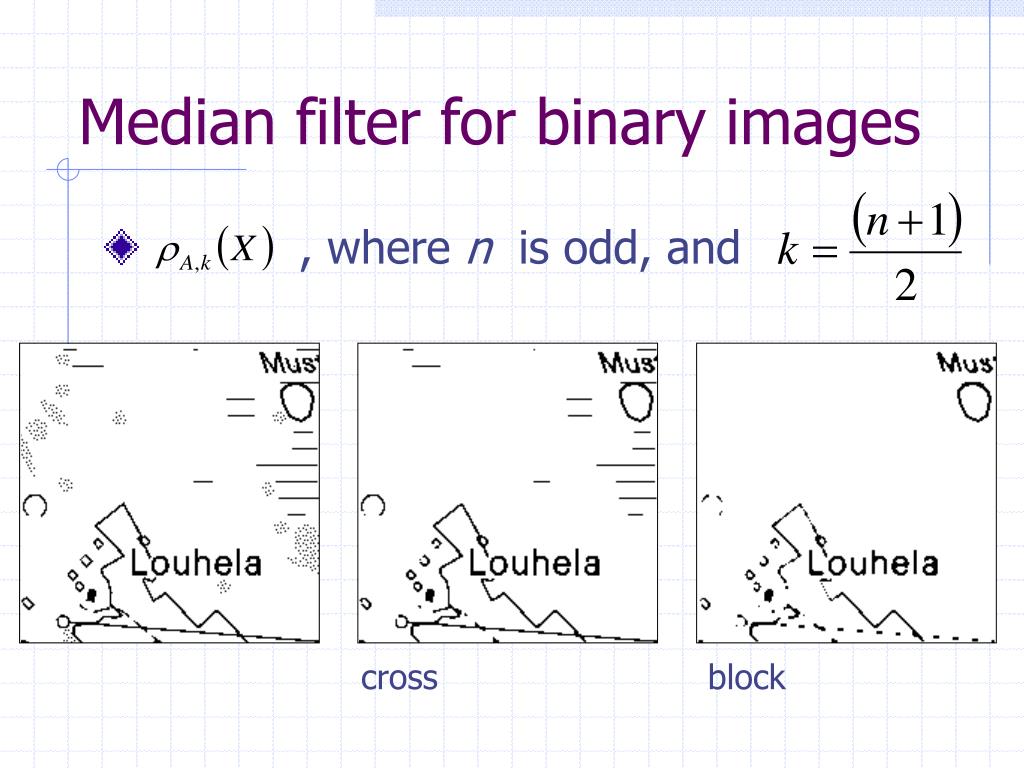

  15. Median filter for binary images • , where n is odd, and cross block

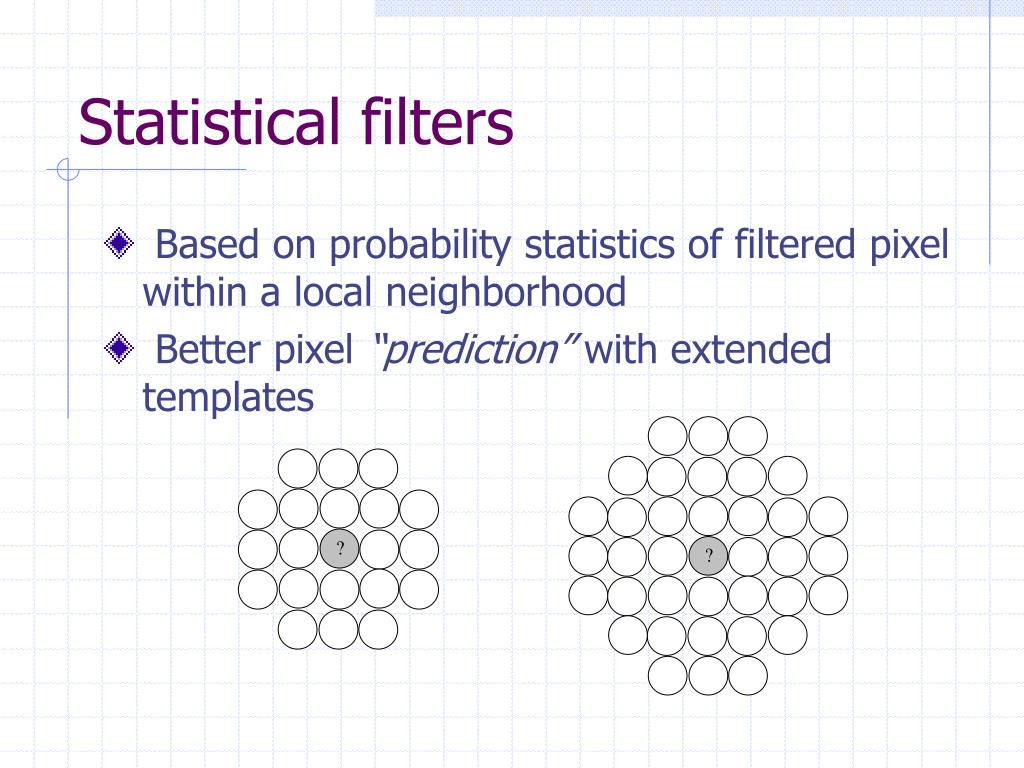

  16. Statistical filters • Based on probability statistics of filtered pixel within a local neighborhood • Better pixel “prediction” with extended templates

  17. Statistical filters • First phase – determining statistical context of the image • Second phase – flipping pixels with low probability values, assuming they as noise.

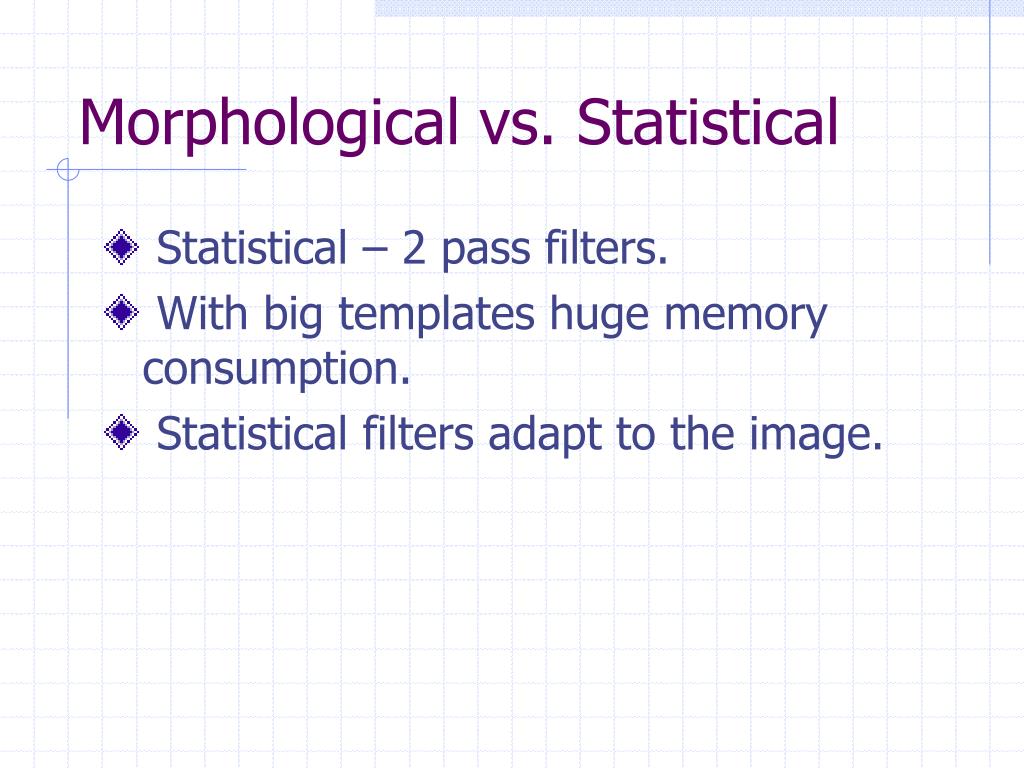

  18. Morphological vs. Statistical • Statistical – 2 pass filters. • With big templates huge memory consumption. • Statistical filters adapt to the image.

  19. Statistics example 1 Nb = 104 Nw = 152 P(b|c) = 2.87% Threshold = 5% Pixel will be changed to white

  20. 10% threshold

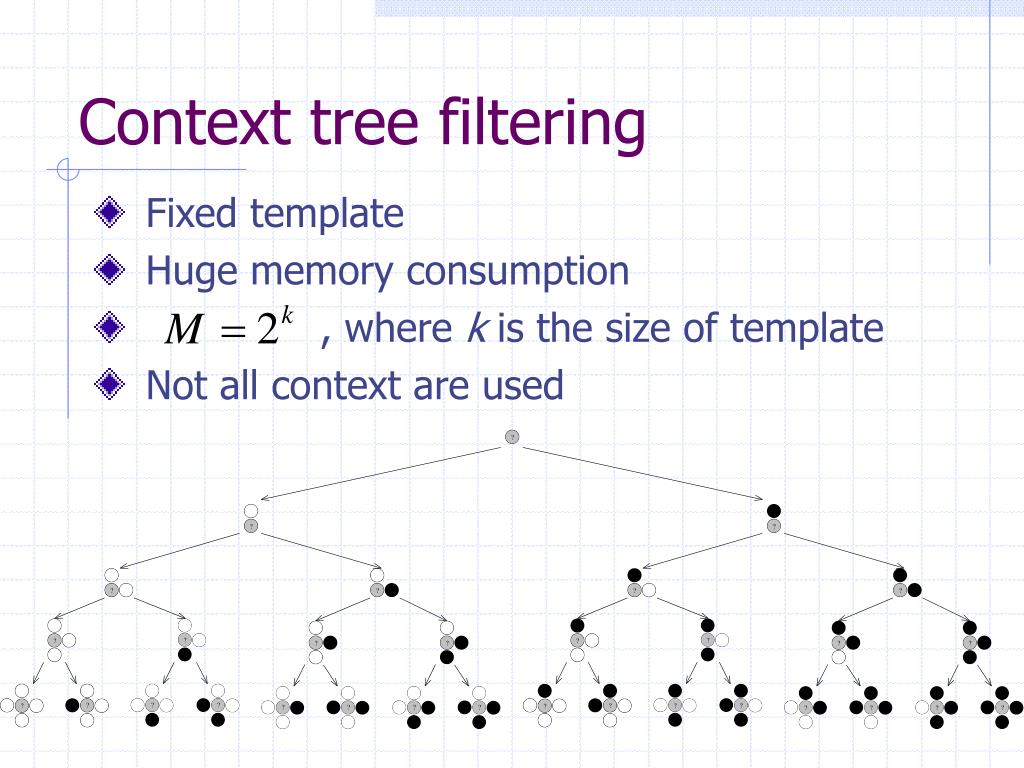

  21. Context tree filtering • Fixed template • Huge memory consumption • , where k is the size of template • Not all context are used

  22. Color image filtration

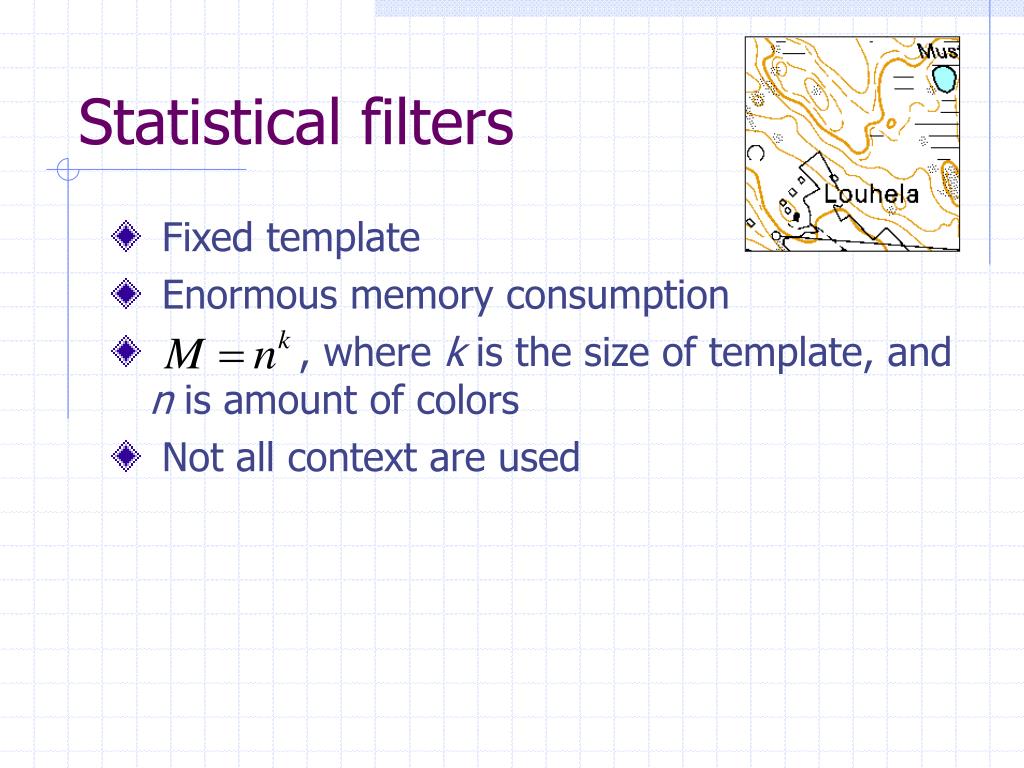

  23. Statistical filters • Fixed template • Enormous memory consumption • , where k is the size of template, and n is amount of colors • Not all context are used

  24. Context tree filtration

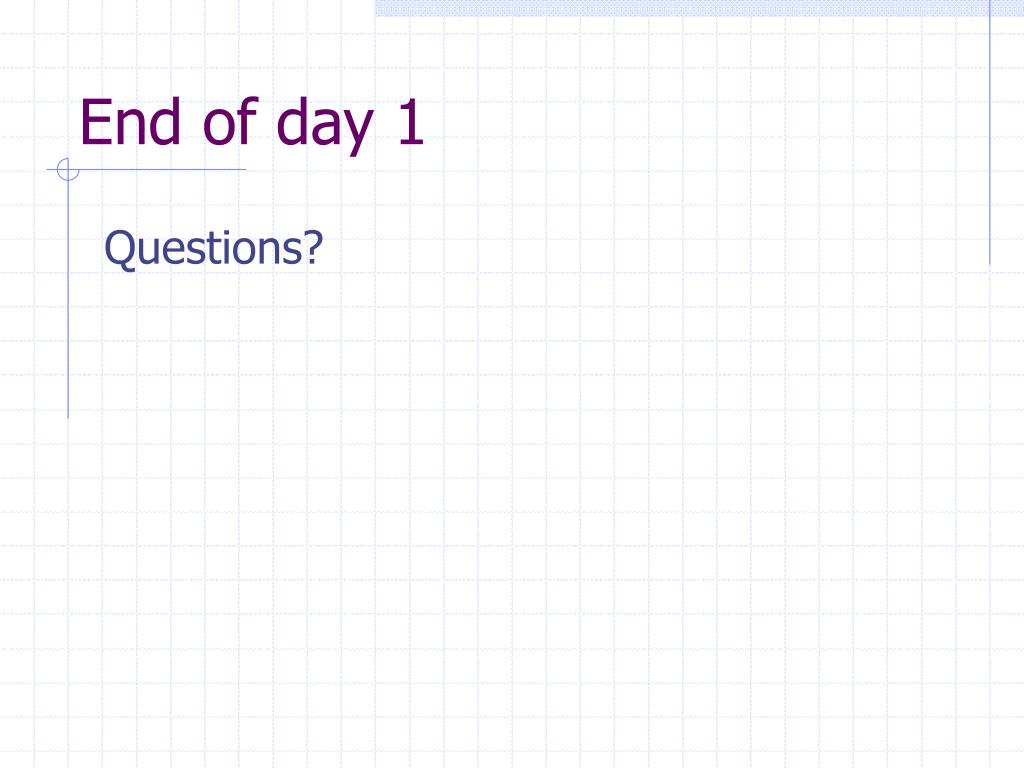

  25. End of day 1 Questions?
