  1. 1000/10G L2/L3/L4Series Managed Switches

  2. Accton Road Map • Application • Product Portfolio • Product Configuration • Product Key Features • Benefits • Comparison • Summary

  3. Accton Road Map • Application • Product Portfolio • Product Configuration • Product Key Features • Benefits • Comparison • Summary

  4. SMC 8624T /SMC8648T SMC86xxT/SMC87xxM Application~ L2/L4 Gigabit Aggregation 10/100Mbps Workstations • Aggregation of 10/100 L2 switches Printer Departmental Server L2+ Fast Ethernet Desktop Switching SMC6224M Printer Departmental Server 10/100Mbps Workstations Printer Printer Departmental Server Departmental Server L2+ Fast Ethernet Desktop Switching SMC6224M L2+ 10/100 Desktop Switching SMC6224M Gigabit Fiber Link Gigabit Copper Link Printer Printer 10/100Mbps Workstations Departmental Server 10/100Mbps Workstations Departmental Server 10/100Mbps Copper Link

  5. Gigabit Fiber Link Gigabit Copper Link 10/100Mbps Copper Link SMC86xxT/SMC87xxM ApplicationServer Aggregation 10/100 Mbps Workstations • Centralized server farm • Data center server clusters Printer L2+ Fast Ethernet Desktop Switching SMC6224M SMC 8624T /SMC8648T Printer Departmental Server 10/100Mbps Workstations Printer Printer Departmental Server Departmental Server L2+ Fast Ethernet Desktop Switching SMC6224M L2+ 10/100 Desktop Switching SMC6224M Printer Printer 10/100Mbps Workstations 10/100Mbps Workstations

  6. Gigabit Fiber Link Gigabit Copper Link 10/100Mbps Copper Link SMC86xxT/SMC87xxM ApplicationHigh Availability 10/100/1000Mbps Workstations VLAN 2 • High Availability • 802.1Q VLAN • 802.1w Rapid recovery spanning tree • 802.3ad Link Aggregation Printer VLAN 9 Server Farm L2+ Fast Ethernet Desktop Switching SMC6224M SMC8648T VLAN 3 VLAN 8 Printer SMC 8624T 10/100/1000Mbps Workstations VLAN 7 VLAN 4 Printer Printer Departmental Server Departmental Server L2+ Fast Ethernet Desktop Switching SMC6224M L2+ 10/100 Desktop Switching SMC6224M VLAN 6 VLAN 5 Printer Printer 10/100Mbps Workstations 10/100Mbps Workstations

  7. Printer 10/100/1000Mbps Workstations Departmental Server SMC87xxML3 ApplicationGigabit to the desktop 10/100/1000Mbps Workstations Departmental Server Printer 10/100/1000Mbps Workstations SMC8724M / SMC8748M High Performance Gigabit Desktop Switching 10G Fiber Link Gigabit Fiber Link Gigabit Copper Link 100bps Copper Link 10Mbps Copper Link

  8. SMC 8708L2 SMC8708 10G L2/L4 10G Aggregation 10G Fiber Link • Aggregation of server farm with 10G Gigabit Fiber Link Gigabit Copper Link 100bps Copper Link 10Mbps Copper Link SMC 8724M SMC 8724M

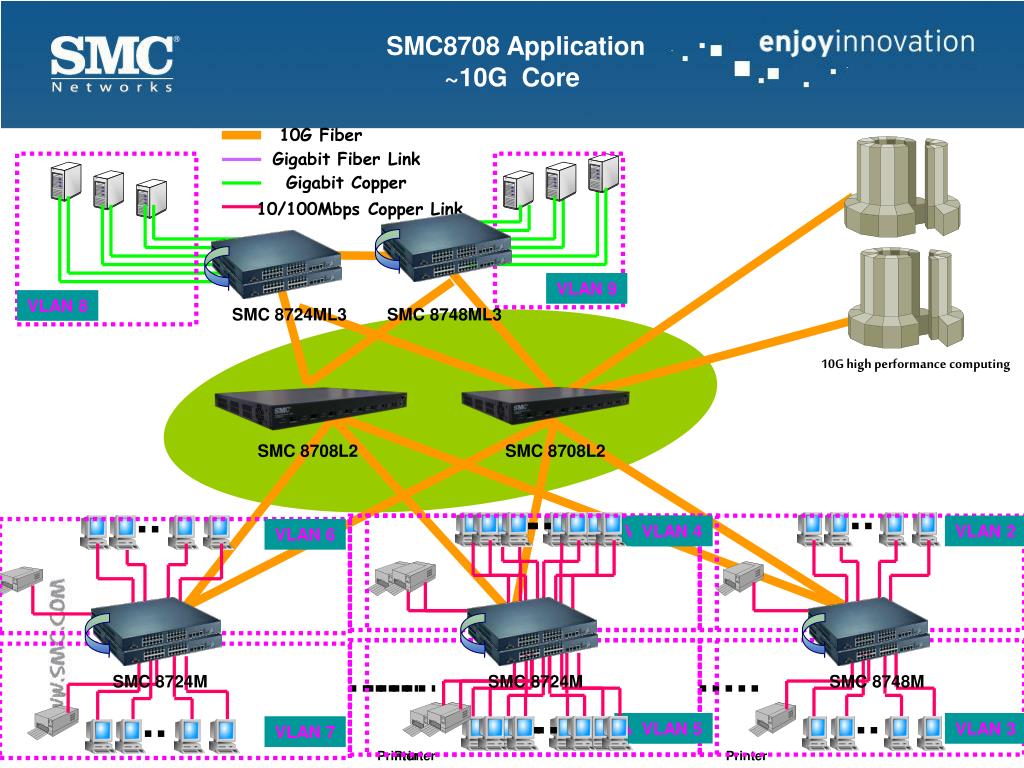

  9. SMC 8708L2 VLAN 2 10G Fiber Gigabit Fiber Link Gigabit Copper VLAN 3 10/100Mbps Copper Link Printer SMC8708 Application ~10G Core VLAN 9 VLAN 8 SMC 8724ML3 SMC 8748ML3 10G high performance computing SMC 8708L2 VLAN 4 VLAN 4 VLAN 6 SMC 8724M SMC 8724M SMC 8748M VLAN 5 VLAN 5 VLAN 7 Printer Printer

  10. Accton Road Map • Application • Product Portfolio • Product Configuration • Product Key Features • Benefits • Comparison • Summary

  11. Zeus ES4500 & ES4600 Product Portfolio Product Portfolio

  12. Product Portfolio

  13. Accton Road Map • Application • Product Portfolio • Product Configuration • Product Key Features • Benefits • Comparison • Summary

  14. SMC86xxT L2/L4 Series Product Configuration 8/12/24/48-port L2/L4 Gigabit/10G Ethernet Switch • Ports SMC8612T (ES4512C) 12 Ports • 8 10/100/1000 ports • 4 combo 10/100/1000 or SFP ports SMC8624T (ES4524C) 24 Ports • 20 10/100/1000 ports • 4 combo 10/100/1000 or SFP ports • RPS & Console Ports • Redundant power port for providing optional external power supply • 1 RS232 port for out-band-management • Performance • MAC address: 16K • Memory & CPU • Flash: 8MB • SDRAM: 32MB • CPU: MPC8245 (266MHZ) • 1 RU SMC8612T(ES4512C) SMC8624T(ES4524C)

  15. SMC86xxT L2/L4 Series Product Configuration 12/24/48-port L2/L4 Gigabit/10G Ethernet Switch • Ports SMC8648T (ES4524C) 48 Ports • 44 10/100/1000 ports • 4 combo 10/100/1000 or SFP ports • RPS & Console Ports • Redundant power port for providing optional external power supply • 1 RS232 port for out-band-management • Performance • MAC address: 16K • Memory & CPU • Flash: 8MB • SDRAM: 32MB • CPU: MPC8245 (266MHZ) • 1 RU SMC8648T(ES4548C)

  16. SMC87xxT L2/L4 Series Product Configuration 12/24/48-port L2/L4 Gigabit/10G Ethernet Switch • Ports SMC8724M (ES4525) 24 Ports • 2010/100/1000 ports • 4 combo 10/100/1000 or SFP ports • 1 XenPak10G uplink SMC8748M (ES4549) 48 Ports • 40 10/100/1000 ports • 4 combo 10/100/1000 or SFP ports • 1 XenPak10G uplink • RPS & Console Ports • Redundant power port for providing optional external power supply • 1 RS232 port for out-band-management • Performance • MAC address: 16K • Memory & CPU • Flash: 8MB • SDRAM: 32MB • CPU: MPC8245 (266MHZ) SMC8724M(ES4525) SMC8648M(ES4549)

  17. SMC87xxT L2/L4 Series Product Configuration 12/24/48-port L2/L4 Gigabit/10G Ethernet Switch • Ports SMC8708L2 (ES5508) 8 Ports • 8 XFP 10G ports RPS & Console Ports • Redundant power port for providing optional external power supply • 1 RS232 port for out-band-management • Performance • MAC address: 16K • Memory & CPU • Flash: 8MB • SDRAM: 32MB • CPU: MPC8245 (266MHZ) SMC8708L2(ES5508)

  18. SMC86xxT/SMC87xxL2 Key Features • L2 Features • 802.1Q Tagged Based, 256 Port-based VLANs, GVRP • Private VLAN, 802.1v Protocol VLANs • 802.1d STP, 802.1w RSTP, 802.1s MSTP, ST Fast Forwarding • 802.3ad (LACP) and Cisco EtherChannel Liked (Up to 6 trunks, up to 8-port per trunk ) • IGMP Snooping v1/v2, IGMP Qurier • Jumbo Frames (9K packets) • Security Features • Port Security (MAC address locked) • 802.1x port-based user authentication • L2/L3/L4 Access Control List Port Based • RADIUS/TACACS+ authentication • Secure Shall (Secured Telnet) • HTTPS/SSL (Secured Web) • QoS Features • 802.1p • 8 priority queues per port • WRR and Strict Scheduling • Traffic Prioritization • 802.1p CoS • DSCP/IP Precedence • TCP/UDP • Bandwidth Management • Port-based • 1Mbps increments • Management Features • SNMP (v1,v2c,v3), RMON (Groups 1, 2, 3, 9) • CLI, Web-based Management, Telnet • Error & event log via SMTP • SNTP • Dual software images,software backup and restore via TFTP, software download/upgrade via TFTP and XMODEM • Switch configuration file download and upload via TFTP

  19. SMC87xxL2 Stacking Features • Stacking Features • Up to 8 units • Up to 384 Gigabit ports per stack • Mix stack capability of SMC8724M&SMC8748M • Dual 10Gbps stacking ports • 40Gbps stacking bandwidth • Cross-stack link aggregation • Cross-stack port mirroring • Resilient stacking • Backup master • Hot-swap units Full Duplex Ring Stacking Architecture (10G TX, 10G RX) ResilientStacking Stacking Button on the Front Panel for Stack Master Election

  20. SMC87xxL3 L2/L3/L4 Series Product Configuration L2/L3/L4 Gigabit Ethernet Standalone Switch • Ports SMC8612 (ES4612) 12 Ports • 8 1000Base-X SFP ports • 4 combo 10/100/1000 or SFP ports • RPS & Console Ports • Redundant power port for providing optional external power supply • 1 RS232 port for out-band-management • Performance • MAC address: 16K • IP host table: 4K • IP net table: 2K • Memory & CPU • Flash: 16MB • SDRAM: 64MB • CPU: MPC8245 (333MHZ) • 1 RU SMC8612 (ES4612)

  21. SMC87xxL3 L2/L3/L4 Series Product Configuration 24/48-port L2/L4 Gigabit Ethernet Stackable Switch • Ports SMC8724M (ES4625 ) 24 Ports (1RU) • 20 10/100/1000 ports • 4 dual-personality 10/100/1000 or SFP ports • 1 option slot for Gigabit or 10G uplink SMC8748T (ES4649) 48 Ports (1RU) • 44 10/100/1000 ports • 4 dual-personality 10/100/1000 or SFP ports • 1 option slot for Gigabit or 10G uplink • RPS & Console Ports • Redundant power port for providing optional external power supply • 1 RS232 port for out-band-management • Performance • MAC address: 16K • IP host table: 4K • IP Net table:2K • Memory & CPU • Flash: 32MB • SDRAM: 128MB • CPU: MPC8245 (466MHZ) SMC8724M (ES4625) SMC8748M (ES4649) EM4625-XG-XENPAK EM4625-Stacking Cable Short (30cm) Long (130cm)

  22. SMC87xxL3 L2/L3/L4 Series Product Configuration • L2 Features • 802.1Q Tagged Based, 256 Port-based VLANs, GVRP • Private VLAN, 802.1v Protocol VLANs • 802.1D STP, 802.1w RSTP, 802.1s MSTP, ST Fast Forwarding • 802.3ad (LACP) and Cisco EtherChannel Liked (Up to 32 trunks, up to 2-8 port per trunk for GE, 2 ports for 10G ) • IGMP Snooping v1/v2, IGMP Querier • Jumbo Frames (9K packets) • L3 Features • 256 static route • IP unicast routing: RIP v1/v2, OSPF • Multicast routing: IGMP v1/v2, DVMRP, PIM-DM • VRRP, ARP • Security Features • Port Security (MAC address locked) • 802.1x port-based user authentication • L2/L3/L4 Access Control List Port Based • RADIUS/TACACS+ authentication • Secure Shall (Secured Telnet) • HTTPS/SSL (Secured Web) • QoS Features • 802.1p • 8 priority queues per port • WRR and Strict Scheduling • Traffic Prioritization • 802.1p CoS • DSCP/IP Precedence • TCP/UDP • Bandwidth Management • Port-based • 1Mbps increments • Management Features • SNMP (v1,v2c,v3), RMON (Groups 1, 2, 3, 9) • CLI, Web-based Management, Telnet • Error & event log via SMTP • SNTP • Dual software images,software backup and restore via TFTP, software download/upgrade via TFTP and XMODEM • Switch configuration file download and upload via TFTP

  23. SMC87xxL3 Stacking Features • Stacking Features • Up to 8 units • Up to 384 Gigabit ports per stack • Mix stack capability of SMC8724ML3&SMC8748ML3 • Dual 10Gbps stacking ports • 40Gbps stacking bandwidth • Cross-stack link aggregation • Cross-stack port mirroring • Resilient stacking • Backup master • Hot-swap units Full Duplex Ring Stacking Architecture (10G TX, 10G RX) ResilientStacking Stacking Button on the Front Panel for Stack Master Election

  24. Accton Road Map • Application • Product Portfolio • Product Configuration • Product Key Features • Benefits • Comparison • Summary

  25. Benefits~ High Scalability • 10x better performance form Fast Ethernet to Gigabit Ethernet to 10 Gigabit Ethernet • Aggressive price help drive more adoption of Gigabit at the edge • More potential future-proofing then traditional 10/100 • 10-Gigabit-ready module slot for future expansion • Optional 8-port SFP module for more long distance fiber connection • 10G at network for bigger bandwidth at the network Core

  26. Benefits~ Innovative stacking • Stacks up to 8 units, pay as network expand • Scalable up to 384 10/100/1000 ports, 32 SFP ports per stack • Single IP entityfor greater management simplicity • Resilient 40 Gbps stacking connection for intra-switch data transfer • Backup Master ensures availability of master controller for network control any time • Redundant Stacking ensures continue operation of other units while adding or removing a unit and in the unlikely event of unit or stacking cable failure. • Auto-firmware & configuration Upgrade from master to slave units for management simplicity

  27. Benefits~ High Availability • IEEE 802.1w Rapid Spanning Tree Protocol provides loop-free network and redundant path with rapid convergence • IEEE 802.3ad link aggregation (LACP) across stacked units provides more bandwidth and helps ensure uptime and availability • IGMP snooping limits bandwidth intensive video traffic to only the requestors • Broadcast storm control prevents faulty end stations from degrading overall system performance • Optional Redundant Power Supply provides uninterrupted power • Layer 3 routing provides segmentation between subnets

  28. Benefits~ Comprehensive Quality of Service • 8 egress queues per port enable differentiated management of up to 8 traffic types • Packet prioritization, remarking based on 802.1p, DSCP, IP precedence and TCP/UDP give optimal performance to real-time applications such as voice and video • Port-based rate-limiting preserves network bandwidth and allowing maximum control of network resources

  29. Benefits~ Enhanced security • IEEE 802.1X network login prevents unauthorized network intrusion • L2/3/4 Access Control List for defining security policies to prevent unauthorized data flows • Port Security secures the access to a switch port based on MAC address • Secure Shell (SSH) and Secure Sockets Layer (SSL/HTTPS) encryption provides secure network management • TACACS+/RADIUS Authentication enables centralized control of the switch and restrict unauthorized users from altering the configuration

  30. Benefits~ High performance IP routing • Hardware based IP unicast routing provideshigh performance IP routing compare to traditional software router • Basic IP unicast routing protocol (RIPv1/v2) provides dynamic routing table updates for small-network routing application • Advanced IP unicast routing protocol (OSPF) supported for load balancing and constructing scalable LANs • VRRP provides dynamic load balancing and failover for routed links • DVMRP tunneling interconnects 2 multicast-enabled networks

  31. Benefits ~ Easy Management • Backup and restoreFirmware • Backup and restoreconfiguration files • Industrializedcommand line • User-friendlyweb interface

  32. Accton Road Map • Application • Product Portfolio • Product Configuration • Product Key Features • Benefits • Comparison • Summary

  33. Comparison~ SMC vs. Dlink SMC SMC8724ML3 SMC8748ML3 VS. Dlink DGS3324SR DXS3350SR • Why SMC • Flexible Module support • More VLAN Features • More Security Features • More Management Features

  34. Comparison~ SMC vs. Cisco SMC Cisco Products SMC87xxML3 Catalyst 3750G-24TS Cisco 20GT+4 Combo 20GT+4 SFP SMC Fixed Ports (RJ45/SFP) Optional Slots 1 No Optional Modules SMC8724ML3 Yes No 10G Module 8 1000Base-X SFP Module Yes No VS. Form Factor 1 RU 1.5 RU Stacking Features SMC8748ML3 Stacking Units 8 units 9 units Resilient Stacking Yes Yes Optional RPS Support Yes Yes Support 9K Jumbo Frames Yes Yes VLAN Private VLAN Yes Yes • Why SMC • Deliver same level features with pay 1/3 price of Cisco • Small Form Factor: 1 RU • 10G Uplink Capability Protocol VLAN Yes No Spanning Tree 802.1D STP Yes Yes 802.1w RSTP Yes Yes 802.1s MSTP Yes Yes Unicast Routing Protocol RIP v1/v2 Yes Yes OSPF v2 Yes Yes IGRP, EIGRP, BGP No Yes Multicast Routing Protocol DVMRP Yes Yes PIM-SM No Yes PIM-DM Yes Yes IGMP v1/v2 Yes No Router Redundancy VRRP HSRP Security ACL Yes Yes Port Security Yes Yes 802.1x Yes Yes Bandwidth Management (Rate Limiting) Yes Yes

  35. Accton Road Map • Application • Product Portfolio • Product Configuration • Product Key Features • Benefits • Comparison • Summary

  36. Summary • Increasing Networking Value • High performance for deploying converged application of high quality video, voice and data. • One Cost to Own All Features • Build a ease of use, reliable, resilient, secured and high performance networking environment with a very low cost. • Future Protection • No extra cost to pay for future feature upgrade. • Optional 10G module design offering future technology application.
