  1. Xirrus Product Portfolio APs, Arrays, Switches, XMS, & Accessories

  2. Xirrus Solutions • XR Product Family • Indoor/Outdoor/AOS • Xirrus Switches • Xirrus Management System • XMS-Cloud/XMS-Enterprise • Integrated Network Services • Ecosystem Solutions • Enclosures and Mounting • Rapid Deployment Kits • Wi-Fi Tools

  3. Xirrus portfolio Applications Management Wi-Fi Designer™ Wi-Fi Inspector™ Network Services Application Control BYOD Security Performance Monitoring / Analytics Location Network Infrastructure XR Wireless APs Xirrus Management System XR Wireless Arrays 3rd-party Interfaces and APIs

  4. Xirrus Wireless Network Overview Access Point

  5. XR product family Comprehensive wireless portfolio

  6. Wireless access portfolio

  7. Outdoor Wireless access portfolio

  8. XR product specifications

  9. Wireless APs Fixed configuration Access points

  10. XR-520 AP overview A new class of fully capable, reduced cost Access point • 2 radio AP with 802.11n 300Mbps (2x2) operation • Integrated controller with dual-core Cavium network processor • Software programmable radio • Omni-directional antennas • Same network services as existing XR family, including: • Application Control: Visibility and Policy Enforcement • Security: WIDS/WIPS, Firewall, Guest Access • Analytics: Spectrum Analysis, Packet Capture • 802.3af PoE powered • One Gigabit Ethernet uplink • Cloud or on-premise provisioning and management options 2 Radio 2x2 802.11n 300Mbps

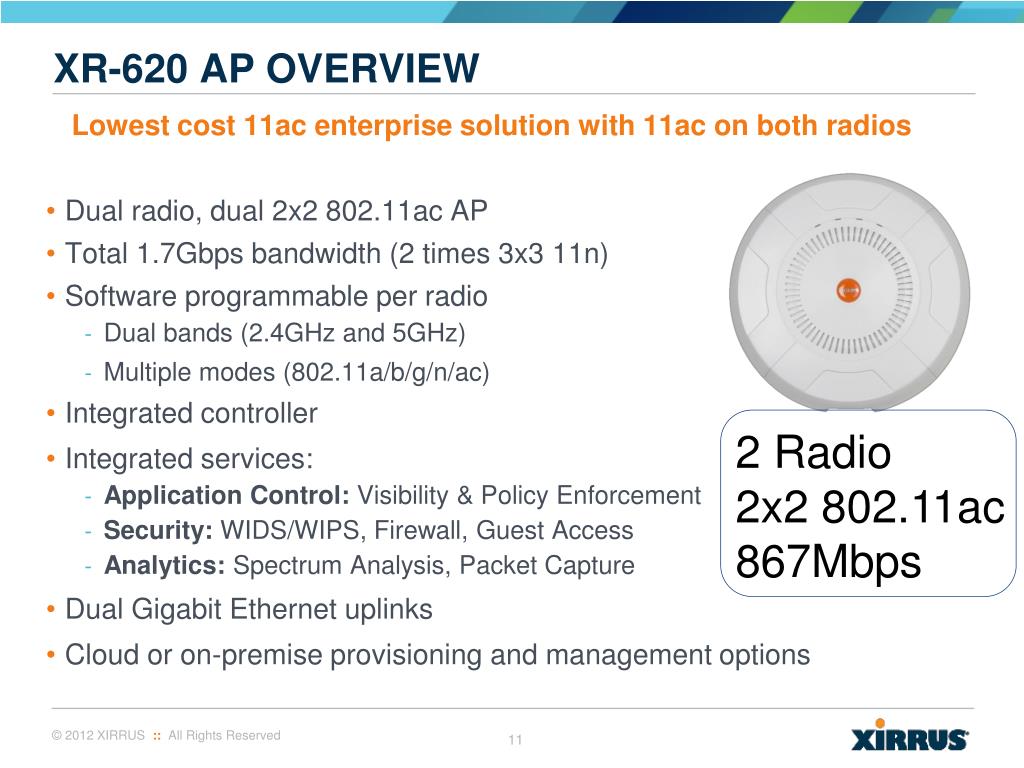

  11. Lowest cost11ac enterprise solution with 11ac on both radios Dual radio, dual 2x2 802.11ac AP Total 1.7Gbps bandwidth (2 times 3x3 11n) Software programmable per radio Dual bands (2.4GHz and 5GHz) Multiple modes (802.11a/b/g/n/ac) Integrated controller Integrated services: Application Control: Visibility & Policy Enforcement Security: WIDS/WIPS, Firewall, Guest Access Analytics: Spectrum Analysis, Packet Capture Dual Gigabit Ethernet uplinks Cloud or on-premise provisioning and management options XR-620 AP overview 2 Radio 2x2 802.11ac 867Mbps

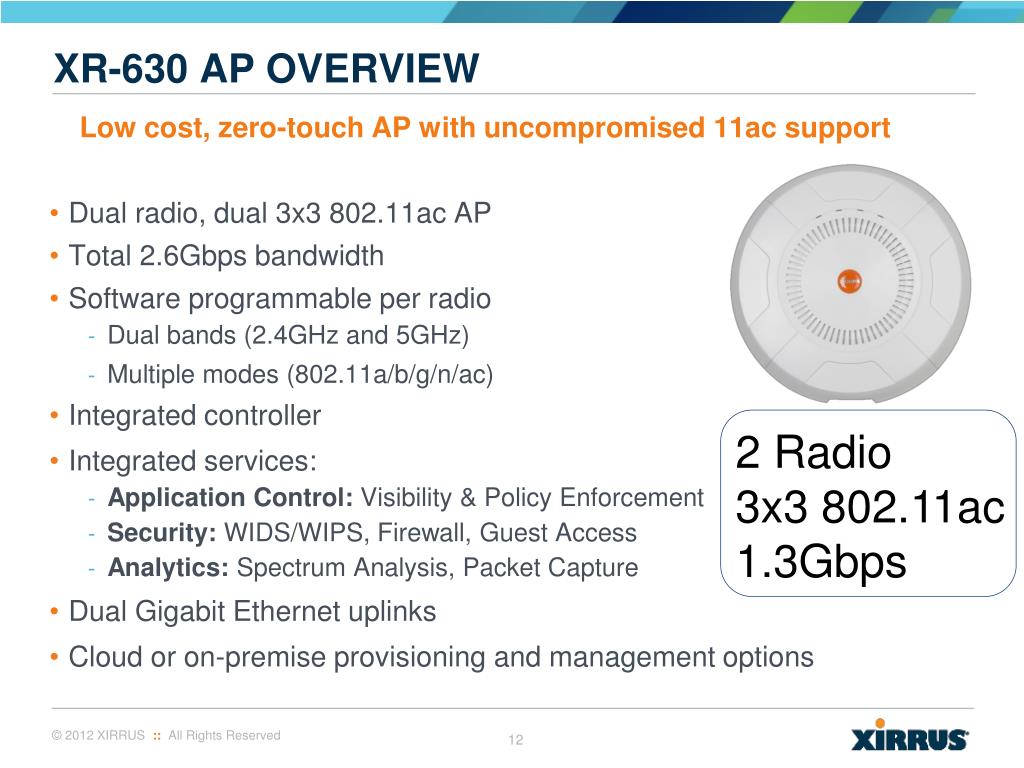

  12. Low cost, zero-touch AP with uncompromised 11ac support Dual radio, dual 3x3 802.11ac AP Total 2.6Gbps bandwidth Software programmable per radio Dual bands (2.4GHz and 5GHz) Multiple modes (802.11a/b/g/n/ac) Integrated controller Integrated services: Application Control: Visibility & Policy Enforcement Security: WIDS/WIPS, Firewall, Guest Access Analytics: Spectrum Analysis, Packet Capture Dual Gigabit Ethernet uplinks Cloud or on-premise provisioning and management options XR-630 AP overview 2 Radio 3x3 802.11ac 1.3Gbps

  13. Wireless Arrays Modular wireless switch

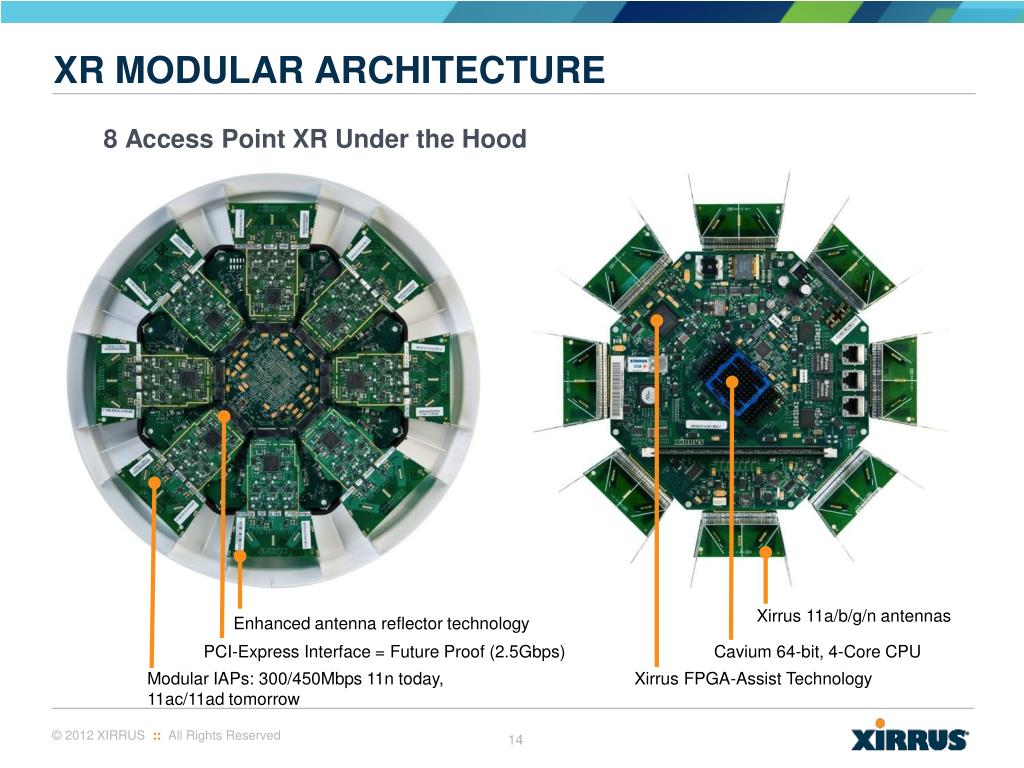

  14. 8 Access Point XR Under the Hood XR Modular Architecture Xirrus 11a/b/g/n antennas Enhanced antenna reflector technology PCI-Express Interface = Future Proof (2.5Gbps) Cavium 64-bit, 4-Core CPU Modular IAPs: 300/450Mbps 11n today, 11ac/11ad tomorrow Xirrus FPGA-Assist Technology

  15. 2 to 16 modular AP slots per chassis XR Chassis family XR-2000 4 slots XR-4000 8 slots XR-6000 16 slots

  16. Omni (Default) XR coverage flexibility Pluggable modules enable custom RF coverage designs Side / Wall Lengthwise / Hallway

  17. XR modular AP: 802.11ABGN RADIOS • Two versions • 450Mbps (3x3) modular AP (XI-N450) • 300Mbps (2x2) modular AP (XI-N300) • Multi-function • Same AP modules operate across all XR platforms • Support both 2.4GHz and 5GHz • Dedicated monitor mode • IDS/IPS • Spectrum analysis • Packet capture • Directional Antennas • Enhanced metal reflectors • Polarized for optimal coverage • 120 degree beam width • 50dB interference rejection 450Mbps 300Mbps

  18. XR modular APs: 802.11ac radios • All XR Arrays shipping since 2011 are 802.11ac capable • Wave 1 802.11ac module for XR Arrays • Dual band per radio: 2.4GHz and 5GHz • Multi-mode per radio: 802.11a/b/g/n/ac • Integrated, high gain 3x3 Yagi antenna • ACExpress™ • Array models with open slots for 11ac • XR-2200: 2 802.11n radios + 2 expansion slots • XR-4400: 4 802.11n radios + 4 expansion slots • XR-6800: 8 802.11n radios + 8 expansion slots • XR-7200: 12 802.11n radios + 4 expansion slots Wave 1 802.11ac 3x3 Module

  19. Power over Ethernet (PoE) Injectors Run Data and Power Over a Single Ethernet Cable Pulled to Array • PoE Product Support for the Entire Array Product Line • 1-Port, 2-Port and 8-Port solutions with optional SNMP/Web management • Or *XR-520 Only

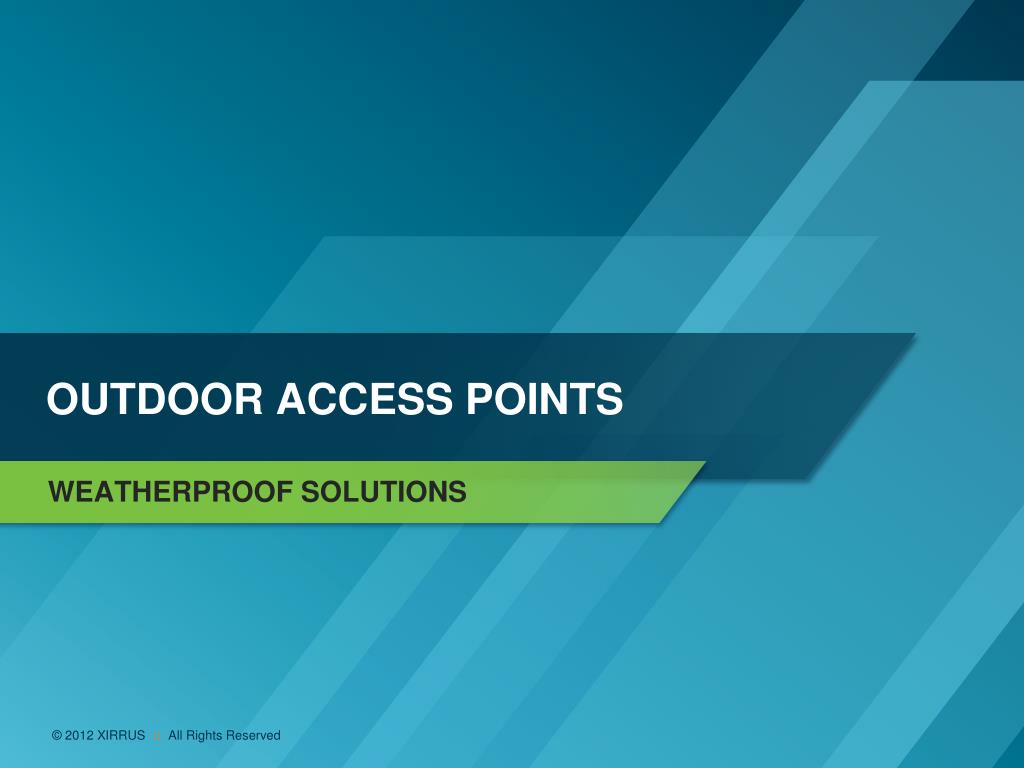

  20. OUTDOOR ACCESS POINTS Weatherproof Solutions

  21. XR-520H AP overview XR520 in Environmental Enclosure • 2 radio AP with 802.11n 300Mbps (2x2) operation • Integrated controller with dual-core Cavium network processor • Software programmable radios (Both) – choose between 2.4GHz or 5GHz. Modes are: • Two 2x2 External Antennas (2 ports per radio) • Same network services as existing XR family, including: • Application Control: Visibility and Policy Enforcement • Security: WIDS/WIPS, Firewall, Guest Access • Analytics: Spectrum Analysis, Packet Capture • 802.3af PoE powered • Cloud or on-premise provisioning and management options

  22. XR-2425H Hardened Array • 4 radio Hardened XR Array for high density outdoor applications • Feature summary • Environmentally hardened, IP65 rated • 4 300Mbps radios, each with 2 RP-TNC connectors and 5GHz or 2.4GHz operation • Integrated wireless controller • 2 Gig Ethernet Uplinks • PoE+ (802.3at) power • Available antennas (same as 520H): 15 / 30 / 60 / 90 degrees and 2 omni options

  23. EXTERNAL ANTENNA OPTIONS • 2.4GHz/5GHz, 14dBi, 35 degree, 2x2 panel antenna • 2.4GHz/5GHz, 8dBi, 65 degree, 2x2 panel antenna • 2.4GHz/5GHz, 6/7dBi, 90 degree, 2x2 panel antenna • 2.4GHz/5GHz, 4dBi, 360 degree, 2x2 antenna • 2.4GHz/5GHz, ‘rubber duck’ antenna

  24. Array Operating System Key Features and capabilities

  25. XR Array • Key Feature Review • Express Set Up • Flexible Radio Control • Client Troubleshooting • Proactive Monitoring • SSID Management • Integrated IDS/IPS • Stateful Firewall • Spectrum/Packet Analysis

  26. XR Features – Express set up • Fast and simple wireless network set up from one screen • Configure all relevant parameters and initiate automatic radio set up • Provision wireless network in less than 10 minutes

  27. Individually control each radio by: Band – set to 2.4GHz or 5GHz operation Channel – manual or automatic configuration Cell size – manual or automatic configuration from 1 to 20dBm Wi-Fi Mode – set to 11n only, 11b only, 11bgn, etc. Individually assign radios to separate SSIDs XR Features – Flexible radio control

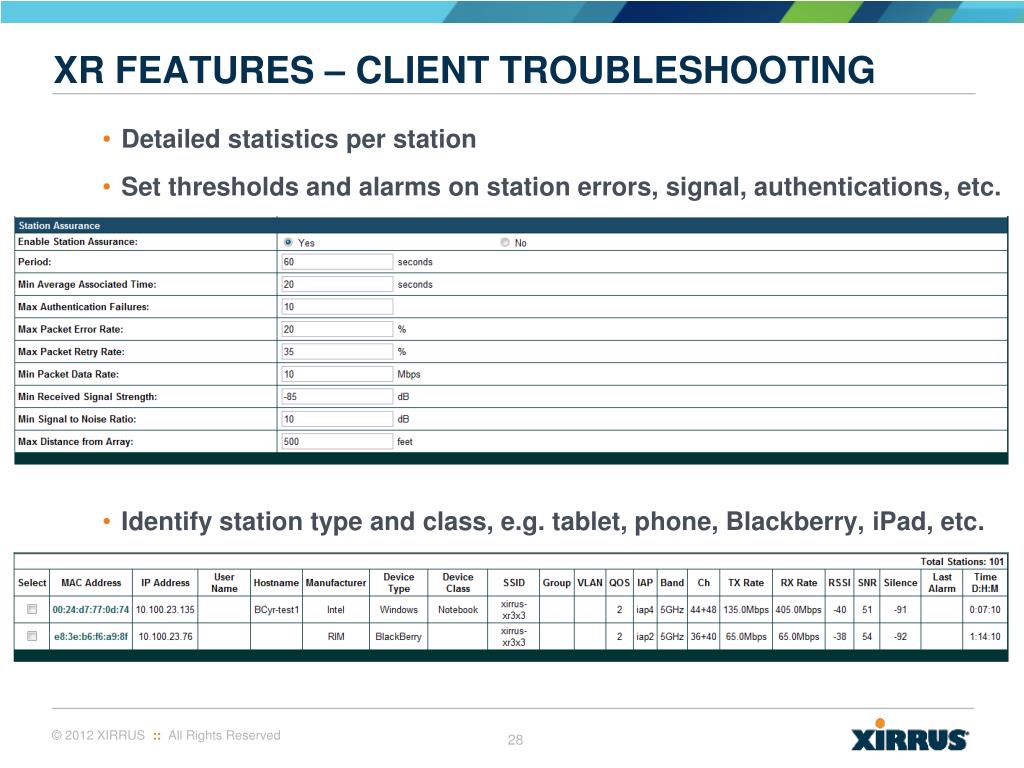

  28. Detailed statistics per station Set thresholds and alarms on station errors, signal, authentications, etc. Identify station type and class, e.g. tablet, phone, Blackberry, iPad, etc. XR Features – client Troubleshooting

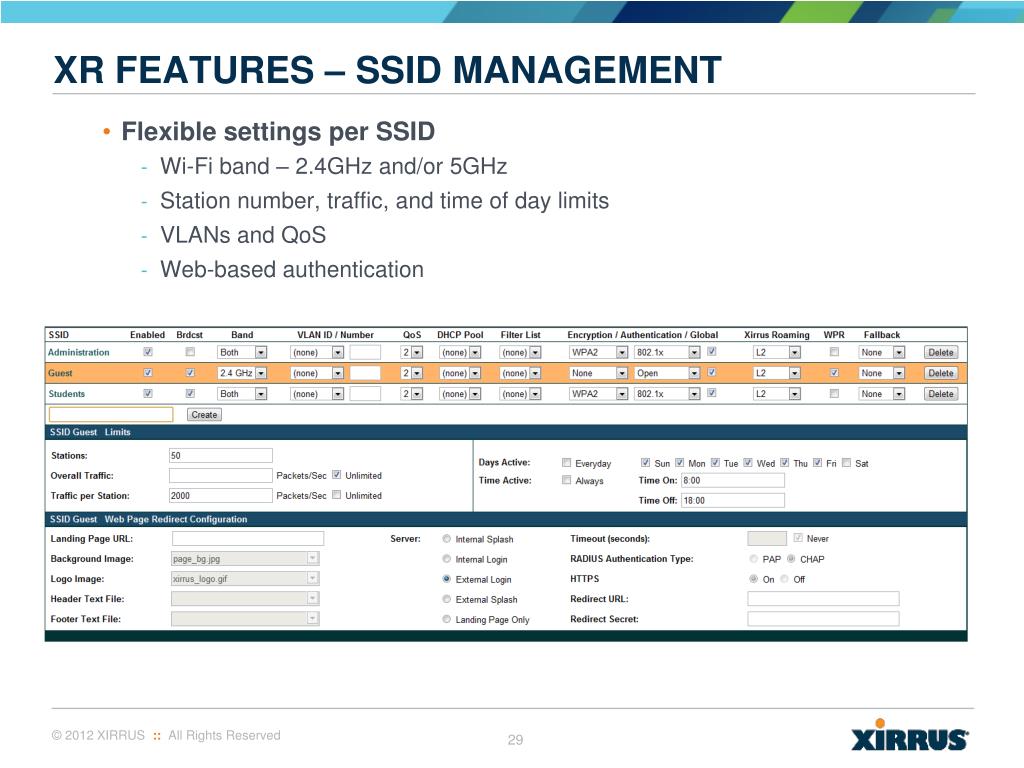

  29. Flexible settings per SSID Wi-Fi band – 2.4GHz and/or 5GHz Station number, traffic, and time of day limits VLANs and QoS Web-based authentication XR Features – ssid management

  30. XR Features – ids/IPs • Intrusion Detection and Prevention integrated into each Array with dedicated radio resource • Classify rogues (Approved/Known/Unknown) and optionally block • DoS and impersonation attack recognition and alerting • Configurable threat thresholds

  31. Application Control • Predictable application performance by prioritizing business applications over recreational applications and reducing network load • Flexible policy control by blocking, throttling, or applying QoS to applications directly at the network edge

  32. bonjour director Bonjour Director provides control of Apple mDNS traffic to enable the use of iOSdevices across enterprise networks Key Benefits • Enables broad use of Apple services (e.g. AirPrint, AirPlay) and devices (e.g. tablets, AppleTV, printers) across enterprise networks • Increases performance in Apple-heavy environments by controlling mDNS traffic which can slow wireless networks

  33. spectrum optimization 5GHz 2.4GHz Future Proof Software Programmable Radio • Choose 5GHz or 2.4GHz to adapt to changing Wi-Fi clients, compared to traditional APs that are fixed configuration. Investment Protection Ultra-low power • Extended power control range to reduce cell size and increase density of users serviced Honeypot • Automatically associate unused Wi-Fi devices in public areas to reduce overhead and increase RF capacity

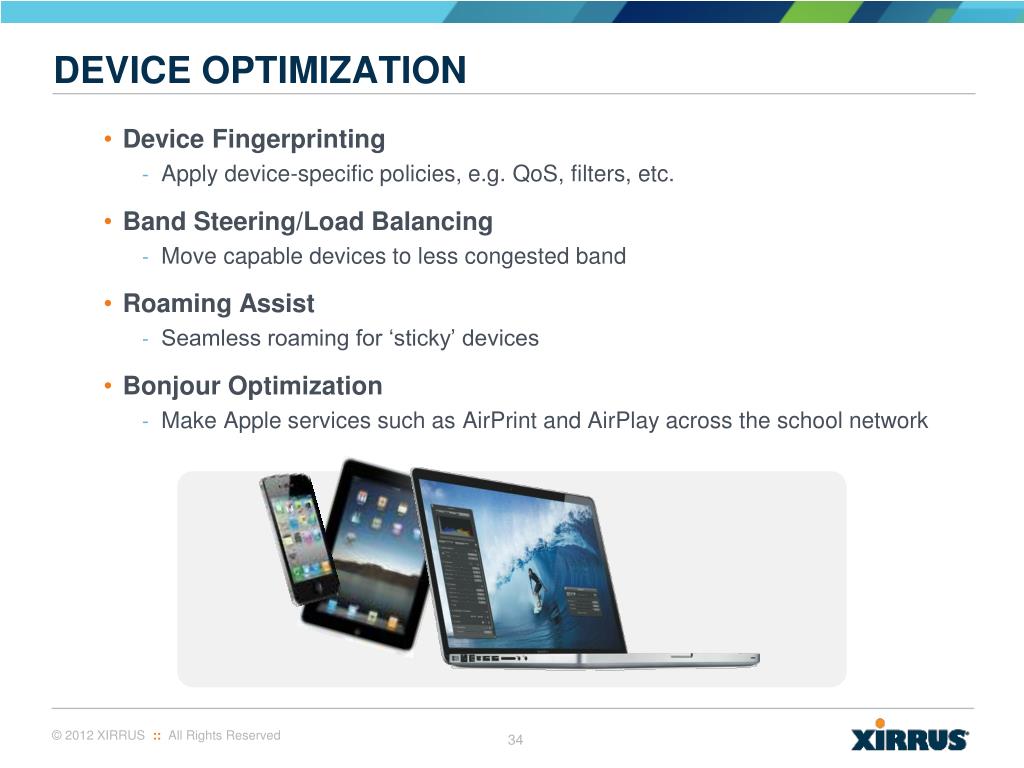

  34. Device Fingerprinting Apply device-specific policies, e.g. QoS, filters, etc. Band Steering/Load Balancing Move capable devices to less congested band Roaming Assist Seamless roaming for ‘sticky’ devices Bonjour Optimization Make Apple services such as AirPrint and AirPlay across the school network Device optimization

  35. Leverage dedicated monitor radio in each Array 24/7 monitoring of RF spectrum across all Wi-Fi channels Activity, Noise/Interference, SNR, Errors, Average signal, etc. XR Features – spectrum analysis

  36. Xirrus Access Manager Guest and BYOD onboarding Solution

  37. Xirrus Access Manager (XAM) • XirrusAccessManagerprovides comprehensive secure access control to the wireless network for both unknown and known users • Guest Access:Captive portal with hosted, self, or sponsored guest registration • Onboarding: 802.1x client auto-configuration with dissolvable agent Onboarding Known users with BYOD devices Guest Access Unknown users with BYOD devices

  38. Xirrus Switches Unified Access- Wired & Wireless

  39. XT-5024/48 Switch L2 Switch 24/48 GigE 4 - GigE Ports 1-10 GigE SFP+ port POE: 802.3af or 802.3at on any port Switch Stacking via SFP+ ports Xirrus Switch Portfolio • XT-5003 Switch • Wall-plate Switch • 3 port GigE (front & back ports) • POE and Non-POE Ports • PoE for Array • Non-PoE Gig port for 2nd device

  40. XT-5024/48 Switch –feature set

  41. XT-5003 In-Wall Switch • XT-5003 Switch • Wall-plate Switch • 3 port GigE (front & back ports) • POE and Non-POE Ports • PoE for Array • Non-PoE Gig port for 2nd device

  42. Xirrus Management System (XMS) Wireless lifecycle management

  43. Xirrus management system (XMS) Scalable and flexible management and analytics platform for Xirrus wireless networks • On premise and SaaS deployment options • Works together with Xirrus Activation Server for zero-touch provisioning

  44. Software-As-A-Service Cloud-based management service Intuitive, simple web interface Massively scalable platform Zero-touch configuration Multi-tenant architecture Unified management Secure and firewall-friendly next Generation XMS Cloud XIRRUSCLOUD SERVICES XMS CLOUD MOBILIZE ACTIVATION Management Console IT Manager Xirrus Access Network CUSTOMER PREMISE

  45. Next Generation XMS Cloud - UI Easy to follow UI Simple configuration Plug and play simplicity Integrated Mobilize Non-technical staff can deploy Reduce learning curve

  46. XMS Enterprise • On-Premise/Private Cloud management platform • Virtualized server (VM) and Windows Hyper-V deployment environment • Scales to management of 1000’s of Arrays/APs • Specifications and sizing guidelines

  47. Xirrus Mobilize • Cloud-based,zero-touch provisioning of wired and wireless access • Automatic license activation, software upgrades, and initial configuration 5 4 4 2 1 3 1 2 3 5 • IT Manager configures Mobilize Profiles for new equipment • Equipment installed, connects to Mobilize, and provisioned • New equipment associates to XMS • XMS connects to new equipment • IT Manager begins managing new equipment XIRRUSCLOUD SERVICES XMS MANAGEMENT MOBILIZE ACTIVATION Management Console IT Manager Xirrus Access Network CUSTOMER PREMISE

  48. Key Feature Review Web-Based Interface Wireless Heat Maps Device Location Security Monitoring Reporting XMS features

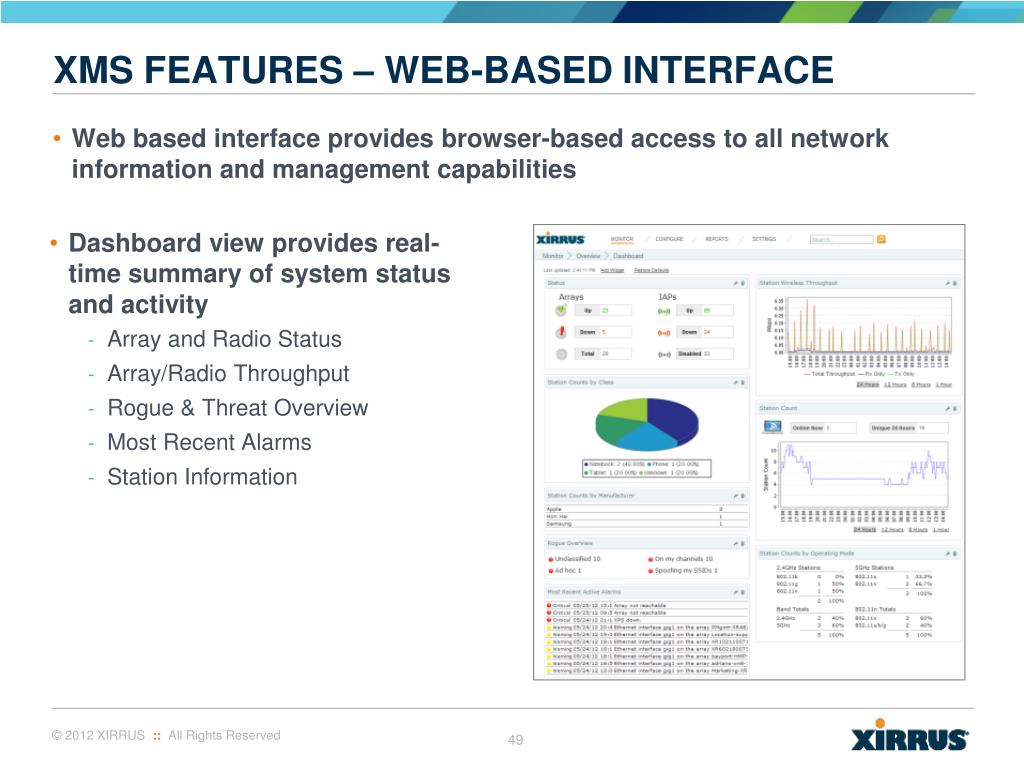

  49. Dashboard view provides real-time summary of system status and activity Array and Radio Status Array/Radio Throughput Rogue & Threat Overview Most Recent Alarms Station Information XMS Features – Web-based interface • Web based interface provides browser-based access to all network information and management capabilities

  50. Organize Arrays by physical location on pre-loaded maps Predictive wireless coverage of entire Array network XMS Features – Wireless heat mapS
