GRAPES-Based Nowcasting: System design and Progress

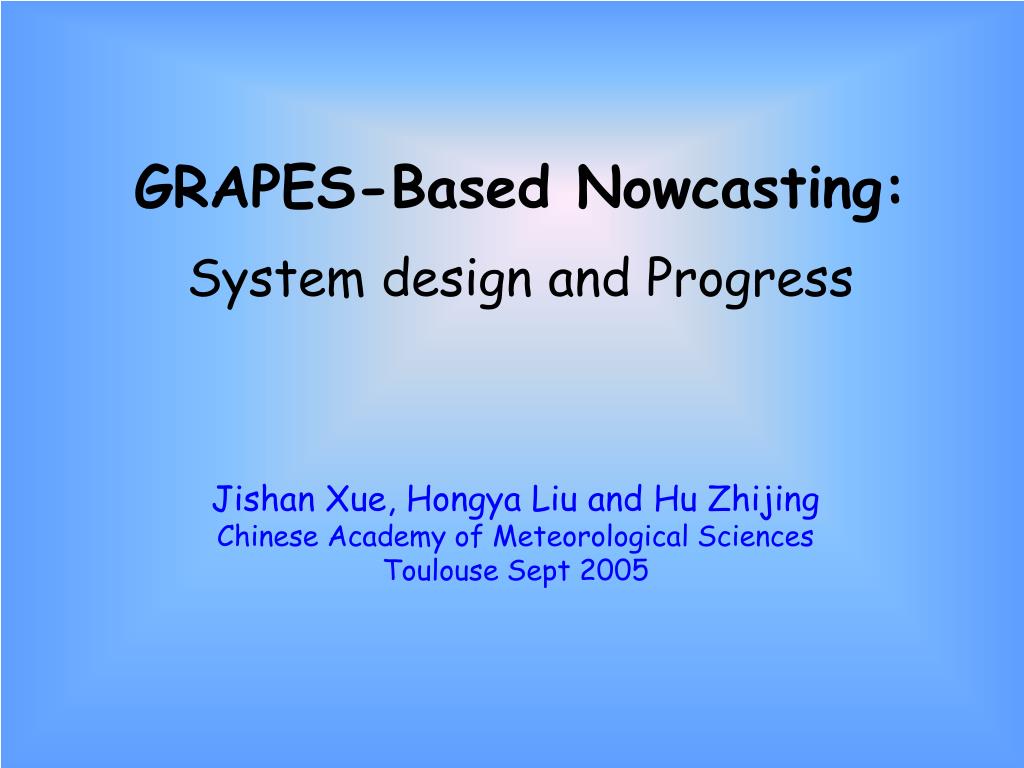

1. GRAPES-Based Nowcasting:System design and Progress Jishan Xue, Hongya Liu and Hu Zhijing Chinese Academy of Meteorological Sciences Toulouse Sept 2005

2. Outline • Background • System design • Preliminary results – hydrometeor retrieval and model hot start • Further development • Summary

3. Background What is GRAPES Global / Regional Assimilation and Prediction System Chinese new generation numerical weather prediction system consisting of : DA, Unified dynamic core, Model physics

4. Background Motivation Exploit the potentials of GRAPES • To improve the warning of mesoscale severe weather events in advance of 3-6hr • To promote the application of remote sensing and in situ data to monitoring meso scale weather systems • To meet the needs of high quality weather services for Beijing Olympic Games 2008

5. Outline • Background • System design • Current status • Further development • Summary

6. System Structure System Design Data Analysis Data input GRAPES-Meso Display and dissemination Extrapolation and forecasting Validation

7. Data Input • Conventional observation ( RA & Synop ) • AWS • Weather Radar • Satellite • Profiler • Lightning positioning • GPS • Air craft

8. System Design Data Analysis Quick look at basic elements: (Qlable) usage: Initializing NWP First Guess of SA, CA Background of system id and fcst Surface Analysis(SA) usage: Initializing NWP System id and fcst display Cloud Analysis (CA)usage: NWP hot start System id and fcst display

9. System Design Quick look at basic elements (Qlabel) • Based on GRAPES 3DVar • Observational data: Raob, Synop, Profiler, GPS, Radar(VAD), • First Guess: Last analysis, NWP • Spatial resolution ~ 1km • Update frequency ~ 3hr currently, 1hr later

10. System Design Surface Analysis • Analyzed variables: V10m, T2m, q, ps • Observational data: Synop, AWS, Qlabel products • Analysis algorithm: successive correction+variational adjustment • Spatial resolution ~ 1km • Update frequency: 3hr now, 1hr later

11. System Design Cloud Analysis • Utilization: model hot start; convective system identification • Input data: Qlabel products, synop, Radar, satellite • Resolution ( model grids) • Analysis procedure:

12. Cloud Analysis Schematic CA • 3-D cloud analysis（cloud cover、cloud top、cloud ceiling、cloud classification, vertical velocity in cloud ） • Observational data（Synop., Aeroplane，plofiler,radar, satellite） • Algorithm: successive correction with variational adjustments

13. Model Start Options Time-n Time “Cold Start” GRAPES Forecast (no CA analysis) Eta CA Analyses “Warm Start” (pre-forecast nudging to a series of CA analyses..) GRAPES Nudging GRAPES Forecast GRAPES Forecast “Hot Start” LII (Directly using the balanced CA analysis) Dynamically balanced, Cloud-consistent CA GRAPES LBC for all runs

14. Current Status Data Analysis Data input GRAPES-Meso Extrapolation And forecasting Display and Dissemination Validation

15. Outline • Background • System design • Preliminary results – hydrometeor retrieval and model hot start • Further development • Summary

16. Retrieval of cloud hydrometeor based on radar observation Basic assumption: 1, Cloud and rainfall are stationary in short time period and horizontal advection is negligible. 2, Vertical variation of rainfall is determined by collection ( saturated) and evaporation ( unsaturated) so that the vertical variations of qc and qvmay be derived. 3, In the saturated area the increase of qr is the results of condensation.

17. ⅠDerive qr from radar reflect factor z ⅡCompute Vt from qr ⅢCompute saturation specific humidity

18. ⅣCompute condensation function Ⅴ Compute vertical variation of rain flux ⅥCompute qc and qv from rain flux ⅦCompute vertical velocity in saturated area

19. Selected case: 2003/07/04 heavy rain event in Haihe river basin

20. Model set up • Horizontal resolution: 0.04 lat/long • Domain size: 201*201 centered at Hefei city • Vertical layers: 30 with equidistance • Ztop=15km • Model Physics : Explicit cloud: Kesller’s Radiation: RRTM for long wave Dudhia for short wave Surface layer:Monin –Obukhov PBL: MRF

21. Model initialization: Cold start: operational analysis Hot start: qc qr qv wc retrieved other variables –taken from operational analysis dynamic adjustment by “pre-forecast” model integration

22. Reflectivity retrieved qc Cross section of qc

23. Prediction of rainfall rate (mm/10min) Prediction and observation of rain fall

24. Cross section of cloud and vertical motion

25. Cloud and precipitation

26. Further development • Dynamic adjustment to depress the high frequency fluctuation due to the unbalance between cloud-related parameters and large scale environment; • Utilization of data of radar net work • Fusion of radar data with data by satellite and other equipments

27. Summary • A new nowcasting system based on Chinese new generation NWP system and dense mesoscale observational data is being developed; • The radar data have the potential to retrieve the cloud parameters; • Model hot start may improve the prediction if the storm is better initialized; • The problem of unbalance between cloud-related parameters and large scale environment is not solved yet.
