  1. FSM Library Defining, Creating and Visualizing FSMs

  2. Defining FSAs • Define FSA in a text file • Useful commands • fsmcompile • fsmprint • fsmdraw automaton file

  3. Defining FSTs • Define FST in a text file • Useful commands • fsmcompile • fsmprint • fsmdraw transducer file

  4. Labels • Three Types • input labels • output labels • state labels

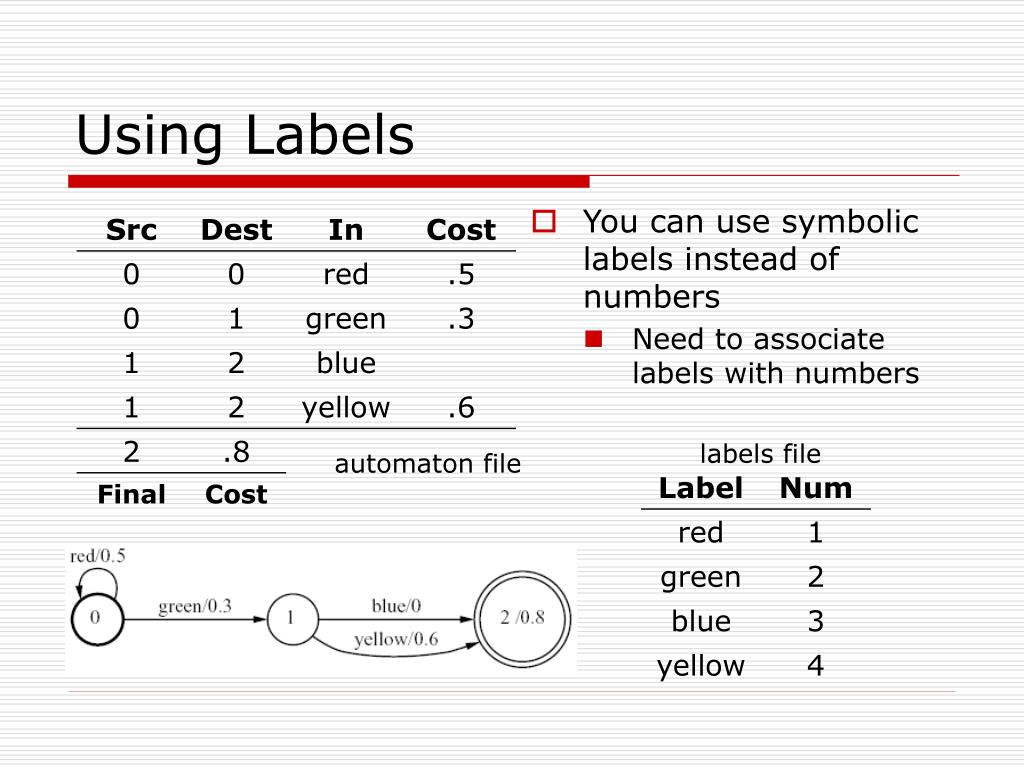

  5. Using Labels • You can use symbolic labels instead of numbers • Need to associate labels with numbers labels file automaton file

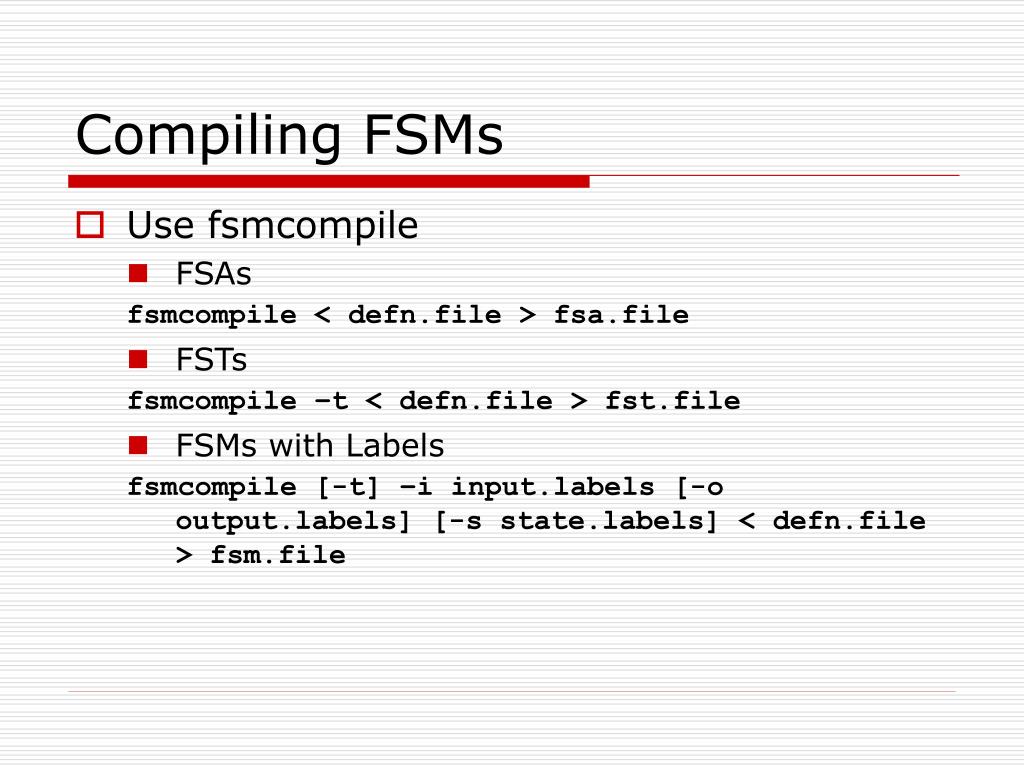

  6. Compiling FSMs • Use fsmcompile • FSAs fsmcompile < defn.file > fsa.file • FSTs fsmcompile –t < defn.file > fst.file • FSMs with Labels fsmcompile [-t] –i input.labels [-o output.labels] [-s state.labels] < defn.file > fsm.file

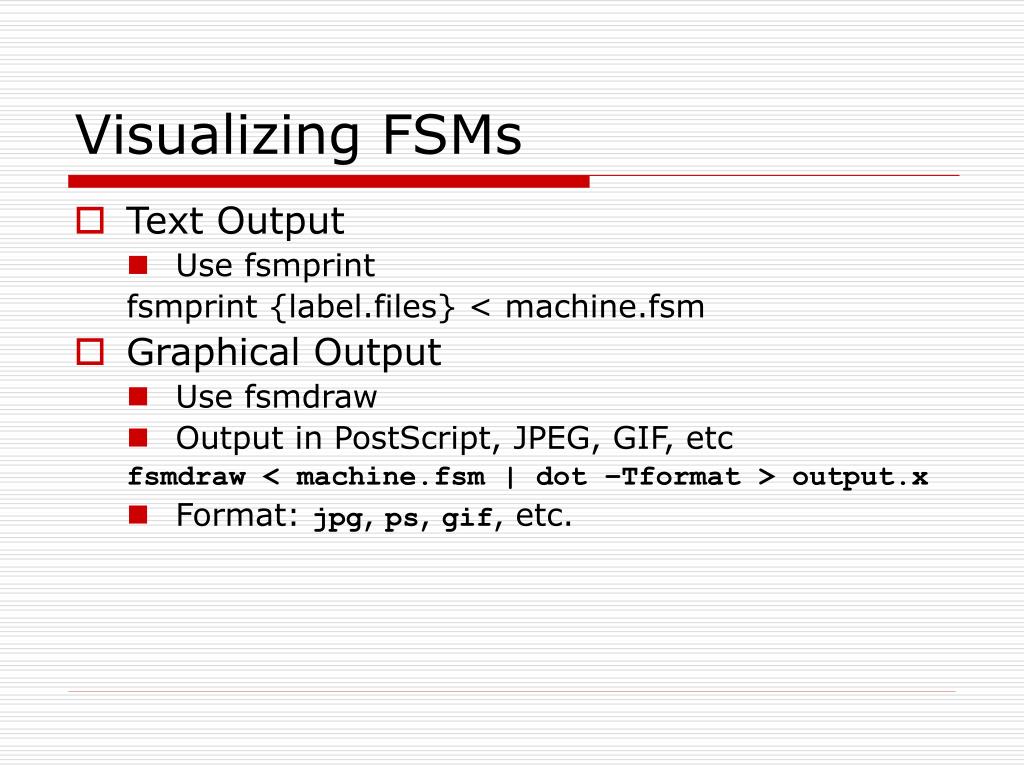

  7. Visualizing FSMs • Text Output • Use fsmprint fsmprint {label.files} < machine.fsm • Graphical Output • Use fsmdraw • Output in PostScript, JPEG, GIF, etc fsmdraw < machine.fsm | dot –Tformat > output.x • Format: jpg, ps, gif, etc.
