  1. ACORDE FSM Hierarchy Acorde Group

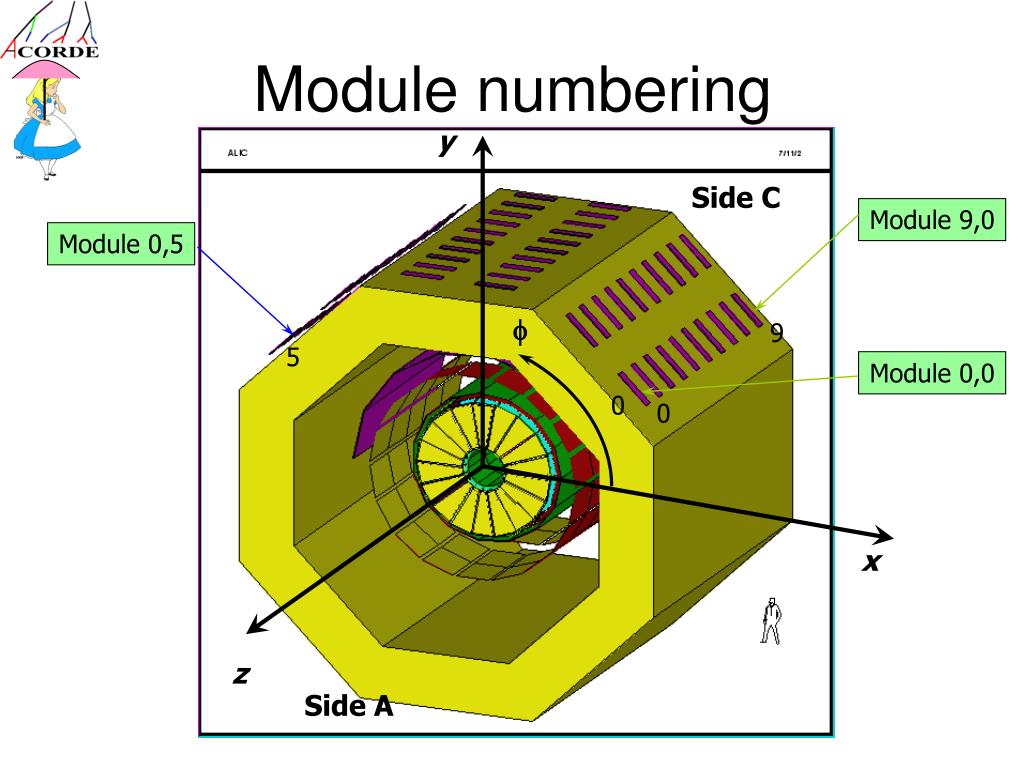

  2. Module numbering y Side C Module 9,0 Module 0,5 f 9 5 Module 0,0 0 0 x z Side A

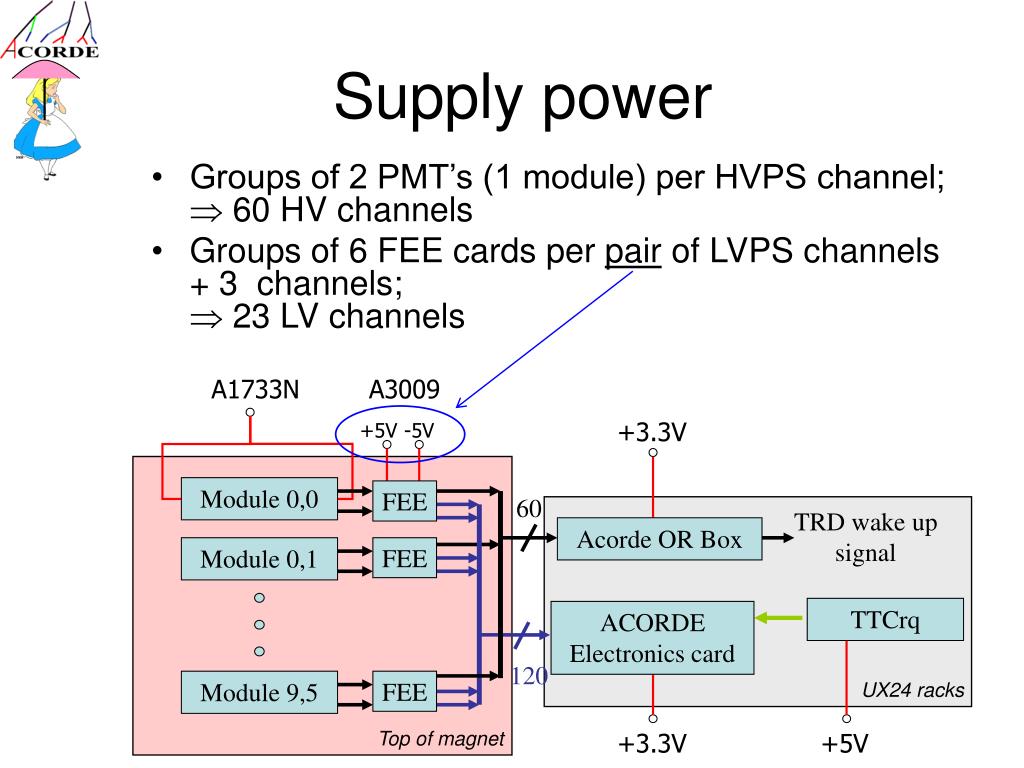

  3. Supply power • Groups of 2 PMT’s (1 module) per HVPS channel; 60 HV channels • Groups of 6 FEE cards per pair of LVPS channels+ 3 channels; 23 LV channels A1733N A3009 +3.3V +5V -5V Module 0,0 FEE 60 TRD wake up signal Acorde OR Box Module 0,1 FEE TTCrq ACORDE Electronics card 120 Module 9,5 FEE UX24 racks Top of magnet +3.3V +5V

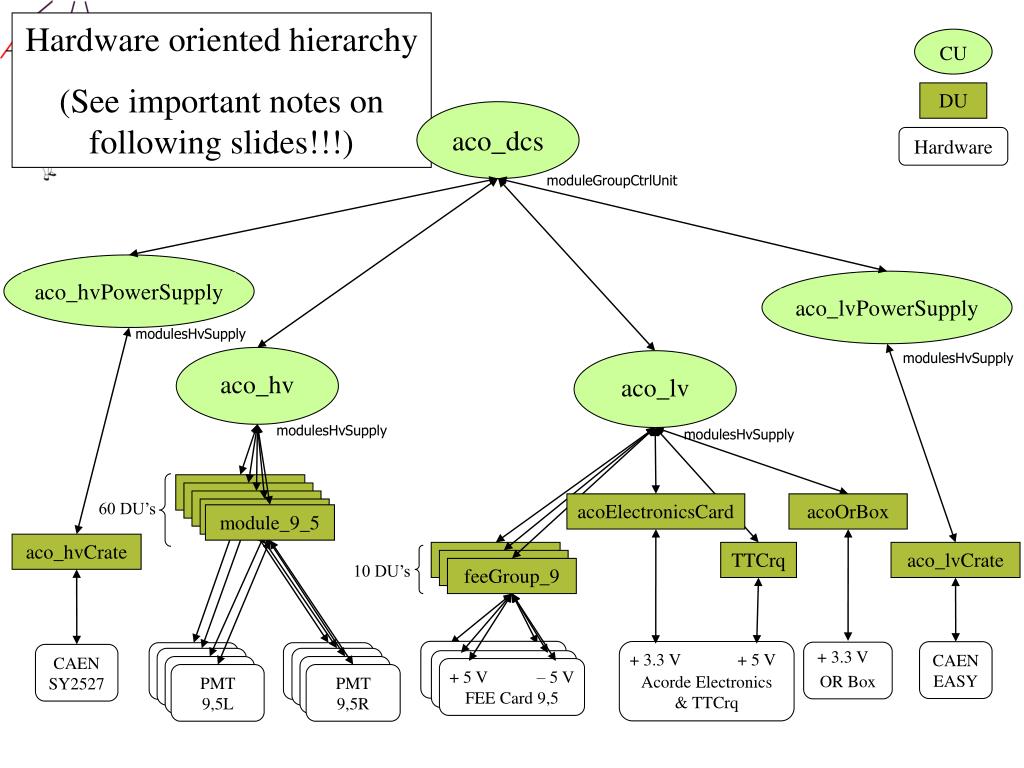

  4. aco_hv aco_lvPowerSupply aco_hvPowerSupply aco_lv + 3.3 V Acorde Electronics & TTCrq OR Box + 3.3 V + 5 V FEE Card 9,5 FEE Cards FEE Cards + 5 V + 5 V + 5 V – 5 V – 5 V – 5 V Hardware oriented hierarchy (See important notes on following slides!!!) CU DU aco_dcs Hardware moduleGroupCtrlUnit modulesHvSupply modulesHvSupply modulesHvSupply modulesHvSupply module_00 module_95 module_95 60 DU’s acoElectronicsCard acoOrBox module_95 module_9_5 aco_hvCrate modules_0x TTCrq aco_lvCrate modules_0x 10 DU’s feeGroup_9 CAEN EASY PMT 95L PMT 95R CAEN SY2527 PMT 95L PMT 95R PMT 95L PMT 95R PMT 9,5L PMT 9,5R

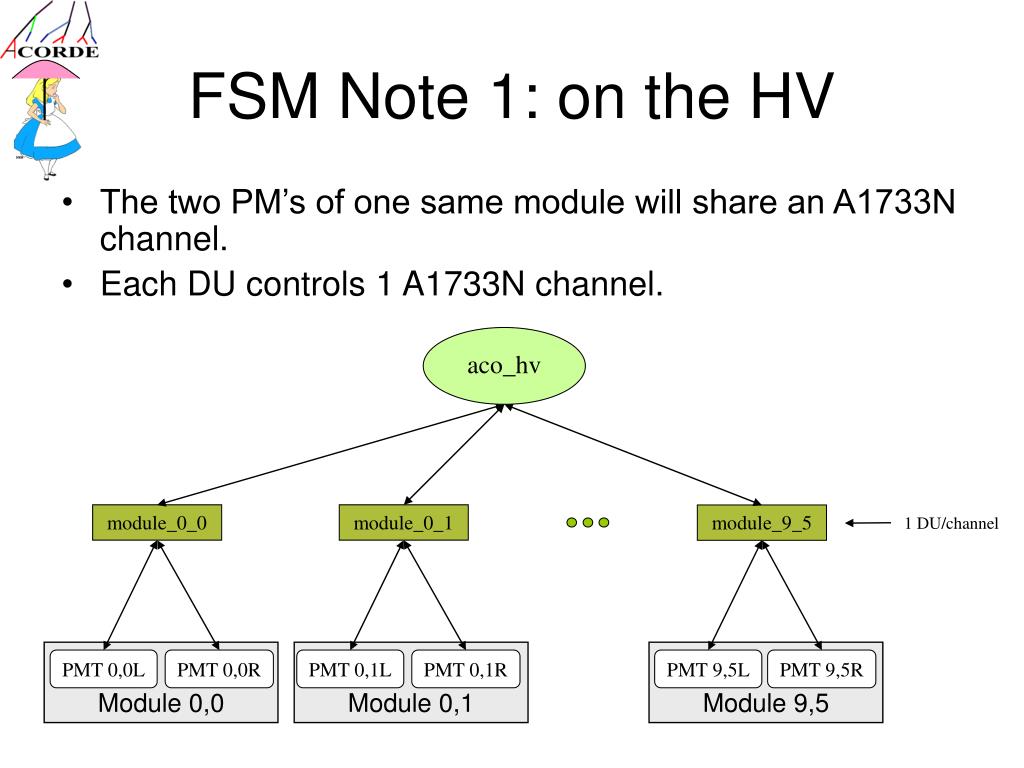

  5. aco_hv FSM Note 1: on the HV • The two PM’s of one same module will share an A1733N channel. • Each DU controls 1 A1733N channel. module_0_0 module_0_1 module_9_5 1 DU/channel Module 0,0 Module 0,1 Module 9,5 PMT 0,0L PMT 0,0R PMT 0,1L PMT 0,1R PMT 9,5L PMT 9,5R

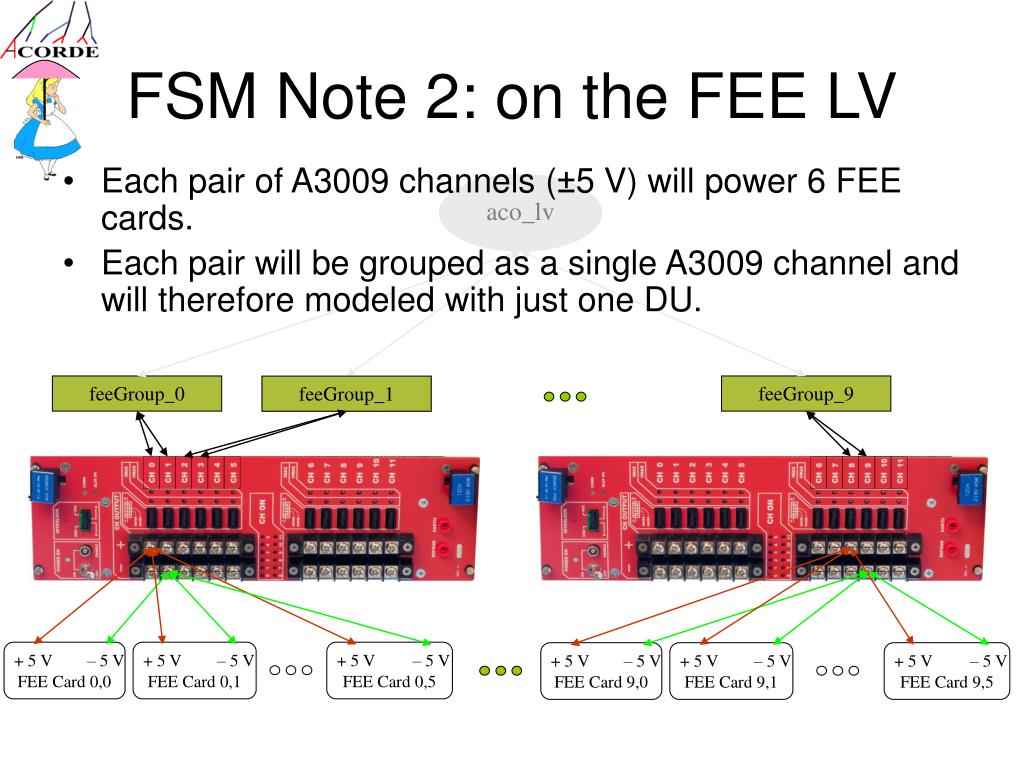

  6. aco_lv FEE Card 9,0 FEE Card 0,0 + 5 V + 5 V – 5 V – 5 V FEE Card 0,5 FEE Card 0,1 FEE Card 9,1 FEE Card 9,5 + 5 V + 5 V + 5 V + 5 V – 5 V – 5 V – 5 V – 5 V FSM Note 2: on the FEE LV • Each pair of A3009 channels (±5 V) will power 6 FEE cards. • Each pair will be grouped as a single A3009 channel and will therefore modeled with just one DU. feeGroup_0 feeGroup_9 feeGroup_1
