Using Databases in AIML by Steve Worswick. Powerpoint Templates. 1. The problem. Where does a dog live? Which animal has 2 legs? What lives on a farm and says, ‘moo’? How many legs has the animal that eats flies? Which animals say nothing? Does a cow have more legs than a chicken? ….

arlo
Télécharger la présentation

Powerpoint Templates

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Using Databases in AIML by Steve Worswick Powerpoint Templates 1

  2. The problem Where does a dog live? Which animal has 2 legs? What lives on a farm and says, ‘moo’? How many legs has the animal that eats flies? Which animals say nothing? Does a cow have more legs than a chicken? … 2

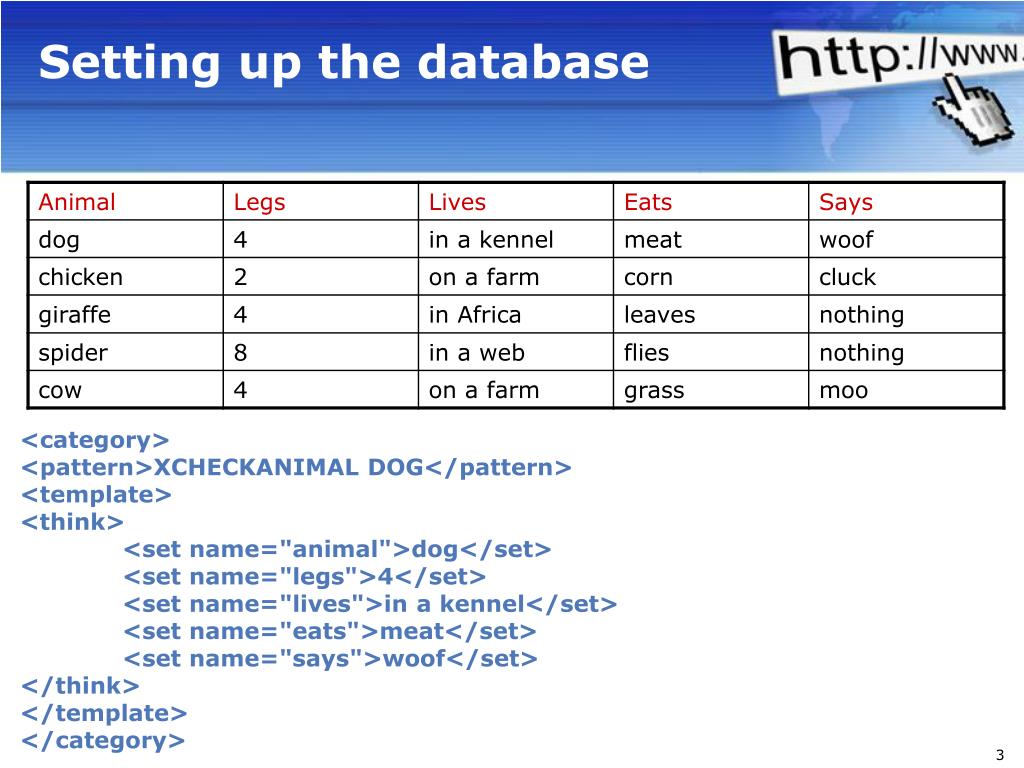

  3. Setting up the database <category> <pattern>XCHECKANIMAL DOG</pattern> <template> <think> <set name="animal">dog</set> <set name="legs">4</set> <set name="lives">in a kennel</set> <set name="eats">meat</set> <set name="says">woof</set> </think> </template> </category> 3

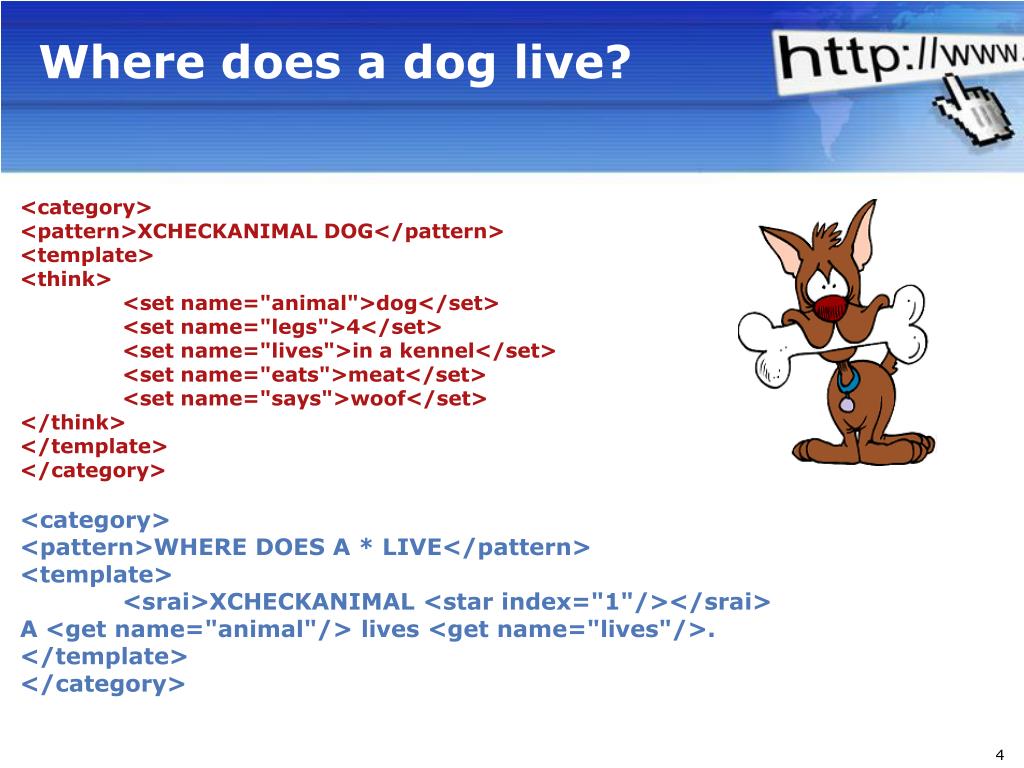

  4. Where does a dog live? <category> <pattern>XCHECKANIMAL DOG</pattern> <template> <think> <set name="animal">dog</set> <set name="legs">4</set> <set name="lives">in a kennel</set> <set name="eats">meat</set> <set name="says">woof</set> </think> </template> </category> <category> <pattern>WHERE DOES A * LIVE</pattern> <template> <srai>XCHECKANIMAL <star index="1"/></srai> A <get name="animal"/> lives <get name="lives"/>. </template> </category> 4

  5. Where does a dog live? <category> <pattern>XCHECKANIMAL *</pattern> <template> <think> <set name="animal">UNKNOWN</set> <set name="legs">UNKNOWN</set> <set name="lives">UNKNOWN</set> <set name="eats">UNKOWN</set> <set name="says">UNKNOWN</set> </think> </template> </category> <category> <pattern>WHERE DOES A * LIVE</pattern> <template> <srai>XCHECKANIMAL <star index="1"/></srai> <condition name="animal"> <li value="UNKNOWN">I haven’t heard of a <star index="1"/>.</li> <li> A <get name="animal"/> lives <get name="lives"/>.</li> </condition> </template> </category> 5

  6. Which animal has 2 legs? <category> <pattern>WHICH ANIMAL HAS 2 LEGS</pattern> <template> <think> <set name="list">Results:<br/></set> <srai>XCHECKANIMAL DOG</srai> <srai>XCHECKMATCH 2 LEGS</srai> <srai>XCHECKANIMAL CHICKEN</srai> <srai>XCHECKMATCH 2 LEGS</srai> <srai>XCHECKANIMAL GIRAFFE</srai> <srai>XCHECKMATCH 2 LEGS</srai> <srai>XCHECKANIMAL SPIDER</srai> <srai>XCHECKMATCH 2 LEGS</srai> <srai>XCHECKANIMAL COW</srai> <srai>XCHECKMATCH 2 LEGS</srai> </think> <get name="list"/>. </template> </category> 6

  7. Which animal has 2 legs? <srai>XCHECKANIMAL DOG</srai> <srai>XCHECKMATCH 2 LEGS</srai> <srai>XCHECKANIMAL CHICKEN</srai> <srai>XCHECKMATCH2 LEGS</srai> <srai>XCHECKANIMAL GIRAFFE</srai> <srai>XCHECKMATCH2 LEGS</srai> <srai>XCHECKANIMAL SPIDER</srai> <srai>XCHECKMATCH2 LEGS</srai> <srai>XCHECKANIMAL COW</srai> <srai>XCHECKMATCH2 LEGS</srai> <category> <pattern>XCHECKMATCH 2 LEGS</pattern> <template> <condition name="legs"> <li value="2"> <set name="list"><get name="list"/><br/><get name="animal"/></set> </li> </condition> </template> </category> 7

  8. <learn> and </learn> tags <category> <pattern>WHEN I SAY * YOU SAY *</pattern> <template> If you say "<star/>" to me again, I will remember what you told me. <learn> <category> <pattern><eval><uppercase><star/></uppercase></eval></pattern> <template><eval><star index="2"/></eval></template> </category> </learn> </template> </category> Human: Jump. Bot: I can’t jump, I have no legs. Human: When I say jump, you say how high. Bot: If you say "jump" to me again, I will remember what you told me. Human: Jump. Bot: How high. 8

  9. Botcompare.aiml <category> <pattern>ARE * AND * THE SAME THING</pattern> <template> <srai> BOTCOMPARE <star/> XSPLIT <star index="2"/> </srai> <condition name="match"> <li value="YES">Yes they are.</li> <li value="NO">No, they are different.</li> </template> </category> Human: Are Homer Simpson and Marge Simpson the same thing? Bot: No, they are different. Human: Are Bart Simpson and Bart Simpson the same thing? Bot: Yes they are. www.square-bear.co.uk/aiml 9

  10. Botcompare.aiml <category> <pattern>BOTCOMPARISON</pattern> <template> <learn> <category> <pattern> <eval><uppercase>BOTCHECK <get name="comparevalue1"/> </uppercase></eval> </pattern> <template> <think> <set name="match">YES</set> </think> </template> </category> </learn> <srai>botcheck <get name="comparevalue2"/></srai> <srai>botremovecomparison</srai> </template> </category> 10

  11. Which animal has 2 legs? <category> <pattern>XSCANANIMALDATABASE</pattern> <template> <think> <set name="list">Results:<br/></set> <srai>XCHECKANIMAL DOG</srai> <srai>XCHECKMATCH</srai> <srai>XCHECKANIMAL CHICKEN</srai> <srai>XCHECKMATCH</srai> <srai>XCHECKANIMAL GIRAFFE</srai> <srai>XCHECKMATCH</srai> <srai>XCHECKANIMAL SPIDER</srai> <srai>XCHECKMATCH</srai> <srai>XCHECKANIMAL COW</srai> <srai>XCHECKMATCH</srai> </think> <get name="list"/>. </template> </category> 11

  12. Which animal has 2 legs? <category> <pattern>WHICH ANIMAL HAS * LEGS</pattern> <template> <think> <set name="searchfor"><star/></set> <learn> <category> <pattern>XCHECKMATCH</pattern> <template> <srai>BOTCOMPARE<get name="legs"/> XSPLIT <get name="searchfor"/></srai> <condition name="match"> <li value="YES"><set name="list"><get name="list"/><br/> <get name="animal"/></set></li> </condition> </template> </category> </learn> </think> <srai>XSCANANIMALDATABASE</srai> </template> </category> 12

  13. What lives on a farm and says ‘moo’? <category> <pattern>WHAT LIVES * AND SAYS *</pattern> <template> <think> <set name="searchfor"><star/> <star index="2"/></set> <learn> <category> <pattern>XCHECKMATCH</pattern> <template> <srai>BOTCOMPARE <get name="lives"/> <get name="says"/> XSPLIT <get name="searchfor"/></srai> <condition name="match"> <li value="YES"><set name="list"><get name="list"/><br/> <get name="animal"/></set></li> </condition> </template> </category> </learn> </think> <srai>XSCANANIMALDATABASE</srai> </template> </category> 13

  14. How many legs has the animal that eats flies? <category> <pattern>HOW MANY LEGS HAS THE ANIMAL THAT EATS *</pattern> <template> <think> <set name="searchfor"><star/></set> <learn> <category> <pattern>XCHECKMATCH</pattern> <template> <srai>BOTCOMPARE<get name="eats"/> XSPLIT <get name="searchfor"/></srai> <condition name="match"> <li value="YES"><set name="list"><get name="list"/><br/> A <get name="animal"/> eats <get name="eats"/> and has <get name="legs"/> legs. </set></li> </condition> </template> </category> </learn> </think> <srai>XSCANANIMALDATABASE</srai> </template> </category> 14

  15. Which animals say nothing? <category> <pattern>WHICH ANIMALS SAY *</pattern> <template> <think> <set name="searchfor"><star/></set> <learn> <category> <pattern>XCHECKMATCH</pattern> <template> <srai>BOTCOMPARE <get name="says"/> XSPLIT <get name="searchfor"/></srai> <condition name="match"> <li value="YES"><set name="list"><get name="list"/><br/> <get name="animal"/></set></li> </condition> </template> </category> </learn> </think> <srai>XSCANANIMALDATABASE</srai> </template> </category> 15

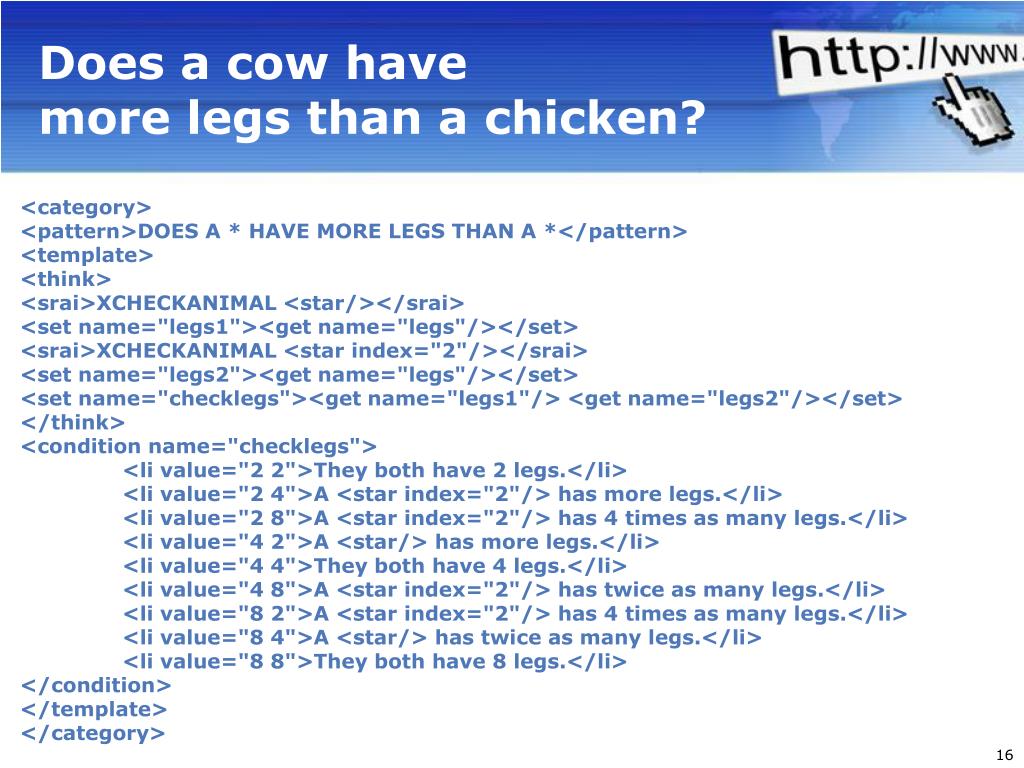

  16. Does a cow have more legs than a chicken? <category> <pattern>DOES A * HAVE MORE LEGS THAN A *</pattern> <template> <think> <srai>XCHECKANIMAL <star/></srai> <set name="legs1"><get name="legs"/></set> <srai>XCHECKANIMAL <star index="2"/></srai> <set name="legs2"><get name="legs"/></set> <set name="checklegs"><get name="legs1"/> <get name="legs2"/></set> </think> <condition name="checklegs"> <li value="2 2">They both have 2 legs.</li> <li value="2 4">A <star index="2"/> has more legs.</li> <li value="2 8">A <star index="2"/> has 4 times as many legs.</li> <li value="4 2">A <star/> has more legs.</li> <li value="4 4">They both have 4 legs.</li> <li value="4 8">A <star index="2"/> has twice as many legs.</li> <li value="8 2">A <star index="2"/> has 4 times as many legs.</li> <li value="8 4">A <star/> has twice as many legs.</li> <li value="8 8">They both have 8 legs.</li> </condition> </template> </category> 16

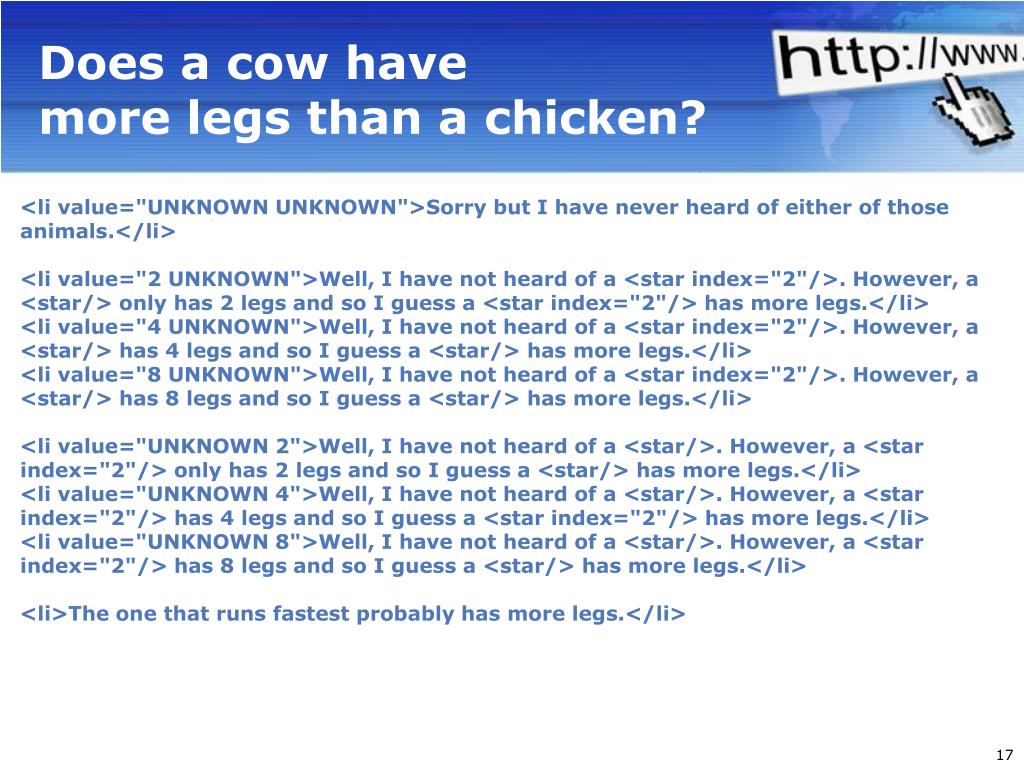

  17. Does a cow have more legs than a chicken? <li value="UNKNOWN UNKNOWN">Sorry but I have never heard of either of those animals.</li> <li value="2 UNKNOWN">Well, I have not heard of a <star index="2"/>. However, a <star/> only has 2 legs and so I guess a <star index="2"/> has more legs.</li> <li value="4 UNKNOWN">Well, I have not heard of a <star index="2"/>. However, a <star/> has 4 legs and so I guess a <star/> has more legs.</li> <li value="8 UNKNOWN">Well, I have not heard of a <star index="2"/>. However, a <star/> has 8 legs and so I guess a <star/> has more legs.</li> <li value="UNKNOWN 2">Well, I have not heard of a <star/>. However, a <star index="2"/> only has 2 legs and so I guess a <star/> has more legs.</li> <li value="UNKNOWN 4">Well, I have not heard of a <star/>. However, a <star index="2"/> has 4 legs and so I guess a <star index="2"/> has more legs.</li> <li value="UNKNOWN 8">Well, I have not heard of a <star/>. However, a <star index="2"/> has 8 legs and so I guess a <star/> has more legs.</li> <li>The one that runs fastest probably has more legs.</li> 17

  18. What if there is no unique index? <category> <pattern>XCHECKANIMAL DOG</pattern> <template> <think> <set name="animal">dog</set> <set name="legs">4</set> <set name="lives">in a kennel</set> <set name="eats">meat</set> <set name="says">woof</set> </think> </template> </category> 18

  19. What if there is no unique index? <category> <pattern>XCHECKEMPLOYEE JANE</pattern> <template> <think> <set name="firstname">Jane</set> <set name="surname">Peterson</set> <set name="dept">Sales</set> <set name="employed">1992</set> </think> </template> </category> 19

  20. What if there is no unique index? <category> <pattern>XCHECKEMPLOYEE 1</pattern> <template> <think> <set name="firstname">Jane</set> <set name="surname">Peterson</set> <set name="dept">Sales</set> <set name="employed">1992</set> </think> </template> </category> 20

  21. What if there is no unique index? <category> <pattern>XSCANDATABASE</pattern> <template> <think> <set name="list">Results:<br/></set> <srai>XCHECKEMPLOYEE 1</srai> <srai>XCHECKMATCH</srai> <srai>XCHECKEMPLOYEE 2</srai> <srai>XCHECKMATCH</srai> <srai>XCHECKEMPLOYEE 3</srai> <srai>XCHECKMATCH</srai> <srai>XCHECKEMPLOYEE 4</srai> <srai>XCHECKMATCH</srai> <srai>XCHECKEMPLOYEE 5</srai> <srai>XCHECKMATCH</srai> </think> <get name="list"/>. </template> </category> 21

  22. What use is it? (facts and figures) 22

  23. What use is it? (word knowledge database) A database with 2,000 records takes approximately 10 seconds to search 23

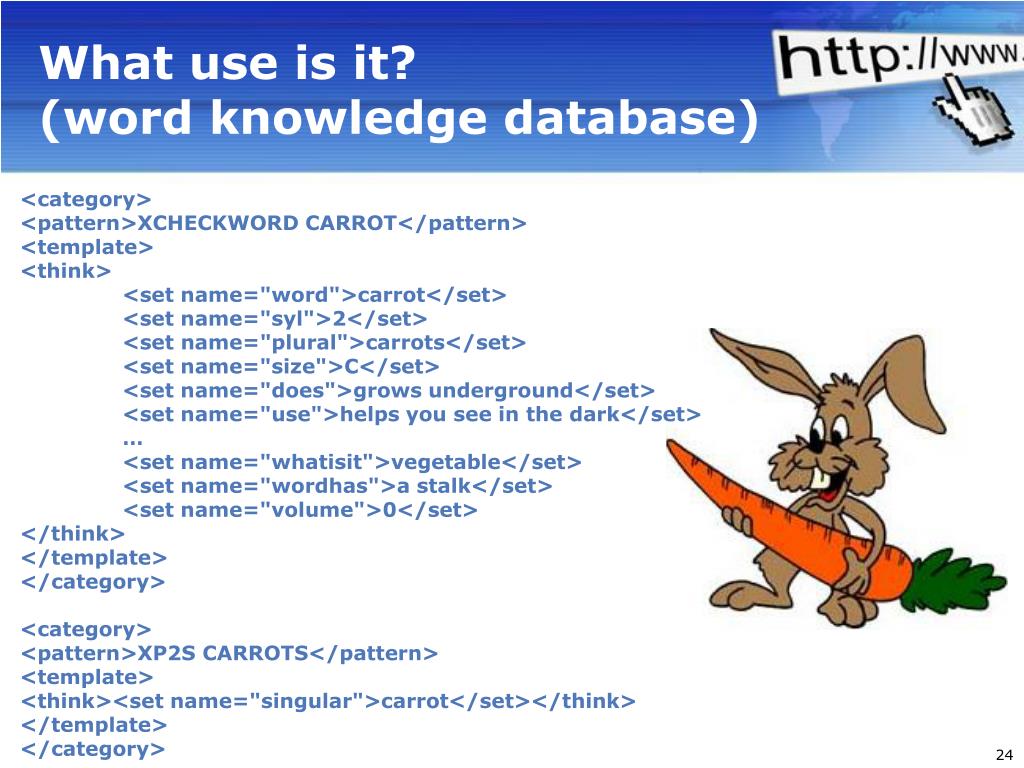

  24. What use is it? (word knowledge database) • <category> • <pattern>XCHECKWORD CARROT</pattern> • <template> • <think> • <set name="word">carrot</set> • <set name="syl">2</set> • <set name="plural">carrots</set> • <set name="size">C</set> • <set name="does">grows underground</set> • <set name="use">helps you see in the dark</set> • … • <set name="whatisit">vegetable</set> • <set name="wordhas">a stalk</set> • <set name="volume">0</set> • </think> • </template> • </category> • <category> • <pattern>XP2S CARROTS</pattern> • <template> • <think><set name="singular">carrot</set></think> • </template> • </category> 24

  25. Any questions? steve@mitsuku.com www.mitsuku.com www.square-bear.co.uk/aiml 25
