3.6 Angles in Polygons

3.6 Angles in Polygons. Date: _________. Sums of Interior Angles. Triangle. Quadrilateral. Pentagon. = 2 triangles. = 3 triangles. Hexagon. Octagon. Heptagon. = 4 triangles. = 5 triangles. = 6 triangles. 3. 1. 180 . 4. 360 . 2. 540 . 5. 3. 720 . 6. 4. 900 . 5. 7.

armando-holden
Télécharger la présentation

3.6 Angles in Polygons

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 3.6Angles in Polygons Date: _________

  2. Sums of Interior Angles Triangle Quadrilateral Pentagon = 2 triangles = 3 triangles Hexagon Octagon Heptagon = 4 triangles = 5 triangles = 6 triangles

  3. 3 1 180 4 360 2 540 5 3 720 6 4 900 5 7 8 6 1080 n n – 2 180•(n – 2)

  4. 135 100 70 x Find the measure of the missing angle in the figure below 135 + 100 + 70 + x = 360 305 + x = 360 -305 -305 x = 55 quadrilateral

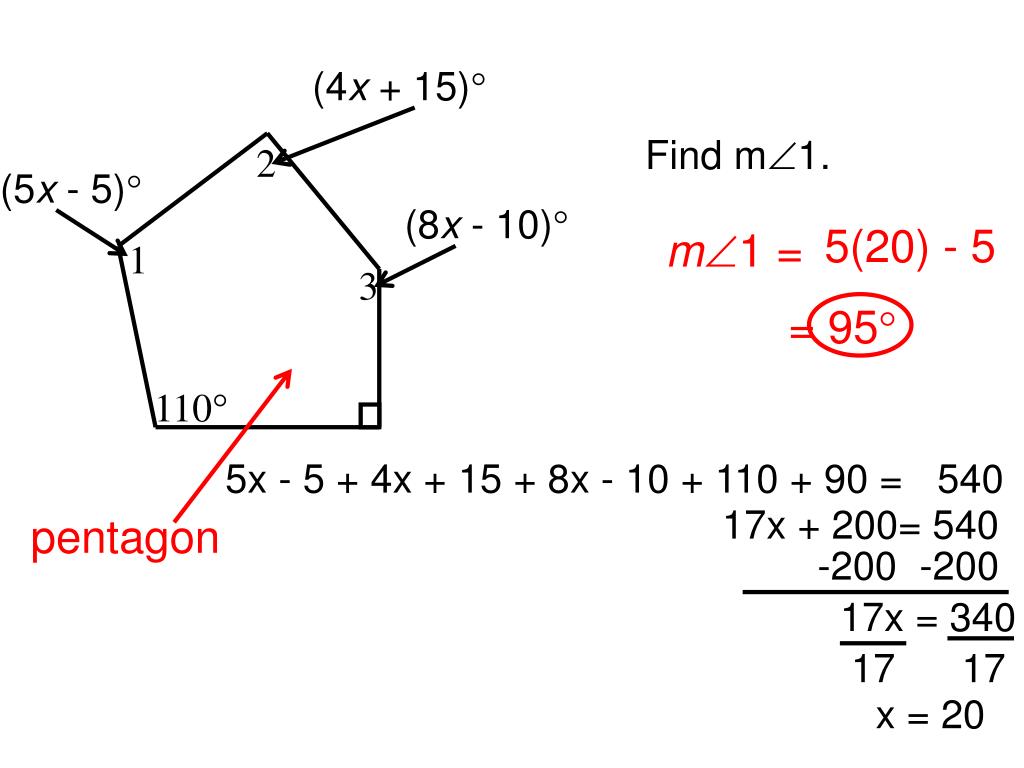

  5. (4x + 15) 2 (5x - 5) (8x - 10) 1 3 110 Find m1. 5(20) - 5 m1 = = 95 5x - 5 + 4x + 15 + 8x - 10 + 110 + 90 = 540 17x + 200= 540 pentagon -200 -200 17x = 340 17 17 x = 20

  6. 2 1 3 5 6 4 Interior Angles Exterior Angles

  7. 2 1 3 5 6 4 Sums of Exterior Angles 180 180 180•3 = 540 180 Sum of Interior & Exterior Angles = 540 Sum of Interior Angles = 180 360 540- 180= Sum of Exterior Angles =

  8. Sums of Exterior Angles 180 180 180 180•4 = 720 180 Sum of Interior & Exterior Angles = 720 Sum of Interior Angles = 360 360 720- 360= Sum of Exterior Angles =

  9. Sum of Exterior Angles 180 180 180 180 180 180•5 = 900 900 Sum of Interior & Exterior Angles = Sum of Interior Angles = 540° 360 900- 540= Sum of Exterior Angles =

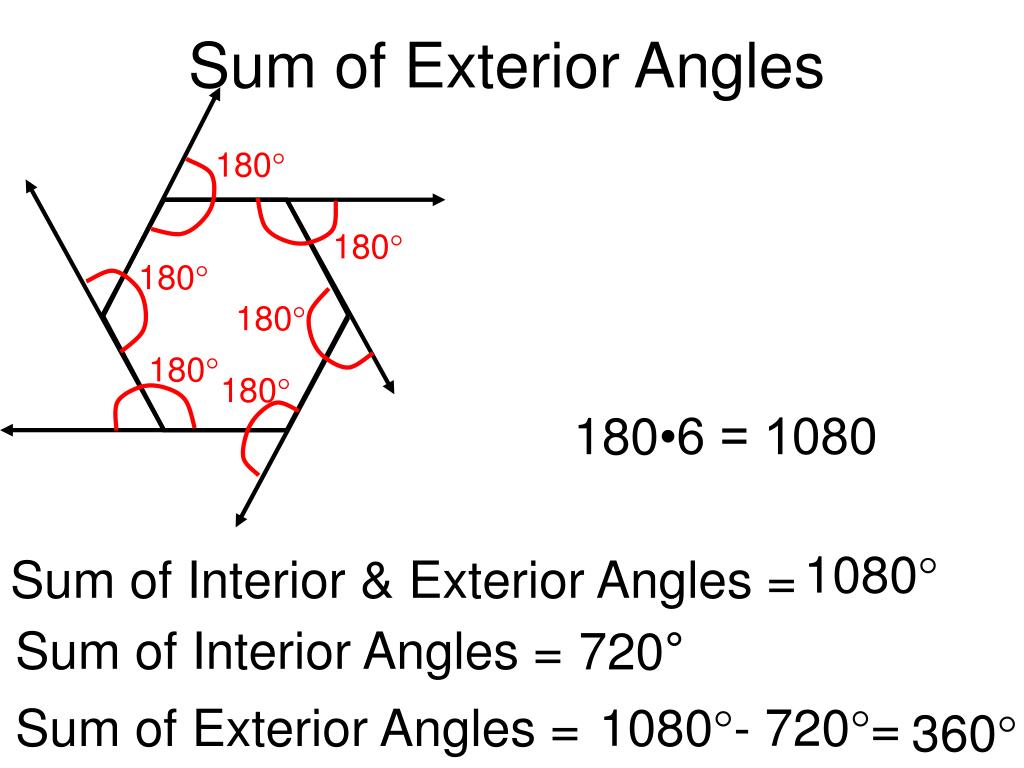

  10. Sum of Exterior Angles 180 180 180 180 180 180 180•6 = 1080 1080 Sum of Interior & Exterior Angles = Sum of Interior Angles = 720° 1080- 720= Sum of Exterior Angles = 360

  11. Sums of Exterior Angles 540 180 360 720 360 360 900 540 360 1080 720 360 Sum of Exterior Angles is always 360!

  12. Angles of Regular Polygons Sum of the Interior Angles 180(n – 2) Sum of the Exterior Angles Always 360! 180(n – 2) Each Interior Angle n Each Exterior Angle 360 n

  13. Find the sum of the measures of the interior angles of a regular dodecagon. n = 12 180•(n – 2) = 180•(12 – 2) = 180•(10) all 12 angles = 1800 What is the measure of each angle? 1800 each angle = 150 12

  14. The sum of the interior angles of a convex polygon is 1440. How many sides does the polygon have? 180•(n – 2) = 1440 180n – 360 = 1440 + 360 +360 180n = 1800 180 180 n = 10 10 sides

  15. Exterior Angles What is the measure of each exterior angle of a regular hexagon? 6 sides 360 = 60 6

  16. The measure of each exterior angle of a regular polygon is 20. How many sides does it have? 360 = 18 20 The measure of each interior angle of a regular polygon is 120. How many sides does it have? 180 - 120 60 = 360 = 6 60 exterior angle

  17. Find the sum of the interior angles of a 100-gon! Find the sum of the exterior angles of a 100-gon. Find the measure of each interior angle of a 100-gon. Find the measure of each exterior angle of a 100-gon.
