DMZ Servers + Streaming Servers

arnav avatar
arnav
3 diapositives · 255 Views · Aug 04, 2014

FX Trading Platform. BANK/BROKER. Entitlement , Trades. DMZ Servers + Streaming Servers. Pricing Engines /Settlements. Streaming Prices /Trade Confirms . External Pricing Sources. Simulated Users , Listeners, Trade Resquests. Rate of Traffic & Connections .

#dmz servers + streaming servers #dmz servers + streaming servers ppt #powerpoint #presentation
DMZ Servers + Streaming Servers - slide 1
01 / 3DMZ Servers + Streaming Servers
1 / 17

Télécharger la présentation

DMZ Servers + Streaming Servers
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

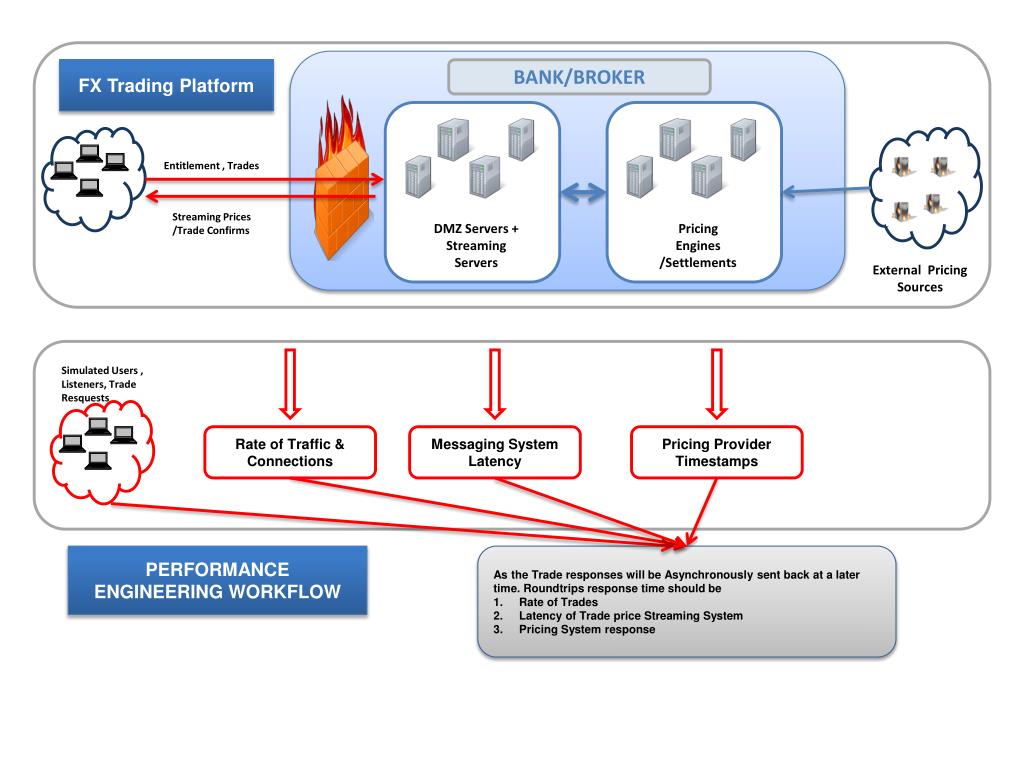

  1. FX Trading Platform BANK/BROKER Entitlement , Trades DMZ Servers + Streaming Servers Pricing Engines /Settlements Streaming Prices /Trade Confirms External Pricing Sources Simulated Users , Listeners, Trade Resquests Rate of Traffic & Connections Messaging System Latency Pricing Provider Timestamps PERFORMANCE ENGINEERING WORKFLOW As the Trade responses will be Asynchronously sent back at a later time. Roundtrips response time should be Rate of Trades Latency of Trade price Streaming System Pricing System response

  2. FX Trading Platform BANK/BROKER MainFrame / DB2 Oracle RAC TOMCAT APP SERVERS APACHE WEB SERVERS UNIVERSAL MESSAGING (Messaging Server) WEB TRAFFIC(SWF,IMG,HTML) AUTHENTICATION/PROVISIONING Entitlement , Trades STEP 1 Streaming Prices /Trade Confirms JAVA APPLICATION Python Engines + Hydra DB Cloud External Pricing Sources END USERS 1. Browser 2. Desktop Application 3. Mobile STEP 2 Simulated Users , Listeners, Trade Requests Rate of Traffic & Connections Messaging System Latency Pricing Provider Timestamps PERFORMANCE ENGINEERING WORKFLOW As the Trade responses will be Asynchronously sent back at a later time. Roundtrips response time should be Rate of Trades Latency of Trade price Streaming System Pricing System response STEP 1 Constitutes Authentication & Provisioning the End client with information on Messaging/Streaming data location and mode STEP 2 Client Data streams , Trade Data , Settlement data are all delivered via a Messaging data platform (Universal Messaging) to achieve guaranteed message delivery. As Universal Messaging maintains a open connection to the end client throughout the session considerable network performance gains are achieved.

  3. FX Trading Platform BANK/BROKER MainFrame / DB2 Oracle RAC TOMCAT APP SERVERS APACHE WEB SERVERS UNIVERSAL MESSAGING (Messaging Server) WEB TRAFFIC(SWF,IMG,HTML) AUTHENTICATION/PROVISIONING Entitlement , Trades STEP 1 Streaming Prices /Trade Confirms JAVA APPLICATION Python Engines + Hydra DB Cloud External Pricing Sources END USERS 1. Browser 2. Desktop Application 3. Mobile STEP 2 Simulated Users , Listeners, Trade Requests Rate of Traffic & Connections Messaging System Latency Pricing Provider Timestamps PERFORMANCE ENGINEERING WORKFLOW As the Trade responses will be Asynchronously sent back at a later time. Roundtrips response time should be Rate of Trades Latency of Trade price Streaming System Pricing System response STEP 1 Constitutes Authentication & Provisioning the End client with information on Messaging/Streaming data location and mode STEP 2 Client Data streams , Trade Data , Settlement data are all delivered via a Messaging data platform (Universal Messaging) to achieve guaranteed message delivery. As Universal Messaging maintains a open connection to the end client throughout the session considerable network performance gains are achieved. USAGE PATTERN Global Usage 4000 users , NA – 2000 users , EMEA 2000 & APAC 1000 users Users expected to ramp up within 45 minutes in each region , and stay on the system for 8-10 hours with Streaming on SLA Launch should be ~ 8 seconds (with 15 CCY pairs) Streaming prices 99.5 % quotes should be less than 350 milliseconds Trade round trip 99.5 % < 1.5 seconds (Settled within Bank)
