  1. Network Design Brandi Kirkland EDUT 6207

  2. Devices of the Network • The Wi-Fi wireless router is the central device • The network consist of 3 CPU’s, 1 game console, and 1 printer

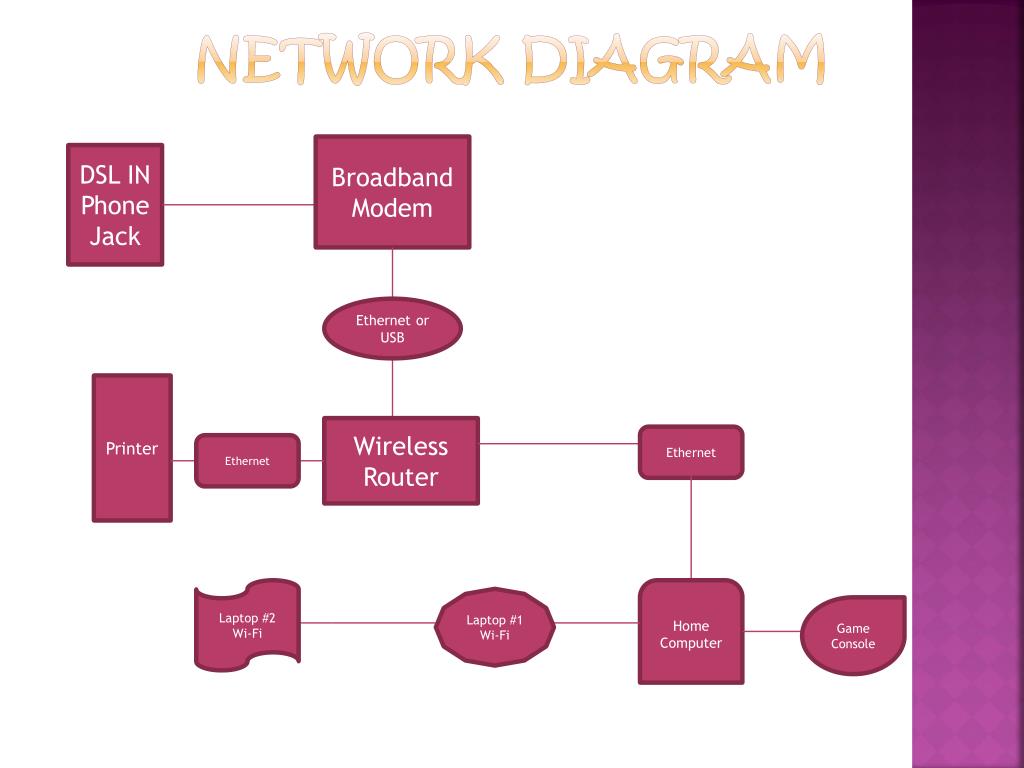

  3. Network Diagram Broadband Modem DSL IN Phone Jack Ethernet or USB Printer Wireless Router Ethernet Ethernet Laptop #2 Wi-Fi Home Computer Laptop #1 Wi-Fi Game Console

  4. Written description of diagram: DSL • DSL is best suited for:  home networking, online gaming, social networking, sharing photos, and downloading music • DSL stands for Digital Subscriber Line. • What does DSL do? It lets you talk on the phone and use the Internet at the same time by putting different signals on different frequencies.

  5. DSL Internet connection • The DSL internet connection I chose was AT&T. • The reason I chose AT&T: • $14.95/mo. for a full 12 months with no term commitment. • FREE wireless gateway • Modem Included

  6. DSL Internet connection continued • Downstream Speed:  Up to 3.0 MbpsUpstream Speed:  Up to 384 Kbpsd • Wi-Fi access for Internet on the go • AT&T Internet Security Suite - powered by McAfee®

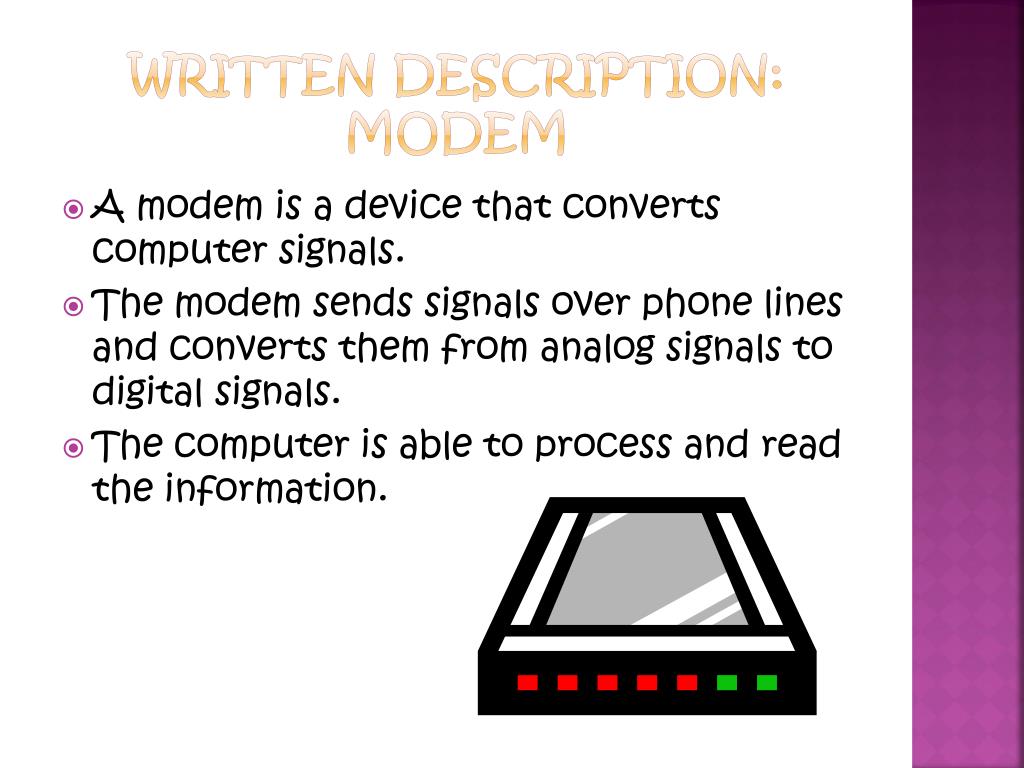

  7. Written Description: Modem • A modem is a device that converts computer signals. • The modem sends signals over phone lines and converts them from analog signals to digital signals. • The computer is able to process and read the information.

  8. Written description: Ethernet or USB An Ethernet interface is intended for network traffic only. Ethernet can also be used to connect a DSL or cable modem to a computer. Ethernet interfaces are included with most modern motherboards Ethernet is a high-speed networking protocol. It is used primarily to connect local area networks (LANs). USB stands for Universal Serial Bus. USB is used to connect peripheral devices to a computer.

  9. Written description: Wireless Router • A wireless router is a device that performs the functions of a router, but also includes the functions of a wireless access point and a network switch. • A wireless router is commonly used to allow access to the Internet or a computer network without the need for a cabled connection. • It can function in a wired local area network.

  10. Written description: printer • A printer is an essential device that produces a text and/or graphics of documents stored in electronic form. • The cost of my printer is $159 • Cannon Printer

  11. Written description: Desktop computer • My desk top computer will be an existing computer along with the other two laptops and printer. • A computer is a programmable machine designed to sequentially and automatically carry out a sequence of arithmetic or logical operations. • The cost of my desktop computer is $450.00 • Desktop Computer

  12. Written description: Laptop #1 • A laptop is a personal computer for mobile use. • Laptop number 1 is the first laptop included in my home network. • My laptop has all the features that my personal computer has. • The cost of laptop number 1 is $270.00 • Laptop Computer #1

  13. Written description: Laptop #2 • A laptop is a personal computer for mobile use. • Laptop number 2 is the third computer included in my home network. • The cost of laptop number 2 is $430.00 • Laptop #2

  14. How to Download a Driver URL For Downloading a Driver

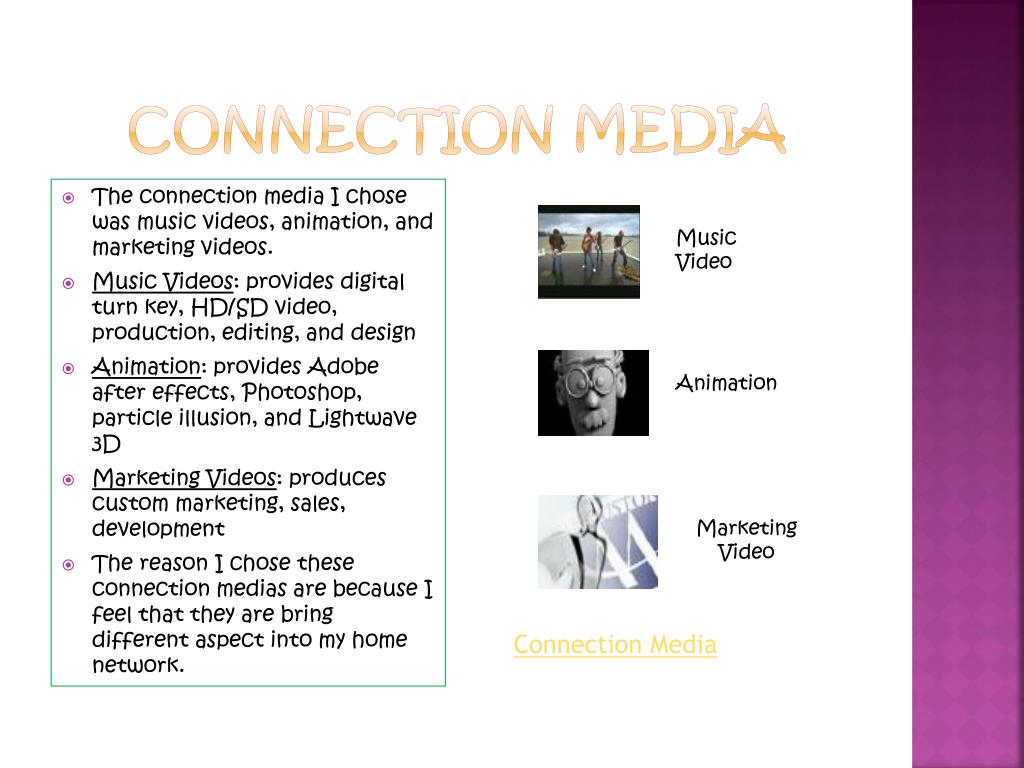

  15. Connection Media • The connection media I chose was music videos, animation, and marketing videos. • Music Videos: provides digital turn key, HD/SD video, production, editing, and design • Animation: provides Adobe after effects, Photoshop, particle illusion, and Lightwave 3D • Marketing Videos:produces custom marketing, sales, development • The reason I chose these connection medias are because I feel that they are bring different aspect into my home network. Music Video Animation Marketing Video Connection Media

  16. Summary of cost/Speed • The estimated cost of my home network would be $1500. • This amount includes the monthly fee of the modem and DSL service. • The speed of my home network will be approximately 4GBs and the hard drive will be approximately 1 TB.

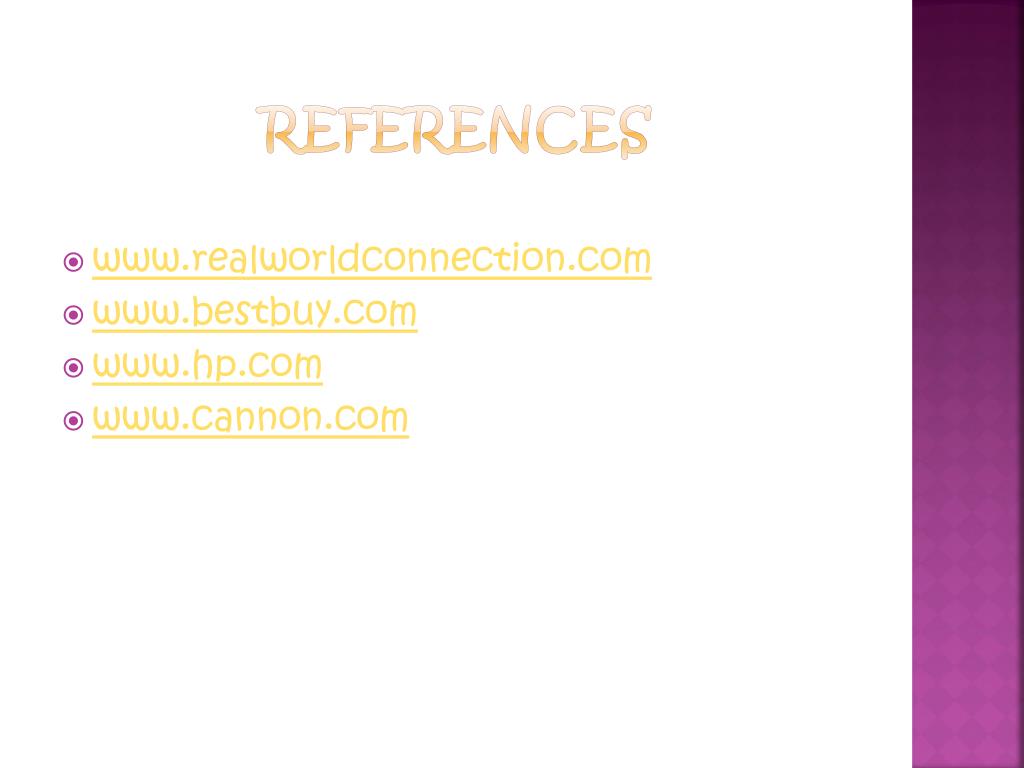

  17. References • www.realworldconnection.com • www.bestbuy.com • www.hp.com • www.cannon.com
