  1. WP7 – Conceptual Specifications

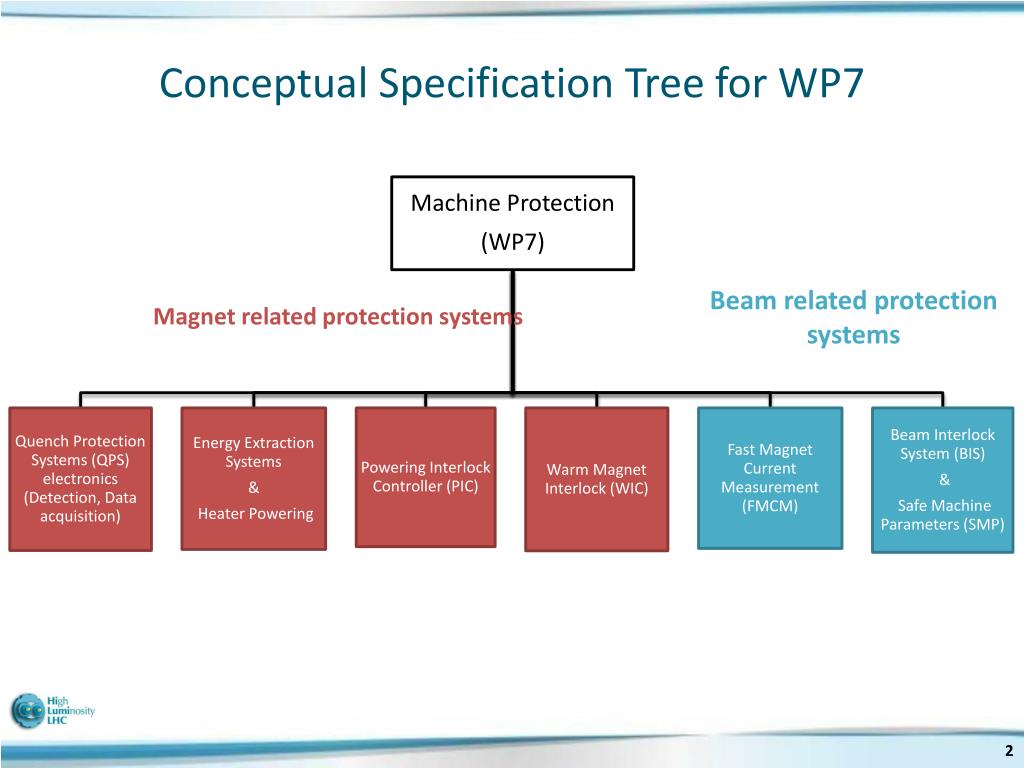

  2. Conceptual Specification Tree for WP7 Beam related protection systems Magnet related protection systems

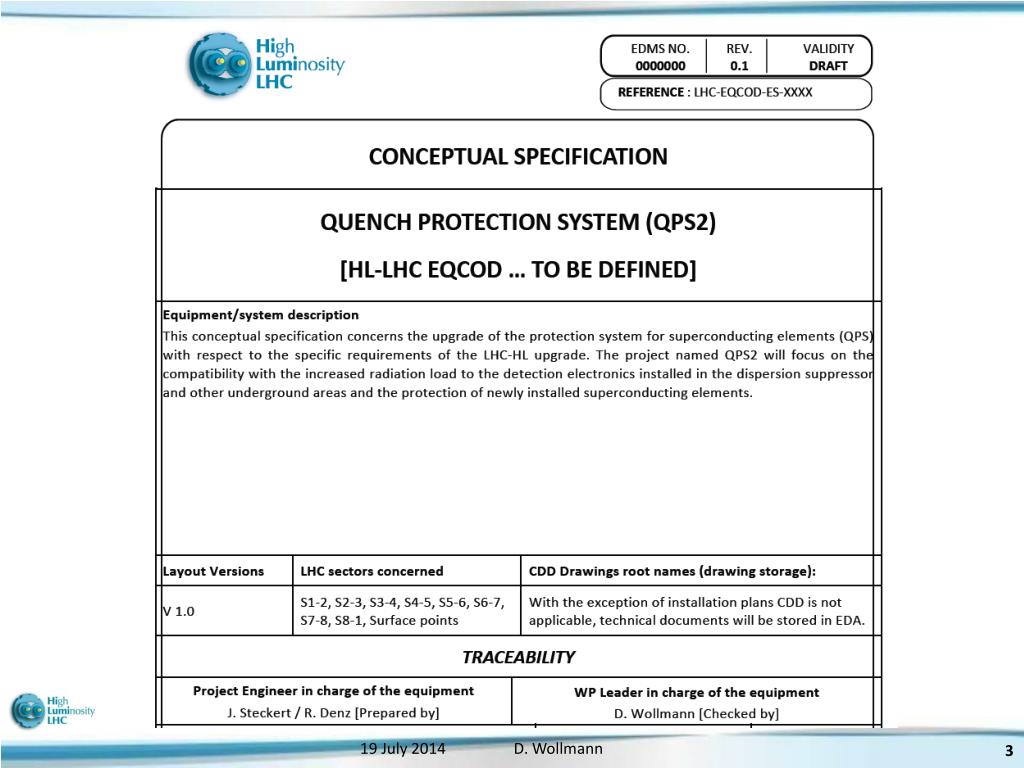

  3. 30 June 2014 D. Wollmann

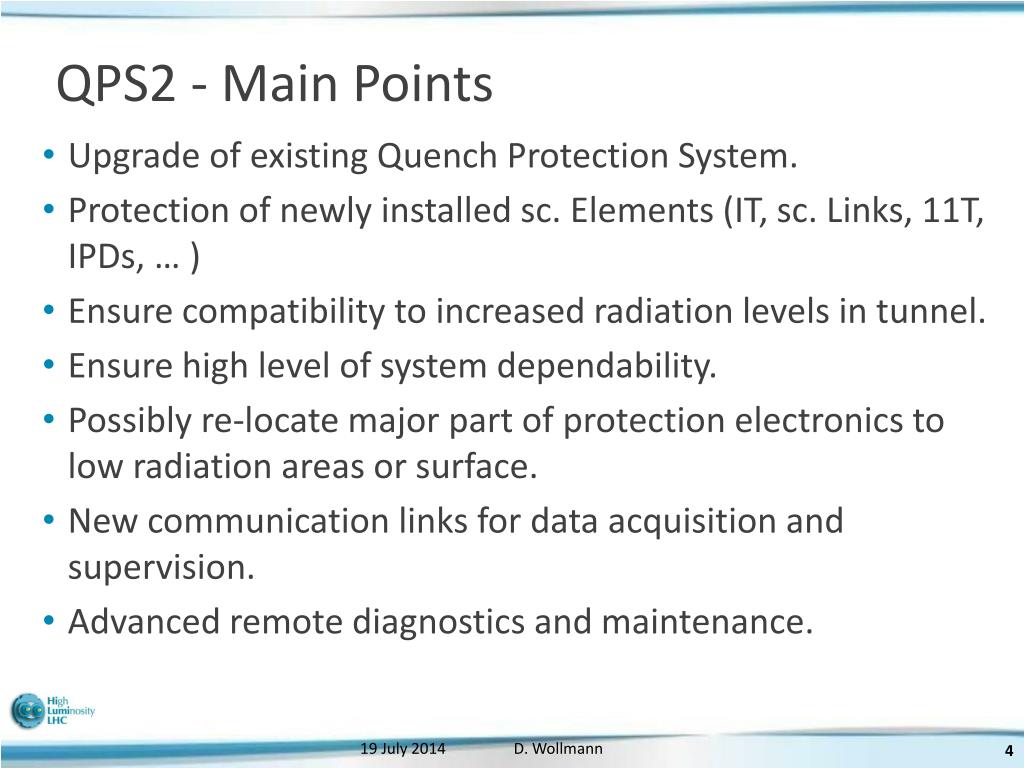

  4. QPS2 - Main Points • Upgrade of existing Quench Protection System. • Protection of newly installed sc. Elements (IT, sc. Links, 11T, IPDs, … ) • Ensure compatibility to increased radiation levels in tunnel. • Ensure high level of system dependability. • Possibly re-locate major part of protection electronics to low radiation areas or surface. • New communication links for data acquisition and supervision. • Advanced remote diagnostics and maintenance. 30 June 2014 D. Wollmann

  5. QPS2 - Plans • Protection parameters of new devices to be specified by equipment responsibles (WP3, WP6, WP18) in collaboration with MP3. • Draft specifications for QPS2 ( ~ end 2014). • Study, which parts of the QPS could be removed from the tunnel (~ end 2014). • R&D from 2015. 30 June 2014 D. Wollmann

  6. 30 June 2014 D. Wollmann

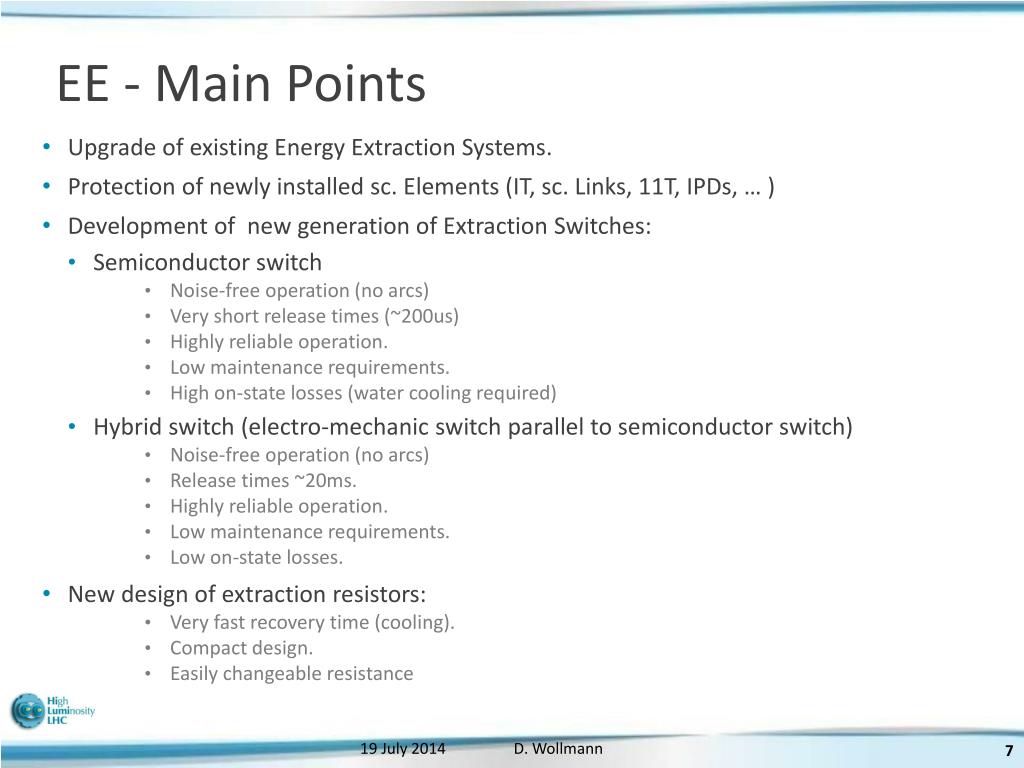

  7. EE - Main Points • Upgrade of existing Energy Extraction Systems. • Protection of newly installed sc. Elements (IT, sc. Links, 11T, IPDs, … ) • Development of new generation of Extraction Switches: • Semiconductor switch • Noise-free operation (no arcs) • Very short release times (~200us) • Highly reliable operation. • Low maintenance requirements. • High on-state losses (water cooling required) • Hybrid switch (electro-mechanic switch parallel to semiconductor switch) • Noise-free operation (no arcs) • Release times ~20ms. • Highly reliable operation. • Low maintenance requirements. • Low on-state losses. • New design of extraction resistors: • Very fast recovery time (cooling). • Compact design. • Easily changeable resistance 30 June 2014 D. Wollmann

  8. EE - Plans • Protection parameters of new devices to be specified by equipment responsibles (WP3, WP6, WP18) in collaboration with MP3. • Prototype of 10kA switch expected in second half of 2015. • Prototype Extraction Resistor (10MJ, 1500V) expected in second half of 2015. 30 June 2014 D. Wollmann

  9. 30 June 2014 D. Wollmann

  10. PIC - Main Points • Upgrade of existing Powering Interlock System (36 PICs for 28 powering subsectors). • Ensure compatibility to changes and new requirements from QPS2. • Ensure high level of system dependability. • Ensure compatibility to increased radiation levels in tunnel Design of new I/O module for distributed use. • Upgrade of used industrial components due to obsolescence of components new I/O module. • Enhanced diagnostics of safety critical hardwire loops. 30 June 2014 D. Wollmann

  11. PIC - Plans • R&D from 2015. 30 June 2014 D. Wollmann

  12. 30 June 2014 D. Wollmann

  13. WIC - Main Points • Upgrade of existing Warm Magnet Interlock System (8 industrial controllers). • Improvements of existing system (upgrade electronics and industrial components) to ensure current dependability. • Accommodate changes and new requirements of the magnet powering system in the IRs. • Increase of radiation levels my require re-design of some parts or the WIC. 30 June 2014 D. Wollmann

  14. WIC - Plans • Main part of work between LS2 and LS3. 30 June 2014 D. Wollmann

  15. 30 June 2014 D. Wollmann

  16. FMCM - Main Points • Upgrade of Fast Magnet Current Change Monitors (currently 26 units in LHC and SPS-LHC transfer lines). • Review and potentially re-design of hardware due to aging and obsolescence of electronic parts • Improved maintainability. 30 June 2014 D. Wollmann

  17. FMCM – Plans • Input required from WP3 and WP2. • Study new HL-LHC failure modes. • R&D from 2015. 30 June 2014 D. Wollmann

  18. 30 June 2014 D. Wollmann

  19. BIS & SMP - Main Points • Consolidation of current BIS and SMP. • Re-design of system: • Obsolescence of electronic components. • Optical links. • Increased number of input channels. • Improved flexibility of user input configuration. • Very fast interlock channels of feasible. • Advanced diagnostics for system HW and optical links. • Improved maintainability. • Reach reliability level as current system (SIL3). • Revision of high level and controls software. 30 June 2014 D. Wollmann

  20. BIS & SMP – Plans • Number of required BIS channels to be specified by MPP. • Study feasibility of very fast interlock channels. • R&D from mid 2014. 30 June 2014 D. Wollmann
