4.6 Isosceles Triangles

4.6 Isosceles Triangles. Objectives. Use properties of isosceles triangles Use properties of equilateral triangles. Properties of Isosceles Triangles. The  formed by the ≅ sides is called the vertex angle . The two ≅ sides are called legs . The third side is called the base .

atira
Télécharger la présentation

4.6 Isosceles Triangles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 4.6 Isosceles Triangles

  2. Objectives • Use properties of isosceles triangles • Use properties of equilateral triangles

  3. Properties of Isosceles Triangles • The  formed by the ≅ sides is called the vertex angle. • The two ≅ sides are called legs. The third side is called the base. • The two s formed by the base and the legs are called thebase angles. vertex leg leg base

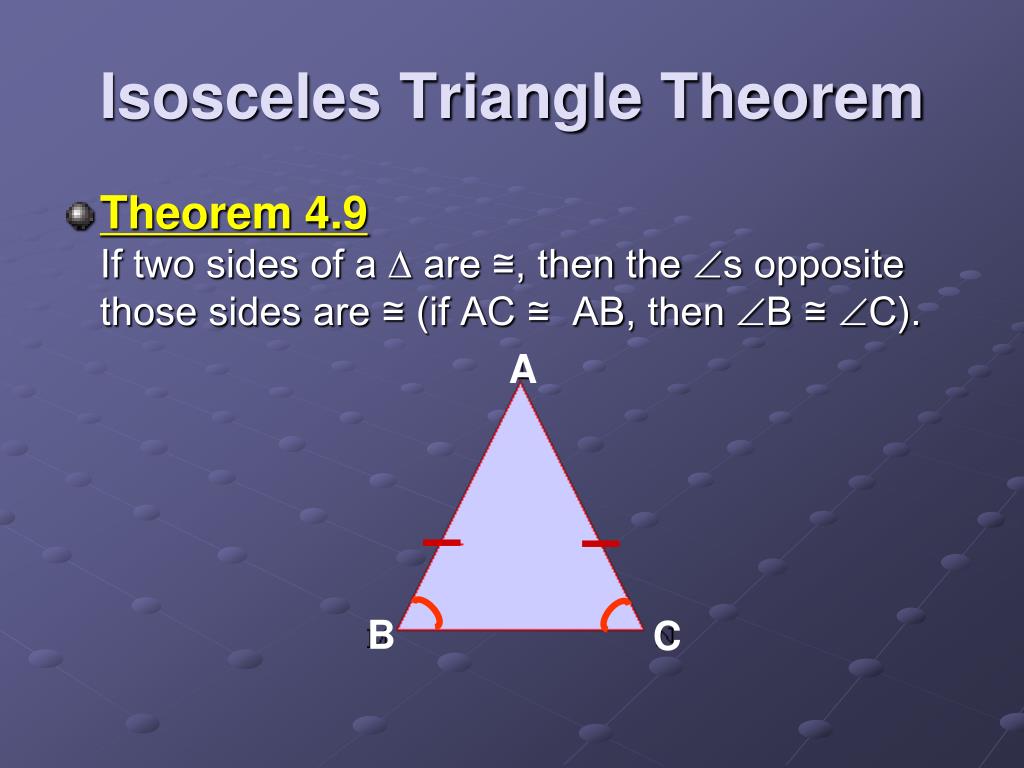

  4. Isosceles Triangle Theorem • Theorem 4.9If two sides of a ∆ are ≅, then the s opposite those sides are ≅ (if AC ≅ AB, then B ≅ C). A B C

  5. Write a two-column proof. Given: Prove: Example 1:

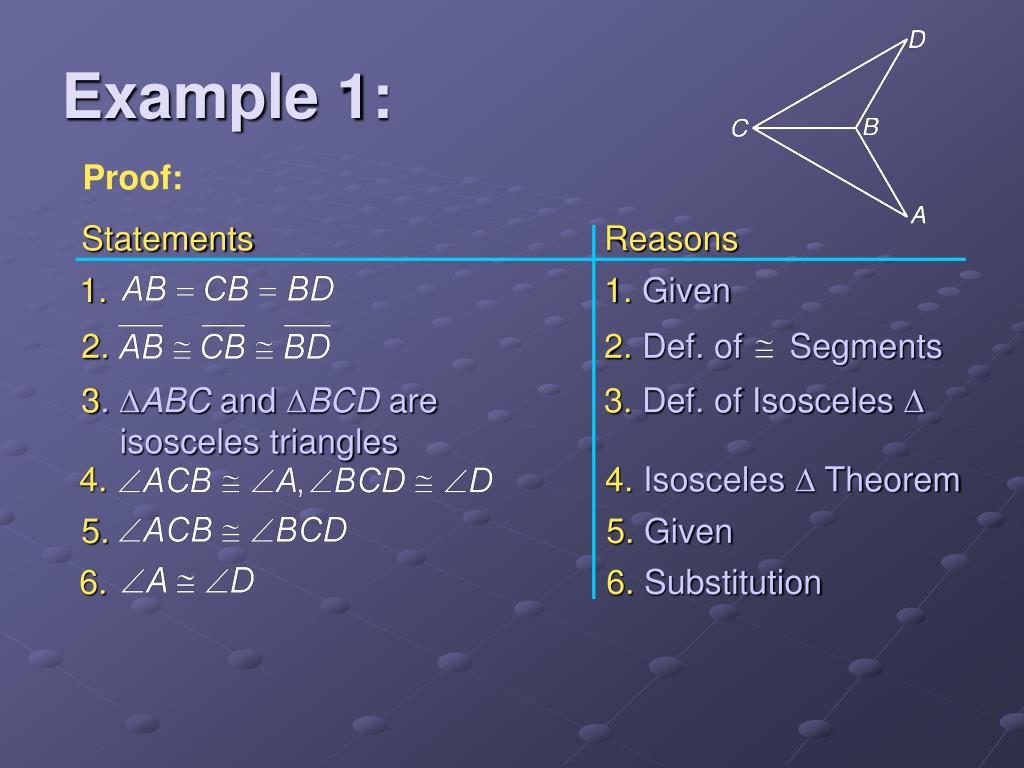

  6. Statements Reasons 1. 1.Given 2. 2.Def. of Segments 3. ABC and BCD are isosceles triangles 3.Def. of Isosceles  4. 4.Isosceles  Theorem 5. 5.Given 6. 6.Substitution Example 1: Proof:

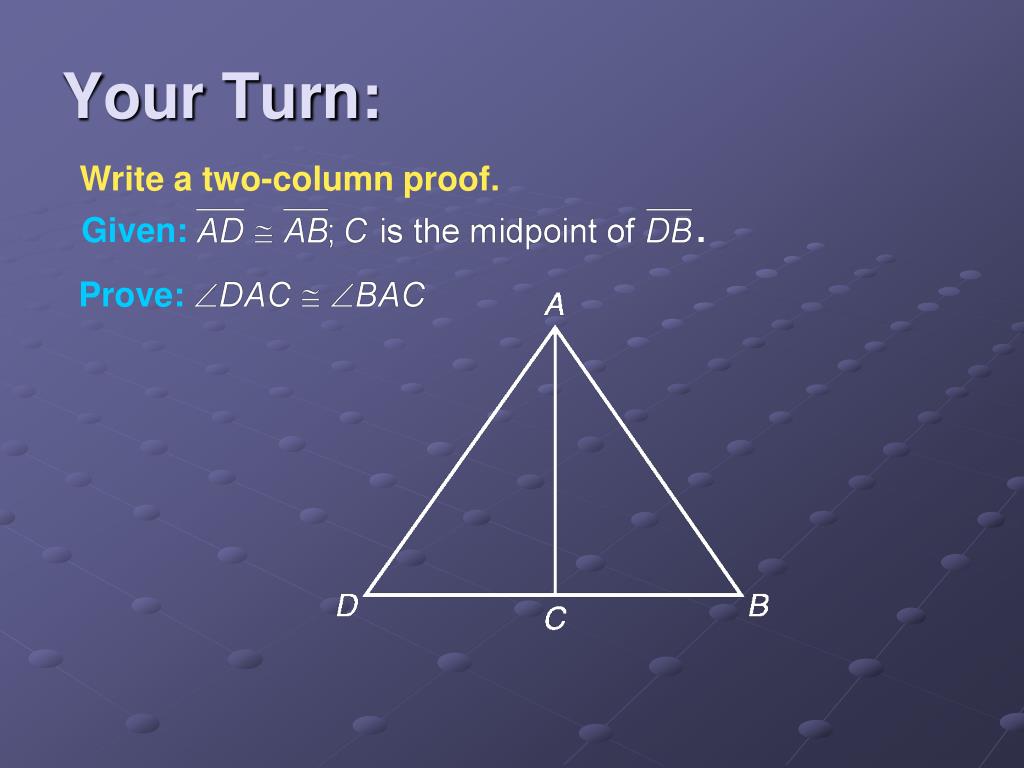

  7. Write a two-column proof. Given: . Prove: Your Turn:

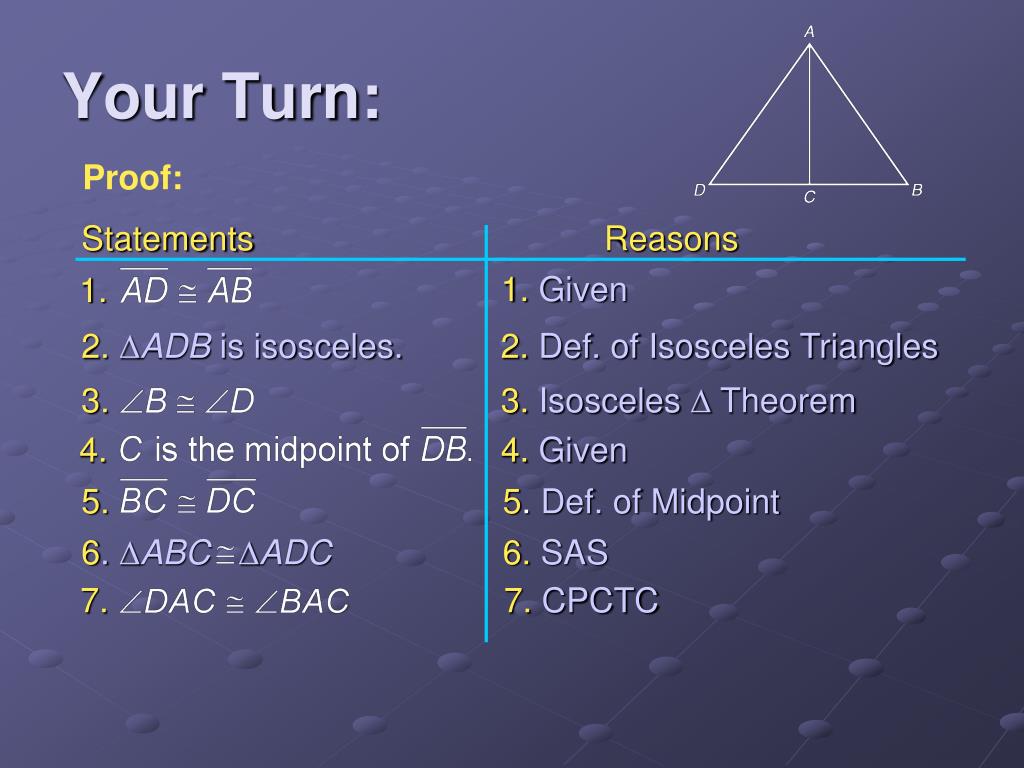

  8. Statements Reasons 1.Given 1. 2.ADB is isosceles. 2.Def. of Isosceles Triangles 3. 3.Isosceles  Theorem 4. 4.Given 5. 5. Def. of Midpoint 6. ABC ADC 6.SAS 7. 7.CPCTC Your Turn: Proof:

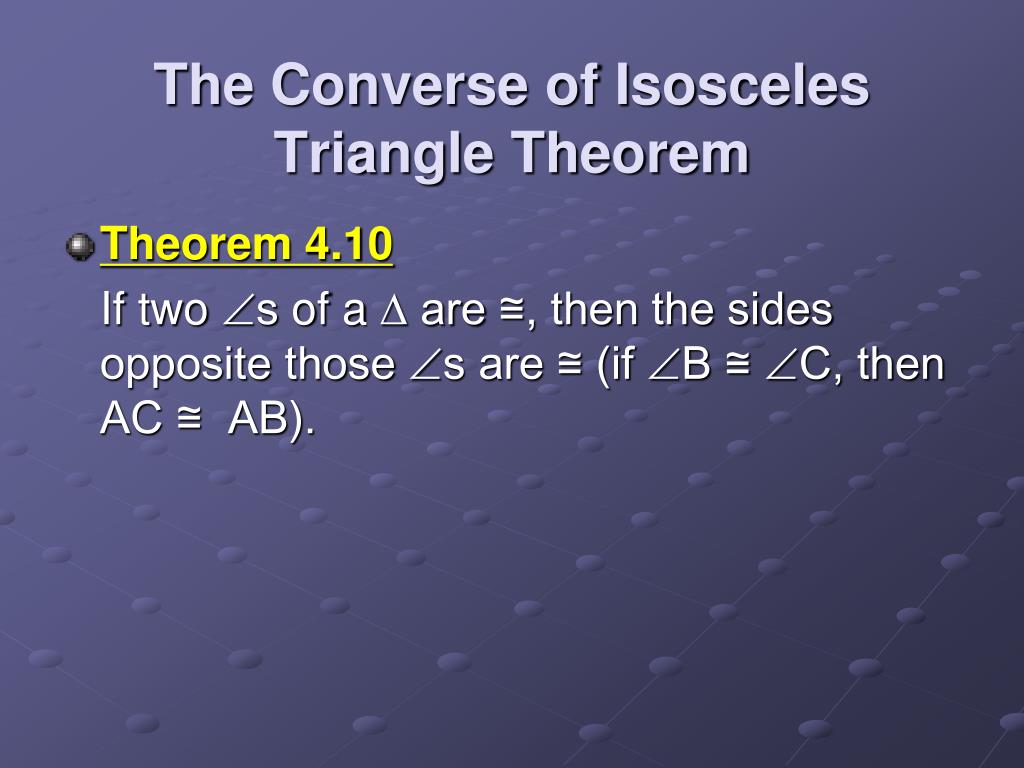

  9. The Converse of Isosceles Triangle Theorem • Theorem 4.10 If two s of a ∆ are ≅, then the sides opposite those s are ≅ (if B ≅ C, then AC ≅ AB).

  10. Name two congruent angles. Example 2: Answer:

  11. Name two congruent segments. By the converse of the Isosceles Triangle Theorem, the sides opposite congruent angles are congruent. So, Example 2: Answer:

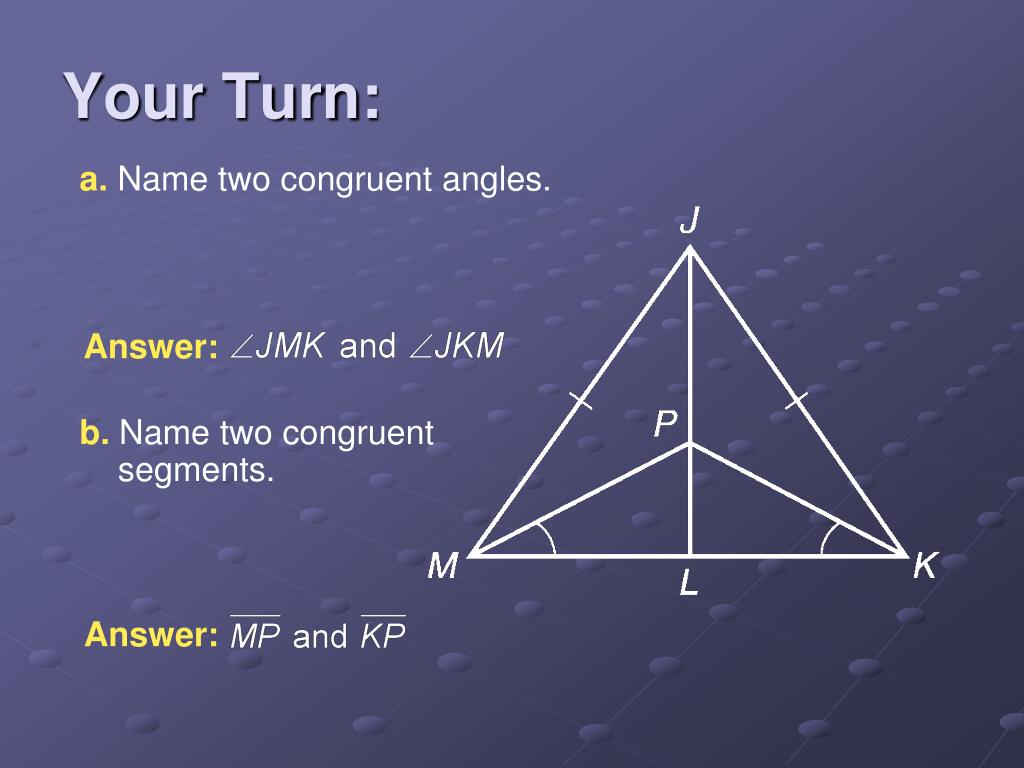

  12. Your Turn: a. Name two congruent angles. Answer: b. Name two congruent segments. Answer:

  13. Properties of Equilateral ∆s • Corollary 4.3A ∆ is equilateral iff it is equiangular. • Corollary 4.4Each  of an equilateral ∆measures 60°.

  14. EFG is equilateral, and bisects bisectsFindand Each angle of an equilateral triangle measures 60°. Since the angle was bisected, Example 3a:

  15. is an exterior angle of EGJ. Example 3a: Exterior Angle Theorem Substitution Add. Answer:

  16. EFG is equilateral, and bisects bisectsFind Example 3b: Linear pairs are supplementary. Substitution Subtract 75 from each side. Answer: 105

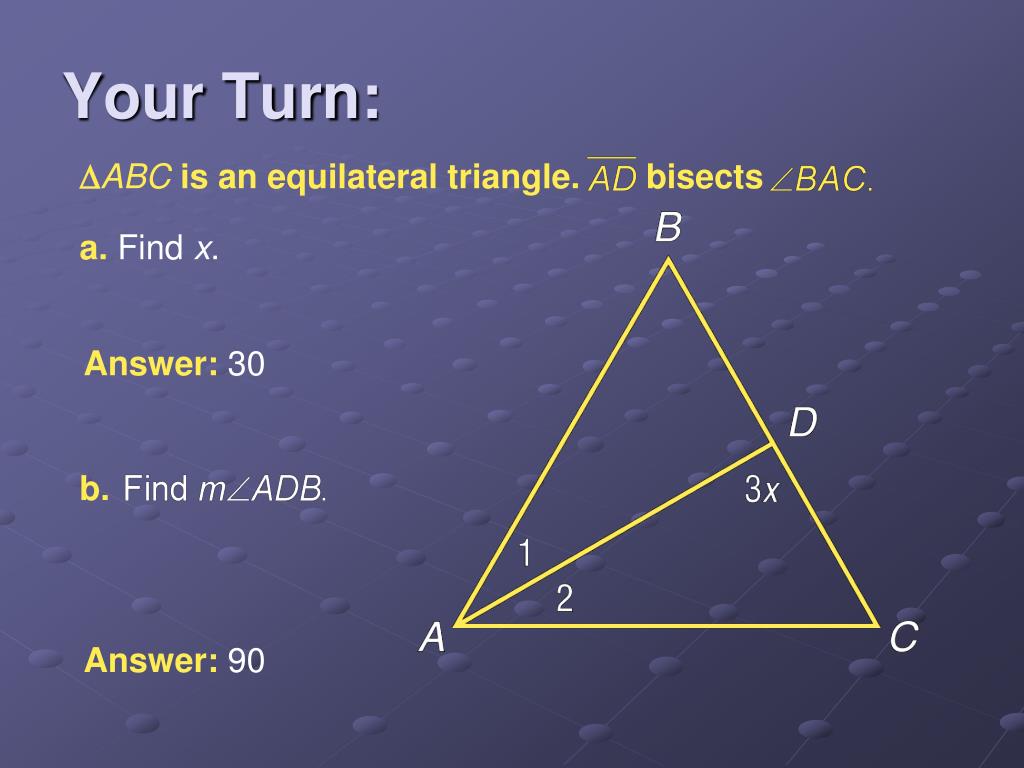

  17. ABC is an equilateral triangle. bisects Your Turn: a. Find x. Answer: 30 b. Answer: 90
