Energy and Electron Transfer - II

Energy and Electron Transfer - II. Chapter-7 MMP+. P. H. December 19, 2002. Marcus Theory. - D G = l s + l v. Log k. normal. Inverted. - D G. Acc. Chem. Res., 1996, 29, 522. Example. k R >> k I. J. Am. Chem. Soc., 1989, 111, 8948. l = 0.39eV.

auberta
Télécharger la présentation

Energy and Electron Transfer - II

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Energy and Electron Transfer - II Chapter-7 MMP+ P. H. December 19, 2002

  2. Marcus Theory -DG = ls + lv Log k normal Inverted -DG Acc. Chem. Res., 1996, 29, 522

  3. Example kR >> kI J. Am. Chem. Soc., 1989, 111, 8948

  4. l = 0.39eV

  5. Contact and Solvent Separated Radical Ion Pairs CRIP SSRIP A D* D+ A-

  6. CRIP & SSRIP - An example DG2 = 1.8 kcal/mol k1 values depend on solvent polarity Dicloromethane -108 ; Hexane > 1010 Also more solvent reorganization for SSRIP than CRIP

  7. CRIP and Exciplexes - The Transition

  8. Electron and Energy Transfer Equilibria Can’t even happen without Energy transfer equilibrium

  9. Thermodynamics of the Equlibria For rigid systems For example.. DS - 0.04 gibbs/mol DS - -1.8 gibbs/mol

  10. Electron Transfer Equilibria Cannot observe the equlibrium if… kbet >> k–et

  11. Chemiluminescent Ion Recombination 1 2 Marcus Effect

  12. Role of Diffusion Diffusion and collision D*A becomes DA* DA* breaks up into D and A*

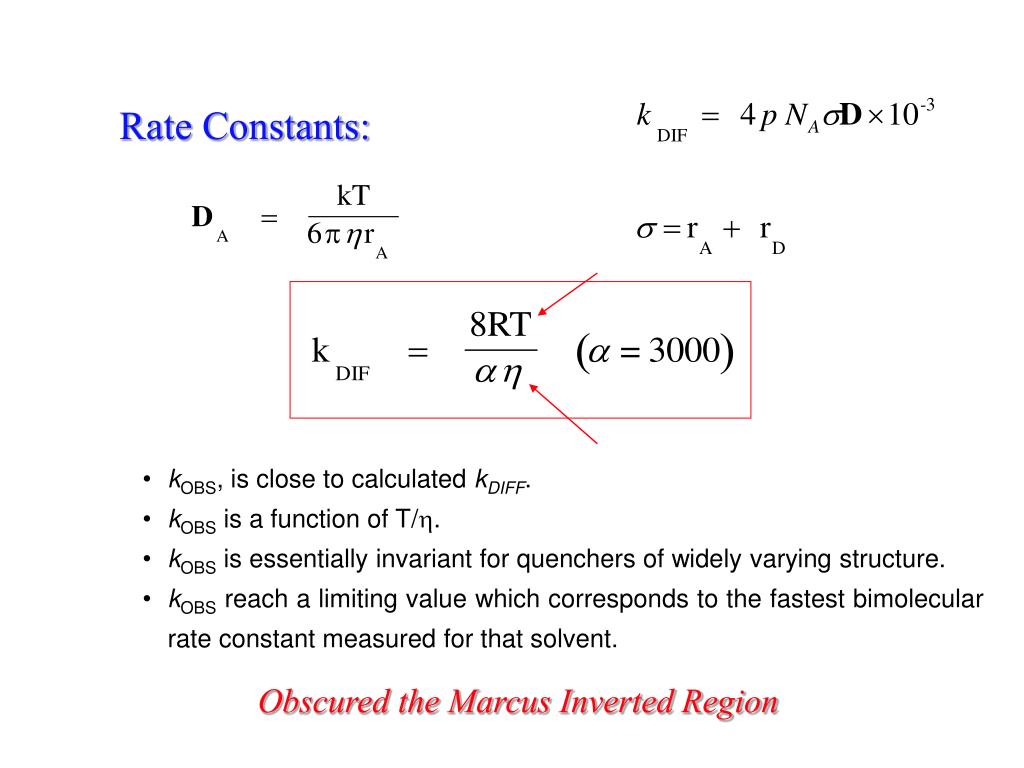

  13. Rate Constants: • kOBS, is close to calculated kDIFF. • kOBS is a function of T/. • kOBS is essentially invariant for quenchers of widely varying structure. • kOBS reach a limiting value which corresponds to the fastest bimolecular rate constant measured for that solvent. Obscured the Marcus Inverted Region

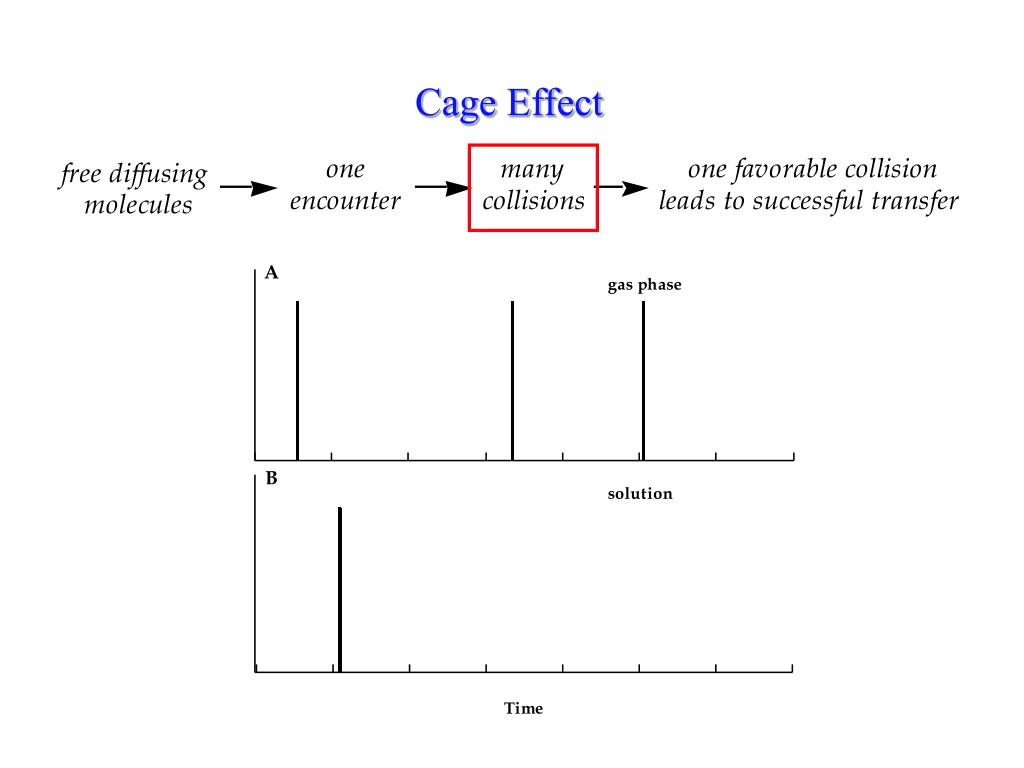

  14. Cage Effect

  15. Diffusion - Distance/Time Relationship Diffusion coefficient (D) of benzene (25°C) - 2 x 10–5 cm2/s; if we assume the encounter to be over when one of the molecules has traveled a distance equivalent to the size of several solvent molecules (e.g. x ~ 10 Å, equivalent to about 2 benzene molecules), then we obtain a rough estimate of the time required by applying above equation of about 2.5 x 10–10 s.

  16. Effect of Charged Species

  17. Transient Effects on Quenching With Incresing Time

  18. Static Quenching - Perrin Model ln ( ° / ) = V NA [ A] R (in Å) = 6.5 [A]1/3 (with [A] in M units)
