Work Done by a Varying Force

Work Done by a Varying Force. So far. Forces are constant. Work done = F·s. Consider. Force on the spring varies as the length increases As the spring is displaced the force varies. Let’s look at the graph. Area under the graph = F ·s Area under the graph = Work done.

aure
Télécharger la présentation

Work Done by a Varying Force

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Work Done by a Varying Force

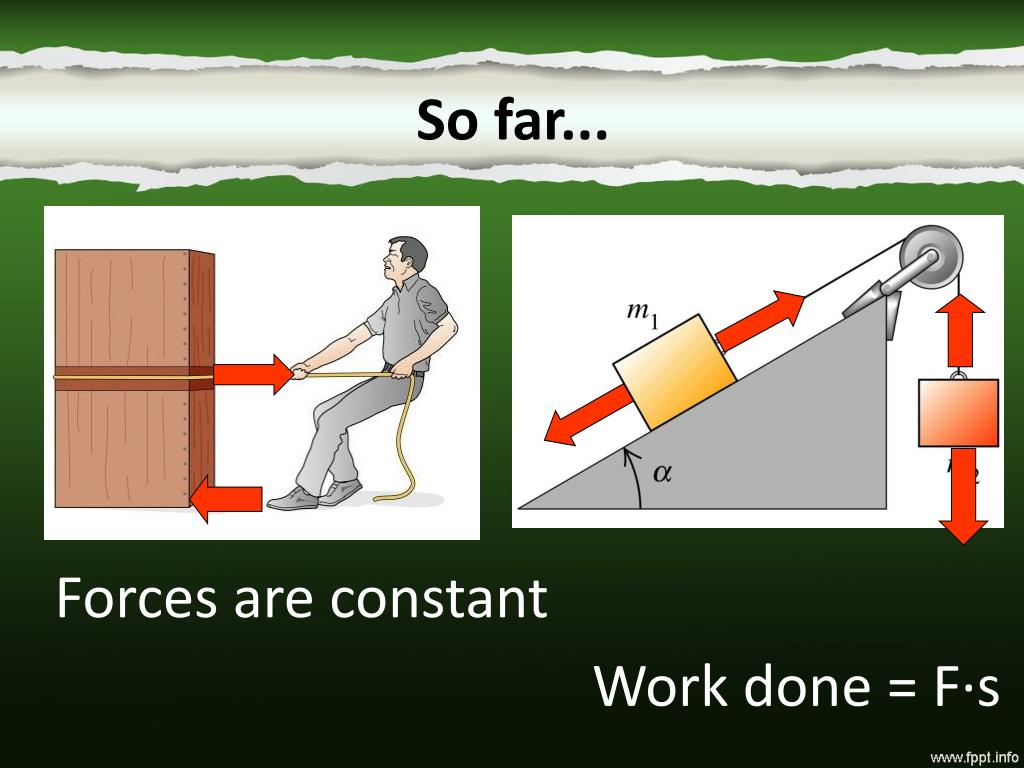

  2. So far... Forces are constant Work done = F·s

  3. Consider... • Force on the spring varies as the length increases • As the spring is displaced the force varies

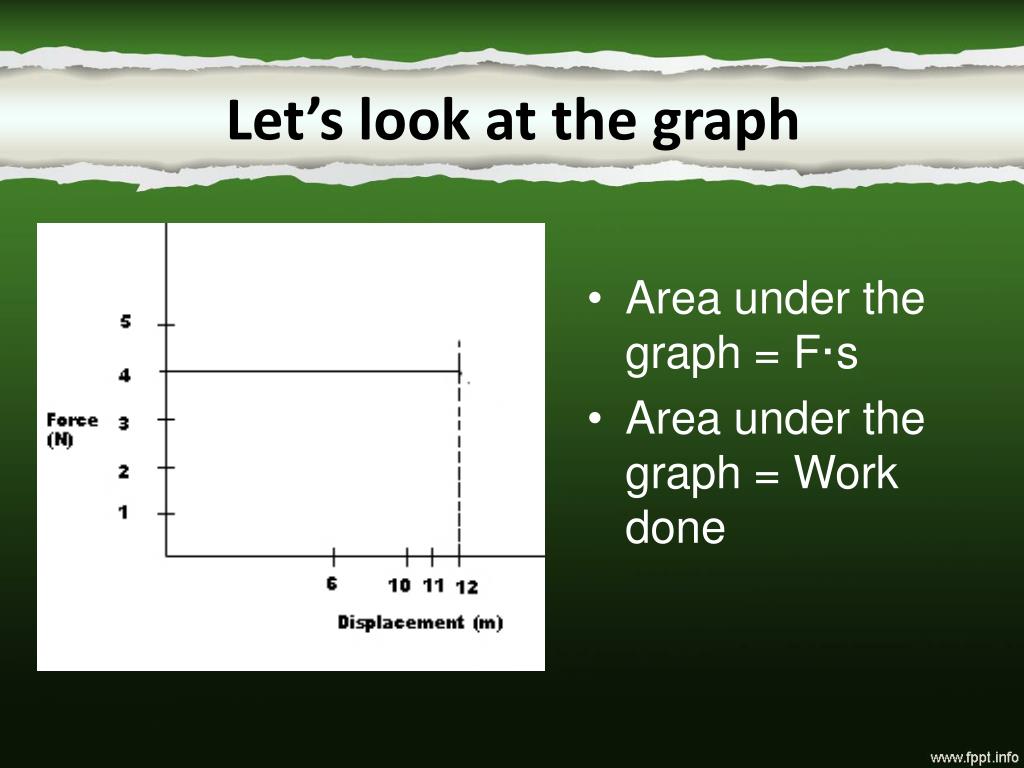

  4. Let’s look at the graph • Area under the graph = F·s • Area under the graph = Work done

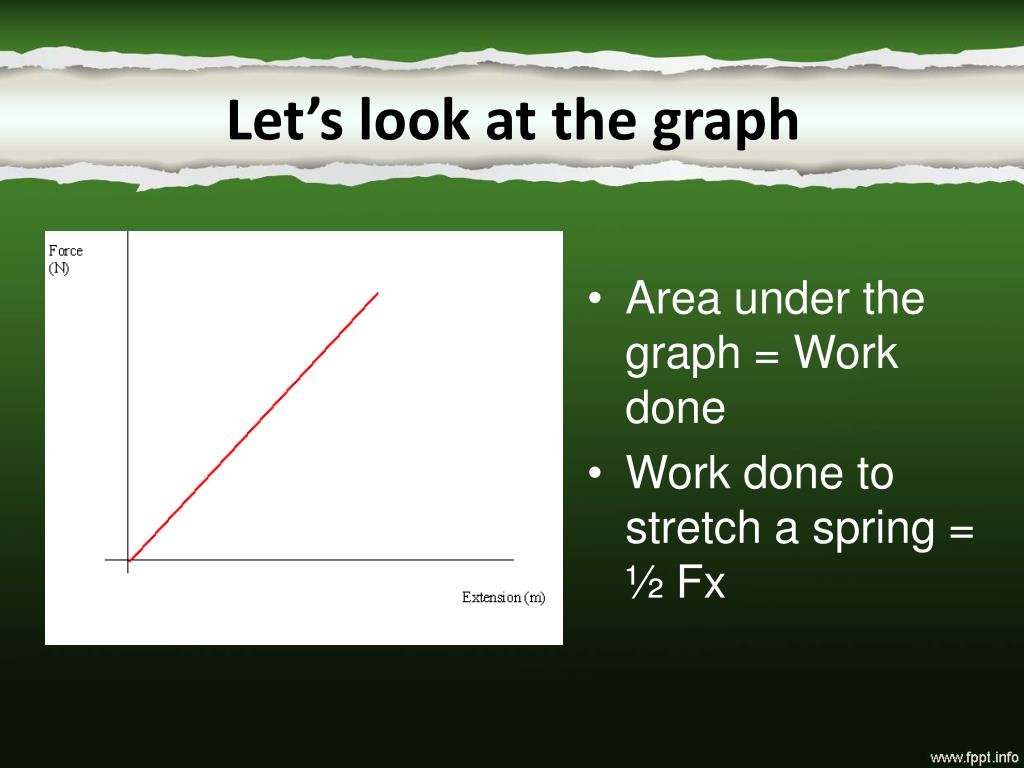

  5. Let’s look at the graph • Area under the graph = Work done • Work done to stretch a spring = ½ Fx

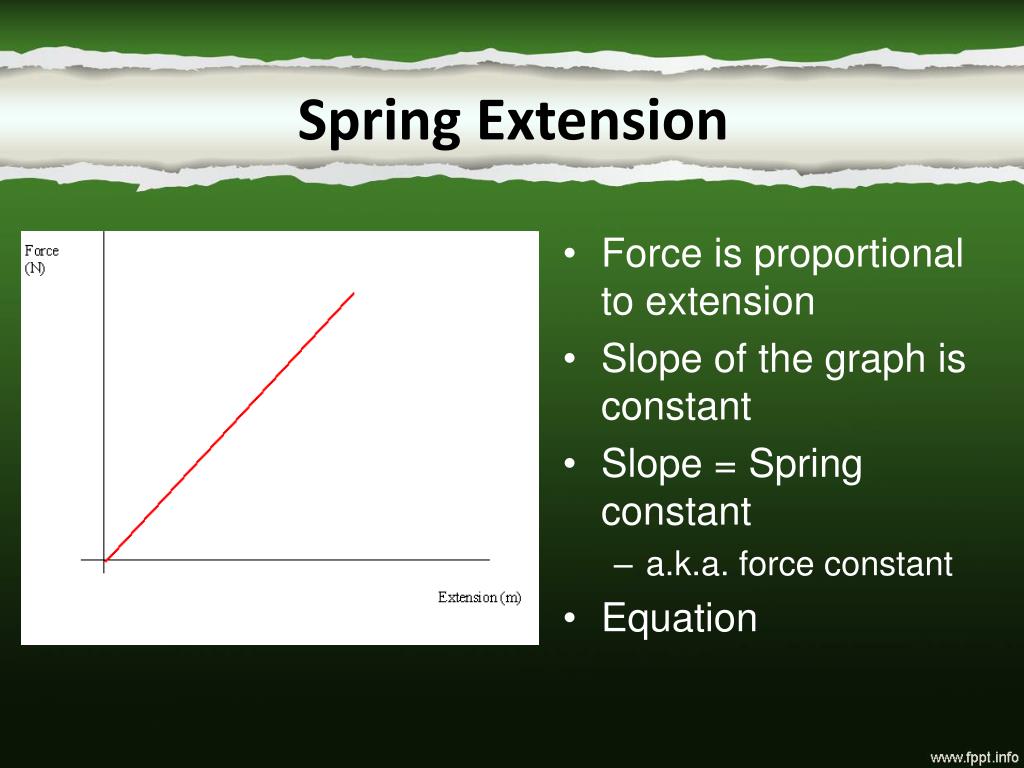

  6. Spring Extension • Force is proportional to extension • Slope of the graph is constant • Slope = Spring constant • a.k.a. force constant • Equation

  7. Strain Energy • Stored energy due to stretching or compression • Work-Energy Theorem • Work done on the spring • Work done by the spring

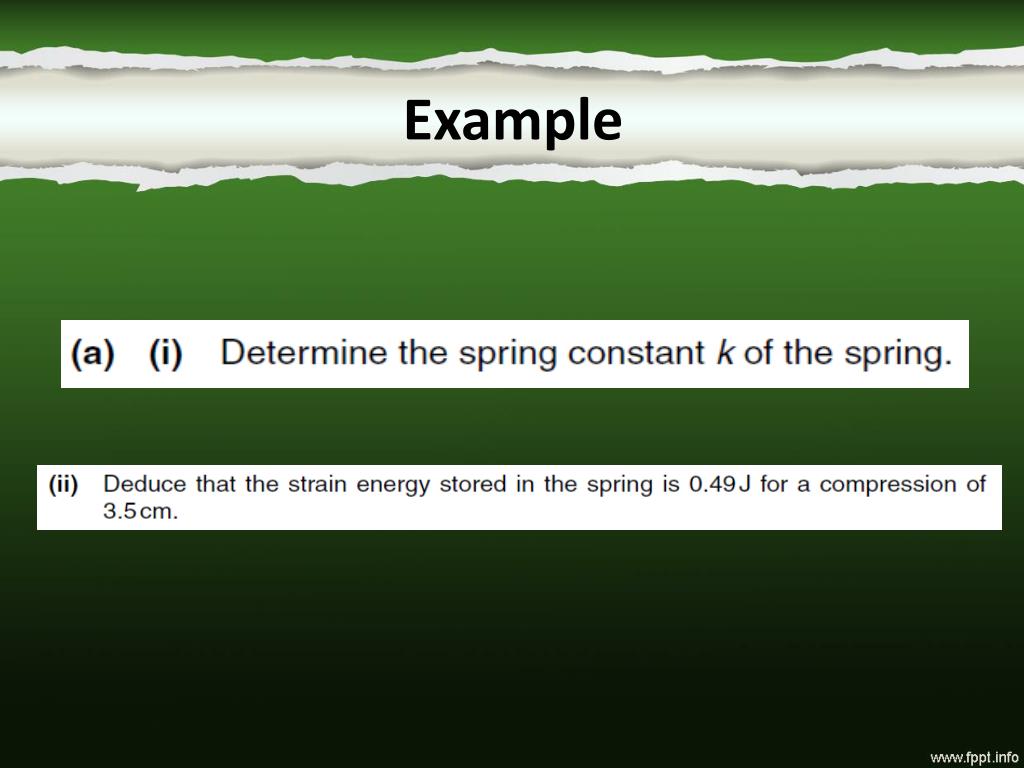

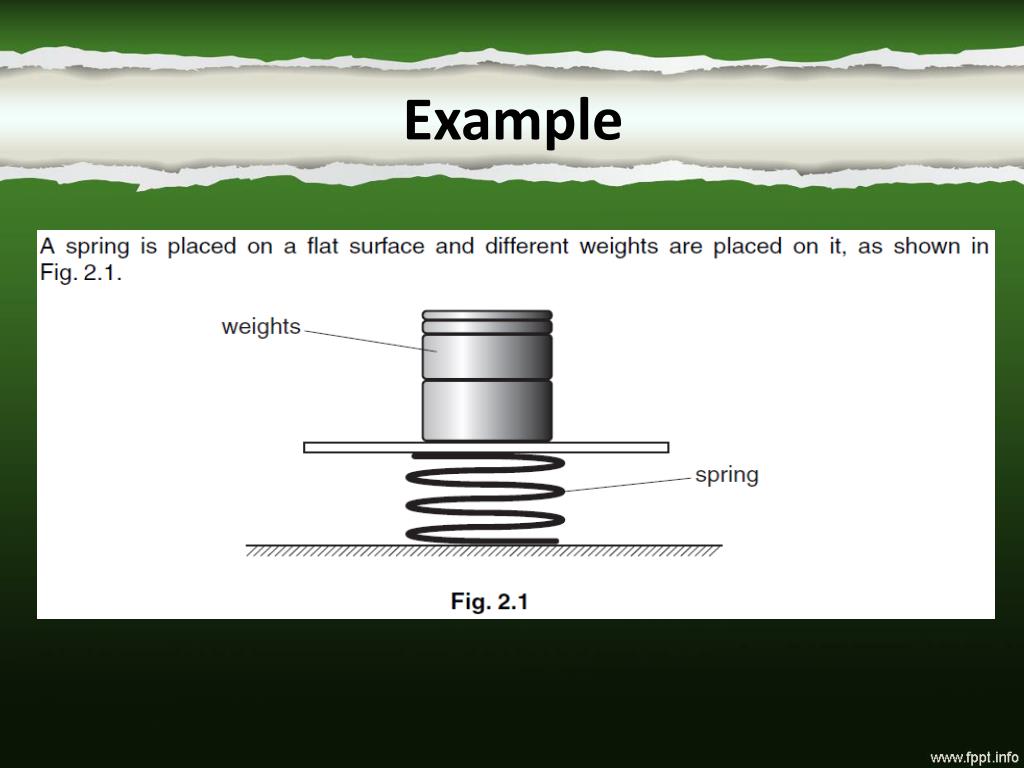

  8. Example

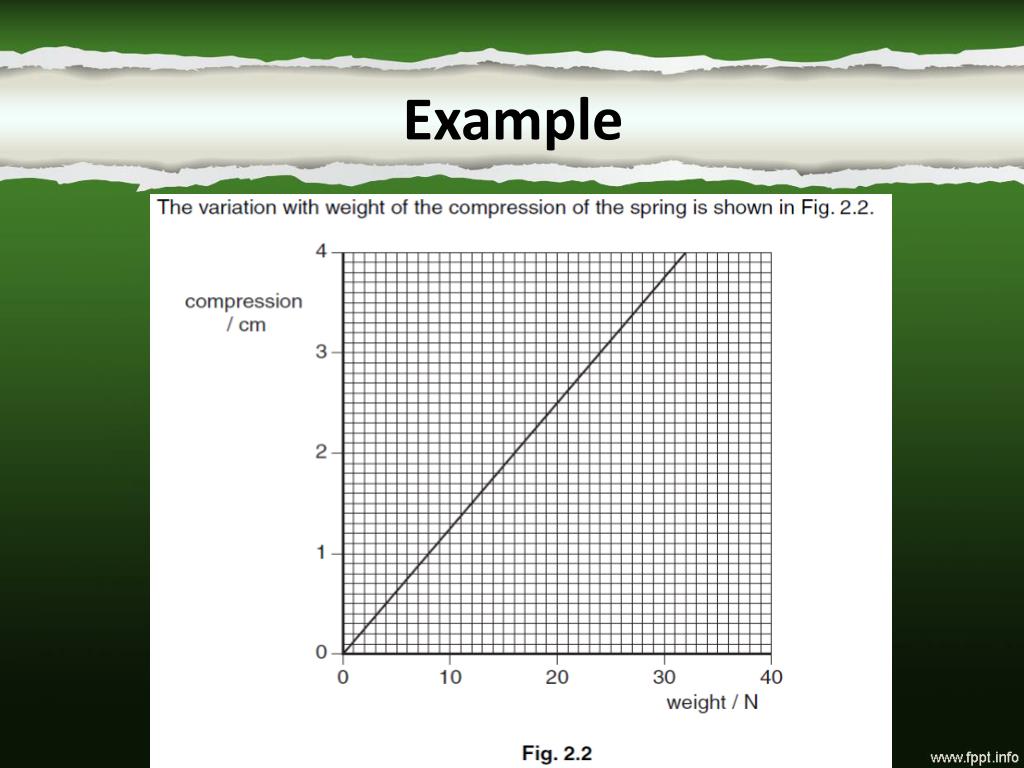

  9. Example

  10. Example

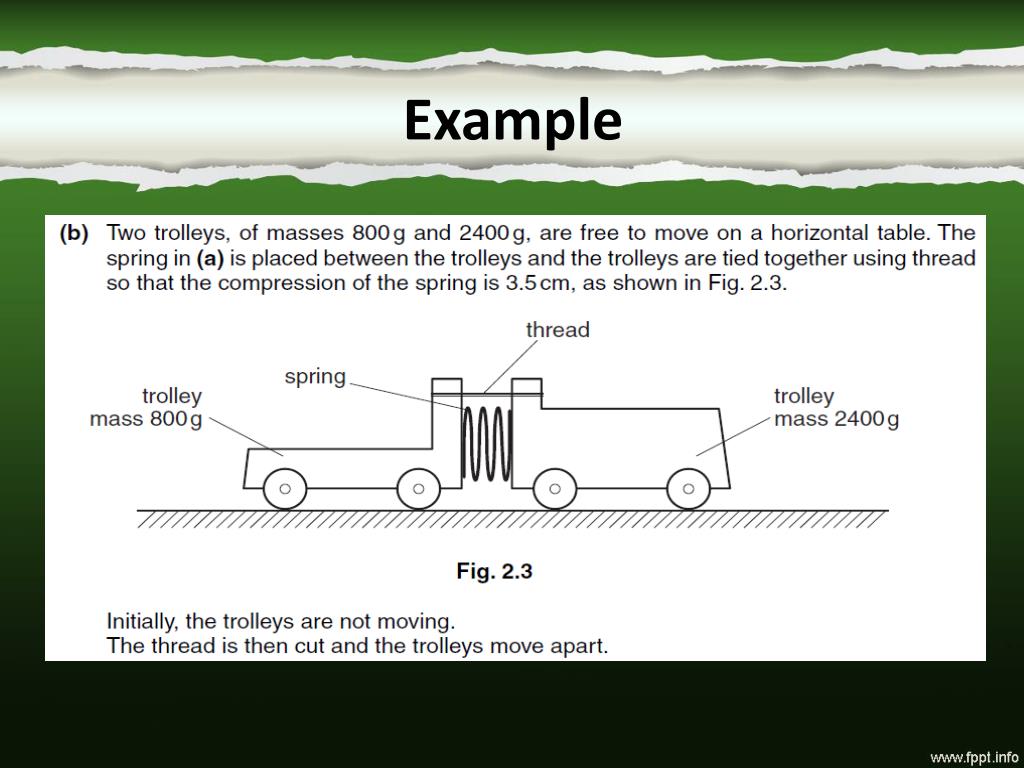

  11. Example

  12. Example
