  1. Number portability Using ENUM and SIP Adrian Georgescu AG Projects http://ag-projects.com

  2. The past: One socket in the wall One phone device One service provider Telephone number is “wired” to the socket in the wall. The service, device and address are hardwired to each other by the incumbent telco. Voice paradigm shift

  3. Today: Network access - WiFi in the hotel SIP device - my Hitachi WIP500 phone PSTN service - my provider is in the Netherlands Identity - my address is sip:ag@ag-projects.com Identity is the only common feature, all items are connected together only at logical level. Voice paradigm shift

  4. What changes over time? Each of them may change: • I wish I have the latest and most advanced phone • I wish I get the cheapest and fast Internet access • I wish I call at the cheapest rates to the PSTN • I may wish to work abroad, change location I do not want however to change my address every time!

  5. Number portability today If you can change your service provider and preserve your telephone number, you benefit of number portability • Porting numbers between mobile operators • Porting numbers between fixed line operators • Porting numbers from mobile to fixed operators • Porting numbers across borders (geographical) Current telephone number portability works with limited success and dependent on regulatory in each country

  6. Number portability on IP How can I be reached to my identity if I change either the access, the device or the service? • SIP maps Internet location of phones with SIP addresses • ENUM maps E.164 telephone numbers to SIP addresses The combination of SIP with ENUM provides an ideal number portability solution because they combine the logic of uniting the identity with the access, the device and the service

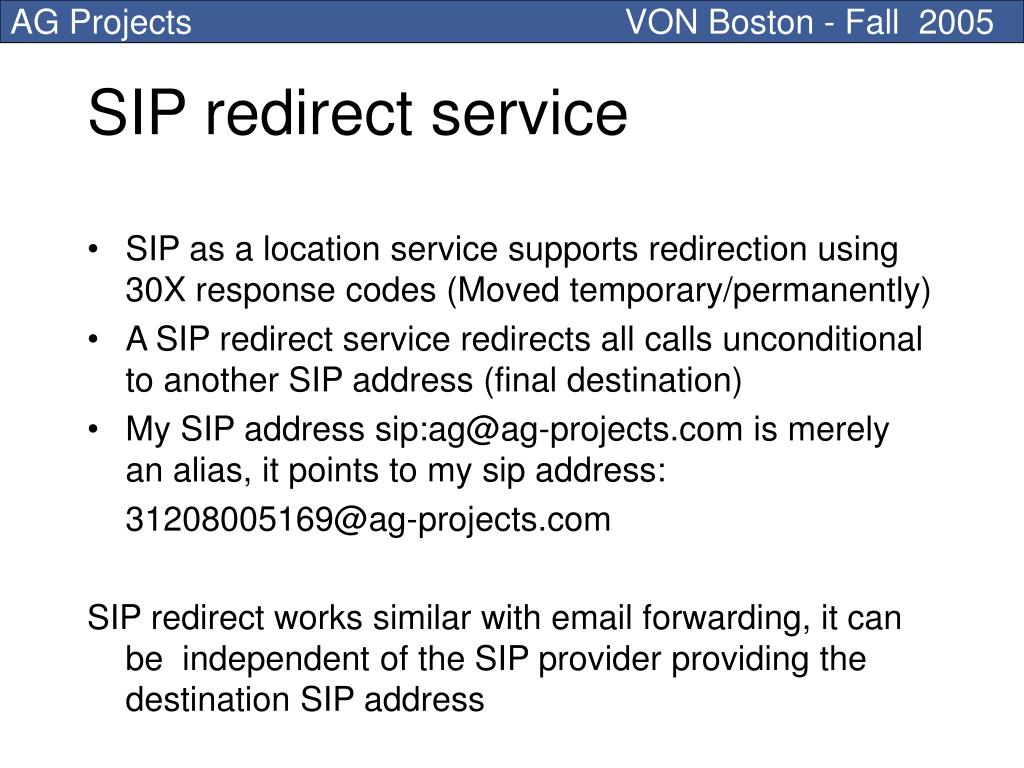

  7. SIP redirect service • SIP as a location service supports redirection using 30X response codes (Moved temporary/permanently) • A SIP redirect service redirects all calls unconditional to another SIP address (final destination) • My SIP address sip:ag@ag-projects.com is merely an alias, it points to my sip address: 31208005169@ag-projects.com SIP redirect works similar with email forwarding, it can be independent of the SIP provider providing the destination SIP address

  8. ENUM mappings ENUM is the “missing” link between PSTN and Internet • ENUM is an address translation database that maps E.164 numbers into IP addressing schemes (any) • My ENUM number +31208005169 points to my SIP address sip:31208005169@ag-projects.com The ENUM mappings are records hosted in the DNS like any other domain name. The domain hosting can be independent of the PSTN service provider.

  9. All together now! The recipe for Internet number portability is: • ENUM domain hosting • Internet domain registration • SIP Redirect service • Open-garden SIP service provider • ENUM enabled PSTN operator • User-ENUM ready national registry (opt in)

  10. What the user must do ? 1234@provider1.com 5678@provider2.com

  11. What the user must do firstName@lastName.com +1-123-456789 1234@provider1.com 5678@provider2.com

  12. What the user must do firstName@lastName.com +1-123-456789 1234@provider1.com 5678@provider2.com

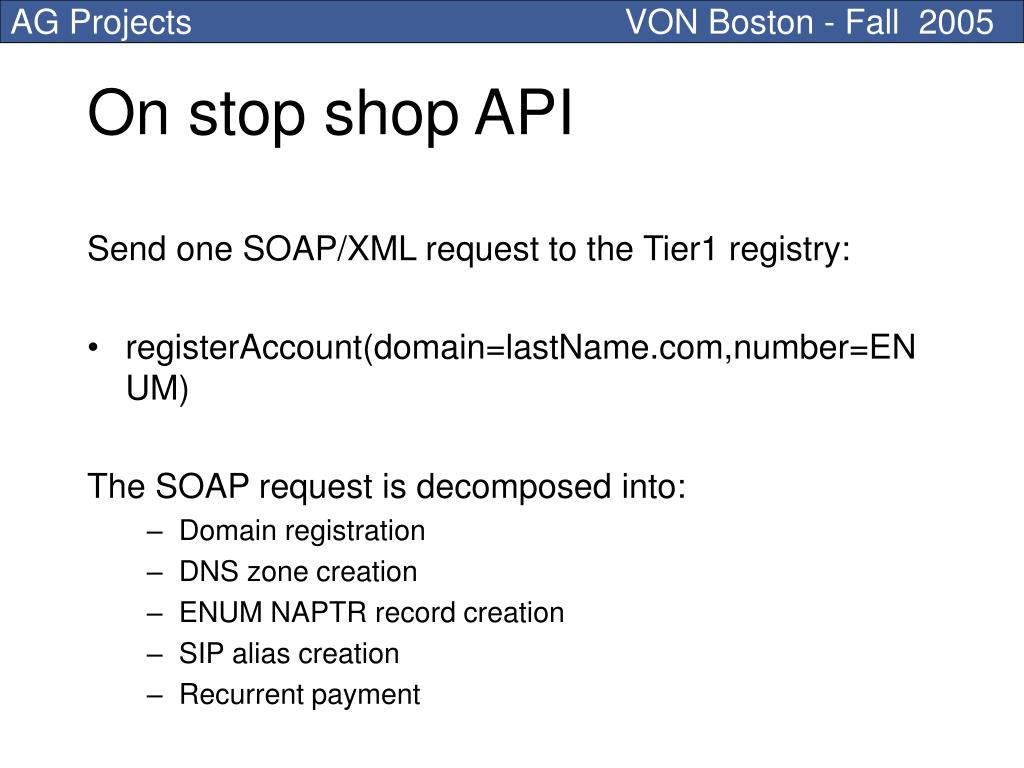

  13. On stop shop API Send one SOAP/XML request to the Tier1 registry: • registerAccount(domain=lastName.com,number=ENUM) The SOAP request is decomposed into: • Domain registration • DNS zone creation • ENUM NAPTR record creation • SIP alias creation • Recurrent payment

  14. Fiction or reality? Internet number portability is already in production status: • ENUM.at (Austria) • EUROVOICE.ro (Romania)

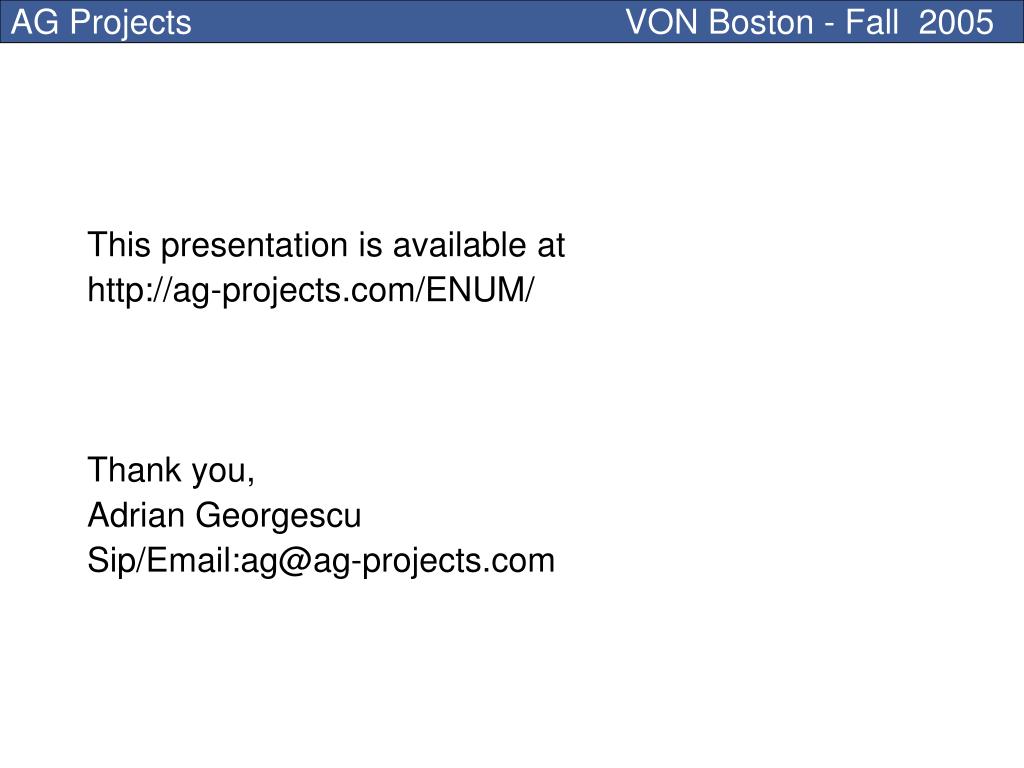

  15. This presentation is available at http://ag-projects.com/ENUM/ Thank you, Adrian Georgescu Sip/Email:ag@ag-projects.com
