Exception Handler’s. CS215 Lecture 21. Hardware Support. With the instructions and design of the MIPS R32 architecture that we have seen so far, there is no way to build a kernel. We have to have some way to get from the user code to the kernel code.
E N D
Exception Handler’s CS215 Lecture 21

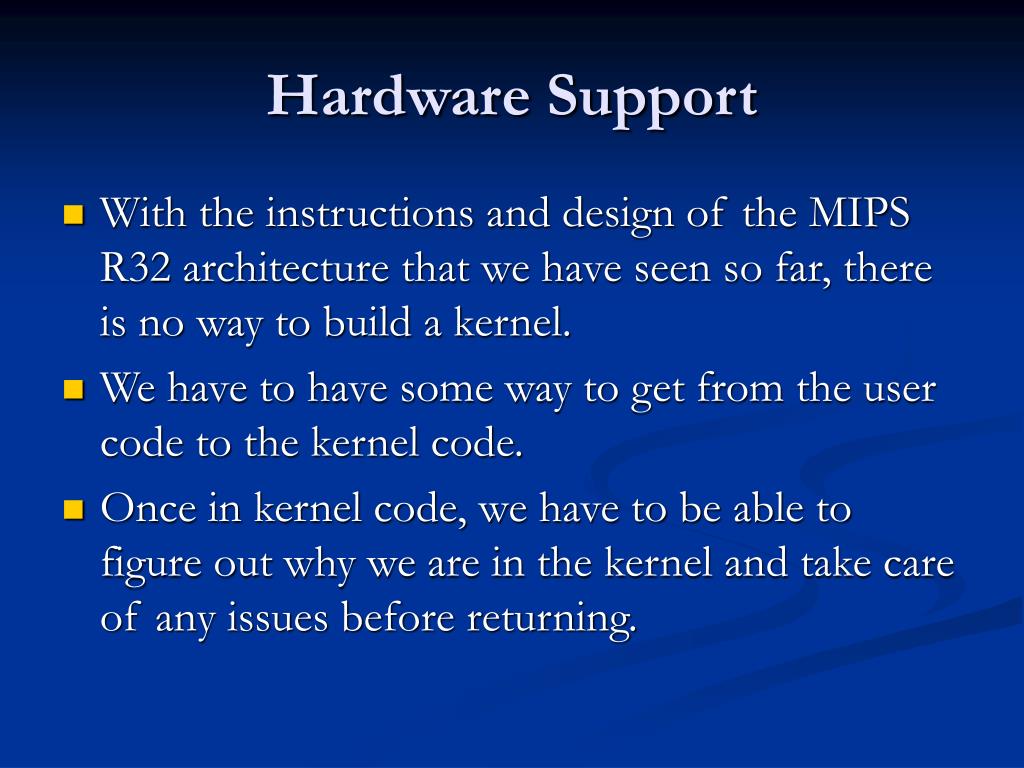

Hardware Support • With the instructions and design of the MIPS R32 architecture that we have seen so far, there is no way to build a kernel. • We have to have some way to get from the user code to the kernel code. • Once in kernel code, we have to be able to figure out why we are in the kernel and take care of any issues before returning.
Co-Processor 0 • The hardware support for the operating system comes from a module called co-processor 0. (Co-processor 1 is the FPU) • This special processor contains registers which can be read from and written to. • We can understand what needs to be done by reading these registers • We can change conditions by writing to these registers
Main Memory Co-Processor 0 32 special registers mfc0, mtc0 instructions when exception occurs the info is placed in the c0 registers and control is transferred to the kernel lw and swinstructions Standard CPU 32 registers $0 - $31 Co-Processor 1 Floating Point Unit 32 FPU registers instructions such as add.s, mul.s, etc. mfc1, mtc1 instructions

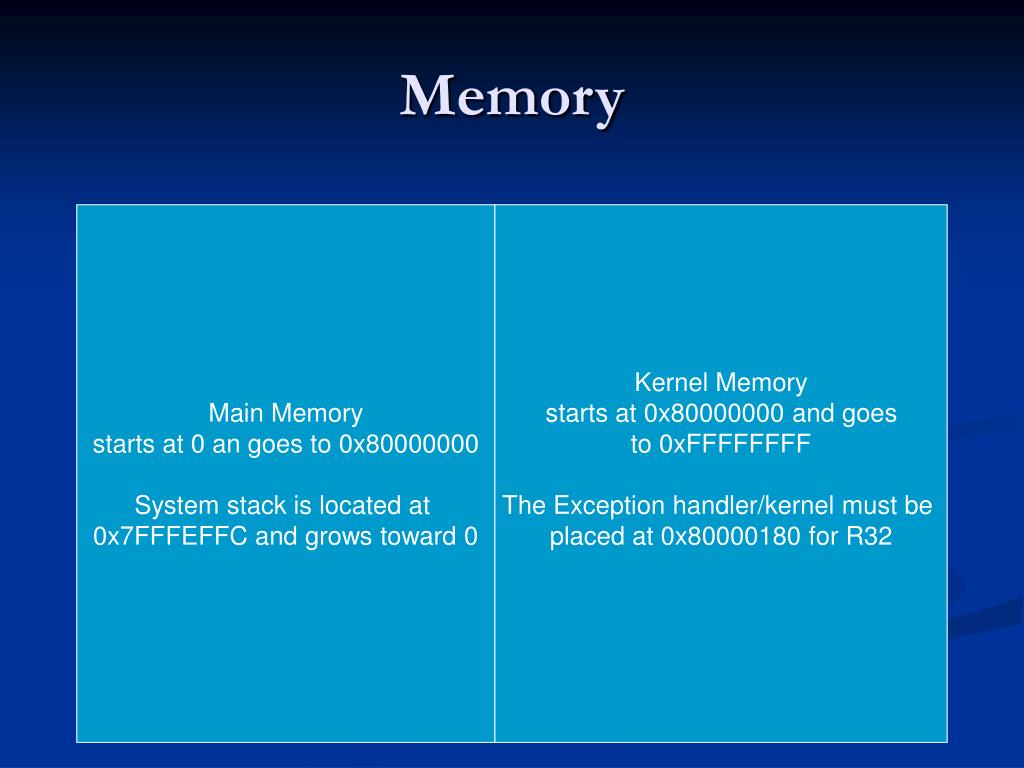

Memory Main Memory starts at 0 an goes to 0x80000000 System stack is located at 0x7FFFEFFC and grows toward 0 Kernel Memory starts at 0x80000000 and goes to 0xFFFFFFFF The Exception handler/kernel must be placed at 0x80000180 for R32
Cause Register - $13 8-15 28-29 16-27 7 2-6 31 30 0-1 BD – Branch Delay indicates whether the last exception was taken while executing in a branch delay slot CE – Coprocessor Error indicates the coprocessor unit number referenced when a coprocessor unusable exception is taken IP – Interrupt Pending indicated which external, internal, coprocessor and software interrupts are pending. Field reflects the current status. ExcCode – Exception Code…

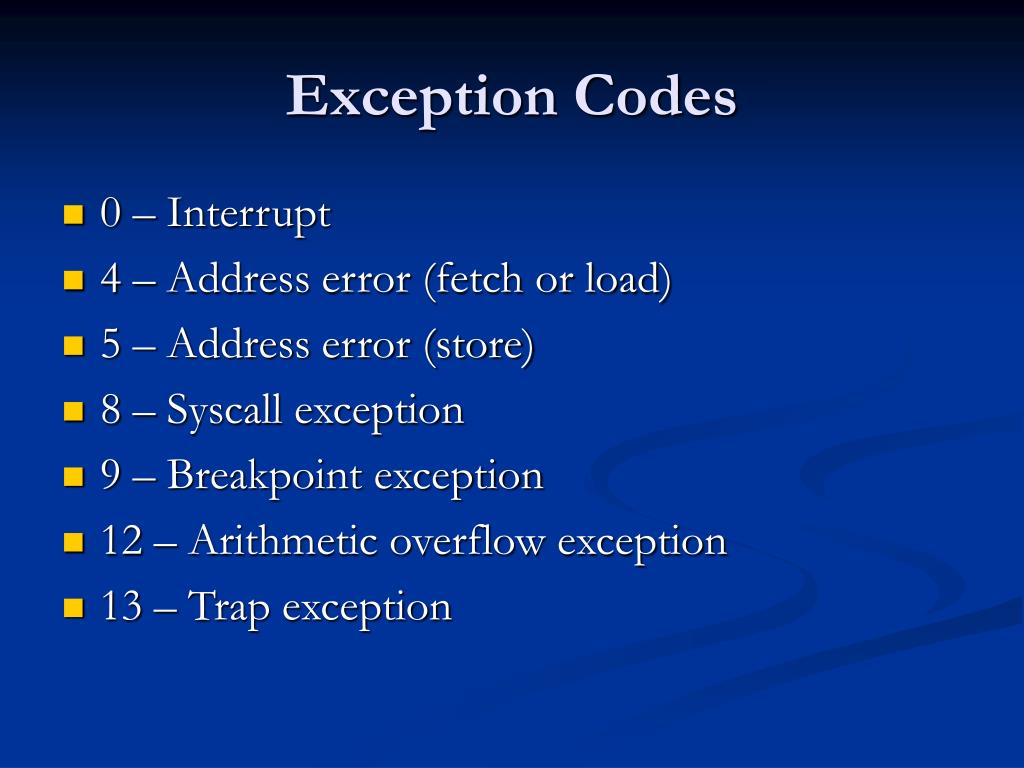

Exception Codes • 0 – Interrupt • 4 – Address error (fetch or load) • 5 – Address error (store) • 8 – Syscall exception • 9 – Breakpoint exception • 12 – Arithmetic overflow exception • 13 – Trap exception

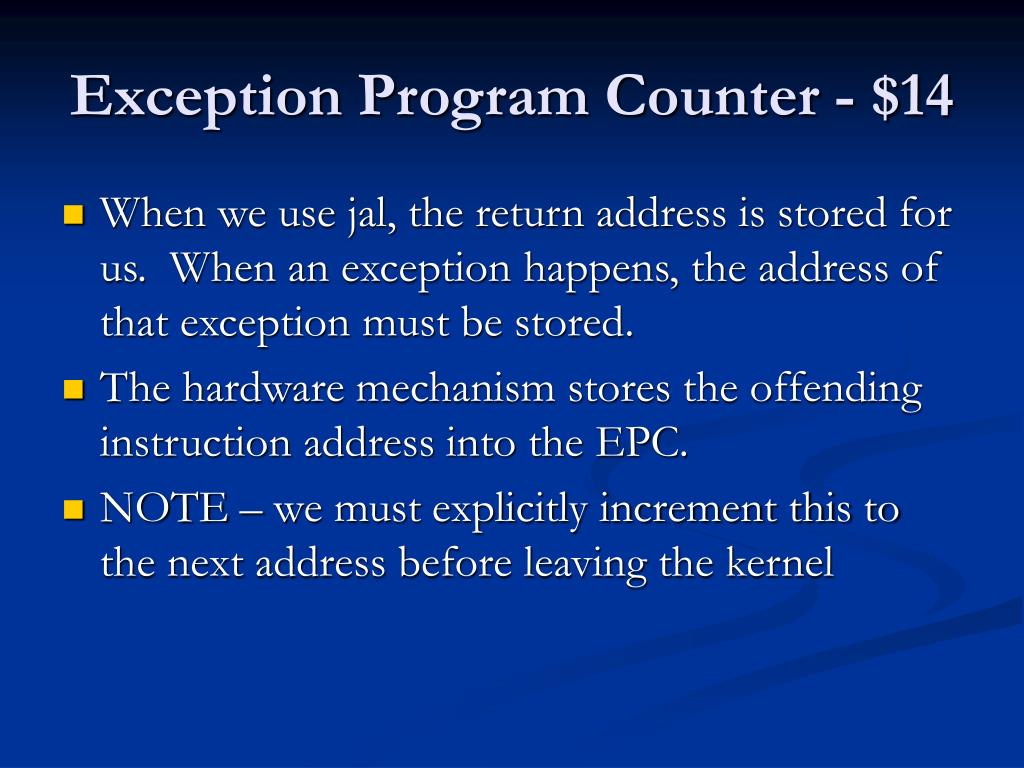

Exception Program Counter - $14 • When we use jal, the return address is stored for us. When an exception happens, the address of that exception must be stored. • The hardware mechanism stores the offending instruction address into the EPC. • NOTE – we must explicitly increment this to the next address before leaving the kernel
Other C0 registers • Context • Error • BadVAddr • Status • Config • ECC • CacheError
new TAL commands • mfc0 rt, c0rd – move from c0rd to rt • mtc0 rt, c0rd – move from rt to c0rd • eret – this instruction returns the kernel to the user program by going to the location held in the EPC • .kdata – tells assembler to place variables in kernel section of memory • .ktext – tells assembler to place code in kernel section of memory

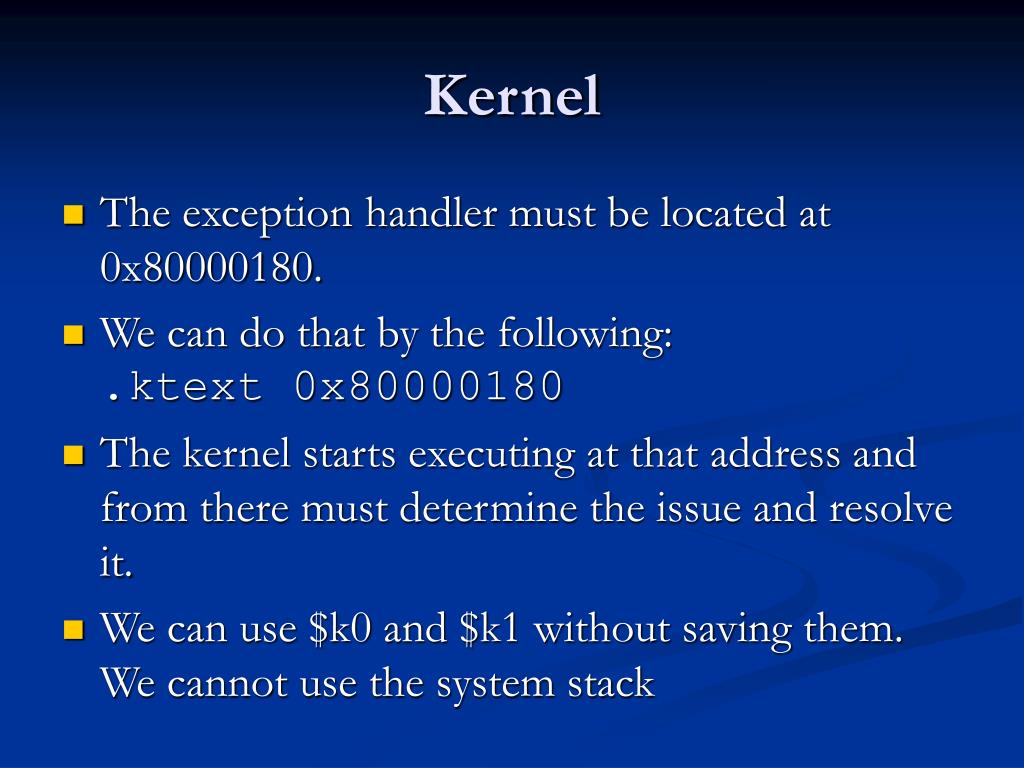

Kernel • The exception handler must be located at 0x80000180. • We can do that by the following:.ktext 0x80000180 • The kernel starts executing at that address and from there must determine the issue and resolve it. • We can use $k0 and $k1 without saving them. We cannot use the system stack
Syscall Issue • The spim simulator grabs the syscall (ExcCode 8) exceptions and thus the kernel never receives them. • For that reason, we will invoke the kernel by using a trap instruction:teq $0, $0 • This will get us in the kernel and let us still use syscall for getting and putting chars.
SPIM • To get spim to load your exception file on grid, use the following command:spim7 –ef your_excpt_file
