  1. Real-Time High Resolution Photogrammetry John Morris, Georgy Gimel’farb and Patrice DelmasCITR, Tamaki Campus,University of Auckland

  2. Applications • Navigation • Collision avoidance in traffic • Manoeuvring in dynamic environments • Biometrics • Face recognition • Tracking individuals • Films • Markerless motion tracking • Security • Intelligent threat detection • Civil Engineering • Materials Science • Archaeology

  3. Why Stereo? • Passive • Suitable for dense environments • Wide area 3D data can be acquired at high rates • Textureless regions cause problems • Active illumination can resolve these

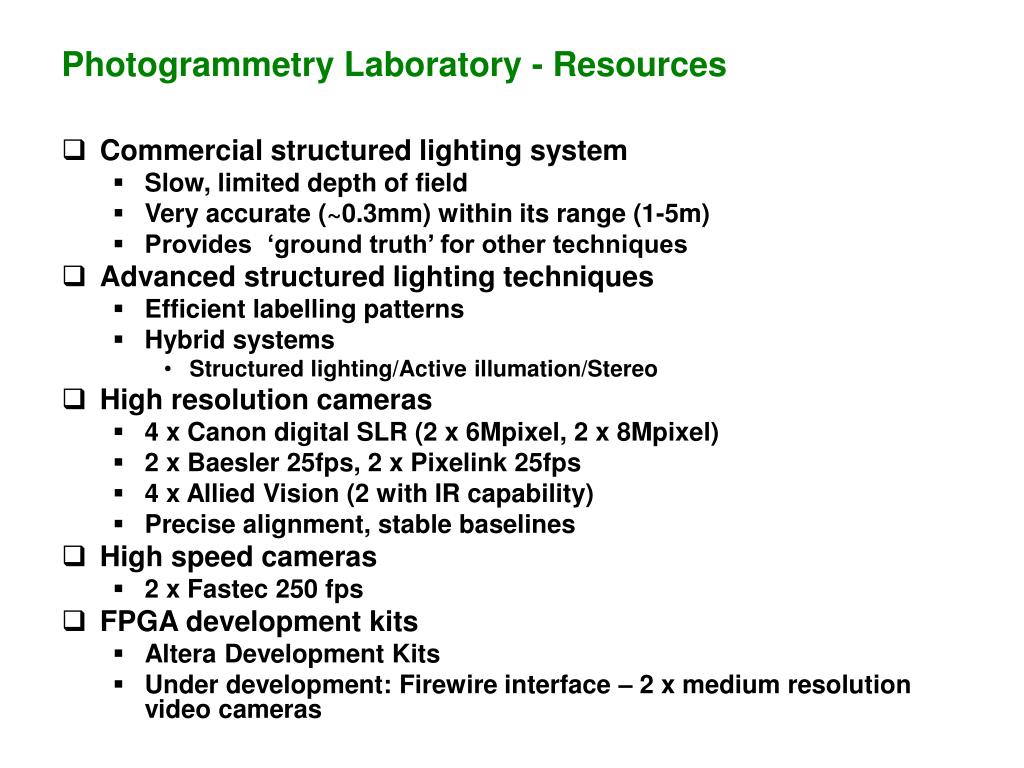

  4. Photogrammetry Laboratory - Resources • Commercial structured lighting system • Slow, limited depth of field • Very accurate (~0.3mm) within its range (1-5m) • Provides ‘ground truth’ for other techniques • Advanced structured lighting techniques • Efficient labelling patterns • Hybrid systems • Structured lighting/Active illumation/Stereo • High resolution cameras • 4 x Canon digital SLR (2 x 6Mpixel, 2 x 8Mpixel) • 2 x Baesler 25fps, 2 x Pixelink 25fps • 4 x Allied Vision (2 with IR capability) • Precise alignment, stable baselines • High speed cameras • 2 x Fastec 250 fps • FPGA development kits • Altera Development Kits • Under development: Firewire interface – 2 x medium resolution video cameras

  5. Photogrammetry Lab • Stereo • Canon digital SLRs – 6 Mpixels • Low distortion lenses • Stable optical base • Precise alignment • Provision for verging optics • Target: Accurate 3D environment maps

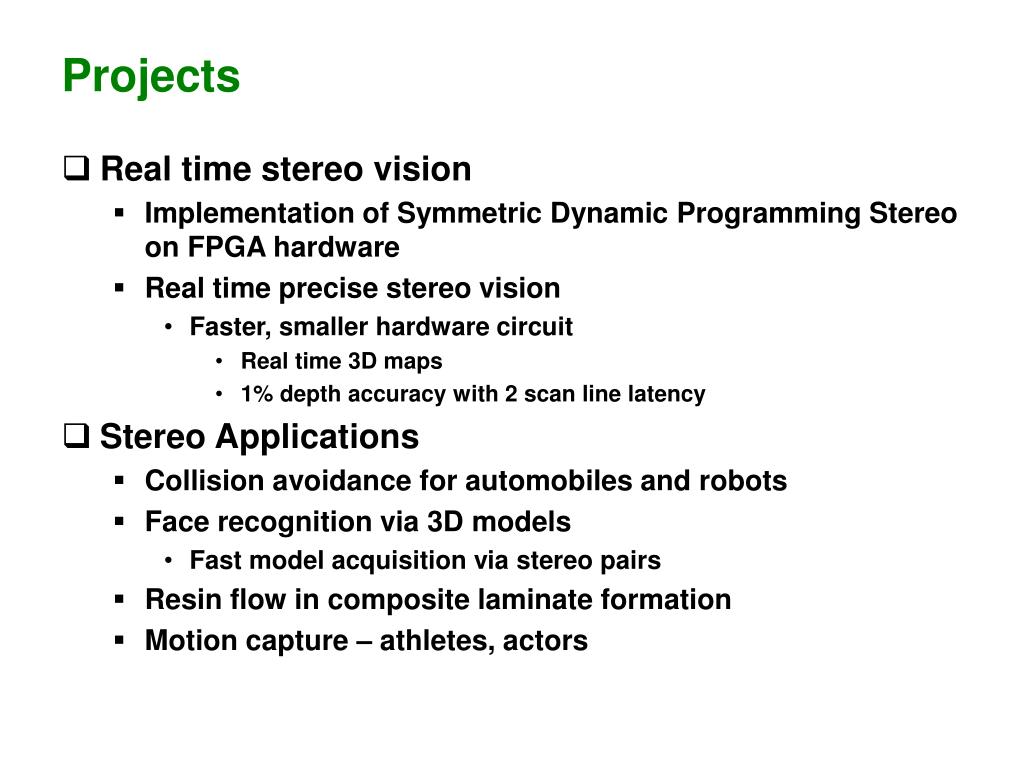

  6. Projects • Real time stereo vision • Implementation of Symmetric Dynamic Programming Stereo on FPGA hardware • Real time precise stereo vision • Faster, smaller hardware circuit • Real time 3D maps • 1% depth accuracy with 2 scan line latency • Stereo Applications • Collision avoidance for automobiles and robots • Face recognition via 3D models • Fast model acquisition via stereo pairs • Resin flow in composite laminate formation • Motion capture – athletes, actors

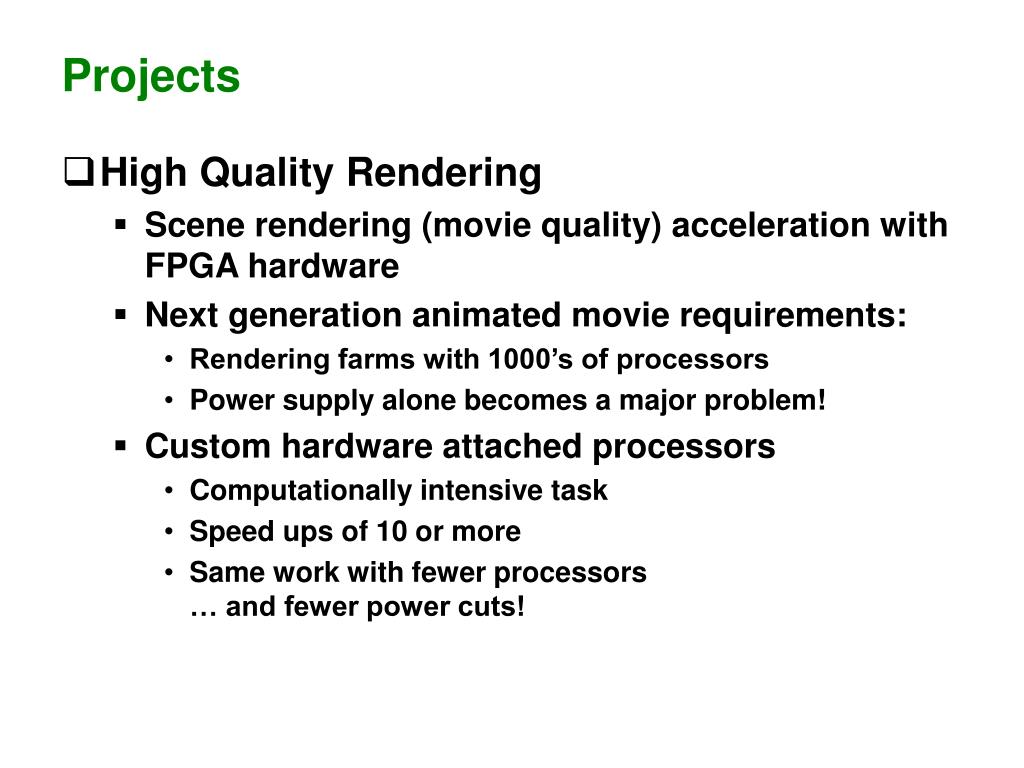

  7. Projects • High Quality Rendering • Scene rendering (movie quality) acceleration with FPGA hardware • Next generation animated movie requirements: • Rendering farms with 1000’s of processors • Power supply alone becomes a major problem! • Custom hardware attached processors • Computationally intensive task • Speed ups of 10 or more • Same work with fewer processors… and fewer power cuts!

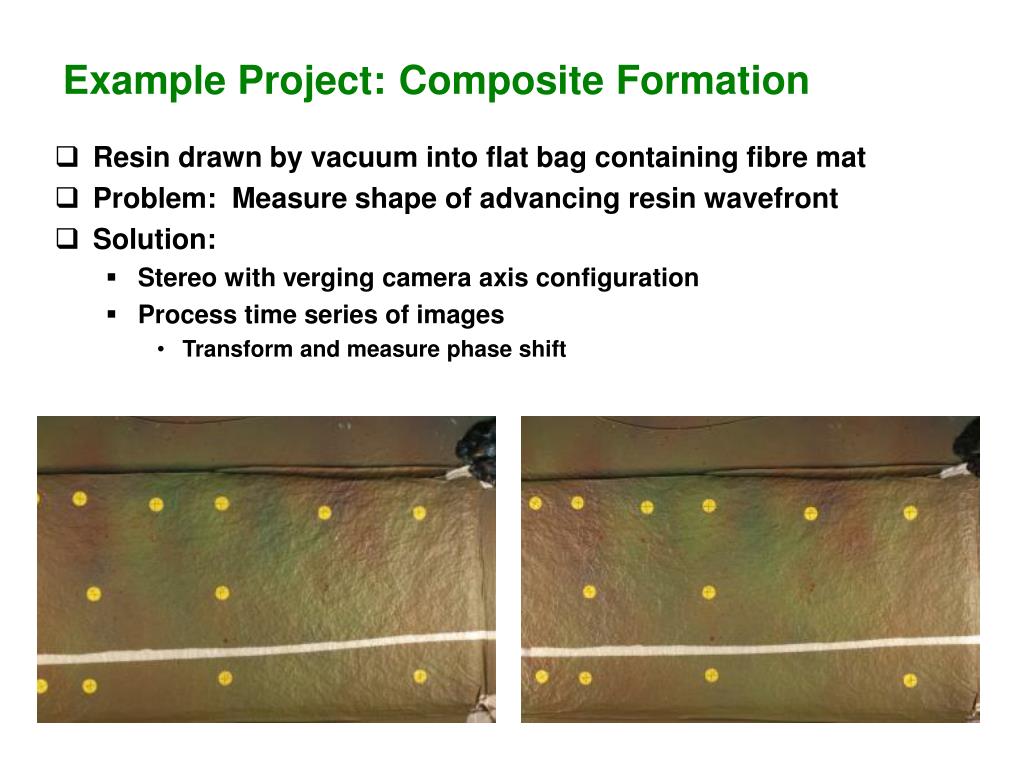

  8. Example Project:Composite Formation • Resin drawn by vacuum into flat bag containing fibre mat • Problem: Measure shape of advancing resin wavefront • Solution: • Stereo with verging camera axis configuration • Process time series of images • Transform and measure phase shift

  9. Composite Materials Laboratory • Tamaki Campus • Same building as Wine Science  • 8Mpixel Canon digital SLRs on stable base with precise alignment

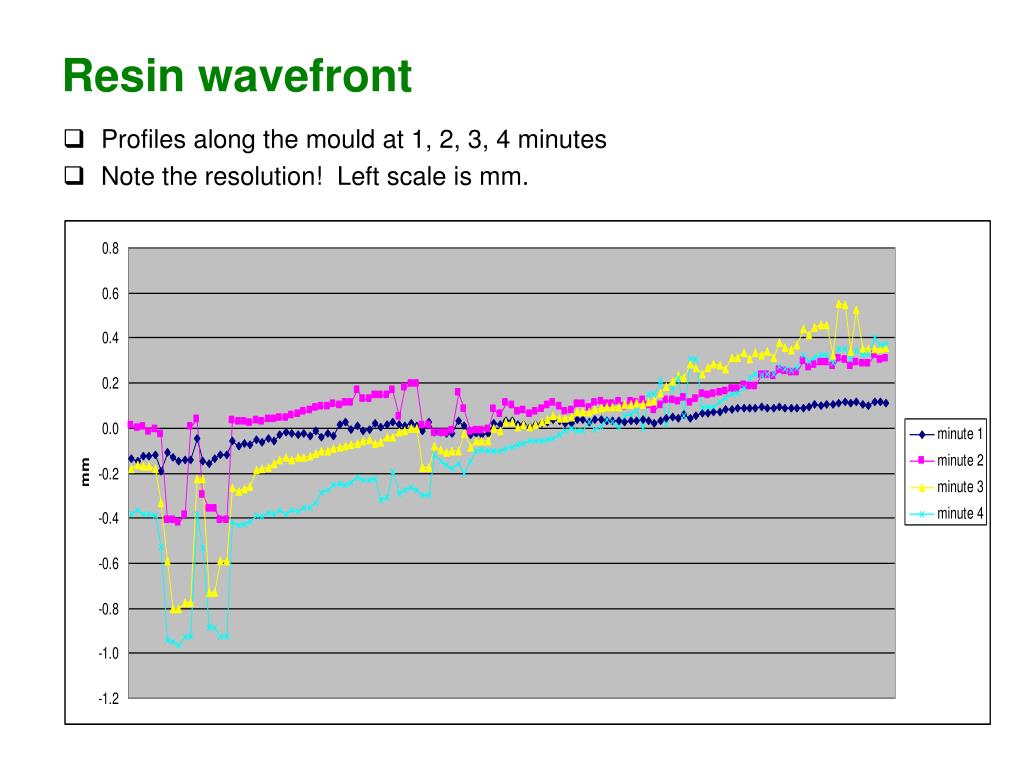

  10. Resin wavefront • Profiles along the mould at 1, 2, 3, 4 minutes • Note the resolution! Left scale is mm.
