  1. Adapter

  2. AGENDA *Adapter Block diagram *Circuit refers *CET products

  3. Adaptor Application Transformer D Vin AC 85~265V 50~60Hz + Line Filter Rectifier Diode DC Link Cap Load CEP0xN6 Sense FET PWM

  4. AC Input Rectifier PFC PWM Transformer DC Output Power Switch Linear Regulator Synchronous Rectifier Adapter- Block diagram

  5. Circuit refers

  6. PFC 被動功因：.利用電感、電容於電源端以便將領先或落後之相位做補償，線路架構上較簡單，但其存在體積大、重量重、輸出易因輸入電壓變動而閃爍不穩定。 主動功因：.一般利用市售之IC來達成功率因素修正功能，其原理乃將PFC.IC電路，至於橋式整流器及負載之間，使其電流隨整流後的電壓波型而做調整，其優點為輸出不因輸入電壓變動而改變，但奇線路架構上路較為複雜。 CEX740N(A), CEX10N4, CEX840N (400V/10A) (450V/10A) (500V/8A)

  7. PWM PWM（Pulse Width Modulation）把變流器的輸出電壓斬波成為脈衝，通過改變脈衝的寬度、數量或者分佈規則，以改變輸出電壓的數值和頻率的控制方法。 CEX01N7,CEX04N7, CEX02N7, CEX09N7A , CEX1165 , (700V/0.8A) (700V/4A) (700V/1.9-1.6A) (700V/8A) (600V/10A) CEX1175 (650V/10A) CEX01N6 , (650V/0.9A) CEX02N6, CEX02N6A, CEX04N6, CEX09N6, CEX07N8A (600V /2-1.9A) (650V/1.5-1.3A) (600V/4A) (600V/9A) (800V/6.5A)

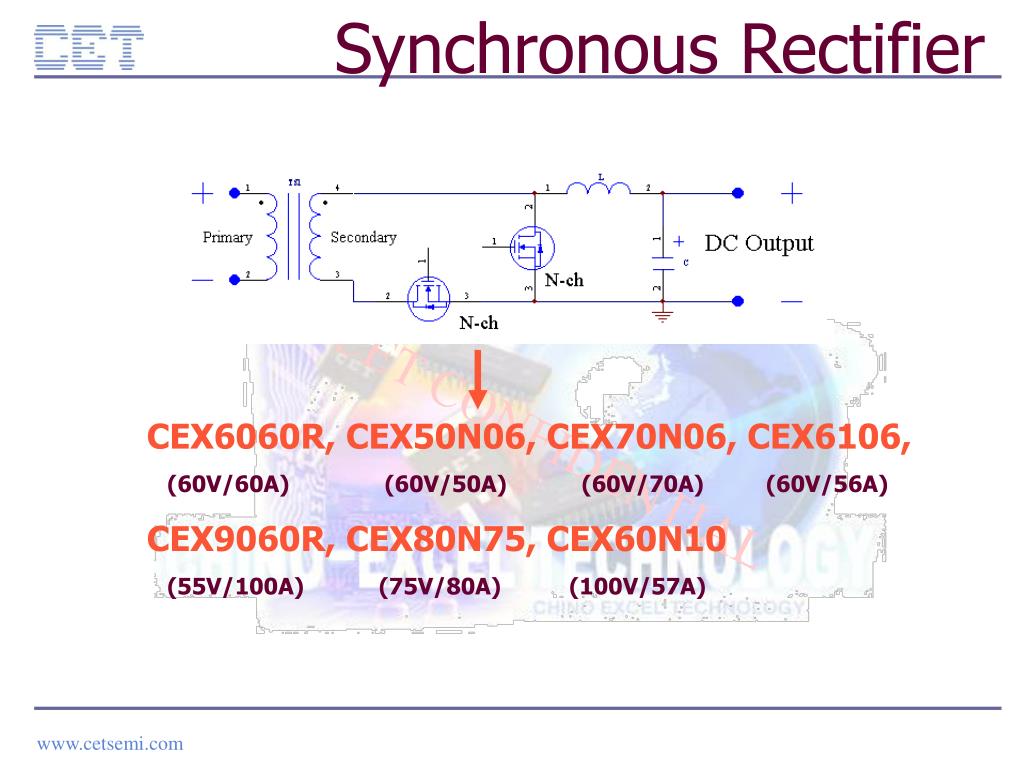

  8. Synchronous Rectifier CEX6060R, CEX50N06, CEX70N06, CEX6106, (60V/60A) (60V/50A) (60V/70A)(60V/56A) CEX9060R, CEX80N75, CEX60N10 (55V/100A) (75V/80A) (100V/57A)

  9. CET products-adapter

  10. Rm.1602,Blk A,New Trade Plaza No.6 Ping St. Shatin.H.K. Http://www.goldfullsemi.com TEL:852 -2649 8901FAX:852- 2649 9164 THANK YOU !
