2500  Average Temperature

Types of Coal. Coal. 2500  Average Temperature. Average =. 7 % Ash, 93 % Carbon 13,000 BTU. Grades of Coal: Metric Anthracite Anthracite Bituminous Sub Bituminous Lignite. Ranges. Waste Coal. 1700  Average Temperature. Average =. 49 % Ash, 51 % Carbon 5,000 BTU (4336). Ranges.

axel-mclaughlin
Télécharger la présentation

2500  Average Temperature

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

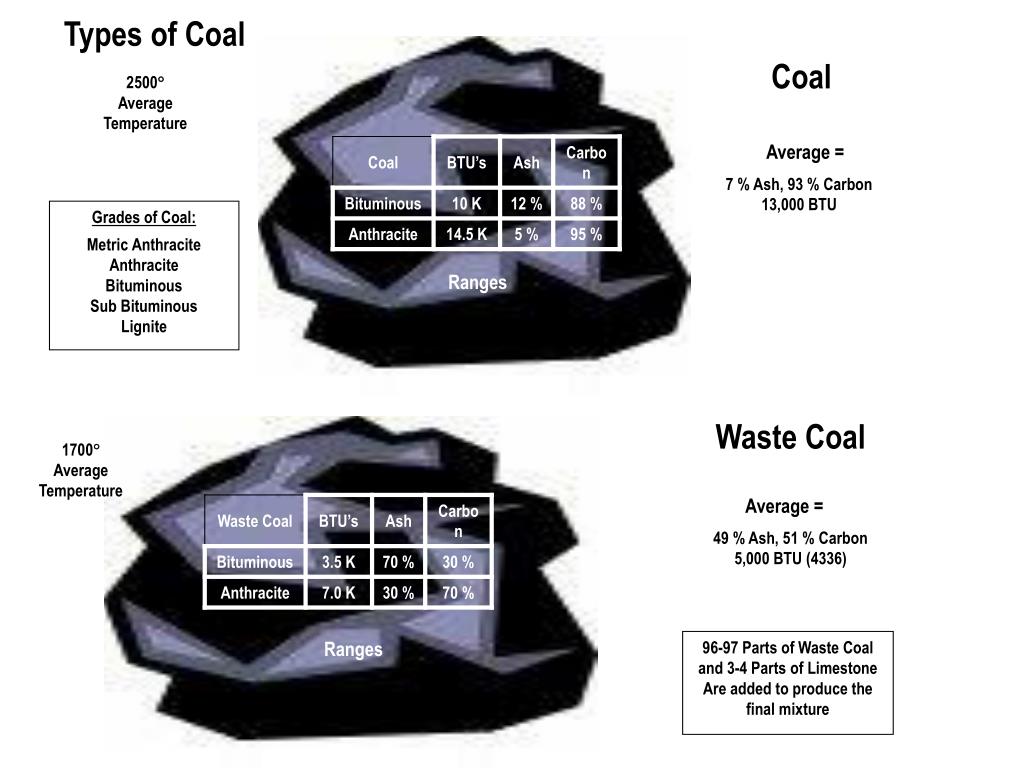

  1. Types of Coal Coal 2500Average Temperature Average = 7 % Ash, 93 % Carbon13,000 BTU Grades of Coal: Metric Anthracite Anthracite Bituminous Sub Bituminous Lignite Ranges Waste Coal 1700Average Temperature Average = 49 % Ash, 51 % Carbon5,000 BTU (4336) Ranges 96-97 Parts of Waste Coal and 3-4 Parts of Limestone Are added to produce the final mixture

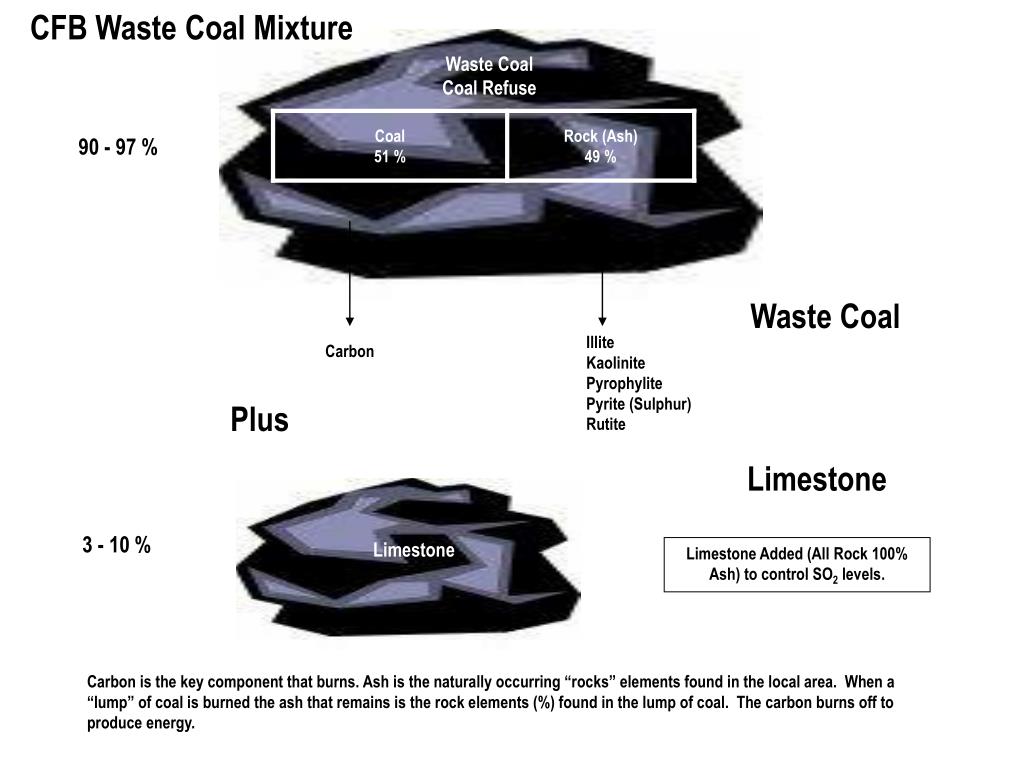

  2. CFB Waste Coal Mixture Waste Coal Coal Refuse 90 - 97 % Waste Coal Illite Kaolinite Pyrophylite Pyrite (Sulphur) Rutite Carbon Plus Limestone 3 - 10 % Limestone Limestone Added (All Rock 100% Ash) to control SO2 levels. Carbon is the key component that burns. Ash is the naturally occurring “rocks” elements found in the local area. When a “lump” of coal is burned the ash that remains is the rock elements (%) found in the lump of coal. The carbon burns off to produce energy.

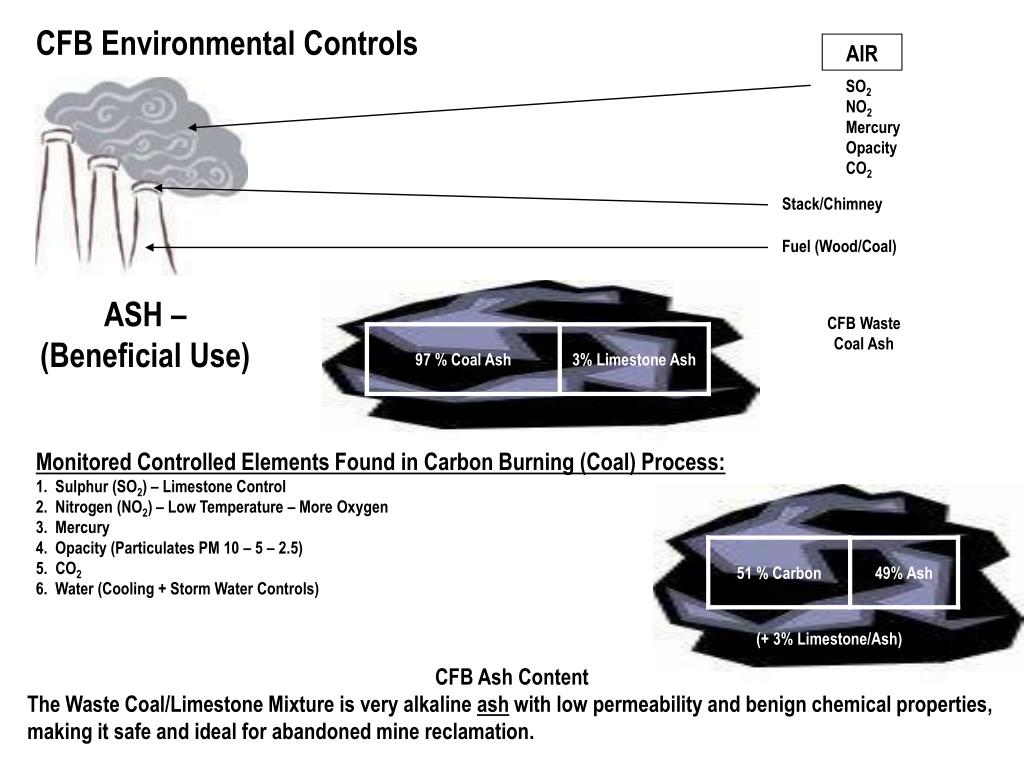

  3. CFB Environmental Controls AIR SO2 NO2 Mercury Opacity CO2 Stack/Chimney Fuel (Wood/Coal) ASH – (Beneficial Use) CFB Waste Coal Ash Monitored Controlled Elements Found in Carbon Burning (Coal) Process:1. Sulphur (SO2) – Limestone Control2. Nitrogen (NO2) – Low Temperature – More Oxygen 3. Mercury 4. Opacity (Particulates PM 10 – 5 – 2.5)5. CO2 6. Water (Cooling + Storm Water Controls) (+ 3% Limestone/Ash) CFB Ash Content The Waste Coal/Limestone Mixture is very alkaline ash with low permeability and benign chemical properties, making it safe and ideal for abandoned mine reclamation. CFB Ash Content The Waste Coal/Limestone Mixture is very alkaline ash with low permeability and benign chemical properties, making it safe and ideal for abandoned mine reclamation
