  1. TECHNICAL NEWS & CONFIGURATIONS

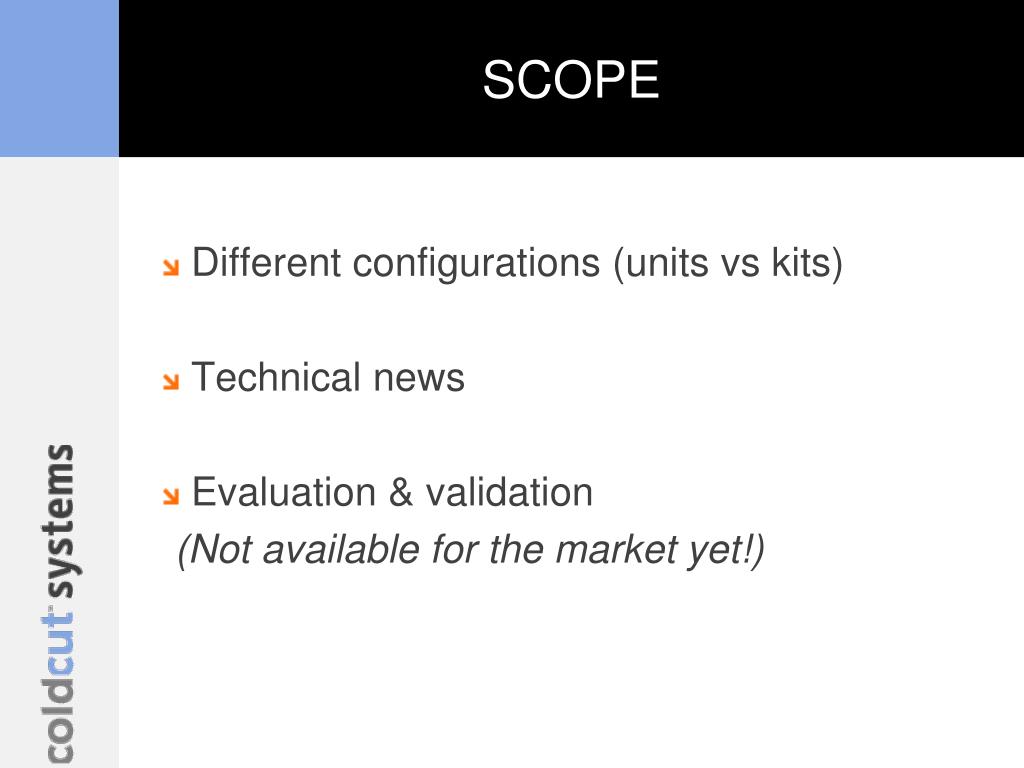

  2. SCOPE • Different configurations (units vs kits) • Technical news • Evaluation & validation (Not available for the market yet!)

  3. DIFFERENT CONFIGURATIONS • Frame units Assembling kits C360P-Frame unit C360- Kit C360D-Frame unit C360B-Kit C360H-Kit C360HLS-Kit C360P-Kit (on req) C330P- Frame unit C330P-Kit (on req) C330D- Marine unit C330H-Marine (on req) Customized solutions C350-Egenes

  4. PERMANENTLY INSTALLED • Consider power supply, water supply and frost protection • C360H – Kit and C360HLS - First response • C360-Kit (Split shaft) and C360B-Kit (PTO) – Rapid response • Use the power source from the vehicle! • Retrofit possible

  5. SKY LIFT • Prepare the Sky lift with a hose reel assembly and make use of main cobra appliance • Cost effective and flexible solution

  6. FRAME UNITS • Consider mobility and water supply (with / without reservoir) • Industrial FRS, Training school etc • Different systems for different purposes • Diesel or petroleum engines

  7. NEWS • Abrasive vessel – top discharge version 2 • Oil hydraulic load sensing system (HLS) • Active frost protection • Accessories

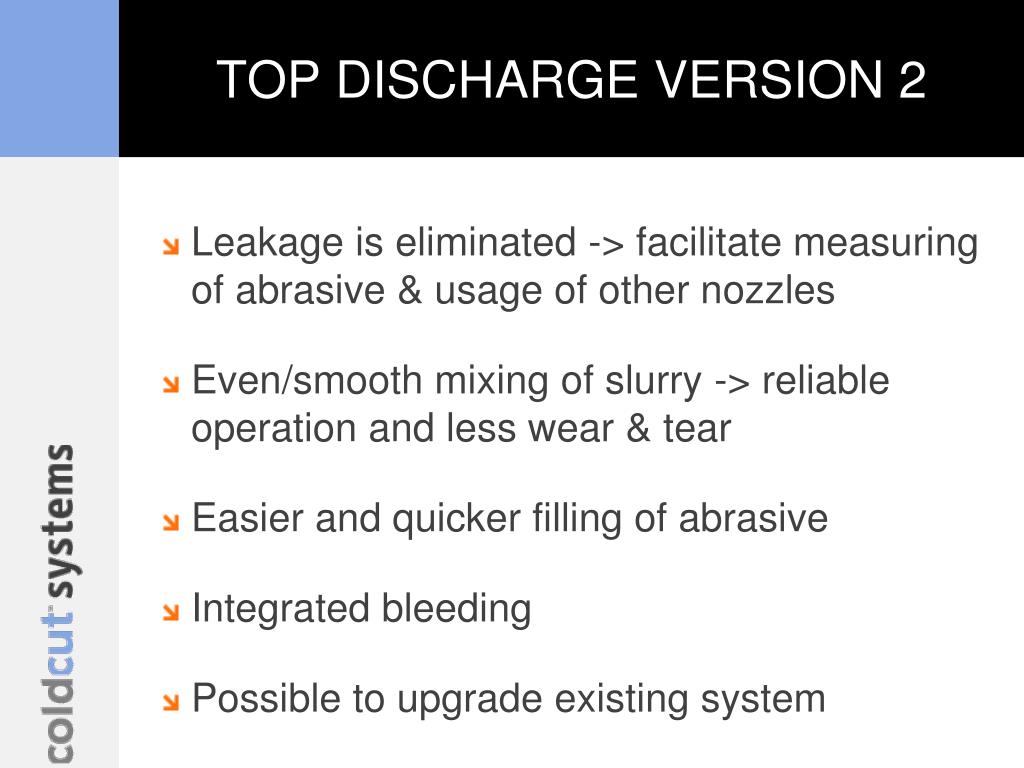

  8. TOP DISCHARGE VERSION 2 • Leakage is eliminated -> facilitate measuring of abrasive & usage of other nozzles • Even/smooth mixing of slurry -> reliable operation and less wear & tear • Easier and quicker filling of abrasive • Integrated bleeding • Possible to upgrade existing system

  9. HLS-SYSTEM • Partnership with Parker (World class system supplier) • Competence customized solutions • Customized cobra-manifold block • Reliability (purity, heat losses, flushing) • Factory set

  10. FROST PROTECTION • Passive, active and “for storing” • Active frost protection, 1-2 lpm continuous flow • N/A for H and HLS systems with suction water supply

  11. ACCESSORIES • Applications (low pressure)
