  1. Dusan Jovic -- NOAA/NCEP/EMC WRF SI(The WRF Standard Initialization)HWRF specific !!!

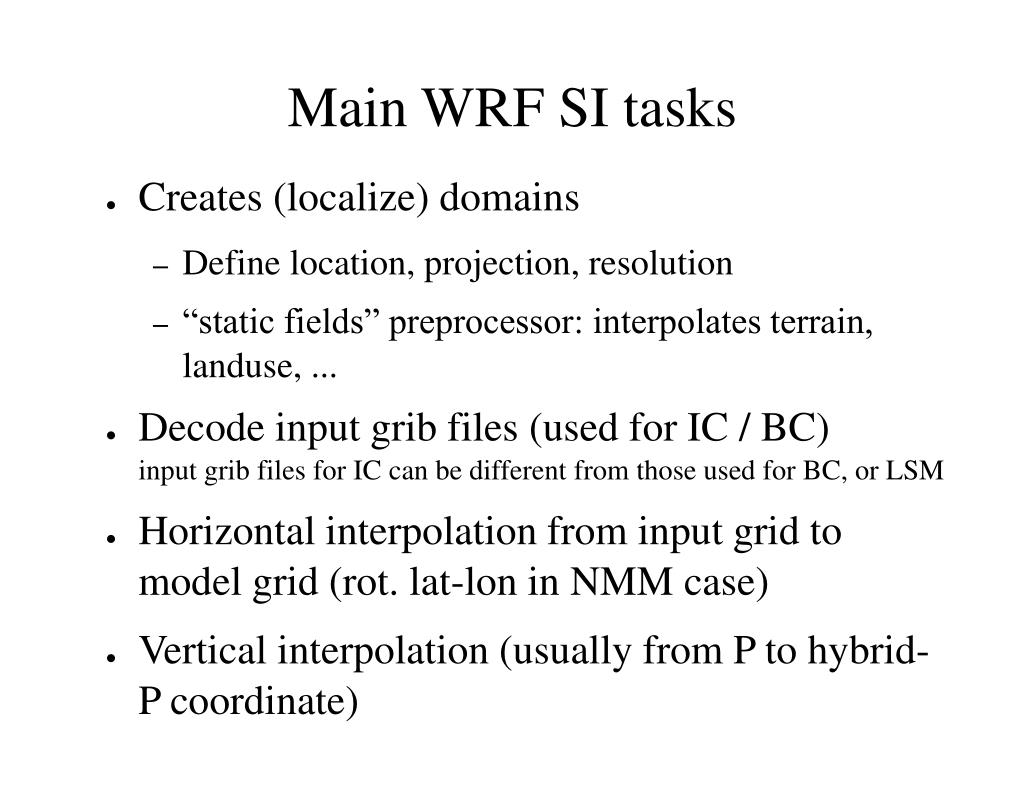

  2. Main WRF SI tasks • Creates (localize) domains • Define location, projection, resolution • “static fields” preprocessor: interpolates terrain, landuse, ... • Decode input grib files (used for IC / BC)input grib files for IC can be different from those used for BC, or LSM • Horizontal interpolation from input grid to model grid (rot. lat-lon in NMM case) • Vertical interpolation (usually from P to hybrid-P coordinate)

  3. Required software • Fortran 90 compiler • C compiler • netCDF (libraries, include files and ncdump) • make • perl Required Input Files • Static data ( topography, landuse ...) ftp://aftp.fsl.noaa.gov/divisions/frd-laps/WRFSI/Geog_Data • Grib Data (GFS, Eta, ...)

  4. How to install and run WRF SI • untar the distribution file (will create HWRFV1 directory, SI is in NMMSI) • configure and compile SI • edit install.scr • /usr/bin/perl ./srcroot/install_wrfsi.pl \ --source_root="/emc2/wx20du/WRFEMC/HWRF/NMMSI/srcroot" \ --installroot="/emc2/wx20du/WRFEMC/HWRF/NMMSI/setup" \ --path_to_netcdf="/usrx/local/netcdf3.5" \ --geog_dataroot="/emc2/wx20py/wrfsigeog" \ --machine="ibm"

  5. set compiler options in srcroot/src/lib/w3lib.source_ei/Makefile andsrcroot/src/lib/w3lib.source_ei/clib.h • run install.scr • after compilation is done, in the$INSTALLROOT/bingridgen_model.exe grib_prep.exe hinterp.exe vinterp.exe siscan

  6. edit paths in$EXT_DATAROOT/static/grib_prep.nl &gpinput_defs SRCNAME = 'GFDL','ETA','GFS','AVN','AVNLSM','RUCH','NNRP', 'NNRPSFC','SST', SRCVTAB = 'GFDL','ETA','GFS','AVN','AVNLSM','RUCH','NNRPSFC','NNRPSFC','SST', SRCPATH = '/export/lnx280/wd20dj/HWRF/NMMSI/gribdata/GFDL', '/export/lnx280/wd20dj/HWRF/NMMSI/gribdata/ETA', '/export/lnx280/wd20dj/HWRF/NMMSI/gribdata/AVN', '/export/lnx280/wd20dj/HWRF/NMMSI/gribdata/AVN', '/export/lnx280/wd20dj/HWRF/NMMSI/gribdata/AVNLSM', '/rt0/rucdev/nrelwind/run/maps_fcst', '/path/to/nnrp/grib', '/path/to/nnrp/sfc/grib', '/public/data/grids/ncep/sst/grib', SRCCYCLE = 6,6,6,6,12,12,24, SRCDELAY = 3,4,4,3, 0, 0,36, /

  7. WRF SI main programs (overview) grib_prep gridgen_model hinterp vinterp

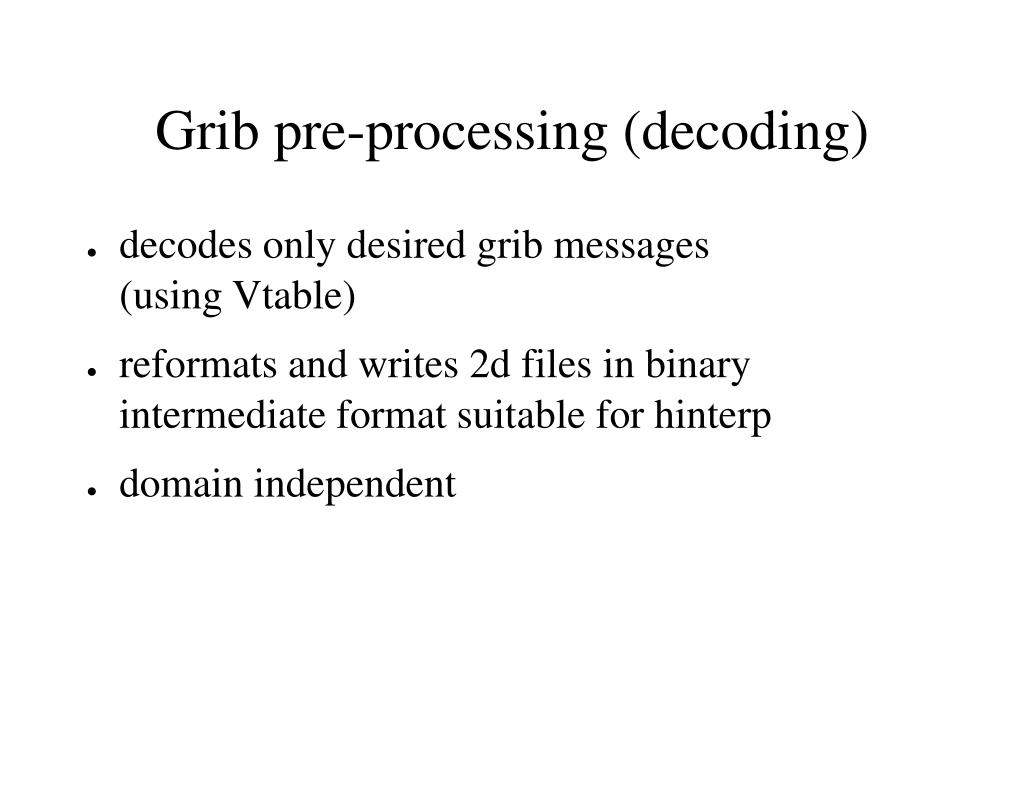

  8. Grib pre-processing (decoding) • decodes only desired grib messages(using Vtable) • reformats and writes 2d files in binary intermediate format suitable for hinterp • domain independent

  9. $INSTALLROT/etc/grib_prep.pl \ -d ${INSTALLROT}/extdata \ -i ${INSTALLROT} \ -s ${YEAR}${MONTH}${DATE}${CYCLE} \ -l ${FLENGTH} \ -t ${FREQBC} \ ${MOD} $EXT_DATAROOT/static/grib_prep.nl $EXT_DATAROOT/static/Vtable.$MOD $EXT_DATAROOT/work/$MOD/GRIBFILE.AA ... grib_prep.exe $EXT_DATAROOT/extprd/$MOD:2004-08-31_00 $EXT_DATAROOT/extprd/$MOD:2004-08-31_06 . . . . $EXT_DATAROOT/extprd/$MOD:2004-09-01_00

  10. $EXT_DATAROOT/static/grib_prep.nl &filetimespec START_YEAR = 0000 START_MONTH = 00 START_DAY = 00 START_HOUR = 00 START_MINUTE = 00 START_SECOND = 00 END_YEAR = 0000 END_MONTH = 00 END_DAY = 00 END_HOUR = 00 END_MINUTE = 00 END_SECOND = 00 INTERVAL = 21600 / &gpinput_defs SRCNAME = 'GFDL','ETA','GFS','AVN','AVNLSM','RUCH', 'NNRP', 'NNRPSFC', 'SST', SRCVTAB = 'GFDL','ETA','GFS','AVN','AVNLSM','RUCH', 'NNRPSFC', 'NNRPSFC', 'SST', SRCPATH = '/emc2/wx20du/WRFEMC/HWRF/NMMSI/gribdata/GFDL', '/emc2/wx20du/WRFEMC/HWRF/NMMSI/gribdata/ETA', '/emc2/wx20du/WRFEMC/HWRF/NMMSI/gribdata/AVN', '/emc2/wx20du/WRFEMC/HWRF/NMMSI/gribdata/AVN', '/emc2/wx20du/WRFEMC/HWRF/NMMSI/gribdata/AVNLSM', '/rt0/rucdev/nrelwind/run/maps_fcst', '/path/to/nnrp/grib', '/path/to/nnrp/sfc/grib', '/public/data/grids/ncep/sst/grib', SRCCYCLE = 6,6,6,6,12,12,24, SRCDELAY = 3,4,4,3, 0, 0,36, /

  11. $EXT_DATAROOT/static/Vtable.GFDL GRIB | Level| Level| Level| REGRID | REGRID | REGRID | Code | Code | 1 | 2 | Name | Units | Description | -----+------+------+------+----------+----------+------------------------------------------+ 11 | 100 | * | | T | K | Temperature | 33 | 100 | * | | U | m s{-1} | U | 34 | 100 | * | | V | m s{-1} | V | 52 | 100 | * | | RH | % | Relative Humidity | 7 | 100 | * | | HGT | m | Height | 1 | 1 | 0 | | PSFC | Pa | Surface Pressure | 2 | 102 | 0 | | PMSL | Pa | Sea-level Pressure | 11 | 1 | 0 | | SKINTEMP | K | Skin temperature (can use for SST also) | -----+------+------+------+----------+----------+------------------------------------------+ $EXT_DATAROOT/static/Vtable.AVNLSM GRIB | Level| Level| Level| REGRID | REGRID | REGRID | Code | Code | 1 | 2 | Name | Units | Description | -----+------+------+------+----------+----------+------------------------------------------+ 144 | 112 | 0 | 10 | SM000010 | fraction | Soil Moisture of 0-10 cm ground layer | 144 | 112 | 10 | 200 | SM010200 | fraction | Soil Moisture of 10-200 cm ground layer | 11 | 112 | 0 | 10 | ST000010 | K | T of 0-10 cm ground layer | 11 | 112 | 10 | 200 | ST010200 | K | T of 10-200 cm ground layer | -----+------+------+------+----------+----------+------------------------------------------+

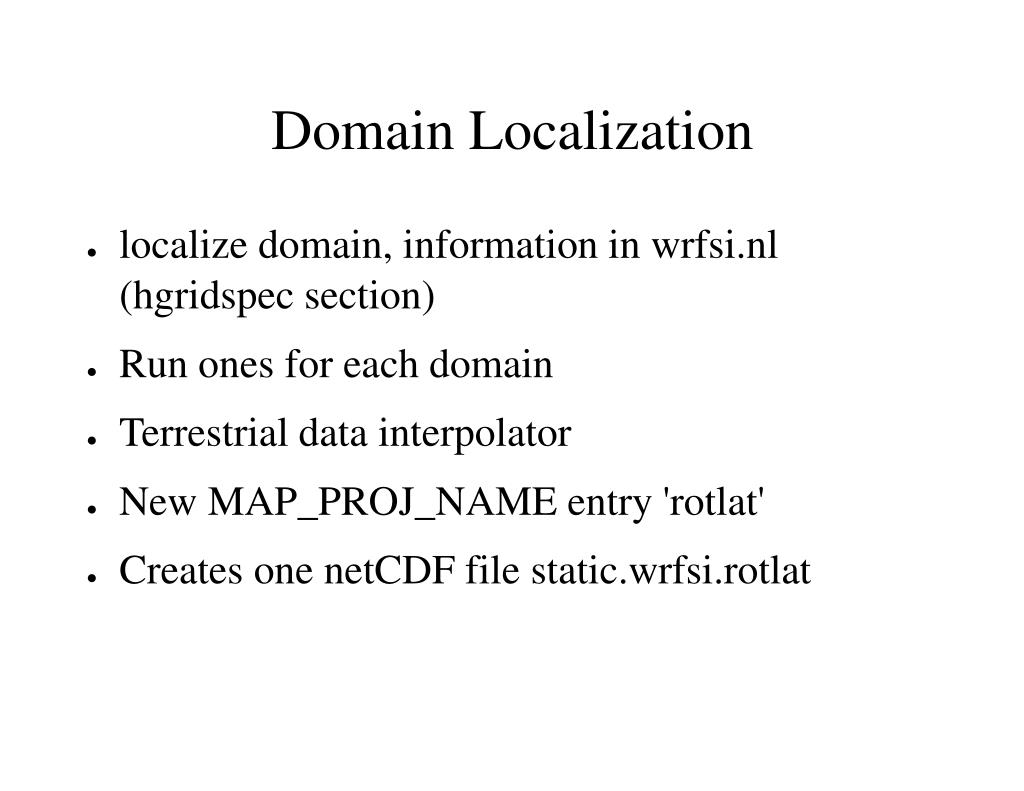

  12. Domain Localization • localize domain, information in wrfsi.nl (hgridspec section) • Run ones for each domain • Terrestrial data interpolator • New MAP_PROJ_NAME entry 'rotlat' • Creates one netCDF file static.wrfsi.rotlat

  13. $GEOG_DATAROOT greenfrac/G90S000E landuse_30s/V10N110W topo_30s/U30N110W topo_30s/... $INSTALLROT/etc/window_domain_rt.pl \ -w $TYPE \ -t $TEMPLATE_ROOT \ -s $SOURCE_ROOT \ -i $INSTALLROT \ -d $MOAD_DATAROOT \ -c $MOAD_DATAROOT/static/wrfsi.nl $MOAD_DATAROOT/cdl/wrfsi.rotlat.cdl gridgen_model.exe static/static.wrfsi.rotlat static/....

  14. $MOAD_DATAROOT/static/wrfsi.nl &hgridspec NUM_DOMAINS = 1 XDIM = 204,100,200 YDIM = 419,100,200 PARENT_ID = 1,1,2 RATIO_TO_PARENT = 1,4,4 DOMAIN_ORIGIN_PARENT_X = 1,36,36 DOMAIN_ORIGIN_PARENT_Y = 1,36,36 MAP_PROJ_NAME = 'rotlat', MOAD_KNOWN_LAT = HURLAT, MOAD_KNOWN_LON = HURLON, MOAD_KNOWN_LOC = 'center' MOAD_STAND_LATS = SLAT, 0.0, MOAD_STAND_LONS = SLON, MOAD_DELTA_X = 0.132867 MOAD_DELTA_Y = 0.119497 SILAVWT_PARM_WRF = 0. TOPTWVL_PARM_WRF = 2. / &sfcfiles TOPO_30S = '/emc2/wx20py/wrfsigeog/topo_30s', LANDUSE_30S = '/emc2/wx20py/wrfsigeog/landuse_30s', SOILTYPE_TOP_30S = '/emc2/wx20py/wrfsigeog/soiltype_top_30s', SOILTYPE_BOT_30S = '/emc2/wx20py/wrfsigeog/soiltype_bot_30s', GREENFRAC = '/emc2/wx20py/wrfsigeog/greenfrac', SOILTEMP_1DEG = '/emc2/wx20py/wrfsigeog/soiltemp_1deg', ALBEDO_NCEP = '/emc2/wx20py/wrfsigeog/albedo_ncep', MAXSNOWALB = '/emc2/wx20py/wrfsigeog/maxsnowalb', ISLOPE = '/emc2/wx20py/wrfsigeog/islope', /

  15. MOAD_KNOWN_LON MOAD_STAND_LONS MOAD_KNOWN_LAT MOAD_STAND_LATS 75º 75º

  16. j=11 j=10 j=9 j=8 j=7 j=6 j=5 j=4 j=3 j=2 j=1 i=1 i=2 i=3 i=4 i=5 i=6 i=7 i=8

  17. j=419 j=10 j=9 j=8 j=7 j=6 j=5 j=4 j=3 j=2 j=1 i=1 i=2 i=3 i=4 i=5 i=6 i=7 i=204

  18. j=JM j=JM-1 Dj j=3 j=2 j=1 Dl i=1 i=2 i=3 i=IM-1 i=IM

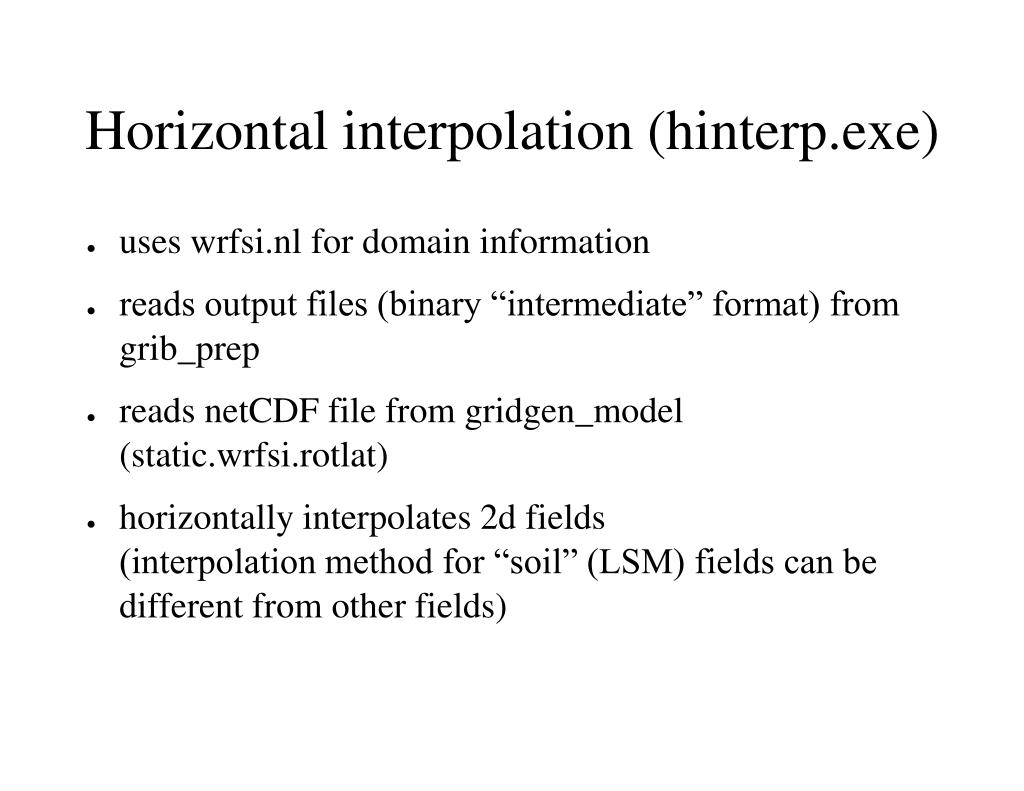

  19. Horizontal interpolation (hinterp.exe) • uses wrfsi.nl for domain information • reads output files (binary “intermediate” format) from grib_prep • reads netCDF file from gridgen_model(static.wrfsi.rotlat) • horizontally interpolates 2d fields(interpolation method for “soil” (LSM) fields can be different from other fields)

  20. binary files $INSTALLROT/etc/wrfprep.pl \ -d ${MOAD_DATAROOT} \ -i ${INSTALLROT} \ -s ${YEAR}${MONTH}${DATE}${CYCLE} \ -f ${FLENGTH} \ -t ${FREQBC} $MOAD_DATAROOT/static/wrfsi.nl (project_id,filetimespec,interp_control) $MOAD_DATAROOT/static/static.wrfsi.rotlat $MOAD_DATAROOT/siprd/$MOD:2004-08-31_00 link to $EXT_DATAROOT/extprd/$MOD:2004-08-31_00 hinterp.exe $MOAD_DATAROOT/siprd/hinterp.global.metadata $MOAD_DATAROOT/siprd/hinterp.d01.2004-08-31_00:00:00 $MOAD_DATAROOT/siprd/hinterp.d01.2004-08-31_00:00:06 . . . . $MOAD_DATAROOT/siprd/hinterp.d01.2004-09-01_00:00:00

  21. Vertical interpolation (vinterp.exe) • uses wrfsi.nl to determine number of vertical levels andvalues of sigma • reads output files from hinterp.exe • performs vertical interpolation • outputs netCDF files (one for each BC time step) to be read by real.exe

  22. $INSTALLROT/etc/wrfprep.pl \ -d ${MOAD_DATAROOT} \ -i ${INSTALLROT} \ -s ${YEAR}${MONTH}${DATE}${CYCLE} \ -f ${FLENGTH} \ -t ${FREQBC} $MOAD_DATAROOT/static/wrfsi.nl (interp_control) $MOAD_DATAROOT/siprd/hinterp.global.metadata $MOAD_DATAROOT/siprd/hinterp.d01.2004-08-31_00:00:00 vinterp.exe netCDF files $MOAD_DATAROOT/siprd/wrf_real_input_nm.d01.2004-08-31_00:00:00 $MOAD_DATAROOT/siprd/wrf_real_input_nm.d01.2004-08-31_00:00:06 . . . . $MOAD_DATAROOT/siprd/wrf_real_input_nm.d01.2004-09-01_00:00:00

  23. $MOAD_DATAROOT/static/wrfsi.nl &interp_control NUM_DOMAINS = 1, DOMAIN_ID_LIST = 1, PTOP_PA = 5000, HINTERP_METHOD = 1, LSM_HINTERP_METHOD = 0, NUM_INIT_TIMES = 1, INIT_ROOT = 'GFDL', LBC_ROOT = 'GFDL', LSM_ROOT = 'AVNLSM', CONSTANTS_FULL_NAME = '', VERBOSE_LOG = .true., OUTPUT_COORD = 'NMMH', LEVELS = 1.0, .9919699, .9827400, .9721600, .9600599, .9462600, .9306099, .9129300, .8930600, .8708600, .8462000, .8190300, .7893100, .7570800, .7224600, .6856500, .6469100, .6066099, .5651600, .5230500, .4807700, .4388600, .3978000, .3580500, .3200099, .2840100, .2502900, .2190100, .1902600, .1640600, .1403600, .1190600, .1000500, .0831600, .0682400, .0551200, .0436200, .0335700, .0248200, .0172200, .0106300, .0049200, .0000000, OUTPUT_VARS = 2, OUTPUT_FILE_TYPE = 'WRF', /

  24. $INSTALLROOT/bin/siscanhinterp.d01.2004-08-31_00:00:00 Scanning hinterp.d01.2004-08-31_00:00:00 Domain Metadata Information ----------------------------------------------------- Domain Number ......... 1 Parent ID ............. 0 Dynamic Init. Source .. SI Static Init. Source ... SI Valid Date (YYYDDD) ... 2004244 Valid Time (sec UTC) .. 0.0 Origin X in Parent .... 1 Origin Y in Parent .... 1 Nest Ratio to Parent .. 1 Delta X ............... 19871.3 Delta Y ............... 19871.3 Top Level ............. 5000.0 Origin Z in Parent .... 1 X dimension ........... 204 Y dimension ........... 419 Z dimension ........... 20 --------------------------------------------------- Variables found: NAME STAG DIM NX NY NZ UNITS DESCRIPTION -------- ----- --- ----- ----- ----- ---------------- -------------------------------- PRESSURE 0 1 20 0 0 Pa Pressure levels used for vertica T 4 3 204 419 20 K Temperature U 4 3 204 419 20 m s{-1} U V 4 3 204 419 20 m s{-1} V RH 4 3 204 419 20 % Relative Humidity HGT 4 3 204 419 20 m Height SM000010 1 2 204 419 0 fraction Soil Moisture of 0-10 cm ground SM010200 1 2 204 419 0 fraction Soil Moisture of 10-200 cm groun ST000010 1 2 204 419 0 K T of 0-10 cm ground layer ST010200 1 2 204 419 0 K T of 10-200 cm ground layer PMSL 4 2 204 419 0 Pa Sea-level Pressure PSFC 4 2 204 419 0 Pa Surface Pressure SKINTEMP 1 2 204 419 0 K Skin temperature (can use for SS End of file reached. siscan and ncdump utilties
