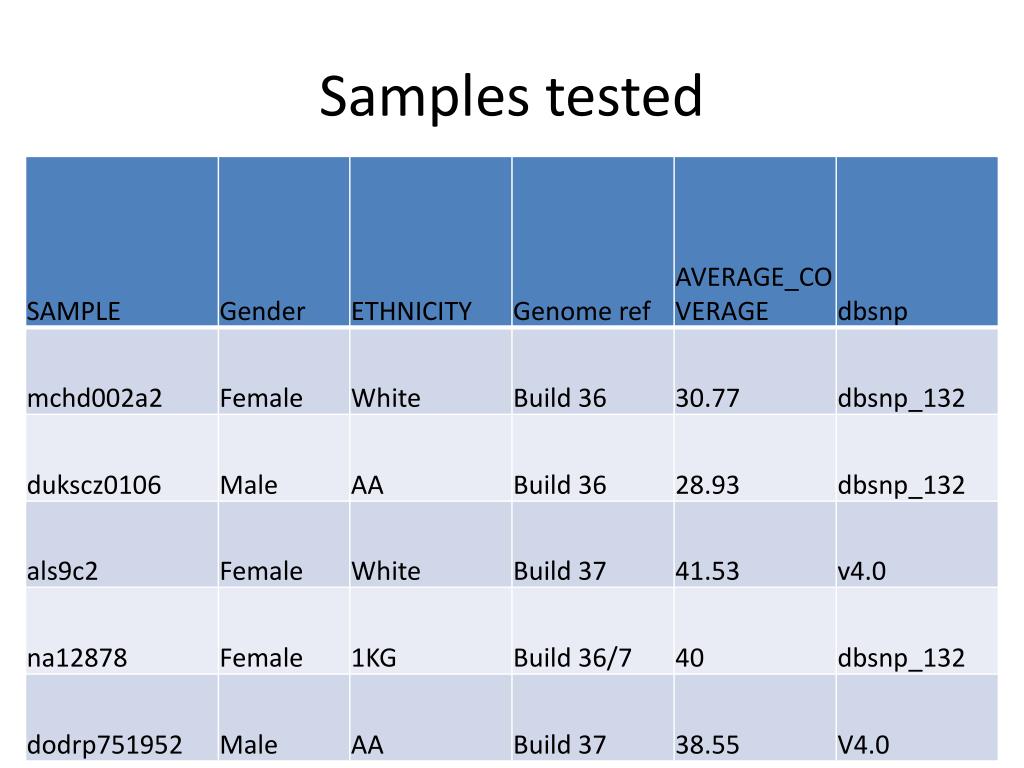

  1. Samples tested

  2. Experimental set up • Aligner: BWA 0.5.9 • Samtools: 0.1.12a • GATK: 1.0.5083 • SVA version: 1.1 • 1000 genome variant release: CEU.trio.2010_03.genotypes.vcf (build 36) • Human genome reference (build 36 & 37) • Dbsnp databases (build 36 & 37) for overlap check

  3. Ratio (%) of variant calls (SNVs and indels)--GATK against raw

  4. Ti/Tv ratio closer to 2.0

  5. Het SNVs on chrX compared to total number of SNVs in the X

  6. Increased concordance (SVA) Dukscz0106, build 36

  7. Increased concordance (SVA) als9c2, build 37

  8. Increased concordance (SVA) dodrp751952, build 37

  9. Increased sensitivity (na12878)--Overlap with 1KG release

  10. But, decreased concordance (SVA) mchd002A2, build 36

  11. Computational complexity recalibration(extra cost ~31 hours if incorporated in pipeline) Original BAM file 8.8 hours ~seconds* Pre-recalibration analysis plots Covariates table (.csv) 22.5 hours Recalibrated BAM file 7.7 hours* ~seconds* Post-recalibration analysis plots Recalibrated covariates table (.csv) Note *: ONLY needed for periodical evaluation on recalibration efficiency

  12. Computational complexity variant calling(already in pipeline) Processed BAM files ~ 4 days SNVs & Indel files var_flt_vcf.snp var_flt_vcf.indel ~ 6 hours SNV count Hom/het ratio Indel count Ti/Tv ratio Overlap with dbSNP concordance Het/tot ratio on X

  13. Conclusion • For four samples (als9c2, dukscz0106, na12878 and dodrp751952) • Increased number of variant calls • Increased concordance to genotype array calls • Ti/Tv ratio closer to 2.0 • Increased sensitivity in 1KG sample • For sample mchd002A2 • Decreased number of variant calls • Decreased concordance to genotype calls • Ti/Tv ratio farer from 2.0 • For two male samples (dukscz0106 and dodrp751952) • No apparent difference on Het SNV ratio on chromosome X • Overall conclusion • GATK recalibration helps with the sensitivity and concordance to chip data • GATK recalibration might NOT help with specificity • Additional attention is need for proper FDR control • Worse results with mchd002A2 could be sample specific

  14. Going forward • Decision making • Computational cost (~ 30 hours) VS • Increased sensitivity • Up to 0.51% ( on average ~10k SNP gain) • Recommend incorporating this step in new pipeline • Extra/future steps for individual project • To reduce “potential” false positive rate by excluding “highly variations region” (Zhu, Q et al 2011) • Implement more stringent variant call parameters • More precise variant call strategy (long term goal)
