SETTING SOURCES & BOUNDARY CONDITIONS USING VR

1. SETTING SOURCES & BOUNDARY CONDITIONS USING VR Section 7 of TR326 describes Sources and B.C. 5n the form of object and its attribute.

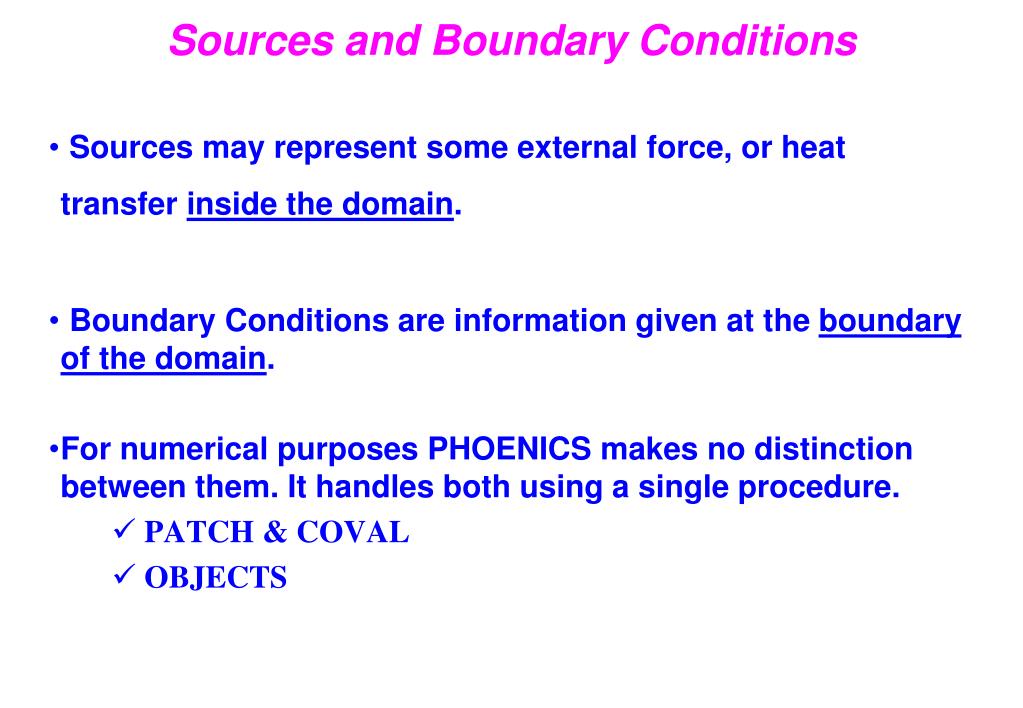

2. Sources and Boundary Conditions • Sources may represent some external force, or heat transfer inside the domain. • Boundary Conditions are information given at the boundary of the domain. • For numerical purposes PHOENICS makes no distinction between them. It handles both using a single procedure. • PATCH & COVAL • OBJECTS

3. Typical sources and units : • Mass Equation: R1 - Mass - kg/s • Momentum Equation: U1,V1,W1 - Force - Newtons • Energy Equation: TEM1 - Energy - Watts • Mass sources may occur when there is a phase change (liquid to vapor for example) or when for multiple chemical species simulations where one specie is transformed into other. • Momentum sources are regarded as the sources due (mV), pressure, skin friction. • Energy sources are associated when energy (W) is imposed inside the domain or at its boundaries. Also when temperature is set at an object and heat is transferred due to temperature difference.

4. Source Terms Echoed by Phoenics • For evaluation purposes phoenics informs the values of some selected source terms. They are: • Mass sources are typically associated with Inlets and Outlets objects. Closed Cavities do not have mass source. • Momentum sourcesare associated with flux of mass at the Inlets and Outlets (mV) and also with the friction force at the walls (Plate and Thin Plate objects). Blockages inside domain which may have skin friction and pressure forces but Phoenics do not reported them. • Energy sources are associated with Blockages, Inlets and Plates. It is possible to fix heat flux, to fix a temperature, to set a solid object adiabatic (just allow heat conduction) or even set a heat flux due to a heat transfer coefficient external to the domain. • The next workshops we will explore the use of echoed source values.

5. Most Common Objectcs (VR EDITOR)Theseobjectsusuallyintroduces sources intotheflowdomain • Blockage 3D, solid or fluid - Can apply heat and momentum sources. • Inlet 2D\ Angled-in 3D - fixed mass source. • Outlet 2D\ Angled-out 3D - fixed pressure. • Plate 2D - zero thickness obstacle to flow. May be porous. • Pressure Relief - single cell fixed pressure point. • Fan 2D - fixed velocity • Point_History - single cell transient monitor point. • Fine Grid Vol 3D - region of fine grid. • Drag_lift 3D - region over which momentum imbalance (force) will be calculated.

6. WORKSHOP#3 – Cylinder in Cross Flow 2D (XY plane) • Consider a single cylinder in cross flow on a XY plane. • Problem data: • Isothermal & Laminar flow • Inlet UIN = 0.1 m/s • YVLAST = 1m • XULAST = 2m • Download workshop q1 • Run case

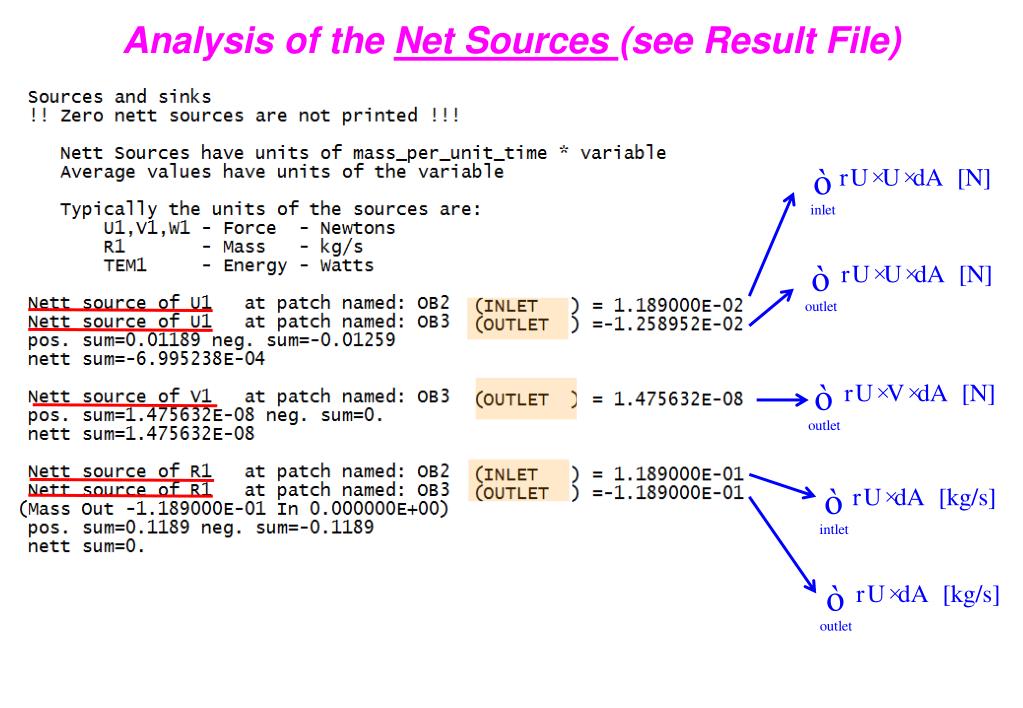

7. AnalysisoftheNet Sources (seeResult File)

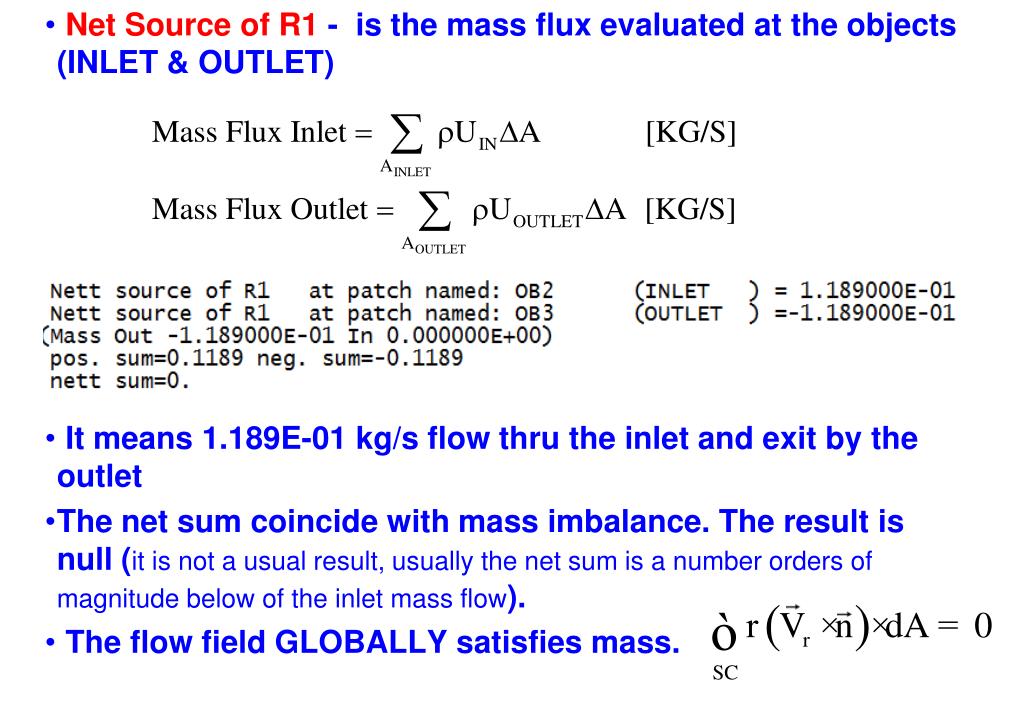

8. Net Source of R1 - is the mass flux evaluated at the objects (INLET & OUTLET) • It means 1.189E-01 kg/s flow thru the inlet and exit by the outlet • The net sum coincide with mass imbalance. The result is null (it is not a usual result, usually the net sum is a number orders of magnitude below of the inlet mass flow). • The flow field GLOBALLY satisfies mass.

9. Net Source of U1 - is the momentum flux evaluated at the objects (INLET & OUTLET) • It means 1.189E-02 N flows thru the inlet and -1.2589E-02 N exit by the outlet. • The momentum imbalance is not necessarily equal to the momentum net sum. • Usually sources like momentum inside the domain such as blockages and also the pressure forces are not displayed on RESULT file (unfortunately).

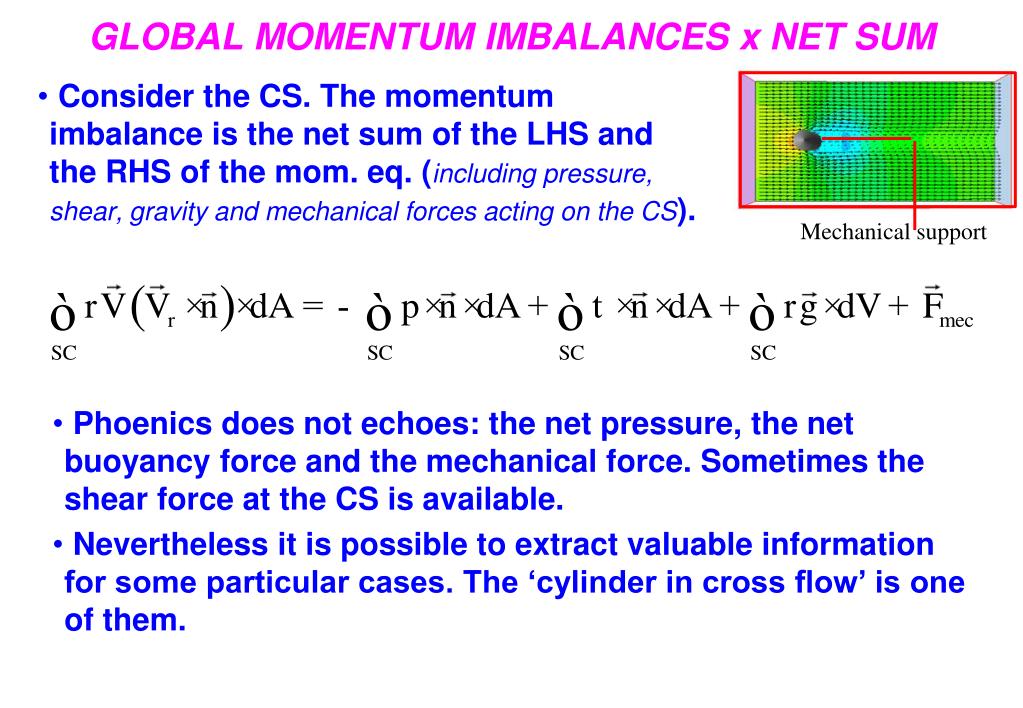

10. GLOBAL MOMENTUM IMBALANCES x NET SUM • Consider the CS. The momentum imbalance is the net sum of the LHS and the RHS of the mom. eq. (including pressure, shear, gravity and mechanical forces acting on the CS). Mechanicalsupport • Phoenics does not echoes: the net pressure, the net buoyancy force and the mechanical force. Sometimes the shear force at the CS is available. • Nevertheless it is possible to extract valuable information for some particular cases. The ‘cylinder in cross flow’ is one of them.

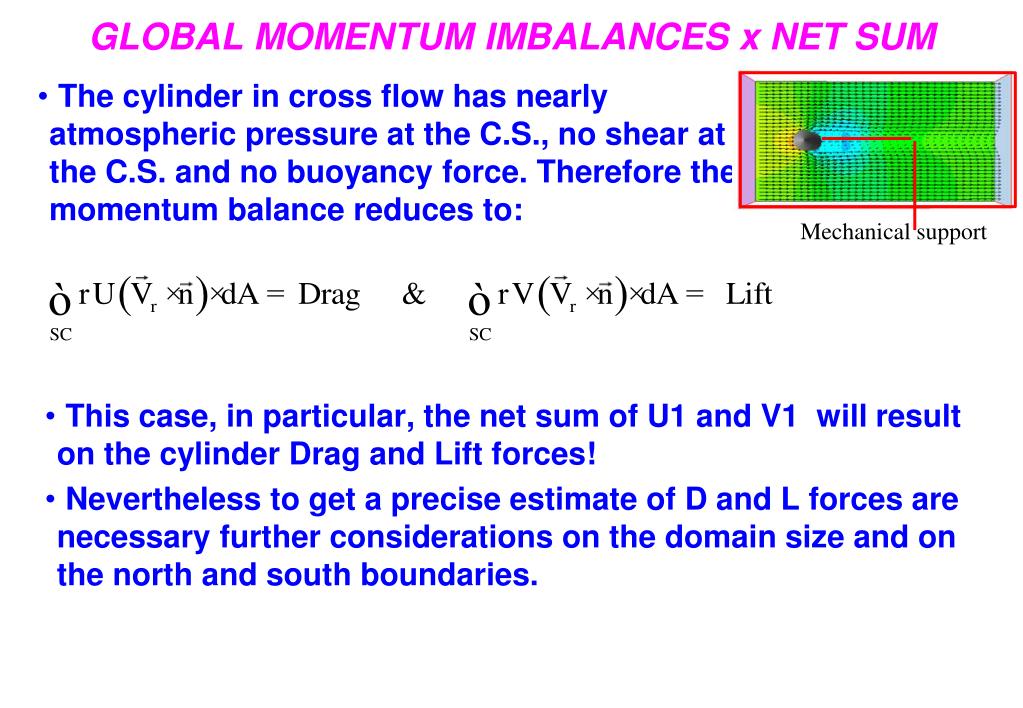

11. GLOBAL MOMENTUM IMBALANCES x NET SUM • The cylinder in cross flow has nearly atmospheric pressure at the C.S., no shear at the C.S. and no buoyancy force. Therefore the momentum balance reduces to: Mechanicalsupport • This case, in particular, the net sum of U1 and V1 will result on the cylinder Drag and Lift forces! • Nevertheless to get a precise estimate of D and L forces are necessary further considerations on the domain size and on the north and south boundaries.

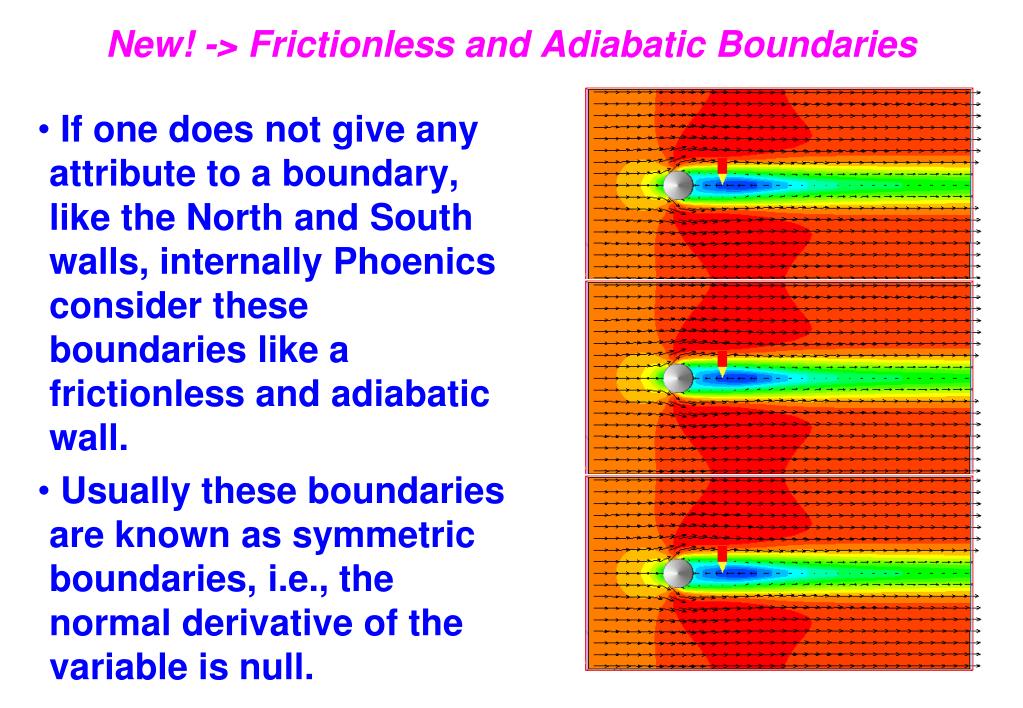

12. New! -> Frictionless and Adiabatic Boundaries • If one does not give any attribute to a boundary, like the North and South walls, internally Phoenics consider these boundaries like a frictionless and adiabatic wall. • Usually these boundaries are known as symmetric boundaries, i.e., the normal derivative of the variable is null.

13. Consequences of the use of Frictionless and Adiabatic Boundaries to model the ‘Cylinder in Cross Flow’ • The cylinder to Y size domain ratio is 1:7 D. • Y size is too short to simulate a free flow in a cylinder. • The flow is influenced by the symmetric boundaries. • The Drag force should be greater than the one observed for a flow without boundaries. • It would be necessary at least a ratio of 1:20D

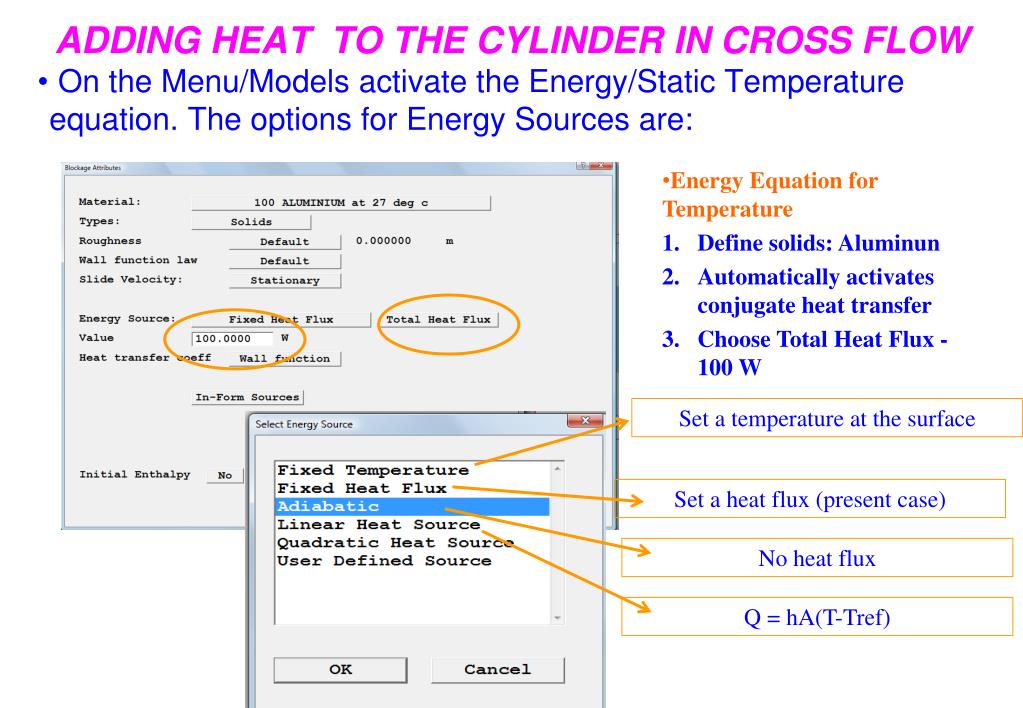

14. ADDING HEAT TO THE CYLINDER IN CROSS FLOW • On the Menu/Models activate the Energy/Static Temperature equation. The options for Energy Sources are: • Energy Equation for Temperature • Define solids: Aluminun • Automatically activates conjugate heat transfer • Choose Total Heat Flux -100 W Set a temperature at the surface Set a heat flux (present case) No heat flux Q = hA(T-Tref)

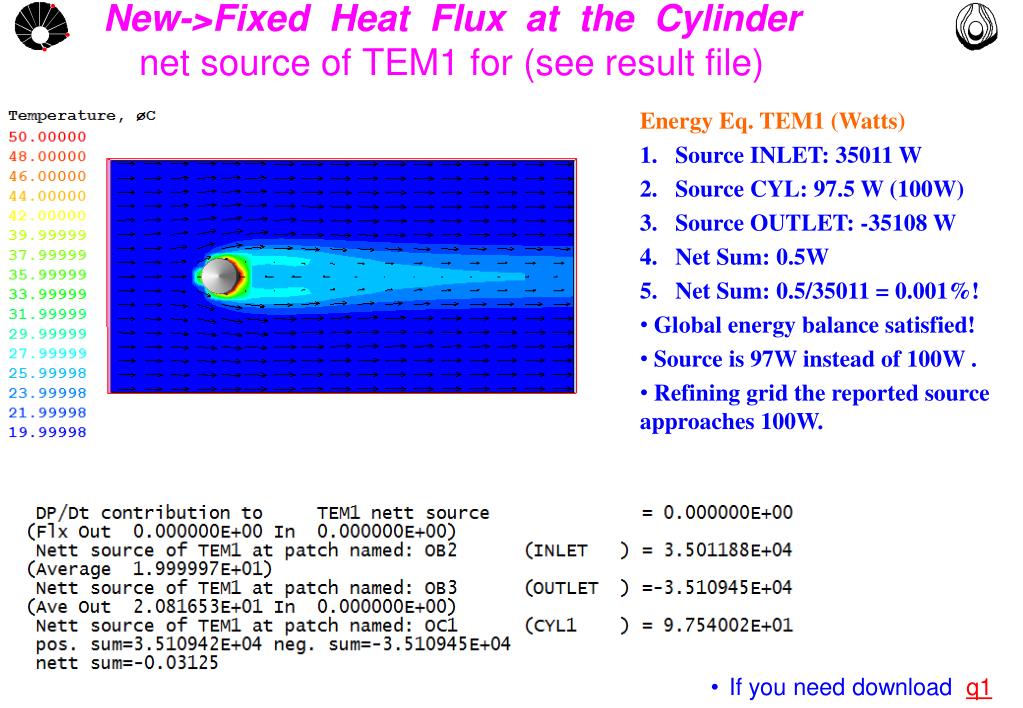

15. New->FixedHeat Flux attheCylindernet source of TEM1 for (seeresult file) • Energy Eq. TEM1 (Watts) • Source INLET: 35011 W • Source CYL: 97.5 W (100W) • Source OUTLET: -35108 W • Net Sum: 0.5W • Net Sum: 0.5/35011 = 0.001%! • Global energy balance satisfied! • Source is 97W instead of 100W . • Refining grid the reported source approaches 100W. • Ifyouneeddownloadq1

16. New-> FixedTemperatureattheCylindernet source of TEM1 for (seeresult file) Modify the cylinder heat source to FIXED TEMPERATURE (97.36C) and compare the results. Results ---------------------------------------------- Fixed Tem1 = 97.36oC FixedHeat Flux = 97.5 W 1st case the heat imbalance is the added heat: 97.6 W. Since fixed temperature is equal to the temp. from the 2nd case the dissipated heat are off only by 1:97Watts

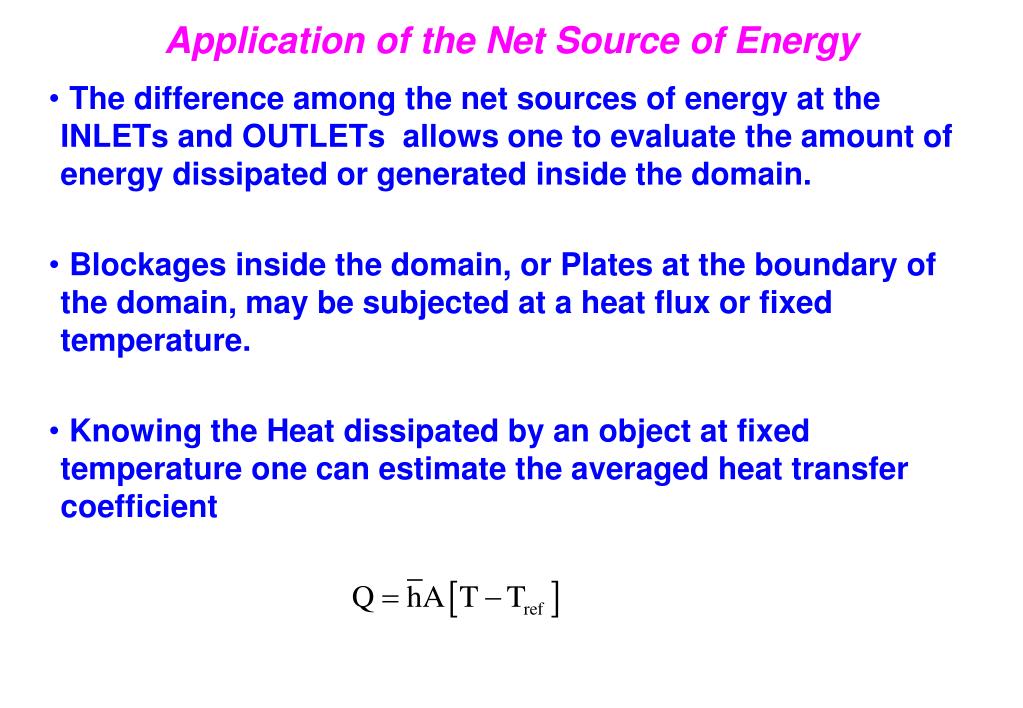

17. Application of the Net Source of Energy • The difference among the net sources of energy at the INLETs and OUTLETs allows one to evaluate the amount of energy dissipated or generated inside the domain. • Blockages inside the domain, or Plates at the boundary of the domain, may be subjected at a heat flux or fixed temperature. • Knowing the Heat dissipated by an object at fixed temperature one can estimate the averaged heat transfer coefficient

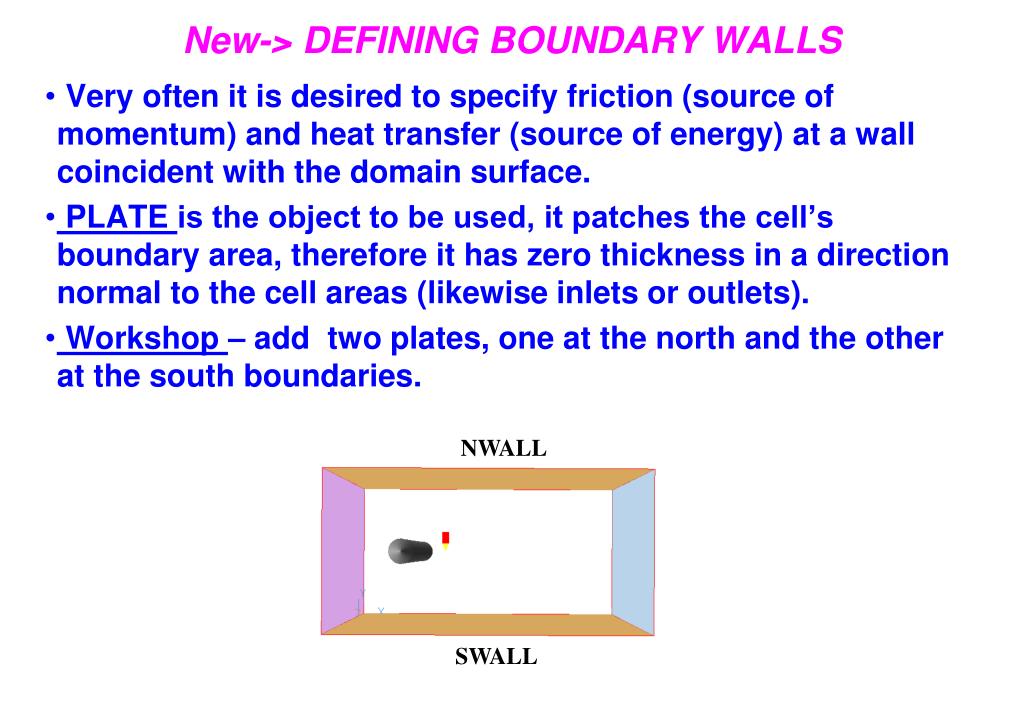

18. New-> DEFINING BOUNDARY WALLS • Very often it is desired to specify friction (source of momentum) and heat transfer (source of energy) at a wall coincident with the domain surface. • PLATE is the object to be used, it patches the cell’s boundary area, therefore it has zero thickness in a direction normal to the cell areas (likewise inlets or outlets). • Workshop – add two plates, one at the north and the other at the south boundaries. NWALL SWALL

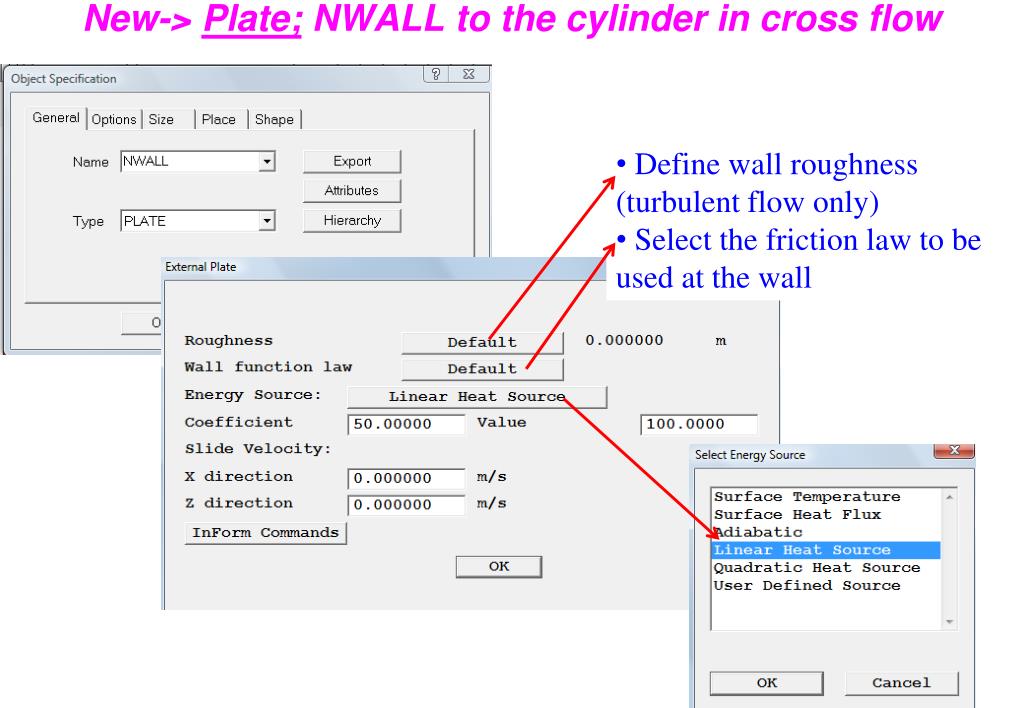

19. New-> Plate; NWALL to thecylinder in crossflow • Define wall roughness (turbulent flow only) • Select the friction law to be used at the wall

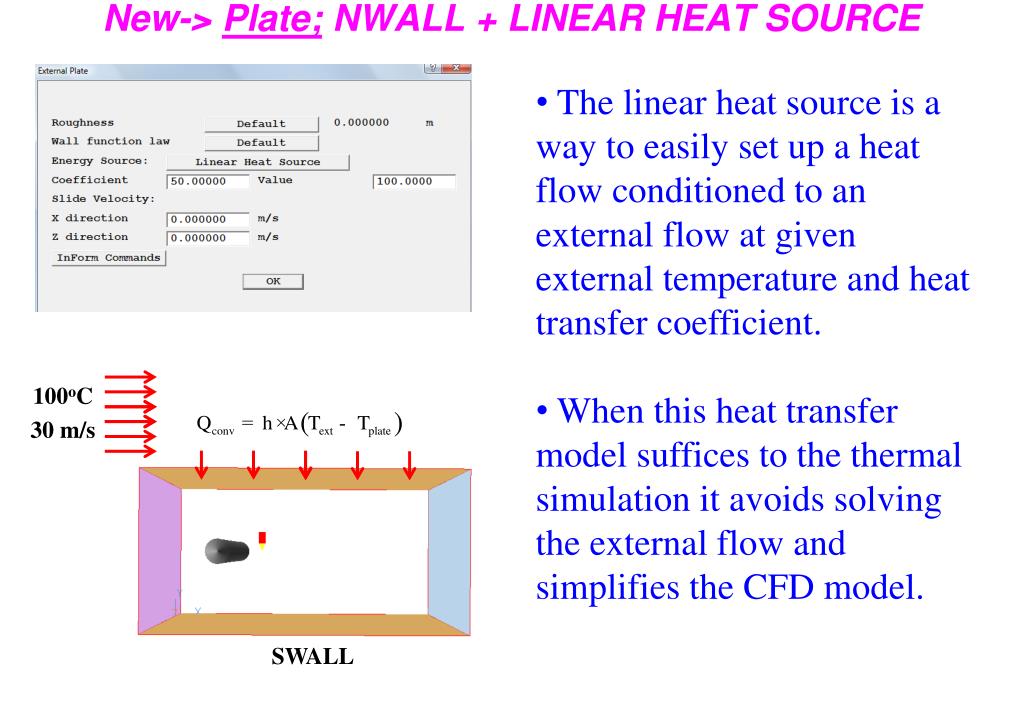

20. New-> Plate; NWALL + LINEAR HEAT SOURCE • The linear heat source is a way to easily set up a heat flow conditioned to an external flow at given external temperature and heat transfer coefficient. • When this heat transfer model suffices to the thermal simulation it avoids solving the external flow and simplifies the CFD model. 100oC 30 m/s SWALL

21. New-> Plate; SWALL + FIXED HEAT FLUX • It is similar to fixing the heat flux at the cylinder surface; already done on the last workshop NWALL Platewithfixedheat flux of 250 W

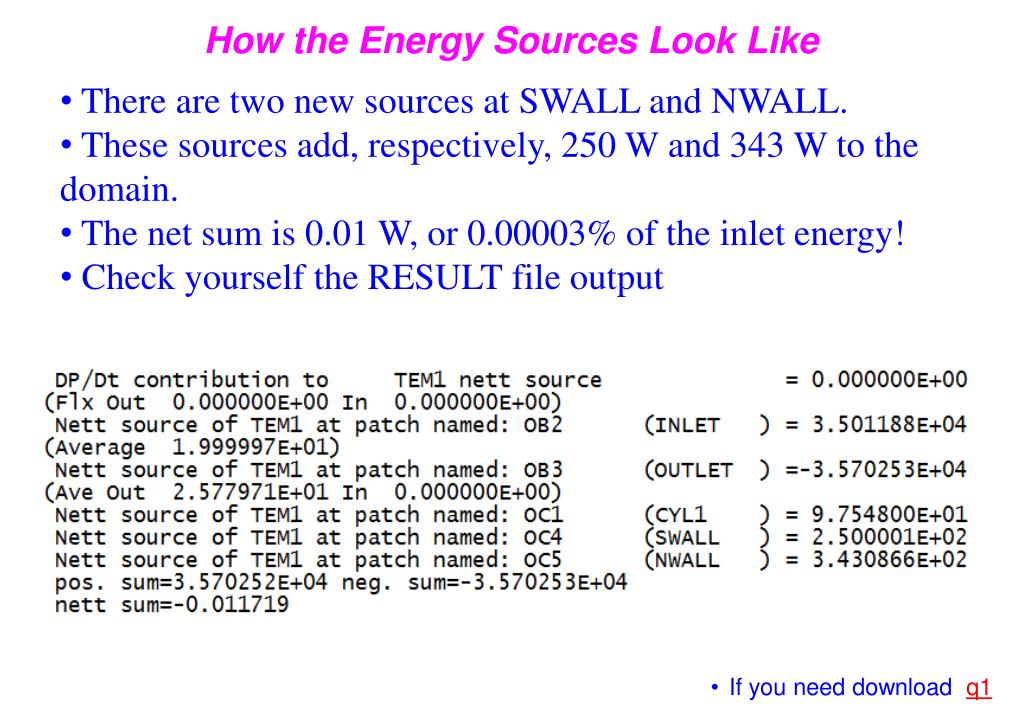

22. HowtheEnergy Sources LookLike • There are two new sources at SWALL and NWALL. • These sources add, respectively, 250 W and 343 W to the domain. • The net sum is 0.01 W, or 0.00003% of the inlet energy! • Check yourself the RESULT file output • Ifyouneeddownloadq1

23. FLOW IN CAVITIES • To simulate flow in cavities, i.e. geometries which do not have inlets and outlets it is necessary to create a reference pressure at the domain. Temperatureprofileinside a squarecavitywith a circular heatedcylinder Streamlines in a rectangularcavitywithtwoheatedsquares Streamlines in a rectangularcavitywith top lidsliding

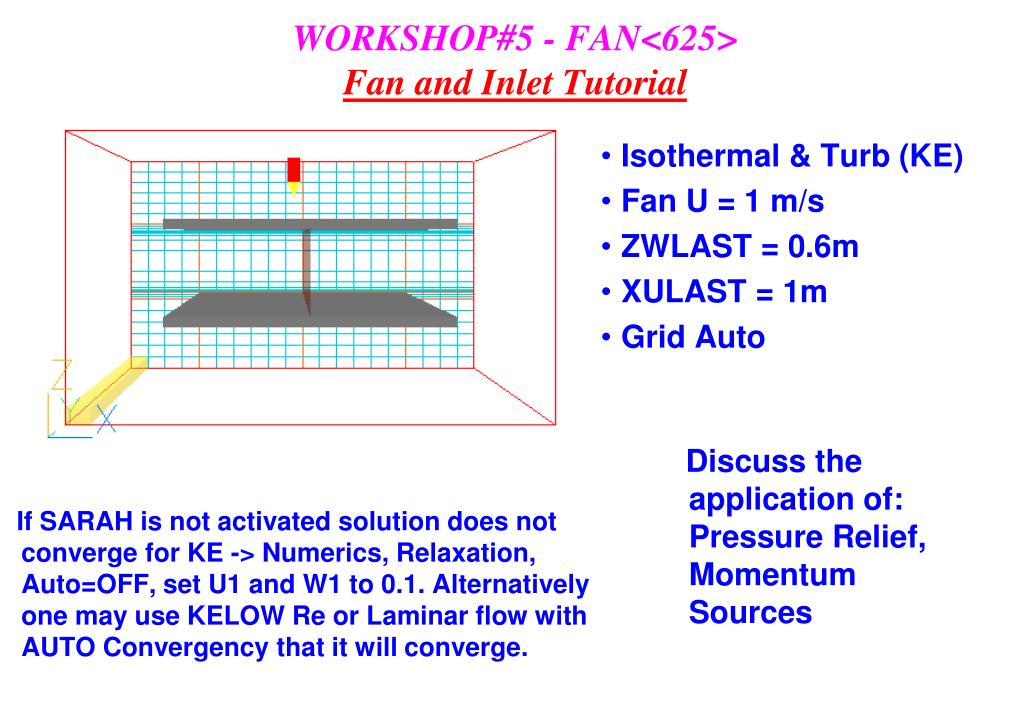

24. WORKSHOP#5 - FAN<625>Fan and Inlet Tutorial • Isothermal & Turb (KE) • Fan U = 1 m/s • ZWLAST = 0.6m • XULAST = 1m • Grid Auto Discuss the application of: Pressure Relief, Momentum Sources If SARAH is not activated solution does not converge for KE -> Numerics, Relaxation, Auto=OFF, set U1 and W1 to 0.1. Alternatively one may use KELOW Re or Laminar flow with AUTO Convergency that it will converge.

25. Additional Settings • Replace the blockages by plates as suggested in the figure. Compare your results and comment.

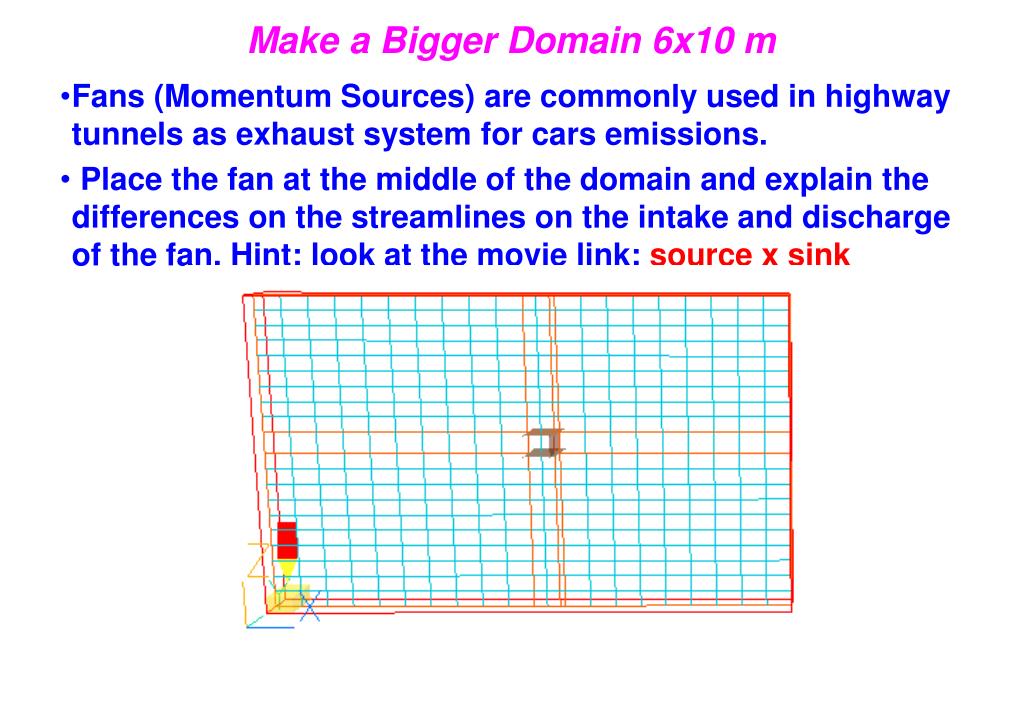

26. Make a Bigger Domain 6x10 m • Fans (Momentum Sources) are commonly used in highway tunnels as exhaust system for cars emissions. • Place the fan at the middle of the domain and explain the differences on the streamlines on the intake and discharge of the fan. Hint: look at the movie link: source x sink

27. Intake acts as a sink, the streamlines goes radially inward • Discharge acts as a jet, streamlines are almost parallel.

28. END OF THE SOURCES WORKSHOP
