XG Communications Program Overview

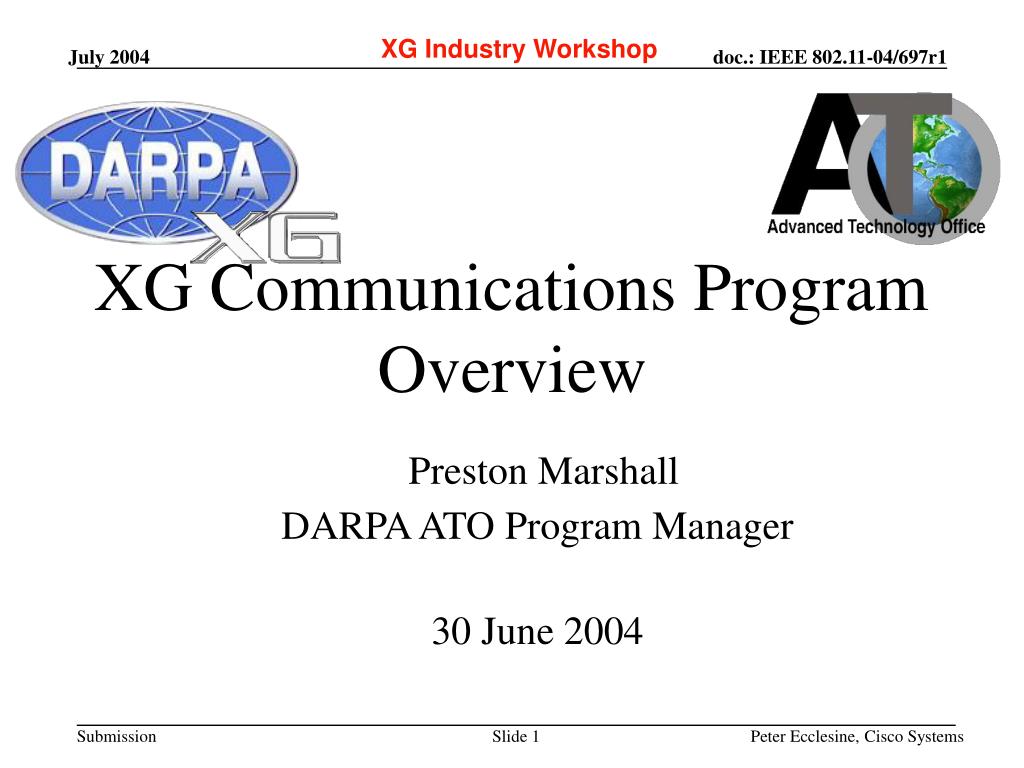

1. XG Industry Workshop XG Communications Program Overview Preston Marshall DARPA ATO Program Manager 30 June 2004 Peter Ecclesine, Cisco Systems

2. Purpose • Provide Program Progress & Plans • Establish Understanding of XG • What We’re Doing • Where We’ll Be at DARPA’s Completion • Discuss Features and Technology Maturity Levels Needed for Implementations • Policy Community • Commercial Radio Community • Military Radio & Radar Community Peter Ecclesine, Cisco Systems

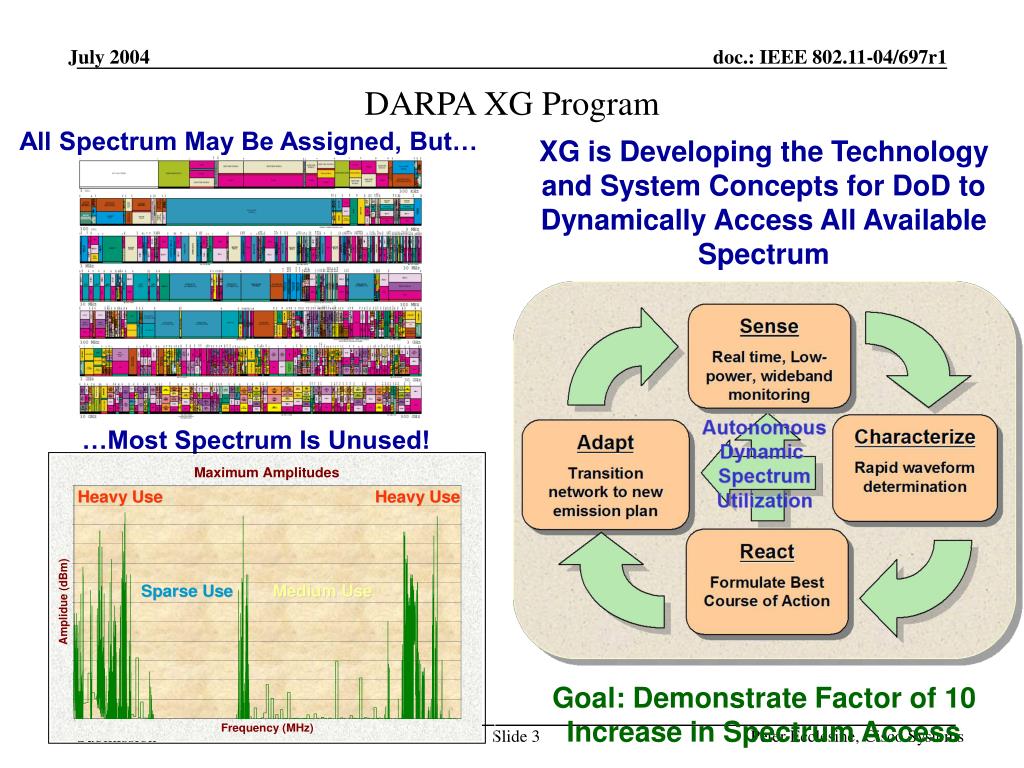

3. DARPA XG Program All Spectrum May Be Assigned, But… XG is Developing the Technology and System Concepts for DoD to Dynamically Access All Available Spectrum …Most Spectrum Is Unused! Goal: Demonstrate Factor of 10 Increase in Spectrum Access Peter Ecclesine, Cisco Systems

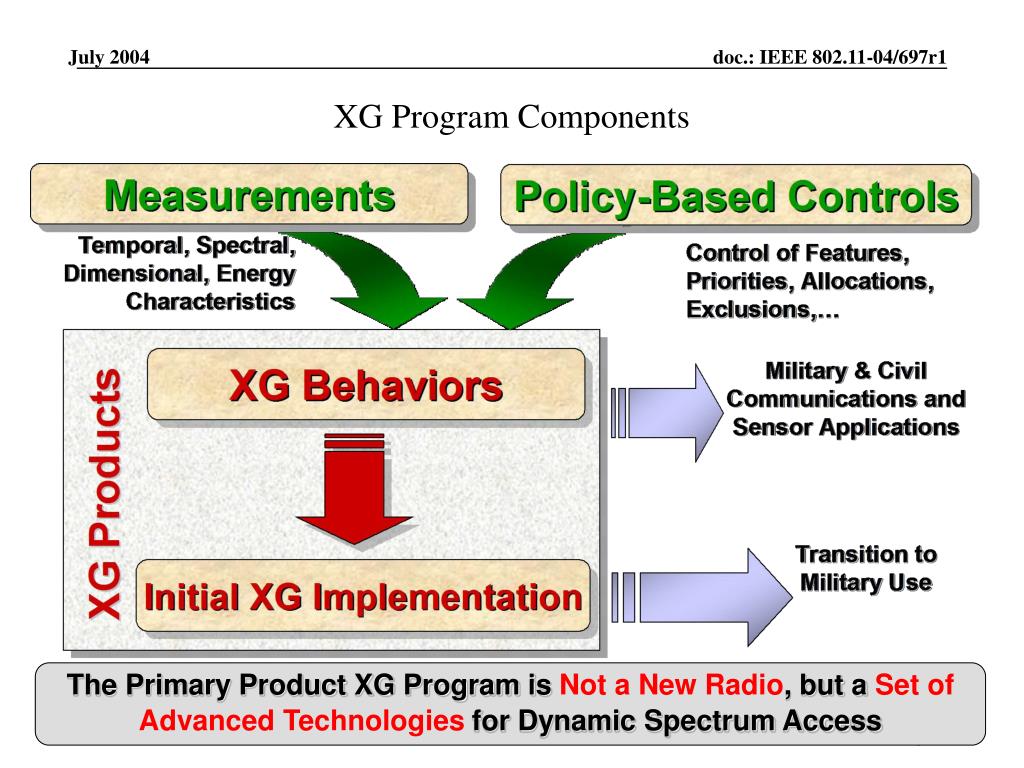

4. XG Program Components The Primary Product XG Program is Not a New Radio, but a Set of Advanced Technologies for Dynamic Spectrum Access Peter Ecclesine, Cisco Systems

5. Accomplishments • Collected RF Environment For Many Scenarios • Data Being Used As Basis For Phase 2 Design Evaluations • First Version Of Sensor Completed • Provides Needed Capability For Rapid Wideband Sensing • Next Revision To Explore High-Risk/High-Payoff Enhancements • Three Feasible Designs For Interference Avoidance, Network Operation, And Rendezvous • Nearing Phase 2 Evaluations And Competition For Phase 3 Participation • Policy Language And Radio Interface Defined • Policy Language RFC v1 Composed And Released • Extensible to Future “Cognitive” Technology Peter Ecclesine, Cisco Systems

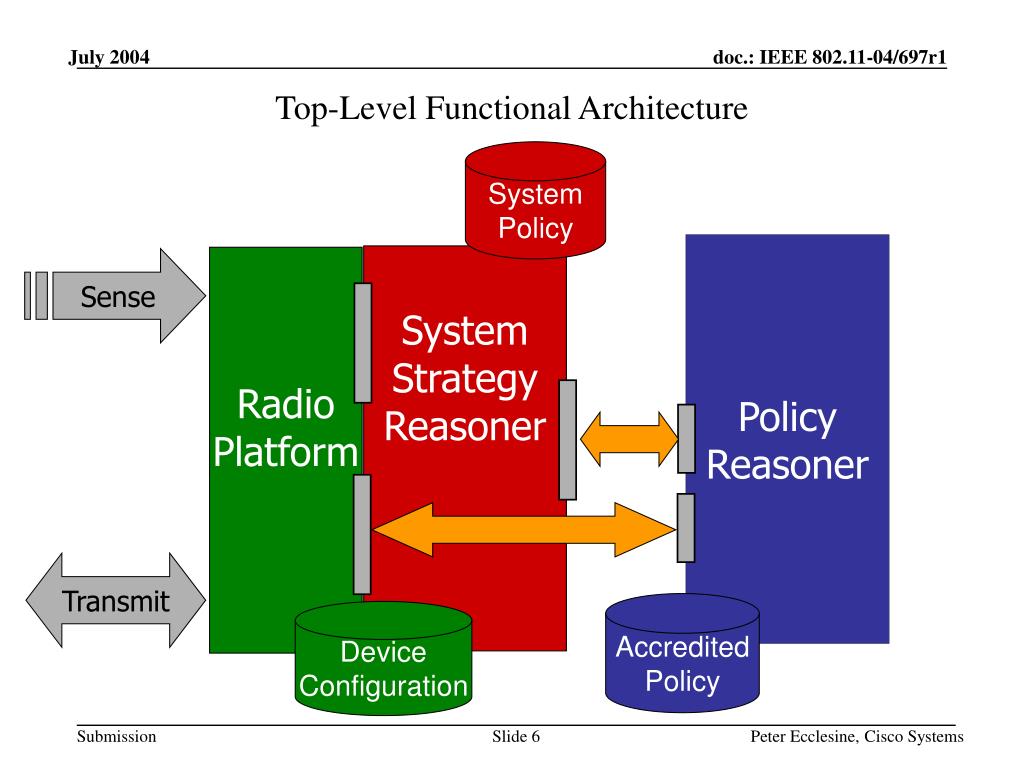

6. Top-Level Functional Architecture System Policy Policy Reasoner System Strategy Reasoner Radio Platform Sense Transmit Accredited Policy Device Configuration Peter Ecclesine, Cisco Systems

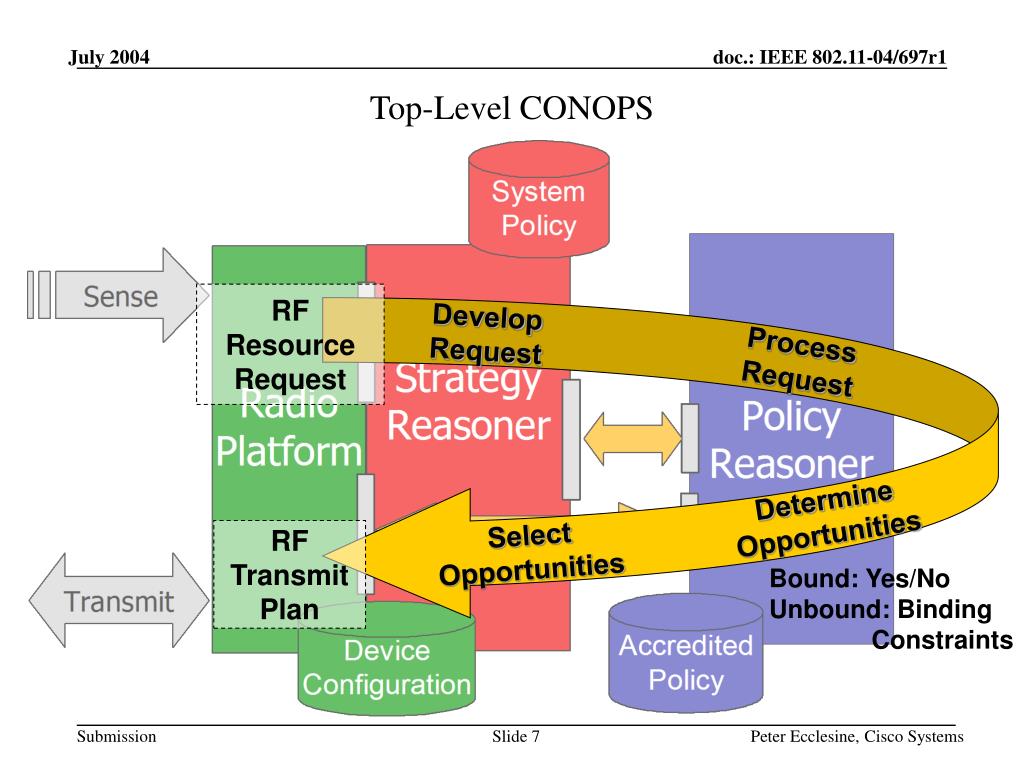

7. Top-Level CONOPS RF Resource Request Develop Request Process Request Determine Opportunities Select Opportunities RF Transmit Plan Bound: Yes/No Unbound: Binding Constraints Peter Ecclesine, Cisco Systems

8. Current XG Program Participants Peter Ecclesine, Cisco Systems

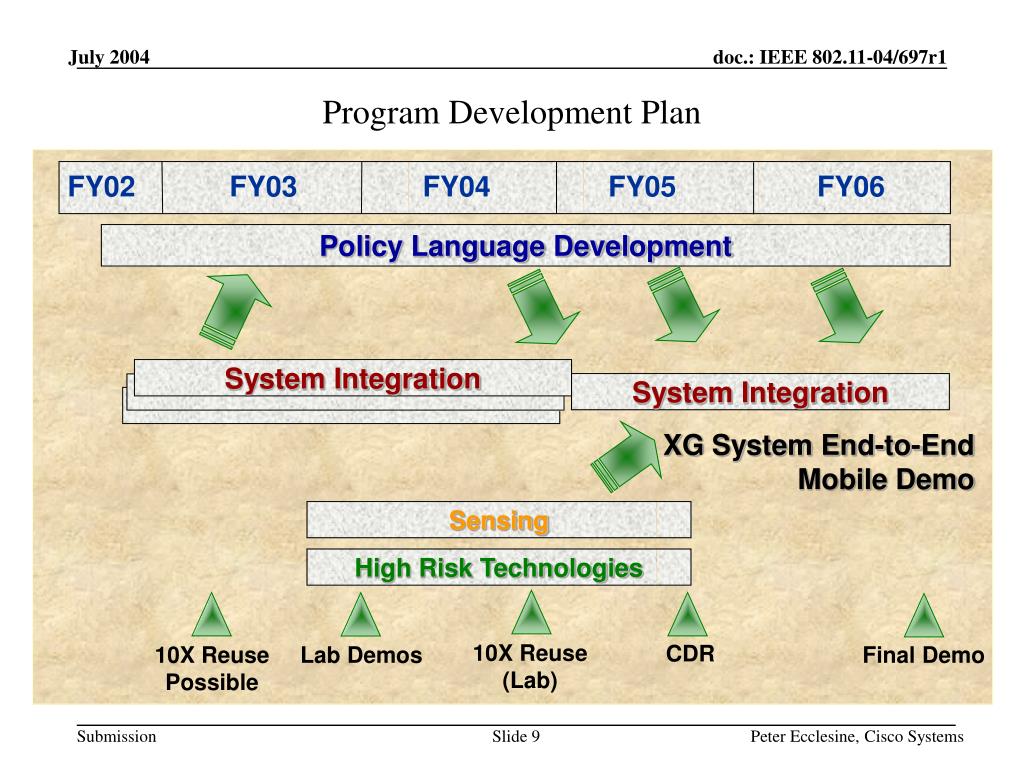

9. Program Development Plan FY02 FY03 FY04 FY05 FY06 Policy Language Development System Integration System Integration XG System End-to-End Mobile Demo Sensing High Risk Technologies 10X Reuse (Lab) CDR 10X Reuse Possible Lab Demos Final Demo Peter Ecclesine, Cisco Systems

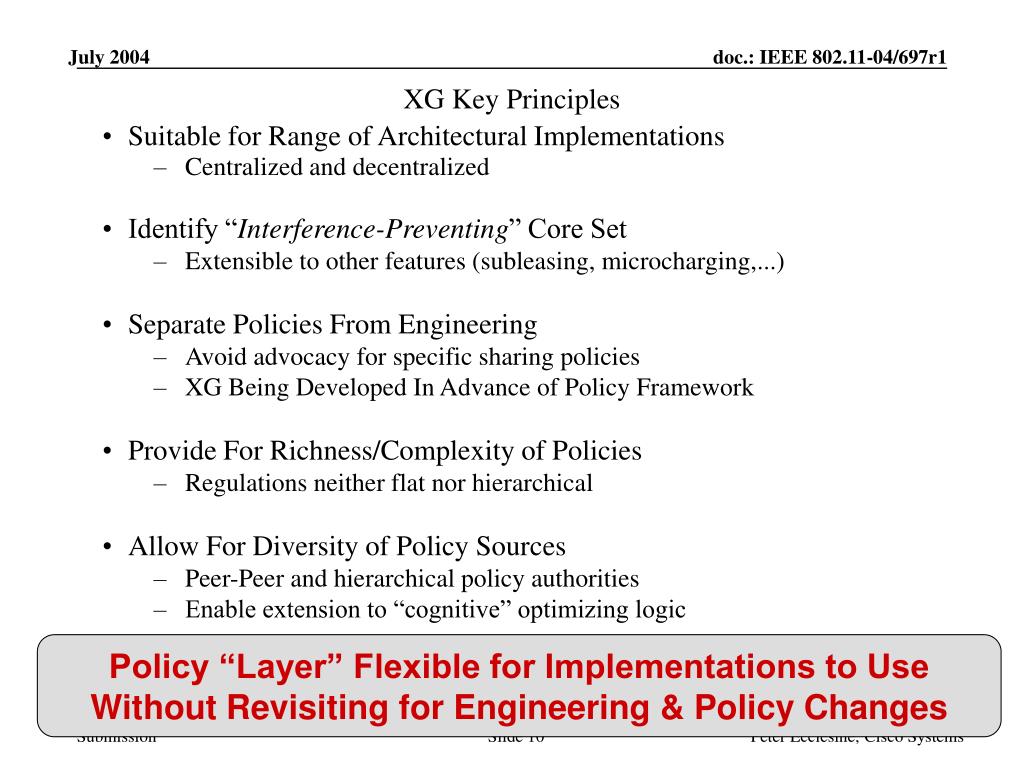

10. XG Key Principles • Suitable for Range of Architectural Implementations • Centralized and decentralized • Identify “Interference-Preventing” Core Set • Extensible to other features (subleasing, microcharging,...) • Separate Policies From Engineering • Avoid advocacy for specific sharing policies • XG Being Developed In Advance of Policy Framework • Provide For Richness/Complexity of Policies • Regulations neither flat nor hierarchical • Allow For Diversity of Policy Sources • Peer-Peer and hierarchical policy authorities • Enable extension to “cognitive” optimizing logic Policy “Layer” Flexible for Implementations to Use Without Revisiting for Engineering & Policy Changes Peter Ecclesine, Cisco Systems

11. The XG Problem SpaceHow Do We? Policy Language Common Approaches that Must Be Agreed on, and Can be Adopted Widely Describe Worst-Case Interference? Infer Ambiguous Policies? Resolve Inconsistent Policies? Reflect Nation -Policies? Reflect Band- Specific Policies? Abstract Capabilities (Behaviors) Implementation Design Specific Approaches that Can be Implemented in Many Ways to Develop Unique Products Infer Potential Interference? Account for Propagation Differences? Protect “Hidden” Nodes? Optimize System Performance? Measure Instantaneous Spectrum Usage? Peter Ecclesine, Cisco Systems

12. Interference Prevention National National Gov’t Non-Gov’t DoD Services Agencies Commercial & Civil Owners QOS, Cost Optimization Unit Unit User User User User User Levels of Policy Regulation Regional Policy Authority Policy Focus Ontology-Based Policy Controls Enable Combining and Processing Rules From Multiple Authorities Peter Ecclesine, Cisco Systems

13. Dimensions of Policy Definition Radio-Specific Policies Spectrum Regulatory Policies Network-Specific Policies Peter Ecclesine, Cisco Systems

14. Need to Express Policies In A Way That The Radio Can Understand Current regulatory policies are implicit in radio hardware – policy and technology are coupled and costly to change Need to be able to select and update policies in situ New locations, updated policies, new authorizations, ... Web Ontology Language (OWL) Being Used For Developing XG Policy Language Basis for semantic web technology – W3C recommendation Provides structure and richness needed to express policies Includes general theorem proving/reasoning engines for deductive inference OWL Is NOT Another Programming Language – structured way to build representations of knowledge, facts, and rules/policies for machine understanding XG Policy Language Technology Independent Mathematical Rigor and Logic Peter Ecclesine, Cisco Systems

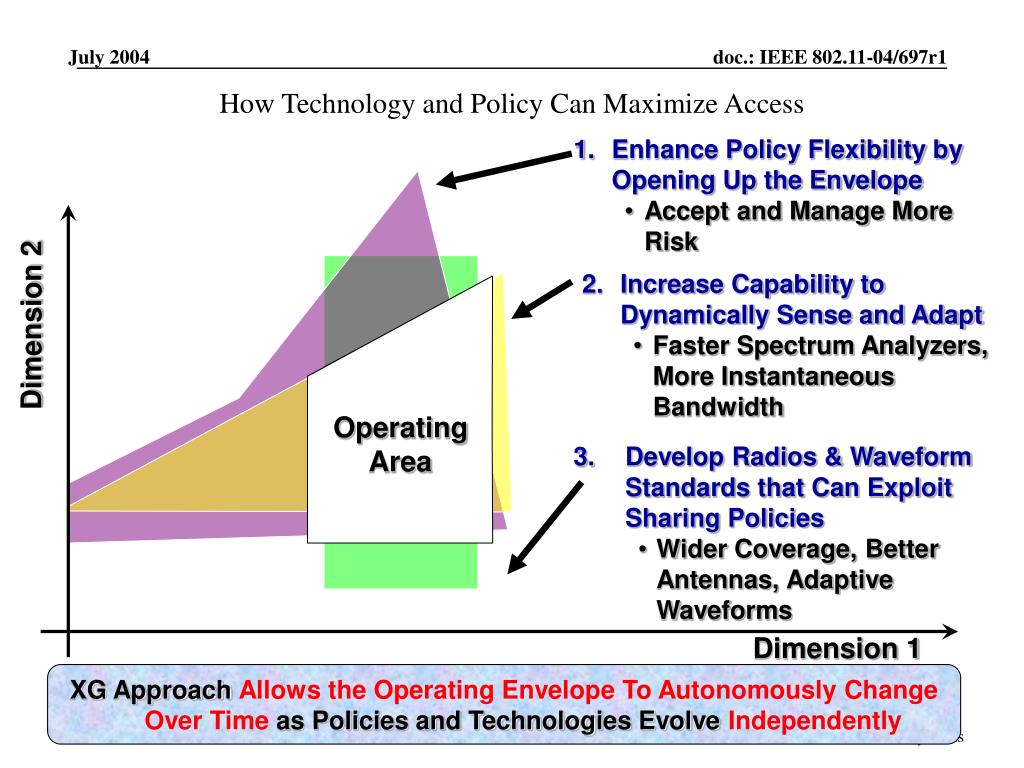

15. Operating Area How Technology and Policy Can Maximize Access • 1. Enhance Policy Flexibility by Opening Up the Envelope • Accept and Manage More Risk • 2. Increase Capability to Dynamically Sense and Adapt • Faster Spectrum Analyzers, More Instantaneous Bandwidth Dimension 2 Operating Area • Develop Radios & Waveform Standards that Can Exploit Sharing Policies • Wider Coverage, Better Antennas, Adaptive Waveforms Dimension 1 XG Approach Allows the Operating Envelope To Autonomously Change Over Time as Policies and Technologies Evolve Independently Peter Ecclesine, Cisco Systems

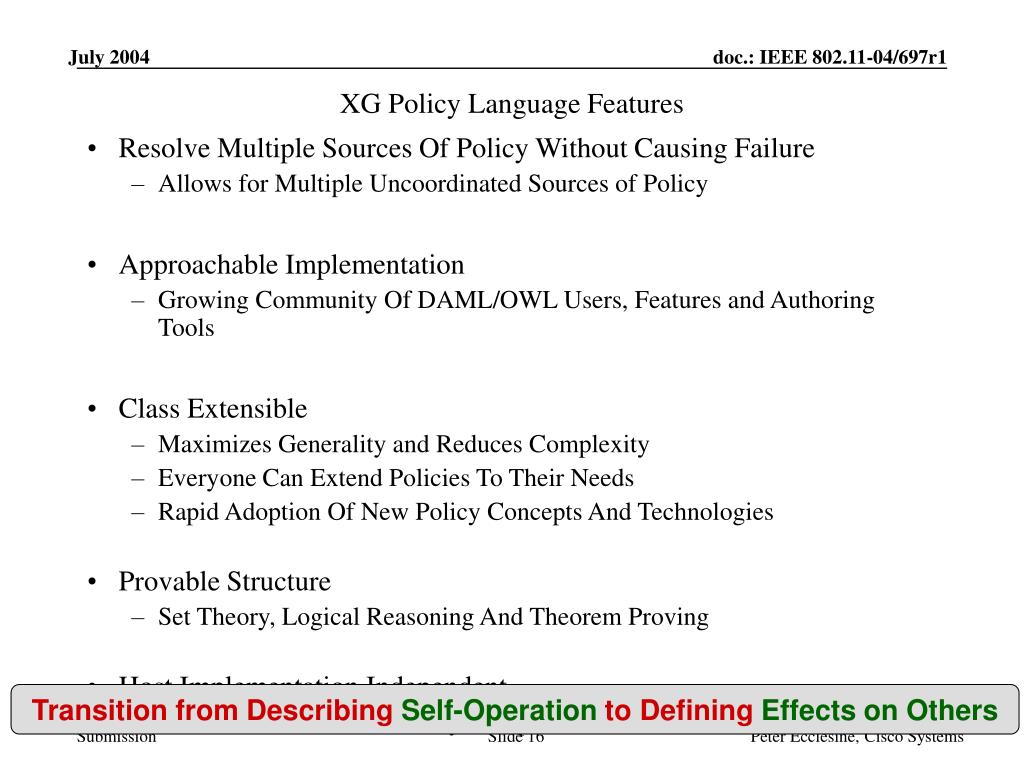

16. XG Policy Language Features • Resolve Multiple Sources Of Policy Without Causing Failure • Allows for Multiple Uncoordinated Sources of Policy • Approachable Implementation • Growing Community Of DAML/OWL Users, Features and Authoring Tools • Class Extensible • Maximizes Generality and Reduces Complexity • Everyone Can Extend Policies To Their Needs • Rapid Adoption Of New Policy Concepts And Technologies • Provable Structure • Set Theory, Logical Reasoning And Theorem Proving • Host Implementation Independent • All Policies Can Run On Any Compliant Device Transition from Describing Self-Operation to Defining Effects on Others Peter Ecclesine, Cisco Systems

17. Today’s Charter(After Policy Language Briefing) • What Are The Credibility Shortfalls (If Any)? • What Additional Technologies Are Needed (If Any)? • What Additional Activities Are Needed (If Any)? • Demonstrations of Technology • Measurements and Analyses Peter Ecclesine, Cisco Systems

18. URLs • http://www.darpa.mil/ato/programs/XG/index.htm • http://www.darpa.mil/ato/programs/XG/rfcs.htm • http://www.daml.org/2004/06/xg/Overview.html • http://www.w3.org/TR/owl-ref/ • http://www.starlab.vub.ac.be/staff/mustafa/WORM_2004.htm Peter Ecclesine, Cisco Systems
