  1. Conditions Metadata for TAGs Elizabeth Gallas, (Ryan Buckingham, Jeff Tseng) - Oxford ATLAS Software & Computing Workshop CERN – April 19-23, 2010

  2. Outline • History of Conditions Metadata / “Current” COMA Schema • Evolution in context to overall TAG DB project • Overview of Oracle Schemas for TAGs • TAG DB (Event-wise Metadata) • CATALOG (Dataset Catalogue Metadata) • COMA (COnditions MetadatA) • Upload procedure/Status • Documentation and Links • Fundamental design principles • Uses of Conditions Metadata • ELSSI usage • runBrowser – interface • runBrowserReport – interface • Functionality in our Future • Some unfortunate current operational issues • Conclusions Upon consideration of limited time, see next slide … Elizabeth Gallas - COMA

  3. Current COMA Tables Okay ! Too much detail for 15 minutes talk (don’t send me into the volcano) … See Backup/DocLinks for many details … I’m going to summarize in a few slides, then talk about the fun part: using COMA in ELSSI, runBrowser, runBrowserReport Elizabeth Gallas - COMA

  4. Documentation and Links COMA Documentation • COMA Schema https://gallas.web.cern.ch/gallas/COMA_Visio.pdf • COMA Tables https://gallas.web.cern.ch/gallas/COMA_Tables.html • COMA developer documentation (not user doc): https://gallas.web.cern.ch/gallas/Conditions_to_TAGs.html • COMA user documentation • Will be integrated into the interfaces below COMA User Interface Links (test versions) NOTE: The interfaces require a grid certificate in you browser NOTE: The interfaces are not in production server locations • runBrowser (2) Link: https://lxvm0341.cern.ch/tagservices/dev/rbucking/TAGBrowser/trunk/runBrowser2/runBrowser.php • runBrowserReport Link: https://lxvm0341.cern.ch/tagservices/dev/gallas/TAGS/runBrowser/runBrowserReport.php?q=find+run+142406 for Run 142406 (replace the Run Number in the URL with your Run of interest) Let’s try them after I mention some design principles Elizabeth Gallas - COMA

  5. General Design Principles (1) The fundamental components are • The COMA Relational Database tables • The runBroswerReport – the report interface for the COMA Tables • The runBrowser – the interface for RunLB selection using COMA Tables • COMA Tables: • Must provide information ELSSI needs to decode TAG attributes • Include information for both Online and MC Runs • TAGs for Online/MC have the same attributes (no MC truth) • Catalogue for Online/MC reflects similar processing workflows • Overall system must handle gracefully missing information • Upload select conditions for Runs of ‘analysis interest’ • not all Runs and not all Conditions • Refine/Correct/Derive conditions to form more effective criteria • runBrowserReport = web report interface to COMA Tables • Intended to display what COMA knows about each Run • Provides links to information in other systems • runQuery, AMI, Trigger, Data Quality …or reports using COOLCherryPy • Will be used by ELSSI & runBrowser to provide more information Elizabeth Gallas - COMA

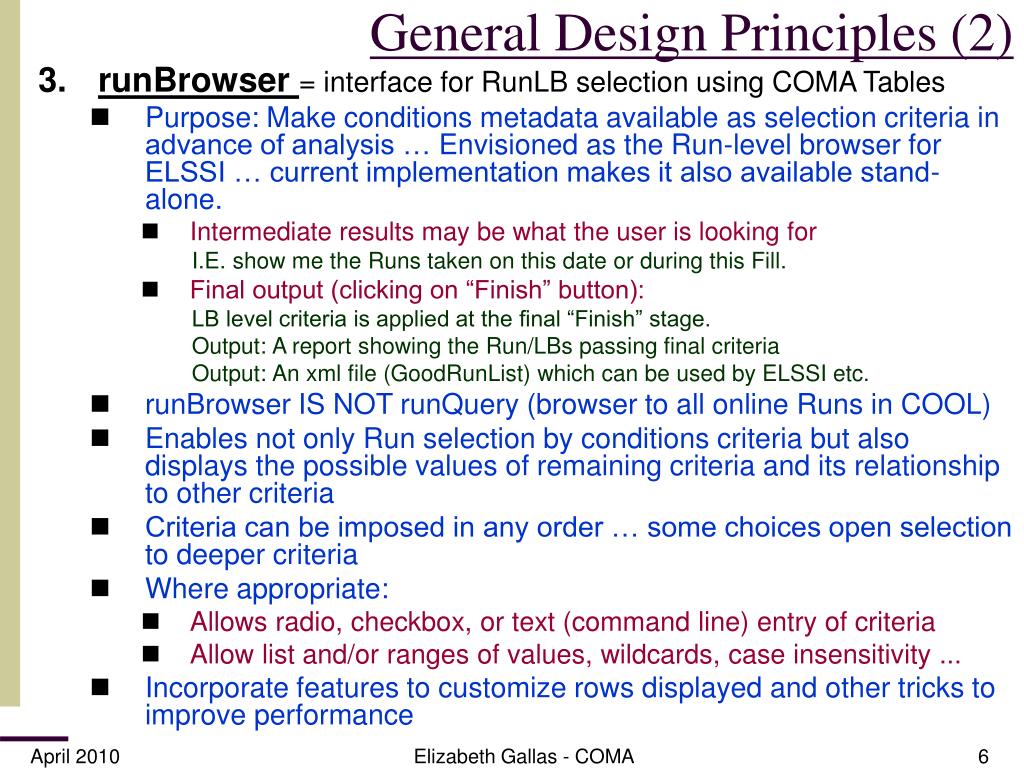

  6. General Design Principles (2) • runBrowser = interface for RunLB selection using COMA Tables • Purpose: Make conditions metadata available as selection criteria in advance of analysis … Envisioned as the Run-level browser for ELSSI … current implementation makes it also available stand-alone. • Intermediate results may be what the user is looking for I.E. show me the Runs taken on this date or during this Fill. • Final output (clicking on “Finish” button): LB level criteria is applied at the final “Finish” stage. Output: A report showing the Run/LBs passing final criteria Output: An xml file (GoodRunList) which can be used by ELSSI etc. • runBrowser IS NOT runQuery (browser to all online Runs in COOL) • Enables not only Run selection by conditions criteria but also displays the possible values of remaining criteria and its relationship to other criteria • Criteria can be imposed in any order … some choices open selection to deeper criteria • Where appropriate: • Allows radio, checkbox, or text (command line) entry of criteria • Allow list and/or ranges of values, wildcards, case insensitivity ... • Incorporate features to customize rows displayed and other tricks to improve performance Elizabeth Gallas - COMA

  7. https://lxvm0341.cern.ch/tagservices/dev/rbucking/TAGBrowser/trunk/runBrowser2/runBrowser.phphttps://lxvm0341.cern.ch/tagservices/dev/rbucking/TAGBrowser/trunk/runBrowser2/runBrowser.php Note: “Under Construction”! Each section expands/collapses Purpose / Instructions Selection Summary  Starts out empty Selection Criteria Data Source Run Type Temporal Selection Project Name Trigger Master Key DAQ Configuration Run Number These are example criteria … more criteria will be added Test version of runBrowser Elizabeth Gallas - COMA

  8. Example demonstrates General Principles: There is no prescribed order of selection or mandatory selections Expand section of interest, make selection: available radio/checkbox or use the textbox to type a list or range of values Click Submit I chose Project “data09_900GeV”, then I see there are 99 Runs left I see their run and date range I see the criteria has appeared in the selection summary I could remove it with button click I see ALL the other sections have changed to reflect this criteria ! Look at the remaining 99 runs .. (next slide) Iterate any number of times  Elizabeth Gallas - COMA

  9. The Run Section includes links to other systems Click on the Run Number  generates the runBrowserReport Other links are to AMI, RunList, and Trigger Reports for that Run number Other related selections to be added to runBrowser2: Run Duration Number of LB Number of Events Recorded Click on the Run Section to open it … the run numbers appear Run selection is NOT mandatory … you can go onto FINISH without any Run explicitly selected runBrowserRun Number Section Next slide: runBrowserReport for Run number 142406 Elizabeth Gallas - COMA

  10. runBrowserReport Overview Each Yellow section expands … This report has 5 Primary sections, the Trigger section has subsections • General Run info • Run Date … • COMA Load Status • COMA loading messages • DQ LBSUMM assessments • COOL tagged/locked • Prescale Evolution • How many times did prescales change during the Run • Trigger section • Has an HLT summary • Counts of active/disabled • Has expanding subsections • HLT Chains (2 subsections) • Physics • Others • Level 1 Items Elizabeth Gallas - COMA

  11. COMA runBrowserReport : Overview Run 142406 Trigger Summary shows: has 23 active physics chains (of 162) Click on the Show/Hide link • to show/hide the grey rows of chain/items tables in respective subsections: • HLT (show/hide disabled chains) • Physics (complete EF-L2-L1 chains) • Others (commissioning chains) • Level 1 (show/hide passive items) The trigger tables show the prescale range and PS,PT,RR flags of the new derived “Run Aggregate prescale” COMA tables This new information allows: ELSSI to show only chains which are “active” during the Run. With report like this to show all chains. https://lxvm0341.cern.ch/tagservices/dev/gallas/TAGS/runBrowser/runBrowserReport.php?q=find+run+142406 Elizabeth Gallas - COMA

  12. Functionality in our Future (1) • COMA: Loading programs continue to be improved/refined • Some areas better resolved than others. We are making a list of the basics needed for production running … listed here are things initiated. • Select Runs with many of the criteria now available in runQuery • Project Name, Magnetic field, Beam conditions, DAQ config, Master Key (Trigger, LVL1/HLT PS Keys) … • Select Runs in particular Streams (with event counts available) • New: Define Run-wise Aggregate prescales, passthrough, rerun • Calculates Run-wise summary flag: PS, PT, Rerun per triggger • Useful to ELSSI to display active/passive/disabled triggers per Run … So that users do not select triggers in a Run which would yield 0 events because that trigger was not active • Useful for runBrowser to find the active chains for each Run • Working with Trigger group for validation • Data Quality upload • Can load tagged/locked LBSUMM DQ assessments • Schema and Loading – groundwork laid, interfaces underway • Can envision ways to include virtual flags with this information • Will work with DQ group for verification/refinement Elizabeth Gallas - COMA

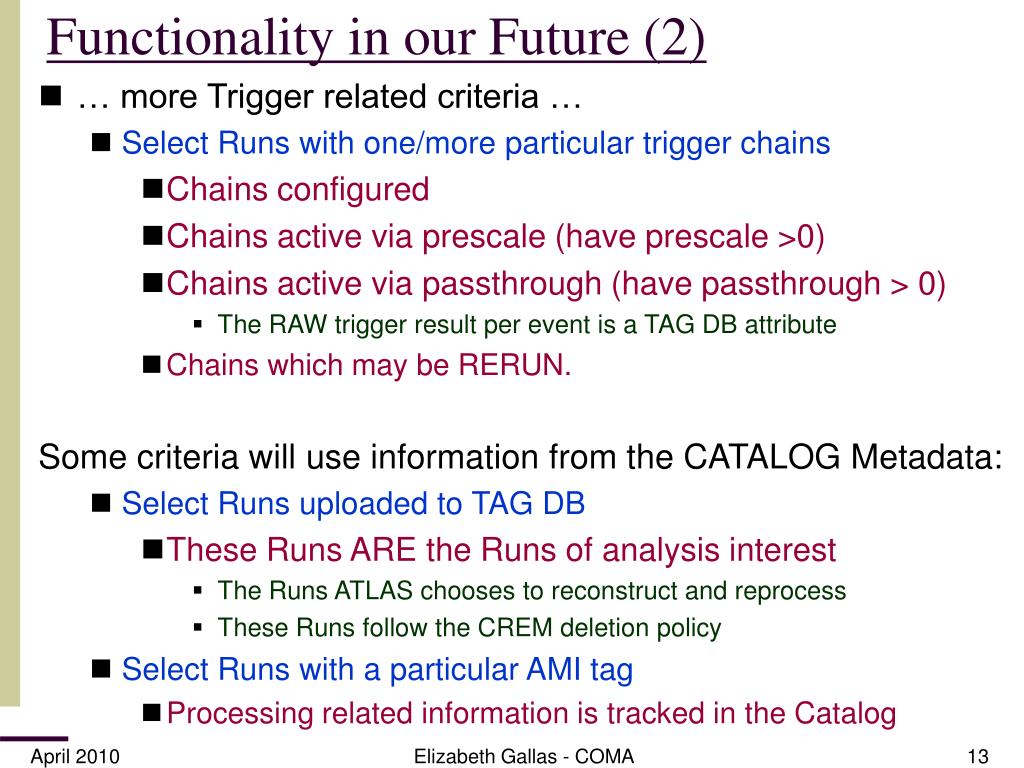

  13. Functionality in our Future (2) • … more Trigger related criteria … • Select Runs with one/more particular trigger chains • Chains configured • Chains active via prescale (have prescale >0) • Chains active via passthrough (have passthrough > 0) • The RAW trigger result per event is a TAG DB attribute • Chains which may be RERUN. Some criteria will use information from the CATALOG Metadata: • Select Runs uploaded to TAG DB • These Runs ARE the Runs of analysis interest • The Runs ATLAS chooses to reconstruct and reprocess • These Runs follow the CREM deletion policy • Select Runs with a particular AMI tag • Processing related information is tracked in the Catalog Elizabeth Gallas - COMA

  14. Some Unfortunate Operational Notes • Recently, the server for runQuery and trigger web interfaces became unrecoverable. • Some services were moved to new locations • Some files on the failed server were lost and are difficult to recover • Some services were in the process of moving to a new server anyway. • This has had 2 effects on COMA/runBrowser/Report: • Some loading programs were using lost data so some runs are now missing that data • Plan: Rewrite those programs to use more stable source. • The web report links point to the old server • Plan: Fix the links to point to the new location. This is not a complaint about these particular web services We need to make COMA loading more robust we have a plan how to do that. Elizabeth Gallas - COMA

  15. Conclusions This talk reflects an evolving system … current information in the system is growing based on information available and use cases • Adding more dimensions to the Conditions data • With suitable relationships to facilitate queries • Making that criteria available in a dynamic useable interface We want to insure the Metadata is • complete enough to satisfy use cases while • reflecting accurately its limitations Interfaces are being constructed to use selection syntax, criteria, and communication in common use in ATLAS i.e. runQuery, GoodRunList xml … This facilitates cross checks with other systems Continuous process: talking with various experts to ensure data integrity, completeness, compatibility w/other systems Elizabeth Gallas - COMA

  16. Backup Elizabeth Gallas - COMA

  17. Early history of this Conditions Metadata project • 2007: first Conditions Metadata tables were filled for MC simulation tests/prototype development • Streaming Test, Full Dress Rehearsal (FDR) exercises • Run/LB-wise conditions were collected from MC log files and other sources into relational DB tables (COMA) • And INSERTED into then new folders in Conditions DB (COOL) • Which formed the prototype for the ATLAS Luminosity calculation • Other Trigger/DAQ COOL folders defined at same time (RichardHawkings, Trigger/TDAQ) • 2008: COMA tables used by ELSSI prototype (still just MC) • Conditions, particularly trigger configuration … things not practical to store event-wise • 2009: start extracting Run/LB-wise information from COOL into COMA tables to facilitate efficient access to Conditions Metadata by ELSSI for Online Runs Elizabeth Gallas - COMA

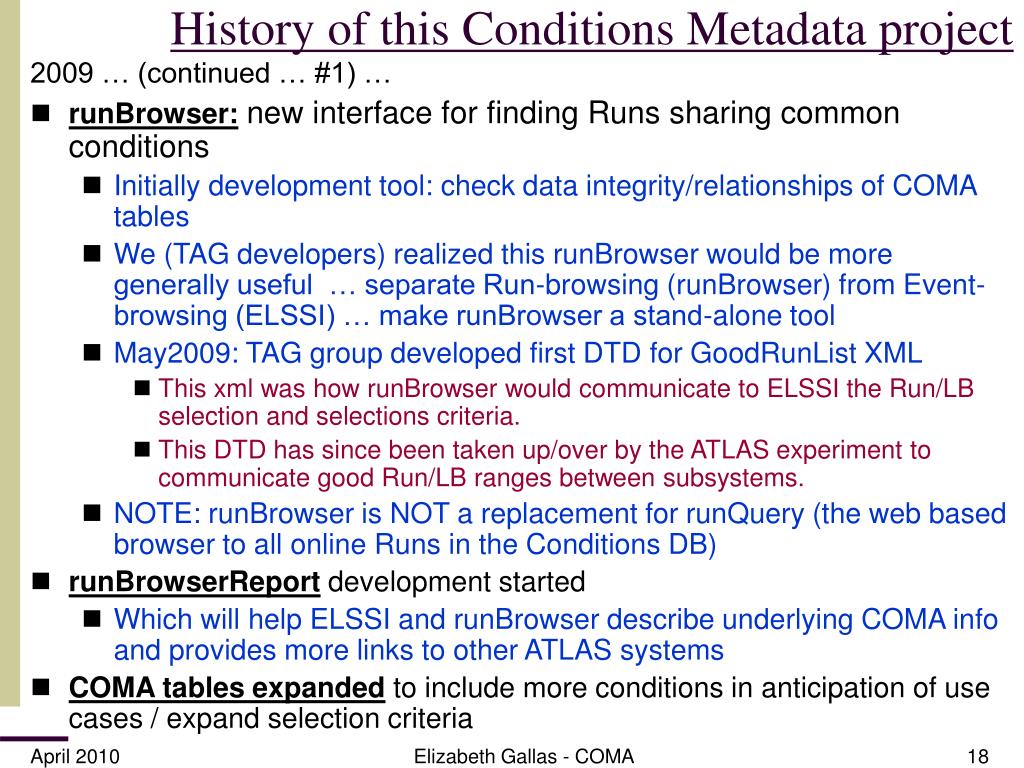

  18. History of this Conditions Metadata project 2009 … (continued … #1) … • runBrowser: new interface for finding Runs sharing common conditions • Initially development tool: check data integrity/relationships of COMA tables • We (TAG developers) realized this runBrowser would be more generally useful … separate Run-browsing (runBrowser) from Event-browsing (ELSSI) … make runBrowser a stand-alone tool • May2009: TAG group developed first DTD for GoodRunList XML • This xml was how runBrowser would communicate to ELSSI the Run/LB selection and selections criteria. • This DTD has since been taken up/over by the ATLAS experiment to communicate good Run/LB ranges between subsystems. • NOTE: runBrowser is NOT a replacement for runQuery (the web based browser to all online Runs in the Conditions DB) • runBrowserReport development started • Which will help ELSSI and runBrowser describe underlying COMA info and provides more links to other ATLAS systems • COMA tables expanded to include more conditions in anticipation of use cases / expand selection criteria Elizabeth Gallas - COMA

  19. History of this Conditions Metadata project 2009 … (continued … #2) … • As data has been added to COMA tables • runBrowser evolved accordingly • At various points … selection criteria included: • Data Source (online,simulation), Data Type, Run Number, Duration, Number of LBs, temporal, DAQ configuration, Filename tag (Project Name), Trigger Super Master Key, Trigger LVL1 and/or HLT Prescale Key, DQ assessments from LBSUMM detectors… • Useful for initial purpose and query development This implementation demonstrated the basic design principles … but the code was not generally well constructed … Elizabeth Gallas - COMA

  20. More History of this Conditions Metadata project 2009 … (continued #3) … into 2010 … • October 2009: Ryan Buckingham (Oxford) joined project • Now up to speed on many aspects of the system. • primarily working on runBrowser • Reorganization/enhancement of runBrowser code • converting components to object oriented structure improved • internal communication • inclusion of criteria to the GRL xml to pass to ELSSI • Facilitates eventual system to save user criteria for future sessions and sharing with others, physics groups • Making addition of selection criteria more modular • Adding features and functionality to facilitate syntax alignment with runQuery • Improving look/feel of interface Elizabeth Gallas - COMA

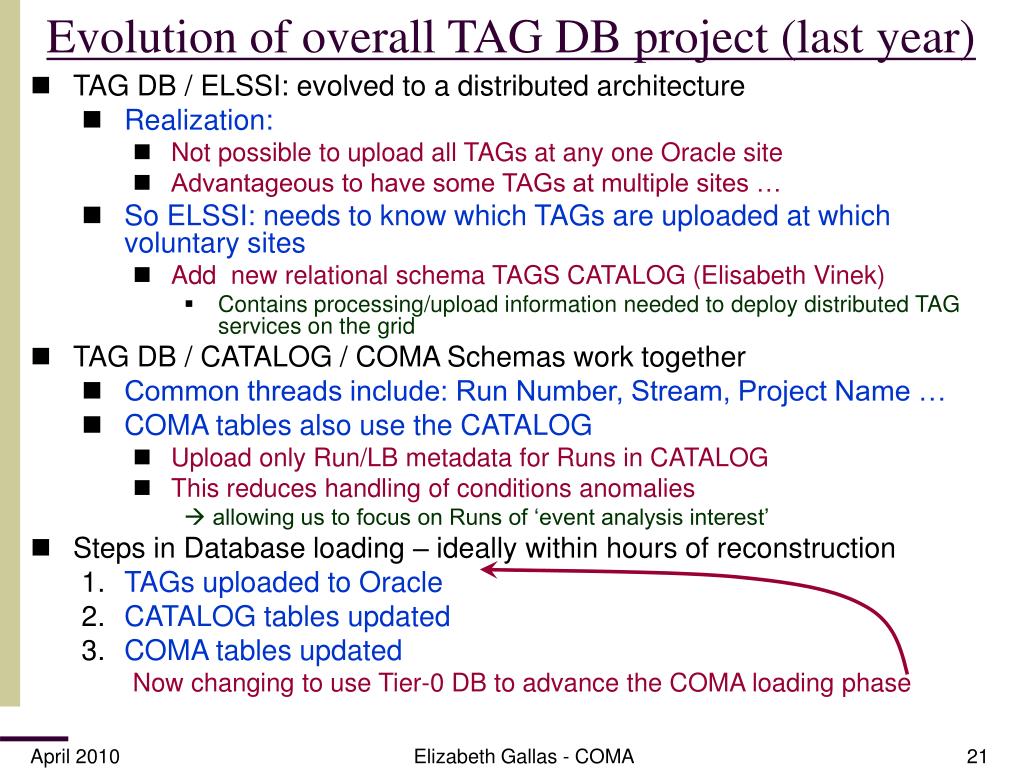

  21. Evolution of overall TAG DB project (last year) • TAG DB / ELSSI: evolved to a distributed architecture • Realization: • Not possible to upload all TAGs at any one Oracle site • Advantageous to have some TAGs at multiple sites … • So ELSSI: needs to know which TAGs are uploaded at which voluntary sites • Add new relational schema TAGS CATALOG (Elisabeth Vinek) • Contains processing/upload information needed to deploy distributed TAG services on the grid • TAG DB / CATALOG / COMA Schemas work together • Common threads include: Run Number, Stream, Project Name … • COMA tables also use the CATALOG • Upload only Run/LB metadata for Runs in CATALOG • This reduces handling of conditions anomalies  allowing us to focus on Runs of ‘event analysis interest’ • Steps in Database loading – ideally within hours of reconstruction • TAGs uploaded to Oracle • CATALOG tables updated • COMA tables updated Now changing to use Tier-0 DB to advance the COMA loading phase Elizabeth Gallas - COMA

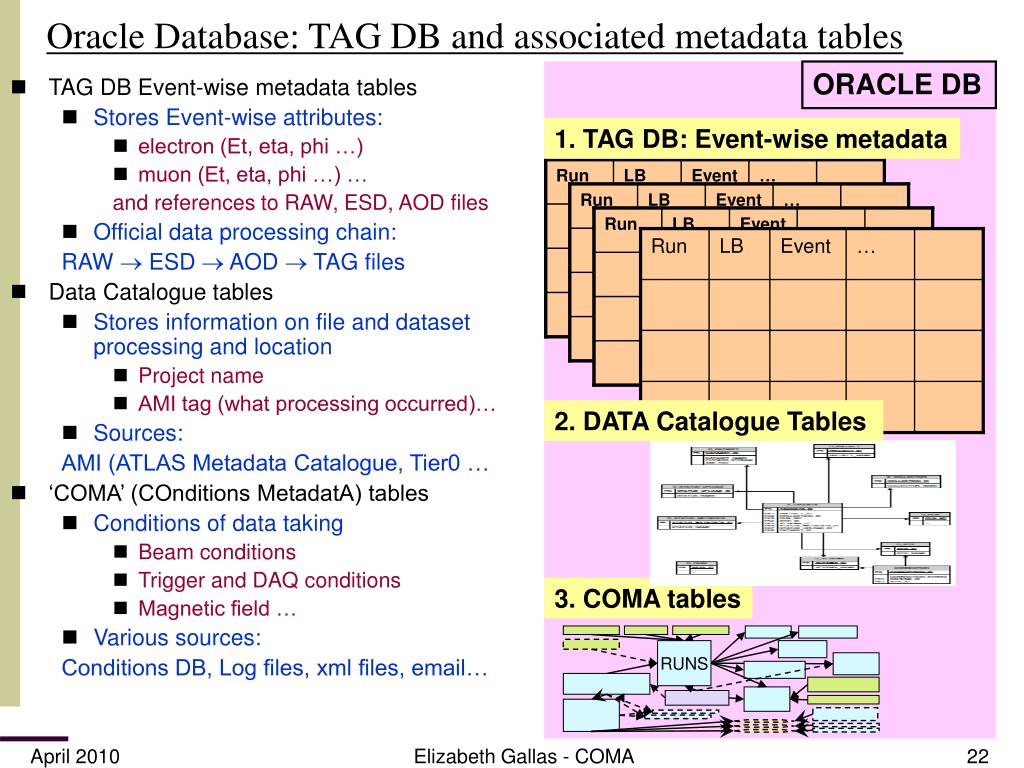

  22. Oracle Database: TAG DB and associated metadata tables RUNS 3. COMA tables 1. TAG DB: Event-wise metadata Run LB Event … • TAG DB Event-wise metadata tables • Stores Event-wise attributes: • electron (Et, eta, phi …) • muon (Et, eta, phi …) … and references to RAW, ESD, AOD files • Official data processing chain: RAW  ESD AOD TAG files • Data Catalogue tables • Stores information on file and dataset processing and location • Project name • AMI tag (what processing occurred)… • Sources: AMI (ATLAS Metadata Catalogue, Tier0 … • ‘COMA’ (COnditions MetadatA) tables • Conditions of data taking • Beam conditions • Trigger and DAQ conditions • Magnetic field … • Various sources: Conditions DB, Log files, xml files, email… ORACLE DB 2. DATA Catalogue Tables Elizabeth Gallas - COMA
