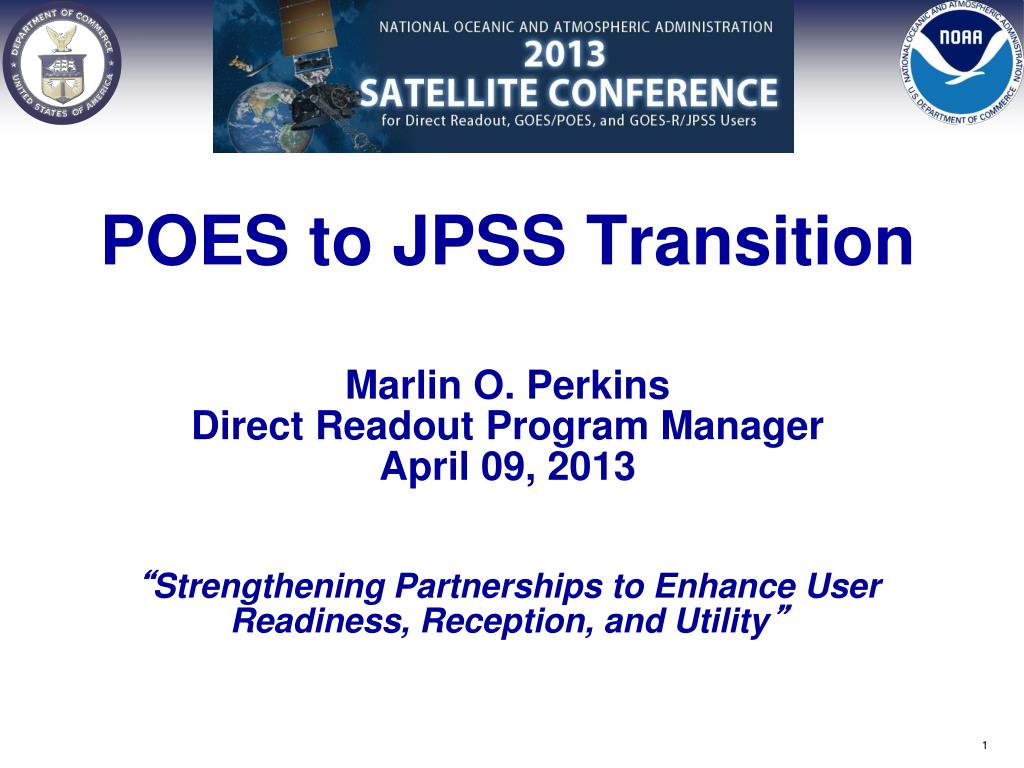

  1. POES to JPSS TransitionMarlin O. PerkinsDirect Readout Program ManagerApril 09, 2013“Strengthening Partnerships to Enhance User Readiness, Reception, and Utility”

  2. Agenda • Background • APT Service • HRPT Service • Summary of JPSS Direct Readout Plan • High Rate Data (HRD) Service • Low Rate Data (LRD) Service • HRPT Transition to: • HRD • LRD • Summary

  3. Direct Services Branch Branch Chief SARSAT Program Manager Christopher O’Connors One vacancy (USMCC System Manager) http://www.noaasis.noaa.gov/ Administrative Support Denise Buckmon http://www.sarsat.noaa.gov/ Direct Services Team SARSAT Technical Lead/Space Segment Engineer Mickey Fitzmaurice Argos DCS Scott Rogerson Program Manager GOES DCS Kay Metcalf Program Manager USMCC System Manager Vacant USMCC Operations & Maintenance Contract OSPO Support Services Contract HI & FL MEOLUT Dev. Contracts Direct Readout Marlin Perkins Program Manager GOES DCS Letecia Reeves Customer Service Rebroadcast Services Paul Seymour Program Manager Ground Segment Engineer Jesse Reich Program Analyst Stephen Roark NOAA Corps Officer LTJG Timothy Sinquefield LUT Maintenance Contract

  4. Background • Current Direct Readout Services: • Automatic Picture Transmission (APT) Service • Analog service operational on POES spacecraft • Service available through the life of legacy spacecraft • Low Resolution Picture Transmission (LRPT) • EUMETSAT replaced analog APT with the digital LRPT on Metop-A • LRPT on Metop-A interfered with the sounder, turned off in 2007 • LRPT is not available on Metop-B/C • High Resolution Picture Transmission (HRPT) • Digital service operational on POES spacecraft • Service available through the life of legacy spacecraft • Advance High Resolution Picture Transmission (AHRPT) • EUMETSAT replaced HRPT with the AHRPT with Metop-A • Metop-A AHRPT service limited operation since 2007 • Metop-B AHRPT is full global operation

  5. Characteristics

  6. Service Availability *Development of an LRD service on JPSS-1was suspended in 2011. Currently, JPSS is not planning to implement L-band capabilities on JPSS-2 and beyond and is studying the impacts on users.

  7. APT Service Use of the 137 -138 MHz frequency band on future NOAA polar-orbiting satellites has not been considered. • Service Transition • APT service WILL BE available until end-of-life of POES spacecraft , • NOAA’s future polar-orbiting satellites will NOT support an APT or APT-like service, • A likely alternative is the Low Resolution Picture Transmission (LRPT) service • Available on Roshydromet Meteor-M/MP series satellites

  8. HRPT Service The HRPT service will be continuous through the end-of-life of the POES spacecraft. • Equipment • 1.1 meter (or larger) parabolic dish • Antenna positioner and control hardware including azimuth and elevation rotators • Feedhornand quadrature combiner • Low noise amplifier • Wide band receiver • Demodulator • Bit-synchronization board • Personal Computer • Software for image ingest, processing, and display • Cost • Complete system: $50K+ (USD) • Visit any satellite receiver manufacturer • See http://www.noaasis.noaa.gov/ NOAASIS/ml/manulst.html for list of vendors

  9. Summary of JPSS Direct Readout Plan • JPSS Level 1 Requirement document provides the basis for the planned support of the direct readout community with direct broadcast from JPSS-1 and JPSS-2 • JPSS-1 will provide HRD (High Rate Data) broadcast containing sensor data • JPSS-2 will provide HRD broadcast and the NOAA JPSS Office will finalize decision to not implement LRD (Low Rate Data) broadcast after studying user impacts. • The JPSS HRD broadcasts (JPSS-1,JPSS-2) will contain all of the sensor data necessary for the field terminal user community to produce a full set of data records (Mission Support Data will be available by internet) • Any potential JPSS-2 LRD broadcast would contain the necessary sensor data for the field terminal user community to produce a prioritized set of data records

  10. Summary of JPSS Direct Readout Plan (con’t) • JPSS will not perform encryption of the direct broadcast • JPSS will provide the necessary inputs (for the field terminal user community to produce the data records) on a web portal • Algorithms & Software, Data Processing Framework, Mission Support Data (MSD), Field Terminal Hardware Specifications, Test Products • Users will be notified of any updates to these products • Software and algorithm updates are JPSS configuration control board (CCB) managed • JPSS will provide additional services to the field terminal user community • HRD downlink status (post-pass) & mission status notifications • Help desk for user support (TBD)

  11. Summary of JPSS Direct Readout Plan (con’t) The key differences in the mission architecture from S-NPP are in bolded text below SMD - Stored Mission Data, HRD – High Rate Data, T&C – telemetry and Command,

  12. High Rate Data (HRD) Service (con’t) • Registration of X-band Stations • The X-band range (7.75 – 7.90 GHz) is shared between Meteorological Satellites and Point-to-Point Radio Links on ground. • To protect against Potential Interference from Point-to-Point Radio Links it is strongly recommended to register X-band Direct Readout Reception Stations with the national Radio Frequency Authorities; • Before selecting a location for a new X-band Direct Readout Reception Station it is advisable to carry out a Radio Frequency Survey to identify any existing sources of interference.

  13. High Rate Data (HRD) Service • The HRD service will be continuous through S-NPP and JPSS-1/2. • A HRD service will be available on several future international polar-orbiting constellations. See http://www.wmo.int/pages/prog/sat/satellitestatus.php • Equipment • Cost • X-band only $250K+ (USD) • L-band/X-band $400K+ (USD) • Equipment Information • Visit any satellite receiver manufacturer • See http://www.noaasis.noaa.gov/ NOAASIS/ml/manulst.html for list of vendors

  14. Low Rate Data (LRD) Service • An L-band service will not be available on S-NPP and JPSS-1. • EPS-SG has excluded the transmission a (very) reduced amount of data in L-band in parallel, for cost reduction and performance reasons. • The 1695 – 1710 MHz band covering the US states will be shared with commercial broadband services. • Equipment • Equipment Configuration • Similar to Metop AHRPT terminal • Data Format • CGMS Global Specifications for AHRPT • Cost • LRD $100K+ (USD)

  15. HRPT Transition The meteorological X-band (7.75 – 7.90 GHz) has been selected for EPS-SG direct broadcast. . • Transition to HRD • It will not be possible to upgrade an existing HRPT station to use the S-NPP/JPSS HRD • Old equipment not compatible • Requires a new X-band field terminal • Other systems that don’t meet those requirements • Replacement of demodulator and potentially other components; • Software upgrades to handle S-NPP/JPSS instrument data and other S-NPP/JPSS specific aspects • Station Cost • X-band only $250K+ (USD) • L-band/X-band $400K+ (USD) • System information • Visit any satellite receiver manufacturer • See http://www.noaasis.noaa.gov/NOAASIS/ml /manulst.html for a list of vendors

  16. HRPT Transition • Transition to LRD • Equipment Upgrades • Similar to HRPT to Metop AHRPT upgrades • Data Format • CGMS Global Specification for AHRPT • Station Cost • L-band only $100K+ (USD) • L-band/X-band $400K+ (USD) • Equipment Information • Visit any satellite receiver manufacturers • See http://www.noaasis.noaa.gov/NOAASIS/ml/ manulst.html for a list of vendors

  17. Summary • A summary of the spacecraft services and field terminal changes are listed below: • METOP Constellation • LRPT: • APT Service replaced the failed LRPT in the AM orbit; • LRPT is not available on METOP-B/C; • AHRPT: New format requires upgrades to existing HRPT field terminals or purchase new station. • POES Constellation • APT: Frequency change in the 137.1 – 137.937 MHz frequency band; • HRPT Service remains unchanged; • APT/HRPT services are available until POES end-of-life. • S-NPP/JPSS Constellation • APT service will not be available; • HRPT will not be available and might be replaced with the LRD broadcast, which would require L-band field terminal upgrades; • LRD will not be available on S-NPP or JPSS-1; a final decision on JPSS-2 will be made after studying the impacts of no LRD on users. • HRD service requires a new X-band field terminal.

  18. Summary of Direct Readout Services User impacts of no L-band service on JPSS-2 and beyond are requested.

  19. Contact Information • Marlin O. Perkins • Marlin.O.Perkins@noaa.gov • 301.817.4523 • https://www.noaasis.noaa.gov • Paul Seymour • Paul.Seymour@noaa.gov • 301.817.4521 • https://www.noaasis.noaa.gov • http://www.jpss.noaa.gov/satellites.html
