1 / 16

Upper Limb

Upper Limb. Lower Limb. Scapula Humerus Radius, ulna Carpals Digits Metacarpals Phalanges. Pelvis Femur Tibia, fibula Tarsals Digits Metatarsals Phalanges. Tibia/fibula. Tibia--big toe side Fibula--little toe side (no pronation/supination). Ankle. Talus--forms ankle joint

bainbridge
Télécharger la présentation

Upper Limb

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Upper Limb Lower Limb • Scapula • Humerus • Radius, ulna • Carpals • Digits • Metacarpals • Phalanges • Pelvis • Femur • Tibia, fibula • Tarsals • Digits • Metatarsals • Phalanges

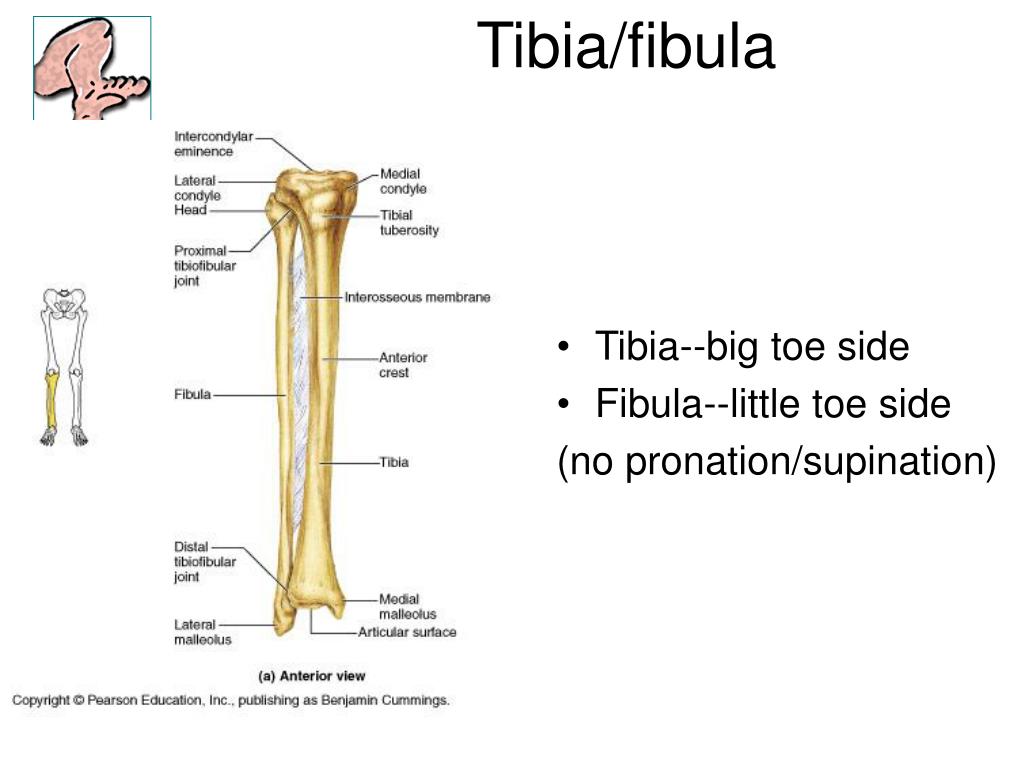

  2. Tibia/fibula • Tibia--big toe side • Fibula--little toe side (no pronation/supination)

  3. Ankle • Talus--forms ankle joint • Calcaneus--forms heel

  4. Foot • Function: • Support weight • Act as lever when walking • Tarsals • Talus = ankle • Between tibia + fibula • Articulates w/both • Calcaneus = heel • Attachment for Calcaneal tendon • Carries talus • Metatarsals • Homologous to metacarpals • Phalanges • Smaller,

  5. Joints of Lower Limb • Hip (femur + acetabulum) • Ball + socket • Multiaxial • Synovial • Knee (femur + patella) • Gliding of patella • Synovial • Knee (femur + tibia) • Hinge • Biaxial • Synovial

  6. Hip Flexion/extension Abduction/adduction Lateral/medial rotation Knee Flexion/extension Ankle Dorsiflexion/plantarflexion Inversion/eversion Toes Flexion/extension . Lower Limb Movements

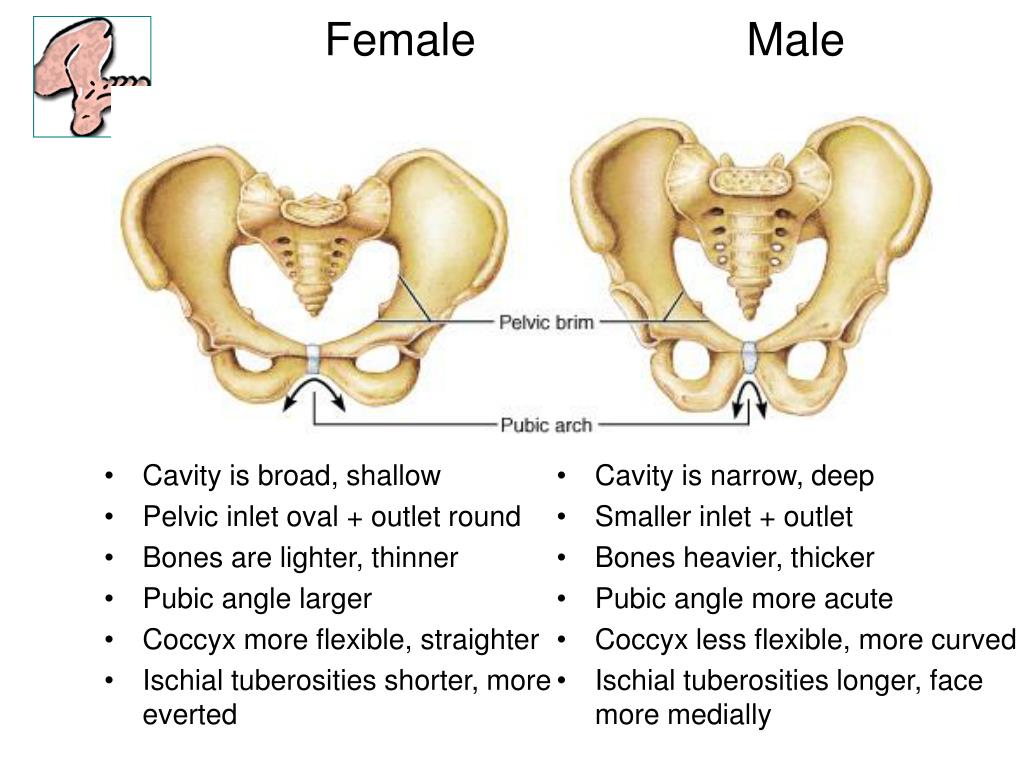

  7. Female Male • Cavity is broad, shallow • Pelvic inlet oval + outlet round • Bones are lighter, thinner • Pubic angle larger • Coccyx more flexible, straighter • Ischial tuberosities shorter, more everted • Cavity is narrow, deep • Smaller inlet + outlet • Bones heavier, thicker • Pubic angle more acute • Coccyx less flexible, more curved • Ischial tuberosities longer, face more medially

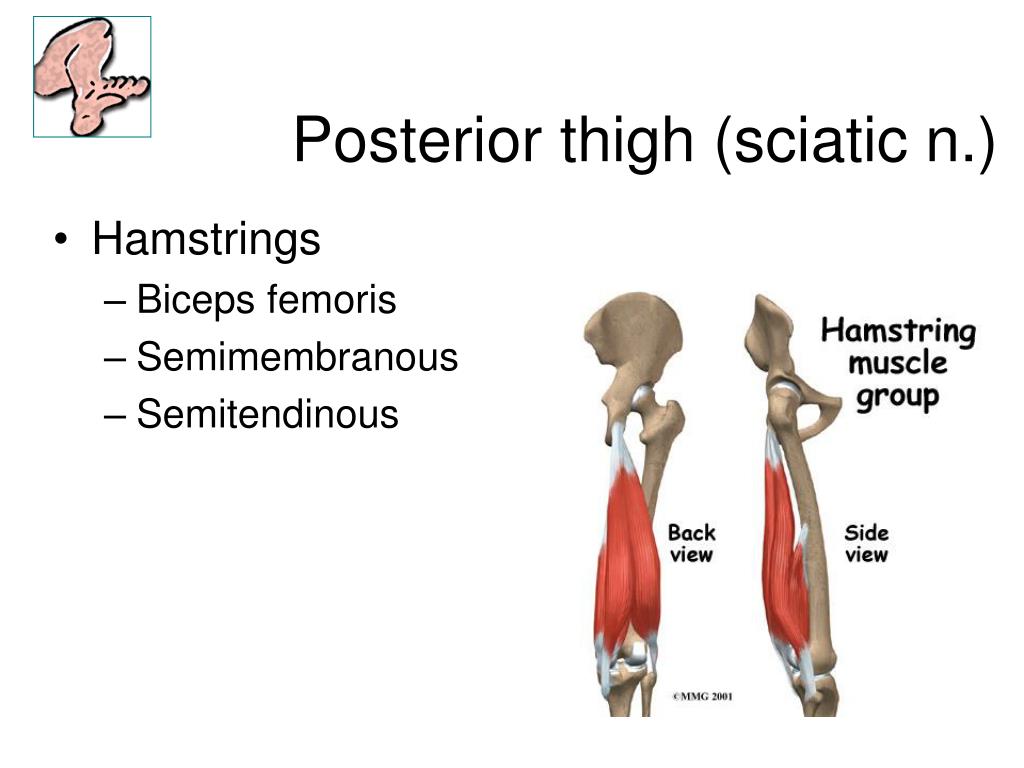

  8. Posterior thigh (sciatic n.) • Hamstrings • Biceps femoris • Semimembranous • Semitendinous

  9. Medial thigh (obturator n.) • Adductor muscles • Gracilis • Adductor • Magnus • Longus • brevis

  10. Anterior Leg (deep fibular n.) • Extensors (dorsiflexors) • Fibularis (peroneus) longus • Extensor digitorum longus • Extensor hallicus longus • Tibialis anteriorus

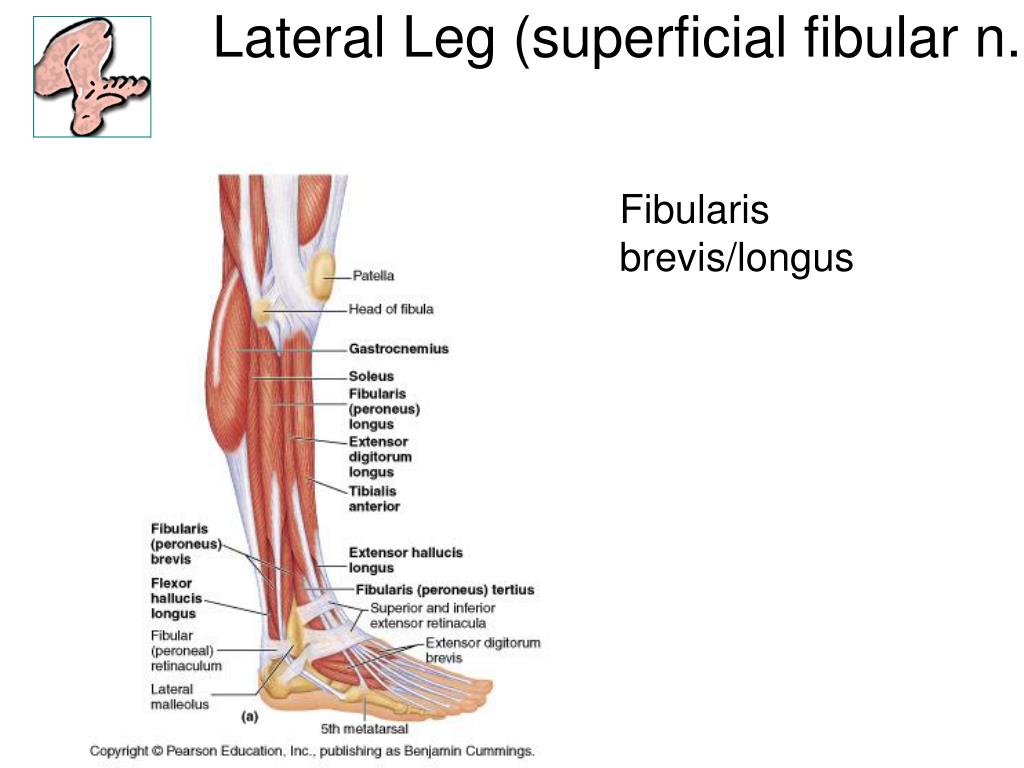

  11. Lateral Leg (superficial fibular n.) • Fibularis brevis/longus

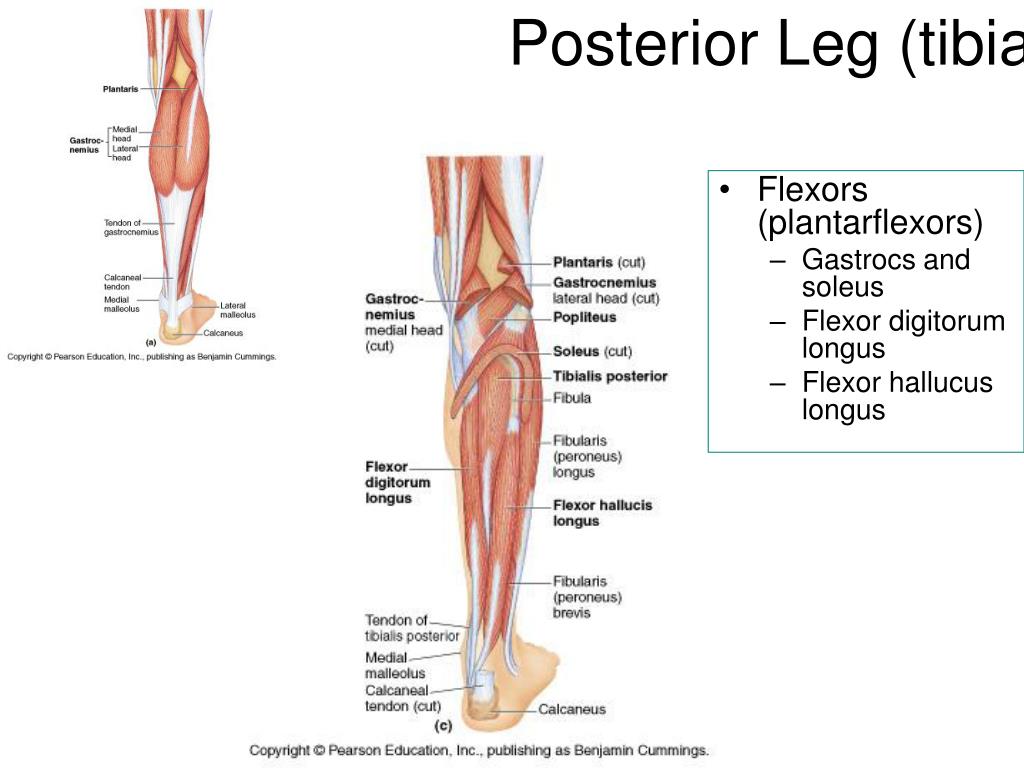

  12. Posterior Leg (tibial n.) • Flexors (plantarflexors) • Gastrocs and soleus • Flexor digitorum longus • Flexor hallucus longus

  13. pg 792 Surface Anatomy: Anterior Thigh + Leg • Palpate • Patella • Condyles of femur • Femoral Triangle • Sartorius (lateral) • Adductor longus (medial) • Inguinal ligament (superior) • Femoral a + v, lymph nodes pg 785

  14. Surface Anatomy: Posterior Leg • Popliteal fossa • Diamond-shape fossa behind knee • Boundaries • Biceps femoris (sup-lat) • Semitendinosis + semimembranosis (sup-med) • Gastrocnemius heads (inf) • Contents • Popliteal a + v • Calcaneal (Achilles) tendon pg 793

  15. Blood supply to lower limb • Internal Iliac • Cranial + Caudal Gluteals= gluteals • Internal Pudendal = perineum, external genitalia • Obturator = adductor muscles • External Iliac • Femoral = lower limb • Deep femoral = adductors, hamstrings, quadriceps • Popliteal (continuation of femoral) • Geniculars = knee • Anterior Tibial = ant. leg muscles, further branches to feet • Posterior Tibial = flexor muscles, plantar arch, branches to toes
