Upper Limb Regions

Upper Limb Regions. Shoulder Arm & Forearm Hand. Shoulder region. Bones Joints Muscles Vessels & Nerves. Shoulder Osteology. Clavicle Scapula Humerus. Clavicle Sup. . S shape. Latin clavis = key, old Roman key was S-shaped. Clavicle Inf. Ligaments attachment.

nia
Télécharger la présentation

Upper Limb Regions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

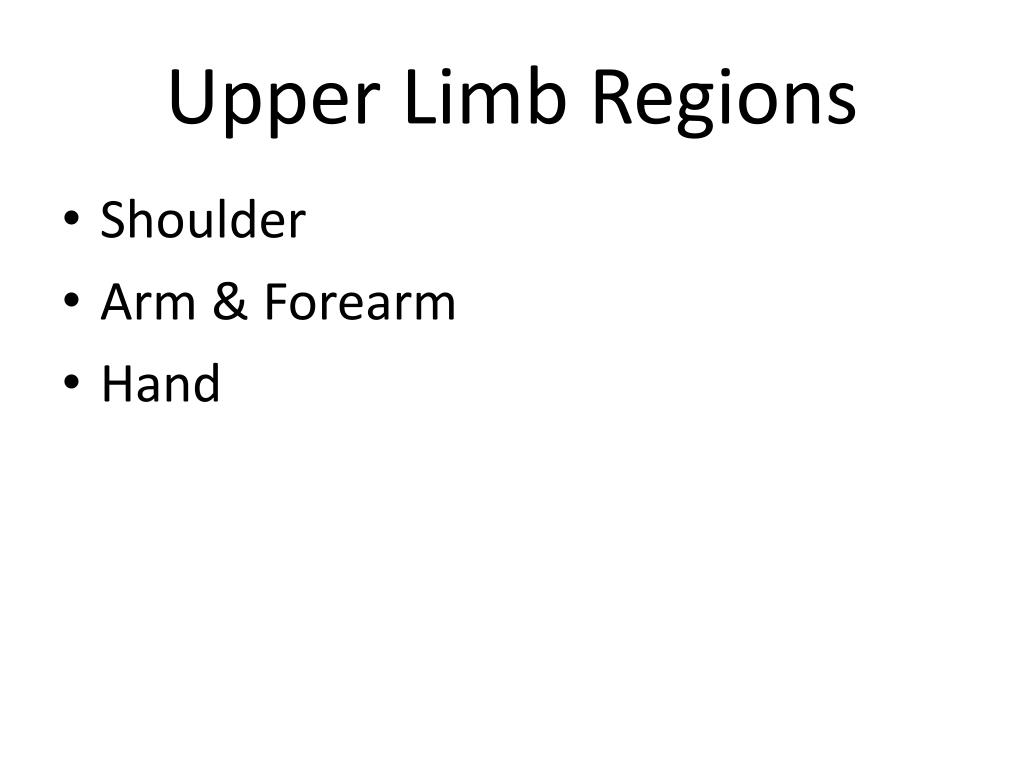

  1. Upper Limb Regions • Shoulder • Arm & Forearm • Hand

  2. Shoulder region • Bones • Joints • Muscles • Vessels & Nerves

  3. Shoulder Osteology • Clavicle • Scapula • Humerus

  4. Clavicle Sup. S shape Latin clavis = key, old Roman key was S-shaped

  5. Clavicle Inf. Ligaments attachment Conoid: cone shape

  6. Clavicle Ant. Medial & lateral ends

  7. korax = a crow Posterior Anterior

  8. Glene: Greek = socket acromion: Greek akros = Hill

  9. Shoulder Separation

  10. Ant. Lat.

  11. Subacromial bursa Bursitis

  12. Shoulder X-ray, AP projection 1, Clavicle. 2, Acromion. 3, Greater tubercle. 4, Lesser tubercle. 5, Neck of Humerus. 6, Humerus. 7, Coracoid Process. 8, Axillary border of scapula. 9, Rib.

  13. Shoulder region • Bones • Joints • Muscles • Vessels & Nerves

  14. Classifications of muscles that move the shoulder • A. muscles connecting scapula to humerus • B. muscles connecting trunk to scapula • C. muscles connecting trunk to humerus

  15. Biceps & Triceps tendons

  16. A. muscles connecting scapula to humerus • Supraspinatus • Infraspinatus • Teres minor • Subscapularis • Teres major • Coracobrachialis • Deltoid

  17. Short muscles

  18. Quiz supraspinatus infraspinatus teres minor subscapularis

  19. Teres major • Origin: • Inf angle of scapula • Insertion: • Med lip of groove • Actions: • Internal rotation and adduction of arm

  20. Coracobrachialis • Function:flex & adductthe shoulder joint

  21. Deltoid Origin: Clavicle, scapula Insertion: Deltoid tuberosity of humerus Actions: Abduction Anterior deltoid: internal rotation Posterior deltoid: external rotation

  22. Classifications of muscles that move the shoulder • A. muscles connecting scapula to humerus • B. muscles connecting trunk to scapula • C. muscles connecting trunk to humerus

  23. B. muscles connecting trunk to scapula • Serratus anterior • Levator scapula • Rhomboid major • Rhomboid minor • Trapezius • Pectoralis minor

  24. Serratus Anterior Origin: Ribs Insertion: Medial border of scapula Actions: Protraction and rotation of scapula

  25. Levator scapula Origin: Cervical vertebrae Insertion: Scapula Action: Elevation of the scapula

  26. Rhomboid major and minor Origin: Cervical and Thoracic vertebrae Insertion: Scapula Actions: Retraction Elevation

  27. Trapezius Origin: Occipital bone of skull, cervical and thoracic vertebrae Insertion: Clavicle and Scapula Actions: Elevation retraction

  28. Pectoralis Minor Origin: Ribs Insertion: Coracoid process of scapula Action: Depression of scapula

  29. Classifications of muscles that move the shoulder • A. muscles connecting scapula to humerus • B. muscles connecting trunk to scapula • C. muscles connecting trunk to humerus

  30. C. muscles connecting trunk to humerus • Pectoralis major • Latissimusdorsi

  31. PectoralisMajor Origin: Clavicle, sternum, upper ribs Insertion: Crest of greater tubercle and lat lip Action: Add, med rotation

  32. LatissimusDorsi Origin: Vertebrae, sacrum, ilium Insertion: Medial lip Actions: Adduction and med rotation of humerus

  33. LatissimusDorsi if humerus is fixed

  34. Covering th front and back of the trunk. • The pectoralis major and latissimusdorsi both adduct and medially rotate the Humerus.
