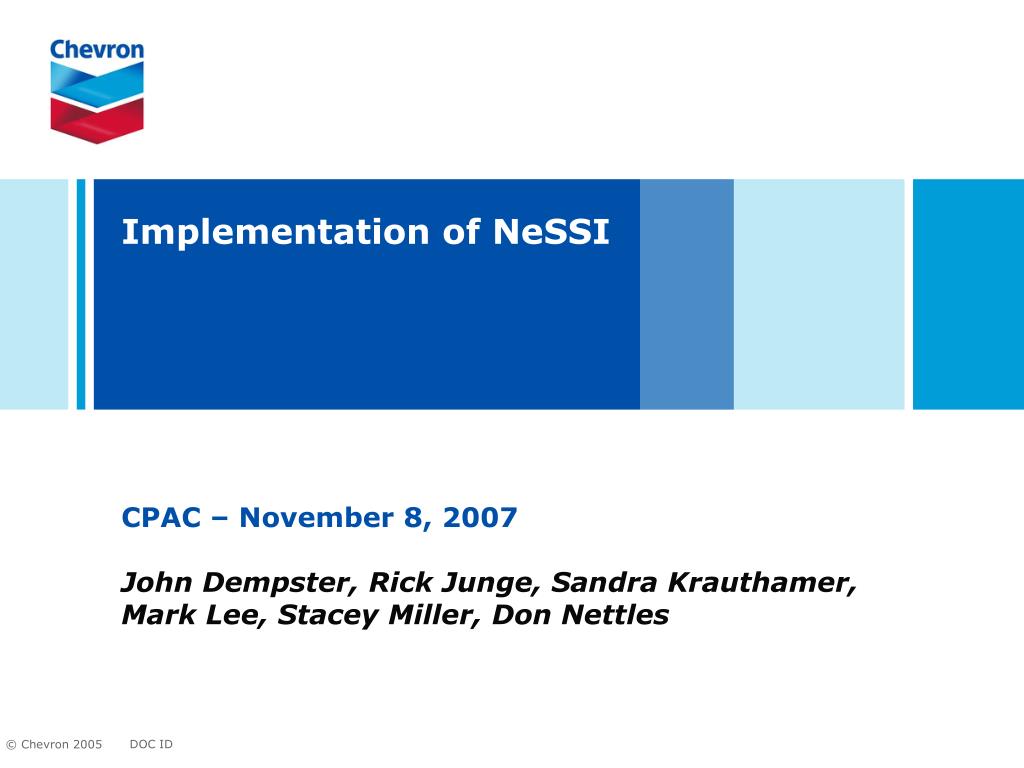

  1. Implementation of NeSSI CPAC – November 8, 2007 John Dempster, Rick Junge, Sandra Krauthamer, Mark Lee, Stacey Miller, Don Nettles

  2. NeSSI Systems • Richmond Refinery • Liquid sample: Ultra Low Sulfur Diesel • Supplier – CIRCOR • Pressure transducers installed [PLC program to monitor / autovalidation] • Combination of down mount and traditional system • Fabricated sample conditioning system enclosure • System Integrator - TASC • Installed CIRCOR SCS enclosure to Shelter • PLC for analyzer communication hiway and SCS monitoring

  3. Richmond Refinery - ULSD • PLC supporting SCS

  4. Richmond Refinery - ULSD PLC HMI supporting SCS

  5. Richmond Refinery - ULSD CIRCOR SCS

  6. Richmond Refinery - ULSD CIRCOR SCS

  7. Richmond Refinery - ULSD CIRCOR SCS

  8. NeSSI Systems • Richmond Refinery • Liquid sample: Gasoline Hydrotreater • Supplier – Parker • Down mount plate • System Integrator - TASC • Installing in TASC designed and fabricated sample conditioning system and enclosure • PLC for analyzer communication hiway and SCS monitoring Scheduled Delivery Date: Dec ‘07

  9. NeSSI Systems • Richmond Refinery • Vapor: Fuel Gas Drum analyzer system [3 systems] STATUS: Front end engineering phase complete

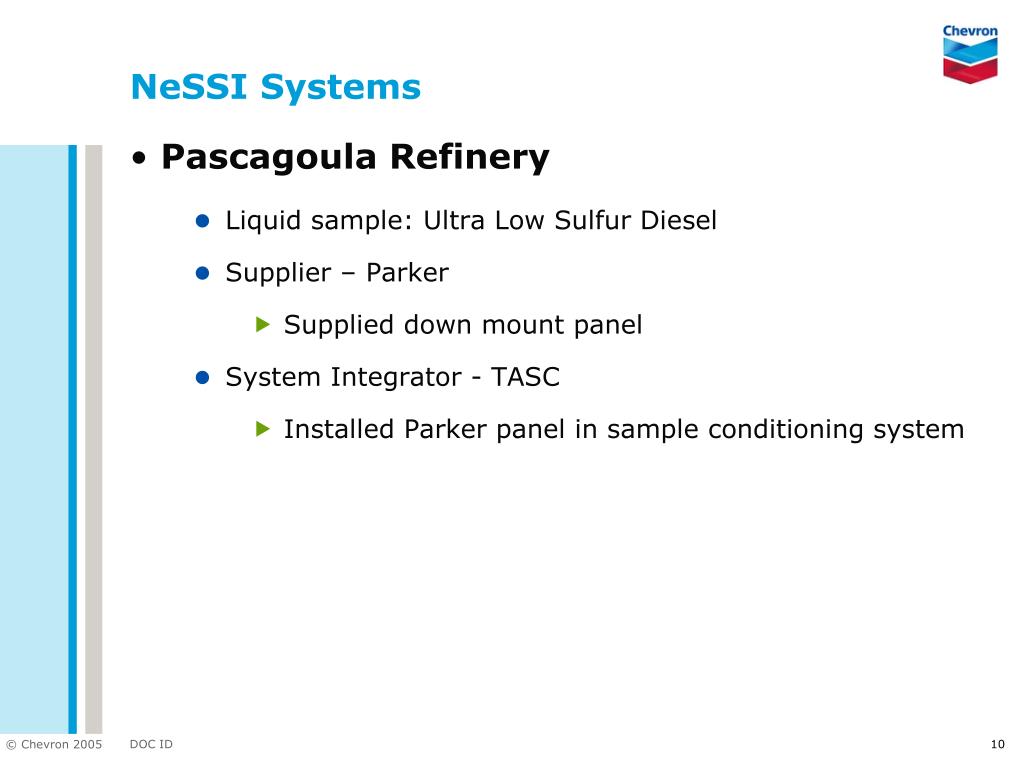

  10. NeSSI Systems • Pascagoula Refinery • Liquid sample: Ultra Low Sulfur Diesel • Supplier – Parker • Supplied down mount panel • System Integrator - TASC • Installed Parker panel in sample conditioning system

  11. Pascagoula ULSD Parker Panel

  12. Pascagoula ULSD Parker Panel – Analyzer Flow

  13. NeSSI Systems • El Segundo Refinery • Blender / Chevron Engineered / CIRCOR / AutoFlow (one off) / 1st generation / liquid [RVP azr] • Total Sulfur GC / SAAI system integrator / CIRCOR / 1st generation / vapor sample • DIB / SAAI system integrator / CIRCOR / 1.5 generation [smarts involved] / vapor sample • FCCU / CEM / Chevron Engineered / CIRCOR / 1st generation / Stack Sample Nox & SO2

  14. NeSSI Systems • El Segundo Refinery – con’t • (2 systems) ULSD project / SAAI system integrator / CIRCOR / 1.5 generation [smarts involved] / liquid • (5 systems) Flare Gas / TASC / CIRCOR / 1.5 generation [smarts involved] / vapor • (3 systems) GC Applications / TASC / CIRCOR / 1.5 generation [smarts involved] / 2 vapor / 1 liquid • (2 systems) CEMS Applications / TASC / CIRCOR / 1.5 generation [smarts involved] / 2 vapor

  15. El Segundo

  16. El Segundo

  17. El Segundo

  18. El Segundo
