  1. Geometry of R2 and R3 Lines and Planes

  2. Point-Normal Form for a Plane Let P be a point in R3 and n a nonzero vector. Then the plane that contains P that is normal to the vector n is given by the equation n.(x - p) = 0

  3. Standard Form for a Plane Let n = (a, b, c) and x = (x, y, z) in the point-normal form we get the standard form of the equation of the plane ax + by + cz = d

  4. Example • Find the equation of the plane through the point (1, 2, 3) with normal n = (-3, 0, 1). • Convert the equation 4x – 3y + 6z = 12 of the plane to point-normal form.

  5. Plane Determined by Three Points If P, Q, and R are three non-collinear points in a plane, then n = (q – p) x (r – p) and the equation is again n.(x - p) = 0.

  6. Example Find the equation of the plane through the points (-1, 2, -4), (2, -3, 4) and (2, 1, -3).

  7. Point-Parallel Form for a Line Let P be a point and v a nonzero vector in R3. Then the p + tv is parallel and equal in length to the vector tv. Then the endpoint of p + tv must lie on the line determined by P and the endpoint of p + v. So for any point X on the line through P and parallel to v is the end point of a vector of the form p + tv. Thus x(t) = p + tv the line through P and parallel to the v.

  8. Example • Find the point-parallel form of the line through the point (2, -1, 3), parallel to v = (-1, 4, 1). • Find the point-parallel form of the line through (-2, 3, 0) and (3,-1,-2). • Find the point-parallel form of the line through (-3,1) and parallel to v = (4, -3).

  9. Parametric Equations for a Line Recall: x = p + tv the line through P and parallel to the v. Let x = (x, y, z), p = (p1, p2, p3) and v = (v1, v2, v3). Then the parametric equation of the above line is x(t) = p1 + tv1; y(t) = p2 + tv2; z(t) = p3 + tv3

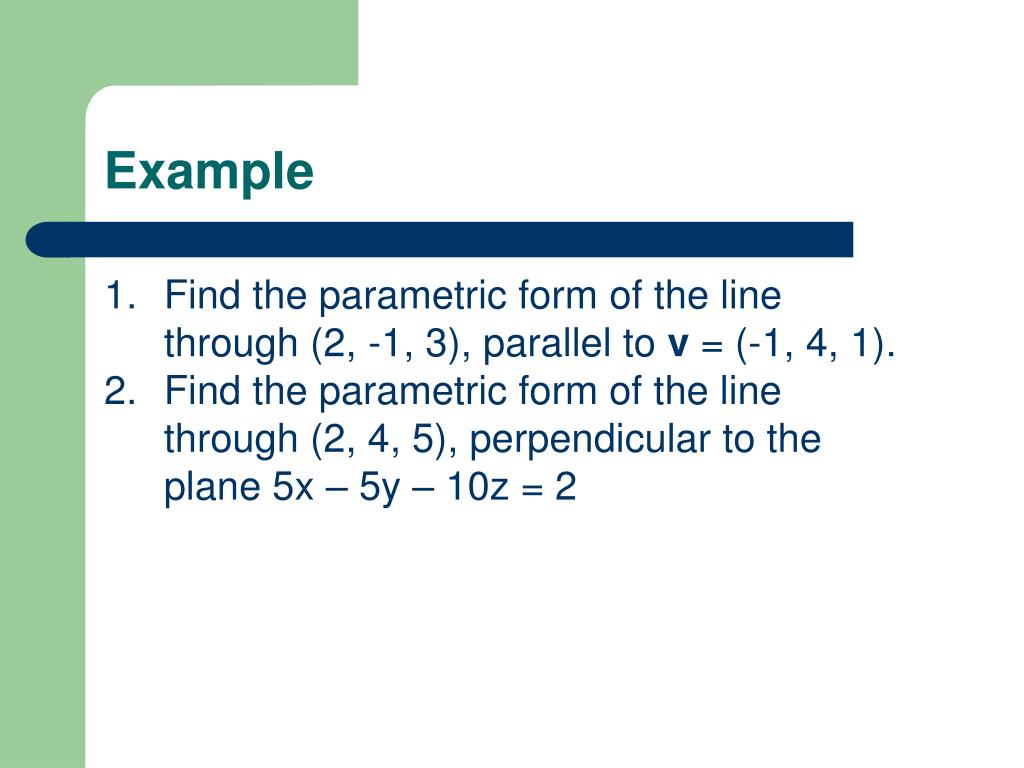

  10. Example • Find the parametric form of the line through (2, -1, 3), parallel to v = (-1, 4, 1). • Find the parametric form of the line through (2, 4, 5), perpendicular to the plane 5x – 5y – 10z = 2

  11. Two-Point Form for a Line The line through P and Q is given by x(t) = (1 – t)p + tq Note that x(0) = p and x(1) = q.

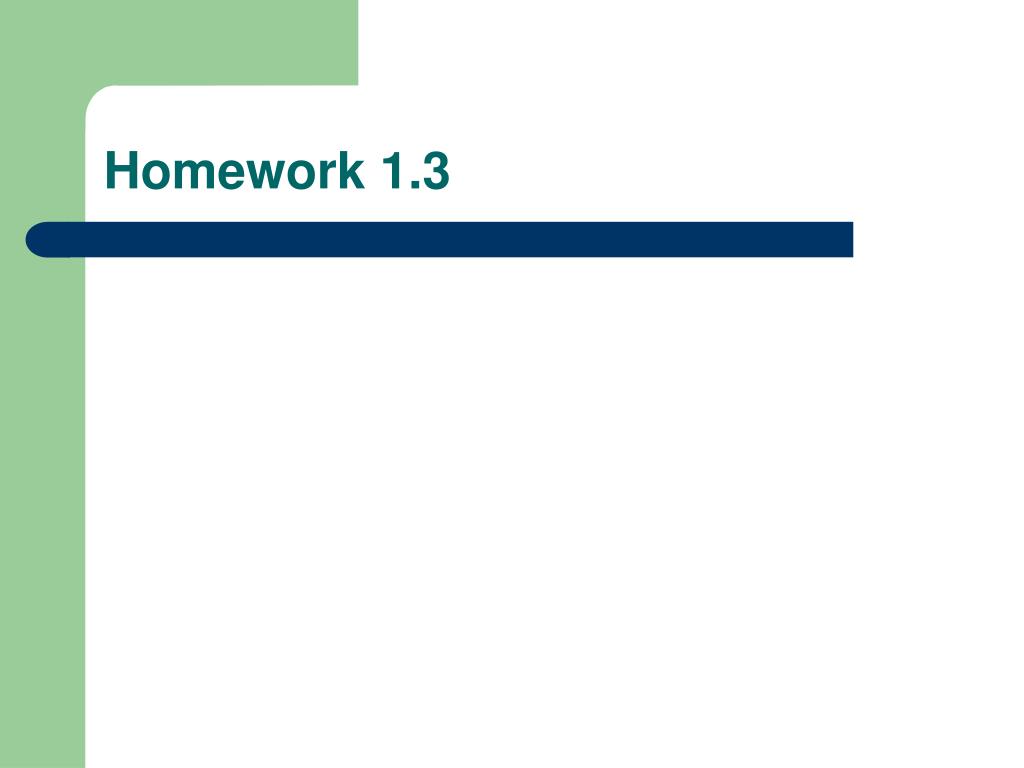

  12. Homework 1.3
