  1. KMOS Instrument Overview & Data Processing Richard Davies Max Planck Institute for Extraterrestrial Physics • What does KMOS do? • When will it do it? • What does the data look like? • How is the data processed?

  2. What & When? • Phase B start July 2004 • Preliminary Design Review May 2006 • Final Design Review July 2007 • Preliminary Acceptance Europe Spring 2010 • Preliminary Acceptance Chile Autumn 2010 2m 2800kg

  3. Science Drivers • Investigate the physical processes which drive galaxy formation and evolution over redshift range 1<z<10 • Map the variations in star formation histories, spatially resolved star-formation properties, and merger rates • Obtain dynamical masses of well-defined samples of galaxies across a wide range of environments at a series of progressively earlier epochs need: multiplexing (large numbers of sources), NIR (optical diagnostics at z>1), moderate spectral resolution (kinematics), integral field (mergers vs disks)

  4. roof mirror Instrumental Features pick off mirror (covered) multiple-object cryogenic integral field spectrograph to K-mirror & filter wheel • R~3500 spectroscopy at 0.8-2.5m • 7.2arcmin patrol field • 24 robotic pickoff arms, each with a 2.8”×2.8” FoV sampled at 0.2 arcsec • IFUs are consolidated in groups of 8 • each set feeds one of 3 identical spectrographs

  5. Instrumental Features • 24 arms in 2 layers, 20mm above & below focal plane • positioning within 0.1” (<60μm) • mass ~4.5kg each • size ~30cm • each path has 45 optical surfaces • in total 1080 optical surfaces and 60 cryogenic motors

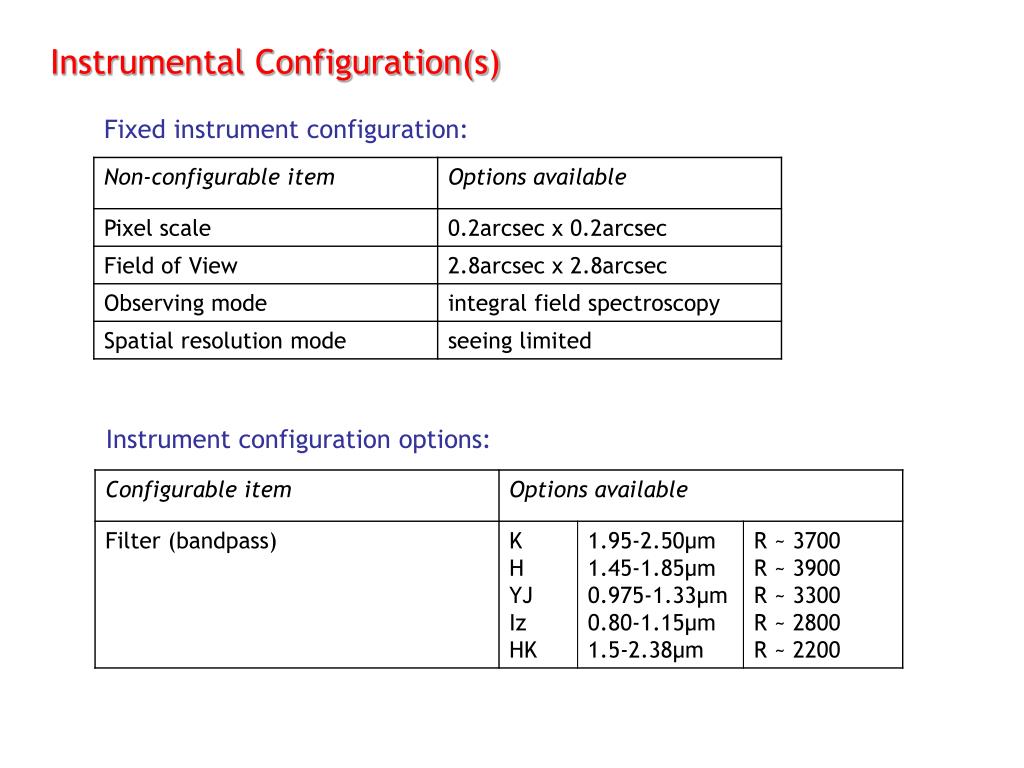

  6. Instrumental Configuration(s) Fixed instrument configuration: Instrument configuration options:

  7. Raw Data Format first RTD: raw data from the 3 2k×2k detectors wavelength spatial position 14 pixels per slitlet (plus a gap) 14 slitlets per IFU 8 IFUs per detector 3 detectors IFU 2 IFU 1

  8. Reconstructed Images second RTD: reconstructed images for each of the 24 IFUs either arrayed in a grid

  9. Reconstructed Images second RTD: reconstructed images for each of the 24 IFUs or positioned in the 7.2’ patrol field

  10. Association Map

  11. Templates & Recipes calibration templates & recipes: KMOS_spec_cal_dark KMOS_spec_cal_calunit KMOS_spec_cal_skyflat KMOS_spec_tec_verticalslit KMOS_spec_cal_wave KMOS_spec_cal_std kmo_dark kmo_flat kmo_illumination kmo_spec_align kmo_wave_cal kmo_std_star science templates & recipes: any acquisition frame KMOS_spec_obs_nodtosky KMOS_spec_obs_stare KMOS_spec_obs_mapping kmo_rtd_image kmo_sci_red note: reconstruction works on 1 IFU at a time (i.e. in effect recipe runs 24 times for each data set).

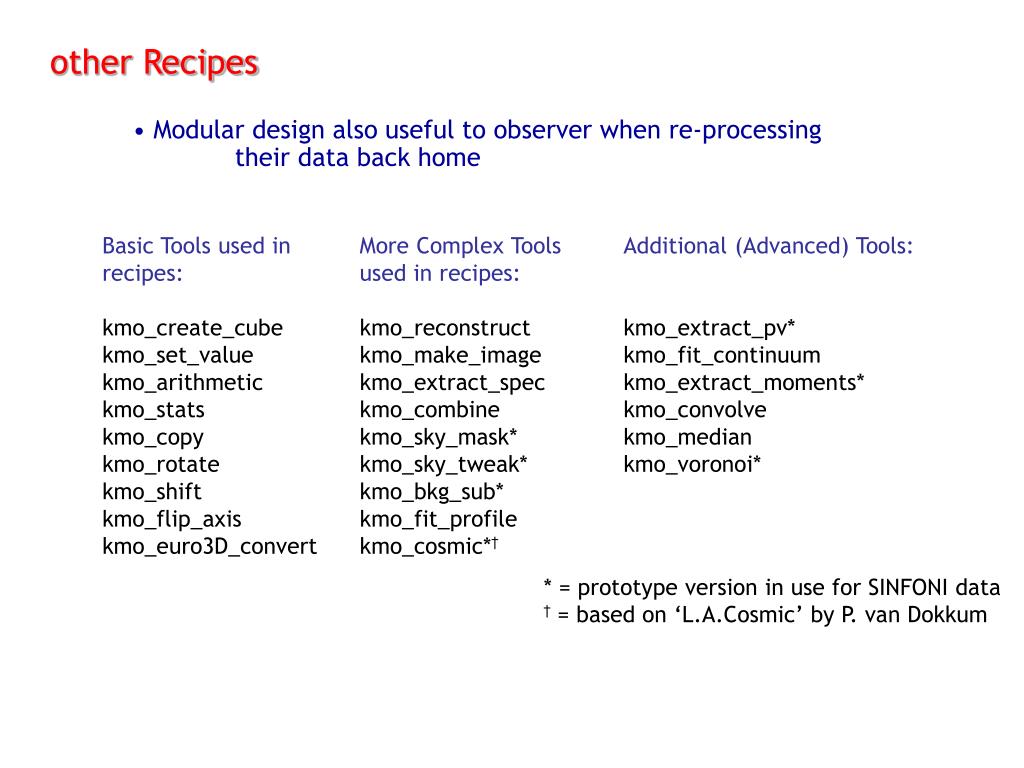

  12. other Recipes • Modular design also useful to observer when re-processing their data back home Basic Tools used in recipes: kmo_create_cube kmo_set_value kmo_arithmetic kmo_stats kmo_copy kmo_rotate kmo_shift kmo_flip_axis kmo_euro3D_convert More Complex Tools used in recipes: kmo_reconstruct kmo_make_image kmo_extract_spec kmo_combine kmo_sky_mask* kmo_sky_tweak* kmo_bkg_sub* kmo_fit_profile kmo_cosmic*† Additional (Advanced) Tools: kmo_extract_pv* kmo_fit_continuum kmo_extract_moments* kmo_convolve kmo_median kmo_voronoi* * = prototype version in use for SINFONI data † = based on ‘L.A.Cosmic’ by P. van Dokkum

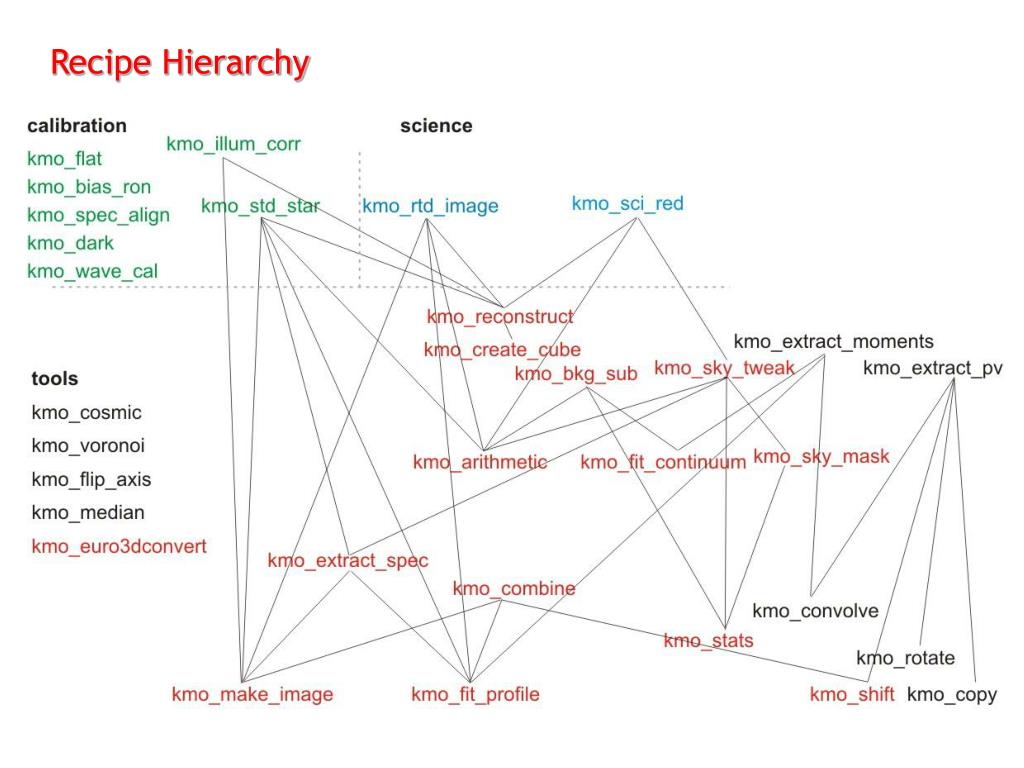

  13. Recipe Hierarchy

  14. What KMOS will & won’t do • Things we will do (and think are a good idea) • keep everything modular so astronomers can add in their own extra processing steps or leave some out • provide basic tools so astronomer can manipulate their datacubes • provide some more advanced tools to extract information from a datacube (e.g. emission line kinematics, Voronoi binning, etc) • Things we won’t be providing • a 3D data viewing tool (since there are already many good ones, e.g. QFitsView) • tools for deconvolution, line deblending, extracting stellar kinematics, etc (because they’re very user/data/model dependent) • mosaicing tool – it will be possible to combine datacubes with the right offsets to make a larger field, but no scaling/background adjustments will be made
