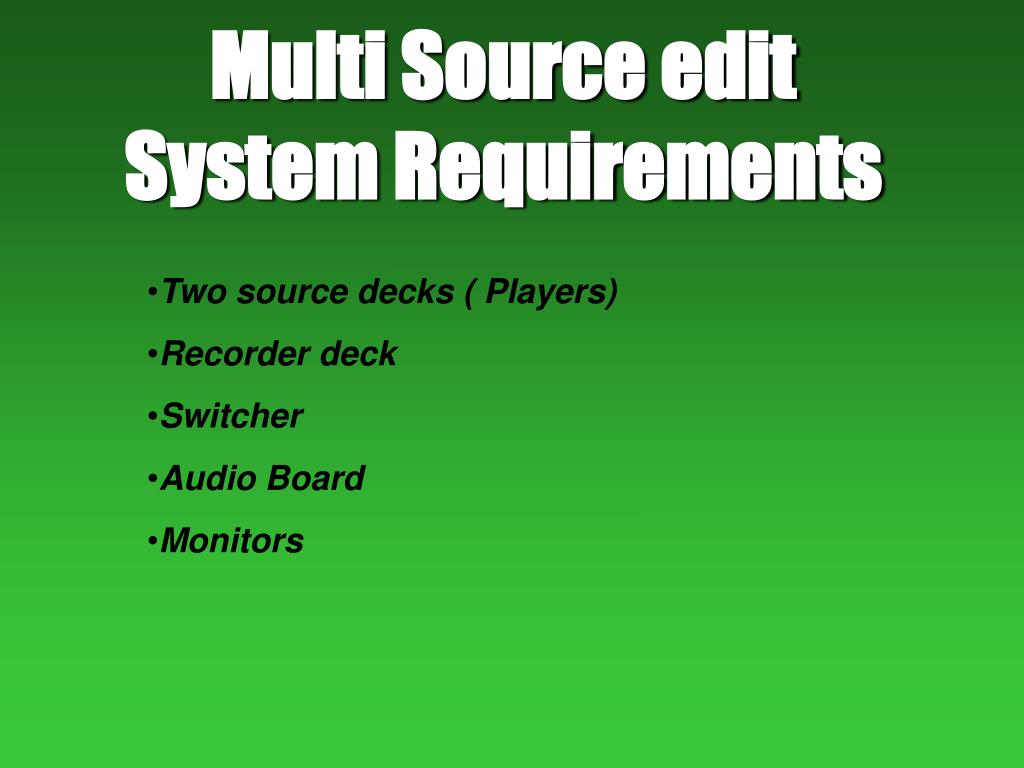

  1. Multi Source edit System Requirements Two source decks ( Players) Recorder deck Switcher Audio Board Monitors

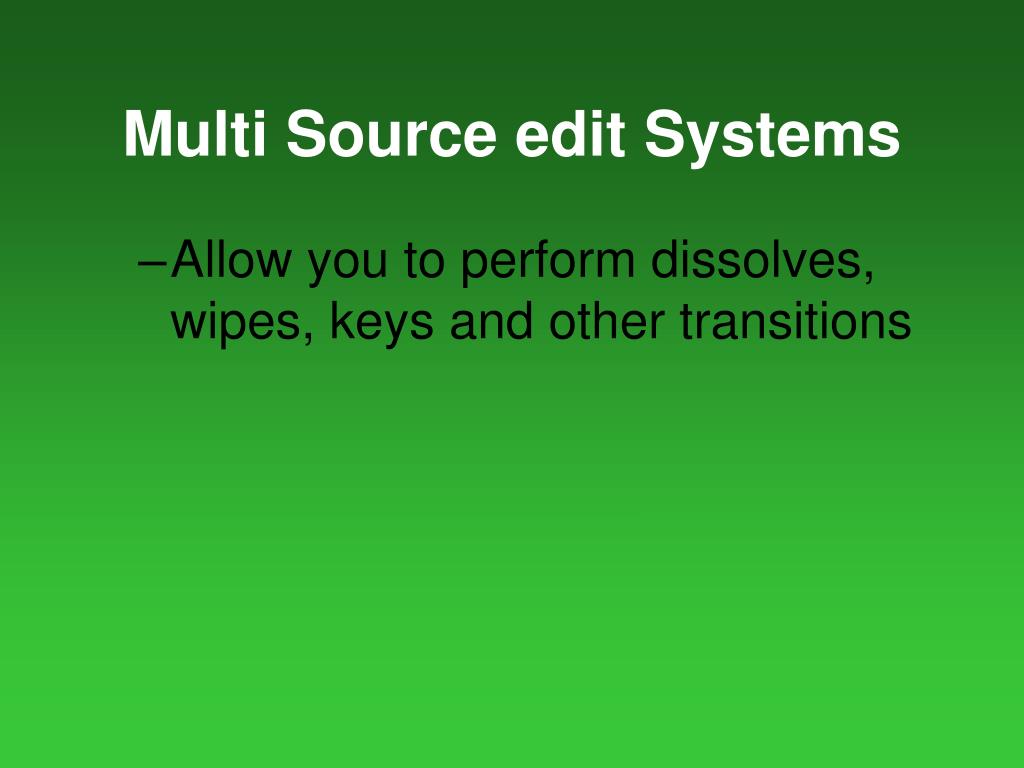

  2. Multi Source edit Systems • Allow you to perform dissolves, wipes, keys and other transitions

  3. Fade • Gradual transition of an image to or from black

  4. Kissing Black/ Dip to Black • A quick Fade to black and back up.

  5. Dissolve • A gradual transition from one image into another

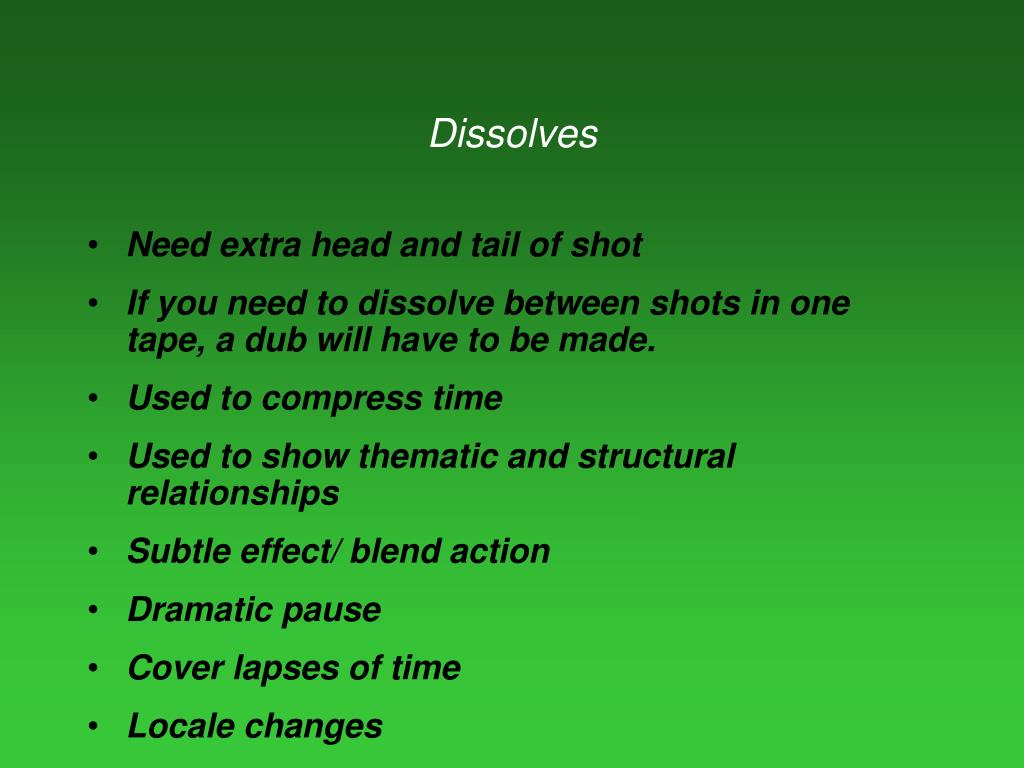

  6. Dissolves • Need extra head and tail of shot • If you need to dissolve between shots in one tape, a dub will have to be made. • Used to compress time • Used to show thematic and structural relationships • Subtle effect/ blend action • Dramatic pause • Cover lapses of time • Locale changes

  7. Soft Cut • Quick Dissolve

  8. Superimpostion • Half of both pictures are seen simultaneously

  9. Wipe • When one image pushes the other off the screen.

  10. Split Screen • shots share parts of the screen

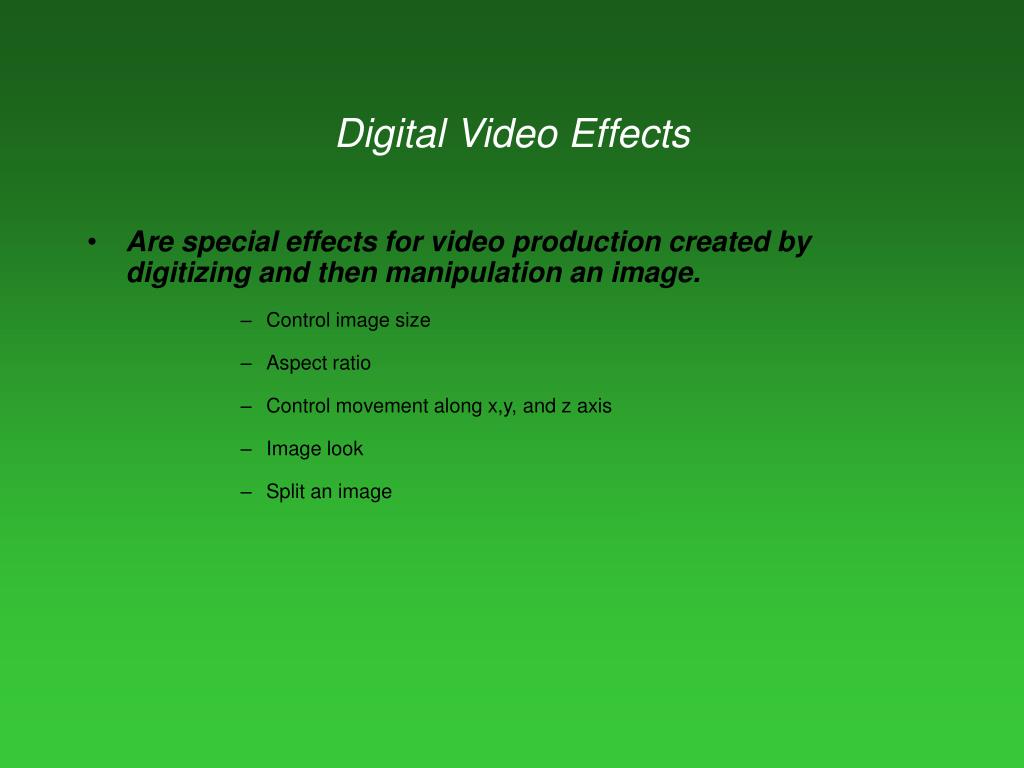

  11. Digital Video Effects • Are special effects for video production created by digitizing and then manipulation an image. • Control image size • Aspect ratio • Control movement along x,y, and z axis • Image look • Split an image

  12. Keys • Are the common way for superimposing titles and for creating special effects. Replace images from one shot with images of another shot. • Keys combine images by switching back and forth during the scanning process with the trigger to switch being created by the luminance level or color.- • Must select one image to be the foreground and the other image as a background

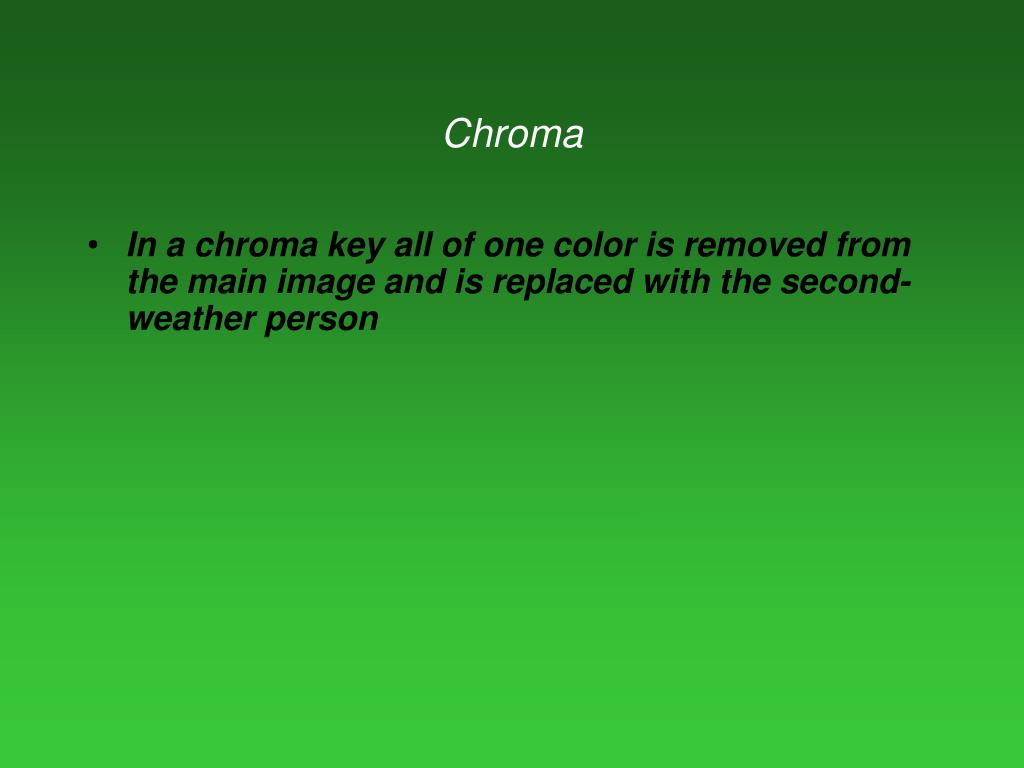

  13. Chroma • In a chroma key all of one color is removed from the main image and is replaced with the second- weather person

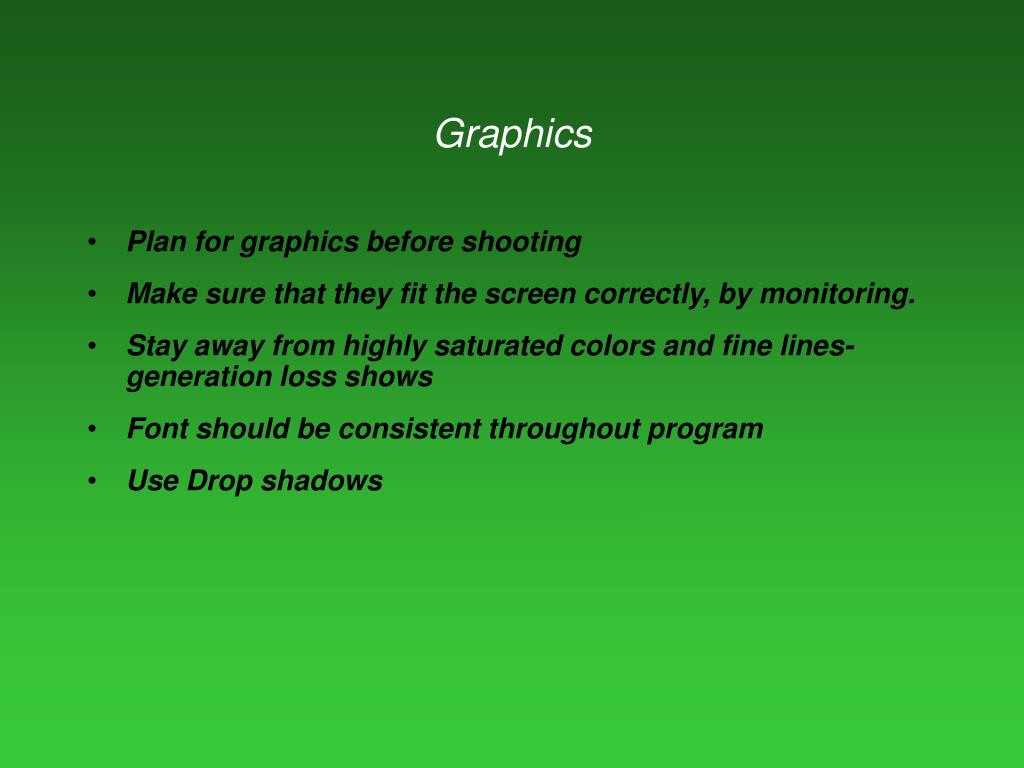

  14. Graphics • Plan for graphics before shooting • Make sure that they fit the screen correctly, by monitoring. • Stay away from highly saturated colors and fine lines-generation loss shows • Font should be consistent throughout program • Use Drop shadows

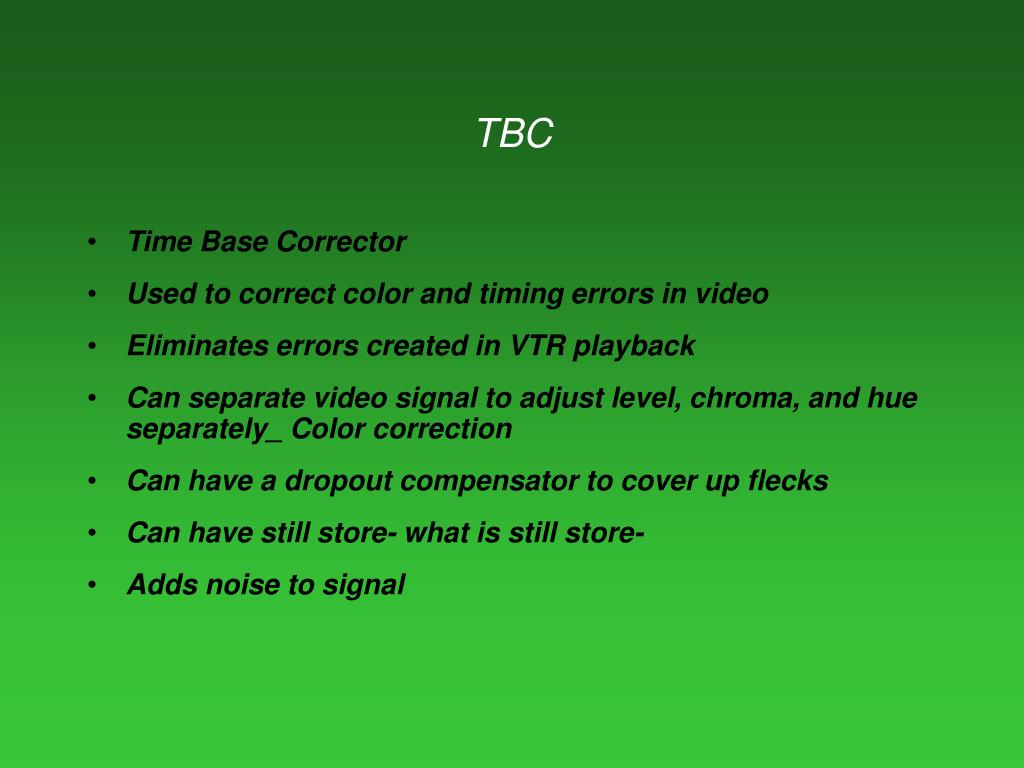

  15. TBC • Time Base Corrector • Used to correct color and timing errors in video • Eliminates errors created in VTR playback • Can separate video signal to adjust level, chroma, and hue separately_ Color correction • Can have a dropout compensator to cover up flecks • Can have still store- what is still store- • Adds noise to signal

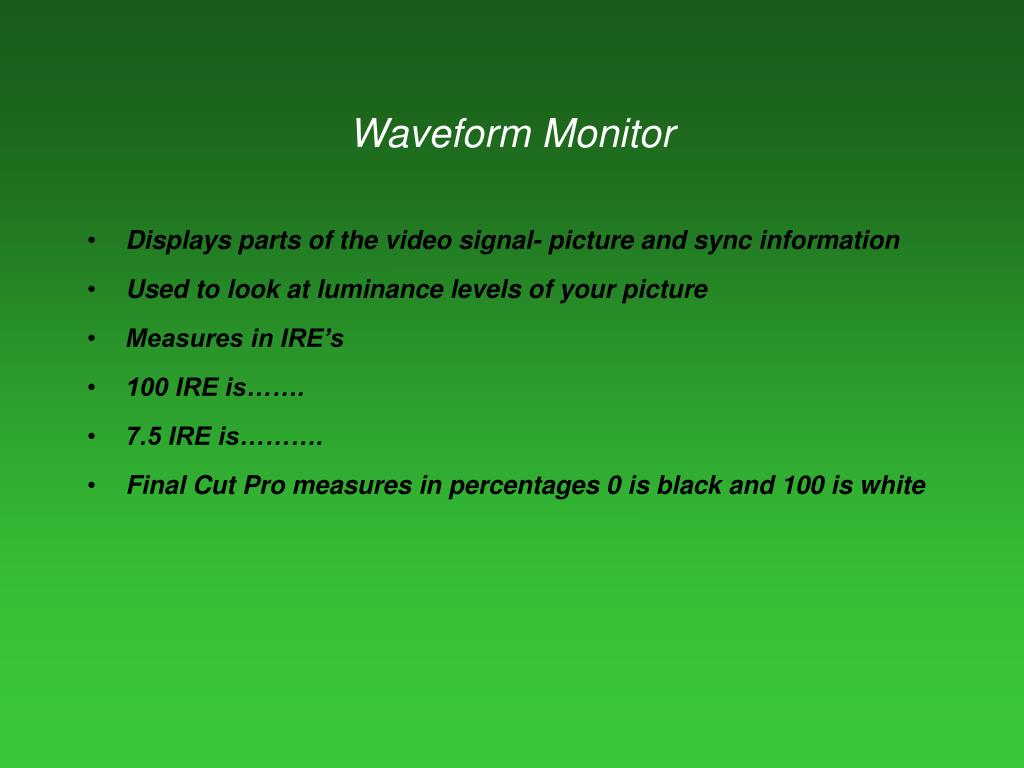

  16. Waveform Monitor • Displays parts of the video signal- picture and sync information • Used to look at luminance levels of your picture • Measures in IRE’s • 100 IRE is……. • 7.5 IRE is………. • Final Cut Pro measures in percentages 0 is black and 100 is white

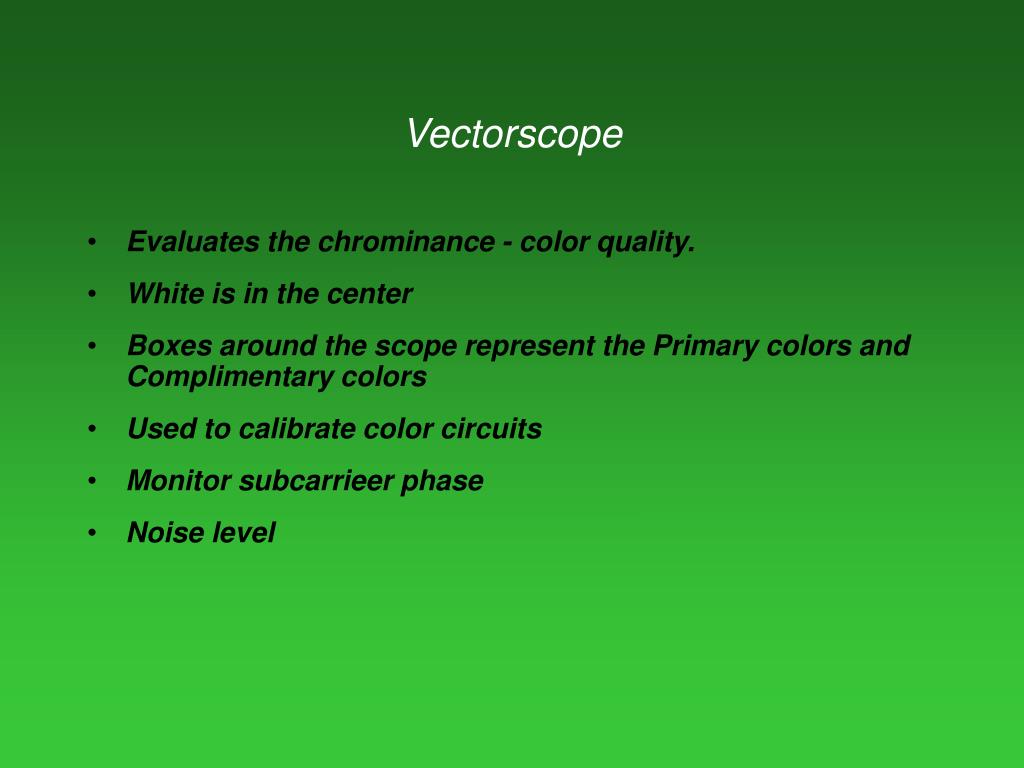

  17. Vectorscope • Evaluates the chrominance - color quality. • White is in the center • Boxes around the scope represent the Primary colors and Complimentary colors • Used to calibrate color circuits • Monitor subcarrieer phase • Noise level

  18. Underscan mode • Mode on monitor that allows the picture to shrink so that the edges of the signal can be viewed
