1. Mutant Subsumption GraphsMutation 2014March 31, 2014 Bob Kurtz, Paul Ammann, MarcioDelamaro, Jeff Offutt, Lin Deng

2. Introduction • In this talk, we will • Define true subsumption, dynamic subsumption, and static subsumption to model the redundancy between mutants • Develop a graph model to display the subsumption relationship • Examine via an example how subsumption relationships behave and evolve

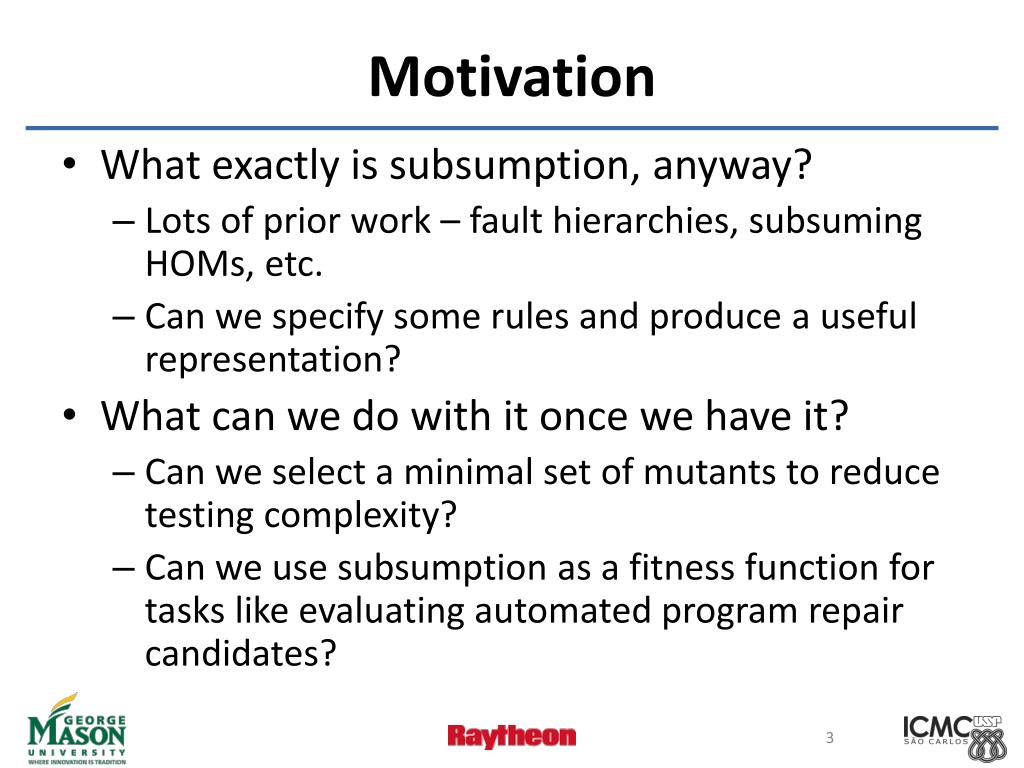

3. Motivation • What exactly is subsumption, anyway? • Lots of prior work – fault hierarchies, subsuming HOMs, etc. • Can we specify some rules and produce a useful representation? • What can we do with it once we have it? • Can we select a minimal set of mutants to reduce testing complexity? • Can we use subsumption as a fitness function for tasks like evaluating automated program repair candidates?

4. “True” Subsumption • Given a set of mutants M on artifact A, mutant mi subsumes mutant mj (mi → mj) iff: • Some test kills mi • All tests that kill mi also kill mj • “True” subsumption represents the actual relationship between mutants • We’d like to get this relationship, but in general it is undecidable, so we must approximate it

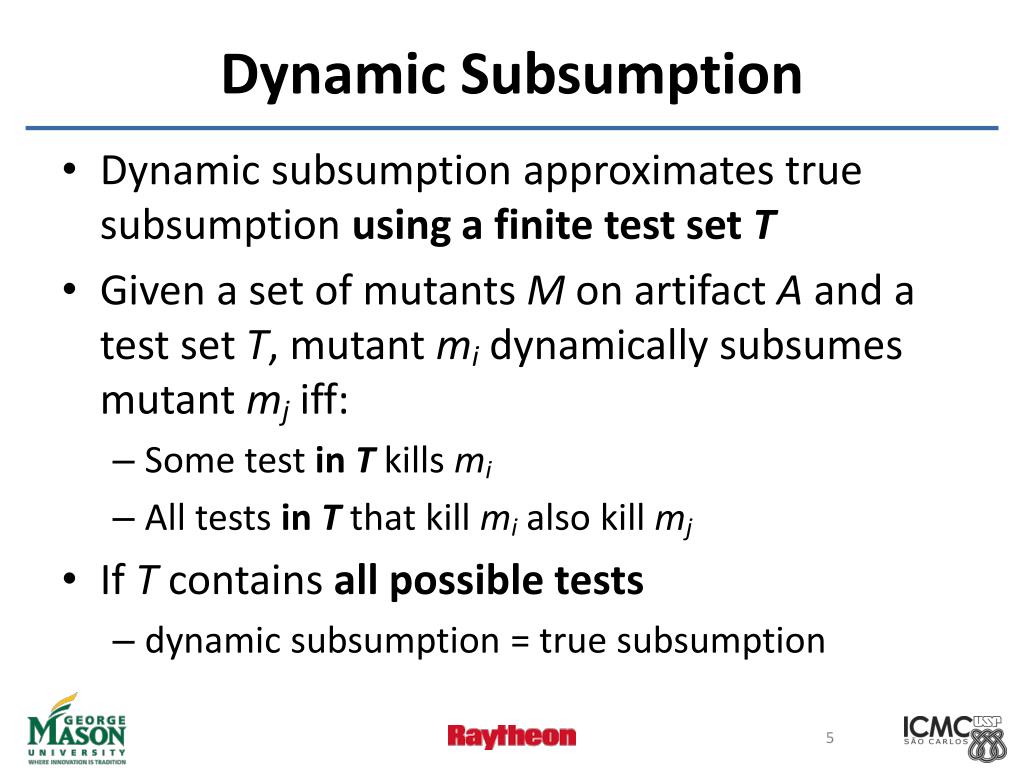

5. Dynamic Subsumption • Dynamic subsumption approximates true subsumption using a finite test set T • Given a set of mutants M on artifact A and a test set T, mutant mi dynamically subsumes mutant mjiff: • Some test in T kills mi • All tests in T that kill mi also kill mj • If T contains all possible tests • dynamic subsumption = true subsumption

6. Static Subsumption • Static subsumption approximates true subsumption using static analysis of mutants rather than test execution • Given a set of mutants M on artifact A, mutant mi statically subsumes mutant mjiff: • Analysis shows that some test could killmi • Analysis shows that all tests that could kill mi also would kill mj • If we had omniscient analysis, then static subsumption = true subsumption

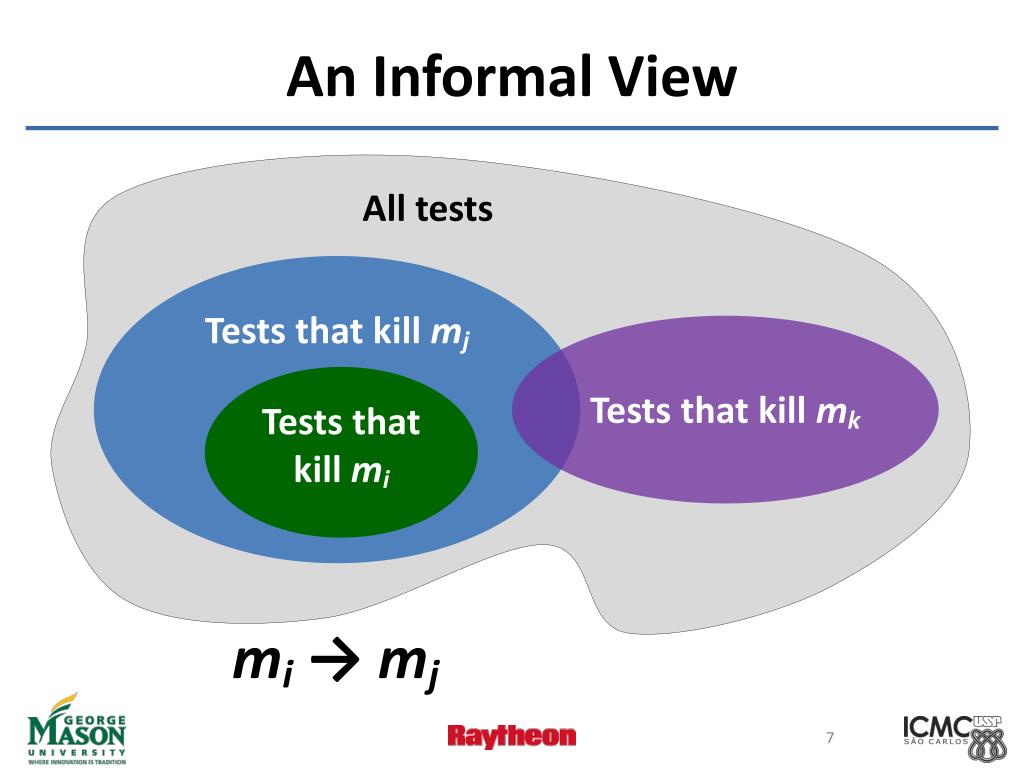

7. An Informal View All tests Tests that kill mj Tests that kill mk Tests that kill mi mi → mj

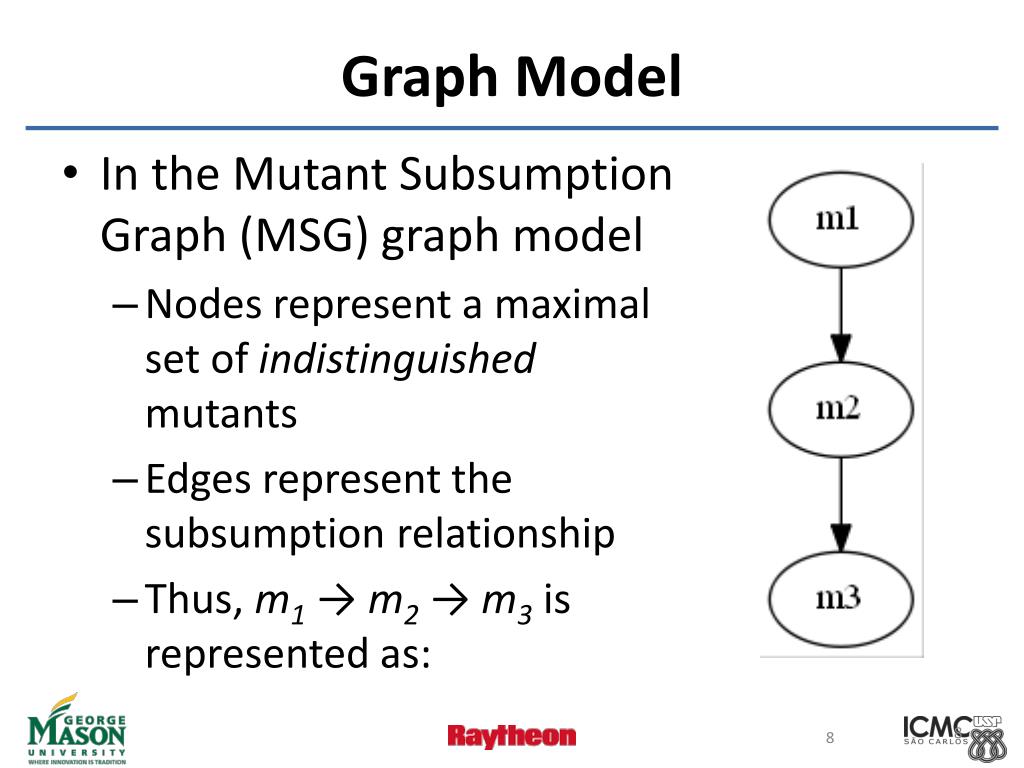

8. Graph Model • In the Mutant Subsumption Graph (MSG) graph model • Nodes represent a maximal set of indistinguished mutants • Edges represent the subsumption relationship • Thus, m1 → m2 → m3 is represented as: 8

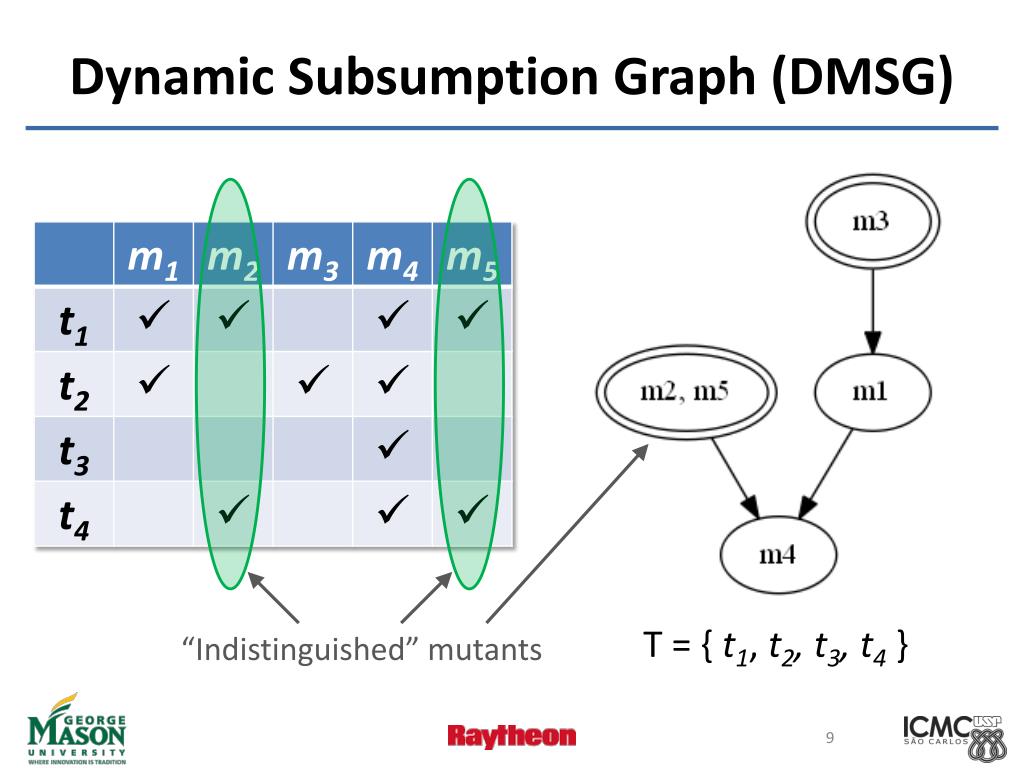

9. Dynamic Subsumption Graph (DMSG) T = { t1, t2, t3, t4} “Indistinguished” mutants

10. Minimal Mutants • Minimal mutants are not subsumed by any other mutants • If we execute a test set that kills all the minimal mutants, then we will kill all the mutants • All other mutants are redundant! Minimal Minimal 10

11. DMSG Growth T = { t1 } T = { t1, t2} T = { t1, t2, t3} T = { t1, t2, t3, t4} • We can observe the growth of the DMSG as we add tests • Dashed nodes indicate live mutants

12. Subsumption State Model • Mutants change state (with respect to subsumption relationships) as tests are added. • Live or killed • Distinguished or indistinguished • Minimal or subsumed • Only if killed • These 3 attributes combine to create 8 possible states, but since subsumption is not defined for live mutants, we only care about 6 states 12

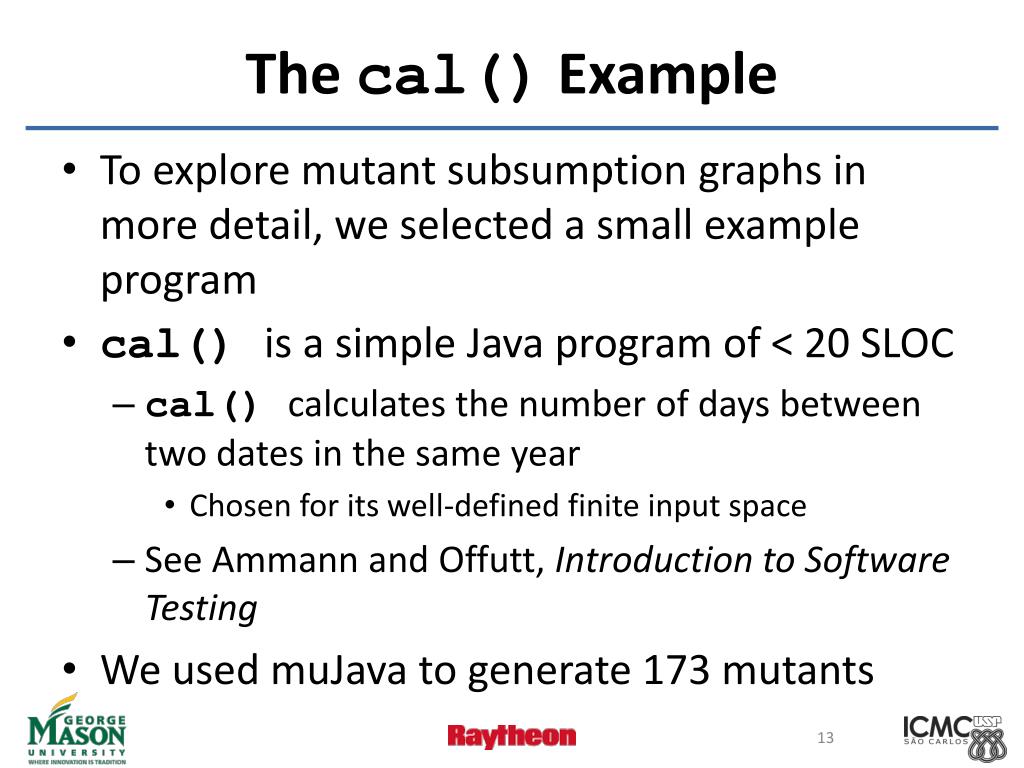

13. The cal() Example • To explore mutant subsumption graphs in more detail, we selected a small example program • cal() is a simple Java program of < 20 SLOC • cal() calculates the number of days between two dates in the same year • Chosen for its well-defined finite input space • See Ammannand Offutt, Introduction to Software Testing • We used muJava to generate 173 mutants

14. The cal() Example • Dynamic subsumption requires a test set • We used the Advanced Combinatorial Testing System (ACTS) to generate a test set • Pairwise combinations of months and year types (divisible-by-400, divisible-by-100, divisible-by-4, other)generated 90 test cases • Test set killed 145 mutants, and the remaining 28 were analyzed by hand and determined to be equivalent

15. The cal() Example • 31 nodes of indistinguished mutants • 7 nodes of minimal mutants • Even though muJava generated 145 non-equivalent mutants, we need to kill only 7 (one from each of these nodes) to ensure that we kill all 145

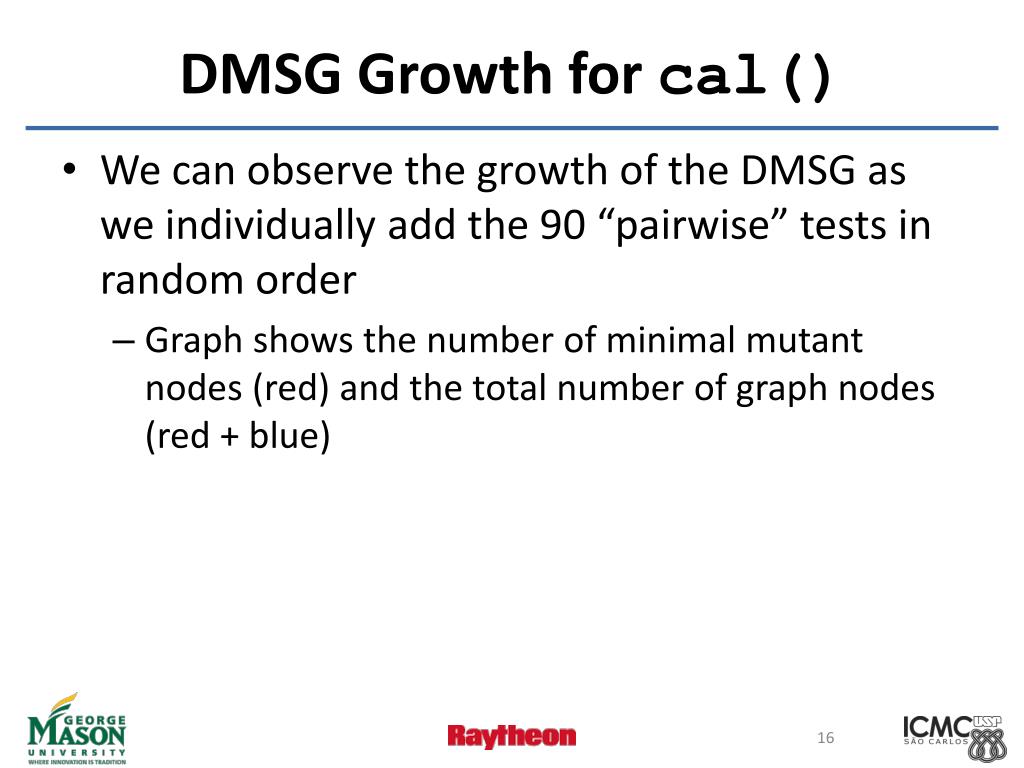

16. DMSG Growth for cal() • We can observe the growth of the DMSG as we individually add the 90 “pairwise” tests in random order • Graph shows the number of minimal mutant nodes (red) and the total number of graph nodes (red + blue)

17. DMSG Growth for cal()

18. cal() DMSG for Different Test Sets 90-test “pairwise” test set 312-test “combinatorial” test set 6-test “minimal” test set 17 nodes 6 minimal nodes 33 nodes 9 minimal nodes 31 nodes 7 minimal nodes

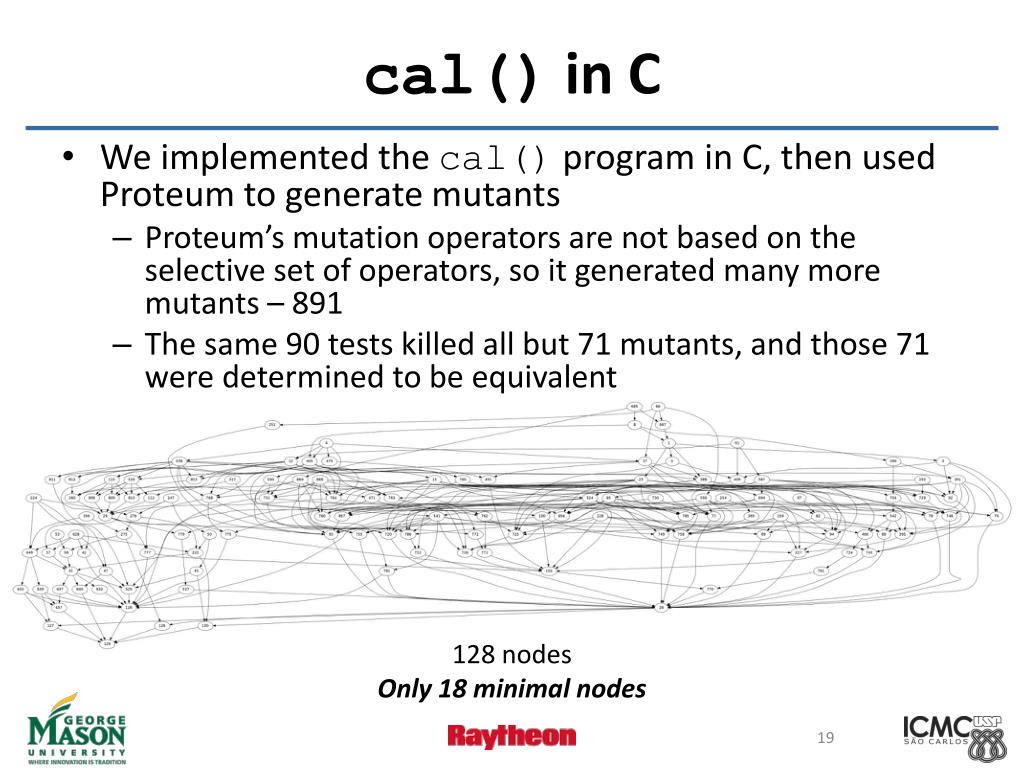

19. cal() in C • We implemented the cal() program in C, then used Proteum to generate mutants • Proteum’s mutation operators are not based on the selective set of operators, so it generated many more mutants – 891 • The same 90 tests killed all but 71 mutants, and those 71 were determined to be equivalent 128 nodes Only 18 minimal nodes

20. Dynamic Approximation • May group mutants together where a distinguishing test is missing • May add unsound edges where a contradicting test is missing TMSG DMSG Unsound Edge Not Distinguished

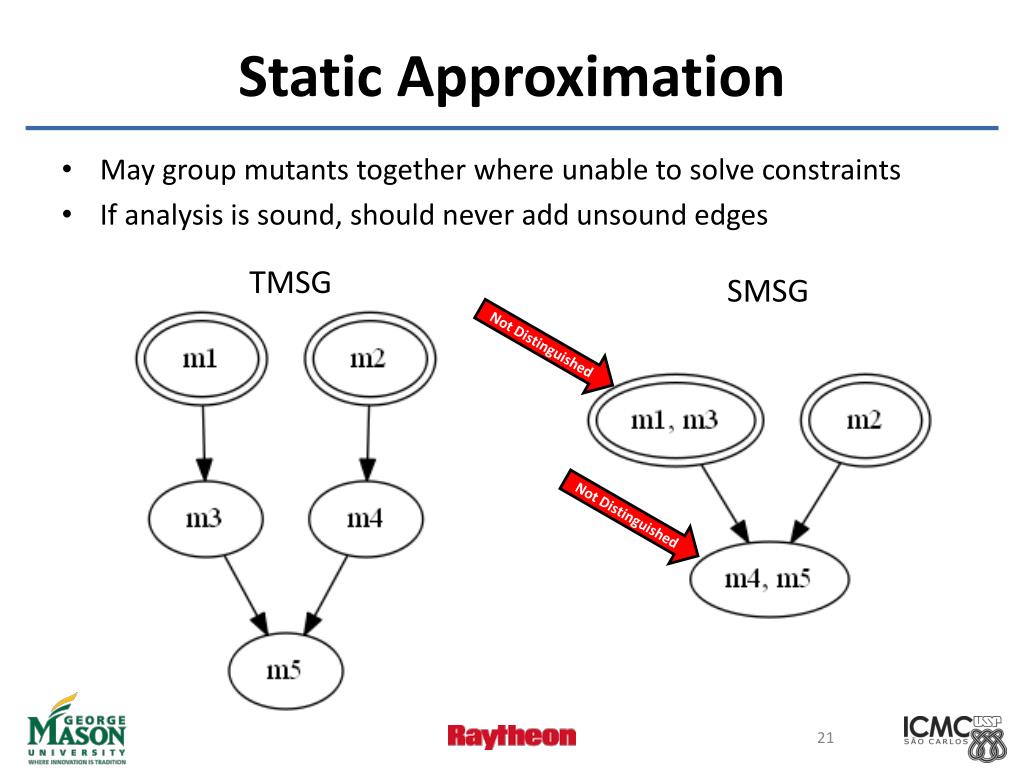

21. Static Approximation • May group mutants together where unable to solve constraints • If analysis is sound, should never add unsound edges TMSG SMSG Not Distinguished Not Distinguished

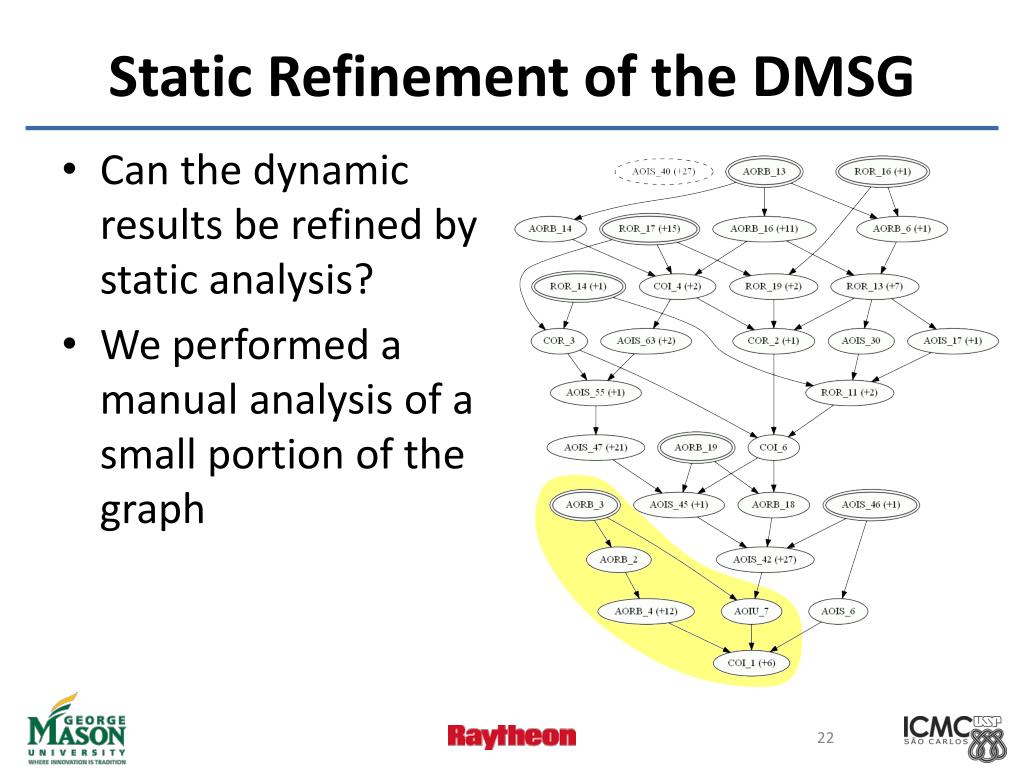

22. Static Refinement of the DMSG • Can the dynamic results be refined by static analysis? • We performed a manual analysis of a small portion of the graph

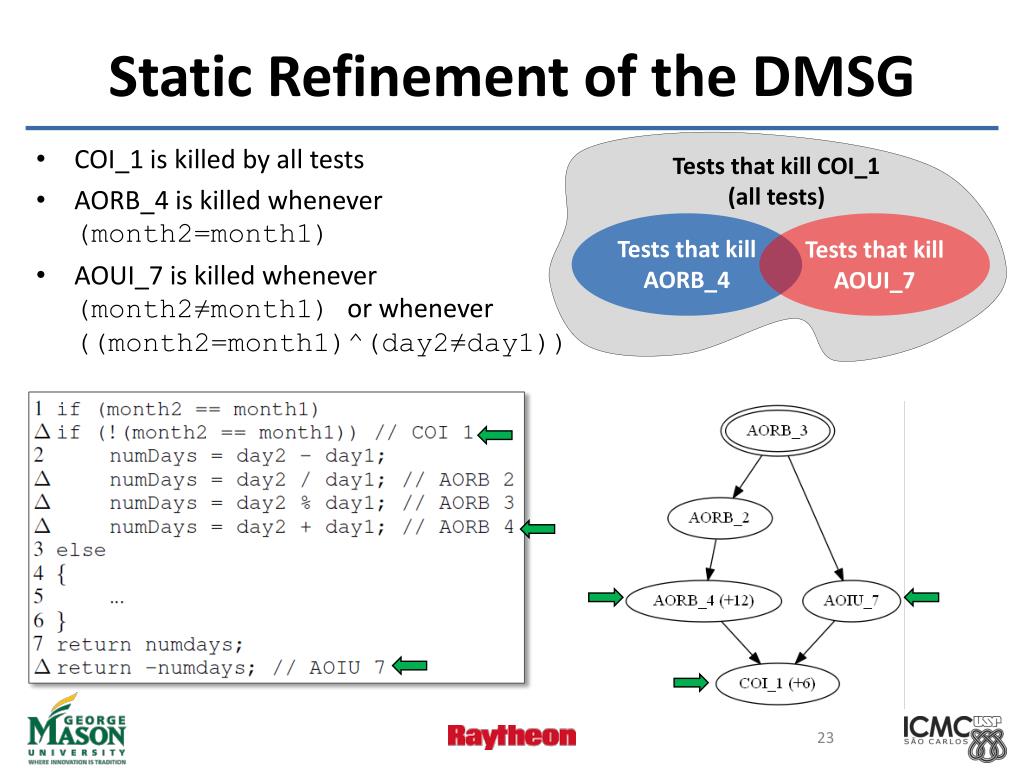

23. Static Refinement of the DMSG Tests that kill COI_1 (all tests) • COI_1 is killed by all tests • AORB_4 is killed whenever (month2=month1) • AOUI_7 is killed whenever (month2≠month1) or whenever ((month2=month1)^(day2≠day1)) Tests that kill AORB_4 Tests that kill AOUI_7

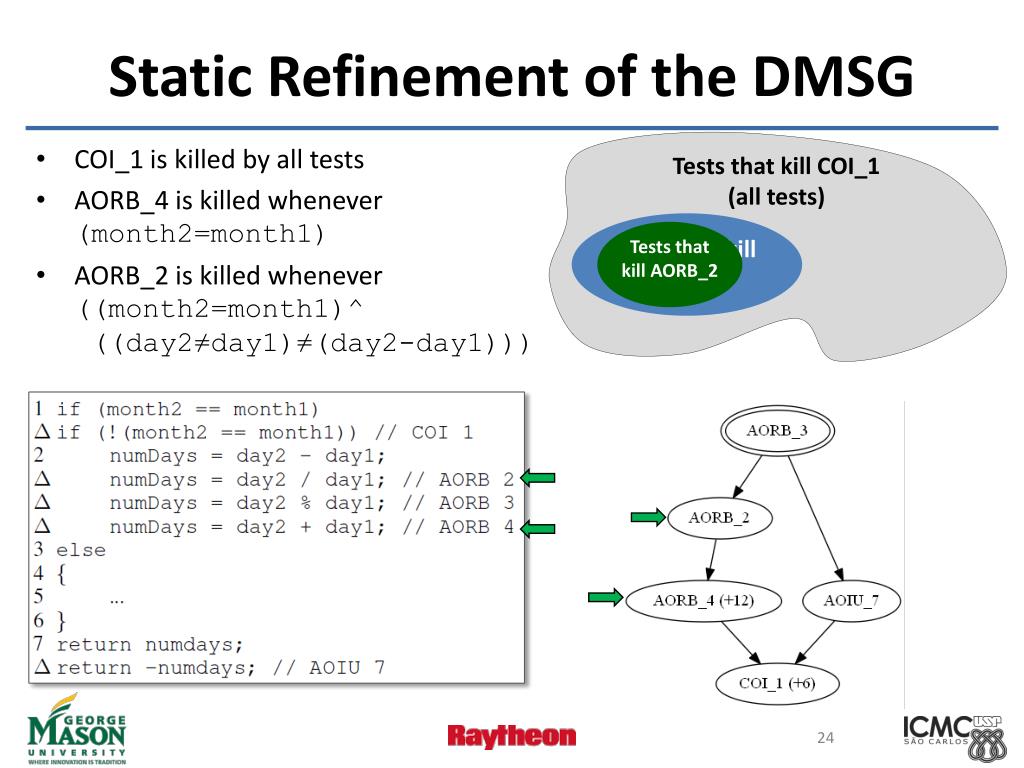

24. Static Refinement of the DMSG Tests that kill COI_1 (all tests) • COI_1 is killed by all tests • AORB_4 is killed whenever (month2=month1) • AORB_2 is killed whenever ((month2=month1)^ ((day2≠day1)≠(day2-day1))) Tests that kill AORB_4 Tests that kill AORB_2

25. Static Refinement of the DMSG All tests / tests that kill COI_1 • AORB_2 is killed whenever(month2=month1)^((day2-day1)≠(day2/day1)) • AORB_3 is killed whenever(month2=month1)^((day2-day1)≠(day2%day1)) • What is the relationship between these mutants? Tests that kill AORB_3 Tests that kill AORB_2 ?

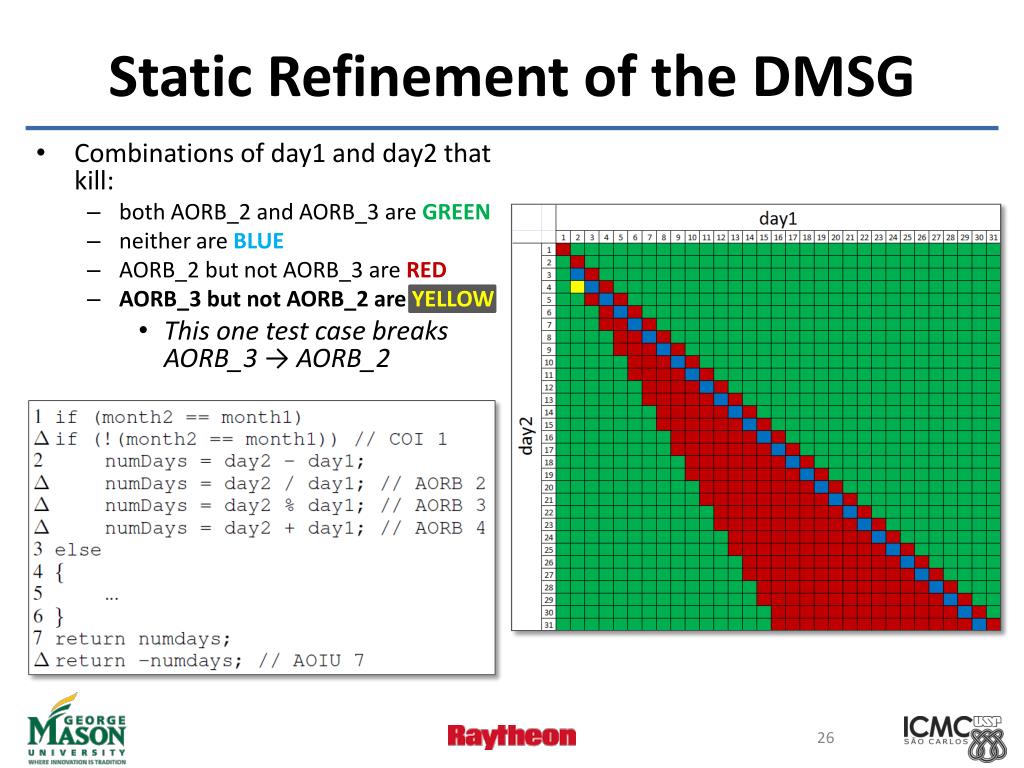

26. Static Refinement of the DMSG • Combinations of day1 and day2 that kill: • both AORB_2 and AORB_3 are GREEN • neither are BLUE • AORB_2 but not AORB_3 are RED • AORB_3 but not AORB_2 are YELLOW • This one test case breaks AORB_3 → AORB_2

27. Static Refinement of the DMSG • Static analysis removes the unsound edge between AORB_3 and AORB_2 Unsound Edge Refines to

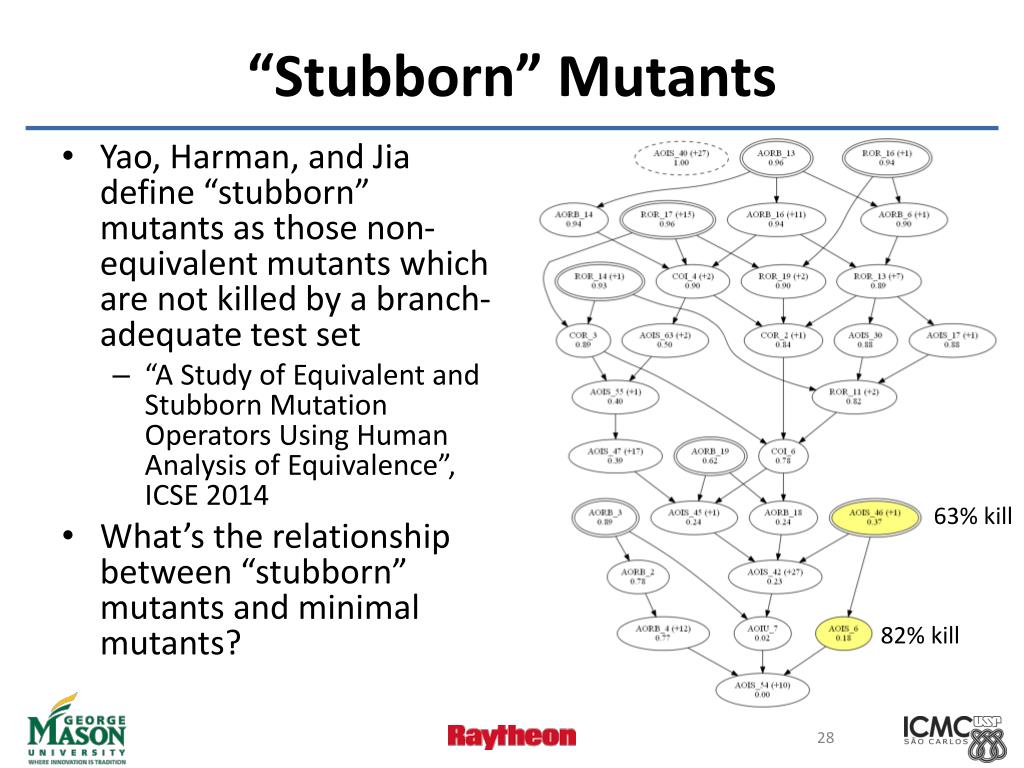

28. “Stubborn” Mutants • Yao, Harman, and Jia define “stubborn” mutants as those non-equivalent mutants which are not killed by a branch-adequate test set • “A Study of Equivalent and Stubborn Mutation Operators Using Human Analysis of Equivalence”, ICSE 2014 • What’s the relationship between “stubborn” mutants and minimal mutants? 63% kill 82% kill

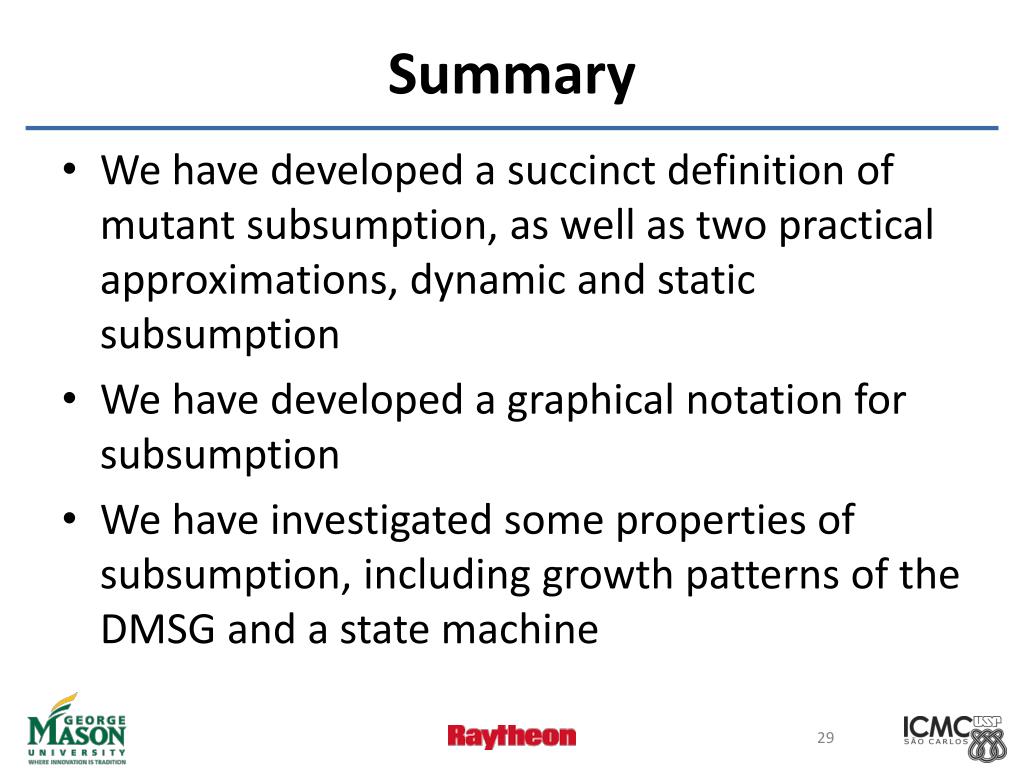

29. Summary • We have developed a succinct definition of mutant subsumption, as well as two practical approximations, dynamic and static subsumption • We have developed a graphical notation for subsumption • We have investigated some properties of subsumption, including growth patterns of the DMSG and a state machine

30. Open Questions • Why are the Java/muJava and C/Proteum subsumption graphs so different? • Can we analyze static subsumption using Java Pathfinder and differential symbolic execution (or some other tools/techniques)? • How do we merge dynamic and static MSGs to get closer to the “true” MSG? • What is the relationship between minimal and “stubborn” mutants?

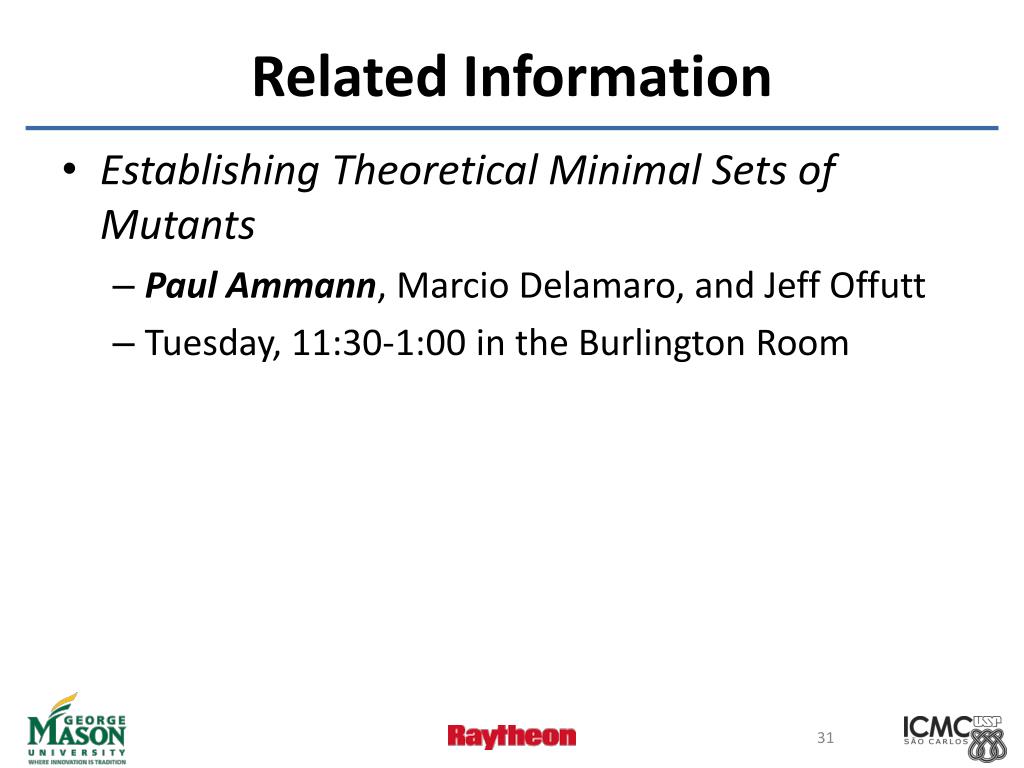

31. Related Information • Establishing Theoretical Minimal Sets of Mutants • Paul Ammann, MarcioDelamaro, and Jeff Offutt • Tuesday, 11:30-1:00 in the Burlington Room

32. Questions? rkurtz2@gmu.edu

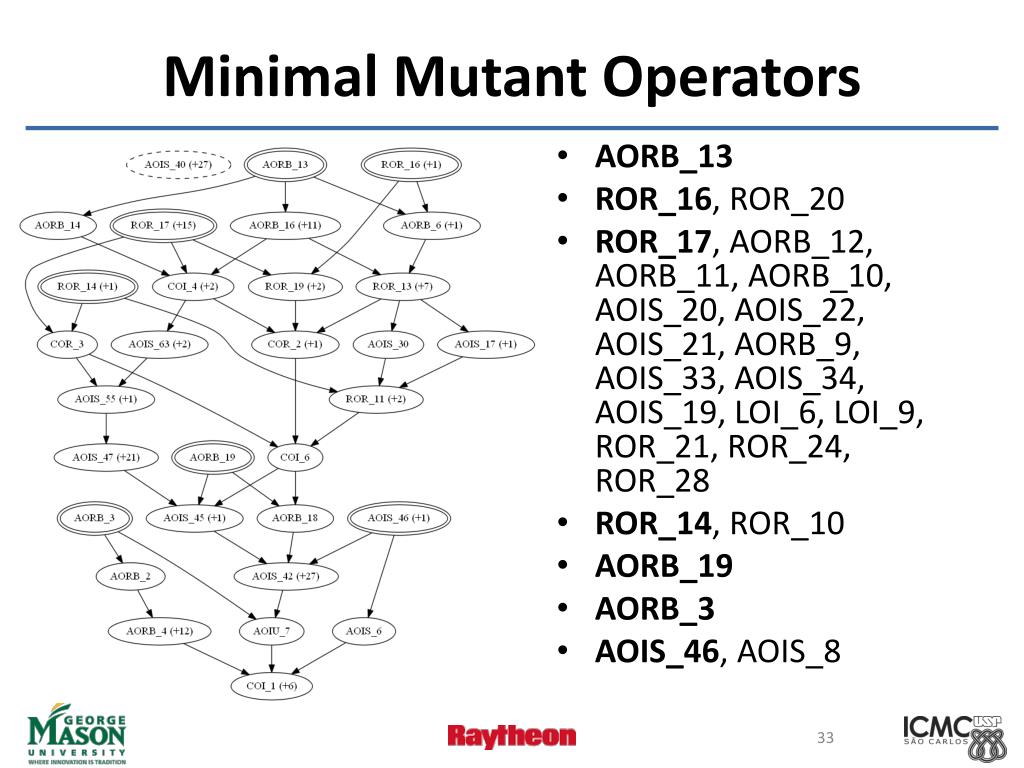

33. Minimal Mutant Operators • AORB_13 • ROR_16, ROR_20 • ROR_17, AORB_12, AORB_11, AORB_10, AOIS_20, AOIS_22, AOIS_21, AORB_9, AOIS_33, AOIS_34, AOIS_19, LOI_6, LOI_9, ROR_21, ROR_24, ROR_28 • ROR_14, ROR_10 • AORB_19 • AORB_3 • AOIS_46, AOIS_8

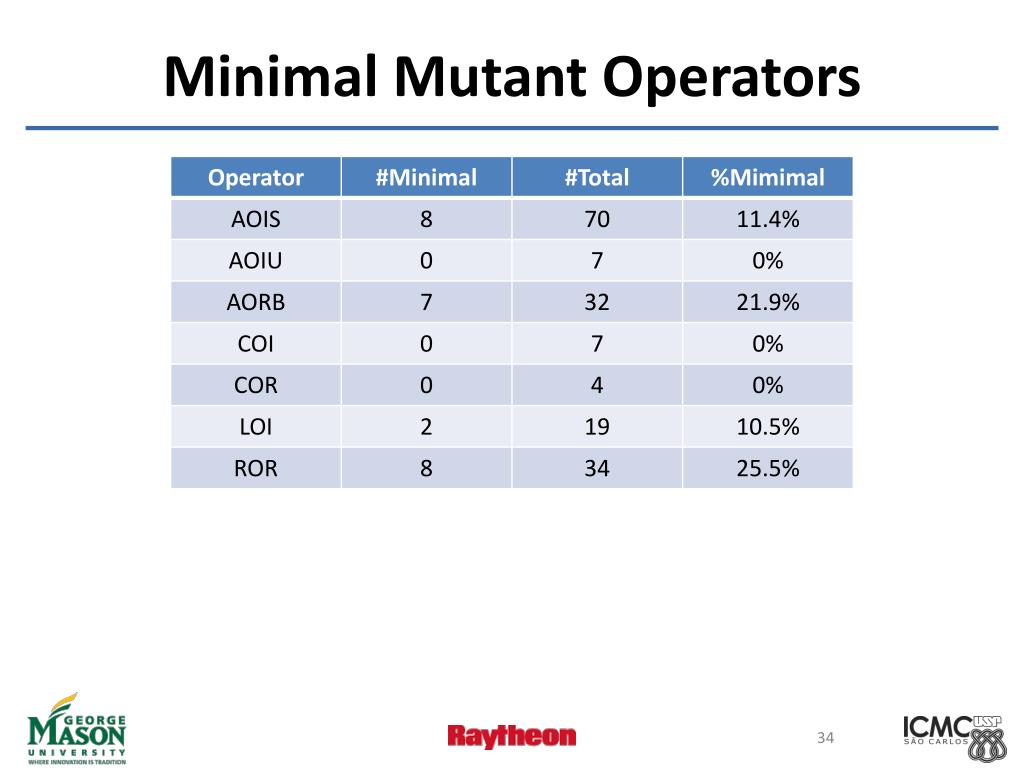

34. Minimal Mutant Operators
