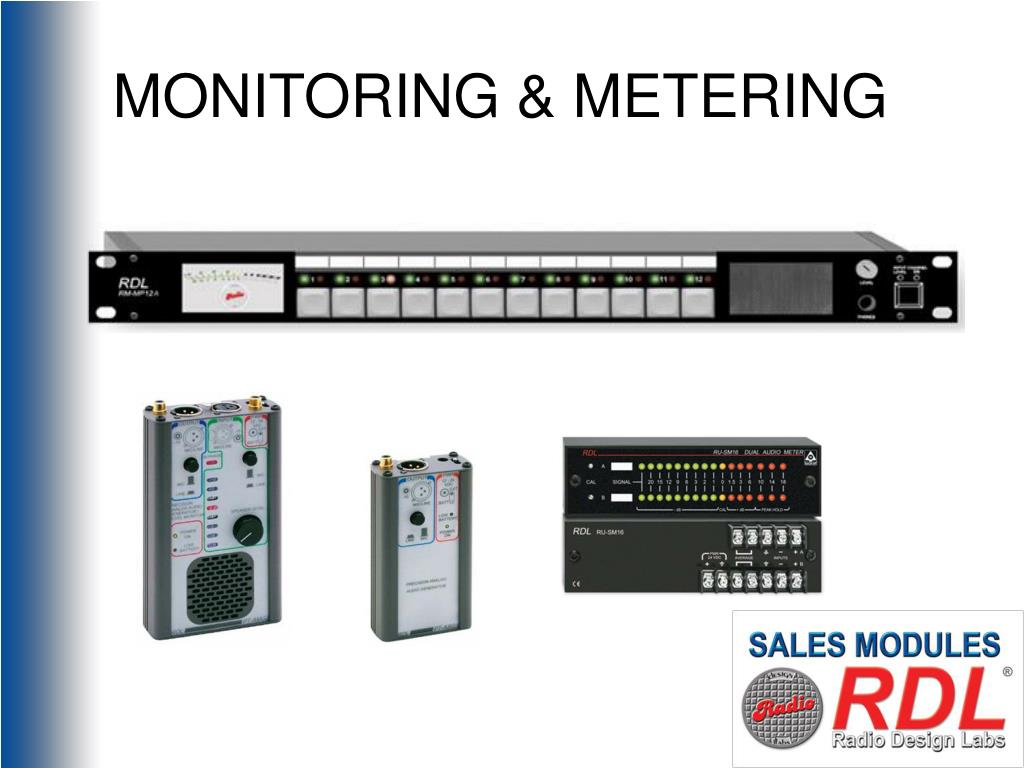

  1. MONITORING & METERING

  2. MONITOR Rack Mount Audio Monitor Panel • Listen to single or multiple input sources • 12 individual line or speaker level inputs; +4 dBu, -10 dBV, 25/70/100 V, 8 or 4 Ohms • Signal presence LED per input • LED indicator identifies selected source(s) • Master LED VU meter • Built-in amplifier and speaker • Front panel headphone jack RM-MP12A

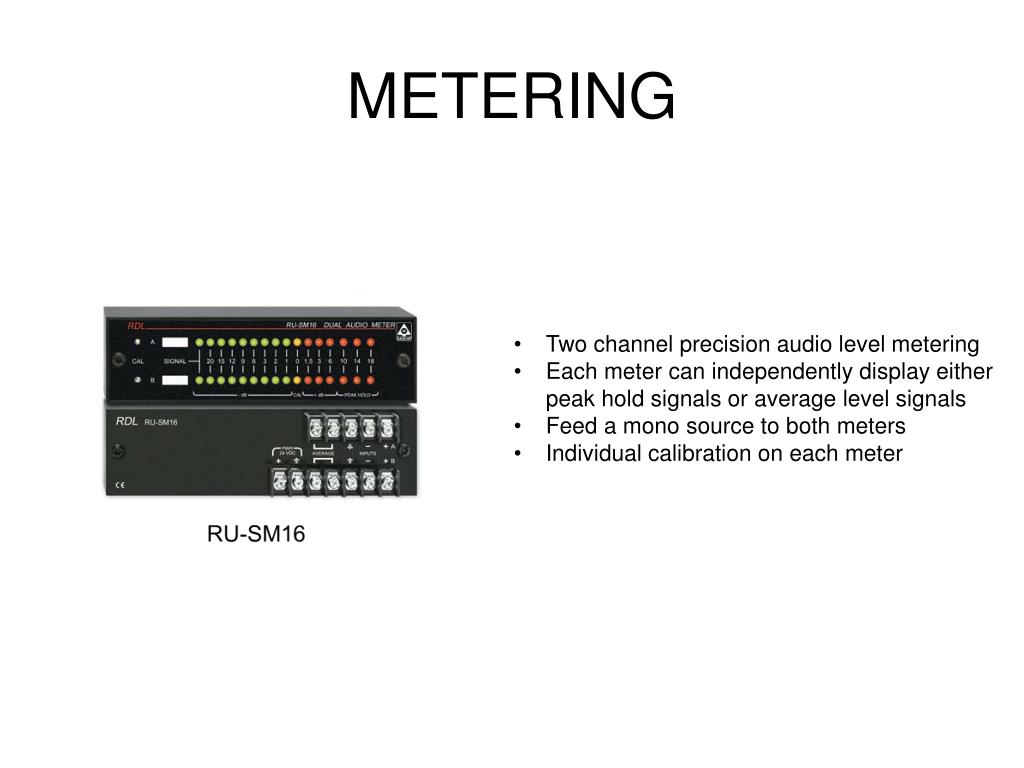

  3. METERING • Two channel precision audio level metering • Each meter can independently display either peak hold signals or average level signals • Feed a mono source to both meters • Individual calibration on each meter

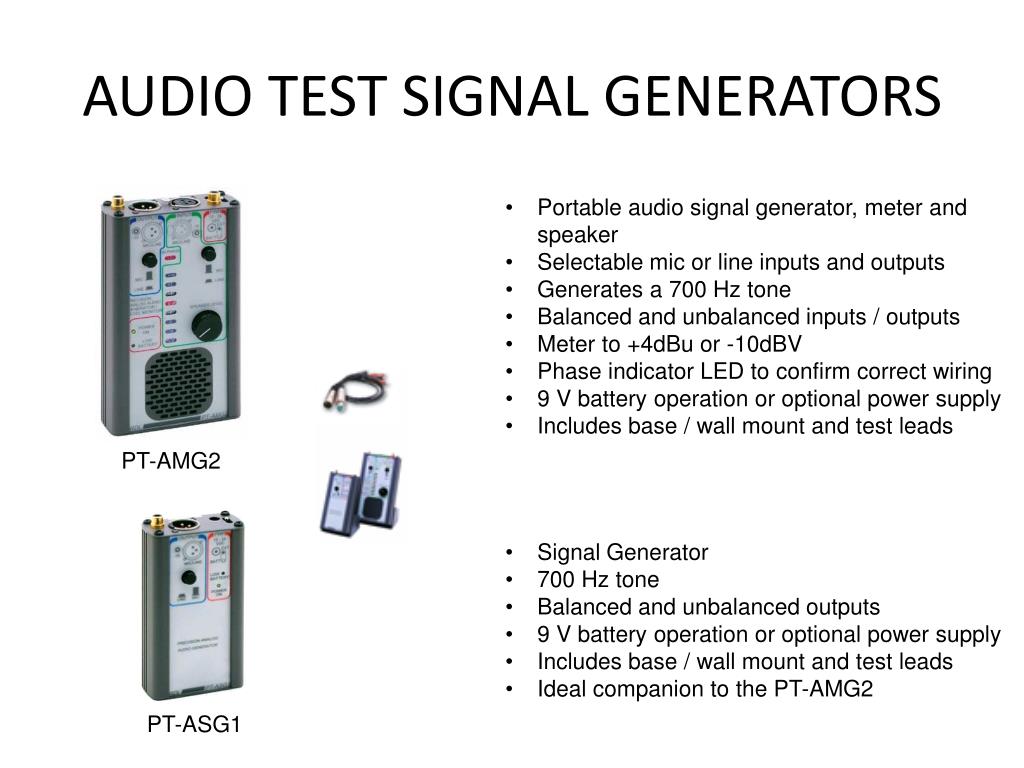

  4. Audio Test Signal Generators • Portable audio signal generator, meter and speaker • Selectable mic or line inputs and outputs • Generates a 700 Hz tone • Balanced and unbalanced inputs / outputs • Meter to +4dBu or -10dBV • Phase indicator LED to confirm correct wiring • 9 V battery operation or optional power supply • Includes base / wall mount and test leads PT-AMG2 • Signal Generator • 700 Hz tone • Balanced and unbalanced outputs • 9 V battery operation or optional power supply • Includes base / wall mount and test leads • Ideal companion to the PT-AMG2 PT-ASG1
