The Cycles of the Moon

1. The Cycles of the Moon

2. Guidepost In the preceding program, we saw how the sun dominates our sky and determines the seasons. The moon is not as bright as the sun, but the moon passes through dramatic phases and occasionally participates in eclipses. The sun dominates the daytime sky, but the moon rules the night.

3. The Cycles of the Moon • As we try to understand the appearance and motions of the moon in the sky, we discover that what we see is a product of light and shadow. To understand the appearance of the universe, we must understand light. Later programs will show that much of astronomy hinges on the behavior of light.

4. In the next program, we will see how Renaissance astronomers found a new way to describe the appearance of the sky and the motions of the sun, moon, and planets.

5. New Terms sidereal period synodic period spring tides neap tides umbra penumbra total eclipse (lunar or solar) partial eclipse (lunar or solar) penumbral eclipse small-angle formula path of totality photosphere corona chromosphere prominence diamond ring effect  annular eclipse perigee apogee node eclipse season line of nodes eclipse year saros cycle

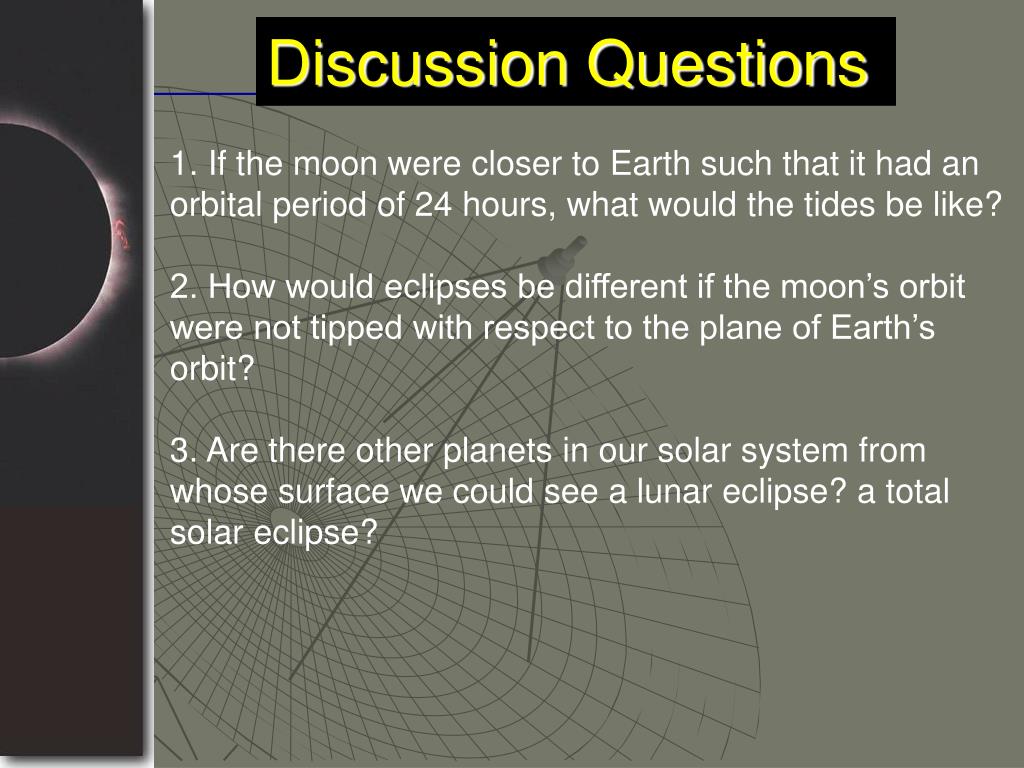

6. Discussion Questions 1. If the moon were closer to Earth such that it had an orbital period of 24 hours, what would the tides be like? 2. How would eclipses be different if the moon’s orbit were not tipped with respect to the plane of Earth’s orbit? 3. Are there other planets in our solar system from whose surface we could see a lunar eclipse? a total solar eclipse?

7. Outline I. The Changeable Moon A. The Motion of the Moon B. The Cycle of Phases II. The Tides A. The Cause of the Tides B. Tidal Effects III. Lunar Eclipses A. Earth's Shadow B. Total Lunar Eclipses C. Partial and Penumbral Lunar Eclipses

8. Outline (continued) IV. Solar Eclipses A. The Angular Diameter of the Sun and Moon B. The Moon's Shadow C. Total Solar Eclipses V. Predicting Eclipses A. Conditions for an Eclipse B. The View From Space C. The Saros Cycle

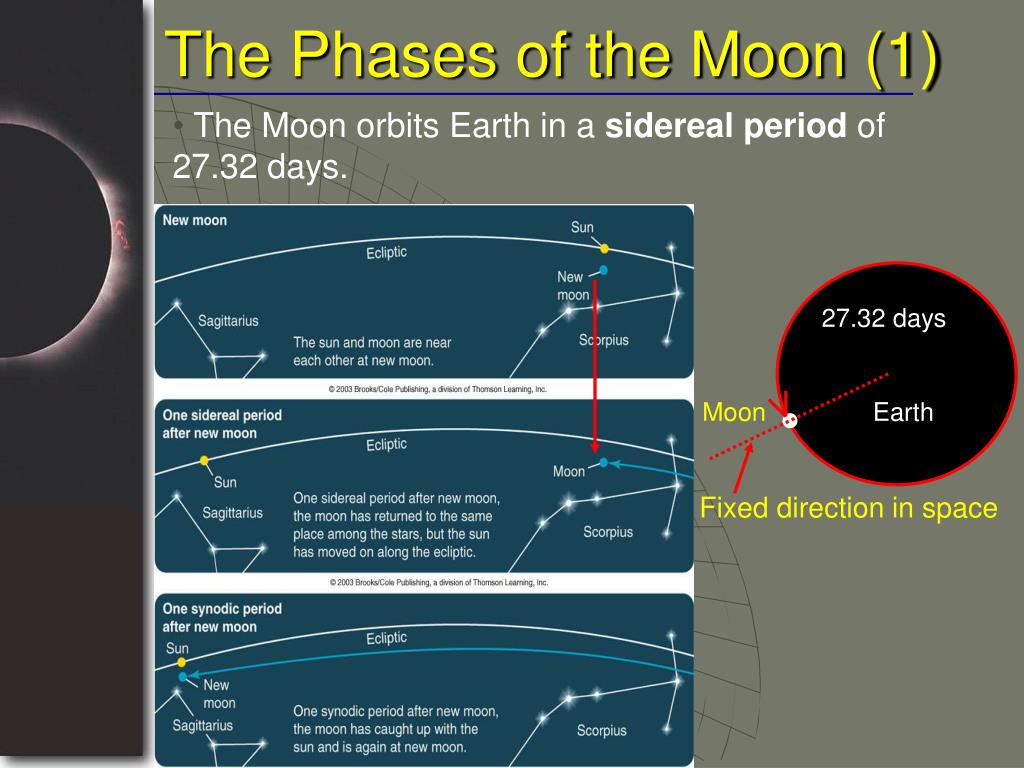

9. The Phases of the Moon (1) • The Moon orbits Earth in a sidereal period of 27.32 days. 27.32 days Moon Earth Fixed direction in space

10. The Phases of the Moon (2) Fixed direction in space 29.53 days Earth Moon Earth orbits around Sun => Direction toward Sun changes! • The Moon’s synodic period (to reach the same position relative to the sun) is 29.53 days (~ 1 month).

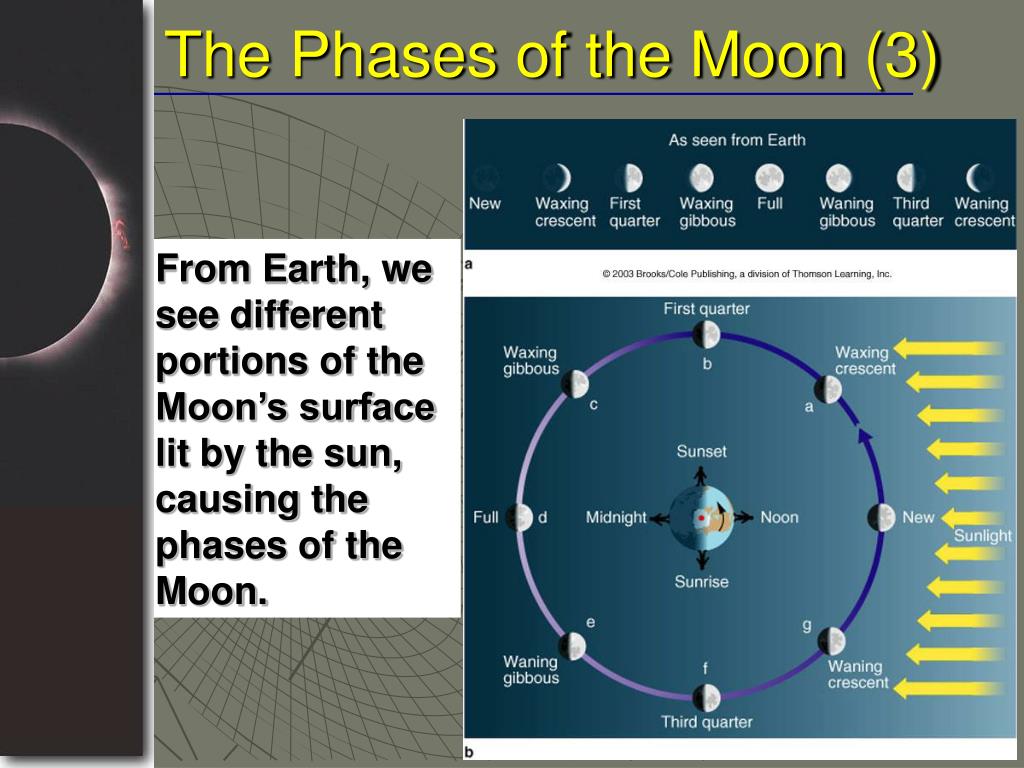

11. The Phases of the Moon (3) From Earth, we see different portions of the Moon’s surface lit by the sun, causing the phases of the Moon.

12. Lunar Phases (SLIDESHOW MODE ONLY)

13. The Phases of the Moon (4) Evening Sky New Moon  First Quarter  Full Moon

14. The Phases of the Moon (5) Morning Sky Full Moon  Third Quarter  New Moon

15. The Tides Caused by the difference of the Moon’s gravitational attraction on the water on Earth Excess gravity pulls water towards the moon on the near side Forces are balanced at the center of the Earth Excess centrifugal force pushes water away from the moon on the far side  2 tidal maxima  12-hour cycle

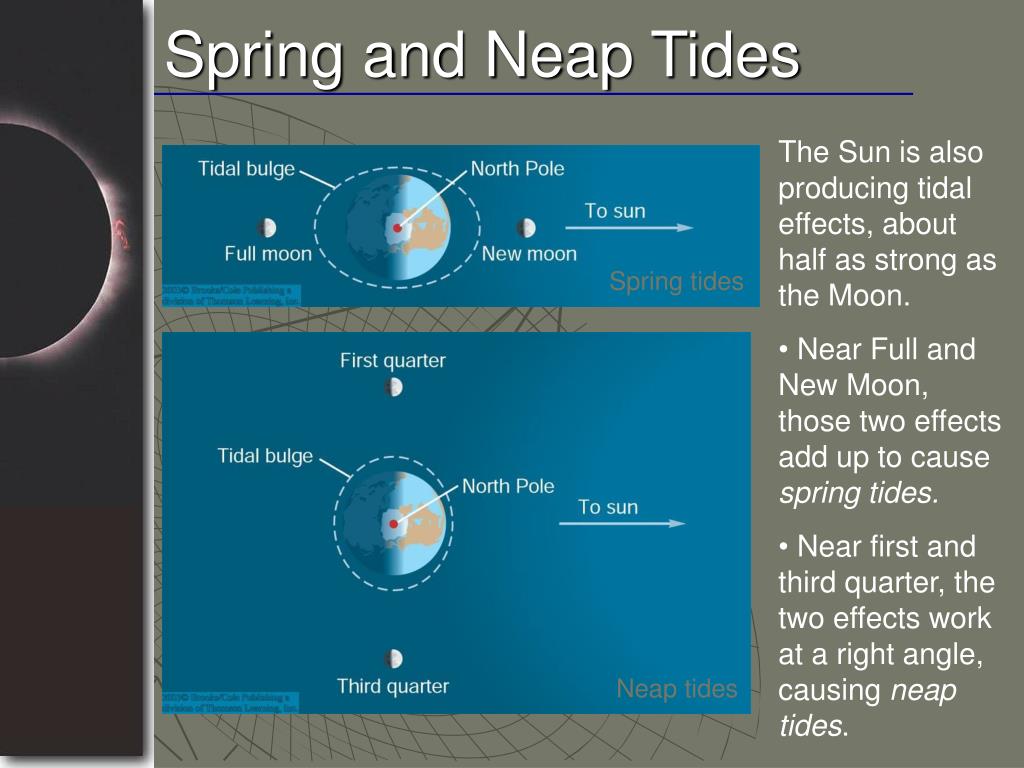

16. Spring and Neap Tides • The Sun is also producing tidal effects, about half as strong as the Moon. • Near Full and New Moon, those two effects add up to cause spring tides. • Near first and third quarter, the two effects work at a right angle, causing neap tides. Spring tides Neap tides

17. The Tidally-Locked Orbit of the Moon The Earth also exerts tidal forces on the moon’s rocky interior.  It is rotating with the same period around its axis as it is orbiting Earth (tidally locked).  We always see the same side of the moon facing Earth.

18. Acceleration of the Moon’s Orbital Motion Earth’s tidal bulges are slightly tilted in the direction of Earth’s rotation. Gravitational force pulls the moon slightly forward along its orbit.

19. Lunar Eclipses Earth’s shadow consists of a zone of partial shadow, the Penumbra, and a zone of full shadow, the Umbra. If the moon passes through Earth’s full shadow (Umbra), we see a lunar eclipse. If the entire surface of the moon enters the Umbra, the lunar eclipse is total.

20. A Total Lunar Eclipse (1)

21. A Total Lunar Eclipse (2) A total lunar eclipse can last up to 1 hour and 40 min. During a total eclipse, the moon has a faint, red glow, reflecting sun light scattered in Earth’s atmosphere.

22. Lunar Eclipses: 2002-2012 Typically, 1 or 2 lunar eclipses per year.

23. Small Angle Formula (SLIDESHOW MODE ONLY)

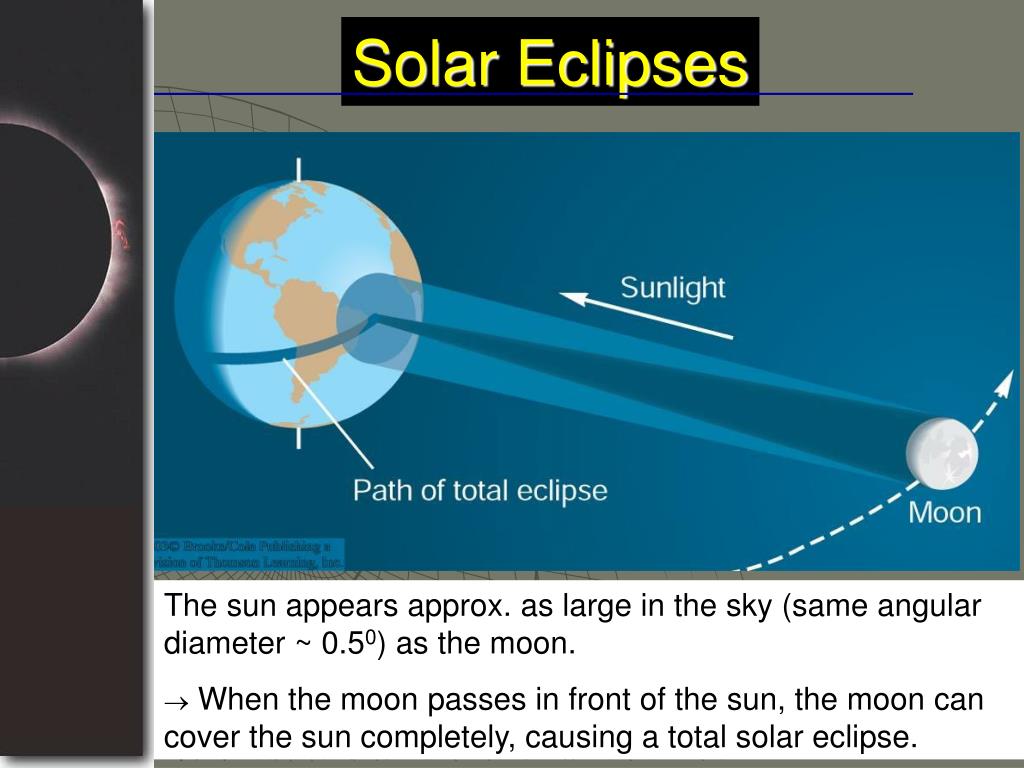

24. Solar Eclipses The sun appears approx. as large in the sky (same angular diameter ~ 0.50) as the moon. When the moon passes in front of the sun, the moon can cover the sun completely, causing a total solar eclipse.

25. Solar Eclipses: 2002-2012 Approximately 1 total solar eclipse per year

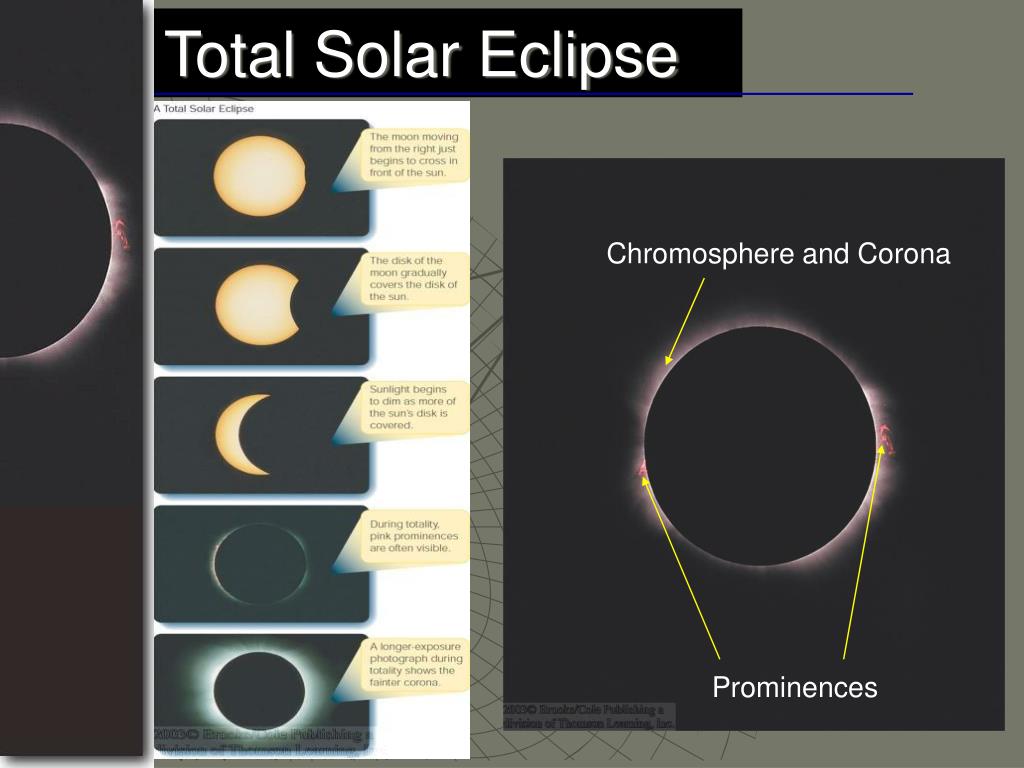

26. Total Solar Eclipse Chromosphere and Corona Prominences

27. Solar Atmosphere Revealed

28. Diamond Ring Effect

29. Earth and Moon’s Orbits Are Slightly Elliptical Apogee = position furthest away from Earth Earth Perihelion = position closest to the sun Moon Perigee = position closest to Earth Sun Aphelion = position furthest away from the sun (Eccentricities greatly exaggerated!)

30. Annular Solar Eclipses When Earth is near perihelion, and the moon is near apogee, we see an annular solar eclipse. The angular sizes of the moon and the sun vary, depending on their distance from Earth. Perigee Apogee Aphelion Perihelion

31. Annular Solar Eclipses (2) Almost total, annular eclipse of May 30, 1984

32. Conditions for Eclipses (1) The moon’s orbit is inclined against the ecliptic by ~ 50. A lunar eclipse can only occur if the moon passes a node near full moon. A solar eclipse can only occur if the moon passes a node near new moon.

33. Conditions for Eclipses (2) Eclipses occur in a cyclic pattern. Saros cycle: 18 years, 11 days, 8 hours

34. The Saros Cycle

35. Quiz Questions 1. Which statement below best describes the motion of the Moon relative to the stars? a. The Moon moves eastward relative to the stars about 1 degree per day. b. The Moon moves westward relative to the stars about 1 degree per day. c. The Moon moves eastward relative to the stars about 13 degrees per day. d. The Moon moves westward relative to the stars about 13 degrees per day. e. The Moon does not move relative to the stars.

36. Quiz Questions 2. How does the Moon's motion relative to the stars compare to the Sun's motion relative to the stars? a. The Moon moves slower than the Sun and in the same direction. b. The Moon moves faster than the Sun and in the same direction. c. The Moon moves slower than the Sun and in the opposite direction. d. The Moon moves faster than the Sun and in the opposite direction. e. The Moon does not move relative to the stars.

37. Quiz Questions 3. How does one cycle of the Moon's motion relative to the stars compare to one cycle of the Moon's motion relative to the Sun? a. The two cycles take the same amount of time. b. The cycle relative to the stars is shorter than the cycle relative to the Sun. c. The cycle relative to the stars is longer than the cycle relative to the Sun. d. The two cycles vary in length, such that at times the star cycle is shorter and at other times the Sun cycle is shorter. e. The Moon does not move relative to the Sun.

38. Quiz Questions 4. The time for one cycle of lunar phases is a. about one day. b. about 24.8 hours. c. about one year. d. the same as the time for one cycle of the Moon relative to the stars. e. the same as the time for one cycle of the Moon relative to the Sun.

39. Quiz Questions 5. In one cycle of lunar phases each crescent and gibbous phase has a duration of about one a. hour. b. day. c. week. d. month. e. year.

40. Quiz Questions 6. If the moon reaches Full phase on May 6, it is at _____ phase on May 17. a. New b. Waxing Crescent c. Waxing Gibbous d. Waning Gibbous e. Waning Crescent

41. Quiz Questions 7. During Third Quarter phase, the Moon will rise at about a. Sunrise b. Noon c. Sunset d. Midnight e. There is no way to predict the time that a particular phase rises.

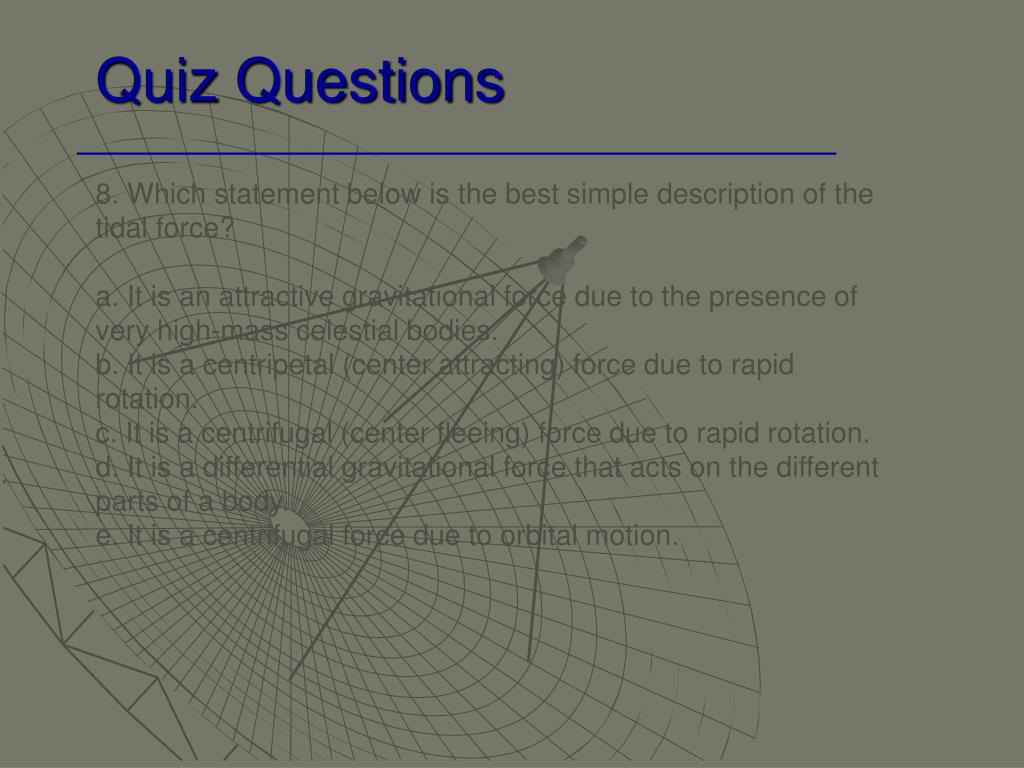

42. Quiz Questions 8. Which statement below is the best simple description of the tidal force? a. It is an attractive gravitational force due to the presence of very high-mass celestial bodies. b. It is a centripetal (center attracting) force due to rapid rotation. c. It is a centrifugal (center fleeing) force due to rapid rotation. d. It is a differential gravitational force that acts on the different parts of a body. e. It is a centrifugal force due to orbital motion.

43. Quiz Questions 9. The ocean tides on Earth are primarily due to the influence of what celestial body? a. The Sun. b. The Moon. c. Venus. d. Mars. e. Jupiter.

44. Quiz Questions 10. How many tidal bulges on planet Earth are due to the Moon's gravitational influence? a. Zero. b. One. c. Two. d. Three. e. Four.

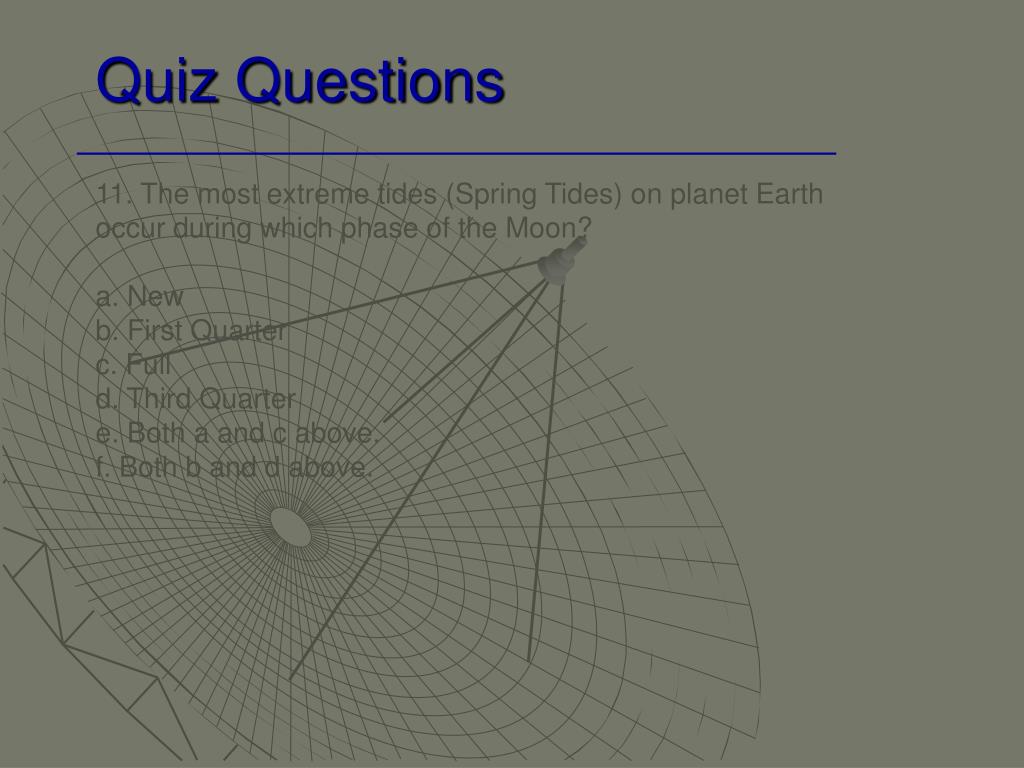

45. Quiz Questions 11. The most extreme tides (Spring Tides) on planet Earth occur during which phase of the Moon? a. New b. First Quarter c. Full d. Third Quarter e. Both a and c above. f. Both b and d above.

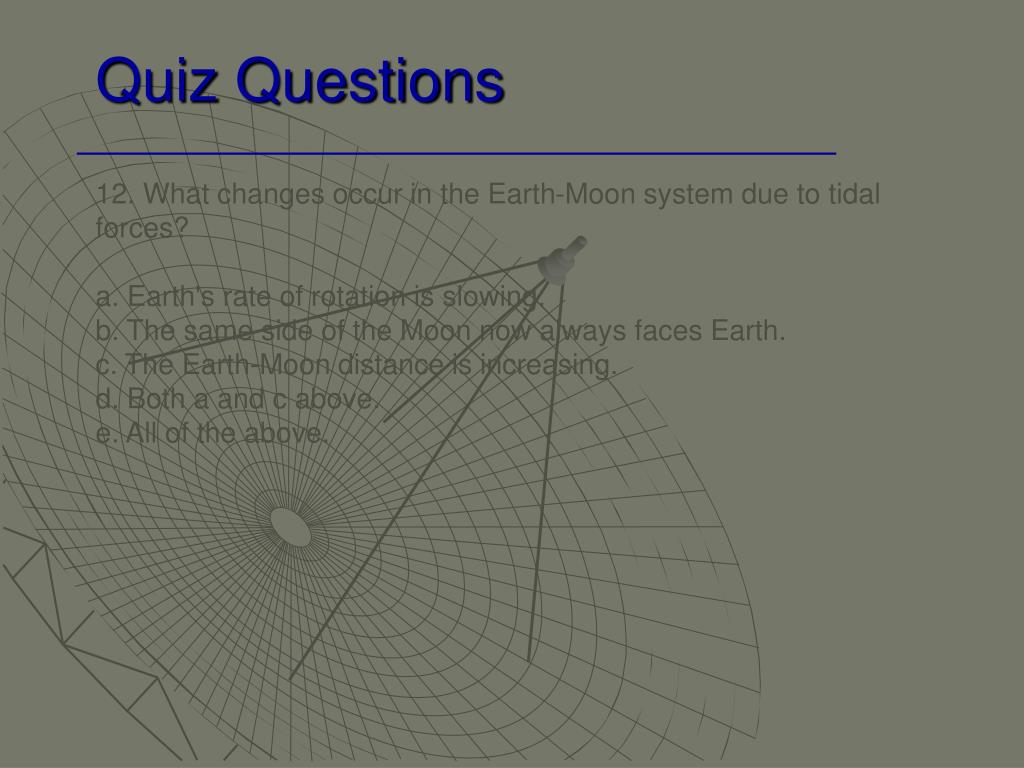

46. Quiz Questions 12. What changes occur in the Earth-Moon system due to tidal forces? a. Earth's rate of rotation is slowing. b. The same side of the Moon now always faces Earth. c. The Earth-Moon distance is increasing. d. Both a and c above. e. All of the above.

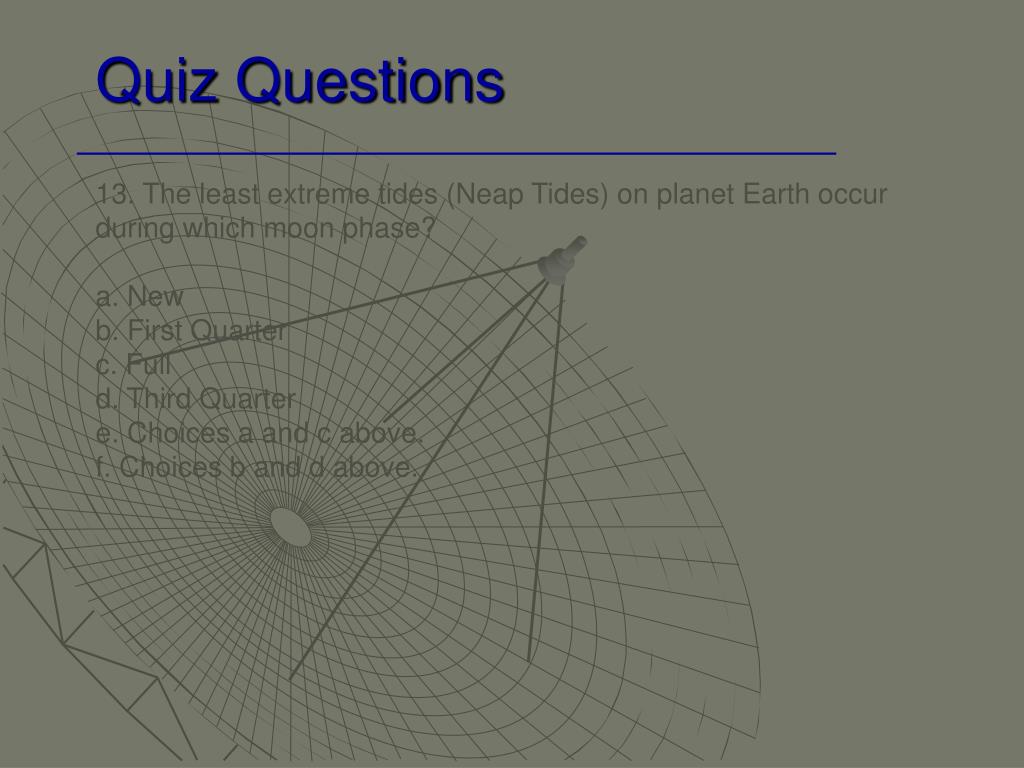

47. Quiz Questions 13. The least extreme tides (Neap Tides) on planet Earth occur during which moon phase? a. New b. First Quarter c. Full d. Third Quarter e. Choices a and c above. f. Choices b and d above.

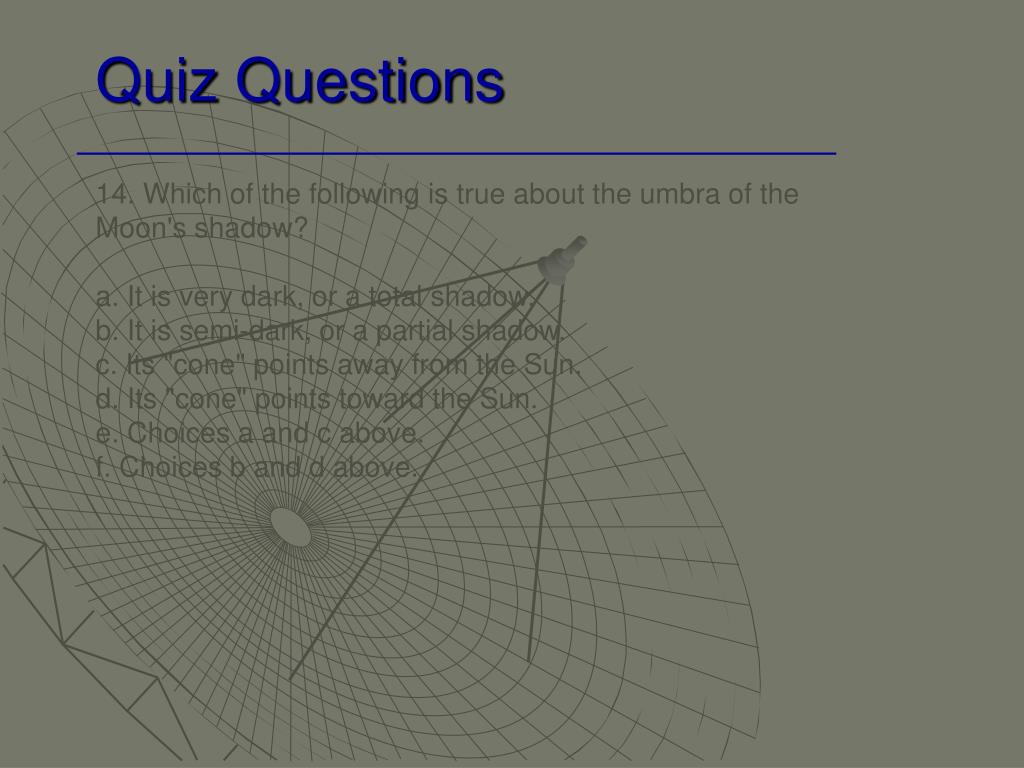

48. Quiz Questions 14. Which of the following is true about the umbra of the Moon's shadow? a. It is very dark, or a total shadow. b. It is semi-dark, or a partial shadow. c. Its "cone" points away from the Sun. d. Its "cone" points toward the Sun. e. Choices a and c above. f. Choices b and d above.

49. Quiz Questions 15. During a total lunar eclipse the Moon is a. completely dark. b. a reddish color. c. in Earth's umbra. d. in Earth's penumbra. e. Both b and c above. f. Both a and c above.

50. Quiz Questions 16. Which type of eclipse may be visible to all the people on one side of Earth? a. An annular eclipse. b. A total solar eclipse. c. A total lunar eclipse. d. None of the above. e. All of the above.
